CV 30/1

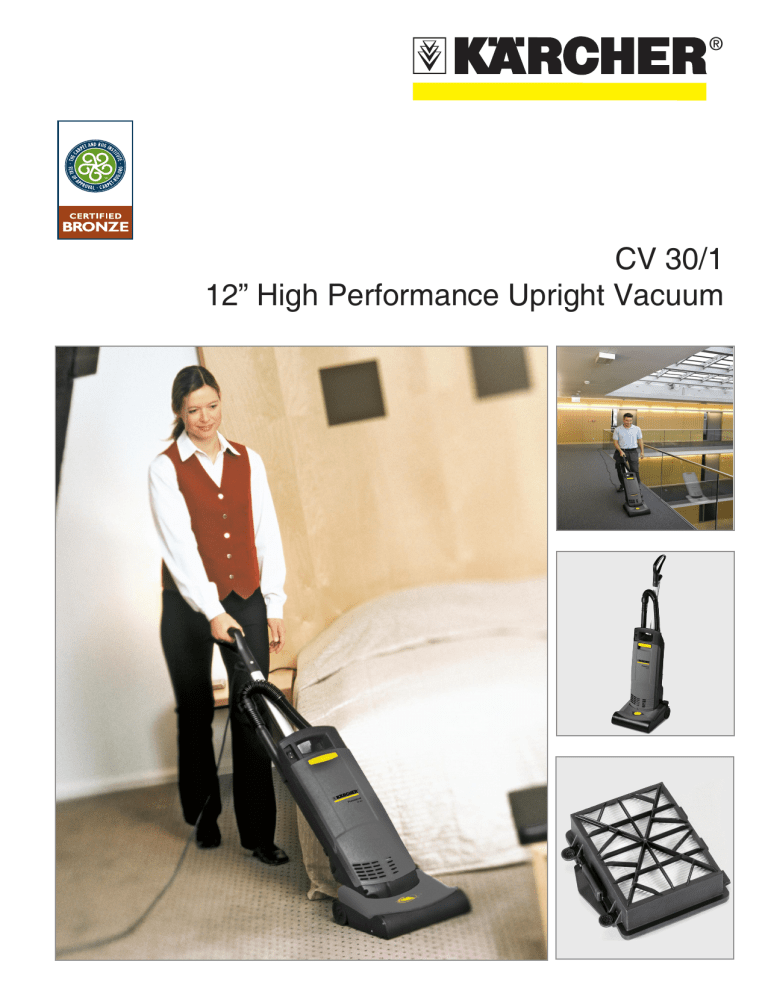

12” High Performance Upright Vacuum
CV 30/1 Upright Vacuum
®
Powerful single-motor brush vacuum cleaner.
High-suction, low handle weight upright vacuum for commercial carpet cleaning duties. Patented features include filter removal
system for dust-free bag changes and unique clutch mechanism to protect from expensive brush head repairs. A powerful
1150 watt motor provides impressive suction performance with 101 cubic feet per minute (CFM) and 81 inches of water lift.
On-board crevice and upholstery tools, extension wand and flexible hose for effortless above the floor cleaning in hard to reach
areas.Optional HEPA filter for those requiring extremely high dust filtration capabilities.
Model
Order #
CV 30/1 12” Single motor commercial upright vacuum
1.023-113.0
Technical Data
Cleaning width
12”
Vacuum motor (two stage)
1150 watt (max.) (1.5 HP)
Air flow rating (CFM)
101.7
Water lift rating
76”
Filter bag capacity
1.45 gallon
Noise level
66 dB(A)
Cord length
39.3 ft.
Weight with cord
17.4 lbs
Dimensions (w x h)
12 “ x 49.2”
Machine Elements
Standard Equipment
Upholstery tool
6.900-233.0
Crevice tool
6.906-240.0
Fleece filter bags (10 pack- 1 included with unit)
6.904-305.0
Vacuum motor secondary filter
5.731-611.0
Standard bristle strip (black)
6.906-643.0
Applications
•
•
•
•
Hotels and Restaurants
Hospitals
Offices
Shops & Boutiques
•
•
•
Craftsmen
Trade
Retail & Wholesale
Solution tube
Cover filter housing
Bumper & wheels
Cable hook
Elastic suction hose
Filter contol lamp
Foot lever-lock out release brush head
Optional Accessories
Tear-proof high performance fleece filter bag
(10-pack)
6.904-305.0
High performance fleece filter bags (300 pack)
6.904-309.0
Paper filter bags (10)
6.904-294.0
Paper filter bags (carton of 300)
6.904-303.0
Cloth filter bag (1)
6.904-301.0
HEPA filter
6.414-760.0
Exhaust filter foam replacement (3-pack)
6.414-765.0
Motor secundary filter
5.731-611.0
Brush replacement (black)
6.906-641.0
Hard bristle brush-difficult applications (red)
6.906-642.0
YOUR AUTHORIZED KÄRCHER DEALER:
Kärcher Canada Inc.
www.karcher.ca
[email protected]
888-705-9444 • Fax 800-465-6013
