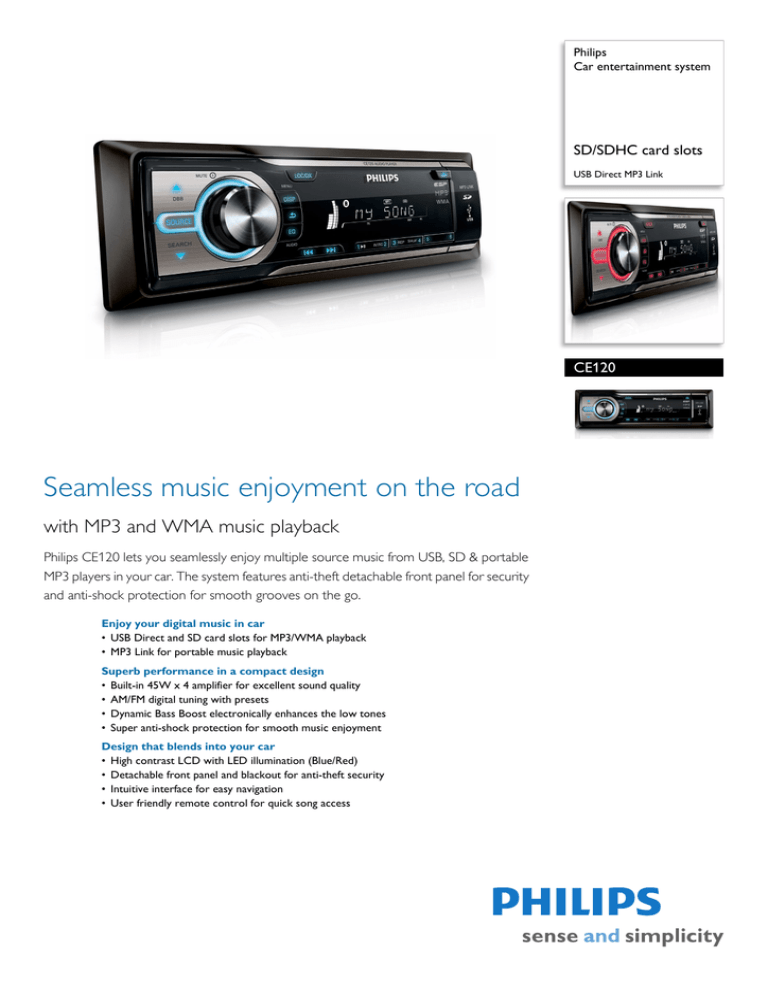

Philips CE120/55 Datasheet

Philips CE120/55 Datasheet
Car entertainment system
SD/SDHC card slots
USB Direct MP3 Link
Seamless music enjoyment on the road
with MP3 and WMA music playback
Philips CE120 lets you seamlessly enjoy multiple source music from USB, SD & portable
MP3 players in your car. The system features anti-theft detachable front panel for security
and anti-shock protection for smooth grooves on the go.
Enjoy your digital music in car
• USB Direct and SD card slots for MP3/WMA playback
• MP3 Link for portable music playback
Superb performance in a compact design
• Built-in 45W x 4 amplifier for excellent sound quality
• AM/FM digital tuning with presets
• Dynamic Bass Boost electronically enhances the low tones
• Super anti-shock protection for smooth music enjoyment
Design that blends into your car
• High contrast LCD with LED illumination (Blue/Red)
• Detachable front panel and blackout for anti-theft security
• Intuitive interface for easy navigation
• User friendly remote control for quick song access
Car entertainment system
SD/SDHC card slots USB Direct MP3 Link
• Type: High contrast B/W LCD (8 characters)
• Key illumination: Blue/Red
Audio Playback
Compression format: MP3, WMA, WMA9
MP3 bit rates: 32-320kbps and variable bit rate
ID3 Tag support: Song title, artist, album
USB Direct / SD Modes: Play/Pause, Fast
Backward/Fast Forward, Previous/Next, Repeat,
Tuner Bands: AM, FM Stereo
Auto digital tuning
No. of preset stations: 18(FM), 12(AM)
Tuner Enhancements: Auto search and store
• Output power (MAX): 45Wx4 channels
• Output power (RMS): 22Wx4 channels (4 ohms,
10% T.H.D.)
• Equalizer: 2-bands
• Equalizer settings: Classic, Jazz, Pop, Rock, Flat,
Optimal, Techno, User defined
• Sound Enhancement: Dynamic Bass Boost
USB: USB 2.0 Host
Memory card: SD, SDHC
MP3-Link: For portable MP3 music playback
Preamp output: 1 pair RCA(L/R)
DBB Dynamic Bass Boost
• Front panel: Detachable
• Display blackout: 10/20 sec selectable
Remote control: Slim remote with battery
Optional frame: Silver color
Quick start guide: Brazilian Portuguese, Spanish
User Manual: Brazilian Portuguese, Spanish
• Power supply: 12V DC
Activate the Dynamic Bass Boost (DBB), and the
low-end bass frequencies are electronically
enhanced to achieve consistent sound reproduction,
especially when the speaker volume is set at a low
level. You hear impressive bass at all times.
Detachable front panel
• Product dimensions (W x H x D):
188 x 58 x 128 mm
• Chassis: 1 Din
Detachable front panel and blackout for anti-theft
MP3 Link
The MP3 link connectivity allows direct playback of
MP3 content from portable media players. Besides
the benefit of enjoying your favorite music in the
superior sound quality delivered by the audio
system, the MP3 link is also extremely convenient as
all you have to do is to plug your portable MP3 player
to the audio system.
USB Direct and SD card slots
Issue date 2011-01-06
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 48647
EAN: 87 12581 45857 7
Thanks to the complete file transferability, you can
easily enjoy the convenience and fun of accessing
more digital music via the built-in USB Direct and SD
card slots.
