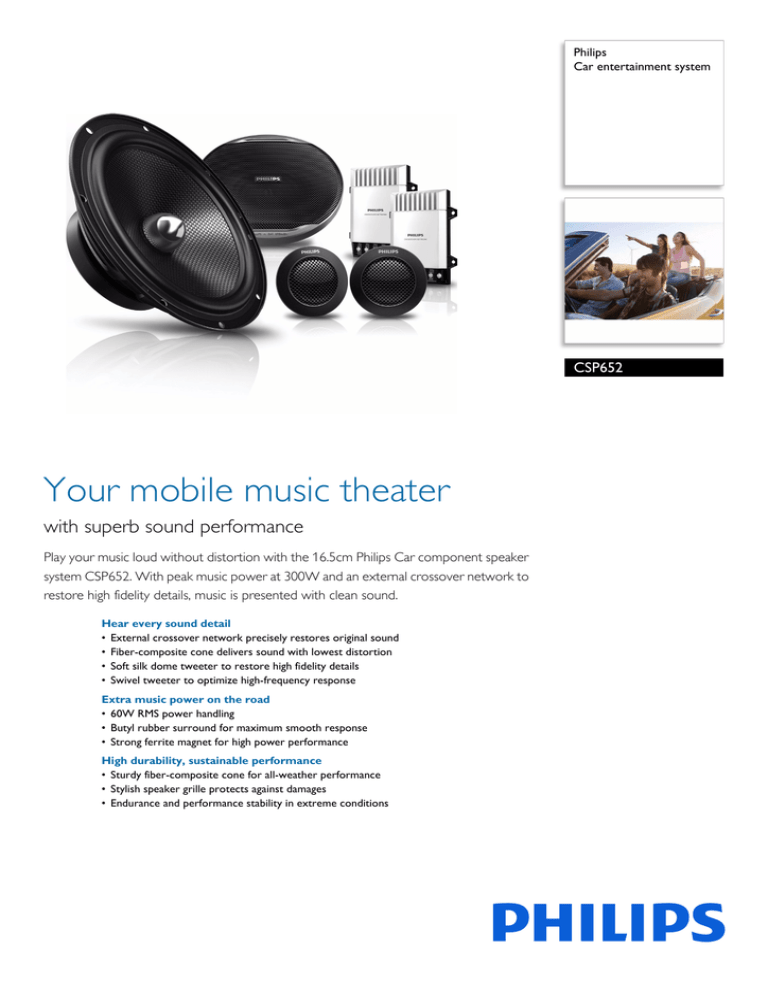

Philips CSP652
Car entertainment system
Your mobile music theater
with superb sound performance
Play your music loud without distortion with the 16.5cm Philips Car component speaker
system CSP652. With peak music power at 300W and an external crossover network to
restore high fidelity details, music is presented with clean sound.
Hear every sound detail
• External crossover network precisely restores original sound
• Fiber-composite cone delivers sound with lowest distortion
• Soft silk dome tweeter to restore high fidelity details
• Swivel tweeter to optimize high-frequency response
Extra music power on the road
• 60W RMS power handling
• Butyl rubber surround for maximum smooth response
• Strong ferrite magnet for high power performance
High durability, sustainable performance
• Sturdy fiber-composite cone for all-weather performance
• Stylish speaker grille protects against damages
• Endurance and performance stability in extreme conditions
Car entertainment system
Output power (RMS): 60W
Peak Music Power: 300W
Sensitivity: 91dB
Frequency response: 34-35k Hz
Impedance: 4 Ohms
Speaker type: Component speaker
Number of ways: 2-way
Speaker size: 16.5cm (6.5")
Number of Loudspeakers: 4
Diaphragm: Cone
Diaphragm material: Fiber-composite
Surround: Rubber
Voice coil: Single
Voice coil material: Copper
Magnet: Ferrite
Magnet mass: 18.8 Oz
Damper: Conex
Size: 36mm (1-2/5" )
Diaphragm: Dome
Diaphragm material: Silk
Magnet: Neodynium
Mounting options: Angle mounting, Flush
mounting, Surface mounting, Swivel mounting
Crossover network: Passive
Speaker grille: With metal net
Quick start guide: English, Simplified Chinese
Angle adapter: 2
Fix frame: 2
Mounting bracket: 2
Cables: Speaker wires
• Product dimensions (W x H x D):
172 x 84 x 172 mm
• Mounting depth: 62.8 mm
Issue date 2014-02-12
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 56234
EAN: 87 12581 50430 4
