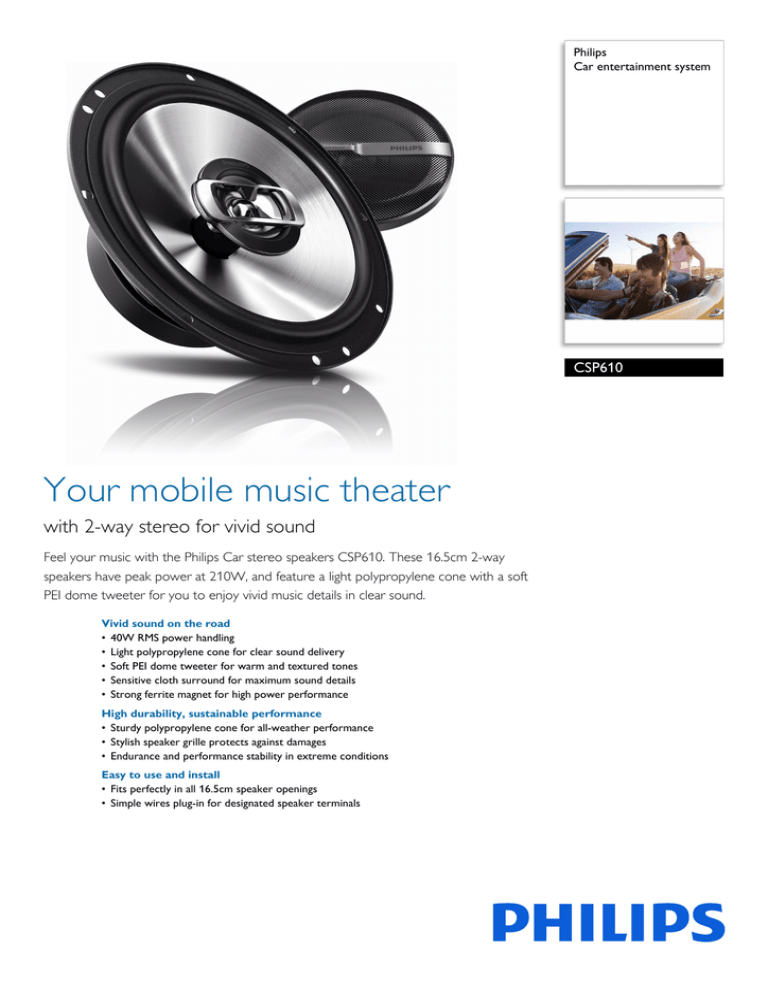

Philips CSP610/55 Datasheet

Philips CSP610/55 Datasheet
Car entertainment system
Your mobile music theater
with 2-way stereo for vivid sound
Feel your music with the Philips Car stereo speakers CSP610. These 16.5cm 2-way
speakers have peak power at 210W, and feature a light polypropylene cone with a soft
PEI dome tweeter for you to enjoy vivid music details in clear sound.
Vivid sound on the road
• 40W RMS power handling
• Light polypropylene cone for clear sound delivery
• Soft PEI dome tweeter for warm and textured tones
• Sensitive cloth surround for maximum sound details
• Strong ferrite magnet for high power performance
High durability, sustainable performance
• Sturdy polypropylene cone for all-weather performance
• Stylish speaker grille protects against damages
• Endurance and performance stability in extreme conditions
Easy to use and install
• Fits perfectly in all 16.5cm speaker openings
• Simple wires plug-in for designated speaker terminals
Car entertainment system
Output power (RMS): 40W
Peak Music Power: 210W
Sensitivity: 90dB
Frequency response: 40-30k Hz
Impedance: 4 Ohms
Speaker type: Coaxial speaker
Number of ways: 2-way
Speaker size: 16.5cm (6.5")
Number of Loudspeakers: 2
Diaphragm: Cone
Diaphragm material: Polypropylene
Surround: Cloth
Voice coil: Single
Voice coil material: Copper
Magnet: Ferrite
• Magnet mass: 7.6 Oz
• Damper: Conex
Size: 38mm (1-1/2" )
Diaphragm: Dome
Diaphragm material: PEI
Magnet: Neodynium
• Speaker grille: With metal net
• Quick start guide: English, Simplified Chinese
• Cables: Speaker wires
• Product dimensions (W x H x D):
173 x 81 x 173 mm
• Mounting depth: 57.8 mm
• Tweeter protrusion: 4 mm
Issue date 2014-02-12
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 56568
EAN: 87 12581 50768 8
