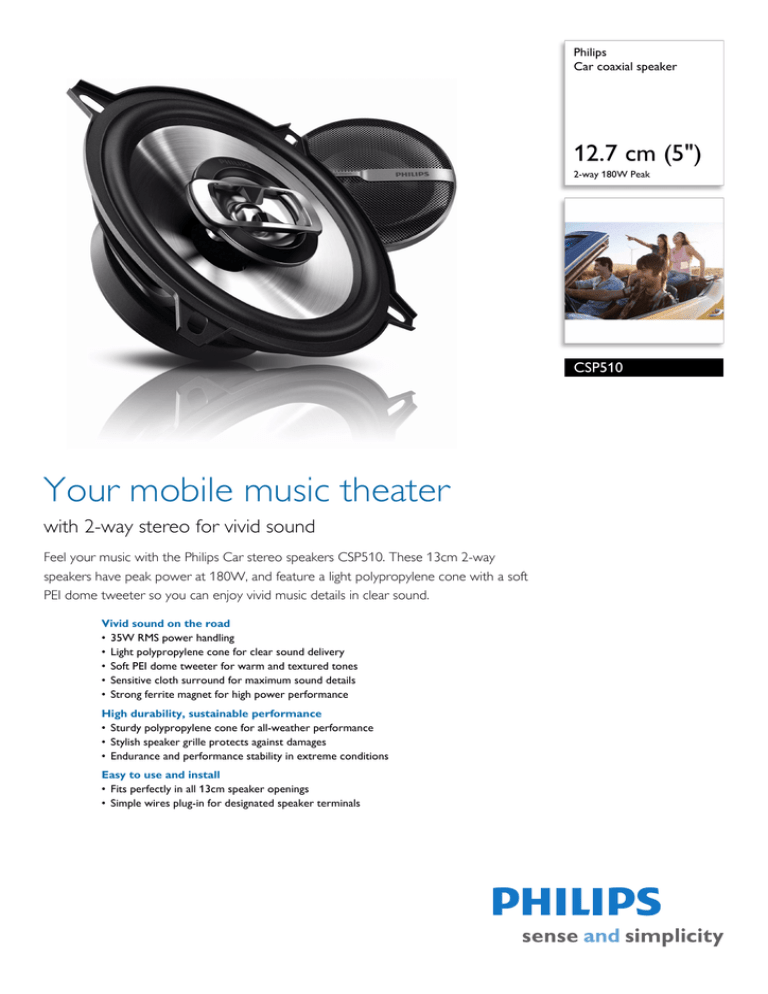

Philips CSP510/55 Datasheet

Philips CSP510/55 Datasheet
Car coaxial speaker
12.7 cm (5")
2-way 180W Peak
Your mobile music theater
with 2-way stereo for vivid sound
Feel your music with the Philips Car stereo speakers CSP510. These 13cm 2-way
speakers have peak power at 180W, and feature a light polypropylene cone with a soft
PEI dome tweeter so you can enjoy vivid music details in clear sound.
Vivid sound on the road
• 35W RMS power handling
• Light polypropylene cone for clear sound delivery
• Soft PEI dome tweeter for warm and textured tones
• Sensitive cloth surround for maximum sound details
• Strong ferrite magnet for high power performance
High durability, sustainable performance
• Sturdy polypropylene cone for all-weather performance
• Stylish speaker grille protects against damages
• Endurance and performance stability in extreme conditions
Easy to use and install
• Fits perfectly in all 13cm speaker openings
• Simple wires plug-in for designated speaker terminals
Car coaxial speaker
12.7 cm (5") 2-way 180W Peak
Output power (RMS): 35W
Peak Music Power: 180W
Sensitivity: 89dB
Frequency response: 45-30k Hz
Impedance: 4 Ohms
Speaker type: Coaxial speaker
Number of ways: 2-way
Speaker size: 13cm (5.25")
Number of Loudspeakers: 2
Diaphragm: Cone
Diaphragm material: Polypropylene
Surround: Cloth
Voice coil: Single
Voice coil material: Copper
Magnet: Ferrite
• Magnet mass: 6.4 Oz
• Damper: Conex
Size: 38mm (1-1/2" )
Diaphragm: Dome
Diaphragm material: PEI
Magnet: Neodynium
• Speaker grille: With metal net
• Quick start guide: English, Simplified Chinese
• Cables: Speaker wires
• Product dimensions (W x H x D):
159 x 67 x 159 mm
• Mounting depth: 47 mm
• Tweeter protrusion: 4 mm
Issue date 2011-10-18
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 56233
EAN: 87 12581 50429 8
