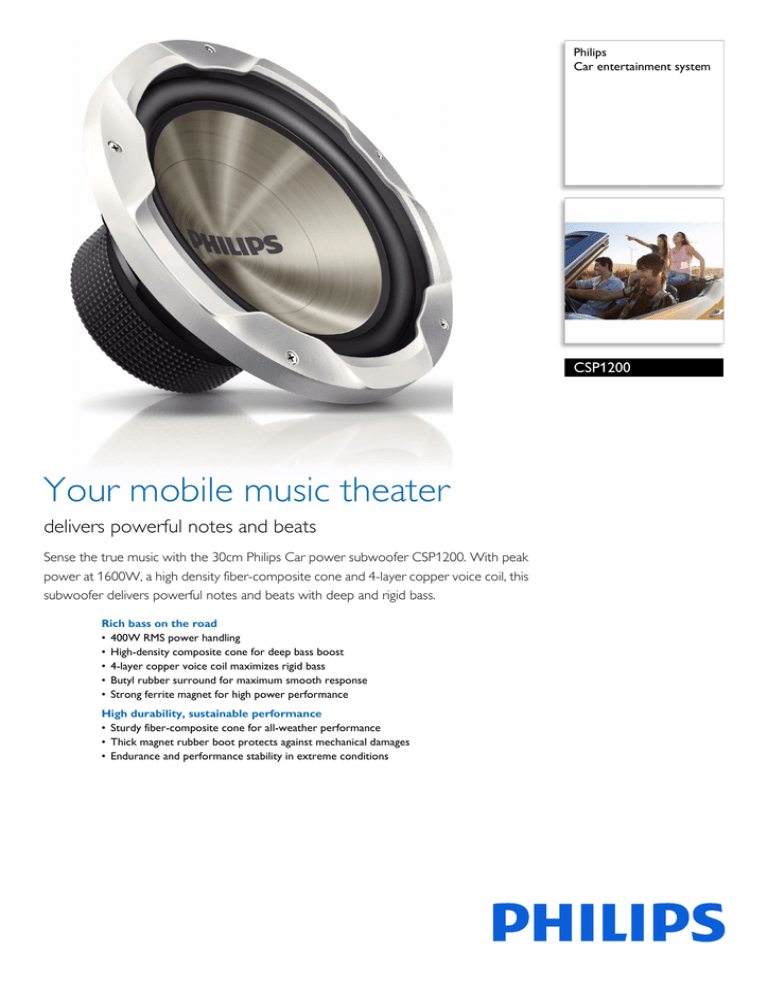

Philips CSP1200/55 Datasheet

Philips CSP1200/55 Datasheet
Car entertainment system
Your mobile music theater
delivers powerful notes and beats
Sense the true music with the 30cm Philips Car power subwoofer CSP1200. With peak
power at 1600W, a high density fiber-composite cone and 4-layer copper voice coil, this
subwoofer delivers powerful notes and beats with deep and rigid bass.
Rich bass on the road
• 400W RMS power handling
• High-density composite cone for deep bass boost
• 4-layer copper voice coil maximizes rigid bass
• Butyl rubber surround for maximum smooth response
• Strong ferrite magnet for high power performance
High durability, sustainable performance
• Sturdy fiber-composite cone for all-weather performance
• Thick magnet rubber boot protects against mechanical damages
• Endurance and performance stability in extreme conditions
Car entertainment system
Output power (RMS): 400W
Peak Music Power: 1600W
Sensitivity: 89dB
Frequency response: 20-1500 Hz
Impedance: 4 Ohms
• Speaker type: Subwoofer
• Speaker size: 30cm (12")
• Number of Loudspeakers: 1
• Diaphragm: Cone
• Diaphragm material: Fiber-composite
Surround: Rubber
Voice coil: Single
Voice coil material: Copper
Magnet: Ferrite
Magnet mass: 55.4 Oz
Damper: NC
• Product dimensions (W x H x D):
317 x 155 x 317 mm
• Mounting depth: 145.5 mm
• Quick start guide: English, Simplified Chinese
• Cables: Speaker wires
Issue date 2014-02-10
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 56235
EAN: 87 12581 50431 1
