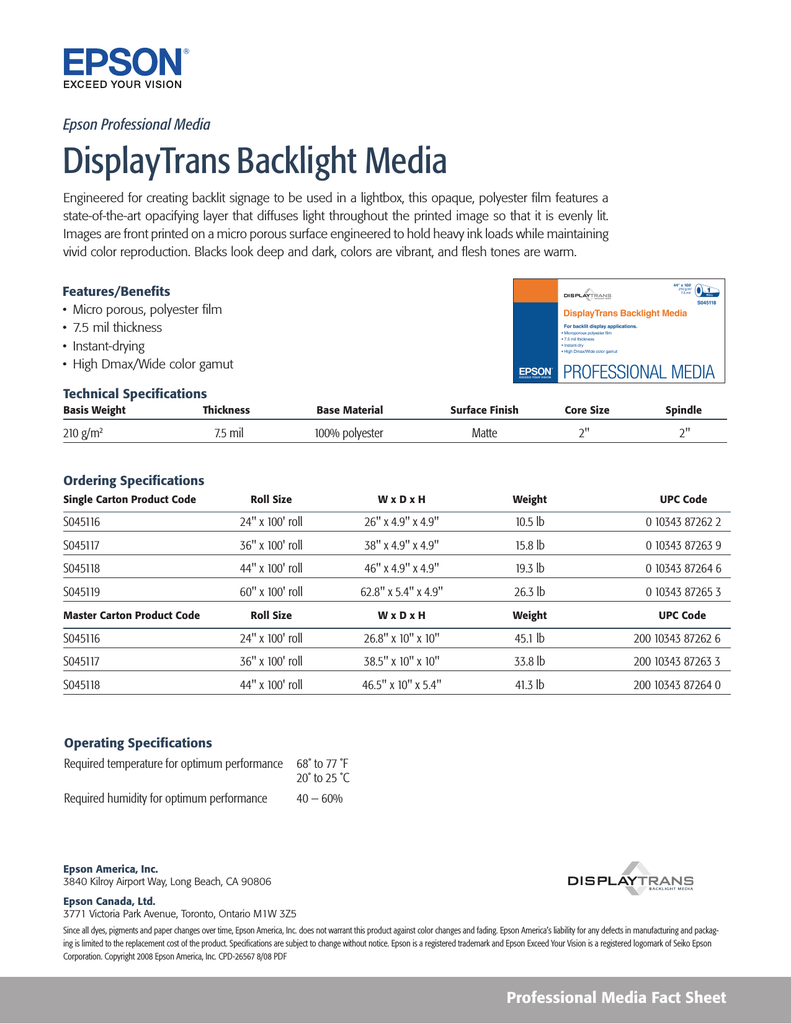

Epson DisplayTrans Backlight Media 60" x 100' 1 Roll Datasheet

Epson Professional Media
DisplayTrans Backlight Media
Engineered for creating backlit signage to be used in a lightbox, this opaque, polyester film features a
state-of-the-art opacifying layer that diffuses light throughout the printed image so that it is evenly lit.
Images are front printed on a micro porous surface engineered to hold heavy ink loads while maintaining
vivid color reproduction. Blacks look deep and dark, colors are vibrant, and flesh tones are warm.
Features/Benefits
• Micro porous, polyester film
• 7.5 mil thickness
• Instant-drying
• High Dmax/Wide color gamut
Technical Specifications
Basis Weight
Thickness
Base Material
Surface Finish
Core Size
Spindle
210 g/m 7.5 mil
100% polyester
Matte
2"
2"
2
Ordering Specifications
Single Carton Product Code
Roll Size
W x D x H
Weight
UPC Code
S045116
24" x 100' roll
26" x 4.9" x 4.9"
10.5 lb
0 10343 87262 2
S045117
36" x 100' roll
38" x 4.9" x 4.9"
15.8 lb
0 10343 87263 9
S045118
44" x 100' roll
46" x 4.9" x 4.9"
19.3 lb
0 10343 87264 6
S045119
60" x 100' roll
62.8" x 5.4" x 4.9"
26.3 lb
0 10343 87265 3
Roll Size
W x D x H
Weight
UPC Code
S045116
24" x 100' roll
26.8" x 10" x 10"
45.1 lb
200 10343 87262 6
S045117
36" x 100' roll
38.5" x 10" x 10"
33.8 lb
200 10343 87263 3
S045118
44" x 100' roll
46.5" x 10" x 5.4"
41.3 lb
200 10343 87264 0
Master Carton Product Code
Operating Specifications
Required temperature for optimum performance 68˚ to 77 ˚F
20˚ to 25 ˚C
Required humidity for optimum performance
40 — 60%
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Epson Canada, Ltd.
3771 Victoria Park Avenue, Toronto, Ontario M1W 3Z5
Since all dyes, pigments and paper changes over time, Epson America, Inc. does not warrant this product against color changes and fading. Epson America’s liability for any defects in manufacturing and packaging is limited to the replacement cost of the product. Specifications are subject to change without notice. Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson
Corporation. Copyright 2008 Epson America, Inc. CPD-26567 8/08 PDF
Professional Media Fact Sheet
