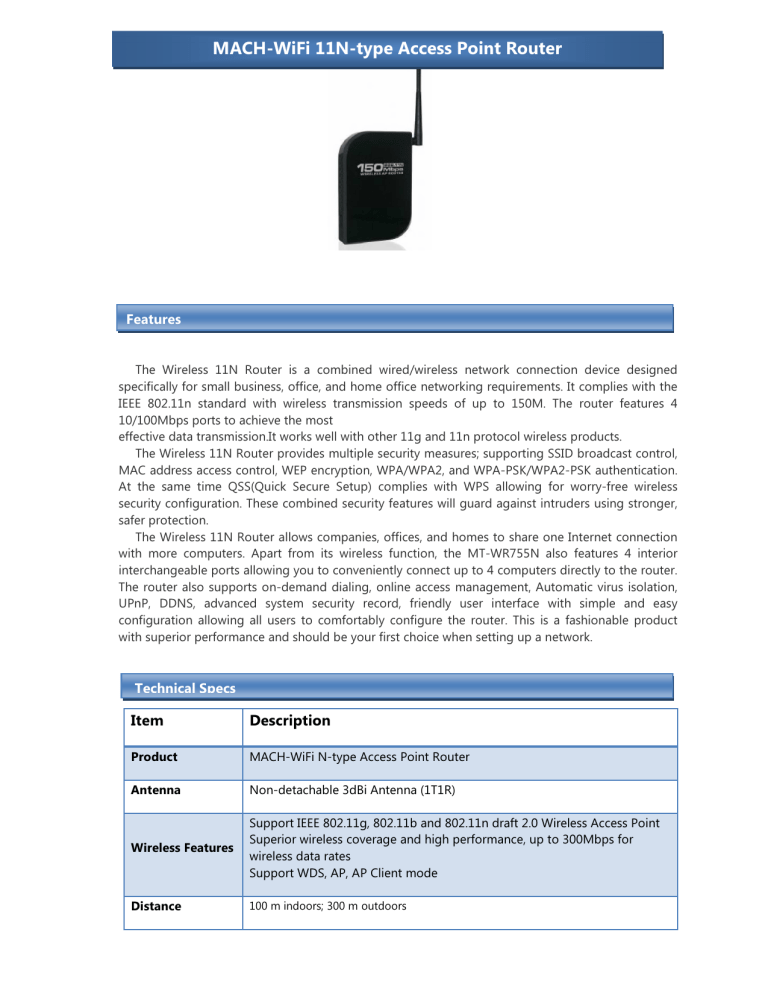

MACH-WiFi 11N-type Access Point Router

MACH-WiFi 11N-type Access Point Router
MACH-WiFi 11N-type Access Point Router
The Wireless 11N Router is a combined wired/wireless network connection device designed
specifically for small business, office, and home office networking requirements. It complies with the
IEEE 802.11n standard with wireless transmission speeds of up to 150M. The router features 4
10/100Mbps ports to achieve the most
effective data transmission.It works well with other 11g and 11n protocol wireless products.
The Wireless 11N Router provides multiple security measures; supporting SSID broadcast control,
MAC address access control, WEP encryption, WPA/WPA2, and WPA-PSK/WPA2-PSK authentication.
At the same time QSS(Quick Secure Setup) complies with WPS allowing for worry-free wireless
security configuration. These combined security features will guard against intruders using stronger,
safer protection.
The Wireless 11N Router allows companies, offices, and homes to share one Internet connection
with more computers. Apart from its wireless function, the MT-WR755N also features 4 interior
interchangeable ports allowing you to conveniently connect up to 4 computers directly to the router.
The router also supports on-demand dialing, online access management, Automatic virus isolation,
UPnP, DDNS, advanced system security record, friendly user interface with simple and easy
configuration allowing all users to comfortably configure the router. This is a fashionable product
with superior performance and should be your first choice when setting up a network.
Technical Specs
MACH-WiFi N-type Access Point Router
Non-detachable 3dBi Antenna (1T1R)
Wireless Features
Support IEEE 802.11g, 802.11b and 802.11n draft 2.0 Wireless Access Point
Superior wireless coverage and high performance, up to 300Mbps for
wireless data rates
Support WDS, AP, AP Client mode
100 m indoors; 300 m outdoors
Modulation type
Data Rates
OFDM: BPSK, QPSK, 16QAM, 64QAM, Proprietary MIMO modulation (11g)
IEEE 802.11b: 1, 2, 5.5 and 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: up to 300Mbps
Firmware upgrade via HTTP
WAN and LAN side connection statistics
Configuration of NAT
Selection of bridge or router mode
PPP user ID and password
Physical Interface
4 x RJ-45 10/100Mbps LAN Ports
1 x RJ-45 WAN Port
1 x power jack
1 x non-detachable antenna (1T1R)
Router Features
DHCP server and client
NAT (Network Address Translation)
ICMP (Internet Control Message Protocol)
DDNS (Dynamic Domain Name Service)
Security Features
Password protected configuration access
Support 64/128-Bit WEP encryption, WPA-PSK, WPA2-PSK, WPS and
Ethernet Features
Compliant with IEEE 802.3 and 802.3u 10/100 Mbps
All Ethernet ports support auto-crossover (MDI/MDI-X)
9VDC, 1A Single Range Switching Power Adapter
