HP XX752EA, WT289EA Datasheet

HP XX752EA, WT289EA Datasheet

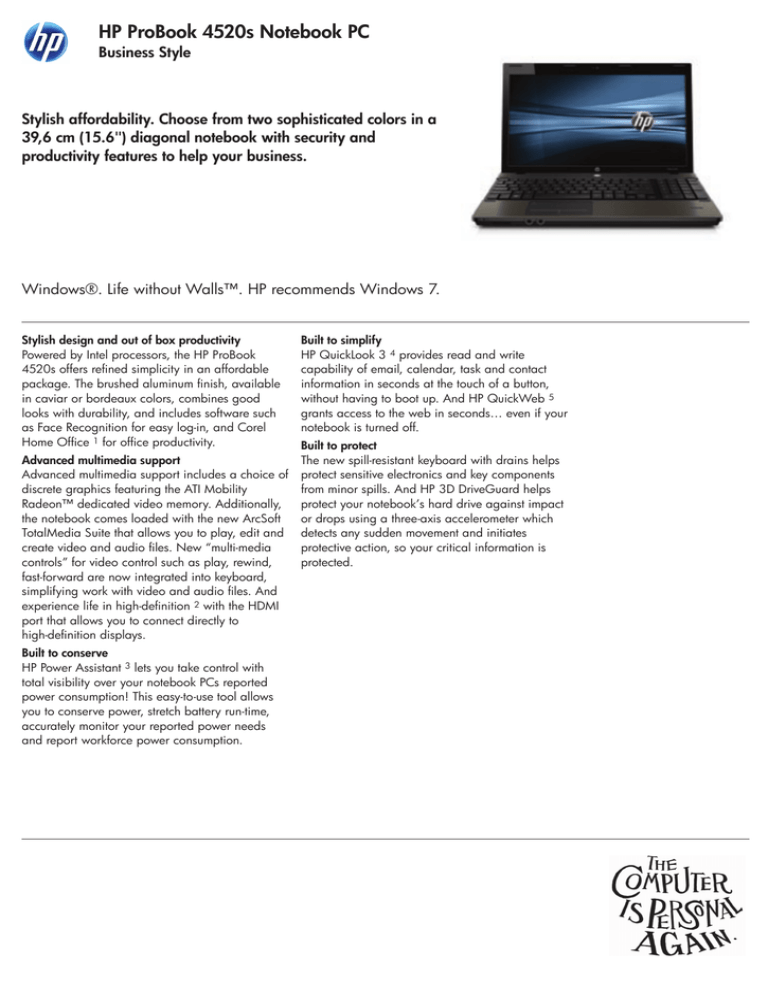

HP ProBook 4520s Notebook PC
Business Style
Stylish affordability. Choose from two sophisticated colors in a
39,6 cm (15.6") diagonal notebook with security and
productivity features to help your business.
Windows®. Life without Walls™. HP recommends Windows 7.
Stylish design and out of box productivity
Powered by Intel processors, the HP ProBook
4520s offers refined simplicity in an affordable
package. The brushed aluminum finish, available
in caviar or bordeaux colors, combines good
looks with durability, and includes software such
as Face Recognition for easy log-in, and Corel
Home Office 1 for office productivity.
Advanced multimedia support
Advanced multimedia support includes a choice of
discrete graphics featuring the ATI Mobility
Radeon™ dedicated video memory. Additionally,
the notebook comes loaded with the new ArcSoft
TotalMedia Suite that allows you to play, edit and
create video and audio files. New “multi-media
controls” for video control such as play, rewind,
fast-forward are now integrated into keyboard,
simplifying work with video and audio files. And
experience life in high-definition 2 with the HDMI
port that allows you to connect directly to
high-definition displays.
Built to conserve
HP Power Assistant 3 lets you take control with
total visibility over your notebook PCs reported
power consumption! This easy-to-use tool allows
you to conserve power, stretch battery run-time,
accurately monitor your reported power needs
and report workforce power consumption.
Built to simplify
HP QuickLook 3 4 provides read and write
capability of email, calendar, task and contact
information in seconds at the touch of a button,
without having to boot up. And HP QuickWeb 5
grants access to the web in seconds… even if your
notebook is turned off.
Built to protect
The new spill-resistant keyboard with drains helps
protect sensitive electronics and key components
from minor spills. And HP 3D DriveGuard helps
protect your notebook’s hard drive against impact
or drops using a three-axis accelerometer which
detects any sudden movement and initiates
protective action, so your critical information is
HP ProBook 4520s Notebook PC
Windows®. Life without Walls™. HP recommends Windows 7.
Operating system
Genuine Windows® 7 Professional 32
Genuine Windows® 7 Home Premium 32
Genuine Windows® 7 Home Basic 32
Genuine Windows® 7 Starter 32
SUSE Linux Enterprise 11
Intel® Core™ i3-330M Processor (2.13 GHz, 3 MB L3 cache); Intel® Core™ i3-350M Processor (2.26 GHz, 3 MB L3 cache); Intel® Core™ i3-370M Processor (2.40
GHz, 3 MB L3 cache); Intel® Core™ i5-430M Processor (2.26 GHz, 3 MB L3 cache); Intel® Core™ i5-450M Processor (2.40 GHz, 3 MB L3 cache); Intel® Core™
i5-520M Processor (2.40 GHz, 3 MB L3 cache); Intel® Core™ i5-540M Processor (2.53 GHz, 3 MB L3 cache); Intel® Celeron® Processor P4500 (1.86 GHz, 2 MB L3
Mobile Intel® HM57 Express
DDR3 SDRAM, 1333 MHz, 1024/2048/4096 MB; 2 SODIMM; Upgradeable to 8 GB
Internal Storage
SATA II Hard Drive 640 GB (5400 rpm), SATA II Hard Drive 250, 320 or 500 GB (7200 rpm), HP 3D DriveGuard
Upgrade Bay
Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe; DVD+/-RW SuperMulti DL LightScribe
39,6 cm (15.6") diagonal LED-backlit HD Anti-Glare 1366 x 768 or 39,6 cm (15.6") diagonal LED-backlit HD BrightView 1366 x 768
Intel® HD Graphics; ATI Mobility Radeon HD 530v with 512 MB dedicated video memory (discrete)
High definition audio support; Integrated stereo speakers; Integrated digital microphone; Stereo headphone/line out; Stereo microphone/line in
Wireless Support
Atheros 802.11b/g/n; HP Integrated Module with Bluetooth 2.1+EDR Wireless Technology; Ralink 802.11b/g/n Bluetooth 2.1+EDR Combo; HP Mobile Broadband
(powered by Gobi) with GPS
Realtek Ethernet (10/100/1000 NIC); Optional 56K v.92 modem
Expansion slots
1 Express Card/34; 1 Media Card Reader
Ports and Connectors
3 USB 2.0; 1 eSATA/USB 2.0 Combo; 1 external VGA monitor; 1 HDMI; 1 stereo microphone in; 1 stereo headphone/line-out; 1 AC power; 1 RJ-45; 1 RJ-11 (select
Input Device
Full-sized spill-resistant keyboard and separate numeric keypad; ClickPad with gestures support; Two fingers scroll, zoom, pinch and pivot rotate; 2 MP webcam (select
HP Recovery Manager (available with Windows 7 or Vista only); HP Support Assistant (available with Windows 7 or Vista only); HP ProtectTools Security Manager; HP
Face Recognition; HP QuickLaunch Buttons Software; HP QuickLook 3; HP QuickWeb; HP Power Assistant; HP Connection Manager 3.1; HP Wireless Assistant; HP Day
Starter; Corel Home Office productivity suite (60-day trial); Roxio Creator Business (select models); ArcSoft Total Media Suite; Microsoft Office Professional 2007 (60-day
Convertible Trial) or Microsoft Office 2010 preloaded (purchase of a Product Key required to activate a full Office 2010 suite); McAfee Total Protection (60-day trial
period); Norton Online Backup trial; HP Webcam Software (select models); Skype; WinZip 14.5 trial
HP ProtectTools Security Manager; Face Recognition for HP ProtectTools; One Step Login; Enhanced Pre-Boot Security; HP SpareKey; HP Disk Sanitizer; Setup Password;
Kensington Lock Slot; Support for Computrace LoJack Pro for HP ProtectTools
37.18 x 24.96 x 2.77 cm
Starting at 2.39 kg
6-cell (47 WHr) Lithium-Ion Battery, 9-cell (93 WHr) Lithium-Ion Battery; 65W Smart AC adapter (integrated); 90W Smart AC adapter (discrete); HP Fast Charge
Battery life
Up to 5h (Primary 6-cell Battery) or 10h (Primary 9-cell Battery)
Expansion solutions
HP Basic Adjustable Stand, HP USB 2.0 Docking Station, HP Essential USB 2.0 Port Replicator, HP Dual Hinge Notebook Stand, HP Display & Notebook Stand, HP
Adjustable Display Stand, HP Adjustable Dual Display Stand
1 year carry-in, pick-up and return in some countries (upgrades available, sold separately), 1 year warranty on primary battery
Genuine Windows® 7 Professional 64
1 Corel Home Office 60-day trial version included. Functionality is limited afterwards. Full version requires purchase
2 HD content required to view HD images
3 Power calculations and cost calculations are estimates. Results will vary based on variables, which include information provided by the user, time PC is in different power states (on, standby, hibernate, off), time PC is on battery or AC, hardware configuration,
variable electricity rates and utilities provider. HP advises customers to use information reported by HP Power Assistant for reference only and to validate impact in their environment. Environmental calculations were based on U.S. EPA eGrid 2007 data found at
www.epa.gov/egrid/. Regional results will vary
4 HP QuickLook 3 is accessible when the notebook is off in Windows XP or Windows 7-based systems
not supported from hibernation. Timing may vary depending on the system configuration. To enable the feature following the removal of the battery, reboot the notebook prior to subsequent use
5 HP QuickWeb is accessible when the notebook is off in Windows XP or Windows 7-based systems
not supported from hibernation. Internet access required. Timing may vary depending on the system configuration. To enable the feature following the removal of the battery, reboot the notebook prior to subsequent use.
For more information, please visit www.hp.com/eur/notebooks
© Copyright 2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained
This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/ for details.
Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Microsoft, Windows and Windows Vista are trademarks of the Microsoft group of companies. Intel, Celeron and Core are
trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S. and other countries.
4AA0-7480EEE. June 2010
HP ProBook 4520s Notebook PC
Windows®. Life without Walls™. HP recommends Windows 7.
Accessories and Services
HP Mobile Audio
Compact and lightweight, HP Mobile Speakers are designed for easy portability and
optimal stereo enjoyment of DVDs, CDs and digital audio, producing a rich high quality
sound for notebook PC users.
Product number: FS944AA
HP Essential USB 2.0
Port Replicator
HP provides a portfolio of professional-grade accessories that deliver an ideal mobile
office designed to help you achieve your business goals, increase productivity and lower
your costs.
Product number: AQ731AA
HP 65W Smart Travel
AC Adapter
AC power adapters from HP power your notebook and charge the internal battery
simultaneously. These adapters provide you with the ability to power your notebook when
away from the office or on the road. The HP 65W Slim Travel Adapter is perfect for
international travelers or "road warriors" who are always on the go. The adapter is 40%
thinner than the standard 65W adapter and includes a convenient USB port for charging
other accessories while you work. Four international adapter plugs help make sure your
Slim Travel Adapter works wherever you do. A stylish protective carrying case keeps
everything together.
Product number: AU155AA
HP 15.6 Privacy Filter
No more need to worry about prying eyes. This unique HP built-to-fit solution ensures
confidential business data, personal information and financial records are visible only to
the person sat directly in front of the notebook display.
Product number: AU103AA
HP Notebook Combo
Secure your notebook and docking station with the HP Compaq Notebook Combo Lock.
Product number: AY475AA
3-year Next Business
Day Onsite
Receive 3 years of next business day onsite repair from an HP-qualified technician for your
computing device, if the issue cannot be solved remotely.
Product number: UK704E
For more information, please visit www.hp.com/eur/hpoptions
