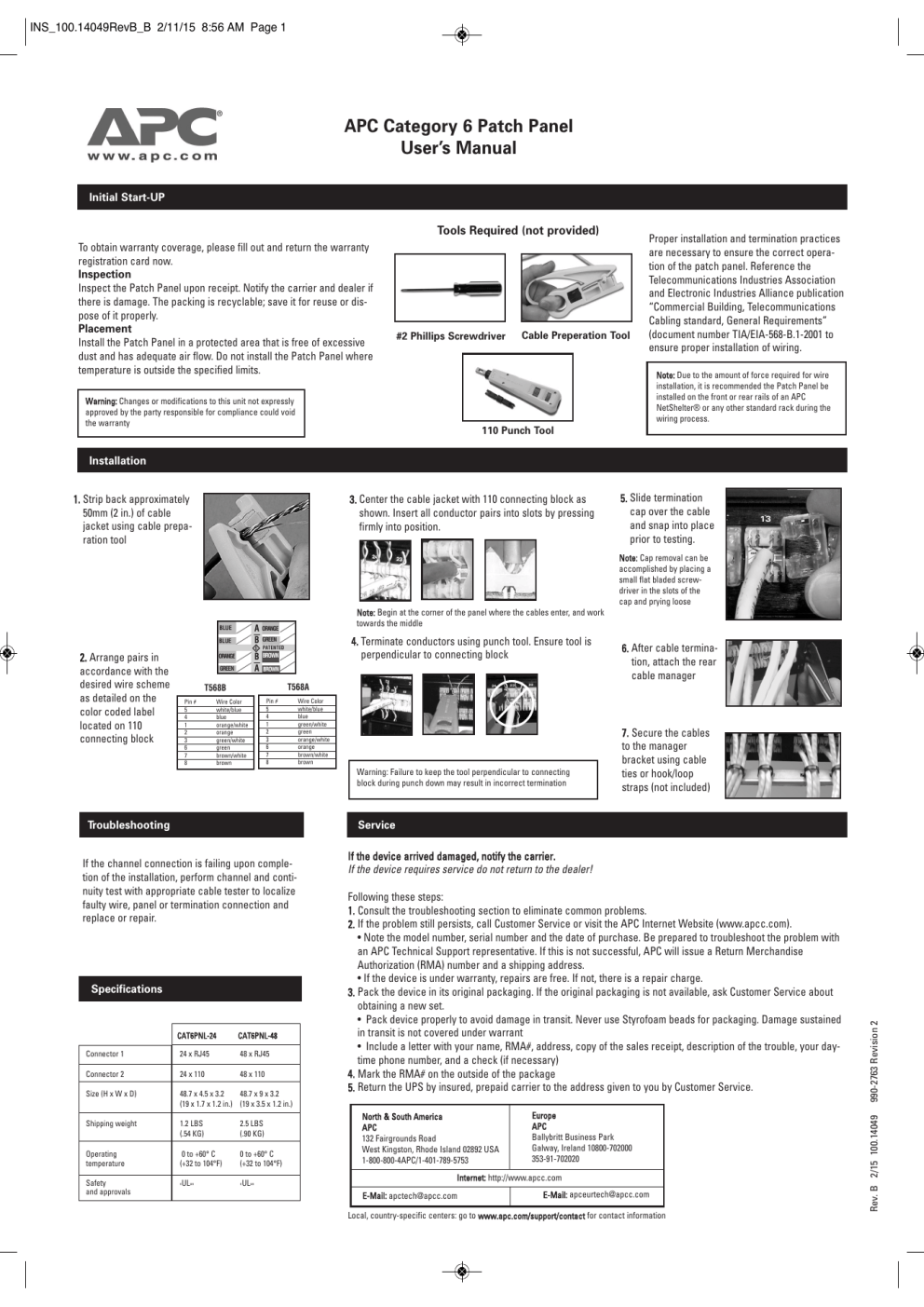

APC Category 6 Patch Panel
User’s Manual
Initial Start-UP
Tools Required (not provided)
To obtain warranty coverage, please fill out and return the warranty
registration card now.
Inspection
Inspect the Patch Panel upon receipt. Notify the carrier and dealer if
there is damage. The packing is recyclable; save it for reuse or dispose of it properly.
Placement
Install the Patch Panel in a protected area that is free of excessive
dust and has adequate air flow. Do not install the Patch Panel where
temperature is outside the specified limits.
#2 Phillips Screwdriver
Cable Preperation Tool
Proper installation and termination practices
are necessary to ensure the correct operation of the patch panel. Reference the
Telecommunications Industries Association
and Electronic Industries Alliance publication
“Commercial Building, Telecommunications
Cabling standard, General Requirements”
(document number TIA/EIA-568-B.1-2001 to
ensure proper installation of wiring.
Note: Due to the amount of force required for wire
installation, it is recommended the Patch Panel be
installed on the front or rear rails of an APC
NetShelter® or any other standard rack during the
wiring process.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the warranty
110 Punch Tool
Installation
1. Strip back approximately
50mm (2 in.) of cable
jacket using cable preparation tool
3. Center the cable jacket with 110 connecting block as
shown. Insert all conductor pairs into slots by pressing
firmly into position.
5. Slide termination
cap over the cable
and snap into place
prior to testing.
Note: Cap removal can be
accomplished by placing a
small flat bladed screwdriver in the slots of the
cap and prying loose
A
B
BLUE
B
A
ORANGE
GREEN
BROWN
Wire Color
white/blue
blue
orange/white
orange
green/white
green
brown/white
brown
Pin #
5
4
1
2
3
6
7
8
Wire Color
white/blue
blue
green/white
green
orange/white
orange
brown/white
brown
Warning: Failure to keep the tool perpendicular to connecting
block during punch down may result in incorrect termination
Troubleshooting
7. Secure the cables
to the manager
bracket using cable
ties or hook/loop
straps (not included)
Service
CAT6PNL-24
CAT6PNL-48
Connector 1
24 x RJ45
48 x RJ45
Connector 2
24 x 110
48 x 110
Size (H x W x D)
48.7 x 4.5 x 3.2
48.7 x 9 x 3.2
(19 x 1.7 x 1.2 in.) (19 x 3.5 x 1.2 in.)
Shipping weight
1.2 LBS
(.54 KG)
2.5 LBS
(.90 KG)
Operating
temperature
0 to +60° C
(+32 to 104°F)
0 to +60° C
(+32 to 104°F)
ULus
c
ULus
Following these steps:
1. Consult the troubleshooting section to eliminate common problems.
2. If the problem still persists, call Customer Service or visit the APC Internet Website (www.apcc.com).
• Note the model number, serial number and the date of purchase. Be prepared to troubleshoot the problem with
an APC Technical Support representative. If this is not successful, APC will issue a Return Merchandise
Authorization (RMA) number and a shipping address.
• If the device is under warranty, repairs are free. If not, there is a repair charge.
3. Pack the device in its original packaging. If the original packaging is not available, ask Customer Service about
obtaining a new set.
• Pack device properly to avoid damage in transit. Never use Styrofoam beads for packaging. Damage sustained
in transit is not covered under warrant
• Include a letter with your name, RMA#, address, copy of the sales receipt, description of the trouble, your daytime phone number, and a check (if necessary)
4. Mark the RMA# on the outside of the package
5. Return the UPS by insured, prepaid carrier to the address given to you by Customer Service.
North & South America
APC
132 Fairgrounds Road
West Kingston, Rhode Island 02892 USA
1-800-800-4APC/1-401-789-5753
Europe
APC
Ballybritt Business Park
Galway, Ireland 10800-702000
353-91-702020
Internet: http://www.apcc.com
c
E-Mail: [email protected]
E-Mail: [email protected]
Local, country-specific centers: go to www.apc.com/support/contact for contact information
990-2763 Revision 2
Specifications
If the device arrived damaged, notify the carrier.
If the device requires service do not return to the dealer!
Rev. B 2/15 100.14049
