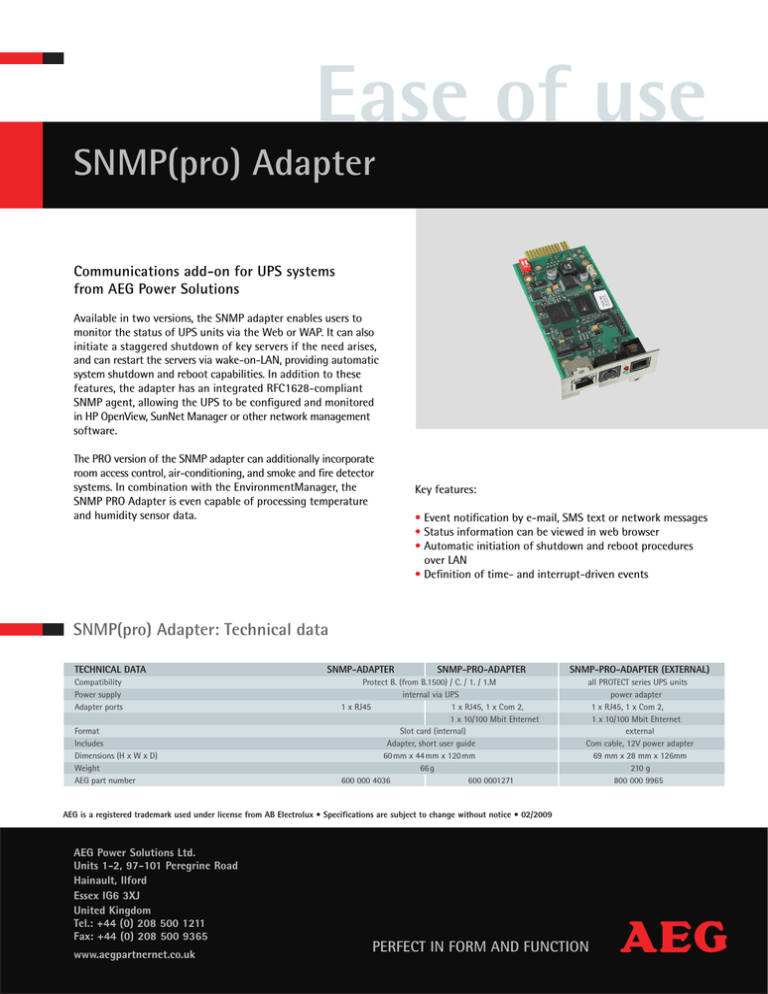

AEG 6000008668 Datasheet
Ease of use
SNMP(pro) Adapter
Communications add-on for UPS systems
from AEG Power Solutions
Available in two versions, the SNMP adapter enables users to
monitor the status of UPS units via the Web or WAP. It can also
initiate a staggered shutdown of key servers if the need arises,
and can restart the servers via wake-on-LAN, providing automatic
system shutdown and reboot capabilities. In addition to these
features, the adapter has an integrated RFC1628-compliant
SNMP agent, allowing the UPS to be configured and monitored
in HP OpenView, SunNet Manager or other network management
The PRO version of the SNMP adapter can additionally incorporate
room access control, air-conditioning, and smoke and fire detector
systems. In combination with the EnvironmentManager, the
SNMP PRO Adapter is even capable of processing temperature
and humidity sensor data.
Key features:
• Event notification by e-mail, SMS text or network messages
• Status information can be viewed in web browser
• Automatic initiation of shutdown and reboot procedures
over LAN
• Definition of time- and interrupt-driven events
SNMP(pro) Adapter: Technical data
Protect B. (from B.1500) / C. / 1. / 1.M
Power supply internal via UPS Adapter ports
1 x RJ45
1 x RJ45, 1 x Com 2,
1 x 10/100 Mbit Ehternet
Format Slot card (internal) Includes
Adapter, short user guide
Dimensions (H x W x D)
60 mm x 44 mm x 120 mm
66 g
AEG part number
600 000 4036
600 0001271
SNMP-Pro-Adapter (externAL)
all PROTECT series UPS units
power adapter
1 x RJ45, 1 x Com 2,
1 x 10/100 Mbit Ehternet
Com cable, 12V power adapter
69 mm x 28 mm x 126mm
210 g
800 000 9965
AEG is a registered trademark used under license from AB Electrolux • Specifications are subject to change without notice • 02/2009
AEG Power Solutions Ltd.
Units 1-2, 97-101 Peregrine Road
Hainault, Ilford
Essex IG6 3XJ
United Kingdom
Tel.: +44 (0) 208 500 1211
Fax: +44 (0) 208 500 9365
