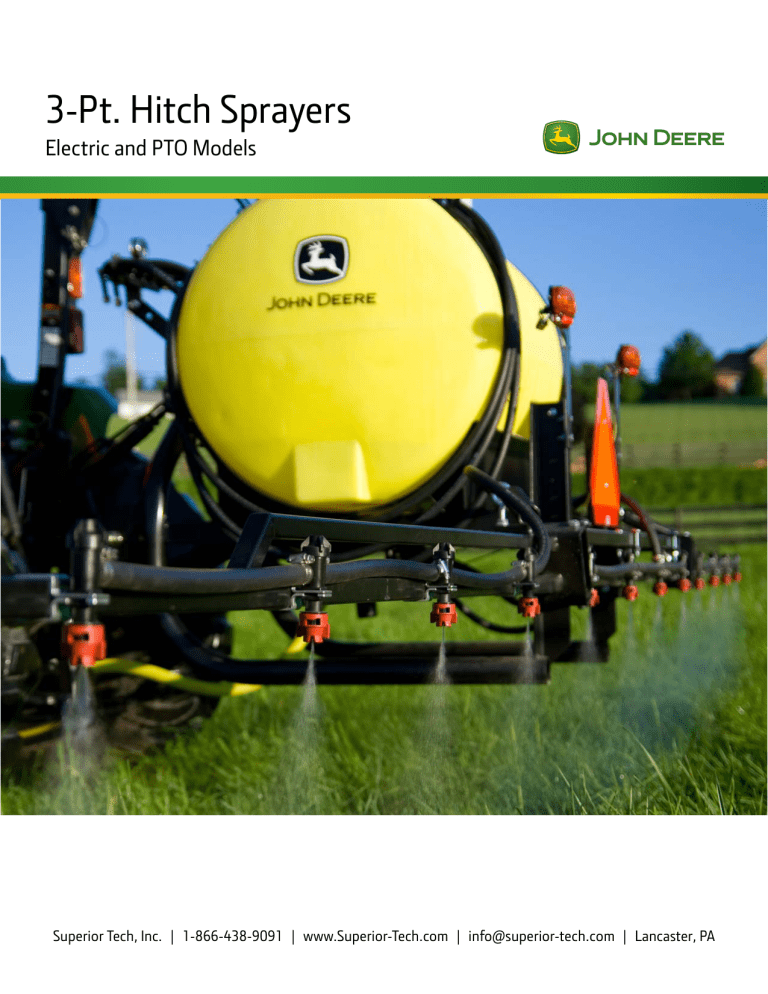

3-Pt. Hitch Sprayers
Electric and PTO Models
Superior Tech, Inc. | 1-866-438-9091 | www.Superior-Tech.com | [email protected] | Lancaster, PA
Standard 45 gal. Electric Sprayer
What can you do with your CUT? Add a sprayer and discover the possibilities. Combine the power of a
3-pt. hitch with the convenience of an electric sprayer, and protect your ground with precision, accuracy, and
efficiency season after season.
LP20840 - Standard 45 gal with 10’ Folding Boom
45 Gallon Standard with
10’ Folding Boom
1
2
7
3
6
4
5
1
2
3
1
100 PSI (2 GPM open flow) SHURflo diaphragmtype pump can be run dry without damage
Rugged translucent yellow tank with molded fill
level indicators, drain spout, and tank sump
Fully adjustable brass spray wand tip achieves
streams in excess of 30’
4
5
6
7
Folding boom with 120” spray swath and premium
boom spray tips for precision pattern spraying
TeeJet nozzle bodies with check valves that prevent
siphoning and dripping which cause lawn spotting
Side-mount hose tender with 20’ of hose
Chemical and corrosion resistant valves
High Performance 45 gal. Electric Sprayer
Need more from your sprayer? Now you have it. High performance sprayers take the standards of superior
components, intuitive design, and reliability to the next level. More volume, more distance, more control, and even
more flexibility. These sprayers are precision engineered and customized by you so you can get the job done with
confidence and peace-of-mind.
LP22886 - HP 45 gal. 3-pt. Hitch sprayer (Boom Sold Separately)
LP22885 - HP 150” Precision Boom option
LP22884 - HP 24’ Boomless Nozzles option
45 Gallon HP with
150” Precision Folding Boom
1
2
3
8
4
5
6
7
1
2
3
4
Easily adjustable controls including a pressure
regulator and glycerin-filled pressure gauge
45 PSI (3.6 GPM open flow) SHURflo diaphragmtype pump can be run dry without damage
Rugged translucent yellow tank with molded fill
level indicators, drain spout and tank sump
Precision Boom option with 150” adjustable
spray swath
5
6
7
8
TeeJet nozzle bodies with check valves that prevent
siphoning and dripping which cause lawn spotting
Boomless nozzles option with 24’ spray swath
Remote Control kit to power on/off of sprayer
Pistol Grip single hand spray pattern control spray
gun reaches an excess of 35’ and comes with
20’ of hose.
22
PTO Models - Sprayers you can count on.
Face it: You can’t predict everything that will go right - or wrong - on your property. But when you
arm yourself with a John Deere 3-Pt. Hitch PTO sprayer, you’ll be able to predict one thing - you can
count on your equipment for the long haul.
With 60-, 110-, and 150-gallon models, you’ll find a sprayer to suit your needs, whether you’re caring for a large athletic complex, grand estate or sprawling pasture. These sprayers are constructed
to withstand the rigors of regular use for a long time. And with a limited two-year warranty, you’re
protected should something unexpected happen.
Easily customize your sprayer with a variety of accessories that make caring for your property even
easier.
Invest in a John Deere 3 Pt. Hitch PTO sprayer and know you’ve made a purchase you can count on
for years to come.
150 Gallon PTO Sprayer with
30’ Folding Boom
3
PTO Models
60 Gallon PTO Sprayer
Specifications
60 Model
12.5’ folding boom, 150” swath, 5 spray nozzles
•
18’ folding boom, 216” swath, 7 Spray Nozzles
•
LP33814 - 12.5’ Folding Boom
w/ Hypro 6500 Cast Iron Pump
LP33817 - 12.5’ Folding boom
w/ Hypro Silver Series XL Pump
LP33815 - 18’ Folding Boom
w/ Hypro 6500 Cast Iron Pump
LP33818 - 18’ Folding boom
w/ Hypro Silver Series XL Pump
LP33813 - 30’ Boomless Nozzles
w/ Hypro 6500 Cast Iron Pump
LP33816 - 30’ Boomless Nozzles
w/ Hypro Silver Series XL Pump
Hypro 6500 Cast Iron Pump (9.7 GPM, 150 PSI)
•
Hypro 6500 Silver Series XL (9.7 GPM, 150 PSI)
•
Capacity and versatility make this
sprayer ideal for jobs such as
pastures, field crops and athletic
complexes. You’ll cover ground
efficiently with the 12 nozzle 20’
folding boom and increase your
spray versatility with individual
boom shutoffs. This sprayer easily
fits most compact or utility
tractors.
LP19871 - 20’ Folding Boom
LP19872 - Boomless Nozzles
150 Gallon PTO Sprayer
Maximize spraying time with the
150-gallon sprayer. With its large
capacity and the expanded
coverage of the 18 nozzle 30’
boom, this sprayer is built to tackle
jobs that exceed 20 acres.
LP19873 - 30’ Folding Boom
LP19874 - Boomless Nozzles
150 Model
Booms
The 60-gallon sprayer is ideal for
hard-to-maneuver jobs and its
capacity means it’s the perfect size
to service a large lawn, small field
or food plot. It comes in both
standard and premium models.
110 Gallon PTO Sprayer
110 Model
20’ folding boom, 20’ swath, 12 spray nozzles
•
30’ folding boom, 30’ swath, 18 spray nozzles
30’ boomless, single nozzle control
•
•
30’ boomless, three-section nozzle control
•
•
•
•
•
•
Pump Options
Hypro 7500 Silver Series XL (XX GPM, XXX PSI)
Controls
Single TeeJet 6B control valve
•
Three TeeJet 6B control valves
•
Pressure Regulator
•
•
•
Glycerin-filled Gauge
•
•
•
Quick-attach no-drip nozzle bodies
•
•
•
In-line filter system with shut-off valve
•
•
•
Jet agitation
•
•
•
300 PSI hose
•
•
•
•
•
•
•
•
•
•
•
Quick Hitch compatible
•
•
•
Cat I compatible
•
•
•
Plumbing
Warranty
Two-year limited warranty
Safety Features
Tail lights
SMV sign
Compatibility
Frame
Steel-Assembled Frame
•
Welded steel frame with saddle
Heavy-duty powder coat finish
•
•
•
•
•
•
•
•
Optional accessories
Pistol-grip spraygun with 30’ hose
2.5-gallon fresh water tank
•
•
•
Tank fill spout
•
•
•
2.5 Gallon Foam Marker Kit
•
5 Gallon Foam Marker Kit
•
•
7-Pin Light Adaptor
•
•
110 gal
150 gal
Specifications (with booms folded)
Capacity
60 gal
Weight (empty)
110 lbs
300 lbs
370 lbs
Weight (full)
610 lbs
1216 lbs
1619 lbs
Length
34”
65”
67”
Width
38”
72”
110”
Height
38”
70”
90”
42
A Model for Every Need
60 Gallon 3-Pt. Hitch PTO Model
Better Pump Options, Better Boom Options, Better Design, Better Price
Introducing our new line of 60 Gallon Cat 1, 3-Pt. Hitch PTO Sprayers equipped with the options that suit your
needs and your budget. Top of the line features, performance and quality you expect from John Deere, with the
boom and pump options specific to your needs. These sprayers are perfect for large property owners, commercial
spraying, small farms, fruit growers, the list goes on. Sized right for most spraying applications, these 60 gallon
units will not let you down. In fact we back them with a 2 year warranty.
Features at a Glance
—
—
—
—
—
—
—
—
—
—
—
5
Standard with premium pistol grip spraygun
Pressure regulation for precise control
Glycerin-filled gauge for accuracy
Continuous jet recirculation
In-line easy-access filter
Powder coated steel frame
Side-mount hose tender
Pump included (Cast Iron or Silver Series XL)
Boom included (150”, 18’, or 30’ Boomless Nozzles)
iMatch compatible
Adjustable boom height
60 Gal. PTO w/ 18’ Folding Boom
60 Gal. PTO w/ 12’ Folding Boom
30’ Boomless Nozzles
60 gal. PTO
w/ Boomless Nozzles
Boomless nozzles are ideal for hilly and
rocky terrain or where precision spraying is
not needed. It provides a 30’ spray swath
from 3 broadcast tips.
— End tip shut-offs
— Single boom shut-off
60 gal. PTO w/ 18’ Boom
60 gal. PTO w/ 150” Boom
The 18’ spray swath of this precision
folding boom will cover ground quickly for
nearly any property size. It boasts a spring
loaded boom breakaway and full left/right/
center control from the seat of your tractor. 7 ceramic spray tips provide long life
and precise coverage.
This sprayer’s folding boom provides a
150” spray swath and is designed for
property owners where increased spray
precision is needed. This option is perfect
for spraying around flower beds, driveways
and tree beds with a boom sized right for
small and medium acreage properties .
— Seven Teejet ™ XRC Ceramic spray tips
— Boom with spring loaded breakaway
— Individual left, right, center boom
control
— Five Teejet ™ TF-VP3 Spray tips
— End tip shut-off for 90”, 120” and
150” swath adjustment
— Single boom shut-off
60 gal. Standard w/ 30’ Boomless Nozzles
and Cast Pump
LP33813
60 gal. Standard w/ 18’ Boom and Cast Pump
LP33815
60 gal. Standard w/ 150” Boom and Cast Pump
LP33814
60 gal. Premium w/ 30’ Boomless Nozzles and
Silver Series XL Pump
LP33816
60 gal. Premium w/ 18’ Boom and
Silver Series XL Pump
LP33818
60 gal. Premium w/ 150” Boom and
Silver Series XL Pump
LP33817
6
Features for 110 & 150 gal. Models
4
3
10-STEP
POWDER COATED PROCESS
2
5
For a durable,
corrosion-resistant finish
Pumps meet new
pump specs even after
1,000 HOURS
1
6
110 Gallon PTO Sprayer with
20’ Folding Boom
1
Pump
2
The Silver Series® XL Pump will
deliver years of reliable service. While
other pumps pit and corrode when
exposed to the elements in storage or
during continual spraying, the Silver
Series pumps are designed to prevent
these issues. Most cast iron pumps
fail after less than 150 hours. In
manufacturer tests, the Silver Series
continued to meet new pump specs
after more than 1,000 hours.
4
Breakaway Boom
Get years of reliable service from
these welded breakaway booms. The
breakaway design means they’ll fold
on incidental impact to minimize
damage and maximize safety. Simply
use the manual-fold feature for easy
transportation. They’re vertically
adjustable for spraying a variety of
crop heights with ease.
7
Controls
3
Easily reachable and adjustable
controls make these sprayers ideal
for any job, configuration or user.
The three-section boom controls on
the 110- and 150-gallon sprayers
offer easy on-off functionality. The
glycerin-filled gauge and pressure
regulator valve allow you to adjust
pressure easily. All components
provide superior chemical and
corrosion resistance.
5
XRC Spray Nozzles
When it comes to spray nozzles,
it’s what’s inside that counts.
These nozzles have a ceramic
insert and a strainer that offers
even more protection and reduces
degradation. These nozzles will last
longer and offer a more consistent
flow than other brands’ all-plastic
counterparts. Quick-attach, no drip
diaphragm check nozzle bodies are
easy to align and spaced at 20 inches
for even coverage.
Tank Components
Jet agitation ensures even mixture
of material from start to finish. Filter
dirty? With an in-line filter and shutoff valve, it can be cleaned whenever
needed, even if the tank is full. And
when you’re done, a tank sump
allows for complete drainage. Topquality stainless steel clamps secure
the 300 PSI rubber hose, ensuring it
will weather the elements.
6
Durable Frame
The welded frames are built to
provide years of rigid support. Before
powder coating, each frame is
surface prepped and a zinc-rich epoxy
primer is applied for unmatched
protection from corrosion. The
finish withstands the harsh spraying
environment and makes it easy
to clean. The metal tie-down
straps allow for customization by
providing strong mounting points for
accessories like the fresh water tank
and handgun kit.
Accessories
Premium Pistol Grip Spray-gun
Foam Marking Kit
Foam dollops mark your path, decreasing
over-spray and under-spray errors,
increasing your spray precision.
2.5 Gallon Fresh Water Tank
Fresh water is invaluable when you need
to wash chemicals off your gloves or
clean a spray nozzle.
LP19968, LP22913
LP19968
7-Pin Light Adaptor
Tank Fill Spout
Quick-Hitch Bushings
Easily connect your sprayer tail lights
to your 7-Pin equipped Utility Tractor.
Standard 7-Pin adapter offers plug-in
and go convenience.
(110 & 150 Model Only)
The innovative design and in-line valve
makes this a convenient accessory for
filling your sprayer. The design prevents
back siphoning and keeps your hose and
water source clear of the tank contents.
Enhance the quick-hitch compatibility of
your sprayer with these bushings. They
simply slide over your Category 1 pins for
a secure fit to your quick-hitch.
LP20934
LP21698
Available option with your 110 or 150
gallon sprayer. Adjustable mist to
streams of 35 feet, includes and 30’
of 1/2” heavy-duty rubber hose.
(Included with 60-gal. model)
LP19967
LP19969
Boomless Nozzles Option
When you’re
you’ working with uneven or
rough cond
conditions and precise coverage is
not critical,
critica use this configuration to
achieve a 3
30-foot spray swath. Boomless
nozzles are available for each model and
are a great alternative when precision
spraying is not a priority.
HP Electric
Electri Models - LP22884
60, 110, 15
150 Models - LP33813,
LP33816, LLP19872, LP19874
3
8
Superior Tech, Inc. | 1-866-438-9091 | www.Superior-Tech.com | [email protected] | Lancaster, PA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
