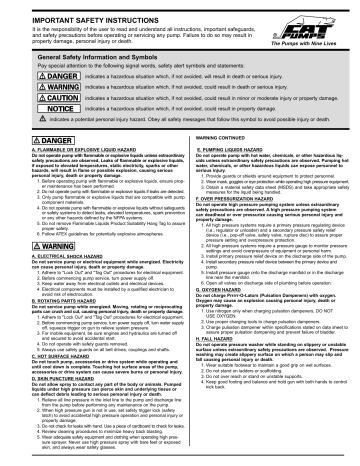

IMPORTANT SAFETY INSTRUCTIONS
It is the responsibility of the user to read and understand all instructions, important safeguards,
and safety precautions before operating or servicing any pump. Failure to do so may result in
property damage, personal injury or death.
The Pumps with Nine Lives
General Safety Information and Symbols
Pay special attention to the following signal words, safety alert symbols and statements:
indicates a hazardous situation which, if not avoided, will result in death or serious injury.
indicates a hazardous situation which, if not avoided, could result in death or serious injury.
indicates a hazardous situation which, if not avoided, could result in minor or moderate injury or property damage.
indicates a hazardous situation which, if not avoided, could result in property damage.
indicates a potential personal injury hazard. Obey all safety messages that follow this symbol to avoid possible injury or death.
WARNING CONTINUED
A. FLAMMABLE OR EXPLOSIVE LIQUID HAZARD
Do not operate pump with flammable or explosive liquids unless extraordinary
safety precautions are observed. Leaks of flammable or explosive liquids,
if exposed to elevated temperatures, static electricity, sparks or other
hazards, will result in flame or possible explosion, causing serious
personal injury, death or property damage.
1. Before operating pump with flammable or explosive liquids, ensure proper maintenance has been performed.
2. Do not operate pump with flammable or explosive liquids if leaks are detected.
3. Only pump flammable or explosive liquids that are compatible with pump
component materials.
4. Do not operate pump with flammable or explosive liquids without safeguards
or safety systems to detect leaks, elevated temperatures, spark prevention
or any other hazards defined by the NFPA systems.
5. Do not remove Flammable Liquids Product Suitability Hang Tag to assure
proper safety.
6. Follow ATEX guidelines for potentially explosive atmospheres.
A. ELECTRICAL SHOCK HAZARD
Do not service pump or electrical equipment while energized. Electricity
can cause personal injury, death or property damage.
1. Adhere to "Lock Out" and "Tag Out" procedures for electrical equipment.
2. Before commencing pump service, turn power supply off.
3. Keep water away from electrical outlets and electrical devices.
4. Electrical components must be installed by a qualified electrician to
avoid risk of electrocution.
B. ROTATING PARTS HAZARD
Do not service pump while energized. Moving, rotating or reciprocating
parts can crush and cut, causing personal injury, death or property damage.
1. Adhere to "Lock Out" and "Tag Out" procedures for electrical equipment.
2. Before commencing pump service, turn power supply off, turn water supply
off, squeeze trigger on gun to relieve system pressure.
3. For mobile equipment, be sure engines and hydraulics are turned off
and secured to avoid accidental start.
4. Do not operate with safety guards removed.
5. Always use safety guards on all belt drives, couplings and shafts.
C. HOT SURFACE HAZARD
Do not touch pump, accessories or drive system while operating and
until cool down is complete. Touching hot surface areas of the pump,
accessories or drive system can cause severe burns or personal injury.
D. SKIN PUNCTURE HAZARD
Do not allow spray to contact any part of the body or animals. Pumped
liquids under high pressure can pierce skin and underlying tissue or
can deflect debris leading to serious personal injury or death.
1. Relieve all line pressure in the inlet line to the pump and discharge line
from the pump before performing any maintenance on the pump.
2. When high pressure gun is not in use, set safety trigger lock (safety
latch) to avoid accidental high pressure operation and personal injury or
property damage.
3. Do not check for leaks with hand. Use a piece of cardboard to check for leaks.
4. Review cleaning procedures to minimize heavy back blasting.
5. Wear adequate safety equipment and clothing when operating high pressure sprayer. Never use high pressure spray with bare feet or exposed
skin, and always wear safety glasses.
E. PUMPING LIQUIDS HAZARD
Do not operate pump with hot water, chemicals, or other hazardous liquids unless extraordinary safety precautions are observed. Pumping hot
water, chemicals, or other hazardous liquids can expose personnel to
serious injury.
1. Provide guards or shields around equipment to protect personnel.
2. Wear mask, goggles or eye protection while operating high pressure equipment.
3. Obtain a material safety data sheet (MSDS) and take appropriate safety
measures for the liquid being handled.
F. OVER PRESSURIZATION HAZARD
Do not operate high pressure pumping system unless extraordinary
safety precautions are observed. A high pressure pumping system
can deadhead or over pressurize causing serious personal injury and
property damage.
1. All high pressure systems require a primary pressure regulating device
(i.e., regulator or unloader) and a secondary pressure safety relief
device (i.e., pop-off valve, safety valve, rupture disc) to assure proper
pressure setting and overpressure protection.
2. All high pressure systems require a pressure gauge to monitor pressure
settings and avoid overpressure of equipment or personal harm.
3. Install primary pressure relief device on the discharge side of the pump.
4. Install secondary pressure relief device between the primary device and
pump.
5. Install pressure gauge onto the discharge manifold or in the discharge
line near the manifold.
6. Open all valves on discharge side of plumbing before operation.
G. OXYGEN HAZARD
Do not charge Prrrrr-O-Lators (Pulsation Dampeners) with oxygen.
Oxygen may cause an explosion causing personal injury, death or
property damage.
1. Use nitrogen only when charging pulsation dampeners, DO NOT
USE OXYGEN.
2. Use proper charging tools to charge pulsation dampeners.
3. Charge pulsation dampener within specifications stated on data sheet to
assure proper pulsation dampening and prevent failure of bladder.
H. FALL HAZARD
Do not operate pressure washer while standing on slippery or unstable
surface unless extraordinary safety precautions are observed. Pressure
washing may create slippery surface on which a person may slip and
fall causing personal injury or death.
1. Wear suitable footwear to maintain a good grip on wet surfaces.
2. Do not stand on ladders or scaffolding.
3. Do not over reach or stand on unstable supports.
4. Keep good footing and balance and hold gun with both hands to control
kick back.
A. IMPROPER USE OF FITTINGS HAZARD
Do not operate the pump with improperly connected, sized, worn or
loose fittings, pipes or hoses. Operating the pump under these conditions could result in personal injury and property damage.
1. Ensure all fittings, pipes and hoses are properly rated for the maximum
pressure rating and flow of the pump.
2. Check all fittings and pipes for cracks or damaged threads.
3. Check all hoses for cuts, wear, leaks, kinks or collapse before each use.
4. Ensure all connections are tight and secure.
5. Use PTFE thread tape or pipe thread sealant (sparingly) to reconnect
plumbing. Do not wrap tape beyond the last thread, this will prevent tape
from becoming lodged in the pump or accessories.
6. Apply proper sealants to assure secure fit or easy disassembly when
servicing.
B. FROZEN LIQUID HAZARD
Do not operate the pump with frozen liquid. Operating the pump under
this condition could over pressurize and jettison the manifold from the
crankcase causing personal injury and property damage.
1. Store pump or pumping system in an environmentally controlled room
protected from freezing temperatures.
2. Follow procedures in TECH BULLETIN 083 to winterize pump.
C. CLEANING PUMP HAZARD
Do not use solvents that are flammable and toxic to clean or degrease
equipment. Use of these solvents could result in personal injury and
property damage.
1. Follow safety instructions as found in MSDS or on packaging of each liquid.
2. Clean equipment in a well ventilated area.
3. Disposal of solvents to be in accordance with local, state and federal
regulations.
D. OPERATING BEYOND SPECIFICATIONS HAZARD
Do not operate the pump outside the specifications of individual pump
data sheet or service manual. Operating the pump under these conditions could result in personal injury and property damage.
1. Do not operate the pump faster than the maximum recommended RPM.
2. Do not operate the pump at pressures higher than the maximum
recommended pressure.
3. Do not operate the pump at temperatures higher than the maximum
recommended temperatures.
4. Do not use accessories that are not compatible or rated for the pump.
E. LIFTING DEVICE HAZARD
Do not lift pump with unsuitable lifting devices. Use of unsuitable lifting
devices may cause pump to fall resulting in personal injury, damage to
pump and/or pump with drive/base plate.
1. Lifting eyes installed on the pump must be used only to lift the pump.
2. Special lifting eyes should be installed on the base for lifting the pumping system (i.e. base, drive and accessories)
3. If slings or chains are used for lifting, they must be safely and securely
attached to properly balance the weight of the unit.
4. Inspect slings and chains prior to use and replace worn and damaged
slings and chains.
A. OIL HAZARD
Use only genuine CAT PUMPS custom-blend, premium grade, petroleum-based hydraulic oil. Use of other oil may not provide proper lubrication of drive-end components and may result in damage to the
crankcase of the pump.
1. CAT PUMPS custom-blend oil is available worldwide in 21 oz. bottles,
cases, or 5-gallon twin packs. Use of other oils may void the warranty.
2. Fill pump crankcase to specific capacity indicated on data sheet or
service manual prior to startup.
B. ROTATION OF PUMP HAZARD
Do not rotate pump crankshaft in reverse direction. Rotation of pump
crankshaft in reverse direction may not provide proper lubrication and
may result in damage to the drive-end components.
1. Forward rotation is the top of the crankshaft turning towards the manifold
head of the pump.
2. Ensure oil is filled to the center red dot on sight gauge for forward rotation.
3. Ensure oil is filled to slightly above center red dot on sight gauge for
reverse rotation.
C. BELT TENSION HAZARD
Do not operate pump with excessive belt tension. Excessive belt tension may damage the pumps bearings or reduce horsepower.
1. Rotate pump crankshaft before starting to ensure shaft and bearings are
moving freely.
2. Ensure pulleys are properly sized.
3. Periodically replace belts to assure full horsepower transmission.
4. Ensure center distance dimensions between pulleys is correct.
D. BY-PASS OPERATION HAZARD
Do not operate the pump in by-pass for extended lengths of time.
Operating the pump under this condition can quickly cause heat buildup resulting in damage to the pump.
1. Route by-pass line to supply reservoir to dissipate heated by-pass liquid
into a large reservoir of cool water to reduce excessive temperature
build-up.
2. Route by-pass line to inlet of pump using a thermo valve in the by-pass
line or auto shut-off assembly that will sense temperature rise and either
by-pass or shut down system before damage occurs.
E. DRY OPERATION HAZARD
Do not operate the pump without water or liquid. Operating pump under
these conditions could result in damage to the pump.
1. Open all valves on inlet side of pump before starting operation to prevent starving the pump.
2. Do not exceed inlet suction pressure limit specified in pump Data Sheet.
3. Ensure inlet feed exceeds the maximum flow being delivered by the
pump.
4. Ensure all fittings, pipes and hoses are properly sized for the pump to
avoid restricted flow.
5. Review and implement all other recommendations appropriate for your
system from the Inlet Condition Check-List.
CAT PUMPS (U.K.) LTD.
World Headquarters
CAT PUMPS
1681 - 94th Lane N.E. Minneapolis, MN 55449 - 4324
Phone (763) 780-5440 — FAX (763) 780-2958
e-mail: [email protected]
www.catpumps.com
1 Fleet Business Park, Sandy Lane, Church Crookham, Fleet
Hampshire GU52 8BF, England
Phone Fleet 44 1252-622031 — Fax 44 1252-626655
e-mail: [email protected]
N.V. CAT PUMPS INTERNATIONAL S. A.
The Pumps with Nine Lives
Heiveldekens 6A, 2550 Kontich, Belgium
Phone 32- 3- 450.71.50 — Fax 32-3- 450.71.51
e-mail: [email protected] www.catpumps.be
International Inquiries
CAT PUMPS DEUTSCHLAND GmbH
FAX (763) 785-4329
e-mail: [email protected]
Buchwiese 2, D-65510 Idstein, Germany
Phone 49 6126-9303 0 — Fax 49 6126-9303 33
e-mail: [email protected] www.catpumps.de
PN 993315 Rev A 7922
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
