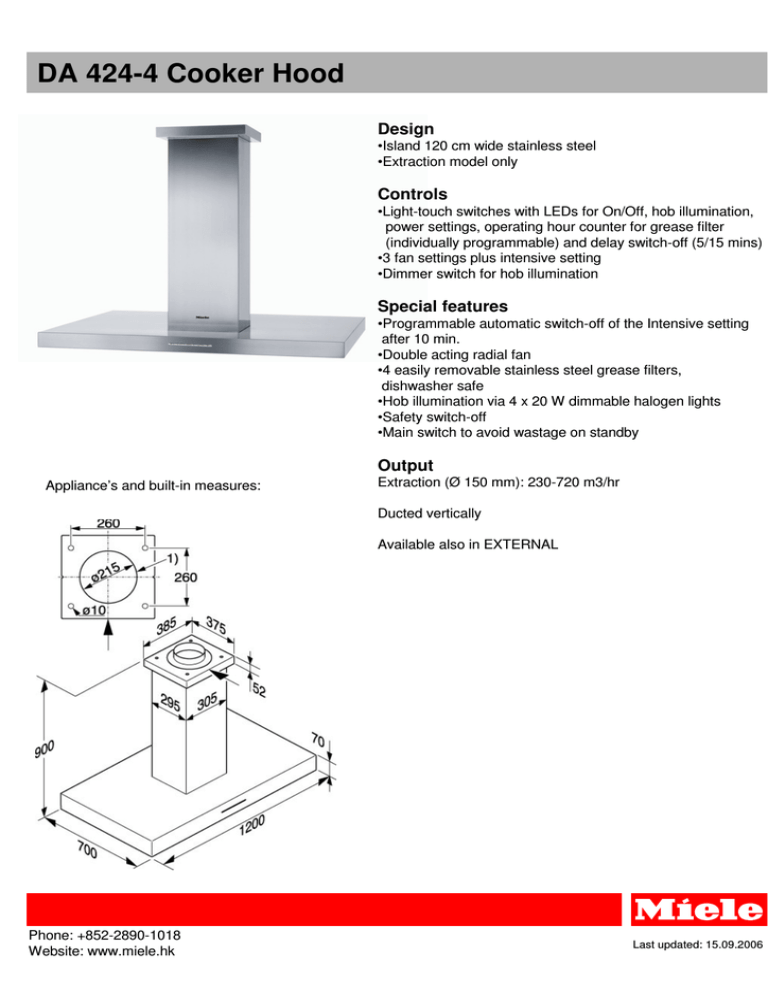

DA 424-4 Cooker Hood
Design
•Island 120 cm wide stainless steel
•Extraction model only
Controls
•Light-touch switches with LEDs for On/Off, hob illumination,
power settings, operating hour counter for grease filter
(individually programmable) and delay switch-off (5/15 mins)
•3 fan settings plus intensive setting
•Dimmer switch for hob illumination
Special features
•Programmable automatic switch-off of the Intensive setting
after 10 min.
•Double acting radial fan
•4 easily removable stainless steel grease filters,
dishwasher safe
•Hob illumination via 4 x 20 W dimmable halogen lights
•Safety switch-off
•Main switch to avoid wastage on standby
Output
Appliance’s and built-in measures:
Extraction (Ø 150 mm): 230-720 m3/hr
Ducted vertically
Available also in EXTERNAL
Phone: +852-2890-1018
Website: www.miele.hk
Last updated: 15.09.2006
