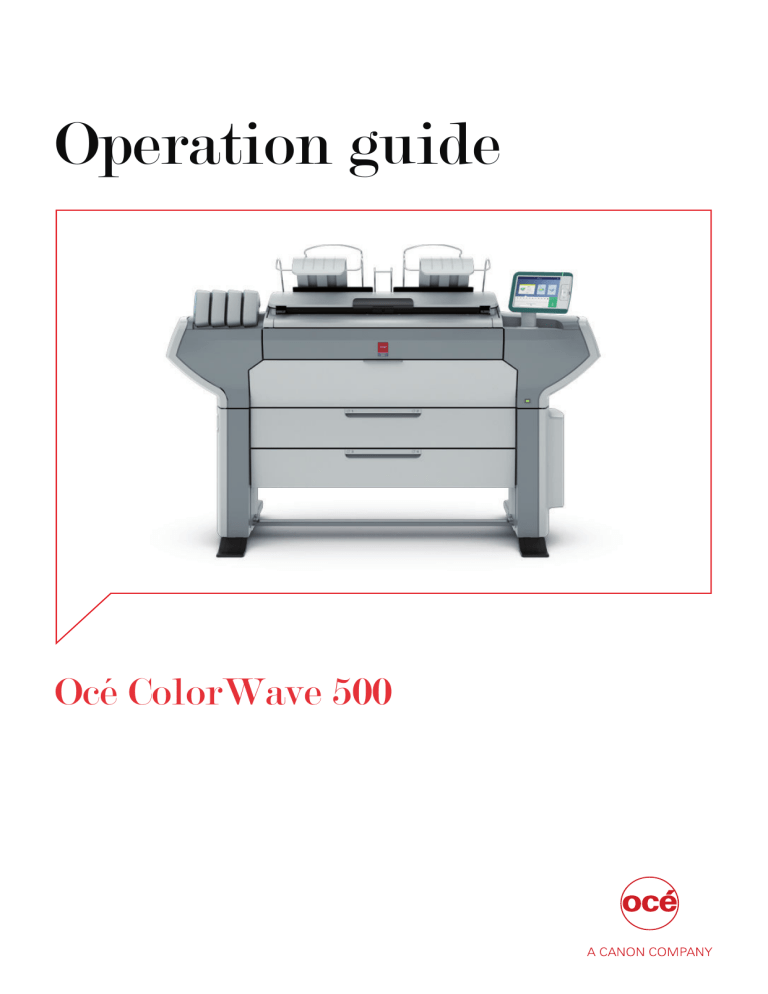

Operation guide

Océ ColorWave 500

Copyright and Trademarks

Copyright

Copyright 2015, 2016 Océ.

Illustrations and specifications do not necessarily apply to products and services offered in each local market. No part of this publication may be reproduced, copied, adapted or transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language in any form or by any means, electronic, mechanical, optical, chemical, manual, or otherwise, without the prior written permission of Océ.

OCÉ MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THE CONTENTS OF THIS

PUBLICATION, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING

WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE OF USE OR NON-INFRINGEMENT. OCÉ SHALL NOT BE

LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR

LOSSES OR EXPENSES RESULTING FROM THE USE OF THE CONTENTS OF THIS PUBLICATION.

Océ reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation to notify any person of such revision or changes.

Trademarks

Océ and Océ ColorWave are registered trademarks of Océ-Technologies B.V. Océ is a Canon company.

Adobe, Acrobat and PostScript are either registered trademarks or trademarks of Adobe Systems

Incorporated in the United States and/or other countries.

Microsoft, Windows and Internet Explorer are trademarks or registered trademarks of Microsoft

Corp. incorporated in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Edition 2016-10

US

Contents

Contents

Chapter 1

Introduction.........................................................................................................................9

Notes for the reader....................................................................................................................................... 10

Available documentation...............................................................................................................................12

Chapter 2

Get to Know the Printing System................................................................................... 15

Introduction.....................................................................................................................................................16

The Océ ColorWave 500 printing system ..............................................................................................16

Connect your Printing System...................................................................................................................... 17

Printer working area (Footprint)............................................................................................................. 17

Connect the mains supply cable and the network cable...................................................................... 18

Switch on the printing system................................................................................................................ 19

Turn off the printing system................................................................................................................... 20

Move the system .....................................................................................................................................22

The Hardware................................................................................................................................................. 26

The components of the printer (front)....................................................................................................26

The components of the printer (back).................................................................................................... 28

The media drawer ................................................................................................................................... 29

The user panel: Océ ClearConnect......................................................................................................... 30

The components of the scanner (optional)............................................................................................31

The delivery destination.......................................................................................................................... 33

Select the finishing device configuration........................................................................................ 35

The folding device (optional).................................................................................................................. 36

Switch the folding device to manual operation and back..............................................................36

The take-up module (optional)................................................................................................................38

Configure the Roll-to-roll mode........................................................................................................38

The Océ Delivery Tray (optional)............................................................................................................ 39

Correct use of the Océ Delivery Tray............................................................................................... 39

Workflow of the Océ ClearConnect user panel............................................................................................ 40

The home screen......................................................................................................................................40

The job queue and the system menu.....................................................................................................42

Presets, templates and advanced settings.............................................................................................44

Job preview.............................................................................................................................................. 45

The cloud.................................................................................................................................................. 46

Chapter 3

Define your Workflow with Océ Express WebTools..................................................... 47

Getting Started............................................................................................................................................... 48

Océ Express WebTools............................................................................................................................48

Set the security settings for Microsoft Internet Explorer .....................................................................49

Set the security settings for Mozilla Firefox.......................................................................................... 50

Set another language for Océ Express WebTools................................................................................ 51

The job states........................................................................................................................................... 52

The system monitor ................................................................................................................................53

Define the defaults......................................................................................................................................... 55

About the default settings in Océ Express WebTools...........................................................................55

How to edit a setting................................................................................................................................56

View and check the settings ...................................................................................................................57

3

Contents

Save the settings in a file ....................................................................................................................... 58

Load the settings from a file .................................................................................................................. 59

Restore the factory defaults ................................................................................................................... 60

Set the print job default settings ........................................................................................................... 61

Set the copy job default settings ........................................................................................................... 64

Set the scan job default settings ............................................................................................................65

Configure the Smart Inbox settings..............................................................................................................66

The Smart Inbox and the queue concept...............................................................................................66

The Smart Inbox in the Jobs tab............................................................................................................ 67

Create and open a Smart Inbox.............................................................................................................. 69

Close or delete a Smart Inbox.................................................................................................................72

Configure the job management settings............................................................................................... 73

Configure the network and security settings............................................................................................... 74

Configure the network settings in Océ Express WebTools.................................................................. 74

Set the link speed and duplex mode...................................................................................................... 75

User roles and authorizations................................................................................................................. 76

Log in as an authorized user................................................................................................................... 77

Change the password for authorized users........................................................................................... 78

Shut down or restart the system............................................................................................................ 79

Enable user authentication......................................................................................................................80

Enable Access control .............................................................................................................................81

Access control and IPsec settings...........................................................................................................82

Enable or disable the e-shredding function...........................................................................................83

Select the e-shredding algorithm........................................................................................................... 84

Specify the number of overwrite passes............................................................................................... 85

Remote security....................................................................................................................................... 86

Generate a new CA-signed certificate.................................................................................................... 87

Import a CA-signed certificate: Import the root certificate .................................................................. 89

Import a CA-signed certificate: Import the intermediate certificate.................................................... 90

Import a CA-signed certificate................................................................................................................ 91

Import a CA-signed certificate: Check and import the root certificate................................................ 92

Configure the Presets.....................................................................................................................................93

What you need to know about presets ................................................................................................. 93

Set the default copy preset .................................................................................................................... 94

Configure the custom copy preset ........................................................................................................ 95

Set the default print preset .....................................................................................................................96

Configure the custom print preset .........................................................................................................97

Make a custom preset available on the user panel...............................................................................98

Configure the locations..................................................................................................................................99

Configure your locations......................................................................................................................... 99

Enable or disable USB........................................................................................................................... 100

Enable and edit the Home folder.......................................................................................................... 101

Enable PlanWell Collaborate (optional)............................................................................................... 102

Create an external location................................................................................................................... 103

Set a default external location ............................................................................................................. 105

Set a default print destination...............................................................................................................106

Troubleshoot the creation of an FTP external location (after an error message).............................107

Troubleshoot the creation of an SMB external location (after an error message)...........................110

Troubleshoot the creation of a WebDAV external location (after an error message)......................112

Configure the printer settings..................................................................................................................... 113

Configure the regional settings ........................................................................................................... 113

Configure the user session time-out.................................................................................................... 114

Configure the working hours................................................................................................................ 115

Configure the energy save modes .......................................................................................................116

Configure the media request time-out ................................................................................................ 117

Configure the pen settings.................................................................................................................... 118

Configure the Roll-to-roll mode in Océ Express Webtools.................................................................119

Configure the Templates............................................................................................................................. 120

Fold and Scan templates ...................................................................................................................... 120

Create a new template...........................................................................................................................121

4

Contents

Delete all templates............................................................................................................................... 122

Export templates.................................................................................................................................... 123

Import templates....................................................................................................................................124

Restore the factory defaults of the templates......................................................................................125

Enable or disable scan templates......................................................................................................... 126

Configure the Finishing settings................................................................................................................. 127

Set the Océ Finishing Assistant ........................................................................................................... 127

Fold settings........................................................................................................................................... 128

Optimise the print quality and print productivity...................................................................................... 131

Set the print quality............................................................................................................................... 131

Set the long plot mode.......................................................................................................................... 132

Set the automatic roll switch................................................................................................................ 133

Set the spool threshold......................................................................................................................... 134

Set the rotation mode............................................................................................................................135

Set the alignment mode ....................................................................................................................... 136

Set the Adobe® PDF Print Engine........................................................................................................ 137

Set transparency flattening for PDF..................................................................................................... 138

Set the Océ Print Assistant Behavior ...................................................................................................139

Optimize the print productivity............................................................................................................. 140

Optimize the Color management settings..................................................................................................141

What is Color management?.................................................................................................................141

What is an input profile / standardization? ......................................................................................... 142

What is Color feel?................................................................................................................................. 145

What are Rendering intents?.................................................................................................................146

Definition of rendering intents....................................................................................................... 146

Rendering intent: Perceptual (photo) ............................................................................................147

Rendering intent: Saturation (business graphics)........................................................................ 148

Rendering intent: Relative colorimetric ........................................................................................ 149

Rendering intent: Absolute colorimetric........................................................................................150

What is an output profile?..................................................................................................................... 151

Color management settings in Océ Express WebTools..................................................................... 152

Color management settings and job submission .............................................................................. 153

Priorities in the color management settings .......................................................................................155

Color management settings for HP-GL, HP-GL/2 and HP-RTL files................................................... 157

Color management settings for TIFF and JPEG files (RGB input)..................................................... 158

Color management settings for TIFF and JPEG files (CMYK input).................................................. 159

Color management settings for PostScript files (RGB input) ............................................................160

Color management settings for PostScript and PDF files (CMYK input)...........................................161

Color management settings for PDF files (RGB input) ...................................................................... 162

Color management settings for PDF files (CMYK input).................................................................... 163

Color management settings for PDF files (Gray input).......................................................................164

Manage media.............................................................................................................................................. 165

What is a media profile? .......................................................................................................................165

Configure the media profiles ............................................................................................................... 166

Install a media profile ........................................................................................................................... 167

Create a custom media size.................................................................................................................. 168

Configure the media sizes..................................................................................................................... 169

Configure Mobile Printing and Scanning................................................................................................... 170

Océ Mobile WebTools........................................................................................................................... 170

Configure Océ Express WebTools settings for a mobile connection................................................ 172

Generate the Quick Response Card......................................................................................................173

Connect your mobile device to Océ Mobile WebTools ..................................................................... 174

Chapter 4

Use the Printing System................................................................................................ 175

How to feed an original................................................................................................................................176

How to auto-feed an original.......................................................................................................................177

How to use the carrier sheet........................................................................................................................178

How to cut the media in roll-to-roll mode.................................................................................................. 179

5

Contents

Print Jobs - Job submission tools...............................................................................................................180

Use Océ Publisher Express to send a print job................................................................................... 180

Use the Smart Inbox to send a print job.............................................................................................. 182

Use Océ Publisher Select 2 to send a print job................................................................................... 183

Use the Océ Wide format Printer Driver for Microsoft® Windows® to send a print job.................185

Use the Océ PostScript® 3 Driver to send a print job.........................................................................187

Use Océ Publisher Mobile to send a print job..................................................................................... 188

Print from your mobile device.............................................................................................................. 190

Use FTP to send a print job................................................................................................................... 191

Use LPR to send a print job...................................................................................................................192

Use the cloud to send a print job..........................................................................................................193

Use the home folder to send a print job.............................................................................................. 194

Troubleshoot print job submission...................................................................................................... 195

Print Jobs...................................................................................................................................................... 196

Do a default print job ............................................................................................................................ 196

Direct print ............................................................................................................................................. 198

Print from a USB key............................................................................................................................. 199

Print presets on the user panel............................................................................................................. 200

The Image preset for print jobs............................................................................................................ 201

Advanced settings for print jobs...........................................................................................................202

Copy Jobs..................................................................................................................................................... 207

Do a default copy job ............................................................................................................................207

Copy presets on the user panel............................................................................................................ 208

The Image preset for copy jobs............................................................................................................ 209

Advanced settings for copy jobs.......................................................................................................... 210

Recommended settings for copy jobs..................................................................................................218

The original type.................................................................................................................................... 220

Make a half size copy.............................................................................................................................222

Make a copy and add a strip................................................................................................................. 223

Make a copy and remove a strip...........................................................................................................224

Make a copy of a specific area of an original...................................................................................... 225

Make a copy and remove a specific area of an original..................................................................... 226

Make a copy and scale to another size.................................................................................................227

Make a copy of a dark original (Diazo)................................................................................................. 228

Make a copy of an original with highlighted colors............................................................................229

Copy by set............................................................................................................................................. 230

Scan Jobs......................................................................................................................................................231

Do a default scan job ............................................................................................................................ 231

Scan templates on the user panel........................................................................................................ 232

Advanced settings for scan jobs...........................................................................................................233

Advised settings for scan jobs.............................................................................................................. 239

The original type.................................................................................................................................... 241

File type...................................................................................................................................................243

Make a scan and remove a strip........................................................................................................... 245

Scan to a USB key..................................................................................................................................246

Scan to the home folder........................................................................................................................ 247

Save a scanned document on your mobile device............................................................................. 248

Pause, resume, or stop an active job..........................................................................................................249

Clear the system........................................................................................................................................... 250

Chapter 5

Maintain the Printing System........................................................................................251

Update your System.................................................................................................................................... 252

Update the software.............................................................................................................................. 252

Update the system software on the user panel...................................................................................253

Update the system software in Océ Express WebTools.....................................................................254

Install the system patches in Océ Express WebTools.........................................................................255

Replace the Media........................................................................................................................................ 256

The media drawer ................................................................................................................................. 256

6

Contents

Remove a media roll..............................................................................................................................257

Unpack the media roll............................................................................................................................260

Load a media roll................................................................................................................................... 262

Media types............................................................................................................................................ 266

Media sizes............................................................................................................................................. 268

Refill the Toner............................................................................................................................................. 270

Replace the toner cartridge .................................................................................................................. 270

Replace the maintenance tray ..............................................................................................................273

Maintain the Scanner................................................................................................................................... 277

Clean the scanner...................................................................................................................................277

Calibrate the scanner............................................................................................................................. 279

Chapter 6

License Management..................................................................................................... 281

Introduction to license management..........................................................................................................282

Check your licenses......................................................................................................................................283

Save the currently active licenses ..............................................................................................................284

Get a new license file................................................................................................................................... 285

Activate a new license..................................................................................................................................286

Chapter 7

Account Management.................................................................................................... 287

Introduction to Account Management........................................................................................................288

Enable account management in Océ Express WebTools......................................................................... 289

An overview of Océ Account Center...........................................................................................................290

Océ Account Console ®............................................................................................................................... 291

Introduction to Océ Account Console.................................................................................................. 291

Summary of Océ Account Console...................................................................................................... 292

Accounting workflow.............................................................................................................................294

Workflow on the printer.................................................................................................................. 294

Chapter 8

Solve Problems............................................................................................................... 295

How to solve problems with jobs............................................................................................................... 296

Clean the print surface................................................................................................................................. 297

Clear an original jam in the scanner........................................................................................................... 300

Disconnect the network cable and the mains supply cable......................................................................301

Event messages............................................................................................................................................302

Settings in case of errors.......................................................................................................................304

Print a demo print.........................................................................................................................................306

Print a test print............................................................................................................................................ 307

Chapter 9

Support............................................................................................................................ 309

Counter history............................................................................................................................................. 310

Audit log........................................................................................................................................................311

Remote Service: configure the proxy......................................................................................................... 312

Remote Service: check the connection.......................................................................................................313

Remote Service: allow remote assistance..................................................................................................314

Chapter 10

Contact.............................................................................................................................315

Downloads and support for your product..................................................................................................316

Reader's comment sheet............................................................................................................................. 317

Index.................................................................................................................................319

7

Contents

8

Chapter 1

Introduction

Notes for the reader

Notes for the reader

Introduction

This manual helps you to use the Océ ColorWave 500. The manual contains a description of the product and guidelines to use and operate the Océ ColorWave 500.

Definition

Attention Getters

Parts of this manual require your special attention. These parts can provide the following:

• Additional general information, for example information that is useful when you perform a task.

• Information to prevent personal injuries or property damage.

Typography used in this manual

Overview of the characters and the special fonts

Text display Indicates

[text between square brackets] Button, feature or value of the Océ ColorWave 500 user interface.

< text between angle brackets > Key on your keyboard.

'text between quotes' Feature or value of the Windows operating system.

text displayed with Courier font e.g. %windir%\system32\mspaint.exe

Path from your Windows operating system or from a software application.

Symbols used in this manual

The following symbols are used in this manual to explain procedures, restrictions, handling precautions, and instructions that must be observed for safety.

Overview of the attention getters

Word

WARNING

Icon Indicates

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

4

10 Chapter 1 - Introduction

Word

CAUTION

IMPORTANT

NOTE

Icon

Notes for the reader

Indicates

General hazard

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly.

To use the machine safely, always pay attention to these cautions.

This indication has several icons that warn against various hazards. The icons are shown below.

Hot surface

Electric shock

Moving parts

Laser beam

Indicates operational requirements and restrictions.

Be sure to read these items carefully to operate the machine correctly and to avoid damaging the machine or property.

Indicates a clarification of an operation or contains additional explanations for a procedure. Reading these notes is highly recommended.

Indicates an operation that must not be performed.

Read these items carefully and make sure not to perform the described operations.

The use of heat-resistant gloves is mandatory when you carry out the actions concerned.

The use of eye protection is mandatory when you carry out the actions concerned.

The use of protective clothing is mandatory when you carry out the actions concerned.

The use of safety footwear is mandatory when you carry out the actions concerned.

Safety information

Before using this Océ product, make sure that you read and understand the safety information which is part of the user documentation. You can download the safety information via

"http:// downloads.oce.com"

or, if applicable, find it on the user documentation CD/DVD that is delivered together with the machine or obtain the safety information from your local Océ representative. To avoid potential hazards, maintenance is strictly preserved to properly qualified and trained service technicians.

Chapter 1 - Introduction 11

Available documentation

Available documentation

Introduction

This manual is part of a complete documentation set. The following table shows a complete overview of the available documentation.

NOTE

For up-to-date documentation, visit the Océ downloads page on the Internet and find all the information for your printer.

Available documentation

Documentation

User Manual - Operation guide

Online Help - Océ Express WebTools

User manual - Safety guide

Quick Reference Guide for the use of Océ

Mobile WebTools

Océ Large Format Systems Connectivity -

Administration guide

Océ PlotWave-ColorWave Systems Security - Administration guide

Availability

• On the download website under the product name (

"http://downloads.oce.com"

).

Available as a PDF file in multiple languages.

• Embedded in the application

Available in multiple languages.

• On the download website under the product name (

"http://downloads.oce.com"

).

Available as a PDF file in multiple languages.

• On the download website under the product name (

"http://downloads.oce.com"

).

Available as a PDF file.

• On the download website under the product name (

"http://downloads.oce.com"

).

Available as a PDF file in English only.

• On the download website under the product name (

"http://downloads.oce.com"

).

Available as a PDF file in English only.

Available documentation Océ Wide format Printer Driver for Microsoft

®

Windows

®

Documentation

User guide

Online Help

Availability

• On the download website under the product name (

"http://downloads.oce.com"

).

Available as a PDF file in multiple languages.

• Embedded in the application

Available in multiple languages.

Available documentation Océ PostScript

®

3 Driver

Documentation

Installation guide

Availability

• On the download website under the product name (

"http://downloads.oce.com"

).

Available as a PDF file in multiple languages.

4

12 Chapter 1 - Introduction

Available documentation

Documentation

Online Help

Availability

• Embedded in the application

Available in multiple languages.

Available documentation Océ Publisher Select

Documentation

User guide - Océ Publisher Select

Online Help

Availability

• On the download website under the product name (

"http://downloads.oce.com"

).

Available as a PDF file in multiple languages.

• Embedded in the application

Available in multiple languages.

Chapter 1 - Introduction 13

Available documentation

14 Chapter 1 - Introduction

Chapter 2

Get to Know the Printing System

Introduction

Introduction

The Océ ColorWave 500 printing system

Introduction

The Océ ColorWave 500 is a wide format TonerPearl printer that uses the patented Océ

CrystalPoint technology.

Illustration

The main components of the Océ ColorWave 500 printing system

Component

The Océ ColorWave 500

Océ Express WebTools

Description / Function

The Océ ColorWave 500 creates the printed output. With the integrated Océ Scanner Express (optional) you can also perform copy and scan jobs. Use the Océ ClearConnect multitouch user panel to easily configure and submit your jobs.

Océ Express WebTools provide multiple users a remote view on the system and control on the system's workflow, without any need to install software.

The [System administrator] or the [Key operator] can also use

Océ Express WebTools to configure the system and fine-tune the system to optimally fit the customer's company workflow and processes.

16 Chapter 2 - Get to Know the Printing System

Connect your Printing System

Connect your Printing System

Printer working area (Footprint)

The Océ ColorWave 500 requires a floor space / working area of at least 3100 mm x 2260 mm, or

122 inch x 89 inch.

3100mm / 122”

500mm / 19.7” 2100mm / 82.6” 500mm / 19.7”

Chapter 2 - Get to Know the Printing System 17

Connect the mains supply cable and the network cable

Connect the mains supply cable and the network cable

Procedure

IMPORTANT

Make sure the power switch [A] is in 'off' position.

1.

Lift the protection cover up [B].

B

A

C

2.

Plug the mains supply cable into the power connection at the back of the printer [C].

3.

Plug the other side of the mains supply cable into the wall socket.

4.

Make sure one end of the network cable is connected to your company network.

5.

Plug the other end of the network cable into the network connection at the left back of the printer

[D] , to connect the printer to your company network.

D

18 Chapter 2 - Get to Know the Printing System

Switch on the printing system

Switch on the printing system

IMPORTANT

• Make sure the mains supply cable is plugged in.

• Make sure the network cable is plugged in.

For more information, see

Connect the mains supply cable and the network cable on page 18

Procedure

1.

Switch on the power switch at the back of the printer.

2.

Press the on/off button at the front of the printer to start the system.

Chapter 2 - Get to Know the Printing System 19

Turn off the printing system

Turn off the printing system

Introduction

When you want to switch off the printing system completely, you have to take a few steps.

Procedure

1.

Press the on/off button at the front of the printer to switch the printing system off.

NOTE

You can also use the [Shut down] button in Océ Express WebTools.

IMPORTANT

Wait until the on/off button stops blinking.

20 Chapter 2 - Get to Know the Printing System

2.

Switch off the power switch at the back of the printing system.

Turn off the printing system

Chapter 2 - Get to Know the Printing System 21

Move the system

Move the system

Introduction

You can move the printer to a new location.

Before you begin

IMPORTANT

• When the printer is connected, you must first switch off and disconnect the printer (see

Switch the printing system off on page 20

and

Disconnect the network cable and the mains supply cable on page 301

).

• Close the media drawers.

NOTE

Be aware of the size of the printer working area (see

Printer working area (Footprint) on page 17 ).

Procedure

1.

Pull with both hands to remove the left side cover.

2.

Pull at the left foot cover to remove it.

22 Chapter 2 - Get to Know the Printing System

Move the system

3.

Push the handle [1]. The foot snaps up [2].

1

2

4.

Repeat action 1 till 3 on the right side cover.

5.

Move the printer to the preferred location. Be aware of the printer working area.

6.

Pull out the left foot [1] until it touches the ground and locks [2]. You should hear a click when it locks into place.

2

1

NOTE

If you do not hear a click, place your foot on the foot of the printer [1] and at the same time push gently against the printer until you hear the click.

7.

Place the foot cover. Place the pin into the notch.

Chapter 2 - Get to Know the Printing System 23

Move the system

8.

Place the pin into the notch to mount the left side cover.

Pin:

Notch:

24 Chapter 2 - Get to Know the Printing System

9.

Push the cover into place.

10.

Repeat action 6 till 9 for the right side cover.

Move the system

Chapter 2 - Get to Know the Printing System 25

The Hardware

The Hardware

The components of the printer (front)

5 6 7 8 9 10

4

3

2

1

11

12

13

14

15

Component - function table

7

8

5

6

9

2

3

No

1

4

10

11

12

13

Component

[media drawers]

[lower left side cover]

[lower front cover]

[top cover]

[toner cartridge (cyan)]

[toner cartridge (yellow)]

[toner cartridge (black)]

[toner cartridge (magenta)]

[transparent top cover]

[top delivery tray]

[USB port]

Océ ClearConnect: multi-touch [user panel]

[on/off button]

Description / Function

Media drawers with 2 media rolls

Cover at the bottom left of the device

Door to access the media path

Component that covers the top surface of the device

Toner cassette for cyan Océ TonerPearls®

Toner cassette for yellow Océ TonerPearls®

Toner cassette for black Océ TonerPearls®

Toner cassette for magenta Océ TonerPearls®

Door to access the print surface / media output section

Delivery tray that collects the printed output

USB connector to use a USB key to print from or to scan to

The Océ ClearConnect user panel allows the user to start copy, scan, or print jobs, and to monitor the system and the job status.

Button to start or shut down the printer.

This button is equivalent to the [Shut down] button in Océ Express WebTools.

4

26 Chapter 2 - Get to Know the Printing System

No

14

15

Component

[lower right side cover]

[foot]

The components of the printer (front)

Description / Function

Component that covers the controller

Component at the bottom of the printer, used to lever it

Chapter 2 - Get to Know the Printing System 27

The components of the printer (back)

The components of the printer (back)

4

3

2

5

1

Component - function table

3

4

No

1

2

Component

[wheel]

[folder connection panel]

[maintenance tray drawer]

[upper back cover]

5 [power switch]

Description / Function

Swivel wheel with brakes

Component to connect the folding device to

Cover at the back of the device, used to access the machine for error recovery

Switch the main power supply on or off

You can find the serial number of the printer on the sticker above the power switch

28 Chapter 2 - Get to Know the Printing System

The media drawer

The media drawer

2

1

3

4

Component - function table

IMPORTANT

Only use intact media rolls. Dented media rolls can damage the [Imaging devices].

3

4

No

1

2

Component

[media roll] 1

[media roll] 2

[roll holder]

[roll loading station]

Description / Function

Media placed on roll holder in first position.

Media placed on roll holder in second position.

Carries the media roll.

Groove integrated behind the front cover of the media drawer.

Chapter 2 - Get to Know the Printing System 29

The user panel: Océ ClearConnect

The user panel: Océ ClearConnect

Introduction

The Océ ClearConnect is the multi-touch user panel of the printer.

1

2

3

4

5

6

No.

1.

2.

3.

4.

5.

6.

Component

[status light]

Function

Light that gives feedback on the status of the printer.

• A green light indicates that the printer is scanning or printing.

• A green blinking light indicates that the printer is in a transition state (start-up, shut-down, pause).

• A red light indicates that an error occurred or the print queue is paused.

• When the light is off the system is ready or shutdown.

[wake-up button] Button to:

• Get the printer out of sleep mode.

• Wake the printer up to full functionality.

[USB port] Insert a USB key to:

• Print a file directly from the USB key.

• Save a scan file directly on the USB key.

[stop button]

[home button]

[green button]

(touch)

The port green light starts to blink during data transfer.

Button, with a red light, to:

• Immediately interrupt a scan job.

• Stop a print job after the page that is being printed.

Button to:

• Return to the user panel home screen.

• Reset settings to default by pressing the button twice.

Dynamic tile on the user panel display to:

• Start a scan job, a print job or a copy job on the user panel.

30 Chapter 2 - Get to Know the Printing System

The components of the scanner (optional)

Introduction

The embedded scanner is an optional of the printer.

The components of the scanner (top cover closed)

2 3 4

The components of the scanner (optional)

1

5

3

4

1

2

5

Component

[top cover]

[output refeed protector]

[originals exit]

[original feeding table]

[open levers]

Description / Function

Closes off the scanner.

Prevents that your output is refed into the scanner.

Exit for the scanned original.

Use the original feeding table to feed the original into the scanner (face up).

Use the open levers to open the top cover of the scanner.

Chapter 2 - Get to Know the Printing System 31

The components of the scanner (optional)

The components of the scanner (top cover opened)

1 2 3 4 5 6 7 8 9

5

6

3

4

1

2

7

8

9

Component

[top cover]

[open levers]

[original size ruler]

[original feed rollers]

[original support rollers]

[scanner top cover rollers]

[original sensors]

[transparent contact plates]

[original feeding table]

Description / Function

Closes off the scanner.

Use the open levers to open the top cover of the scanner.

Use this ruler to measure the original.

A set of rollers used to transport the original.

A set of rollers to guide the original.

A set of rollers in the top cover to guide the original.

Sensors to detect the original.

Cover of the image sensors.

Use the original feeding table to feed the original into the scanner (face up).

32 Chapter 2 - Get to Know the Printing System

The delivery destination

The delivery destination

Introduction

The Océ ColorWave 500 is delivered with a [Top Delivery Tray (TDT)] to collect your printed output.

The [Top Delivery Tray (TDT)] can collect 50 - 100 plain paper prints with a maximum length of

1200 mm, 48 inch. The media type you use influences the output capacity.

In Océ Express WebTools you can define the default [Print delivery] for your printed output. To set the default [Print delivery], select the [Preferences] - [Print job defaults] tab.

• If you use 2 inch media cores instead of the standard 3 inch media cores, the printed output is automatically delivered at the back of the printer. The installation of one of the finishing options is then advised.

• Some media require a specific output delivery. For example heavy media or media that requires a manual cut can automatically be delivered at the back of the printer. This is defined in the properties of the media type.

• If you select [Top Delivery Tray (TDT)] your printed output is by default delivered in the standard [Top Delivery Tray (TDT)].

• If you select [Back output] your printed output is by default delivered at the back of the printer.

In that case you can expand your printer with one of the following finishing options.

The finishing options

See also

Select the finishing device configuration on page 35

Chapter 2 - Get to Know the Printing System 33

The delivery destination

[Receiving rack (basket)]

The [Receiving rack (basket)] is hooked at the rear side of the printer. It can collect 2 - 5 prints. The [Receiving rack (basket)] bends the printed output. Not all media types are appropriate for this finishing option.

Illustration

NOTE

The [Receiving rack (basket)] is not supported in combination with the folding device, Océ Delivery Tray or take-up module.

Folding device

The folding device is an automatic folding device that folds large sized plots.

NOTE

• The folding device is not supported in combination with the

[Receiving rack (basket)], Océ

Delivery Tray or take-up module.

Illustration

Océ Delivery Tray

The Océ Delivery Tray is a flat tray behind the printer. The delivery tray can collect a maximum of 150 prints.

NOTE

The Océ Delivery Tray is not supported in combination with the

[Receiving rack (basket)], folding device or take-up module.

Illustration

34 Chapter 2 - Get to Know the Printing System

Select the finishing device configuration

Take-up module

The take-up module enables you to wind up your prints job on a roll without cutting. This can be handy when you want to transport your prints or want to finish your prints at a later time. When your machine is equipped with the take-up module, you must first put the machine into the Roll-to-roll mode. You can enable the Roll-to-roll mode in Océ Express WebTools and on the user panel.

NOTE

The take-up module is not supported in combination with the [Receiving rack (basket)], folding device or Océ Delivery Tray.

See

The take-up module (optional) on page 38 ,

Configure the Roll-to-roll mode in

Océ Express Webtools on page 119

and

Configure the Roll-to-roll mode on page 38

Illustration

Select the finishing device configuration

When to do

On the user panel, you can choose the type of the finishing device. The default value is [No finisher].

Procedure

1.

Tap on the system menu thumbnail in the dynamic bar. The system menu opens.

2.

Tap on [Finishing device] in the list in the right part of the display.

3.

Log in as a Key operator.

A wizard opens.

4.

Follow the steps in the wizard.

The selection options:

• [No finisher]

• [Océ Delivery Tray]

• [Océ 2400 fanfold]

• [Océ 4311 fullfold series]

• [Océ 4312 fullfold (conveyor belt)]

• [Océ 4313 fullfold (reinforcement unit)]

• [Océ 4314 fullfold (conveyor belt and reinforcement unit)]

Result

After you have followed the steps, restart the system to apply the configuration.

Chapter 2 - Get to Know the Printing System 35

The folding device (optional)

The folding device (optional)

Introduction

The printer can be delivered with an external folding device. The Océ ColorWave 500 is compatible with the Océ 2400 fanfold and the Océ 4311 fullfold.

NOTE

• A technician is required to install the folding device and to configure the system.

• After installation you have to log in as a Key operator to change the type of the finishing device.

• For more information on folding devices, visit

"http://downloads.oce.com"

and select your product.

Media compatibility with the folding device

The following media are compatible with the folding device:

• Plain papers: 60- 110 g

• Vellum, Translucent and Tyvek: fold quality depends on used media

Switch the folding device to manual operation and back

Introduction

The Océ 2400 fanfold and the Océ 4311 fullfold are integrated in the system.

You can use the folding device also as a stand-alone folding device.

NOTE

For more information about the folding devices, see the separate operation manual of the folding device.

Online mode versus manual mode

The folding device is connected to the back of the printer. If you want to operate the folding device manually, the connecting part (to the printer) could cause a paper jam on the table.

If you switch to manual mode, then the connecting part will move downwards to clear the entrance for the paper.

Online mode Manual mode

36 Chapter 2 - Get to Know the Printing System

Switch the folding device to manual operation and back

Procedure

Switch from online mode to manual mode

1

2

Press the [Enter] button once

Press [arrow up] until you see the "hand" symbol. Then press the [Enter] button.

3 The display shows an icon of a folded package.

The number below this icon indicates the width of the folded package. The number left of the icon indicates the folding program number.

Operator interface

If the folding program number is "G" and the width of the folded package is "0", please press

[arrow up] to select a valid folding program number (1 to 8).

Switch from manual mode to online mode

Repeat the same procedure as explained above, but now make sure that the 'ONL' is displayed.

Chapter 2 - Get to Know the Printing System 37

The take-up module (optional)

The take-up module (optional)

Introduction

The Océ ColorWave 500 is compatible with the optional take-up module.

The take-up module allows the user to print in Roll-to-roll mode. The module rolls up your print jobs automatically on a core without cutting. This can be handy when you want to transport your prints or want to automatically clean-cut or trim your prints, laminate or mount an adhesive back to the prints.

Before you can use the take-up module, you must first set the printer into the Roll-to-roll mode.

You can enable the Roll-to-roll mode in Océ Express WebTools and on the user panel, see

Configure the Roll-to-roll mode in Océ Express Webtools on page 119

and

Configure the Roll-toroll mode on page 38

.

By default, the printer is delivered in Roll-to-sheet mode. In this mode, the machine cuts and delivers each print to the selected delivery destination.

Configure the Roll-to-roll mode

Introduction

When you want to use the take-up unit, your printer has to be in the Roll-to-roll mode. When you enable the Roll-to-roll mode, the printer will not cut between pages. You can also configure the

Roll-to-roll mode in Océ Express Webtools.

NOTE

• When the Roll-to-roll mode is enabled, each print job is delivered to the [Back output]; even when you set the [Top delivery tray] as output location for your prints.

• To calibrate the printer the Roll-to-roll mode must be disabled.

Procedure

1.

Tap on the system menu thumbnail. The system menu opens.

2.

Tap on [Roll-to-roll option] in the list in the right part of the display.

3.

Log in as a Key operator.

4.

Select [Roll-to-roll disabled] or [Roll-to-roll enabled].

5.

Tap [Ok] to confirm, or [Cancel] to reject your entries.

38 Chapter 2 - Get to Know the Printing System

The Océ Delivery Tray (optional)

The Océ Delivery Tray (optional)

Correct use of the Océ Delivery Tray

Introduction

To avoid output problems, attach the Océ Delivery Tray correctly to the printer and adjust the height according to your printing preferences. For best use, follow the guidelines in the Océ

Delivery Tray guide available on

"http://downloads.oce.com"

.

When you encounter output problems, use the overview below for help.

NOTE

• The Océ Delivery Tray is not supported in combination with any of the other finishing devices.

• When using the Océ Delivery Tray make sure the [Print delivery] setting in the [Preferences] -

[Print job defaults] tab is set to [Back output] and the finishing device configuration is set to

[Océ Delivery Tray], see

Select the finishing device configuration on page 35

Procedure

Problem

Your copies are not neatly stacked

Action

It is essential to correctly attach the Océ Delivery Tray to your Océ

ColorWave 500 in order to get neatly stacked output.

Move the Océ Delivery Tray towards the back of the printer, and make sure you align parallel. Attach the Océ Delivery Tray to the printer and make sure it is well connected. Following this procedure ensures an optimal positioning of the device and minimises the chances of damaging your Océ Delivery Tray and the Océ ColorWave 500.

Your copies show dog ears Adjust the position of the left and right output guide flaps to suit the width of the media you print on. When an output guide flap is positioned exactly on the edge of your print output, this may result in dog ears.

It is advised to leave the middle output guide flap in the exact middle of the Océ Delivery Tray.

Your pile of stacked copies is not flat, resulting in curved copies

Adjust the length of the delivery tray to your print job. Make sure the length is not shorter than the longest print length within your print job. If the delivery surface is too small for the copies, this may result in curves or small creases in your print output.

Chapter 2 - Get to Know the Printing System 39

Workflow of the Océ ClearConnect user panel

Workflow of the Océ ClearConnect user panel

The home screen

Introduction

The default screen of the Océ ClearConnect user panel is the home screen.

From the home screen you can manage jobs and enter the system menu.

The home screen

1

2

3

4

5

6

No.

1.

2.

3.

Component

dynamic bar and

[active job]

[system menu]

[Copy tile]

[Scan tile]

[Print tile]

Function

In the dynamic bar you can see the system states (warming-up, cleaning etc.) and the active job when present.

• When you tap the active job the job queue appears with the list of waiting jobs.

• When you tap the active job the pause tile appears, with which you can pause the printing process.

In the dynamic bar you can access the system menu.

• When you tap the system menu thumbnail, a new window opens with a dynamic view of the system and printer setup settings.

These dynamic tiles help you to perform copy, scan and print jobs.

Select the correct tile for your job:

• When you tap one of the tiles and then use the Smart Access, you can start your job immediately.

• As default the print tile is selected, but when you insert an original into the scanner the copy tile is selected. When you insert an original and a USB key the scan tile is selected.

• When you want to make more settings you can tap the tile twice, and a new window with presets or settings opens.

4

40 Chapter 2 - Get to Know the Printing System

No.

4.

5.

6.

The home screen

Component

Smart Access

[live scan view]

[green button]

Function

The dynamic Smart Access changes specifically for a print, copy or scan job and helps you to quickly start a job.

The live scan view appears in the Smart Access.

The view shows the width and alignment of your document while it slides through the Smart Access.

The green button is dynamic and appears on all screens in the bottom right corner of the display.

• When the button is green, the printer is ready to process your job.

• When the button is gray, the printer is not ready to process your job.

Chapter 2 - Get to Know the Printing System 41

The job queue and the system menu

The job queue and the system menu

Introduction

The dynamic bar is located in the upper part of the home screen on the user panel display. The dynamic bar consists of the job status with the job queue, the printer status, and the system menu.

The active job and the job queue

1

2

3

2.

3.

No.

1.

Component

job and printer status system menu job queue

Function

View information on the job and the printing system, such as:

• Job information of the active job.

• The printer status (e.g. printing, toner low, folder connected etc.).

Tap the system menu thumbnail to access the system menu.

Tap on the active job to open the job queue window.

• See all the listed jobs and access them when you tap the job settings.

• Move the listed jobs up or down the list.

42 Chapter 2 - Get to Know the Printing System

The job queue and the system menu

System menu

1

2

No.

1.

2.

Component

Printing system, media, and toner

[setup menu]

Function

• The loaded media in the printer is displayed.

• The available toner per color is displayed.

• Wizards appear, to help you change media or refill toner.

The [setup menu] gives general information on the printer. In the list you can get access to:

• Switch between first and second language

• [Counters]

• [Test prints]

• [Finishing device]

• [Media calibration]

• [Roll-to-roll option] (with optional take-up module)

• [Printer calibration]

• [Clear system]

• [Scanner] (with optional scanner)

• [Network settings]

• [Security]

• [System update]

• [About]

Chapter 2 - Get to Know the Printing System 43

Presets, templates and advanced settings

Presets, templates and advanced settings

Introduction

Presets and templates help you to submit jobs quickly and easily. Advanced settings help you to fine-tune the settings of your job, and give access to all settings.

When you tap the copy tile in the home screen, a window with copy presets and advanced settings opens. When you tap the scan tile, the templates are visible in the Smart Access. When you tap the scan tile again, the window with the advanced settings opens. When you tap the print tile and tap the settings of a listed job, the window with print presets and advanced settings opens.

1

2

3

.

No Component

1.

[preset tiles]

2.

[job pane]

3.

[Show all settings]

(Advanced settings)

Function

The preset tiles show the default settings for your job.

• The presets are divided into categories, such as [Media], [Layout] etc.

• When you tap a preset tile, it gives quick access to a short list of other presets you can choose.

The [job pane] helps to manage jobs.

• Information is given on your job.

• Make sets.

• Delete a job.

• Tap a tile to switch between the presets/settings window and a window with a preview of the document (only for Smart Inbox jobs).

• Start a job with the green button.

When you tap on [Show all settings], a list with all the advanced settings opens. For Scan, the advanced settings are already visible.

• The advanced settings are categorized and presented as tiles.

• When you tap a tile you can fine-tune the settings.

44 Chapter 2 - Get to Know the Printing System

Job preview

Job preview

Introduction

The multi-touch user panel offers a detailed preview of your job. Touch the preview thumbnail to access the preview window.

Job preview

Component

Job preview

Function

You can pan the image to see it in more detail.

You can shift between the various job files that are part of one location.

Swipe left or right to view the other job files.

Tap the Edit tile in the job pane to open the preset window.

In the preset window, tap the View tile to go back to the preview window.

NOTE

If you have a multi-page job, you can only view the first page.

Chapter 2 - Get to Know the Printing System 45

The cloud

The cloud

Introduction

The multi-touch user panel gives the user the opportunity to print from and scan to various locations. One of these locations is the cloud.

You can enter the cloud via WebDAV and use it as a network drive. This way, the cloud application of your choice is accessible.

NOTE

• For more information on how to configure the cloud as an external location, see

Create an external location on page 103

.

• Note that WebDAV is the type selected when creating a cloud location. For more information on how to use the cloud for print jobs, see

Use the cloud to send a print job on page 193

.

Concept of the cloud

The cloud can be seen as a virtual network drive you use to send files to, but also to save and share files on.

There are general cloud applications, such as SharePoint or applications via a HTTP URL, but companies can also use their own private and internal clouds.

Working with the cloud on the Océ ColorWave 500 is very easy:

Procedure

Connection

For print jobs:

For

scan jobs:

Description

Make a connection between your preferred cloud application and the printer.

To do this, create an external location in Océ Express

WebTools via WebDAV .

Open the cloud application locally.

Via

Océ Express

WebTools

Add and save the file you want to print, in the cloud. Or send your file to the printer in the cloud.

Open your cloud application as location, in the Smart

Access of the print tile.

Select the file you want to print.

Tap the green button.

Insert the original and select the scan tile.

Select the template with the cloud set as destination in the Smart Access.

Tap the green button.

Open the cloud application on your PC or mobile device, and find the scanned file there.

PC or mobile device

PC or mobile device user panel user panel user panel user panel user panel user panel

PC or mobile device

46 Chapter 2 - Get to Know the Printing System

Chapter 3

Define your Workflow with Océ

Express WebTools

Getting Started

Getting Started

Océ Express WebTools

Introduction

Océ Express WebTools is an application that runs embedded on your printer. Use an up-to-date

Internet browser (Google Chrome, Microsoft Internet Explorer or Mozilla Firefox) to open the homepage of Océ Express WebTools on your computer or mobile device.

Definition

You can use Océ Express WebTools to:

• Manage print, copy and scan jobs.

• Send print jobs to the printer with Océ Publisher Express.

• Access the settings to manage the configuration and preferences of the printing system.

When you want to change settings in Océ Express WebTools, you must log in with one of three predefined user roles. For more information, see

User roles and authorizations on page 76

.

• Monitor the status of the printing system.

How to access Océ Express WebTools

To access Océ Express WebTools:

• Enter the product name of the printer as a Hostname, for example http://ColorWaveXXX, in the workstation web browser.

or

• Enter the printer's IP address, for example http://123.123.23.123, in the workstation web browser.

NOTE

When Océ Express WebTools does not appear, contact the network administrator to check the network parameters. Check whether the printer's network settings have been registered in the network infrastructure.

48 Chapter 3 - Define your Workflow with Océ Express WebTools

Set the security settings for Microsoft Internet Explorer

Set the security settings for Microsoft Internet Explorer

Introduction

You can use a web browser to open the home page of Océ Express WebTools. Depending on the

Internet browser you use, set the required minimum browser security settings as indicated below.

NOTE

You must enable cookies.

Procedure

Step

1

2

3

4

5

Action

Select Tools / Internet Options / Security / Local intranet / Custom Level

ActiveX controls and plug-ins

Binary and script behaviours

Downloads:

File download

Miscellaneous

Allow META REFRESH

Launching applications and unsafe files

Use Pop-up blocker

Scripting

Active scripting

Value

Enable

Enable

Enable

Enable

Disable

Enable

Chapter 3 - Define your Workflow with Océ Express WebTools 49

Set the security settings for Mozilla Firefox

Set the security settings for Mozilla Firefox

Introduction

You can use a web browser to open the home page of Océ Express WebTools. Depending on the

Internet browser you use, set the required minimum browser security settings as indicated below.

NOTE

You must enable cookies.

Procedure

Step

1

2

Action

Select Firefox / Options / Options

Content

Block pop-up windows

Enable Javascript

Value

Disable

Enable

50 Chapter 3 - Define your Workflow with Océ Express WebTools

Set another language for Océ Express WebTools

Set another language for Océ Express WebTools

Introduction

The language setting of the Internet browser you use defines the language of Océ Express

WebTools.

Set another language

You can change the language of Océ Express WebTools in your Internet browser. Depending on the Internet browser you use you have to follow several steps to change the language. Use the specific help information in your browser to learn more. The Internet browsers that are supported are: Google Chrome, Microsoft Internet Explorer, and Mozilla Firefox.

The following languages are supported: Dutch, UK English, German, French, US English,

Spanish, Danish, Italian, Swedish, Norwegian, Finnish, Portuguese, Polish, Hungarian, Czech,

Japanese, Simplified Chinese, Traditional Chinese, Russian and Korean.

NOTE

• The language setting does not influence the language on the user panel. On the user panel, you can choose between the [First language] and the [Second language]. You can define the values for the [First language] and the [Second language] in the regional settings of Océ

Express WebTools.

• When the selected language cannot be supported, the default language for Océ Express

WebTools

Chapter 3 - Define your Workflow with Océ Express WebTools 51

The job states

The job states

Introduction

When a job is placed in a Smart Inbox or in the job queue, the icon in front of the job name gives information about the status of the job.

Overview of the job states in the Smart Inbox

State

Receiving

Icon Description

Indicates that the Smart Inbox is receiving the job data.

New

Queued

Printed

Attention needed

Account data missing

Indicates that a new job is available in the Smart Inbox.

Indicates that the job is copied to the queue and waiting to be printed.

Indicates that the job has been printed.

General error message.

State when the account data for the job is missing.

Overview of the job states in the Job queue

State

Receiving

Icon Description

Indicates that the Queue is receiving the job data.

Processing

Ready to print

Scheduled

Printing

Attention needed

Indicates that the Queue is processing the job data.

Indicates that the job is ready for printing.

Indicates that the job is waiting to be printed.

Indicates that the job is currently being printed.

General error message.

52 Chapter 3 - Define your Workflow with Océ Express WebTools

The system monitor

The system monitor

Introduction

You can open the system monitor to get an overview of the current status of the printing system.

When you click on the system tab in the lower left corner of the screen, the system monitor opens.

The system state (for example: [Printing:]) is displayed in the upper right corner of the system monitor section of Océ Express WebTools.

Overview of the system states

State

[User intervention required]

[System memory is full]

[Out of toner]

[Sleeping...]

[Warming up...]

[Initializing...]

Icon Description

The user is requested to go to the printer and follow the instructions displayed on the user panel.

Status message when printer does not print because the system memory is full.

Status message when printer does not print because the printer is out of toner.

Energy saving state: State when not all functionality is available due to printer sleeping.

State when not all functionality is available due to printer warming up.

State when the system software is initializing.

[Printer paused]

[Processing...]

[Ready to print]

[Printing:] <job-name>

[Processing:] <job-name>

[Receiving:] <job-name>

[Optimizing print quality, please wait...]

The system pauses the print queue but keeps access to all other functionality.

The system is receiving or processing data.

State when there is no active job and no waiting job.

When a job arrives, no user intervention is needed to start printing.

State when a print job is active.

The system is processing the job data.

The system is receiving the job data.

The system is making settings to optimize the print quality.

4

Chapter 3 - Define your Workflow with Océ Express WebTools 53

The system monitor

State

'Media indication'

The scanner states

State

[User intervention required]

[Scanner is busy]

[Scanner is ready]

Icon Description

Roll media and roll width indication for each roll.

Icon Description

General error message.

The scanner is active.

The scanner is ready to start a scan job.

The toner states

Icon Description

Toner OK

Toner low, or empty.

The Remote Service States

Icon Description

no icon [ Remote Service ] is either disabled or enabled and connected to Océ.

[ Remote Service ] is enabled, but could not connect to Océ.

Remote assistance to the system is enabled and currently accepting a connection.

The E-shredding states

Icon Description

no icon E-shredding is disabled.

E-shredding is enabled or busy.

A tooltip is available with extra information.

The Roll-to-roll states

Icon Description

no icon The system is in Roll-to-sheet mode

The system is in Roll-to-roll mode. The printer will not cut between pages. The take-up unit can be used.

54 Chapter 3 - Define your Workflow with Océ Express WebTools

Define the defaults

Define the defaults

About the default settings in Océ Express WebTools

Definition

Before you send jobs to the printer, remember the following:

The values defined in Océ Express WebTools are default values for the general system behavior.

You can define a number of job settings in the printer drivers or the job submission tools. The settings defined in the printer drivers or the job submission tools always overrule the settings defined in Océ Express WebTools.

Chapter 3 - Define your Workflow with Océ Express WebTools 55

How to edit a setting

How to edit a setting

Introduction

In Océ Express WebTools, you can make settings to personalise your printing system.

NOTE

• Before you can edit a setting or a settings group, you must log in as an authorized user.

• You may have to reboot the system after you changed the settings.

Procedure

1.

Browse to the settings group you want to edit, for example [Preferences] - [System defaults] -

[Regional settings].

2.

Click directly on the value of a setting, when you want to edit a single setting or click [Edit] in the settings group bar to access a window with all settings if you want to edit more settings in the group.

3.

Modify the settings. A setting is enabled when you check the box.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

56 Chapter 3 - Define your Workflow with Océ Express WebTools

View and check the settings

View and check the settings

Introduction

In Océ Express WebTools you can view and check your settings. You can also check which settings are no longer set to the factory default value.

Procedure

1.

Open the [Configuration] tab or the [Preferences] tab.

2.

Click on [View configuration] in the upper right-hand corner of the screen. A window opens.

3.

Scroll through the list of settings. The first column displays the setting and the second column displays the values. A "*" indicates that the value of the setting is different than the original factory default value.

NOTE

You can print the information with the standard print function of your browser.

Chapter 3 - Define your Workflow with Océ Express WebTools 57

Save the settings in a file

Save the settings in a file

Introduction

Save the settings and the values that you configured in Océ Express WebTools in a file.

Save the settings in a file to duplicate the settings very easily to another printer of the same type.

NOTE

Not all settings are stored in the settings file. The network settings are excluded from the file because the network settings cannot be transferred to another printer. The passwords for authorized users and the passwords for external locations are excluded from the file for security reasons. License information is not included in the file either.

Procedure

1.

Open the [Configuration] tab or the [Preferences] tab.

2.

Click on [Save configuration] in the upper right-hand corner of the tab. A window opens.

3.

Navigate to a location on the network to store the file.

4.

Save the settings<hostname of printer><date>.xml file. The file name is not fixed. You can change the name if required.

5.

Click [Ok] to confirm, or [Cancel] to close the window without storing the file.

58 Chapter 3 - Define your Workflow with Océ Express WebTools

Load the settings from a file

Load the settings from a file

Introduction

Load the settings and the values for Océ Express WebTools from a file. Load the settings from a file to duplicate them to another printer of the same type.

NOTE

• Not all settings are stored in the settings file. The network settings are excluded from the file because the network settings cannot be transferred to another printer. The passwords for authorized users and the passwords for external locations are excluded from the file for security reasons. License information is not included in the file either.

• For this procedure, you need to log in as a Key operator, System administrator, or Power user.

The loaded settings depend on the login profile. Only the settings corresponding to the user login are loaded.

Procedure

1.

Open the [Configuration] tab or the [Preferences] tab.

2.

Click on [Restore configuration] in the upper right-hand corner of the screen. A window opens.

3.

Navigate to a location on the network and select the settings file.

4.

Click [Ok] to load the settings file, or [Cancel] to close the window without loading the settings file.

In some cases a reboot dialog will appear.

Result

The values of the settings in the settings file overwrite the current values. The network configuration settings of the system and the passwords are not loaded to prevent connectivity problems and to guarantee the integrity of the passwords.

Chapter 3 - Define your Workflow with Océ Express WebTools 59

Restore the factory defaults

Restore the factory defaults

Introduction

Sometimes you want to go back to the initial settings. You can restore the factory default settings in Océ Express WebTools.

NOTE

Log in as a Key Operator to only restore the Key Operator settings. Log in as a System

Administrator to only restore the System Administrator settings. To restore all the factory default settings you must log in as a Power User.

Procedure

1.

Open the [Configuration] tab, or the [Preferences] tab.

2.

Click on [Restore defaults] in the upper right-hand corner of the screen. A window opens.

3.

Click [Ok] to restore the factory default settings, or [Cancel] to close the window without restoring the factory defaults.

60 Chapter 3 - Define your Workflow with Océ Express WebTools

Set the print job default settings

Set the print job default settings

Definition

In Océ Express WebTools you can configure the default values for the print job settings.

The print job settings are grouped under the [Preferences] - [Print job defaults] tab. You can find a short explanation of the most important print job default settings below. Under the print job default settings you can also define the print presets that are visible on the user panel. For more

information on the print presets, see Set the default print preset on page 96 .

NOTE

When you define print job settings in the printer drivers or the job submission tools, these values always overrule the default values defined in Océ Express WebTools.

Overview of the [Print job defaults] - [Basic] settings

Open the [Preferences] - [Print job defaults] tab. Go to [Basic] and click Edit in the upper righthand corner.

Setting

[Number of sets]

[Collate]

[Print delivery]

[Color mode]

Description

Enter the default value for the number of times you want your jobs to be printed.

• Select [On (sort by set)] to sort your output by set (123 - 123).

• Select [Off (sort by page)] to sort your output by page (11 - 22 -

33).

• Select [Top Delivery Tray (TDT)] to default deliver your output in the Top Delivery Tray.

• Select [Back output] to default deliver your output at the back of the printer. Also select this option when you use the optional receiving rack or a folding device.

• Select [Color] to print in color mode.

• Select [Grayscale] to print in grayscale mode.

Overview of the [Print job defaults] - [Sheet] settings

Open the [Preferences] - [Print job defaults] tab. Go to [Sheet] and click Edit in the upper righthand corner.

Setting

[Media source]

Description

Select the default output material and format for the media used on the printer.

• Select [Automatic] to automatically select the media.

• Select the specific roll number of the media you want to use by default.

The system screen on the printer user panel displays the loaded rolls.

NOTE

You can only configure the Media selection policy setting, when Media source is set to [Automatic].

4

Chapter 3 - Define your Workflow with Océ Express WebTools 61

Set the print job default settings

Setting

[Media selection policy]

[Cut method]

[Custom print length]

[Add leading strip]

[Add trailing strip]

Description

• Select [Automatic next larger] to allow the printer to use a media roll larger than the size of the print, when the exact size is not available.

• Select [Automatic exact fit] to only allow the printer to use a media roll that has the exact media size of the print. When the media roll with the exact media size is not available a media request appears.

• Select [Standard] to cut the print at a standard media size (DIN,

ANSI etc.).

• Select [Synchro] to cut the print at the end of the image.

• Select [Custom] (numeric) to cut the print at a specific length.

Enter the cut length of your print job.

When you enter a value, the printer adds a blank strip of the specified length at the top of the output.

When you enter a value, the printer adds a blank strip of the specified length at the bottom of the output.

Overview of the [Print job defaults] - [Layout] settings

Open the [Preferences] - [Print job defaults] tab. Go to [Layout] and click Edit in the upper righthand corner.

Setting

[Scale]

[Mirror]

[Rotation]

[Alignment]

[Horizontal shift]

[Vertical shift]

Description

• Select [Automatic scale to the media size] to scale the image to the media.

• Select [Automatic scale down when image is larger than media] to scale down the image one format smaller than the original.

• Select [Custom scale factor] to enter your own scale percentage, with 100 percent as no scaling.

Select [On] to mirror the image along the vertical axis - the media transport direction.

Select any option to rotate the image counterclockwise.

When you want to print faster, select [Long edge first]. You can print faster due to less media transport.

Select [Automatic media saving] to use the media in the most efficient way.

For more information, see

Set the rotation mode on page 135

.

Select any of the options to define where to align the image on the media.

For more information, see

Set the alignment mode on page 136

.

Define how much you want the image to shift horizontally in the chosen alignment position.

Define how much you want the image to shift vertically in the chosen alignment position.

62 Chapter 3 - Define your Workflow with Océ Express WebTools

Set the print job default settings

Overview of the [Print job defaults] - [Image] settings

Open the [Preferences] - [Print job defaults] tab. Go to [Image] and click Edit in the upper righthand corner.

Setting

[Print quality]

Description

Select [Océ Print Assistant] (OPA) to automatically select the best print quality based upon the content of the file or manually choose a print quality yourself.

The choice of the print quality affects the speed of the job and the toner coverage.

For more information, see

Set the print quality on page 131

.

Chapter 3 - Define your Workflow with Océ Express WebTools 63

Set the copy job default settings

Set the copy job default settings

In Océ Express WebTools, you can configure the default values for the copy job settings.

The copy job settings are grouped under the [Preferences] - [Copy job defaults] tab. You can find a short explanation of the General copy job settings below. Under the copy job default settings, you can also make settings for the copy presets that are visible on the user panel. For more information on the copy presets, see

Set the default copy preset on page 94

.

Overview of the [Copy job defaults] - [General copy job settings]

Open the [Preferences] - [Copy job defaults] settings tab. Click Edit in the upper right-hand corner of the [General copy job settings].

Setting

[Media selection policy]

[Start value for ### in the copy job name]

[File name for copy to

Smart Inbox ]

Description

• Select [Next larger] to continue printing with a larger size media.

• Select [Exact size], to only continue printing when the specified media size is available.

Fill in the number that replaces the # hashes in the name of copy files. The number increases.

Fill in the copy filename used to save the copy in the Smart Inbox.

When the copy file name contains one or more # hashes, the # hashes are replaced by ascending numbers.

64 Chapter 3 - Define your Workflow with Océ Express WebTools

Set the scan job default settings

Set the scan job default settings

In Océ Express WebTools, you can configure the default values for the scan job settings.

The scan job settings are grouped under the [Preferences] - [Scan job defaults] tab. You can find a short explanation of the General scan job settings below.

NOTE

The file extensions that are defined in Scan job defaults, cannot be changed via the Smart Inbox.

Overview of the [Scan job defaults] - [General scan job settings]

Open the [Preferences] - [Scan job defaults] tab. Click edit in the upper right hand corner of the

[General scan job settings] section.

Setting

[File extension for scan-to-

PDF]

[File extension for scan-to-

TIFF]

[File extension for scan-to-

JPEG]

[File extension for scan-to-

CALS]

[Scan delivery retry interval]

Description

Enter any text string. The string is the file extension for scan-to-

PDF (default: PDF).

Enter any text string. The string is the file extension for scan-to-

TIFF (default: TIF).

Enter any text string. The string is the file extension for scan-to-

JPEG (default: JPG).

Enter any text string. The string is the file extension for scan-to-

CALS (default: CAL).

When a scan is delivered to a remote location and scan delivery fails, the printer retries after the time you set here.

Chapter 3 - Define your Workflow with Océ Express WebTools 65

Configure the Smart Inbox settings

Configure the Smart Inbox settings

The Smart Inbox and the queue concept

Definition

You can use the Smart Inbox for customized job management. A Smart Inbox works as a personal mailbox from which you print jobs, in which you can store jobs, and where you can scan jobs to. Jobs that are waiting to be processed are visible in the queue.

The Smart Inbox and the queue concept

Concept Used to

The queue • Get a job printed as soon as possible.

• Get feedback of the printer progress.

• Cancel requests.

• Change priority (local).

The Smart Inbox • Send jobs to the system.

• Keep together sets of documents from various origin.

• Organize documents over various Smart Inboxes, to easily retrieve jobs.

• Reprint jobs or change settings of jobs that are already sent to the printer.

Jobs in a Smart Inbox

You can use Smart Inboxes to manage your jobs. When you open the Jobs tab in Océ Express

WebTools the Smart Inbox section displays an overview of the Smart Inboxes. Define one or more Smart Inbox names that allow you to easily organize and access your jobs. For more information, see

The Smart Inbox in the Jobs tab on page 67

and Create and open a Smart

Inbox on page 69 .

In the printer driver application or job submitter, you can select the specific Smart Inbox you want to print to. When a job is kept in the Smart Inbox, you can start the job manually on the user panel or in Océ Express WebTools.

Under [Preferences] - [System defaults] - [Job management] you can determine rights, make settings for the Smart Inbox, and make more settings for general job management. For more information, see

Configure the job management settings on page 73

66 Chapter 3 - Define your Workflow with Océ Express WebTools

The Smart Inbox in the Jobs tab

The Smart Inbox in the Jobs tab

Introduction

In the Jobs tab you can create jobs or manage your jobs in the queue and the Smart Inbox.

NOTE

When the [User authentication] setting is enabled, your rights and view on the Jobs tab can differ.

the jobs tab

Create a new job in the Publisher Express section.

When you want to submit a new job, click [Create new job]. A new window opens, here you can define some basic job settings and browse to the file you want to print.

Monitor jobs in the Queue section.

In the Job queue and Scan queue you get an overview of the jobs waiting to be printed, or scans waiting to be sent. The options listed at the top of the queue section allow you to move a selected job to the top of the queue, to delete a job, to retry sending a job, or to send a scanned job to a specific location. When you click [Delete all] all jobs are deleted from the queue.

Control your jobs in the Smart Inbox section.

You can create and open a Smart Inbox in the Smart Inbox section. For more information, see

Create and open a Smart Inbox on page 69

.

You can get an overview of all the Smart Inboxes on your system. Click on [Open Smart Inbox], click on the white space and select a Smart Inbox name from the list. The Smart Inbox appears below.

Chapter 3 - Define your Workflow with Océ Express WebTools 67

The Smart Inbox in the Jobs tab

Perform actions on your jobs in the Smart Inbox. When you select a job in the Smart Inbox you can use the options listed at the top of the Smart Inbox section to print, edit, send to, save or delete the jobs.

NOTE

Depending on the selected job the available actions can differ.

Get an overview of all jobs on the system. When you enable the [Preferences] - [System defaults]

- [Job management] - [Display a view on all Smart Inbox jobs] setting, all jobs can be displayed in one overview.

68 Chapter 3 - Define your Workflow with Océ Express WebTools

Create and open a Smart Inbox

Create and open a Smart Inbox

Introduction

A Smart Inbox is used as a personal folder to print files from, scan files to, or store files in. In Océ

Express WebTools you can create a Smart Inbox in:

• The [Jobs] tab - Smart Inbox section.

• The [Jobs] tab - Publisher Express section.

• The [Configuration] tab - [ Smart Inbox ] section.

NOTE

• Note that the behavior of the Smart Inbox can differ, depending on which of the three ways is used for the creation.

• When user authentication is enabled your Smart Inbox rights can differ.

Create a Smart Inbox in the [Jobs] tab - Smart Inbox section

NOTE

• The Smart Inboxes created in the Smart Inbox section are, while empty, only visible on your personal browser. Once there is a job in the specific Smart Inbox, that Smart Inbox also becomes visible on the user panel and in other browser sessions.

• The Smart Inboxes created in the Smart Inbox section are not permanent. Once the Smart

Inbox is empty, it will disappear from the user panel and from not-personal browser sessions.

2.

3.

Step

1.

4.

5.

Action

Select the [Jobs] tab.

Click on [Open Smart Inbox].

Click on the blank field to open a drop-down list with the Smart Inboxes available on your system.

Enter the name of the new Smart Inbox and press Enter, or select the desired Smart

Inbox from the list.

The Smart Inbox is now displayed in the Smart Inbox section.

Chapter 3 - Define your Workflow with Océ Express WebTools 69

Create and open a Smart Inbox

Create a Smart Inbox in the [Jobs] tab - Publisher Express section

4.

5.

6.

NOTE

• With this procedure you not only create a Smart Inbox, but you also send a job to the printer.

• The Smart Inboxes created in Publisher Express are, while empty, only visible on your personal browser. Once there is a job in the specific Smart Inbox, that Smart Inbox also becomes visible on the user panel and in other browser sessions.

• The Smart Inboxes created in Publisher Express are not permanent. Once the Smart Inbox is empty, it will disappear from the user panel and from not-personal browser sessions.

2.

3.

Step

1.

Action

Select the [Jobs] tab.

Click on [Create new job] in the Publisher Express section.

In the [Workflow] section, click on the Smart Inbox field. A drop-down list with Smart

Inboxes that contain one or more jobs opens.

Enter the name of the new Smart Inbox and press Enter.

Click [Ok] to send the print job to the printer via the new Smart Inbox.

The Smart Inbox is now displayed in the Smart Inbox section and on the user panel.

70 Chapter 3 - Define your Workflow with Océ Express WebTools

Create a Smart Inbox in the [Configuration] tab - [ Smart Inbox ] section

Create and open a Smart Inbox

NOTE

The Smart Inboxes created in the [Configuration] tab - [ Smart Inbox ] section are permanent.

Even when the Smart Inbox is empty, it will be available on the user panel and in the browser sessions.

4.

5.

2.

3.

Step

1.

Action

Open the [Configuration] - [ Smart Inbox ] tab.

Click on [Create new]. A window opens.

Enter a [Name] recognizable for the user. This name appears on the user panel.

Enter a [Description].

Click OK to confirm.

Chapter 3 - Define your Workflow with Océ Express WebTools 71

Close or delete a Smart Inbox

Close or delete a Smart Inbox

Introduction

In Océ Express WebTools you can close or delete a Smart Inbox in:

• The [Jobs] tab - Smart Inbox section.

• The [Configuration] tab - [ Smart Inbox ] section.

NOTE

• When you delete a Smart Inbox, you only delete the view on the Smart Inbox, but not the content. To permanently delete the jobs from a Smart Inbox you must select the jobs in the

Smart Inbox and click [Delete].

• The default 'Public' Smart Inbox cannot be deleted, and will always be present.

Close a Smart Inbox in the [Jobs] tab - Smart Inbox section

Step

1.

2.

Action

Open the [Jobs] tab.

Click on the X - button at the right hand side of the [ Smart Inbox ] bar.

Delete a Smart Inbox in the [Configuration] tab - [ Smart Inbox ] section

2.

3.

Step

1.

Action

Open the [Configuration] - [ Smart Inbox ] tab.

Select the Smart Inbox you want to delete.

On the right-hand side under [Actions], click on the X.

If you want to delete all Smart Inboxes at once, click on [Delete all] in the upper right corner.

72 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the job management settings

Configure the job management settings

Introduction

When you want to control the rights or actions that can be performed on jobs or Smart Inboxes, you can configure the [Job management] settings.

Attention:

• You can read a full explanation of each setting, when you click on the specific setting's name.

• When the [User authentication] setting is enabled, rights and the available settings can differ.

For more information, see

Enable user authentication on page 80

.

Procedure

1.

Open the [Preferences] - [System defaults] tab.

2.

Click [Edit] in the [Job management] section, or select a specific setting.

3.

Change the values and make your preferred settings.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 73

Configure the network and security settings

Configure the network and security settings

Configure the network settings in Océ Express WebTools

Introduction

Some of the network settings are configured during the installation of your system. When you want to define more network settings, you can do so under the [Configuration] tab.

NOTE

For more detailed information on network settings, refer to the Océ LF Systems Connectivity manual.

Procedure

1.

Open the [Configuration] - [Connectivity] tab.

2.

Click [Edit] in the upper right hand corner of the [Network adapter] section. Here you can edit all the settings of the group in one window.

or

3.

Click on a single setting in the list to edit only one setting.

For example, click on the value of the IP type setting to display a window where you can change the value.

NOTE

You can always find a short explanation of the setting in the tooltip.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

74 Chapter 3 - Define your Workflow with Océ Express WebTools

Set the link speed and duplex mode

Set the link speed and duplex mode

Introduction

Use Océ Express WebTools to set the transmission speed and duplex mode for your network adapter.

Before you begin

NOTE

The list of values you can select depends on the network card type.

Procedure

1.

Open the [Configuration] - [Connectivity] tab.

2.

Click on [Edit] in the [Network adapter] section or click on the [Link speed and duplex mode] setting.

3.

Select the value. [Automatic detection] is default.

4.

Click on [Ok] to confirm or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 75

User roles and authorizations

User roles and authorizations

Introduction

You can view all settings in Océ Express WebTools, but when you want to edit a setting a message appears. This message indicates that the setting is password protected. You must log in with a password to change a setting.

IMPORTANT

Handle and store all passwords securely and with care. In case of forgotten passwords, a service technician can reset the Key operator, System administrator, Power user passwords only when his rights have been enabled. Otherwise the machine has to be reinstalled.

NOTE

• When the [User authentication] setting is enabled, rights and authorization can be different.

For more information, see

Enable user authentication on page 80

.

• You do not need a password for daily use of the system.

Overview of user roles and authorizations

The table below displays the different user roles and the authorizations that belong to the role.

User role

[Key operator]

[System administrator]

[Power user]

Description

Besides the normal use of the system, the Key Operator takes care of the system's daily maintenance.

The Key operator is authorized to change all default settings in the Preference tab of Océ Express WebTools.

The System administrator takes care of the integration of the system into the IT-infrastructure of the customer.

The System administrator is authorized to change all settings in the

Configuration tab of Océ Express WebTools.

The Power User is authorized to access all functionalities of Océ Express WebTools. It combines the Key operator and System administrator roles.

76 Chapter 3 - Define your Workflow with Océ Express WebTools

Log in as an authorized user

Log in as an authorized user

To change certain settings, you must log in as an authorized user. There are three user roles:

System Administrator, Key Operator and Power User. They have authorization to edit specific groups of settings. You do not need to log in before you start a session. The system will only display a login screen when you want to perform a special action.

Upon login

NOTE

• Once you have logged in, the log in lasts for the duration of the browser session. If you have not been active for more than 30 minutes, the session expires and you need to login again.

• For security reasons it may be useful to periodically change the password for the three access modes in Océ Express WebTools.

Procedure

1.

Click on the value of the setting you want to edit. A login window opens.

2.

Select a user role from the drop-down list.

3.

Enter the password.

4.

Click [Ok] to confirm your entry.

Chapter 3 - Define your Workflow with Océ Express WebTools 77

Change the password for authorized users

Change the password for authorized users

When to do

For security reasons it is advised to periodically change the password of the three access modes

(Key operator, System administrator, Power user) in Océ Express WebTools.

IMPORTANT

Handle and store all passwords securely and with care. In case of forgotten passwords, a service technician can reset the Key operator, System administrator, Power user passwords only when his rights have been enabled. Otherwise the machine has to be reinstalled.

Procedure

1.

Open the [Configuration] - [Connectivity] tab.

2.

Under the [Passwords] section, select [Key Operator password], [System Administrator password], or [Power User password] depending on the password you want to change. A new window opens.

3.

Log in as:

• Key operator to change the key operator password. The default key operator password is

KeyOp.

• System administrator to change the system administrator password. The default system administrator password is SysAdm.

• Power user to change all the passwords. The default power user password is PowUsr.

NOTE

The passwords are case sensitive. You can only use characters from the following range:

A-Z

0-9 a-z

_ - ~ ! ? @ # $ % ^ * + = , . : ; / | [ ] ( ) { }

You cannot use Chinese, Cyrillic or Japanese characters.

4.

Enter the new password twice to confirm your input. The password is hidden.

5.

Click [Ok] to confirm, or [Cancel] to reject your entries.

78 Chapter 3 - Define your Workflow with Océ Express WebTools

Shut down or restart the system

Shut down or restart the system

NOTE

For this procedure, you need to log in as a System Administrator.

To remotely shut down the printing system, you can click on [Shut down] in the Support tab of

Océ Express WebTools.

When the printing system is on, you can also use this button to restart the system.

Chapter 3 - Define your Workflow with Océ Express WebTools 79

Enable user authentication

Enable user authentication

Introduction

You can enable user authentication in Océ Express WebTools. A special user authentication license is required.

When user authentication is enabled:

• Users have to authenticate to get access to the system.

• Users will only see their own jobs.

• Already scanned files that have been locally stored on the controller cannot be retrieved.

• [Direct print] is disabled.

• Various [Job management] settings are disabled.

• Various Smart Inbox rights are disabled.

• Various [Other network interfaces] settings are disabled.

NOTE

For more details on user authentication and a full list of disabled settings please refer to the Océ

PlotWave-ColorWave Systems Security manual.

Procedure

1.

Open the [Security] - [Configuration] tab.

2.

In the [User access mode] section, click on the [User authentication] setting.

3.

Change the [User authentication] setting to the required authentication.

• [User name and password]: the user has to select the domain and enter his credentials (user name and password) to get access to the system.

NOTE

• At least one domain has to be configured under the [Domains] tab, for more information refer to the security manual.

• When you set user authentication to [User name and password] and you have configured the domain, the [Home folder] will also become available as an external location.

• [Smart card]: the user has to use a smart card to get access to the system.

NOTE

At least a root certificate has to be uploaded under the [Trusted certificates] tab, for more information refer to the security manual.

4.

Click OK to confirm.

80 Chapter 3 - Define your Workflow with Océ Express WebTools

Enable Access control

Enable Access control

Introduction

When you want to control access to your printer, you need to enable access control in Océ

Express WebTools. With access control enabled, you are able to choose up to five hosts who are allowed to communicate with the printer through your network. This amount of hosts allows for flexible configuration.

For each of the hosts you can decide whether the communication from this host to the system needs to be encrypted by IPsec.

Procedure

1.

Open the [Security] - [Configuration] tab.

2.

In the [Access control] section, click on the [Access control] setting.

3.

Change the [Access control] setting from [Disabled] to [Enabled]. The setting is enabled when you check the box.

4.

Click OK to confirm.

Chapter 3 - Define your Workflow with Océ Express WebTools 81

Access control and IPsec settings

Access control and IPsec settings

Introduction

When access control is enabled, you can edit the access control settings.

[Access control] and IPsec settings

Under [Security] - [Configuration] - [Access control], you can set the following settings for each of the 5 stations:

Setting

[Access control station 1]

[Access control station 1: IPv4 address]

[Access control station 1: IPv6 address]

[IPsec station 1]

Description

Enable or disable communication of this host with the printer.

The IPv4 address of the host is allowed to connect to the printer.

The IPv6 address of the host is allowed to connect to the printer.

[IPsec station 1: Preshared key]

Enable or disable IPsec. IPsec is a security protocol that encrypts the communication between the host and the printer.

The key for encryption of this host connected via IPsec. If empty, the default preshared key is used.

For IPsec., you can set the following setting:

Setting

[IPsec default preshared key]

Description

This is the default key for encryption of hosts connected via IPsec. This key holds for all stations whose preshared key is unspecified.

NOTE

For more details on these settings please consult the Océ PlotWave-ColorWave Systems

Security manual.

82 Chapter 3 - Define your Workflow with Océ Express WebTools

Enable or disable the e-shredding function

Enable or disable the e-shredding function

Introduction

The e-shredding function allows you to securely erase jobs from the system. This prevents unauthorized people from recovering deleted jobs. When the e-shredding function is enabled, you can select an e-shredding algorithm. You can enable the e-shredding function in Océ Express

WebTools. By factory default, the e-shredding function is disabled.

NOTE

For more details on these settings please consult the Océ PlotWave-ColorWave Systems

Security manual.

Procedure

1.

Open the [Security] - [Configuration] tab.

2.

In the [E-shredding] section, click on the [E-shredding] field.

3.

Select [Enabled] or [Disabled]. The setting is enabled when you check the box.

NOTE

When e-shredding is enabled, the system may require more time to process jobs.

4.

Click OK to confirm.

Chapter 3 - Define your Workflow with Océ Express WebTools 83

Select the e-shredding algorithm

Select the e-shredding algorithm

Introduction

The e-shredding function allows you to securely erase jobs from the system. This prevents unauthorized people from accessing deleted jobs.

You can select one of the following algorithms:

• [Gutmann].

All jobs on the system are erased in 35 overwrite passes.

• [DoD 5220.22-M].

All jobs on the system are erased in three overwrite passes.

• [Custom] allows you to define the number of passes manually.

The factory default is [DoD 5220.22-M].

NOTE

Only set the number of overwrite passes to a number higher than 1 if your security policy requires it. An increase of passes can affect the performance.

Procedure

1.

Open the [Security] - [Configuration] tab.

2.

Click on [Edit] in the upper right hand corner of the [E-shredding] section.

3.

Select the preferred method for the [E-shredding algorithm].

4.

Click OK to confirm.

84 Chapter 3 - Define your Workflow with Océ Express WebTools

Specify the number of overwrite passes

Specify the number of overwrite passes

Introduction

The e-shredding function allows you to erase jobs from the system. This prevents unauthorized people from accessing deleted jobs. You can manually enter the required number of overwrite passes. You can enter any number from 1 to 35. The factory default is 3.

NOTE

• Only set the number of overwrite passes to a number higher than 1 if your security policy requires it. An increase of passes can affect the performance.

• Note that more passes take more time.

Before you begin

Make sure that [E-shredding] is enabled. For more information see,

Enable or disable the eshredding function on page 83

.

Procedure

1.

Open the [Security] - [Configuration] tab.

2.

Under [E-shredding] click on [E-shredding algorithm] and select [Custom].

3.

Under [E-shredding] click on [E-shredding custom number of passes].

4.

Enter the required number of overwrite passes.

5.

Click OK to confirm.

Chapter 3 - Define your Workflow with Océ Express WebTools 85

Remote security

Remote security

Introduction

By default, the first certificate delivered for the use of HTTPS is an Océ self-signed certificate.

To ensure a fully trusted authentication, you can request and import a certificate delivered by a

Certification Authority (CA-signed certificate). In Océ Express WebTools you can generate the certificates.

When you use a certificate, the client station that submits the print can check the identity of the controller.

Remote security: certificates

• By default, Océ delivers an Océ self-signed certificate. This certificate provides encryption of the print data between the client and the controller. It can be easily used.

This self-signed certificate has not been signed by a Certification Authority, consequently the web browser will display a 'Certificate Error' message the first time you use the HTTPS protocol.

• When your security policy recommends it, the administrator can request and import a certificate delivered by a Certification Authority (CA-signed certificate).

For more information on how to do this, see Generate a new CA-signed certificate request on page 87 , and

Remote security: import a CA-signed certificate - Check and import the Root certificate into the workstation's browser on page 92

.

86 Chapter 3 - Define your Workflow with Océ Express WebTools

Generate a new CA-signed certificate

Generate a new CA-signed certificate

Introduction

To ensure a fully trusted authentication via HTTPS, you can request and import a certificate delivered by a Certification Authority (CA-signed certificate).

In Océ Express WebTools, you can generate a certificate request yourself or you can import a predefined certificate via your computer or network. When generating a certificate request, you need to take the following steps.

NOTE

For more details on these settings please consult the Océ PlotWave-ColorWave Systems

Security manual.

Procedure

1.

Open the [Security] - [HTTPS] tab.

2.

Click on [Generate a certificate request]. A window opens.

3.

Make the required settings: fill in the fully required domain name or the IP address and the additional information.

4.

Click [Ok] to save.

The web server generates a certificate request. The content of the request is displayed (plain text).

Example (fake request):

-----BEGIN NEW CERTIFICATE REQUEST-----

MIIBvDCCASQAwfDELMAkGA1UEBMCRlIxDDAKBgNVBAgTA0lERjEQMA4GA1UEBxMHQ1JFVEV

J

TDEBEGA1UEChMKT2NlIFBMVCBTQTEMMAoGA1UECxMDU05TMSowKAYDVQQDEyF0ZHM3M

DAtNzQw

LnNucy5vY2VjcmV0WlsLm9jZS5uZwgZ8wDQYJKoZIhvcNAQEBBQADgY0AMIGJAoGBAJ2NKQM d

HjiDZ1khzTJTORxHqjKl3AtE3PXqRsiHouTH5JTceYtaBjCnxCJ4pGKY5iKN8KJiJuZG8PHxY7o

W/+zpvxN2VtX7TcyTAvyCThUwL+cqo75tvODo5HMCUa2sLdl8GO9WMLpgZkxH5KzIiO+LcI4 yQbqhENynywS0C2ObXCq3yksF74+XIO0swhoA2yfDp4T+LuF3wxys8lUH3ZhhkOYg==

Chapter 3 - Define your Workflow with Océ Express WebTools 87

Generate a new CA-signed certificate

-----END NEW CERTIFICATE REQUEST-----

5.

Copy and paste the content of the request in a .csr file (named 'certificate_request.csr' by default).

6.

Restart the controller

7.

Send the content of this request to the Certification Authority.

88 Chapter 3 - Define your Workflow with Océ Express WebTools

Import a CA-signed certificate: Import the root certificate

Import a CA-signed certificate: Import the root certificate

Introduction

To ensure a fully trusted authentication via HTTPS, you can request and import a certificate delivered by a Certification Authority (CA-signed certificate).

In Océ Express WebTools, you can generate a certificate request yourself or you can import a predefined certificate via your computer or network. When you import the certificate you need to:

Import the root certificate

• Import the intermediate certificate

• Import a CA-signed certificate

• Check and import the root certificate

Complete all procedures to successfully import the certificate.

NOTE

For more details on these settings please consult the Océ PlotWave-ColorWave Systems

Security manual.

Procedure

1.

Open Océ Express WebTools

2.

Open the [Security] - [HTTPS] tab.

3.

Click on [Import CA-signed certificate]. A window opens.

4.

Select [Root certificate] in Certificate type.

5.

Browse to the Root certificate file and click on Open.

NOTE

The Root certificate may already exist in the web server certificates list.

6.

Validate to confirm the import.

7.

When the message [Certificate successfully imported.] pops up, go on to import the [Intermediate certificate].

8.

Click [Ok] to save.

Chapter 3 - Define your Workflow with Océ Express WebTools 89

Import a CA-signed certificate: Import the intermediate certificate

Import a CA-signed certificate: Import the intermediate certificate

To ensure a fully trusted authentication via HTTPS, you can request and import a certificate delivered by a Certification Authority (CA-signed certificate).

When you import the certificate you need to:

• import the root certificate

Import the intermediate certificate

• Import a CA-signed certificate

• Check and import the root certificate

Complete all procedures to successfully import the certificate.

Procedure

1.

Open the [Security] - [HTTPS] tab.

2.

Click on [Import CA-signed certificate]

3.

Select [Intermediate certificate] in Certificate type.

4.

Browse to the Intermediate certificate file and click on Open.

5.

When the message [Certificate successfully imported.] opens, go back to the main page to import the [CA-signed certificate]

90 Chapter 3 - Define your Workflow with Océ Express WebTools

Import a CA-signed certificate

Import a CA-signed certificate

To ensure a fully trusted authentication via HTTPS, you can request and import a certificate delivered by a Certification Authority (CA-signed certificate).

When you import the certificate you need to:

• Import the root certificate

• Import the intermediate certificate

Import the CA-signed certificate

• Check and import the root certificate

Complete all procedures to successfully import the certificate.

Procedure

1.

Open the [Security] - [HTTPS] tab.

2.

Click on [Import CA-signed certificate].

3.

Select [CA-signed certificate] in Certificate type.

4.

Select 'Yes' to validate the certificate against Java root certificates and click 'Open'.

5.

When the message [Certificate successfully imported.] pops up, restart the controller.

The certificate is now installed on the server.

Check and import (if needed) the CA Root certificate into the workstation web browser as well.

That will secure the complete data workflow between the workstations and the server.

Chapter 3 - Define your Workflow with Océ Express WebTools 91

Import a CA-signed certificate: Check and import the root certificate

Import a CA-signed certificate: Check and import the root certificate

To ensure a fully trusted authentication via HTTPS, you can request and import a certificate delivered by a Certification Authority (CA-signed certificate).

When you import the certificate you need to:

• import the root certificate

• Import the intermediate certificate

• Import the CA-signed certificate

Check and import the root certificate

Complete all procedures to successfully import the certificate.

Procedure

1.

On each workstation, open the web browser.

2.

Open the 'Certificates' option of the browser.

For Internet Explorer: In the Tools - Internet Options - Content window, open "Certificates".

3.

Check whether the CA Root certificate is already displayed in the "Trusted Root Certification

Authorities" list.

4.

If it is not on the list, import the CA Root certificate.

92 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the Presets

Configure the Presets

What you need to know about presets

Introduction

A preset is a predefined setting that is available on the user panel to easily perform print or copy jobs. The preset concept supports the green button approach. The default presets are automatically selected on the user panel, so you only have to press the green button to start a job with your predefined settings.

Presets on the user panel

When you tap the copy tile on the user panel, a window opens with a list of presets. When you tap the print tile and tap the settings of a listed job, the print presets are shown.

Per preset category, the default preset is visible as a preset tile. When you tap the default tile, the other available presets are shown.

Set the presets in Océ Express WebTools

In Océ Express WebTools you can make the settings for the print or copy presets . You only have to make the settings once, and they will be visible on the user panel as presets.

Presets

Default presets

Custom presets

Description

The default presets support the green button approach. When you do not make settings, the printer uses the default presets for print or copy jobs.

You can set the default presets in Océ Express WebTools.

When you want to use your own preferred settings, you can configure custom presets in Océ Express WebTools. Make the custom preset available on the user panel or set it as the default preset.

Chapter 3 - Define your Workflow with Océ Express WebTools 93

Set the default copy preset

Set the default copy preset

Introduction

With a preset you can predefine the settings you need for a copy job.

Copy has four preset categories: [Media], [Layout], [Image], and [Finishing] For each category you can set one default preset in Océ Express WebTools. The default preset is automatically used when you press the green button on the user panel.

NOTE

You can always find a short explanation of the setting in the tooltip.

Procedure

1.

Open the [Preferences] - [Copy job defaults] tab.

2.

Under [ User panel configuration: Default presets for copy] select the preset category you want to change, for example [Default layout preset].

3.

Select the setting you want to use as the default preset, for example [Standard half size ].

When you want to make your custom preset default, select [Custom].

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

After you finish

To make sure your preset is active on the user panel, press the home button on the home screen of the user panel.

94 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the custom copy preset

Configure the custom copy preset

Introduction

With a preset you can predefine the settings you need for a copy job.

When you want to use other predefined settings than the default presets, you can configure custom presets in Océ Express WebTools . You can configure one custom preset per preset category: [Media], [Layout], or [Image]. The custom preset becomes available on the user panel, and you are able to set it as the default preset.

Procedure

1.

Open the [Preferences] - [Copy job defaults] tab.

2.

Select the preset category you want to make a custom preset in and click on [Edit], for example

[Custom image preset for copy].

3.

Check the box next to the [Custom image preset for copy] setting to enable the preset, and make it available on the user panel.

4.

Fill in a name and description that will be used for the preset on the user panel.

5.

Select the settings you want to use for the custom preset, for example choose to set [Original type] to [Blueprint] , and [Background compensation] to [On].

6.

Click [Ok] to confirm, or [Cancel] to reject your entries.

After you finish

To make sure your preset is active on the user panel, press the home button on the home screen of the user panel. When you want to make the custom preset the default preset, follow the procedure

Set the default copy preset on page 94

.

Chapter 3 - Define your Workflow with Océ Express WebTools 95

Set the default print preset

Set the default print preset

Introduction

With a preset you can predefine the settings you need for a print job from USB or an external location.

Print has four preset categories: [Media], [Layout], [Image], and [Finishing]. For each category you can set one default preset in Océ Express WebTools. The default preset is automatically used when you press the green button on the user panel.

NOTE

You can always find a short explanation of the setting in the tooltip.

Procedure

1.

Open the [Preferences] - [Print job defaults] tab.

2.

Under [User panel configuration: Default presets for print] select the preset category you want to change, for example [Default layout preset].

3.

Select the setting you want to use as the default preset, for example [Standard half size].

Select [Custom] to make your custom preset default.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

After you finish

To make sure your preset is active on the user panel, press the home button on the home screen of the user panel.

96 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the custom print preset

Configure the custom print preset

Introduction

With a preset you can predefine the settings you need for a print job.

When you want to use other predefined settings than the default presets, you can configure custom presets in Océ Express WebTools . You can configure one custom preset per preset category: [Media], [Layout], or [Image]. The custom preset becomes available on the user panel, and you are able to set it as the default preset.

Procedure

1.

Open the [Preferences] - [Print job defaults] tab.

2.

Select the preset category you want to make a custom preset in and click on [Edit], for example

[Custom image preset for print].

3.

Check the box next to the [Custom image preset for print] setting to enable the preset, and make it available on the user panel.

4.

Fill in a name and description that will be used for the preset on the user panel.

5.

Select the settings you want to use for the custom preset, for example choose to set [Mirror] to

[On].

6.

Click [Ok] to confirm, or [Cancel] to reject your entries.

After you finish

To make sure your preset is active on the user panel, press the home button on the home screen of the user panel. When you want to make the custom preset the default preset, follow the procedure

Set the default print preset on page 96

.

Chapter 3 - Define your Workflow with Océ Express WebTools 97

Make a custom preset available on the user panel

Make a custom preset available on the user panel

Introduction

When you create a custom preset, you can enable the preset to make it available on the user panel.

Before you begin

Create the custom preset first. For more information, see

Create the custom copy preset on page 95 or

Create the custom print preset on page 97

.

Procedure

1.

Open the [Preferences] tab.

2.

Select the [Copy job defaults] or the [Print job defaults] tab, dependent of your custom preset.

3.

Under the preferred custom preset category, select the custom preset setting.

For example under [Custom image preset for copy], select the [Custom image preset for copy] setting.

4.

Check the box to enable the setting and click [Ok].

The custom preset is now visible on the user panel, and can be selected locally.

98 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the locations

Configure the locations

Configure your locations

Introduction

On the user panel you can find a list of locations you can scan to and print from.

To this location you send your scanned files for storage, or you save files on this location and you send them to the printer.

You can define the external locations under the [Configuration] - [External locations] tab in Océ

Express WebTools.

Type of locations

You can scan to and print from various location types.

Location type

Smart Inbox

[USB]

[FTP]

[SMB]

[WebDAV]

[Home folder]

[PlanWell® Collaborate](Optional)

Location type description

If you select this location, you can print from your personal Smart Inbox, or your scanned file is sent to the Smart Inbox of your choice.

If you select this location you can print from or scan to the USB Mass storage device you inserted in the user panel.

If you select this location you can print from or scan to a shared folder on a remote workstation via FTP.

If you select this location you can print from or scan to a shared folder on a remote workstation via SMB.

If you select this location type, you can enter the cloud via WebDAV and use it as a network drive.

When you select this location type, you can print from or scan to your personal home folder on your own workstation.

NOTE

The home folder is only available when [User authentication] is enabled with [User name and password].

When you select this location you can print from or scan to the Plan-

Well Collaborate cloud services.

Chapter 3 - Define your Workflow with Océ Express WebTools 99

Enable or disable USB

Enable or disable USB

Introduction

If you want to use USB as a location, you have to make settings for USB first. You can make the settings in Océ Express WebTools.

Illustration

Procedure

1.

Open the [Configuration] - [External locations] tab.

2.

Select [USB], and click on the [Edit] icon under [Actions]. A window opens.

3.

Enter the [Name] recognizable for the user. This name appears on the user panel.

4.

Enter the [Description] of USB as location.

5.

Under [Enabled functionalities] you can choose the functionalities you want to use for USB.

• Choose [Print from and scan to], when you want to enable print from and scan to USB.

• Choose [Print from only] if you want to enable print from USB only.

• Choose [Scan to only] if you want to enable scan to USB only.

• Choose [None] if you want to disable the USB functionality.

6.

Click [Ok] to save the settings for USB as an external location.

Result

When you enable USB and insert a USB key on the user panel, the external USB location can be used via the user panel and in Océ Express WebTools.

If you disable USB, USB cannot be used as an external location.

100 Chapter 3 - Define your Workflow with Océ Express WebTools

Enable and edit the Home folder

Enable and edit the Home folder

Introduction

When you want to use the Home folder as a location you have to enable user authentication first.

Only then the Home folder becomes visible in the external location list. When it is present you can edit the functionalities.

NOTE

The Home folder is a personal and secure external location, you can only use when it is configured by your IT department as part of your infrastructure. You log in on the user panel using your credentials ([User name and password]) and only see your own home folder. When you scan to the home folder, the file is delivered on your own personal location on the network.

In a typical configuration you can find the file on your workstation under the home drive.

Before you begin

Make sure you enable the [User authentication] setting by selecting the value [User name and

password] first. For more information, see

Enable user authentication on page 80

Procedure

1.

Open the [Configuration] - [External locations] tab.

2.

Select [Home folder], and click on the [Edit] icon under [Actions]. A window opens.

3.

Under [Enabled functionalities] you can choose the functionalities you want to use for the home folder.

• Choose [Print from and scan to], when you want to enable print from and scan to the home folder.

• Choose [Print from only], when you want to enable print from the home folder only.

• Choose [Scan to only], when you want to enable scan to the home folder only.

• Choose [None], when you want to disable the home folder as an external location.

4.

Click [Ok] to save the settings for the home folder as an external location.

Chapter 3 - Define your Workflow with Océ Express WebTools 101

Enable PlanWell Collaborate (optional)

Enable PlanWell Collaborate (optional)

Introduction

When you have a license installed for PlanWell Collaborate (ARC cloud support), you can enable this external location under the [Configuration] tab.

Procedure

1.

Open the [Configuration] - [External locations] tab.

2.

Select [PlanWell® Collaborate], and click on the [Edit] icon under [Actions]. A window opens.

3.

Check the box to [Use proxy settings]. When you configure the location on a local network it can be necessary to uncheck the box and not use the proxy settings.

4.

Under [Enabled functionalities] you can choose the functionalities you want to use for PlanWell

Collaborate.

• Choose [Print from and scan to], when you want to enable print from and scan to PlanWell

Collaborate.

• Choose [Print from only], when you want to enable print from PlanWell Collaborate only.

• Choose [Scan to only], when you want to enable scan to PlanWell Collaborate only.

• Choose [None], when you want to disable PlanWell Collaborate as an external location.

5.

Click [Ok] to save the settings for PlanWell Collaborate as an external location.

102 Chapter 3 - Define your Workflow with Océ Express WebTools

Create an external location

Create an external location

Introduction

You can create your own FTP, SMB, WebDAV, external locations with Océ Express WebTools.

Before you begin

NOTE

• Make sure you enable [SMB] protocol.

• Make sure you enable [FTP] under the [Configuration] - [Connectivity] tab.

• Make sure the URL for [WebDAV] is not blocked.

• For this procedure, you need to log in as a System Administrator.

Procedure

1.

Select the [Configuration] - [External locations] tab.

2.

Click on [Create new] in the upper right-hand corner.

3.

Enter a [Name] recognizable for the user. This name appears on the user panel.

4.

Enter a [Description] of the settings used.

5.

Select the [Type] of the external location: [FTP], [SMB], or [WebDAV].

6.

Enter the [Path]. The folder path or URL to the external location.

• For [FTP], use the syntax: hostname[/path] (example: myhost/mydirectory/scantofile).

• For [SMB], use the syntax: \\hostname\sharename[\path] (example: \\myhost

\myshareddirectory\scantofile).

• For [WebDAV] locations, use the full HTTP URL (for example: http://example.webdav.org:8080/ repository/).

7.

Select under [Credentials] whether or not the user has to log in to access the external location.

• Select [Prompt the user to log in on the user panel] when you want the user to log in on the user panel.

Login will appear when the user tries to access the external location on the user panel.

• Select [Use the following credentials for automatic login:] when you want to configure the credentials here.

The user is not requested to log in on the user panel when he tries to access the external location.

8.

If you have selected [Use the following credentials for automatic login:] fill in the username and password.

• The [Username] gives access to the external location. The user must at least have read and write permissions for the external location. For SMB destinations the format must be as follows: Local user name: “IPaddress\username” or “hostname\username”. Domain user name: “domain\username”.

• Enter the [Password] that belongs to the username.

Chapter 3 - Define your Workflow with Océ Express WebTools 103

Create an external location

9.

Select the [Enabled functionalities]. Enable or disable access to the selected location for print or scan jobs.

10.

Click [Ok] to save the external location.

NOTE

The system will validate the external location and give an error message if the validation fails.

In case of an error, you can click "Save" to save the external location with the error or click "Change" to change the entries.

Result

The external location can be used via the user panel and in Océ Express WebTools.

104 Chapter 3 - Define your Workflow with Océ Express WebTools

Set a default external location

Set a default external location

Introduction

You can set an external location as the default location. The default location is used when you do not select a specific external location for a job.

Procedure

1.

Select the [Configuration] - [External locations] tab.

2.

Under [External locations] select the external location you want to set as default.

3.

Click on the checkbox icon under [Actions].

Chapter 3 - Define your Workflow with Océ Express WebTools 105

Set a default print destination

Set a default print destination

Introduction

You can configure the default print destination in Océ Express WebTools. When the destination of a print job is not specified in the job ticket or when there is no job ticket, the job is sent to a default destination. You can choose between two default print destinations:

• [Both queue and Smart Inbox]: the job is printed automatically and stored in the Smart Inbox.

• [Only Smart Inbox]: the job is sent to the Smart Inbox and you have to start it locally.

NOTE

You can only set the default print destination, when the [Override destination of print jobs] setting is set to [No, as specified in the job ticket]. You can find this setting under [Preferences] -

[System defaults] - [Job management].

Procedure

1.

Select the [Preferences] - [System defaults] tab.

2.

Click on [Edit] in the [Job management] section, or click on the setting [Default destination of print jobs].

3.

Select [Both queue and Smart Inbox] or [Only Smart Inbox].

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

After you finish

Your preferred print destination is now default. All print jobs are sent to this destination when you do not make other settings.

106 Chapter 3 - Define your Workflow with Océ Express WebTools

Troubleshoot the creation of an FTP external location (after an error message)

Troubleshoot the creation of an FTP external location (after an error message)

An error message displays to indicate that the creation of the FTP external location failed.

According to the error message, perform the verifications proposed in the next table in order to fix the issue.

Error message

The user name or password is incorrect.

The remote hostname cannot be resolved.

Missing or incorrect path.

The remote host could not be found.

The remote host is not accessible.

The external location cannot be tested: the remote server has reached the maximum number of connections.

Action to perform

Check the remote user name and the password.

If the user name and password are correct, check the syntax of the external location name:

• - For a remote host user: <hostname>\<username> or

<IP_address>\<username>

• For a domain user: <domainname>\<username>

• Make sure the hostname is correct and valid.

• Make sure the printer is connected to the customer's network.

• Check the network settings of the printer in Océ Express

WebTools:

Primary DNS suffix, Preferred DNS server, Subnet mask,

Default Gateway

• Check with the System administrator if the DNS server can resolve the hostname to an IPv4 address

• If any of previously mentioned checks do not solve the problem, enter the remote host IPv4 address instead of the hostname.

Make sure that the path syntax conforms to:

• hostname/share[/folder/...] or,

• <IP_address>/share[/folder/...]

• Make sure that the hostname or IP address is correctly typed.

• Make sure that the remote host is up and running and that it is connected to the network.

• Check that the FTP protocol is enabled on the remote host.

• Check that the customer network security policy (firewall/ switch) allows the FTP ports.

• For FTP destination: check that the FTP server uses the port

21.

The external locations server has reached the maximum number of connections. Check with the System administrator or try again later.

4

Chapter 3 - Define your Workflow with Océ Express WebTools 107

Troubleshoot the creation of an FTP external location (after an error message)

Error message

The remote destination test is aborted, because the time-out period has expired.

The specified path or URL does not exist on the remote host, or the folder name is misspelled.

The specified user account has no 'write' permission on this location.

Action to perform

Check that the Firewall on the FTP server workstation does not prevent the 'FTP passive mode' connection.

NOTE

To know more about the FTP passive mode connection, refer to the Océ ColorWave-PlotWave Systems

Security manual.

Example with FileZilla Server

The error message may appear after the installation of FileZilla Server. In order to allow the FileZilla Server application through the Windows Firewall, follow the next steps:

1. Open the Windows Firewall window.

2. Click 'Allow a program or feature through Windows Firewall'.

3. Click the 'Allow another app...' (or 'Allow another program...') button.

A window named 'Add an app' (or 'Add a program') appears.

NOTE

Do NOT select 'FileZilla Server Interface' from the list.

4. Click the 'Browse...' button.

5. Locate the directory in which you installed FileZilla Server

(normally C:\Program Files (x86)\FileZilla

Server\).

6. Double click or select 'FileZilla server.exe'.

IMPORTANT

Make sure you do NOT select 'FileZilla Server

Interface.exe'.

7. Click 'Open'.

The 'Add an app' or 'Add a program' window displays again.

8. Scroll down the displayed list and select 'FileZilla server.exe'.

9. Click 'Add'.

The Windows Firewall Allowed apps window displays again.

Make sure that 'FileZilla server.exe' is added to the 'Allowed apps (or programs) and features' list.

Make sure that it has a check mark in either the 'Private', or the 'Public', or the 'Domain' checkbox (depending on the type of network you want to access).

10. Click 'OK' to close the Windows Firewall window.

• Check that the path to the destination folder has been correctly typed.

• Check that the destination folder exists on the remote host.

For scan-to-file, check that the remote user has "write" permissions on the remote share.

4

108 Chapter 3 - Define your Workflow with Océ Express WebTools

Troubleshoot the creation of an FTP external location (after an error message)

Error message

The external location is full.

The test of the external location cannot be performed: an internal error has occurred.

Action to perform

Make some space available on the external location for the

'Scan to' operations.

Restart the system and try again.

Chapter 3 - Define your Workflow with Océ Express WebTools 109

Troubleshoot the creation of an SMB external location (after an error message)

Troubleshoot the creation of an SMB external location (after an error message)

An error message displays to indicate that the creation of the SMB external location failed.

According to the error message, perform the verifications proposed in the next table in order to fix the issue.

Error message

The user name or password is incorrect.

The remote hostname cannot be resolved.

Missing or incorrect path.

The remote host could not be found.

The remote host is not accessible.

Action to perform

• Check the remote user name and the password.

If the user name and password are correct, check the syntax of the external location name:

• - For a remote host user: <hostname>\<username> or

<IP_address>\<username>

• For a domain user: <domainname>\<username>

• Make sure that the destination workstation accepts the

NTLMv1 authentication.

(Windows environment: Local Security Policy - Security

Settings - Local Policies - Security Options - Network Security - LAN Manager authentication level: the setting should be set to any value except 'refuse LM' or 'refuse LM

& NTLM')

• Make sure the hostname is correct and valid.

• Make sure the printer is connected to the customer's network.

• Check the network settings of the printer in Océ Express

WebTools:

Primary DNS suffix, Preferred DNS server, Subnet mask,

Default Gateway

• Check with the System administrator if the DNS server can resolve the hostname to an IPv4 address

• If any of previously mentioned checks do not solve the problem, enter the remote host IPv4 address instead of the hostname.

Make sure that the path syntax conforms to:

• \\hostname\share[\folder\...] or,

• \\<IP_address>\share[\folder\...]

• Make sure that the hostname or IP address is correctly typed.

• Make sure that the remote host is up and running and that it is connected to the network.

• Make sure that SMB protocol is enabled on the remote host.

• Make sure that the SMB ports are allowed by the firewall.

(TCP 445 )

• Make sure that NetBIOS over TCP/IP is enabled on the destination workstation.

(Windows environment: Network and Sharing Center -

Change adapter settings; Right-click on Network connection - Properties - IP V4- Properties - General - Advanced -

WINS)

4

110 Chapter 3 - Define your Workflow with Océ Express WebTools

Troubleshoot the creation of an SMB external location (after an error message)

Error message

The remote destination cannot be tested: the remote server has reached the maximum number of connections.

The specified path or URL does not exist on the remote host, or the folder name is misspelled.

The specified user account has no 'write' permission on this location.

The external location is full.

Action to perform

The external location server has reached the maximum number of connections. Check with the System administrator or try again later.

• Check that the share is correctly typed and that the share exists on the remote host.

• Check that the path to the destination folder has been correctly typed.

• Check that the destination folder exists on the remote host.

For scan-to-file, check that the remote user has "write" permissions on the remote share.

The test of the external location cannot be performed: an internal error has occurred.

Make some space available on the external location for the

'Scan to' operations.

• Restart the system and try again.

• Make sure that SMB1 is enabled on the destination workstation.

(Windows environment: HKLM\System\CurrentControlSet

\Services\LanmanServer\Parameters key).

Chapter 3 - Define your Workflow with Océ Express WebTools 111

Troubleshoot the creation of a WebDAV external location (after an error message)

Troubleshoot the creation of a WebDAV external location (after an error message)

An error message displays to indicate that the creation of the WebDAV external location failed.

According to the error message, perform the verifications proposed in the next table in order to fix the issue.

Error message

Proxy authentication required.

Please check the proxy configuration.

The remote hostname cannot be resolved.

The specified path or URL does not exist on the remote host, or the folder name is misspelled.

Action to perform

• Check whether a proxy is required.

• Check the proxy settings.

Check whether a proxy is required.

Missing or incorrect path.

The user name or password is incorrect.

• Make sure that the path exists.

• Make sure that 'Proxy settings' feature is not checked if the

WebDAV server does not require an Internet access (local network).

• Check the syntax of the WebDAV external location. Make sure it complies with the WebDAV syntax of your Cloud.

IMPORTANT

For the 'Box.com' Cloud, the WebDAV syntax changed. The new syntax is: https:// dav.box.com. You must use the new syntax. It replaces https://apps.box.com/dav.

Check the path and the URL syntax. There may be some strange characters in the path, or an incorrect URL.

• Check the remote user name and the password.

• If the user name and password are correct, check also the

“path” syntax.

The external locations server has reached the maximum number of connections. Check with the System administrator or try again later.

The external location cannot be tested: the remote server has reached the maximum number of connections.

The specified user account has no 'write' permission on this location.

The external location is full.

The test of the external location cannot be performed: an internal error has occurred.

• For scan-to-file, check that the remote user has "write" permission on the remote host.

• Check the syntax of the WebDAV external location.

NOTE

Replace http:// by https://.

Make some space available on the external location.

• Check the URL syntax entered in the Path setting.

• Check that proxy settings are not checked if the WebDAV server does not require an Internet access (local network).

• Restart the system and try again.

112 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the printer settings

Configure the printer settings

Configure the regional settings

Purpose

The regional settings are configured during the installation of your printer. When you want to change the initial configuration, you can do this under the [Regional settings].

Define the regional settings for the printer in the following order:

• [First language] and [Second language] of the user panel

• [Measurement unit]

• [Time zone]

When you change the [Time zone] you must reboot the system first, before you set the

[Current date and time].

• [Current date and time]

• [Time format]

NOTE

Every time you change the [Measurement unit], the controller recalculates the values from millimeter to inches and vice versa. If you reverse to the original value of this setting a slight calculation difference can occur due to rounding differences.

Procedure

1.

Open the [Preferences] - [System defaults] tab.

2.

Click on [Edit] in the [Regional settings] section, or click on the setting you want to edit, for example [First language].

3.

Modify the settings. You can choose between:

• settings that are commonly used in the USA

• or settings that are commonly used in the rest of the world.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 113

Configure the user session time-out

Configure the user session time-out

Introduction

The user panel returns automatically to the home screen and its default configuration. You can set a time limit for the user session.

When to do

Define a suitable time-out period that does not interfere with the print productivity.

Procedure

1.

Open the [Security] - [Configuration] tab.

2.

Click on [Edit] in the [User access configuration] section or click on the [User session time-out] setting.

3.

Enter a time period .

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

114 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the working hours

Configure the working hours

Introduction

You can define the working hours of the printer in Océ Express WebTools.

Enable [Automatic on] first, to let the printer wake up automatically. Define the working days with the [First workday] setting, for example 'Monday', and [Last workday] setting, for example

'Friday'. And set the wake up time and shut down time with the [Start-up time] and [End of workday time] settings, for example '06:30' and '19:00'.

That way the printer turns on and off automatically, at the set day and time.

NOTE

Even if [Automatic on] is disabled, the [End of workday time] setting is active and causes the printer to automatically switch off at the selected time (due to power saving regulations, the printer must always shut down once in twenty-four hours).

NOTE

If the printer was manually powered on outside the defined working hours, the printer will automatically switch off instead of going to sleep mode after the selected [Go into sleep mode after] period has elapsed.

Procedure

1.

Open the [Preferences] - [System defaults] tab.

2.

Click on [Edit] in the [Printer properties] section.

3.

Set the [Automatic on] setting to [Enabled].

4.

Set the [Start-up time], [End of workday time], [First workday] and [Last workday] settings according to your preferences.

5.

Click [Ok] to confirm, or [Cancel] to reject your entries.

Result

The printer now wakes up automatically, and is active during the preferred time frame on the set days.

Chapter 3 - Define your Workflow with Océ Express WebTools 115

Configure the energy save modes

Configure the energy save modes

Introduction

The Océ ColorWave 500 offers two energy save modes that you can set if the printer is idle for a defined period. The configuration of the timers prevents unnecessary power consumption. You can adjust the value of the timers.

When to do

Sleep mode timer (Default value 60 minutes).

The printer uses minimal energy because the power supply of the printer is turned off. The power supply of the controller remains on. The printer needs to warm up when it wakes up from the sleep mode.

Energy save mode timer (Default value 1 minute).

Both the printer and the controller remain turned on. The printer uses less energy than in normal operating mode, but the printer uses more energy than in sleep mode. The advantage of the energy save mode over the sleep mode is that the printer usually needs just a few seconds to wake up.

NOTE

If the printer was manually powered on outside the defined working hours, the printer will automatically switch off instead of going to sleep mode after the selected [Go into sleep mode after] period has elapsed.

NOTE

The value you set for the sleep mode timer must be higher than the energy save mode value. If the value of the sleep mode is lower than the energy save mode, the printer skips the energy save mode and goes into sleep mode. The power consumption will be lower but it will also take the printer a bit longer to wake up again.

Procedure

1.

Open the [Preferences] - [System defaults] tab.

2.

Click on [Edit] in the [Printer properties] section, or click on the [Go into sleep mode after] setting or the [Go into energy saving mode after] setting.

3.

Enter a new value.

NOTE

If you access the Edit window by clicking the value of the setting you want to change, the Edit window displays the minimal and maximal value you can select.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

NOTE

When the printer is in the energy save mode, there are several ways to activate the system.

• press the wake-up button on the user panel

• send a print job

• insert an original in the scanner

116 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the media request time-out

Configure the media request time-out

Introduction

The user panel displays a message with a media request when the requested media is not available on the printer.

• When the [Media request timeout] setting is disabled, the media request will be displayed on the user panel until it is resolved.

• When the [Media request timeout] setting is enabled (default), you can enter a media request time-out value in seconds. When the media request is not resolved within the media request time-out period, the [Action after media request timeout] setting determines whether the printer either deletes the job from the Job queue or puts the job in attention state.

Procedure

1.

Open the [Preferences] - [System defaults] tab.

2.

Click on [Edit] in the [Printer properties] section or click on the [Media request timeout] setting.

3.

When you enable the setting, you must enter a time period as well. If you choose to disable the setting, the time period will not be adjustable.

4.

Click on the [Action after media request timeout] setting.

5.

Select [Put the job on attention state] or [Delete the job].

6.

Click on [Ok] to confirm or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 117

Configure the pen settings

Configure the pen settings

Introduction

You can define the pen settings in the application that you use to create a drawing with. When the pen settings are not defined in the application, you can configure the default pen settings in

Océ Express WebTools.

Procedure

1.

Open the [Preferences] - [Print job defaults] tab.

2.

Go down to the list of pen numbers.

3.

Click on the value of the pen number that you want to change.

The pen settings window opens. You can configure the color, width and pattern for this pen.

4.

Click on [Ok] to confirm or [Cancel] to reject your entries.

118 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the Roll-to-roll mode in Océ Express Webtools

Configure the Roll-to-roll mode in Océ Express Webtools

Introduction

When you want to use the take-up unit, your printer has to be in the Roll-to-roll mode. When you enable the Roll-to-roll mode, the printer will not cut between pages. You can also configure the

Roll-to-roll mode on the user panel.

NOTE

If Roll-to-Roll mode is enabled, each print job is delivered to the [Back output], even if you set the [Top delivery tray] as output location for your prints.

NOTE

To calibrate the printer the Roll-to-roll mode must be disabled.

Procedure

1.

Open the [Preferences] - [System defaults] tab.

2.

Click on [Edit] in the [Job management] section, or click on the [Roll-to-roll mode] setting.

3.

Select [Enabled] or [Disabled].

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 119

Configure the Templates

Configure the Templates

Fold and Scan templates

Introduction

A template is a group of predefined settings you can configure yourself. Select the template on the user panel to easily submit a job with optimized settings.

You can create templates for folding and scanning in Océ Express WebTools under the

[Preferences] tab. You can create various templates and select one of the templates as default.

For scan templates you can also enable one of the factory installed templates.

General template actions

There are several general actions you can perform for templates. You can:

Create a new template on page 121

Delete all templates on page 122

Export templates on page 123

Import templates on page 124

Restore the factory defaults of the templates on page 125

Enable or disable scan templates on page 126

Actions per template

Next to this, you can perform actions per template. When you move the mouse pointer over the template in the list you can see the available actions:

Icon Description

[Edit a template], to change the settings or the destination. You can also modify factory installed scan templates.

[Copy a template], to create a new template.

[Delete a template], to remove one specific template.

NOTE

• When you have deleted a factory installed scan template, you can retrieve it by restoring the factory defaults. For more information, see

Restore the factory defaults on page 60

.

• Some destinations (external locations and Smart Inboxes) cannot be deleted when they are set as a scan destination in the scan template.

[Set this template as the default template], to set one default selected template.

120 Chapter 3 - Define your Workflow with Océ Express WebTools

Create a new template

Create a new template

Introduction

Create a new template in Océ Express WebTools.

NOTE

• Depending on the configuration, less or more settings are available.

• More or fewer settings will be shown depending on the selections made.

• Note that the scan templates on the user panel are ordered alphabetically. When you want to order the templates to your preference, it is advised to use ascending numbers in front of the name (01-02-03 etc.).

Procedure

1.

Select the [Preferences] - [Fold] tab in Océ Express WebTools for the fold template.

Select the [Preferences] - [Scan] tab in Océ Express WebTools for the scan template.

2.

Click on [Create new] at the right hand side.

3.

Enter a [Name], recognisable for the user.

4.

Enter a [Description], a description of the settings used.

5.

Select the desired settings. For every individual setting, there is a tooltip available in the template editor to give a short explanation.

6.

Click [Ok] to save the template or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 121

Delete all templates

Delete all templates

Introduction

You can delete all templates at once with Océ Express WebTools.

Procedure

1.

Select the [Preferences] - [Fold] tab in Océ Express WebTools for the fold templates.

Select the [Preferences] - [Scan] tab in Océ Express WebTools for the scan templates.

2.

Click on [Delete all] at the right hand side.

3.

The system displays the message [Do you want to delete all the templates?]

4.

Click [Ok] to delete all templates or [Cancel] to cancel the deletion.

122 Chapter 3 - Define your Workflow with Océ Express WebTools

Export templates

Export templates

Introduction

You can export templates with Océ Express WebTools.

The export will be saved as a zip file. The zip file contains all available templates.

Procedure

1.

Select the [Preferences] - [Fold] tab in Océ Express WebTools for the fold templates.

Select the [Preferences] - [Scan] tab in Océ Express WebTools for the scan templates.

2.

Click on [Export all] at the right hand side.

3.

Click [Save] to save the export in a zip file or [Cancel] to stop the export.

Chapter 3 - Define your Workflow with Océ Express WebTools 123

Import templates

Import templates

Introduction

You can import templates with Océ Express WebTools.

Use a zip file with templates that was previously created by the [Export templates] procedure.

Procedure

1.

Select the [Preferences] - [Fold] tab in Océ Express WebTools for the fold templates.

Select the [Preferences] - [Scan] tab in Océ Express WebTools for the scan templates.

2.

Click on [Import] at the right hand side.

3.

Mark the [Overwrite existing templates] checkbox to overwrite existing templates. When you do not tick the checkbox, duplicate imported templates will be given a serial number.

4.

Click Browse to [Select the location of the zip file].

5.

Click [Ok] to import all templates or [Cancel] to cancel the import.

124 Chapter 3 - Define your Workflow with Océ Express WebTools

Restore the factory defaults of the templates

Restore the factory defaults of the templates

Introduction

You can restore the factory defaults of all templates with Océ Express WebTools.

The custom templates are not changed.

Procedure

1.

Select the [Preferences] - [Fold] tab in Océ Express WebTools for the fold templates.

Select the [Preferences] - [Scan] tab in Océ Express WebTools for the scan templates.

2.

Click on [Restore factory defaults] at the right hand side.

3.

The system displays the message [Restore all factory default templates?]

4.

Click [Ok] to restore the templates or [Cancel] to stop the restore.

Chapter 3 - Define your Workflow with Océ Express WebTools 125

Enable or disable scan templates

Enable or disable scan templates

Introduction

You can enable or disable scan templates. When you enable the templates they become available on the user panel.

Procedure

1.

Open the [Preferences] - [Scan] tab.

2.

Under Actions, click on the [Edit a template] icon next to the preferred template. The template window opens.

3.

Under [File], set the [Display on the user panel] setting to [Yes] or [No].

4.

Click on OK to confirm your entry.

Result

When you have selected [Yes] the templates are available on the user panel in the Smart Access.

NOTE

The default scan template is always available in the Smart Access of the user panel, even when it is disabled.

126 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the Finishing settings

Configure the Finishing settings

Set the Océ Finishing Assistant

Introduction

This setting is only available when a folder is installed .

The [Océ Finishing Assistant] can automatically detect the legend (if present) of a drawing and rotate and align the drawing so the legend will be on the cover page of the fold package. If no legend can be detected the print is delivered unfolded.

When enabled, the [Océ Finishing Assistant] overrules the default rotation and alignment settings for folded output.

Procedure

1.

Open the [Preferences] - [Print job defaults] tab.

2.

Click on [Edit] in the [Layout] section, or click the [Océ Finishing Assistant] setting.

3.

Select [Enabled] if the printer must automatically detect the legend of your drawings and fold the drawings correctly.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 127

Fold settings

Fold settings

Introduction

You can set the fold options in the fold template under the [Preferences] - [Fold] tab. For more information on how to create a template see,

Create a new template on page 121 .

When you set the fold options, make sure you set them accordingly to operate the folding device in a correct way. Use the settings overview explanation below.

Folding

[Folding package]

[Full fold]

Description

Folded with first (Z-fold) and second fold (cross fold).

Example

279 mm / 11 inch or

305 mm / 12 inch

[First fold only] Folded only with the first fold (Zfold).

[Folding method]

[Compact fold] (DIN-C).

Description

Folded package, but the last fold

(backside) is shorter.

180 - 230 mm

7.1 - 9 inch

Example

[With same size back] (DIN-

B).

Folded package, but the last fold

(rear) is over the full width.

The previous fold could be shorter.

180 - 230 mm

7.1 - 9 inch

180 - 230 mm

7.1 - 9 inch

4

128 Chapter 3 - Define your Workflow with Océ Express WebTools

[Folding method]

[With binding edge] (DIN-

A).

Description

Folded package, but the last fold

(rear) has additional width.

The previous fold could be shorter.

Example

[Binding edge size]

[Reinforcement]

[Enabled]

[Disabled]

0 - 30 mm

Max 230 mm

Defines how much the binding is outside the package.

NOTE

Only visible when the selection in [Folding method] is set to [With binding edge].

0 - 30 mm

Max 230 mm

Description

Glues the pre-punched strips to the rear of the folded package.

NOTE

• The reinforcement strip uses a binding size of

12mm (A).

• The package width size

(B) excludes the [Binding edge size] (A). So the back panel consists of the package width size plus the binding edge size (A+B).

• Only possible when

[Folding method] is

[With same size back].

No glued strip.

Example

193 - 198 mm

7.6 - 7.8 inch

Fold settings

Chapter 3 - Define your Workflow with Océ Express WebTools 129

Fold settings

Package size

[Package size]

[Width]

[Height]

Description

Defines the fold distance of the Zfold.

NOTE

Note that the package width size excludes the

[Binding edge size]. So the back panel consists of the package width size plus the binding edge size (A+B).

Defines the fold distance of the cross fold.

This only applies to the folding device in [Full fold] mode.

Example

180 - 230 mm

7.1 - 9 inch

279 mm / 11 inch or

305 mm / 12 inch

Delivery

NOTE

Note that the [Fold delivery] value depends on the chosen [Folding package] value.

[Fold delivery]

[Belts]

[First fold output]

Description

Defines that the output will be delivered on the belt unit (only for

[Full fold] and when the belt unit is installed).

Defines that the output will be delivered at the first fold section

(only for [First fold only]).

130 Chapter 3 - Define your Workflow with Océ Express WebTools

Optimise the print quality and print productivity

Optimise the print quality and print productivity

Set the print quality

Introduction

You can use Océ Express WebTools to set the print quality. The choice of the print quality affects the speed of the job and the toner coverage.

[Print quality]

[High speed]

[Economy - fast]

[Production]

[Quality]

Number of passes

1

1

2

4

resolution

Dpi

300x300

300x300 for B/W

450x300 for color

600x600

600x600

In the print quality range from [High speed] to [Quality] the quality increases while the speed decreases.

Set the print quality in the print job default settings

1. Open the [Preferences] - [Print job defaults] tab.

2. Click on [Edit] in the [Image] section or click on the [Print quality] setting.

3. Select [Océ Print Assistant] (OPA) to automatically select the best print quality based upon the content of the file or manually choose a print quality yourself from the list in the table above.

4. Click [Ok] to confirm, or [Cancel] to reject your entries.

Set the print quality in the copy job default settings

1. Open the [Preferences] - [Copy job defaults] tab.

2. Click on [Edit] in the [Custom image preset for copy] section or click on the [Print quality] setting.

3. Select [Automatic] to automatically select the best print quality ([Economy - fast],

[Production], [Quality]) based upon the content of the file or manually choose a print quality yourself from the list in the table above.

4. Click [Ok] to confirm, or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 131

Set the long plot mode

Set the long plot mode

Introduction

When the long plot mode is enabled, the system will be able to print TIFF, HP-GL, HP-GL2 and HP-

RTL plots up to 175 meter with good quality. Transformation such as scaling and rotating are not guaranteed in this mode. For other formats such as PS and PDF, the system will print in "normal" mode, with a maximum plot length of 22 meter.

For the printer to be able to print long prints, the print quality can be reduced.

Procedure

1.

Open the [Preferences] - [Print job defaults] tab.

2.

Click on [Edit] in the [General (non-postscript) rasterization settings] section or click on the [Long plot mode] setting.

3.

Enable or disable. The setting is enabled when you check the box.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

132 Chapter 3 - Define your Workflow with Océ Express WebTools

Set the automatic roll switch

Set the automatic roll switch

Introduction

In Océ Express WebTools you can choose to enable or disable the [Automatic roll switch]. When you enable the functionality and a specific roll has been selected, the printer automatically continues printing on an (in size and type) identical roll. When you disable the functionality, the printer stops and request to load a new roll of the same size and type in the same media drawer location.

Procedure

1.

Open the [Preferences] - [System defaults] tab.

2.

Click on [Edit] in the [Printer properties] section or click on the [Automatic roll switch] setting.

3.

Select [Enabled] or [Disabled]. Select enabled if print productivity is an important factor.

4.

Click on [Ok] to confirm or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 133

Set the spool threshold

Set the spool threshold

Introduction

When the job memory is full the printer cannot receive new jobs, therefore it is necessary to partly empty the memory. Set the [Spool threshold] setting to define the spool capacity for your jobs.

You can choose one of following values:

• [Low]

Select this value if you have several small print jobs and you want to allow a higher capacity.

• [Normal]

This is the default setting. Select this value if you have both small and large print jobs.

• [High]

Select this value when you have more large print jobs, and you want to reduce the risk of having to abort the file transfer due to a full job memory.

Procedure

1.

Open the [Preferences] - [System defaults] tab.

2.

Click on [Edit] in the [Printer properties] section or click on the [Spool threshold] setting.

3.

Select [Low], [Normal], or [High].

Select [Low] if print productivity is an important factor.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

134 Chapter 3 - Define your Workflow with Océ Express WebTools

Set the rotation mode

Set the rotation mode

Introduction

If you want to turn an image, you can use the rotation settings. The setting allows you to turn the image according to predefined rotation values or you can let the printer perform the rotation automatically.

Choose one of the following values:

• [No rotation]

• [90°]

• [180°]

• [270°]

• [Short edge first]

• [Long edge first]

• [Short edge first with additional 180° rotation]

• [Long edge first with additional 180° rotation]

• [Automatic media saving]

• [Automatic media saving with additional 180° rotation]

Procedure

1.

Open the [Preferences] - [Print job defaults] tab.[Print job defaults]

2.

Click on [Edit] in the [Layout] section or click on the [Rotation] setting.

3.

Choose one of the values.

Select [Automatic media saving] or [Automatic media saving with additional 180° rotation] when the print productivity is an important factor.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 135

Set the alignment mode

Set the alignment mode

Introduction

When you want to shift the image on the sheet, you can change the alignment mode. With the alignment mode, you can also optimize the print productivity as you reduce the distance the print carriage has to travel. You can, for instance, align the image to the top right-hand corner of the sheet.

You can choose the following alignment settings:

Alignment mode

[Top left]

[Left]

[Bottom left]

[Top]

[Center]

[Bottom]

[Top right]

[Right]

[Bottom right]

Procedure

1.

Open the [Preferences] - [Print job defaults] tab.

2.

Click on [Edit] in the [Layout] section or click on the [Alignment] setting.

3.

Select the correct value.

Select [Top right] when the print productivity is the most important factor.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

136 Chapter 3 - Define your Workflow with Océ Express WebTools

Set the Adobe® PDF Print Engine

Set the Adobe® PDF Print Engine

Introduction

When enabled, the PDF files are processed directly with the [PDF render engine]. [PDF render engine] is compatible with the latest features of design applications. When disabled, the PDF files are first converted to PostScript, then processed with the [PDF render engine] interpreter. Disable

[PDF render engine] to print black and white files in Economy mode, or to use the Wipeout correction.

Procedure

1.

Open the [Preferences] - [Print job defaults] tab.

2.

Click on [Edit] in the [PDF rasterization settings] section, or click on the [PDF render engine] setting.

3.

Select the correct value.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 137

Set transparency flattening for PDF

Set transparency flattening for PDF

Introduction

In Océ Express WebTools, you can select a setting to flatten transparency information in a PDF document before printing. The setting is used for PDF documents containing transparency information only.

You can choose between the following values:

• [Quality]

Select this value if print quality is an important factor. The processing speed slows down and more memory is required.

• [Speed]

Select this value if PDF processing performance is more important than print quality. Large and complex PDF files are processed faster and use less memory.

NOTE

You can only change the transparency flattening, when the [PDF render engine] setting is set to

[ Adobe PostScript interpreter ]. You can find this setting under [Preferences] - [Print job defaults] - [PDF rasterization settings].

Procedure

1.

Open the [Preferences] - [Print job defaults] tab.

2.

Click on [Edit] in the [PDF rasterization settings] section or click on the [Transparency flattening] setting.

3.

Select [Quality] or [Speed].

4.

Click [Ok] to confirm, or [Cancel] to reject your entry.

138 Chapter 3 - Define your Workflow with Océ Express WebTools

Set the Océ Print Assistant Behavior

Set the Océ Print Assistant Behavior

Introduction

This setting is only used when the [Print quality] is set to [Océ Print Assistant].

The [Océ Print Assistant] decides what print setting must be used, based on the average toner coverage of the print.

By analyzing the image the Océ Print Assistant can automatically determine the best print setting to be used for each document. The [Océ Print Assistant behavior] setting allows you to tune the outcome of the Océ Print Assistant's analysis to fit your specific needs. The thresholds for switching from one mode to another can be altered by the [Océ Print Assistant behavior]¹. In this way the [Océ Print Assistant] can fine-tune the to optimize further speed and quality to his personal needs. The [Océ Print Assistant] will be the default mode for the Océ ColorWave 500 .

¹ The number in the [Océ Print Assistant behavior] represents a position on a scale from 0 to 100.

A higher number means an increased preference for print quality, a lower number means an increased preference for print speed.

Procedure

1.

Click [Preferences] - [System defaults].

2.

Click [Edit] in the [Printer properties] bar or click on the [Océ Print Assistant behavior] setting.

3.

Set the slider to '0' if the print productivity is the most important factor.

Set the slider to '100' if the print quality is the most important factor.

4.

Click [Ok] to confirm your entries or [Cancel] to reject your entries.

Chapter 3 - Define your Workflow with Océ Express WebTools 139

Optimize the print productivity

Optimize the print productivity

Introduction

When you load media, always make sure that you install and define the correct media type and size on the printer. Depending on your needs, you can optimize the print productivity in various ways.

When productivity with different media sizes is the most important requirement.

1 Load up to 4 media rolls on the printer with different media sizes and the same media type.

2

3

Use the [Landscape] orientation to print a job on a media size that is one size smaller than the media defined on the system. For example, A1 prints in landscape on A0 and

A2 prints in landscape on A1. You are not required to cut the media by hand.

Use the [Long edge first] setting or the [Long edge first with additional 180° rotation] on the user panel or Océ Express WebTools to rotate the orientation automatically.

When productivity is the only important requirement.

1 Load and define two or more media rolls on the printer with the same media size and the same media type.

NOTE

When roll 1 is empty, the printer switches automatically to roll 2.

140 Chapter 3 - Define your Workflow with Océ Express WebTools

Optimize the Color management settings

Optimize the Color management settings

What is Color management?

Definition

The color management settings help you to reproduce the colors of your input as precisely as possible on the printed output.

With the color management settings you define how to convert the color-information of the file you want to print (input color space; RGB or CMYK color space) to the output color space of the

This conversion can require approximations in order to preserve the image's most important color qualities.

To be able to reproduce colors it is important to define the following.

• Input profile / Standardization

• Color feel / Rendering intents

• Output profile

Chapter 3 - Define your Workflow with Océ Express WebTools 141

What is an input profile / standardization?

What is an input profile / standardization?

Definition

An input profile / standardization defines what color space you must use to interpret the color information of the file you want to print in a correct manner.

The main input profiles (color spaces) are the following.

RGB

The RGB color space is based on the RGB color model. RGB (Red, Green, Blue) is a suitable color model for computer graphics because the human visual system operates in a similar manner.

The RGB color space is an

additive color space, where you can mix colors based on light. You can create white light if you add equal parts of each of the three primary colors: red, green, and blue. All three colors are required to produce white and the absence of all three produces black. In additive mixing, the RGB colors are the primary colors and cyan, magenta, and yellow

(CMY) are the secondary colors.

CMYK (Colors you print)

The CMYK color space is based on the CMYK color model. The CMYK (Cyan, Magenta, Yellow and Black color space is a subtractive color space, where you can mix colors based on subtracting light energy from the spectrum. The CMY toners are used to create RGB colors. All three inks are required to produce black and the absence of all three produces white. In subtractive color mixing the CMY colors are the primary colors and RGB are the secondary colors.

142 Chapter 3 - Define your Workflow with Océ Express WebTools

What is an input profile / standardization?

Gray

In the grayscale (color) space only information about the lightness is given. Lightness can range from a minimum of 0 (black) to 100 (white).

You can define the input profile if you use the [Color feel] setting [Graphics colors].

The table below gives an overview of the possible input profiles / standardization settings.

Input profile / standardization Description

RGB - [ sRGB ]

Use this setting to indicate the color space of a standard computer monitor. sRGB is the most frequently used RGB color space, especially in consumer grade digital cameras. sRGB is acceptable for most consumer applications. The sRGB design allows easy previewing on a standard computer display.

RGB - [ Adobe RGB ]

This setting indicates an RGB color space developed by Adobe in 1998. Adobe RGB has a larger gamut than sRGB. Adobe RGB is included in more medium-range digital cameras, and many professional graphic artists prefer Adobe RGB for its larger gamut.

CMYK - [ Euroscale coated ] This setting indicates an old offset press standard, formerly used in Europe to print separations and proofs on coated media.

CMYK - [ Euroscale uncoated ] This setting indicates an old offset press standard, formerly used in Europe to print separations and proofs on uncoated media

CMYK - [ US Web coated

(SWOP) ]

This setting indicates an old offset press standard, formerly used in the US to print separations and proofs on coated media.

CMYK - [ US Web uncoated ]

This setting indicates an old offset press standard, formerly used in the US to print separations and proofs on uncoated media.

CMYK - [ ISO Coated v2 300%

(ECI) ]

This setting indicates an offset press standard, frequently used in Europe to print separations and proofs on coated media.

Based upon Fogra39 with 300% ink limit.

4

Chapter 3 - Define your Workflow with Océ Express WebTools 143

What is an input profile / standardization?

Input profile / standardization Description

CMYK - [ ISO Coated v2 (ECI) ] This setting indicates an offset press standard, used in Europe to print separations and proofs on coated media. Based upon

Fogra39 with 330% ink limit.

CMYK - [ PSO Uncoated

ISO12647 (ECI) ]

CMYK - [ Uncoated FOG-

RA29 ]

This setting indicates an offset press standard, used in Europe to print separations and proofs on uncoated media. Based upon Fogra47.

This setting indicates an offset press standard, used in Europe to print separations and proofs on uncoated media. Based upon Fogra29.

CMYK - [ GRACoL2006 Coated1v2 ]

CMYK - [ SWOP2006 Coated3v2 ]

CMYK - [ SWOP2006 Coated5v2 ]

This setting indicates an offset press standard, frequently used in the US to print separations and proofs on coated media grade 1.

This setting indicates an offset press standard, used in the US to print separations and proofs on coated media grade 3.

This setting indicates an offset press standard, used in the US to print separations and proofs on coated media grade 5.

Gray[None (no profile used)] Use this setting to directly transform the grayscale info to black toner usage only.

Gray[ sGray ]

Gray[ Adobe Gray 20% ]

Use this setting to transform the grayscale info based upon the sGray profile (lightness scale sRGB with gamma 2.2) to CMYK toner usage.

Use this setting to transform the grayscale info based upon the

Adobe Gray 20% profile (Adobe specific dot gain 20%) to CMYK toner usage.

144 Chapter 3 - Define your Workflow with Océ Express WebTools

What is Color feel?

What is Color feel?

Definition

With the [Color feel] setting you can fine-tune the look and feel of the printed output.

The [Color feel] setting defines the color space conversion method.

[Color feel]

[CAD colors]

[Graphics colors]

[None, managed by application]

Description

Use this setting to get a print with bright, saturated colors.

Advised for vector drawings (like HP-GL).

All primary and secondary colors are clean, because they are printed with pure inks. This is clearly visible if you look at the color yellow that is printed with yellow ink only.

An increase in coverage results in (almost) the same increase in ink.

The blue color is not purplish but nice blue.

This mode is preferred for CAD drawings created with applications like AutoCAD or ArcView.

Photos printed in this mode will look dull and grayish.

Use this setting to get a print with photo-realistic colors.

Advised for photos or graphic art presentations.

If you select [Graphics colors] you can also adjust the advanced Color Management settings.

• [Graphics colors: RGB input color profile]

• [Graphics colors: CMYK input color profile] (only for

TIFF and JPEG files or for PostScript and PDF files)

• [Graphics colors: Grayscale input color profile] (only for PostScript and PDF files)

• [Graphics colors: rendering intent]

Use this setting if your color management is completely done by the application that generated the print file.

If color management is not handled correctly by the application, possible problems are:

• - blue will be purplish (like in most inkjet printers)

• - raster-file information (like photos) will look dull and dark.

Chapter 3 - Define your Workflow with Océ Express WebTools 145

What are Rendering intents?

What are Rendering intents?

Definition of rendering intents

Normally the color space of a print file is larger than the Océ ColorWave 500 color space. In other words, the input color space is larger than the output color space. Consequently some of the defined input colors will be outside the Océ ColorWave 500 color space. These "out-of-gamut colors" are called a gamut mismatch.

When a gamut mismatch occurs, the rendering intent setting decides what qualities of the image it should prioritize. The rendering intent setting preserves one property of color at the expense of other color properties.

146 Chapter 3 - Define your Workflow with Océ Express WebTools

Rendering intent: Perceptual (photo)

Rendering intent: Perceptual (photo)

This setting optimizes the output to produce best results for photos, artwork, GIS or images.

Perceptual rendering tries to preserve some relationship between out of gamut colors, even if this results in inaccuracies for in-gamut colors.

Chapter 3 - Define your Workflow with Océ Express WebTools 147

Rendering intent: Saturation (business graphics)

Rendering intent: Saturation (business graphics)

This setting optimizes the output of bright, saturated colors.

Saturation rendering intent preserves saturated colors, and is advised if you try to keep color purity in computer graphics. Pure saturated colors in the original RGB device will still be saturated colors in the output color space, even if this results in relatively more extreme colors.

Saturation rendering intent is not advised for photos, because this setting does not try to keep color realism. The color saturation can come at the expense of changes in hue and lightness, which is normally an unacceptable trade-off for photo reproduction.

You can also use saturation rendering intent to prevent visible dithering if you must print computer graphics on a printer. It is not possible to prevent all dithering, because printers never can match every color. Saturation rendering intent can minimize dithering if the color is very close to pure.

148 Chapter 3 - Define your Workflow with Océ Express WebTools

Rendering intent: Relative colorimetric

Rendering intent: Relative colorimetric

Relative colorimetric keeps an almost exact relationship between in gamut colors, even if this clips out of gamut colors.

The relative colorimetric rendering method replaces the colors to align the old white point (the location of the most pure and light white in a color space) with the new white point and to keep the relative positions of the colors. The Relative colorimetric rendering intent is advised for logos, spot colors or PowerPoint presentations, but the loss of contrast can be a problem with photos and images.

Chapter 3 - Define your Workflow with Océ Express WebTools 149

Rendering intent: Absolute colorimetric

Rendering intent: Absolute colorimetric

Absolute colorimetric is similar to relative colorimetric, but uses a different method to handle the white point.

Absolute and relative colorimetric both keep gamut colors and clip those out of gamut, but absolute colorimetric also keeps the white point.

Absolute colorimetric is advised for "proofing" applications, that require a good color match, but also emulation of paper white. As a result of that, white areas can become yellowish, because the printer tries to emulate the whitepoint of the input profile.

This setting provides the highest accuracy in rendering RGB colors into CMYK colors, including rendering the source's white.

NOTE

You can see the minor level of blue of the monitor background as a bluish white in the lightest tones of the printed output. A minor yellow tone can occur in the white tones of a PDF/TIFF original or an HP-GL type document.

150 Chapter 3 - Define your Workflow with Océ Express WebTools

What is an output profile?

What is an output profile?

The output profile is used to adjust the converted CMYK color space, depending on the output device (via the Océ ColorWave 500 Printer Calibration Module) and the media type you select (via the OMP Océ Media Profile file).

The output profile is applied automatically, but it is important that you load the correct media on the Océ ColorWave 500 and that the correct OMP-file is available on the controller.

(see

Configure the media profiles on page 166

)

(see

Install a media profile on page 167

)

Chapter 3 - Define your Workflow with Océ Express WebTools 151

Color management settings in Océ Express WebTools

Color management settings in Océ Express WebTools

Depending on the type of file you want to print, the Océ ColorWave 500 offers different colorinformation conversions. You can select the color management settings, that give the best results for the color-information conversion.

Open the [Preferences] - [Print job defaults] tab to define the default color management settings per file type ([Color management settings for HP-GL files], [Color management settings for

PostScript files], [Color management settings for PDF files], or [Color management settings for

TIFF and JPEG files] ).

The Océ Wide format Printer Driver 2 for Microsoft® Windows® and the Océ Publisher Select job submission application offer the same color management settings, but now file type independent.

NOTE

It is only important to know what the file type of your print job is, if you want to use or must use the color management settings defined in Océ Express WebTools. If you define the color management settings in your Océ Wide format Printer Driver 2 for Microsoft® Windows® or the

Océ Publisher Select job submission application the color management settings are automatically assigned to the correct file type (the color management settings defined in Océ

Express WebTools are overruled).

152 Chapter 3 - Define your Workflow with Océ Express WebTools

Color management settings and job submission

Color management settings and job submission

The way in which you submit a print job to the printer defines in most cases the file type of the document. If you use a printer driver, the original file type will be changed by the driver into a standard file type.

When there is no job ticket or when the job ticket does not include a color management setting, the printer checks the file type of the document and based on the file type the printer applies the default color management settings of Océ Express WebTools.

If you use FTP, LPR, Océ Publisher Select or Océ Publisher Express to send a job to the printer, the file type is not changed. The file is sent to the printer the way in which it was saved in the application you used to create or edit the file. If there is no embedded color profile present in the document, the printer checks the file type of the document and based on the file type the printer applies the default color management settings of Océ Express WebTools.

If you want to use the embedded color profile for your print job (for example, embedded profile created with Adobe

®

Illustrator) you can choose between 2 options. You can use the Océ Wide format Printer Driver 2 for Microsoft® Windows® where you can indicate to follow the color settings managed by the application. You can also send the job via FTP, LPR, Océ Publisher

Select (choose 'Document's color feel') or Océ Publisher Express. If the controller can recognize the embedded color profile, it will be applied. If the embedded color profile cannot be recognized, the controller applies the default color settings managed by Océ Express WebTools.

The table below gives an overview of the relation between the job submission method, the file type and the color management settings

Job submission method

Océ Wide format Printer

Driver 2 for Microsoft

®

Windows

®

File type

The driver converts all files into HP-GL/2

Color management settings

You can define the color settings in:

• The printer driver.

• Océ Express WebTools, by choosing the printer's default in the driver settings.

• The application, by choosing the setting [None, managed by application] in the driver

4

Chapter 3 - Define your Workflow with Océ Express WebTools 153

Color management settings and job submission

Job submission method

LPR

FTP

Océ Publisher Select

Océ Publisher Express

File type

The documents are sent to the printer without being converted to another file type.

The controller recognizes the following file types.

• HP-GL - .hp, .hpg, .hpgl

• HP-GL/2 - .hp2

• HP RTL - .rtl

• CALS - .cls, .cal

• NIRS - .nir, .nif

• CalComp - .cc, .906, .

907, .951, .crf, .pci

• Edmics (C4) - .c4

• TIFF - .tif

• PostScript 3 - .ps (licensed)

• PDF - .pdf (licensed)

• JPEG - .jpg, .jpeg

Color management settings

Depending on the file type of the job, the default settings of one of the 4 file type paths in Océ Express WebTools is used when there is no embedded color profile present in the file.

Use Océ Express WebTools to adjust the color settings for the print job.

154 Chapter 3 - Define your Workflow with Océ Express WebTools

Priorities in the color management settings

Priorities in the color management settings

When you want to print a document in color on the Océ ColorWave 500 the color information that is defined in the files can be set in the different steps of the process from document creation to document production. In order to get the best output results you need to be aware of these methods to define the color information of the document you want to print.

The color information that you can create in the various steps described below each have a different priority. When you create a document that you want to print in color, the priority of the color settings is also illustrated in the table below.

Stages in the process of making a color print

Document

The color settings are already embedded in the document (only applicable for

PDF files).

Application

The color settings can be defined in the application that you use to create or edit the document.

You can set the following parameters in the application.

• Set color or black and white.

• Define the input profile, RGB input data or CMYK input data.

(see

What is an input profile / standardization? on page 142

)

• Define the rendering intents.

(see

Definition of rendering intents on page 146

)

Printer drivers

The Océ Wide format Printer Driver 2 for Microsoft

®

Windows

®

offers color management settings. You can select the required color management settings in the driver or you can indicate to use the printer's default settings. Make sure the color settings do not conflict with the color settings that may be set in another stage of the process.

Océ Express WebToolsThe Settings Editor offers 3 default paths for color settings, based on the file type of the document:

• [Color management settings for HP-GL files]

Color management settings for HP-GL, HP-GL/2 and HP-RTL files on page 157

• [Color management settings for TIFF and JPEG files]

Color management settings for TIFF and JPEG files (RGB input) on page 158

Color management settings for TIFF and JPEG files (CMYK input) on page 159

• [Color management settings for PostScript files]

Color management settings for PostScript files (RGB input) on page 160

Color management settings for PostScript and PDF files (CMYK input) on page 161

• [Color management settings for PDF files]

Color management settings for PDF files (RGB input) on page 162

Color management settings for PDF files (CMYK input) on page 163

Color management settings for PDF files (Gray input) on page 164

These settings are applied when the controller cannot recognize or detect any color settings for the file to be printed.

Priority

1

2

3

4

Chapter 3 - Define your Workflow with Océ Express WebTools 155

Priorities in the color management settings

NOTE

It is advised to align the color management settings that have been made in the different stages before you start the print job. The color space of the document and the settings for the print have to match. This means that if you have set the color settings in more than 1 stage of the process described above, you must check if the color settings do not counteract with each other.

156 Chapter 3 - Define your Workflow with Océ Express WebTools

Color management settings for HP-GL, HP-GL/2 and HP-RTL files

Color management settings for HP-GL, HP-GL/2 and HP-RTL files

The default settings are emphasized.

Input profile

RGB

Standardization

• [ sRGB ]

• [ Adobe RGB ]

[Color feel]

[CAD colors]

[Graphics colors]

Rendering intent

• [Perceptual (photo)]

• [Saturation (business graphics)]

• [Absolute colorimetric]

• [Relative colorimetric]

[None, managed by application]

NOTE

[Color management settings for HP-GL files] are used when printing via Océ Wide format Printer

Driver 2 for Microsoft

®

Windows

®

Chapter 3 - Define your Workflow with Océ Express WebTools 157

Color management settings for TIFF and JPEG files (RGB input)

Color management settings for TIFF and JPEG files (RGB input)

The default settings are emphasized.

Input profile

RGB

Standardization

[ sRGB ]

• [ Adobe RGB ]

[Color feel]

[CAD colors]

[Graphics colors]

[None, managed by application]

Rendering intent

[Perceptual (photo)]

• [Saturation (business graphics)]

• [Absolute colorimetric]

• [Relative colorimetric]

158 Chapter 3 - Define your Workflow with Océ Express WebTools

Color management settings for TIFF and JPEG files (CMYK input)

Color management settings for TIFF and JPEG files (CMYK input)

The default settings are emphasized.

Input profile

Standardization

CMYK

• [ Euroscale coated ]

• [ Euroscale uncoated ]

• [ US Web coated (SWOP) ]

• [ US Web uncoated ]

[ ISO Coated v2 300% (ECI) ]

• [ ISO Coated v2 (ECI) ]

• [ PSO Uncoated ISO12647

(ECI) ]

• [ Uncoated FOGRA29 ]

• [ GRACoL2006 Coated1v2 ]

• [ SWOP2006 Coated3v2 ]

• [ SWOP2006 Coated5v2 ]

[Color feel]

[CAD colors]

[Graphics colors]

[None, managed by application]

Rendering intent

[Perceptual (photo)]

• [Saturation (business graphics)]

• [Absolute colorimetric]

• [Relative colorimetric]

Chapter 3 - Define your Workflow with Océ Express WebTools 159

Color management settings for PostScript files (RGB input)

Color management settings for PostScript files (RGB input)

The default settings are emphasized.

Input profile

RGB

Standardization

[ sRGB ]

• [ Adobe RGB ]

[Color feel]

[CAD colors]

[Graphics colors]

[None, managed by application]

Rendering intent

[Perceptual (photo)]

• [Saturation (business graphics)]

• [Absolute colorimetric]

• [Relative colorimetric]

160 Chapter 3 - Define your Workflow with Océ Express WebTools

Color management settings for PostScript and PDF files (CMYK input)

Color management settings for PostScript and PDF files (CMYK input)

The default settings are emphasized.

Input profile

Standardization

CMYK

• [ Euroscale coated ]

• [ Euroscale uncoated ]

• [ US Web coated (SWOP) ]

• [ US Web uncoated ]

[ ISO Coated v2 300% (ECI) ]

• [ ISO Coated v2 (ECI) ]

• [ PSO Uncoated ISO12647

(ECI) ]

• [ Uncoated FOGRA29 ]

• [ GRACoL2006 Coated1v2 ]

• [ SWOP2006 Coated3v2 ]

• [ SWOP2006 Coated5v2 ]

[Color feel]

[CAD colors]

[Graphics colors]

[None, managed by application]

Rendering intent

[Perceptual (photo)]

• [Saturation (business graphics)]

• [Absolute colorimetric]

• [Relative colorimetric]

Chapter 3 - Define your Workflow with Océ Express WebTools 161

Color management settings for PDF files (RGB input)

Color management settings for PDF files (RGB input)

The default settings are emphasized.

Input profile

RGB

Standardization

[ sRGB ]

• [ Adobe RGB ]

[Color feel]

[CAD colors]

[Graphics colors]

[None, managed by application]

Rendering intent

• [Perceptual (photo)]

• [Saturation (business graphics)]

• [Absolute colorimetric]

[Relative colorimetric]

162 Chapter 3 - Define your Workflow with Océ Express WebTools

Color management settings for PDF files (CMYK input)

Color management settings for PDF files (CMYK input)

The default settings are emphasized.

Input profile

Standardization

CMYK

• [ Euroscale coated ]

• [ Euroscale uncoated ]

• [ US Web coated (SWOP) ]

• [ US Web uncoated ]

[ ISO Coated v2 300% (ECI) ]

• [ ISO Coated v2 (ECI) ]

• [ PSO Uncoated ISO12647

(ECI) ]

• [ Uncoated FOGRA29 ]

• [ GRACoL2006 Coated1v2 ]

• [ SWOP2006 Coated3v2 ]

• [ SWOP2006 Coated5v2 ]

[Color feel]

[CAD colors]

[Graphics colors]

[None, managed by application]

Rendering intent

• [Perceptual (photo)]

• [Saturation (business graphics)]

• [Absolute colorimetric]

[Relative colorimetric]

Chapter 3 - Define your Workflow with Océ Express WebTools 163

Color management settings for PDF files (Gray input)

Color management settings for PDF files (Gray input)

The default settings are emphasized.

Input profile

Gray

Standardization

• [None (no profile used)]

• [ sGray ]

[ Adobe Gray 20% ]

[Color feel]

[CAD colors]

[Graphics colors]

[None, managed by application]

Rendering intent

• [Perceptual (photo)]

• [Saturation (business graphics)]

• [Absolute colorimetric]

[Relative colorimetric]

NOTE

Rendering intent is only valid for standardization

[ sGray ] and

[ Adobe Gray

20% ].

164 Chapter 3 - Define your Workflow with Océ Express WebTools

Manage media

Manage media

What is a media profile?

Definition

A media profile is also called an Océ Media Profile (OMP file). The media profile contains a number of preset values that give the best print result per media type for your system. By default the system already has a number of media profiles available after installation, but due to changes in the production methods for media, the profiles can change over time. Contact your local representative where you can download new profiles.

When a new media type becomes available that you want your Océ ColorWave 500 to support, you can install the corresponding Océ Media Profile.

Attributes

For each media type the media profile optimizes a number of settings.

• Mixing of colors (system setting, cannot be modified).

• Settings for optimal paper handling and runability.

Chapter 3 - Define your Workflow with Océ Express WebTools 165

Configure the media profiles

Configure the media profiles

Introduction

In Océ Express WebTools you can configure the media profiles on the printer.

Procedure

1.

Select the [Media] - [Media types] tab to get an overview of all the media profiles that are available on your Océ ColorWave 500 printing system.

2.

Click the media type, to check the media information.

3.

Click the check box of a media type and click the [Enable] button to make the media profile available on the user panel and in the print job submission applications. If you [Disable] a media profile it will no longer be available on the user panel and in the print job submission applications.

4.

Click [Install] if you must install a new media profile.

NOTE

You must download the new media profile before you can install it to the Océ

ColorWave 500 embedded controller. Contact your local representative for new media profiles.

5.

Click [Delete] to remove a media profile that is no longer needed.

NOTE

This action cannot be undone.

166 Chapter 3 - Define your Workflow with Océ Express WebTools

Install a media profile

Install a media profile

When to do

When you have downloaded a new or updated media profile, you need to install this media profile to the Océ ColorWave 500 embedded controller.

Procedure

1.

Select the [Media] - [Media types] tab.

2.

If you want to update a media profile, click the check box of the media profile you want to update.

3.

Click the [Install] button.

4.

Click Browse to navigate to the correct file on your workstation.

5.

Select the media profile and click "Open".

6.

Click the check box of the new or updated media profile and click the [Enable] button to make the media profile available on the user panel.

Result

A warning message appears to inform you of the consequences for the already submitted jobs.

The file is stored on the Océ ColorWave 500 embedded controller. The new file is visible in the media profile list on the [Media types] tab.

NOTE

If an older version of the file was active on the controller, this file will be overwritten by the new file.

Chapter 3 - Define your Workflow with Océ Express WebTools 167

Create a custom media size

Create a custom media size

Introduction

When you want to use custom media with a different roll width than the standard roll sizes, you can create a custom media size on the system in Océ Express WebTools. The system uses this custom media size to automatically detect the roll width when you load your custom media roll.

Procedure

1.

Open the [Media] - [Media sizes] tab.

2.

Click on [Create a size].

3.

Enter a name recognizable for the user. This name appears on the user panel.Océ Express

WebTools

4.

Enter the desired media size properties.

5.

Click [Ok] to confirm, or [Cancel] to reject your entries.

168 Chapter 3 - Define your Workflow with Océ Express WebTools

Configure the media sizes

Configure the media sizes

Introduction

You can load various media sizes on the printer. In Océ Express WebTools you can indicate the media sizes to make them recognizable for the printer.

You can also create custom media sizes.

Procedure

1.

Open the [Media] - [Media sizes] tab.

2.

Under [Supported media sizes] a list with the supported media sizes is displayed.

3.

You can enable or disable media sizes to tune the system to your environment.

NOTE

You cannot disable media sizes that are currently loaded on the printer.

Chapter 3 - Define your Workflow with Océ Express WebTools 169

Configure Mobile Printing and Scanning

Configure Mobile Printing and Scanning

Océ Mobile WebTools

Introduction

Océ Mobile WebTools provides the following functionalities:

• Submit a print-ready file to the printer from a mobile device.

• Save a scanned file from the printer on a mobile device.

• Delete a scanned file on the printer.

Illustration

Requirements

Océ Mobile WebTools can be accessed via the browser on your mobile device.

The following are required in order for this to work:

• A Wi-Fi infrastructure connected to the printer's network.

• A compatible mobile device on which you can access and browse the file system.

• A compatible mobile operating system.

• A compatible mobile web browser.

Optionally:

• You need a mobile file explorer application to print a stored file.

• A mobile application to scan QR Code.

How to use the functionality

When you want to use Océ Mobile WebTools:

• The system administrator configures the network and Wi-Fi infrastructure

170 Chapter 3 - Define your Workflow with Océ Express WebTools

Océ Mobile WebTools

• The System Administrator enters the configuration information on the printer controller interface.

With this information you can generate and print the QR card.

The QR card contains the QR code, and it contains information on how to connect to the Océ

Mobile WebTools.

• The user activates Wi-Fi on the mobile device, and connects to the network. The user opens

Océ Mobile WebTools on the device's web browser.

• With Océ Mobile WebTools the user can print a file from the mobile device, and the user is able to save a scanned document.

Get the latest information on infrastructure and mobile device compatibility

Refer to the Océ PlotWave-ColorWave Systems Connectivity manual on the http:// downloads.oce.com

product page to get information on the connection requirements, or visit http://www.canon.com/support/

to find more information on mobile connection.

Chapter 3 - Define your Workflow with Océ Express WebTools 171

Configure Océ Express WebTools settings for a mobile connection

Configure Océ Express WebTools settings for a mobile connection

Introduction

If you want to give users easy access to Océ Mobile WebTools, the settings must first be configured. With the information you can develop a QR card to create easy access.

NOTE

• For this procedure, you need to log in as Key Operator or Power User.

• Make sure you configure your Wi-Fi network and connect the printer to the network.

Procedure

1.

Open the [Configuration] - [Connectivity] tab.

2.

Click [Edit] in the right hand corner of the [Mobile] section.

3.

Enter the settings. This information will also be printed on the QR card:

NOTE

Enter information according to your IT policy. Contact your system administrator for more information.

Mobile section in Océ Express WebTools

Setting

[Wi-Fi name on QRC sheet]

[Wi-Fi key on QRC sheet]

Action

Enter the name of your Wi-Fi network.

The name will be displayed on the QR card.

If required, enter the password for your Wi-Fi network.

The key will be displayed on the QR card.

4.

Click [Ok] to confirm your settings.

NOTE

When the printer is in a Windows domain network, enter the domain name in Océ

Express WebTools:

- Open the [Configuration] - [Connectivity] tab

- Go to the [Network adapter] section. Enter the domain name in the field [Primary DNS suffix].

172 Chapter 3 - Define your Workflow with Océ Express WebTools

Generate the Quick Response Card

Generate the Quick Response Card

Introduction

When you want users to easily access the printer from their mobile devices, you can generate the

QR (Quick Response) card. The QR card contains all the information to establish a connection between the mobile device and the printer. The card contains all your settings and a uniquely generated QR code. The URL of your printer is displayed, so you can also access Océ Mobile

WebTools on your mobile device via the web browser .

Print the QR card on individual cards or on a poster to provide easy access to the printer.

Before you begin

You need to edit the settings for the connectivity information in Océ Express WebTools first. Only a System Administrator or Power User can edit the information.

NOTE

The illustration below is an example, you cannot print and use this QR card for your personal printer. The printer generates a unique QR card with your own personal QR code, based on your settings.

Illustration

[1] Example of a QR card

Procedure

1.

Open the [Support] - [About] tab.

2.

Click on [Quick Response Card] in the [Downloads] section.

A new window opens. The QR card is automatically generated and displayed in the window.

3.

Print the QR card.

Chapter 3 - Define your Workflow with Océ Express WebTools 173

Connect your mobile device to Océ Mobile WebTools

Connect your mobile device to Océ Mobile WebTools

Before you connect:

• Make sure the system is configured.

• Make sure you generate the QR card.

• Make sure you activate the Wi-Fi connection on your mobile device.

NOTE

• For iOS mobile devices, you can also enter the IP address of the printer in the iCab Mobile browser to get access to the more extended Océ Express WebTools.

• Find the latest compatibility information on the Océ website under the Support tab.

• If the connection fails and cannot be established on your mobile device, contact the system administrator.

Connect to Océ Mobile WebTools

You can connect to Océ Mobile WebTools in three ways. Follow the steps to get connected.

Connect with:

The QR code

The URL

The IP address

Steps

• Open the QR Code scan application on your mobile device.

• Scan the QR code displayed on the QR card.

Océ Mobile WebTools opens in the web browser of your mobile device.

• When requested, enter the password on the QR card in order to connect.

• Open the web browser on your mobile device.

• Enter the printer's URL, displayed on the QR card.

For example: 'http://hostname(.com)/v2/MobileWebTools'.

• When requested, enter the password on the QR card in order to connect.

• Open the web browser on your mobile device.

• Enter the printer's IP address. Get the IP address from your system administrator.

• When requested, enter the password on the QR card in order to connect.

Océ Mobile WebTools opens in the web browser of your mobile device.

You can now use it to print from your mobile device or save scanned files on your mobile device.

174 Chapter 3 - Define your Workflow with Océ Express WebTools

Chapter 4

Use the Printing System

How to feed an original

How to feed an original

Introduction

When you want to copy or scan, it is important to correctly feed the original in the printer.

IMPORTANT

• The scanner can not scan an original that is thicker than 0.8 mm or rigid originals. When you use the carrier sheet that is available as an option, ensure that the combined thickness of both

the document and carrier sheet does not exceed 0.8 mm. For more information, see

How to use the carrier sheet on page 178

.

• Do not retrieve the original from the printer when it is already fed into the scanner. To release the original press the stop button on the user panel and tap [Release the original] under the

Smart Access.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

The scanner takes the original.

The width of the original is automatically detected and displayed in the Smart Access. The live scan view displays the scanning process.

Result

Depending on the selected [Original release mode] in Océ Express WebTools, the scanner holds or releases the original after the scan procedure. Tap [Release the original] under the Smart

Access to let the scanner release the document.

When the original is released, you can feed the next original.

176 Chapter 4 - Use the Printing System

How to auto-feed an original

How to auto-feed an original

Introduction

When you activate the auto-feed functionality, you do not need to use the green button every time you scan a document. This way you improve your productivity. The scanner is activated automatically and releases the original after the scan procedure.

NOTE

• The auto-feed functionality is disabled when you select the print tile or when the user panel reverts to the home screen after the specified time-out period.

• You can change the settings of your copy or scan job before you feed the originals.

Procedure

1.

Feed the first original face up and centered on the original feeding table.

2.

The scanner takes the original.

3.

Tap the green button twice. The green button displays the message [Automatic].

4.

Tap the green button to start the scan job.

5.

When the user panel displays the message [Insert original], you can insert the next original.

6.

When you want to de-activate the auto-feed functionality, tap the green button. [Automatic] disappears from the green button.

Chapter 4 - Use the Printing System 177

How to use the carrier sheet

How to use the carrier sheet

Introduction

The carrier sheet can help you scan an original. The use of the carrier sheet depends on the condition of your original.

When to do

You can use the carrier sheet when you want to copy or scan:

• an original that is smaller than A4 size

• an original that is fragile or damaged

• an original that is badly creased

• an original that has other pieces of paper attached to it.

IMPORTANT

When handling the carrier sheet, be very careful not to scratch or otherwise damage it.

NOTE

• When you use the carrier sheet with color documents, the colors can shift slightly.

• The carrier sheet is optional and not delivered with the machine. You can order it on the company website or via your local representative.

Procedure

1.

Open the carrier sheet and place the original. The printed side of the original must be visible through the transparent protection sheet.

2.

Place the carrier sheet with the original face up and centered on the original feeding table.

IMPORTANT

Make sure that you first feed the sealed side of the carrier sheet into the scanner.

3.

Feed the carrier sheet with the original into the scanner.

The scanner will detect the width of the carrier sheet as the original width.

The scanner takes the carrier sheet with the original.

4.

A copy or scan is made of your original.

178 Chapter 4 - Use the Printing System

How to cut the media in roll-to-roll mode

How to cut the media in roll-to-roll mode

Introduction

When the system is in roll-to-roll mode you can cut the media after a job is finished.

Procedure

1.

Tap on the dynamic bar of the user panel.

The queue opens and the Cut icon is visible in the dynamic bar.

2.

Tap on the Cut icon in the dynamic bar to cut the media automatically.

Chapter 4 - Use the Printing System 179

Print Jobs - Job submission tools

Print Jobs - Job submission tools

Use Océ Publisher Express to send a print job

Introduction

Océ Publisher Express is a job submitted that is integrated in Océ Express WebTools.

NOTE

When you use Océ Publisher Express to submit a print job, the maximum job size is 2 gigabyte.

Illustration

Procedure

Step

1

2

Action

Open the [Jobs] - tab.

Click on [Create new job] in the Océ

Publisher Express section.

Remarks

This tab displays the following.

• The Océ Publisher Express section.

• An overview of all jobs that are currently available in the Job and Scan Queues.

• An overview of all the Smart Inboxes that currently contain one or more jobs.

A separate window opens.

4

180 Chapter 4 - Use the Printing System

Step

3

4

5

Use Océ Publisher Express to send a print job

Action

Click on [Add file] and use the

Browse... button to select the file you want to print.

Repeat this action to add more files to the job.

Select the [Preset] and change the

[Settings] if necessary.

In the [Workflow] section enter the name of the Smart Inbox you want to print to and click [Ok] to send the print job to the Smart Inbox.

Remarks

You can only print documents with the following data formats. When you use other formats, the file cannot be sent to the printer.

• HP-GL - .hp, .hpg, .hpgl

• HP-GL/2 - .hp2

• HP RTL - .rtl

• CALS - .cls, .cal

• NIRS - .nir, .nif

• CalComp - .cc, .906, .907, .951, .crf, .pci

• Edmics (C4) - .c4

• TIFF - .tif

• PostScript 3 - .ps (licensed)

• PDF - .pdf (licensed)

• JPEG - .jpg, .jpeg

Job settings that you change in Océ Publisher

Express always overrule the default settings defined in Océ Express WebTools.

You can easily create a new Smart Inbox when you enter a new Smart Inbox name.

Chapter 4 - Use the Printing System 181

Use the Smart Inbox to send a print job

Use the Smart Inbox to send a print job

Introduction

If you have already added a job to the Smart Inbox in Océ Express WebTools, you can print this job via the Smart Inbox.

NOTE

For more information on how to create a Smart Inbox, see

Create and open a Smart Inbox on page 69 .

Procedure

1.

Select the [Jobs] tab in Océ Express WebTools.

2.

Click on "Open Smart Inbox".

3.

Click on the white field and select the correct Smart Inbox.

4.

Select the job and click [Print]. The job is copied into the queue.

182 Chapter 4 - Use the Printing System

Use Océ Publisher Select 2 to send a print job

Use Océ Publisher Select 2 to send a print job

Introduction

Océ Publisher Select 2 is a job submission application that allows you to create, preview, print, and manage jobs for the Océ ColorWave 500.

NOTE

You can download the Océ Publisher Select 2 software on downloads.oce.com on page under the product page. Here you can also download the operation guide for more information.

Océ Publisher Select 2

Use Océ ColorWave 500 to:

• Open the Océ ColorWave 500 application and connect to the printer.

• Set up the application settings to your preferences.

• Check the media and ink available in the printer.

• Create the job.

• Submit your job to the printer.

Use Océ Publisher Select 2 to send a print job

2

3

3

Step

1

Action

Start Océ Publisher Select 2 and connect it to the printer.

The homescreen opens.

In the right screen, check the printer status for the available ink and media

Select a template or create a custom template and select it.

Add documents to the job

Chapter 4 - Use the Printing System 183

4

Use Océ Publisher Select 2 to send a print job

Step

4

5

6

7

Action

Select one document of a job to check or adjust the print settings in the bottom screen.

Check the print preview.

Click on the green print button, to print the job.

Track and manage a submitted job in the submitted jobs list.

184 Chapter 4 - Use the Printing System

Use the Océ Wide format Printer Driver for Microsoft® Windows® to send a print job

Use the Océ Wide format Printer Driver for Microsoft

®

to send a print job

Windows

®

Introduction

Océ provides the Océ Wide format Printer Driver for Microsoft

®

Windows

®

that allows you to send print jobs to your printer.

This driver is a mixed raster-vector HP-GL/2 printer driver that allows you to print from any application under a Windows operating system to your Océ printer.

Procedure

Step Action

1 Open the file that you want to print in the source application.

2

3

4

From the [File] menu of the application, click [Print].

Select the product name of your printer in the [Printer] area of the

[Print] dialog box.

Click [Properties].

Remarks

AutoCAD

®

or any other Windows application

You can define the default print job settings in

Océ Express WebTools.

4

Chapter 4 - Use the Printing System 185

Use the Océ Wide format Printer Driver for Microsoft® Windows® to send a print job

Step Action

5 In the [Options] menu in the upper right hand corner of the screen choose [Advanced options]. Make sure a checkmark is placed in the

[Océ Job Ticket enabled] box of the

[Troubleshooting] section to overrule the default values for the job settings.

Remarks

6

7

Check all tiles in the printer driver and change the settings, if necessary.

Click [OK] to send the print job to the

[Smart Inbox] or the print queue.

186 Chapter 4 - Use the Printing System

Use the Océ PostScript® 3 Driver to send a print job

Use the Océ PostScript

®

3 Driver to send a print job

Introduction

Océ provides the Océ PostScript

®

3 Driver that allows you to send print jobs to your printer.

NOTE

You need a license to be able to print PostScript files on the printer.

Illustration

Procedure

Step

1

2

3

4

5

6

7

Action

Open the file that you want to print in the source application.

From the [File] menu of the application, click [Print].

Select the product name of your printer in the [Printer] area of the

[Print] dialog box.

Click [Properties] and [Advanced].

Remarks

Activate the Océ Job Ticket to overrule the default values for the job settings.

Check and change the Printer Features settings if necessary.

Click [OK] to send the print job to the

Smart Inbox or the print queue.

When you select Properties you can make settings for the print job.

Chapter 4 - Use the Printing System 187

Use Océ Publisher Mobile to send a print job

Use Océ Publisher Mobile to send a print job

Introduction

Océ Publisher Mobile is an application that enables you to easily plot from an Océ system via your iPhone, iPad, or Android device.

All Océ TCS, TDS, ColorWave and PlotWave systems are supported. A user can plot all PDF*, PLT

(HPGL1/2), TIFF, JPEG and DWF* files.

NOTE

* Supported file types can vary depending on your system and active licenses.

Before you begin

Download Océ Publisher Mobile from the Play Store for Android devices or the App Store for iOS devices.

Illustration

Procedure

Add a printer to Océ Publisher Mobile

Step

1

2

3

4

Action

Open Océ Publisher Mobile on your mobile device.

Tap the printer button.

Remarks

The detected printer, indicated with a "Connection" icon, is added to your printer list.

From the printer list, select your printer.

Océ Publisher Mobile detects the compatible printers that are available in your network.

If your printer is not detected, you can add it manually.

Tap the "Add" printer button.

4

188 Chapter 4 - Use the Printing System

Use Océ Publisher Mobile to send a print job

6

7

Step

5

8

Action

Tap the "Configure" icon next to the printer name.

Enter the IP address or hostname of the printer

Add the settings for the printer.

• Enter a name

• Check or define the printer model

• Define the number of rolls

• Indicate if there is a folding device

Save the settings. Your printer is added.

Remarks

The printer configuration window opens.

NOTE

You can also open Océ Express WebTools. Tap the hyperlink in the configuration window. This is useful to: -know the printer status

-enter accounting information -see your Smart Inbox

-see if there is an error.

Send a print job from Océ Publisher Mobile

Step

1

4

5

2

3

Action

Open the file you want to print in Océ Publisher Mobile.

Select your printer.

Define the print settings you need.

Remarks

Indicate the number of copies.

Tap the green button

Main settings you can select:

• Media source

• Scale

• Folding

Your job is sent to the printer.

Chapter 4 - Use the Printing System 189

Print from your mobile device

Print from your mobile device

Introduction

When you have access to Océ Mobile WebTools you can print a file from your mobile device on the printer .

NOTE

• You can navigate in a file repository on your mobile device. If needed, install a file explorer application. For more details refer to the Océ website.

• Make sure you have a working connection.

• When the system requires accounting information, your print job is sent to the Smart Inbox named [Mobile] in Océ Express WebTools. It is not printed. Connect to Océ Express WebTools from a workstation. Enter the accounting information to print the job.

Illustration

Procedure

1.

Go to the [Print] section and select [New job].

The [Print job] window opens.

2.

Click on [Select a file].

3.

Browse to the file you want to print and click Open.

4.

Define the settings for your print job and click Ok.

5.

After defining your settings, click on the printer icon in the upper right-hand corner. The job is sent to the printer.

Result

Your document is printed. Your print job appears on the user panel and in the job queue of Océ

Express WebTools, while it is being printed.

190 Chapter 4 - Use the Printing System

Use FTP to send a print job

Use FTP to send a print job

Introduction

The printer supports printing through FTP.

When you send your print job through FTP the default Océ Express WebTools settings are leading.

NOTE

• You must enable printing through FTP in Océ Express WebTools.

• For more information on how to create an external location via FTP on the user panel, see

Create an external location on page 103

.

Before you begin

Find the network settings and IP address of your printer on the user panel.

Tap the system menu thumbnail and select [Network settings] in the list. A wizard opens with the required information.

How to send a print job via FTP

You can print the files through FTP in the following ways.

• Via a command line prompt

• Via an FTP application

• From a web browser:

Enter the address

ftp://<hostname or IP address> /jobs in your workstation browser.

The printer has a dedicated FTP Jobs folder. You cannot delete or change this folder. It is created at installation and protected. The most convenient way to print files through FTP is to drag and drop the files, or to copy and paste the files into this [Jobs] folder on the FTP site of the printer controller. The documents in the folder are printed on your printer.

Web browsers that support job submission through FTP

Level of functionality

Supports drag and drop of files

Web browser

Microsoft

®

Internet Explorer

Mozilla Firefox™

Supports copy and paste of files.

Microsoft

®

Internet Explorer

Mozilla Firefox™

Operation

Drag the jobs into the [Jobs] folder on the FTP site of your printer.

Paste the jobs into the [Jobs] folder on the FTP site of your printer.

Chapter 4 - Use the Printing System 191

Use LPR to send a print job

Use LPR to send a print job

Introduction

The printer supports printing through LPR.

When you send your print job through LPR, the default Océ Express WebTools settings are leading.

NOTE

You must enable printing through LPR in Océ Express WebTools.

How to send a print job via LPR

Type the following line command after the Command prompt:

lpr -S <hostname or IP address> -P

<print queue name> <file name>.

NOTE

You can use any name for <print queue name>, for example

jobs.

192 Chapter 4 - Use the Printing System

Use the cloud to send a print job

Use the cloud to send a print job

Introduction

The cloud can be seen as a virtual network drive you use to send files to, but also to save and share files on.

There are general cloud applications, such as SharePoint or applications via a HTTP URL, but companies can also use their own private and internal clouds.

Before you begin

Create an external location via [WebDAV] in Océ Express WebTools to enable your cloud connection with the printer. For more information, see

Create an external location on page 103

.

Procedure

1.

Open your cloud application, on your mobile device.

2.

Depending on the application you use:

- add and save the file you want to print or...

- send the file to the printer.

Chapter 4 - Use the Printing System 193

Use the home folder to send a print job

Use the home folder to send a print job

Introduction

When you have enabled user authentication in Océ Express WebTools you can submit a print or scan job to the home folder as a secure location.

NOTE

The Home folder is a personal and secure external location, you can only use when it is configured by your IT department as part of your infrastructure.

Before you begin

Enable [User authentication] with [User name and password] configured and enable the home folder as a location first. For more information, see

Enable and edit the Home folder on page 101

.

Procedure

1.

Log in on Océ Publisher Express or any of the other job submitters, using your credentials [User name and password].

2.

Create a job and submit it to the printer.

3.

Log in on the printer user panel using your credentials [User name and password].

You only see your personal locations and the home folder with your jobs.

4.

Select the job and click on the green button.

194 Chapter 4 - Use the Printing System

Troubleshoot print job submission

Introduction

Check the issues and solutions to troubleshoot print job submission.

Troubleshoot print job submission

Issue

Unable to print a PDF file using

Adobe Acrobat reader.

Solution

When you submit the print job (File - Print), make sure you check the box 'Choose paper source by PDF page size' in the print dialog.

Chapter 4 - Use the Printing System 195

Print Jobs

Print Jobs

Do a default print job

Introduction

When you want to print a job and you do not make any settings, the default presets are used. You only use the Smart Access to start your job.

You can see the presets that are used in the job settings section of your job.

Before you begin

Make sure you submit a job via one of the job submitter applications:

Océ Publisher Express

Océ Publisher Select

Océ Wide format Printer

Driver for Microsoft

®

Windows

®

Océ Postscript Driver

Océ Publisher Mobile

Océ Mobile WebTools

Or submit a job via

Use Océ Publisher Express to send a print job on page 180

Use Océ Publisher Select 2 to send a print job on page 183

Use the Océ Wide format Printer Driver for Microsoft® Windows® to send a print job on page 185

Use the Océ PostScript® 3 Driver to send a print job on page 187

Use Océ Publisher Mobile to send a print job on page 188

Print from your mobile device on page 190

LPR

FTP

The cloud (WebDAV)

The home folder

PlanWell Collaborate

USB

Use LPR to send a print job on page 192

Use FTP to send a print job on page 191

Use the cloud to send a print job on page 193

Use the home folder to send a print job on page 194

Use the cloud to send a print job on page 193

Print from a USB key on page 199

NOTE

This following procedure applies when you have not made settings to enable direct print. With direct print, the job will be printed immediately. For more information, see

Direct print on page 198 .

Procedure

1.

After you have submitted a job to the printer, tap the print tile on the user panel to open the list of locations.

196 Chapter 4 - Use the Printing System

2.

Select the location of your job. Default, the public Smart Inbox.

Do a default print job

The jobs are listed in a new window.

3.

Select your job from the list.

4.

Tap the green button, next to the job settings.

Chapter 4 - Use the Printing System 197

Direct print

Direct print

Introduction

When you want to do a default print job:

• You can print with direct print.

When you print with direct print, the print job is sent to the queue immediately.

• You can print without direct print.

When you print without direct print you can start the job locally at the printer.

NOTE

• When the [Preferences] - [System defaults] -[Job management] - [Override destination of print jobs] is set to [Yes, send only to Smart Inbox], you cannot print directly and you have to start the print job at the printer. When you want to print with direct print, you must change this setting in Océ Express WebTools.

• For more information on how to submit a print job via Océ Publisher Express see Use Océ

Publisher Express to send a print job on page 180 .

Do a default print job with direct print

Step

1

2

Action

Send a job to the printer via one of the job submitters and select "direct print" in the job ticket. Usually via Océ Publisher Express in Océ Express WebTools.

Go to the printer to collect your print.

Do a default print job without direct print

2

3

4

Step

1

Action

Send a job to the printer and select the preferred Smart Inbox as a location, via one of the job submitters.

Go to the printer and open your Smart Inbox, via the Smart Access on the user panel.

Select your job in the Smart Inbox.

Tap the green button to print your job.

198 Chapter 4 - Use the Printing System

Print from a USB key

Print from a USB key

Introduction

With a USB key, you can perform print and scan jobs on the printer.

Procedure

1.

Insert a USB key into the USB port on the multi-touch user panel.

The print tile is automatically selected on the user panel, and the USB location is active.

2.

Tap on the USB location in the print Smart Access.

A window with a list of the folders and files present on your USB key opens. Swipe through the list and find the correct file.

3.

Tap the green button to start the job.

When you want to make more settings, you can tap on the job name and job settings. The preset window opens, and you can make additional settings.

Chapter 4 - Use the Printing System 199

Print presets on the user panel

Print presets on the user panel

Introduction

The printer uses the default presets for print and copy jobs, when you do not make different settings. The print presets are divided into four categories:

• [Media]

• [Layout]

• [Image]

• [Finishing]

You can change the presets for all of these categories in Océ Express WebTools. For more information on:

The preset concept

How to change the preset settings

What you need to know about presets on page 93

Set the default print preset on page 96

200 Chapter 4 - Use the Printing System

The Image preset for print jobs

The Image preset for print jobs

Introduction

With the [Image] preset, the quality and the productivity of a print job can be defined. There are five pre-defined presets and a sixth custom preset can be created in Océ Express WebTools.

Image presets

Use the overview, to select the best [Image] preset for your job.

Image preset

[Océ Print Assistant]

Properties

This preset is used by default. For most originals, good quality color prints can be made.

The Océ Print Assistant automatically determines the best print quality for your job.

[Fast CAD Color] Use the preset for color CAD drawings, when productivity is an important factor.

[Normal CAD/Poster] Use the preset for color CAD drawings and posters, when quality is an important factor.

[Quality poster/Photo] Use the preset for the full range of photo-like originals with high color accuracy, when quality is an important factor .

[Fast CAD B/W] Use the preset for black and white CAD drawings, when productivity is an important factor.

Chapter 4 - Use the Printing System 201

Advanced settings for print jobs

Advanced settings for print jobs

Introduction

When you tap the Scan tile on the multi-touch user panel, you can make your own settings.

Apart from the preset tiles, you can select the advanced settings under [Show all settings]. These settings are used for extended print jobs. The following table gives an overview and a short description of the available settings on the printer. You can find a detailed description of each setting in Océ Express WebTools.

Preset category: [Media]

Setting

[Media type]

[Media size]

[Media source]

Settings values

Any type

List of media types

Any size

List of media sizes

[Automatic]

'Roll 1 to 4' (description of media type and media size loaded on the specific roll)

Function

The type of media you use.

The size of media you use.

Define the media feed to copy or print on.

When you select [Auto] the printer automatically selects the media roll.

202 Chapter 4 - Use the Printing System

Preset category: [Layout]

Setting

[Cut size]

Settings values

[Cut method]:

• [Synchro]

• [Standard]

• [Custom]

Advanced settings for print jobs

Function

When set to [Synchro], the print is cut dependent of the image size.

When set to [Standard], the print is cut to a standard media size.

When set to [Custom], you must enter the sizes manually.

[Custom cut length]

[Add a leading strip]

Cuts the print at the defined length.

From 210 to 20,000 mm, or 8.3 to 7874 inches.

Adds a blank strip at the beginning of the output.

From 0 to 400 mm, or 0 to 16 inches.

[Add a trailing strip] Adds a blank strip at the end of the output.

From 0 to 400 mm, or 0 to 16 inches.

[Rotation] [0°]

[90°]

[180°]

[270°]

[Short edge first]

[Long edge first]

[Auto rotate media saving]

[Auto rotate media saving with additional 180° rotation]

Rotates the image counterclockwise.

Select [Automatic media saving] to use the media in the most efficient way.

4

Chapter 4 - Use the Printing System 203

Advanced settings for print jobs

Setting

[Positioning]

Settings values

[Alignment]:

• [Top left]

• [Top]

• [Top right]

• [Left]

• [Center]

• [Right]

• [Bottom left]

• [Bottom]

• [Bottom right]

[Horizontal shift]

Function

[Aligns the image on the sheet.]

[Shifts the image in the horizontal direction (after alignment to one of the positions given in

'Alignment').]

From - 1067 mm to 1067 mm, or - 42 to 42 inches.

[Vertical shift] [Shifts the image in the vertical direction (after alignment to one of positions given in "Alignment").]

From - 1219 mm to 1219 mm, or - 48 to 48 inches.

4

204 Chapter 4 - Use the Printing System

Setting

[Scale]

Settings values

[1:1]

[To media size]

[To standard size]

Advanced settings for print jobs

Function

Scales the image to the original size.

Scales to the selected media width.

NOTE

You can only use this setting, when a specific media roll is selected.

Scales the image to fit the media size you select from a list.

[Custom] Scales the image to a custom percentage.

10 - 1000%

Preset category: [Image]

Setting

[Print quality]

Settings values

• [Océ Print Assistant]

• [High speed]

• [Economy - fast]

• [Production]

• [Quality]

[Color mode]

[Mirror]

[Color]

[Grayscale]

[On]

[Off]

Function

Define the print quality of your output.

• Select [Océ Print Assistant] for an automatic, optimal print quality selection.

• In the print quality range from [High speed] to [Quality] the quality increases while the speed decreases.

In case the [Color mode] setting is set to [Grayscale] the print quality [Economy - fast] uses color toner to increase the density of grayscale prints.

Define the default output in color or grayscale.

[When 'On', the image is mirrored along the vertical axis (the media transport direction).]

Set to [On] for strongly curled transparent originals that have to be fed upside down in the scanner. Or for (dark) transparent originals that have the information printed on the back.

Chapter 4 - Use the Printing System 205

Advanced settings for print jobs

Preset category: [Finishing]

Setting

[Delivery]

Settings values

[Top Delivery Tray]

[Back output] or [Fold].

[Fold template]

Function

Location on top of the printer that deposits the sheet face-down.

NOTE

Not all media types can be delivered to the [Top Delivery Tray].

Select [Back output] to default deliver your output at the back of the printer.

Select the folding device when it is configured, and you want to fold your output.

When a folding device is configured, you can select the preferred fold template, to fold with predefined settings.

206 Chapter 4 - Use the Printing System

Copy Jobs

Copy Jobs

Do a default copy job

Introduction

When you want to copy an original and you do not make any settings, the default presets are used. You only use the Smart Access to submit your job.

You can see the presets that are used in the job settings section of your job.

Procedure

1.

Feed the original face up and centered on the original feeding table.

The copy tile with the copy Smart Access is automatically selected on the user panel.

2.

Select the number of copies and tap the green button.

NOTE

Tap on [Release the original] under the Smart Access to release your original from the scanner.

Chapter 4 - Use the Printing System 207

Copy presets on the user panel

Copy presets on the user panel

Introduction

The printer uses the default presets for print and copy jobs, when you do not make different settings. The copy presets are divided into four categories:

• [Media]

• [Layout]

• [Image]

• [Finishing]

You can change the presets for all of these categories in Océ Express WebTools. For more information on:

The preset concept

How to change the preset settings

What you need to know about presets on page 93

Set the default copy preset on page 94

208 Chapter 4 - Use the Printing System

The Image preset for copy jobs

The Image preset for copy jobs

Introduction

With the [Image] preset, the quality and the productivity of a copy job can be defined. There are five pre-defined presets and a sixth custom preset you can create in Océ Express WebTools.

Image presets

Use the [Image] setting to select the default stamp for your output.

Image preset

[Normal color]

[Photo/Poster]

[Fast CAD]

[Normal CAD B/W]

[Fast CAD B/W]

Properties

This preset is used by default. For most originals, good quality color copies can be made.

The quality settings are balanced between color accuracy, and the enhancement of fine information while background is being suppressed.

Use the preset for the full range of a photo-like originals with high color accuracy.

Use the preset for color CAD drawings, when productivity is an important factor.

Line information is enhanced and background is suppressed. When you have a CAD original with large area fills, choose the [Normal color] preset.

Use the preset for black and white CAD drawings, when quality is an important factor.

Line information is enhanced and background is suppressed.

Use the preset for black and white CAD drawings, when productivity is an important factor.

Line information is enhanced and background is suppressed. When you have a black and white CAD original with large area fills, choose the [Normal CAD B/W] preset.

Chapter 4 - Use the Printing System 209

Advanced settings for copy jobs

Advanced settings for copy jobs

Introduction

When you tap the copy tile on the multi-touch user panel, you can make your own settings.

Apart from the preset tiles, you can select the advanced settings under [Show all settings]. These settings are used for extended copy jobs. The following table gives an overview and a short description of the available settings on the printer. You can find a detailed description of each setting in Océ Express WebTools.

Preset category: [Media]

Setting

[Media type]

[Media size]

[Media source]

Settings values

Any type

List of media types

Any size

List of media sizes

[Auto]

'Roll 1 to 4' (description of media type and media size loaded on the specific roll)

Function

The type of media you use.

The size of media you use.

Define the media feed to copy or print on.

When you select [Auto] the printer automatically selects the media roll.

210 Chapter 4 - Use the Printing System

Preset category:[Layout]

Setting

[Cut size]

Settings values

[Cut method]:

• [Synchro]

• [Standard]

• [Custom]

Advanced settings for copy jobs

Function

When set to [Synchro], the print is cut dependent of the image size.

When set to [Standard], the print is cut to a standard media size.

When set to [Custom], you must enter the sizes manually.

[Custom cut length]

[Add a leading strip]

Cuts the print at the defined length.

From 210 to 20,000 mm, or 8.3 to 7874 inches.

Adds a blank strip at the beginning of the output.

From 0 to 400 mm, or 0 to 16 inches.

[Add a trailing strip] Adds a blank strip at the end of the output.

From 0 to 400 mm, or 0 to 16 inches.

4

Chapter 4 - Use the Printing System 211

Advanced settings for copy jobs

Setting

[Remove strip]

Settings values

[Top]

Function

[Erase a strip from the beginning of the original.]

From 0 to 400 mm, or 0 to 16 inches.

[Bottom]

[Left]

[Erase a strip from the bottom of the original.]

From 0 to 400 mm, or 0 to 16 inches.

[Erase a strip from the left side of the original.]

From 0 to 400 mm, or 0 to 16 inches.

[Right] [Erase a strip from the right side of the original. ]

From 0 to 400 mm, or 0 to 16 inches.

4

212 Chapter 4 - Use the Printing System

Setting

[Positioning]

Settings values

[Alignment]:

• [Top left]

• [Top]

• [Top right]

• [Left]

• [Center]

• [Right]

• [Bottom left]

• [Bottom]

• [Bottom right]

[Horizontal shift]

Advanced settings for copy jobs

Function

[Aligns the image on the media.]

[Shifts the image in the horizontal direction (after alignment to one of the positions given in

'Alignment').]

From - 1067 to 1067 mm, or - 42 to 42 inches.

[Vertical shift] [Shifts the image in the vertical direction (after alignment to one of positions given in 'Alignment').]

From - 1219 to 1219 mm, or - 48 to 48 inches.

[Scale] [1:1]

[To media size]

[To standard size]

Scales the image to the original size.

Scales to the selected media width.

NOTE

You can only use this setting, when a specific media roll is selected.

Scales the image to fit the media size you select from a list.

[Custom] Scales the image to a custom percentage.

10 - 1000%

Chapter 4 - Use the Printing System 213

Advanced settings for copy jobs

Preset category: [Image]

Setting

[Quality]

Settings values

[Scan quality]

Settings values

[Normal]

[High]

[Print quality]

[Automatic]

[High speed]

[Economy - fast]

[Production]

[Quality]

[Color mode]

[Color]

[Grayscale]

Function

Define the quality of the scan.

• Select [High] to scan with a higher resolution. This can prevent a moiré pattern for originals that contain gray or colored areas.

• For pure CAD originals [Normal] is mostly sufficient.

Select [Normal] when productivity is an important factor.

Define the print quality of your output.

• Select [Automatic] for an automatic, optimal print quality selection.

• Select the print quality from [High speed] to

[Quality], in which the quality increases while the speed decreases.

In case the [Color mode] setting is set to [Grayscale] the print quality [Economy - fast] uses color toner to increase the density of grayscale prints.

Define the default output in color or grayscale.

4

214 Chapter 4 - Use the Printing System

Setting

[Original]

Settings values

[Original type]

Settings values

[Folded lines/text]

[Lines/text]

[Map]

[Colored original]

[Artwork]

[Photo]

[Blueprint]

[Dark original]

Advanced settings for copy jobs

Function

Define the type of original you use. The choice depends on the chosen [Color mode]. For more information on choosing the correct original type, see

The original type on page 220

.

[Background compensation]

[Automatic]

[On]

[Off]

Reduce the background noise of the image.

• Default is [Automatic]. Dependent of the chosen [Original type], background compensation is automatically applied or not.

• Override [Automatic] by selecting [On] or

[Off].

The applied background compensation method depends on the chosen original type.

[Original width]

[Auto] The width of the original is automatically detected by the scanner.

[Standard] Select the width of the original as a standard size.

[Custom]

NOTE

Depends on the media type and size you have configured in Océ Express

WebTools

The width of the original is a custom size.

You can enter a size within the range of 210 to

914 mm, or 8.5 to 36 inches.

Chapter 4 - Use the Printing System 215

4

Advanced settings for copy jobs

Setting

[Image]

Settings values

[Color highlighting]

Settings values

[On]

[Off]

[Lighter/

Darker]

[Mirror]

Value from -5 to 5

[On]

[Off]

Function

Set to [On]:

• to make notes made with marker pens more visible.

• to emphasize colors, of CAD drawings with colored information and a solely grayscale

(black) background information.

NOTE

• When the [Color mode] is set to

[Color], color highlighting will make the colors more saturated.

• When the [Color mode] is set to

[Grayscale], colors will be copied darker than the grayscale information on the original.

• The setting is disabled for the original types, [Photo], [Artwork],

[Blueprint].

Define the lightness and the contrast of a copy.

Increase the value for lighter prints, and decrease for darker prints.

When you make a copy darker, the information becomes darker while the background is less affected. When you make a copy lighter, weak information is not clipped to white.

[When "On", the image is mirrored along the vertical axis (the media transport direction).]

Set to [On] for strongly curled transparent originals that have to be fed upside down in the scanner. Or for (dark) transparent originals that have the information printed on the back.

4

216 Chapter 4 - Use the Printing System

Setting

[Area to erase]

Settings values

[Area to erase: X origin]

Advanced settings for copy jobs

Settings values Function

From 0 to 914 mm, or 0 to 36 inches

[The origin of the area to erase on the horizontal axis, starting from the left.]

[Area to erase: Y origin]

From 0 to 6000 mm, or 0 to 250 inches.

[The origin of the area to erase on the vertical axis, starting from the top.]

[Area to erase: width]

From 0 to 914 mm, or 0 to 36 inches.

[The width of the area to erase.]

[Area to erase: length]

From 0 to 6000 mm, or 0 to 250 inches.

[The length of the area to erase.]

Preset category: [Finishing]

Setting

[Delivery]

Settings values

[Top Delivery Tray]

[Back output] or [Fold].

[Fold template]

Function

Location on top of the printer that deposits the sheet face-down.

NOTE

Not all media types can be delivered to the [Top Delivery Tray].

Select the [Back output] to deliver your output face-up, at the back of the printer.

Select the folding device when it is configured, and you want to fold your output.

When a folding device is configured, you can select the preferred fold template, to fold with predefined settings.

Chapter 4 - Use the Printing System 217

Recommended settings for copy jobs

Recommended settings for copy jobs

Introduction

Use the advised settings to optimize the output of your copy job.

Dependent of a color or grayscale copy job, select the corresponding settings.

Workflow

1. Start by selecting the best image preset for your job. Use column two in the table below, or for more information see

The Image preset for copy jobs on page 209

.

2. When you want to further optimize the settings, you can select the advanced settings, under

[Show all settings] on the user panel. When you want to influence the imaging process and thus optimize the output quality, you can select the corresponding [Original type] for your job.

Use column three in the table below, or for more information see

Advanced settings for copy jobs on page 210

and

The original type on page 220

.

Advised settings for color copy

Original document

(Folded) CAD drawing

[Image] preset

[Fast CAD] with large area fills:

[Normal color]

(Folded) CAD drawing with marks from marker pens

[Fast CAD].

with large area fills:

[Normal color]

Optimize under [Show all settings]

• For folded originals set the original type to [Folded lines/text]

• When you want to emphasize colors, set [Color highlighting] to

[On].

• For folded originals set the original type to [Folded lines/text]

• When you want to emphasize colors, set [Color highlighting] to

[On].

Map, GIS, business graphics, etc.

Architectural impressions, artwork etc.

Photos, posters, and high definition color prints

Medium quality color prints

[Normal color]

[Normal color]

[Photo/Poster]

[Normal color]

Set original type to [Artwork]

Advised settings for grayscale copy

Original document

(Folded) CAD drawing

Preset [Image]

[Fast CAD B/W] with large area fills:

[Normal CAD B/W]

Optimize under [Show all settings]

For folded originals set the original type to [Folded lines/text]

4

218 Chapter 4 - Use the Printing System

Original document

(Folded) CAD drawing with marks from marker pens

Preset [Image]

[Fast CAD B/W] with large area fills:

[Normal CAD B/W]

(Folded) Color CAD drawings, maps, business graphics, etc.

[Fast CAD B/W] with large area fills:

[Normal CAD B/W]

CAD originals with a non uniform background

Diazo copies / "Chinese blueprints"

[Fast CAD B/W]

[Fast CAD B/W]

Dark (transparent) originals [Fast CAD B/W]

Photos and high-definition color prints

[Photo/Poster]

Blueprints with white lines on a blue background

[Fast CAD B/W]

Recommended settings for copy jobs

Optimize under [Show all settings]

• Set original type to [Colored original]

• When you want to emphasize colors, set [Color highlighting] to

[On].

• Set original type to [Colored original]

• When you want to emphasize colors, set [Color highlighting] to

[On].

Set original type to [Dark original]

Set original type to [Dark original]

Set original type to [Dark original]

Set [Color mode] to [Grayscale]

Set original type to [Blueprint]

Chapter 4 - Use the Printing System 219

The original type

The original type

Introduction

When you change the [Original type] setting under [Show all settings] - [Original] on the user panel, you can further optimize the quality of your job.

Change the original type for color or grayscale. Use the overview to select the correct type.

Original types for color

• When you move from original types [Photo] to [Folded lines/text], line enhancement and contrast enhancement are increased, while folds and background are more suppressed.

• When you move from original types [Folded lines/text] to [Photo] the color accuracy is increased.

1. Photo

2. Artwork

3. Map

4. Lines/Text

5. Folded Lines/text

Original type

[Photo]

[Artwork]

[Map]

[Lines/text]

[Folded lines/text]

Original types for grayscale

Original type

[Lines/text]

[Colored original]

[Photo]

Definition

Used for photos and high resolution prints. Photo gives a softer contrast than artwork.

Used for artwork-like colored originals with more defined color areas and transition between colors.

Used for originals with large color areas, that also include lines and finer details.

Used for CAD drawings.

Used for CAD drawings with folds. Lines and wrinkles are suppressed.

Definition

Used for monochrome CAD drawings.

Used for most colored originals, such as colored CAD drawings.

Used for photos and high resolution prints. Photo gives a softer contrast than colored original.

4

220 Chapter 4 - Use the Printing System

Original type

[Dark original]

[Folded lines/text]

[Blueprint]

The original type

Definition

Used especially for Diazo originals. Originals with a changing 'cloudy' background.

Used for monochrome CAD drawings with folds. Lines and wrinkles are suppressed. For folded color CAD drawings use [Colored original].

Used for classic blueprints, with white information on a blue background.

Chapter 4 - Use the Printing System 221

Make a half size copy

Make a half size copy

Introduction

When you want to scale your original to a 50% copy, you can change a preset on the user panel.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the copy tile. A window with a list of presets opens.

3.

Tap the [Layout] preset.

4.

Tap [Half size].

5.

Define the number of copies and tap the green button.

Result

The printer copies to 50%.

222 Chapter 4 - Use the Printing System

Make a copy and add a strip

Make a copy and add a strip

Introduction

When you make a copy, you can add a strip to a document.

Use [Cut size] to copy an original without a strip and add a strip to the copy. You can add a strip at the top or bottom of a copy.

NOTE

For more information on the cut size settings, see

Advanced settings for copy jobs on page 210

.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the copy tile. A window with a list of presets opens.

3.

Tap [Show all settings]. A list with settings opens.

4.

Tap [Cut size] under the [Layout] preset.

[Add a leading strip] [Add a trailing strip]

5.

Tap [Add a leading strip] or [Add a trailing strip] and define the values.

6.

Make your settings and tap [OK].

7.

Define the number of copies and tap the green button.

Result

The document is printed with a strip attached to the top or bottom.

Chapter 4 - Use the Printing System 223

Make a copy and remove a strip

Make a copy and remove a strip

Introduction

When you have an original with a part you do not want to copy, you can remove a strip from your copy.

Use the option on the user panel to copy an original with a strip, and remove the strip from the copy. You can remove a strip from the top, the bottom, the left or the right side of the original.

NOTE

• For more information on the cut size settings, see

Advanced settings for copy jobs on page 210 .

• You can also use this setting to copy a specific area of the original. For more information, see

Make a copy of a specific area of an original on page 225

.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the copy tile. A window with a list of presets opens.

3.

Tap [Show all settings]. A list with settings opens.

4.

Tap [Remove strip] under the [Layout] preset.

The [Top] strip The [Bottom] strip The [Left] strip

5.

Select [Top], [Bottom], [Left], or [Right] and define the values.

6.

Make your settings and tap [OK].

7.

Define the number of copies and tap the green button.

The [Right] strip

224 Chapter 4 - Use the Printing System

Make a copy of a specific area of an original

Make a copy of a specific area of an original

Introduction

You can make a copy of a specific area of an original. Use the option [Remove strip] to copy a specific area.

NOTE

For more information on the cut size settings, see .

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the copy tile. A window with a list of presets opens.

3.

Tap [Show all settings]. A list with settings opens.

4.

Tap [Remove strip] under the [Layout] preset.

.

The [Top] strip The [Bottom] strip The [Left] strip The [Right] strip

5.

Select [Top], [Bottom], [Left], or [Right], and define the values for your specific area.

6.

Make your settings and tap [OK].

7.

Tap [Positioning] and then [Alignment].

8.

Select [Center] from the list and tap [OK].

9.

Define the number of copies and tap the green button.

Chapter 4 - Use the Printing System 225

Make a copy and remove a specific area of an original

Make a copy and remove a specific area of an original

Introduction

You can make a copy and delete a specific area of an original. You can use two settings: [Area to erase: width] and [Area to erase: length] to define the dimensions of the delete area. And you can use two settings: [Area to erase: X origin] and [Area to erase: Y origin], to define the relative position of the delete area on the sheet.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the copy tile. A window with a list of presets opens.

3.

Tap [Show all settings]. A list with settings opens.

4.

Tap [Area to erase] under the [Image] preset.

[Area to erase: X origin]

[Area to erase: Y origin]

[Area to erase: width] [Area to erase: length]

5.

Select [Area to erase: X origin], [Area to erase: Y origin], [Area to erase: width], or [Area to erase: length] and define the values for your specific area.

6.

Make your settings and tap [OK].

7.

Define the number of copies and tap the green button.

226 Chapter 4 - Use the Printing System

Make a copy and scale to another size

Make a copy and scale to another size

Introduction

When you want to scale your copy to another size, you can make changes under the advanced settings. With the custom setting, you can choose any scale percentage you want between the range of 10 - 1000%.

NOTE

For more information on the other scale modes, see

Advanced settings for copy jobs on page 210

.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the copy tile. A window with a list of presets opens.

3.

Tap [Show all settings]. A list with settings opens.

4.

Tap [Scale] under the [Layout] preset.

5.

Tap [Scale] in the new window and select [Custom].

6.

Under [Custom] select any percentage between 10 - 1000%.

7.

After you made your settings tap [OK].

8.

Enter the number of copies and tap the green button.

Chapter 4 - Use the Printing System 227

Make a copy of a dark original (Diazo)

Make a copy of a dark original (Diazo)

Introduction

It can be difficult to make a good copy of a Diazo original. Diazo originals have a changing lightness with a 'cloudy' background, which can give an unclear output. The Océ ColorWave 500 has a special [Diazo] preset, that follows the lightness and changing background of the original and copies to an even and high quality output.

Before you begin

Use the [Diazo] mode for originals that have a changing 'cloudy' background.

Dark and light Diazo originals, or other light or dark originals with a changing background can be copied in [Diazo] mode.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the copy tile. A window with a list of presets opens.

3.

Tap the [Image] preset.

4.

Tap [Diazo].

5.

Define the number of copies and tap the green button.

228 Chapter 4 - Use the Printing System

Make a copy of an original with highlighted colors

Make a copy of an original with highlighted colors

Introduction

When you have an original on which colors are accentuated or highlighted, it can be difficult to make a good copy on which the highlighting is still visible. The Océ ColorWave 500 has a special setting [Color highlighting], that highlights the color accents of the original in black and white or color. The copy has the same accents and quality as the colored original.

NOTE

• When the [Color mode] is set to [Color], color highlighting will make the colors more saturated.

• When the [Color mode] is set to [Grayscale], colors will be copied darker than the grayscale information on the original.

• The setting is disabled for the original types, [Photo], [Artwork], [Blueprint].

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the copy tile. A window with a list of presets opens.

3.

Tap [Show all settings]. A list with settings opens.

4.

Tap [Image] under the [Image] preset.

5.

Tap [Color highlighting].

6.

Select [On] and tap [OK].

7.

Define the number of copies and tap the green button.

Chapter 4 - Use the Printing System 229

Copy by set

Copy by set

Introduction

You can use the [Create set] option to make multiple scans and copy in one set.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the copy tile. A window with a list of presets opens.

3.

In the job pane on the right, tap [Create set].

The green button changes color and displays [Add].

4.

Tap the green button to start scanning.

5.

When the printer releases the original, insert the next original.

6.

Tap the green button. The scan is added to the set.

Repeat this step until your set is complete.

7.

Tap the [Finish set] tile to finish the set.

Result

The printer copies the set of originals.

230 Chapter 4 - Use the Printing System

Scan Jobs

Scan Jobs

Do a default scan job

Introduction

When you want to scan an original and you do not make any settings the default templates are used. You only use the Smart Access to submit your job.

You can see an overview of the template settings that are used in the job settings section of your job.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Select the scan tile on the user panel. The scan Smart Access is visible.

3.

Select the preferred template in the Smart Access and tap the green button.

NOTE

Tap on [Release the original] under the Smart Access to release your original from the scanner.

Result

A scan to file is made, and sent to the location defined in the template.

You can also see the job under [Recent scans] on the user panel. Open it to view or print the file.

Chapter 4 - Use the Printing System 231

Scan templates on the user panel

Scan templates on the user panel

Introduction

A template is a group of predefined settings you can configure yourself. Select the template on the user panel to easily submit a job with optimized settings.

Scan template workflow

The printer uses the scan templates that are configured in Océ Express WebTools. Several templates are factory installed and by default visible on the user panel. Customize the use of templates to your needs first:

• Create a new template. For more information, see

Create a new template on page 121

.

• Make templates available on the user panel. For more information, see

Enable or disable scan templates on page 126

.

Then feed the original in the scanner. Tap the scan tile.

Select the template in the Smart Access. Note that the scan destination is defined in the template as well.

232 Chapter 4 - Use the Printing System

Advanced settings for scan jobs

Advanced settings for scan jobs

Introduction

When you tap the scan tile on the multi-touch user panel, you can make your own settings.

Apart from the preset tiles, you can select the advanced settings under [Show all settings]. These settings are used for extended copy jobs. The following table gives an overview and a short description of the available settings on the printer. You can find a detailed description of each setting in Océ Express WebTools.

NOTE

The values for the compression mode and organization change depending on the color mode and file type you select. In some situation and for some file types you cannot set the compression and organization settings. For more information on this, see

File type on page 243

.

Preset category: [File]

Setting

[File type]

Settings values

Type

Settings values

[TIFF]

[PDF]

[PDF/A]

[JPEG]

[CALS]

Function

[The file type of the scanned image.

The list of file types depends on scan to color, grayscale, or black-andwhite: CALS is only available when scanning to black-and-white; JPEG is not available when scanning to black-and-white.]

[Compression]

[JPEG quality]

[Organization]

[Automatic]

[LZW]

[Flate]

[Packbits]

[JPEG]

[None]

[Maximum]

[High]

[Medium]

[Low]

[Raw]

[Striped]

[Tiled]

The compression type when scanning to TIFF or to PDF depends on the chosen [File type].

[The image quality when scanning to

JPEG. With a lower quality, the compression increases giving a smaller file size.]

[The file organization when scanning to TIFF.]

Chapter 4 - Use the Printing System 233

Advanced settings for scan jobs

Setting

[Resolution]

[Color mode]

Settings values

[100]

[200]

[300]

[400]

[600]

[Color]

[Grayscale]

[Black and white]

Function

[The resolution of the scanned image in dpi.]

[Defines whether a color, grayscale or blackand-white scan is to be made. Some combinations of "Color mode" and "File type" are invalid: changing "Color mode" may reset "File type", "Compression for TIFF" and "Compression for PDF".]

Preset category: [Original]

Setting

[Original type]

Settings values

[Folded lines/text]

[Lines/text]

[Map]

[Colored original]

[Artwork]

[Photo]

[Blueprint]

[Dark original]

Function

Define the type of original you use. The choice depends on the chosen [Color mode]. For more information on choosing the correct original type, see .

4

234 Chapter 4 - Use the Printing System

Setting

[Original width]

Settings values

[Auto]

Advanced settings for scan jobs

Function

The width of the original is automatically detected by the scanner.

[Standard] The width of the original is a standard size.

Selection of available standard sizes.

[Custom]

NOTE

Depends on the media type and size you have configured in Océ Express

WebTools

The width of the original is a custom size.

You can enter a size within the range of 210 to

914 mm, or 8.5 to 36 inches.

Chapter 4 - Use the Printing System 235

Advanced settings for scan jobs

Setting

[Remove strip]

Settings values

[Top]

Function

[Erase a strip from the beginning of the original.]

From 0 to 400 mm, or 0 to 16 inches.

[Bottom] [Erase a strip from the bottom of the original.]

From 0 to 400 mm, or 0 to 16 inches.

[Left]

[Mirror]

[Right]

[On]

[Off]

[Erase a strip from the left side of the original.]

From 0 to 400 mm, or 0 to 16 inches.

[Erase a strip from the right side of the original.]

From 0 to 400 mm, or 0 to 16 inches.

[When "On", the image is mirrored along the vertical axis (the media transport direction).]

Set to [On] for strongly curled transparent originals that have to be fed upside down in the scanner. Or for (dark) transparent originals that have the information printed on the back.

236 Chapter 4 - Use the Printing System

Preset category: [Quality]

Setting

[Scan quality]

Settings values

[Automatic]

[Normal]

[High]

[Lighter/Darker] Value from -5 to 5

[Background compensation]

[On]

[Off]

[Automatic]

Advanced settings for scan jobs

Function

Define the quality of the scan.

• [Automatic] is the default value that automatically selects the best scan quality value for your job.

• Select [High] to scan with a higher resolution. This can prevent a moiré pattern for originals that contain gray or colored areas.

• Select [Normal] if print productivity is an important factor.

For pure CAD originals [Normal] is mostly sufficient.

Define the lightness and the contrast of a scan.

Increase the value for lighter prints, and decrease for darker prints.

When you make a scan darker, the information becomes darker while the background is less affected. When you make a scan lighter, weak information is not clipped to white.

Reduce the background noise of the image.

• Default is [Automatic]. Dependent of the chosen [Original type], background compensation is automatically applied or not.

• Override [Automatic] by selecting [On] or

[Off].

The applied background compensation method depends on the chosen original type.

4

Chapter 4 - Use the Printing System 237

Advanced settings for scan jobs

Setting

[Color highlighting]

Settings values

[On]

[Off]

Preset category: [Check print]

Setting

[Check print]

Settings values

[On]

[Off]

Function

Set to [On]

• to make notes made with marker pens more visible.

• to emphasize colors, of a CAD drawings with colored information and a solely grayscale (black) background information.

NOTE

• When the [Color mode] is set to

[Color], color highlighting will make the colors more saturated.

• When the [Color mode] is set to

[Grayscale], colors will be scanned darker than the grayscale information on the original.

• The setting is disabled for the original types, [Photo], [Artwork],

[Blueprint].

Function

Set to [On] to make a print of your scanned image.

238 Chapter 4 - Use the Printing System

Advised settings for scan jobs

Advised settings for scan jobs

Introduction

When you use a certain type of original document you can select specific templates and settings that influence the quality and productivity of your job. Use the advised settings in the table below to get the best results.

Workflow

1. Start by selecting the best template for your job. Use the table below for the factory installed scan templates.

Eleven scan templates are factory installed on the system, and you can create new scan templates in Océ Express WebTools. The first five factory installed templates are available on the user panel after installation. You can enable or disable the templates via Océ Express

WebTools. For more information, see

Create a new template on page 121

and

Enable or disable scan templates on page 126 .

2. When you then want to further optimize the settings, you can select the advanced settings when you tap the scan tile on the user panel. When you want to influence the imaging process and thus optimize the output quality, you can select the corresponding [Original type]

for your job. For more information, see Advanced settings for scan jobs on page 233

and The original type on page 241

.

Advised settings

Scan template

01 - Fast CAD B/W

02 - CAD B/W

[03 - Fast Color]

04 - Color

[05 - CAD color]

[06 - Fast CAD color]

[07 - Diazo B/W]

Original document

Black and white CAD drawings, when productivity or a small file size is an important factor.

Line information is enhanced and background is suppressed. For black and white CAD originals with large area fills, choose the [CAD B/W] template.

Black and white CAD drawings, when quality is an important factor.

Line information is enhanced and background is suppressed.

Productive scanning of a wide range of colored originals.

For originals with large area fills, choose the [Color] template.

Almost all originals, to make a good quality color scan.

The quality settings are balanced between color accuracy and the enhancement of fine information, while background is being suppressed.

Color CAD drawings, when quality and file size is an important factor.

Line information is enhanced and background is suppressed. When you have a CAD original with large area fills, choose the [Color] template.

Color CAD drawings, when productivity or file size is an important factor.

Line information is enhanced and background is suppressed. When you have a CAD original with large area fills, choose the [Color] template.

CAD original with a varying background, like a Diazo original or a Chinese blueprint, to make a black and white scan.

4

Chapter 4 - Use the Printing System 239

Advised settings for scan jobs

Scan template

[08 - CAD with foldings]

[09 - CAD color to

B/W]

[10 - CAD color + highlight]

[11 - Photo color]

Original document

Folded monochrome CAD original, to make a black and white scan.

Color CAD drawings, maps, business graphics etc., to make a black and white scan.

Color CAD drawings with marks from maker pens.

Colors become more saturated.

Photo-like originals with high color accuracy.

240 Chapter 4 - Use the Printing System

The original type

The original type

Introduction

When you tap the scan tile and select the [Original] - [Original type] setting on the user panel, you can further optimize the quality of your job.

Change the original type for color or grayscale. Use the overview to select the correct type.

Original types for color

• When you move from original types [Photo] to [Folded lines/text], line enhancement and contrast enhancement are increased, while folds and background are more suppressed.

• When you move from original types [Folded lines/text] to [Photo] the color accuracy is increased.

1. Photo

2. Artwork

3. Map

4. Lines/Text

5. Folded Lines/text

Original type

[Photo]

[Artwork]

[Map]

[Lines/text]

[Folded lines/text]

Original types for grayscale

Original type

[Lines/text]

[Colored original]

Definition

Used for photos and high resolution prints. Photo gives a softer contrast than artwork.

Used for artwork-like colored originals with more defined color areas and transition between colors.

Used for originals with large color areas, that also include lines and finer details. For a wide range of originals this mode is the best balance between color accuracy and line enhancement.

Used for CAD drawings. Line information is enhanced and background is suppressed.

Used for CAD drawings with folds. Lines and wrinkles are suppressed.

Definition

Used for monochrome CAD drawings.

Used for most colored originals, such as colored CAD drawings.

4

Chapter 4 - Use the Printing System 241

The original type

Original type

[Photo]

[Dark original]

[Folded lines/text]

[Blueprint]

Definition

Used for photos and high resolution prints. Photo gives a softer contrast than colored original.

Used especially for Diazo originals. Originals with a changing 'cloudy' background.

Used for monochrome CAD drawings with folds. Lines and wrinkles are suppressed. For folded color CAD drawings use [Colored original].

Used for classic blueprints, with white information on a blue background.

242 Chapter 4 - Use the Printing System

File type

File type

Introduction

Depending on the color mode and file type you select when you create a scan template or when you make a scan, the values for the compression mode and organization change. For some file types and some situations, the compression and organization settings cannot be set. The list below helps you to define the correct file type and color mode, and shows you which compression and organization settings are possible.

NOTE

On the user panel and in Océ Express WebTools you can set an automatic compression value.

The controller determines the most common compression method for the file type that is selected.

The automatic compression value can be found:

• on the user panel under the scan tile. Tap the scan tile twice and select [File type].

• in Océ Express WebTools in the scan templates.

Set the compression to automatic under:

• [PDF compression] (when PDF is selected)

• [PDF/A compression] (when PDF/A is selected)

• [TIFF compression] (when TIFF is selected)

Color mode: Color

[Color mode]

[Color]

[File type]

[TIFF]

[PDF]

[Organization]

[Raw]

[Striped]

[Tiled]

Not applicable

[Compression]

[LZW]

[Packbits]

[None]

[Flate]

[LZW]

[None]

[JPEG]

[JPEG quality]

Not applicable

Not applicable

[PDF/A] Not applicable

[Maximum]

[High]

[Medium]

[Low]

Not applicable [Flate]

[None]

[JPEG]

[JPEG] Not applicable Not applicable

[Maximum]

[High]

[Medium]

[Low]

[Maximum]

[High]

[Medium]

[Low]

Chapter 4 - Use the Printing System 243

File type

Color mode: Grayscale

[Color mode]

[Grayscale]

[File type]

[TIFF]

[PDF]

[PDF/A]

[JPEG]

[Organization]

[Raw]

[Striped]

[Tiled]

Not applicable

Not applicable

Not applicable

[Compression]

[LZW]

[Packbits]

[None]

[Flate]

[LZW]

[None]

[JPEG]

[JPEG quality]

Not applicable

Not applicable

[Flate]

[None]

[JPEG]

Not applicable

[Maximum]

[High]

[Medium]

[Low]

Not applicable

[Maximum]

[High]

[Medium]

[Low]

[Maximum]

[High]

[Medium]

[Low]

Color mode: Black and White

[Color mode] [File type]

[Black and white] [TIFF]

[PDF]

[PDF/A]

[CALS]

[Organization]

[Raw]

[Striped]

[Tiled]

Not applicable

Not applicable

Not applicable

[Compression]

[Group 4]

[Group 3]

[Packbits]

[None]

[Group 4]

[LZW]

[Flate]

[None]

[Group 4]

[Flate]

[None]

Not applicable

[JPEG quality]

Not applicable

Not applicable

Not applicable

Not applicable

244 Chapter 4 - Use the Printing System

Make a scan and remove a strip

Make a scan and remove a strip

Introduction

If you have an original with a strip, you can remove the strip from your scanned file.

Use the option [Remove strip] on the user panel to scan an original with a strip and remove the strip from the file. You can remove a strip from the top, the bottom, the left or the right side of the original.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Tap the scan tile on the user panel and select your preferred template in the scan Smart Access.

3.

Tap the scan tile again.

4.

Tap [Remove strip] under the [Original] category.

[Remove top strip] [Remove bottom strip] [Remove left strip] [Remove right strip]

5.

Select [Remove top strip], [Remove bottom strip], [Remove left strip], or [Remove right strip] and define the values.

6.

Make your settings and tap [OK].

7.

Tap the green button.

Result

The printer scans the original to file without the defined strip. The file is sent to the location defined in the template.

Chapter 4 - Use the Printing System 245

Scan to a USB key

Scan to a USB key

Introduction

When you insert a USB key in the user panel, you can scan to USB.

Before you begin

• Before you scan to USB, make sure the correct settings are enabled. For more information see,

Enable or disable USB on page 100

.

• You can create a template with USB as destination to easily submit your job. For more information, see

Create a new template on page 121

.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Insert a USB key into the USB port on the user panel.

The scan tile is automatically selected on the user panel. Select a template with USB as destination or change the destination to USB.

3.

Tap the green button to start the scan job.

NOTE

Wait until the light in the USB port stops blinking, before you retract the USB key.

Result

A scan to file is made, and saved on your USB key. You can retrieve the file from your USB key.

246 Chapter 4 - Use the Printing System

Scan to the home folder

Scan to the home folder

Introduction

When you have enabled user authentication in Océ Express WebTools you can submit a print or scan job to the home folder as a secure location.

NOTE

The Home folder is a personal and secure external location, you can only use when it is configured by your IT department as part of your infrastructure.

Before you begin

Enable [User authentication] with [User name and password] configured and enable the home

folder as a location first. For more information, see

Enable and edit the Home folder on page 101

.

Procedure

1.

Log in on the printer user panel using your credentials [User name and password].

2.

Feed the original face up and centered on the original feeding table.

3.

Select the scan tile.

4.

Select a template with home folder as destination or change the destination to home folder.

5.

Tap the green button to start the scan job.

After you finish

The file is delivered on your own personal location on the network. In a typical configuration you can find the file on your workstation under the home drive.

Chapter 4 - Use the Printing System 247

Save a scanned document on your mobile device

Save a scanned document on your mobile device

Introduction

When you have access to Océ Mobile WebTools you can scan a document on the printer and save it on your mobile device.

Before you begin

Make sure you have a working connection.

Procedure

1.

Feed the original face up and centered on the original feeding table.

2.

Select the scan tile on the user panel. The scan Smart Access is visible.

3.

In the Smart Access, select the preferred template and make sure a Smart Inbox is set as destination.

4.

Tap the green button.

The scanned file is sent to the selected Smart Inbox and is visible in Océ Express WebTools and in Océ Mobile WebTools.

5.

Open Océ Mobile WebTools on your mobile device.

6.

Open the preferred Smart Inbox section. The scanned file is displayed here.

The Smart Inbox section is automatically refreshed within a few seconds.

7.

Select the file and click on the Save icon.

8.

Browse to a folder on your mobile device, and click Ok.

NOTE

The stored location or folder is sometimes determined by the browser on your mobile device.

Some mobile device browsers change the name, or the extension of the file while storing it.

Result

The file is stored on your mobile device.

Click the “delete” icon if you want to delete the file from the inbox on the printer.

248 Chapter 4 - Use the Printing System

Pause, resume, or stop an active job

Pause, resume, or stop an active job

Introduction

If you want to pause, resume or stop an active job there are several things you can do.

Procedure

Pause or resume an active print job

Step

1.[Pause]

Action

Tap on the active job in the dynamic bar of the user panel.

The queue opens and [Pause] is visible in the dynamic bar.

Tap [Pause] to pause the printer. The [Pause] tile turns into a [Resume] tile.

NOTE

Note that running prints are finished by the printer, so it might take a moment for the printer to pause.

2.[Resume] Tap [Resume] in the dynamic bar to resume the printer.

Stop and delete an active job on the user panel

Step

1

Action

Press the stop button.

2

3

4

For print jobs: a dialog box appears asking if you want to delete the job.

For print jobs: a dialog box appears asking if you want to delete the job from the Smart Inbox.

For copy and scan jobs: tap on [Release the original] under the Smart Access, to release your original from the scanner.

Stop and delete an active job in Océ Express WebTools

Step

1

2

Action

Open the [Jobs] tab.

In the Job queue section tick the box in front of the job you want to delete and click [Delete].

Result

For scan jobs: the machine stops scanning immediately.

Your print job is saved or deleted.

Your print job is saved or deleted.

The scanner releases the original.

Result:

The system aborts and deletes the job.

Chapter 4 - Use the Printing System 249

Clear the system

Clear the system

When to do

On the user panel, you can remove all print and copy jobs from the system.

Procedure

1.

Tap on the system menu thumbnail in the dynamic bar. The system menu opens.

2.

Tap on [Clear system] in the list in the right part of the display.

A wizard opens.

NOTE

Make sure you have saved all the information. All print and copy jobs are removed.

3.

Follow the steps in the wizard and complete the procedure.

Result

After you have followed the steps, the system will reboot and all print and copy jobs are removed.

250 Chapter 4 - Use the Printing System

Chapter 5

Maintain the Printing System

Update your System

Update your System

Update the software

You can update the system software when requested by service or your local representative.

Install system patches for security when they are available for your product on

"http:// downloads.oce.com"

. You can update via the user panel or via Océ Express WebTools.

Update

System software

System patches (security)

Location

User panel or Océ Express WebTools

Océ Express WebTools

252 Chapter 5 - Maintain the Printing System

Update the system software on the user panel

Update the system software on the user panel

Introduction

You can update the system software on the user panel with a USB device that includes a new version of the software.

Before you begin

For an update of the system software, get the packages for the system software update from your local representative.

You need a NTFS formatted USB device. Make sure the update files ([Open source package

(*_os.sup)] and [Software package (*_sw.sup)]) are present under the [USB:\Packages] directory of the USB device.

NOTE

• The update process deletes all jobs on the system.

• During the update process the system is unavailable for approximately 20 minutes.

• The update contains a complete update of the operating system. As a result, all installed thirdparty applications will be erased. You can reinstall the third-pay applications after the update.

Procedure

1.

Tap the system menu thumbnail on the user panel. The system menu opens.

2.

Tap on [System update] in the setup menu.

3.

Log in as a System administrator or Power user. The update wizard appears.

4.

Insert the USB device into the USB port on the user panel.

5.

Follow the instructions of the wizard.

During the update the system is not available. When the update is finished, the printer will restart.

6.

Remove the USB device before the printer restarts.

After you finish

You can check the current software version under System menu - [System update] on the user panel, or under the [Support] - [Update] tab in Océ Express WebTools.

Chapter 5 - Maintain the Printing System 253

Update the system software in Océ Express WebTools

Update the system software in Océ Express WebTools

Introduction

You can update the system via Océ Express WebTools. You can find the settings under the

[Support] - [Update] tab.

The [Update] tab has the following functionalities:

update the system software

install system patches (security)

• check the current software version

• check the execution status of the latest patch applied ('Success' or 'Failure').

Before you begin

For an update of the system software, get the packages for the system software update from your local representative.

NOTE

• When the system update package is larger than 2 GB and you use Internet Explorer, you must use Internet Explorer version 9 or higher.

• Do not restart the printer during the upload and update process.

Procedure

1.

Select the [Support] - [Update] tab.

2.

Click on the [Update] button for an update of the current system software.

3.

Browse to the packages you need ([Open source package (*_os.sup)] or [Software package

(*_sw.sup)]).

Select the files you need and click 'Open'.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

5.

You are now ready to update the software. A warning message appears.

Click [Ok] to confirm, or [Cancel] to reject your entries.

6.

The update starts. At the end of the process, the controller restarts.

Click [Ok] to open Océ Express WebTools.

7.

You are informed whether the update was successful.

254 Chapter 5 - Maintain the Printing System

Install the system patches in Océ Express WebTools

Install the system patches in Océ Express WebTools

Introduction

You can install system patches (security) in Océ Express WebTools.

Before you begin

Download the system patches from

"http://downloads.oce.com"

.

NOTE

• When the system update package is larger than 2 GB and you use Internet Explorer, you must use Internet Explorer version 9 or higher.

• Do not restart the printer during the upload and update process.

Procedure

1.

Select the [Support] - [Update] tab.

2.

Click on the [Install] button for an installation of the operating system patches.

3.

Browse to the location of the [Software package (*.oce)] patch file.

Select the file and click 'Open'.

4.

Click [Ok] to confirm, or [Cancel] to reject your entries.

5.

You are now ready to install the patches. A warning message appears.

Click [Ok] to confirm, or [Cancel] to reject your entries.

6.

The installation starts. At the end of the process, the controller restarts.

Click [Ok] to open Océ Express WebTools.

7.

You are informed whether the installation was successful.

Chapter 5 - Maintain the Printing System 255

Replace the Media

Replace the Media

The media drawer

2

1

3

4

Component - function table

IMPORTANT

Only use intact media rolls. Dented media rolls can damage the [Imaging devices].

2

3

No

1

4

Component

[media roll] 1

[media roll] 2

[roll holder]

[roll loading station]

Description / Function

Media placed on roll holder in first position.

Media placed on roll holder in second position.

Carries the media roll.

Groove integrated behind the front cover of the media drawer.

256 Chapter 5 - Maintain the Printing System

Remove a media roll

IMPORTANT

• Handle the media roll with care. A dented media roll can damage the printer.

• Do not open the media drawer during the printing process.

Remove a media roll

CAUTION

• Watch your fingers when you handle the media roll.

• If you want to remove an A0 media roll from position 2, make sure to bend your knees, as indicated below, to spare your back.

Chapter 5 - Maintain the Printing System 257

Remove a media roll

Procedure

1.

Pull firmly on the media drawer to open it.

2.

Roll the media back manually, to remove the media from the metal paper guide.

1

258 Chapter 5 - Maintain the Printing System

Remove a media roll

3.

Use both hands (as indicated) to lift the roll holder with the media roll and put it on the roll loading station.

4.

Pull the handle of the roll holder locking mechanism towards you and remove the roll holder from the core of the media roll.

Put the empty roll holder back into the drawer (as shown in the illustrations)

2

1

5.

Remove the media roll from the roll loading station.

Store it in a safe place, so that it cannot fall over or roll away.

Chapter 5 - Maintain the Printing System 259

Unpack the media roll

Unpack the media roll

IMPORTANT

• Handle the media roll with care. A dented media roll can damage the printer.

• Always write the correct media name inside the core, after you unpack the media roll. This way, you will have the correct media information available if you replace the roll before it is empty and you want to reuse it later,.

Procedure

1.

Place the media box on a table.

2.

Open the box, and if present remove the plug.

260 Chapter 5 - Maintain the Printing System

3.

Carefully remove the media roll from the box.

Unpack the media roll

4.

If present, remove the other plug and any plastic on the media roll.

Chapter 5 - Maintain the Printing System 261

Load a media roll

Load a media roll

Introduction

You can load standard and custom media on your printer.

Before you begin

Before you load a roll on the printer, make sure your media has been configured.

• For standard media you can configure and enable a media profile in Océ Express WebTools.

For more information, see

Configure the media profiles on page 166

.

• Make sure the size is configured and enabled in Océ Express WebTools. For more information, see

Configure the media sizes on page 169

. If your media size is not present in the list, you can

create a custom media size. For more information, see

Create a custom media size on page 168 .

IMPORTANT

• Do not use dented media rolls to prevent damage to the imaging devices.

• Do not open the media drawer during the print process.

• Do not open more than one media drawer at the same time to prevent overbalance of the printer.

CAUTION

Watch your fingers when you handle the media roll.

Procedure

1.

Pull firmly to open the media drawer.

2.

Place the new media roll on the roll loading station.

3.

Pull (1) the handle of the roll holder locking mechanism toward you.

Slide (2) the roll holder into the right side of the core of the new media roll.

262 Chapter 5 - Maintain the Printing System

Load a media roll

2

1

4.

Align the roll with the

center of the correct size indicator on the roll holder and release the handle of the locking mechanism.

5.

Remove the tapes from the new media roll.

Use both hands (as indicated) to place the media roll in the media drawer.

Chapter 5 - Maintain the Printing System 263

Load a media roll

6.

Use both hands to turn the media roll backwards (1) until the media flap has passed the metal paper guide.

1

264 Chapter 5 - Maintain the Printing System

Load a media roll

7.

Use both hands to slide the media under the metal paper guide (2) until the media is transported automatically.

2

8.

Close the media drawer. The user panel displays the message that new media is detected.

NOTE

Do not open the media drawer during loading.

9.

Follow the steps in the wizard to define the correct media.

Select the media type. The printer detects the correct size automatically. Choose whether you want a short, long, or no strip, and tap [OK].

NOTE

For the highest output quality, it is advised to always perform a media calibration when you load a new media type.

Result

You can now print on the newly loaded media.

Chapter 5 - Maintain the Printing System 265

Media types

Media types

Introduction

Océ machines and media are matched for the best quality and performance.

The table below gives an overview of applications and the typically used media types. The local assortment can vary, depending on preferences and availability. Media names can also be different. Ask your local representative for a complete media list.

You can select the media names on:

• the user panel

• Océ Publisher Express

• Océ Wide format Printer Driver 2 for Microsoft ®

Windows

®

• Océ PostScript ®

Driver

• Océ Publisher Select

Media types and application

IMPORTANT

Do not store paper in rooms where temperature and humidity are high. In a recommended environment, with best print quality, temperature is not higher than 27 degrees Celsius or 80 degrees Fahrenheit and relative humidity is between 30 to 60 percent. Avoid dust and direct sunlight. Wrap unused paper in plastic to prevent it from absorbing moisture.

Application

CAD

Map/GIS

Schematic

Disposable POP

Thematic POP

Poster

Indoor banner

Event banner

Street furniture

Economy backlit

Fine art

Typical media types

Uncoated Tyvek 75 g/m²

Polyester film

Vellum

Uncoated paper 60-110 g/m²

Uncoated Tyvek 75 g/m²

Uncoated paper 75-120 g/m²

Uncoated paper 60-160 g/m²

Self-adhesive paper

Blueback paper

Self-adhesive paper 90 -120 g/m²

Uncoated paper < 200 g/m²

Uncoated Tyvek 75 g/m²

Uncoated paper 60-160 g/m²

Blueback paper 120 g/m²

Polypropylene film 150-200 µm

Polypropylene film 150-200 µm

Light-block film

Uncoated Tyvek 75 g/m²

Blueback paper 120 g/m²

Backlit paper 100-120 g/m²

Translucent film 100-150 µm

Embossed canvas-like paper

Soft banner

4

266 Chapter 5 - Maintain the Printing System

Application

Photo print

Special applications, customized CrystalPoint applications

Typical media types

Instant-dry photo paper 120-190 g/m²

For example:

Temporary table linen

Media types

Chapter 5 - Maintain the Printing System 267

Media sizes

Media sizes

Introduction

Océ machines and media are matched for the best quality and performance.

The table below gives an overview of all the selectable media sizes. When your media sizes is not

part of the list, you can create your own custom media sizes. For more information see, Create a custom media size on page 168 .

IMPORTANT

Do not store paper in rooms where temperature and humidity are high. In a recommended environment, with best print quality, temperature is not higher than 27 degrees Celsius or 80 degrees Fahrenheit and relative humidity is between 30 to 60 percent. Avoid dust and direct sunlight. Wrap unused paper in plastic to prevent it from absorbing moisture.

Media sizes

ISO A (DIN) range

Media

A3

A2

A1

A0

ISO SRA range

Media

SRA3

SRA2

SRA1

SRA0

ISO B (DIN) range

Media

B3

B2

B1

B0

Carto B range

Media

CartoB3

CartoB2

CartoB1

Width [mm]

297

420

594

841

Width [mm]

320

450

640

900

Width [mm]

353

500

707

1000

Width [mm]

350

500

700

Length [mm]

420

594

841

1189

Length [mm]

450

640

900

1280

Length [mm]

500

707

1000

1414

Length [mm]

500

700

1000 4

268 Chapter 5 - Maintain the Printing System

Media

CartoB0

ANSI range

C

D

Media

B

E

ARCH range

Media

B+

C+

D+

E+

ARCH1 range

Media

15inch

21inch

E1 (30 inch)

42inch

Other

Media

310 mm (x340 mm)

330 mm (x450 mm)

440 mm (x594 mm)

440 mm (x620 mm)

450 mm (x625 mm)

620 mm (x880 mm)

660 mm (x841 mm)

800 mm (x1189 mm)

800 mm (x1200 mm)

880 mm (x1230 mm)

891 mm (x1260 mm)

Width [mm]

1000

Width [inch]

11 / B

17

22

34

Width [inch]

12

18

24

36

Width [inch]

15

21

30

42

440

450

620

660

800

800

880

891

Width [mm]

310

330

440

Length [mm]

1400

Length [inch]

17

22

34

44

Length [inch]

18

24

36

44

Length [inch]

21

30

42

60

620

625

880

841

Length [mm]

340

450

594

1189

1200

1230

1260

Media sizes

Chapter 5 - Maintain the Printing System 269

Refill the Toner

Refill the Toner

Replace the toner cartridge

Introduction

With the closed off toner cartridges, you can easily refill toner.

When to do

When a ‘Toner Low’ message appears on the user panel, you need to refill the toner. The message will be displayed until you refill the toner. Under normal conditions the printer can finish the current job, before it stops printing.

Before you begin

• You cannot add toner while printing. Wait till the printer stops printing or abort the job.

• You can leave the printer turned on when you refill the toner.

• Make sure you use toner suitable for the Océ ColorWave 500.

Procedure

1.

Unpack the toner cartridge.

NOTE

Do not throw away the packaging of the new toner cartridge. The packaging is used as maintenance tray.

2.

Remove the red transport clip from the toner cassette.

270 Chapter 5 - Maintain the Printing System

3.

Remove the empty toner cartridge from the printer.

Replace the toner cartridge

4.

Place the new toner cartridge.

5.

Place the toner cartridge in the correct color position.

[1] cyan, [2] yellow, [3] black, [4] magenta.

Chapter 5 - Maintain the Printing System 271

Replace the toner cartridge

1 2 3 4

6.

When the new toner cartridge is placed correctly, a wizard for the maintenance tray appears on

the user panel. Follow the instructions on the wizard. For more information, see

Replace the maintenance tray on page 273

.

272 Chapter 5 - Maintain the Printing System

Replace the maintenance tray

Replace the maintenance tray

Introduction

Replace the maintenance tray when the user panel displays the message with a request. The maintenance tray is the packaging of the toner cartridge. For more information, see

Replace the toner cartridge on page 270

.

1

No

1

Component Description

[Maintenance tray drawer] The maintenance tray drawer is located at the back side of the printer.

When the printer starts up, some toner is needed for the imaging devices to optimize print quality. This is done with a so-called pressure pulse wipe sequence. The toner that is used to reach 'ready to print' is collected in the maintenance tray. During the day this process it repeated a few times to keep the imaging devices in the best condition.

Replace the maintenance tray

Procedure

1.

The user panel displays a message when you have to replace the maintenance tray. Follow the instructions in the wizard.

Chapter 5 - Maintain the Printing System 273

Replace the maintenance tray

2.

Push the maintenance tray drawer to unlock it.

3.

Open the drawer.

274 Chapter 5 - Maintain the Printing System

4.

Remove the old maintenance.

Replace the maintenance tray

5.

Place the new maintenance tray.

Chapter 5 - Maintain the Printing System 275

Replace the maintenance tray

6.

Push the drawer shut.

7.

When the new maintenance tray is placed correctly, tap [OK] in the wizard. The old maintenance tray can be disposed of in regular office waste.

276 Chapter 5 - Maintain the Printing System

Maintain the Scanner

Maintain the Scanner

Clean the scanner

Introduction

Clean the scanner from time to time, to prevent decrease of copy and scan quality.

When to do

Clean when:

• the transparent contact plates are dirty and static

• the original support rollers are dirty, and you use transparent originals

Procedure

1.

Use both hands to push up the left and right scanner open levers to fully open the scanner top cover.

A locking mechanism prevents the scanner top cover from closing.

IMPORTANT

To clean the scanner, use the soft lint-free muslin towels from the scanner cleaning kit.

Chapter 5 - Maintain the Printing System 277

Clean the scanner

2.

Use a muslin towel that has been moistened with water and firmly wrung out to clean the following parts of the scanner:

• The original support rollers.

Rotate the rollers to clean them.

• The transparent contact plates.

Wipe off any soiled areas.

3.

Wipe all the cleaned parts once again using a dry muslin towel.

CAUTION

Watch out, not to get your fingers caught in the scanner top cover.

4.

Press the scanner top cover down gently with both hands, to close it.

NOTE

Check that the left and right scanner open levers are locked into position.

278 Chapter 5 - Maintain the Printing System

Calibrate the scanner

Calibrate the scanner

Introduction

You can calibrate the scanner when you are not satisfied with the copy or scan quality. Use the calibration wizard to calibrate the scanner.

Before you begin

Clean the scanner before you start the calibration procedure. Dirty parts of the scanner cause copy and scan quality to decrease. For more information, see

Clean the scanner on page 277

.

IMPORTANT

• Handle the calibration sheet with care.

• Do not touch the black area of the calibration sheet with your fingers.

• Before you use the calibration sheet, wipe off any dust from the calibration sheet.

Procedure

1.

Tap on the system menu thumbnail. The system menu opens.

2.

Tap on [Scanner calibration] in the list in the right part of the display.

3.

Log in as a Key operator or Power user. A wizard opens up.

4.

Follow the instructions in the wizard.

5.

Insert the scanner calibration sheet when instructed in the wizard.

6.

Tap the green button to start the scanner calibration.

NOTE

[Calibrating the scanner takes between 5 to 10 minutes.]

Chapter 5 - Maintain the Printing System 279

Calibrate the scanner

280 Chapter 5 - Maintain the Printing System

Chapter 6

License Management

Introduction to license management

Introduction to license management

Introduction

For certain applications your printer uses, you need to activate a license. A product license for the

Océ ColorWave 500 is always required. You can perform several actions for licenses:

Procedure

1.

View the currently active licenses.

View which licenses you already have, and which you would like to have. You can make a list of new options you need and note down the license number. Your local representative needs the list of new options and the license number to create a new license file.

2.

Get the host ID of your system.

The host id is needed to create a new license file.

3.

Send the list of new options, the license number, and the host ID to your local representative.

Your local representative creates and delivers a new license file.

4.

Create a back-up of the currently active licenses, if necessary.

Save the current active licenses to do so.

5.

Activate the licenses.

The license activation job guides you through the following steps.

• 1. Locate the license file.

• 2. Preview the new active licenses.

• 3. Accept the end user license agreement.

• 4. Finish the license activation job.

• 5. Restart your system.

282 Chapter 6 - License Management

Check your licenses

Check your licenses

About the licenses

The license section in Océ Express WebTools allows you to manage the licenses that are active on your system. A license is needed to activate certain functions on your printer.

License information overview

Open the [Support] - [Licenses] tab in Océ Express WebTools to view the available licenses.

You can view the license information for the following purposes:

• Check the license state, license type and license duration of active licenses.

• Check how long a license is valid.

• View all options available for your system.

• Make a list of the new options you need.

• Make a list of license numbers.

Information

[Option]

[State]

[License type]

[Duration in days]

[License number]

Description

This field displays the name of the option.

The following licenses are available for your printer:

• The Océ ColorWave 500 Product license

• The Océ ColorWave 500 PDF/APPE license

• [License for Adobe® PS/PDF Simplified Chinese fonts (Chinese

Simp PS fonts) ]

• [License for Adobe® PS/PDF Traditional Chinese fonts (Chinese

Trad PS fonts) ]

• [License for Adobe® PS/PDF Japanese fonts (Japanese PS fonts) ]

• [License for Adobe® PS/PDF Korean fonts (Korean PS fonts) ]

• [License for third party application (Partner App Enabler) ]

• [License for PlanWell® Collaborate (ARC Support) ]

• [License for User Authentication (Access Management) ]

• [License for Disk Encryption]

This field displays one of the following license states.

• [Authorized]. You are authorized to use the function.

• [Not authorized]. You are not authorized to use the function, you need to get a license for the function.

This field displays one of the following license types.

• [Resale].

• Not for resale.

This field displays the time your license is valid.

This field displays the license number.

Chapter 6 - License Management 283

Save the currently active licenses

Save the currently active licenses

Introduction

You can save all active licenses into one single file.

When to do

Save the currently active licenses before starting a license activation job or if you want to save the current license situation.

Procedure

1.

Open the [Support] - [Licenses] tab.

2.

Click on the [Save] button.

A zip file is being downloaded.

3.

Select a directory on your workstation to store the zip file.

4.

Enter the new file name and click on [Save] to back-up the currently active licenses.

284 Chapter 6 - License Management

Get a new license file

Get a new license file

Introduction

The Océ applications and optional functions are protected against unauthorized use. You need to activate licenses to enable various options. When you want to get a new license you have to provide the correct information to your local representative.

Procedure

1.

Open the [Support] - [Licenses] tab to display the license information page.

2.

View which licenses you have and do not have. Note the [Option] information and the license number down of the licenses you would like to have.

3.

Click on [Host id], and note the host id information down.

4.

Send the license information and the host id to your local representative.

5.

After receiving the license file from the representative, store the file on the network.

Result

After you stored the new license file, you can activate the license. For more information, see

Activate a new license on page 286

.

Chapter 6 - License Management 285

Activate a new license

Activate a new license

Introduction

Under the [Licenses] tab in Océ Express WebTools you can activate new license files.

NOTE

• It is advised to store the license information of the currently active license files in a back-up file before you activate a new license file. Use the [Save] button to store the current license files information.

• After the license is uploaded you must restart your system to activate the license file.

Procedure

1.

Open the [Support] - [Licenses] tab to display the license information page.

2.

Click [Activate] to open a browser window to search for the license file on the network.

3.

Browse the network and select the license file.

4.

Click [Next], read the step and click [Next] again.

5.

When the user agreement appears, scroll down to the bottom and check the box in front of [I agree].

NOTE

If you do not check the box for agreement, your license will not be installed.

6.

Click [Next].

7.

Click [OK] to start the activation of the license file. A message appears when the process is completed.

8.

Restart the system to activate the changes.

Result

• If you update an expired license, the new license file overwrites the previous license file.

• If you upload a new license, the license state in the overview is changed from [Not authorized] to [Authorized].

286 Chapter 6 - License Management

Chapter 7

Account Management

Introduction to Account Management

Introduction to Account Management

The printing system supports Account Management. This can be enabled and disabled in Océ

Express WebTools. When enabled the user has to provide accounting information for print, scan and/or copy jobs. It is possible to enable this separately for print jobs, or for scan and copy jobs.

Which accounting information needs to be provided is determined by the customer via Océ

Account Console, Océ Repro Desk or a third party application like uniFLOW.

This chapter contains an introduction to Océ Account Console. For information about Account

Management with another application, see the documentation of that application.

288 Chapter 7 - Account Management

Enable account management in Océ Express WebTools

Enable account management in Océ Express WebTools

Introduction

To enable account management you can define the values in Océ Express WebTools

Definition

The account information requirements are defined and managed by the administrator.

How to define the 'Logging and accounting' settings

Open the [Preferences] - [System defaults] tab, and under [Job management] enable the [Force entry of accounting data for print jobs] or [Force entry of accounting data for copy and scan jobs].

Then define the settings for accounting under [Accounting log].

Setting

[Force entry of accounting data for print jobs]

[Force entry of accounting data for copy and scan jobs]

Value

[Yes]

[Log file format]

[Log data field separator]

[Number of days to keep log files]

[Accounting dialog upload: host]

[Accounting dialog upload: single host]

[No]

[ASCII (7bits)]

[Unicode

(UTF-16)]

[Comma]

[Semicolon]

[Tab] numeric value

[From any host]

[From single host] hostname

Description

When [Yes], it will only be possible to print jobs or create copy and scan jobs that have valid accounting data.

All print jobs will be forced to go to the Smart Inbox.

If you use Océ Publisher Express to send your print job, you must enter the required accounting data in the "Create new job" window.

When you want to copy or scan from the user panel, or print a job from a USB key, you must enter the required accounting data on the user panel. The accounting data fields are displayed on the user panel.

No accounting data is required.

Define the file format for the export file of the account logging data. This file is retrieved by the Account Console application for account management.

Define the field separator that must be used in the log file.

Enter a value between 1 and 99 days.

Defines if an accounting dialog upload is accepted from any host or from a single host only.

The hostname or IP address from which an accounting dialog can be uploaded. Only valid when [Accounting dialog upload: host] has value [From single host].

Accounting data missing

If the required accounting data is missing, the icon is displayed in front of the job in the Smart

Inbox. To enter the missing accounting data, select the job and click [Edit].

Chapter 7 - Account Management 289

An overview of Océ Account Center

An overview of Océ Account Center

Introduction

Use Océ Account Center to manage the account information of print jobs, copy jobs and scan jobs for your Océ devices.

NOTE

For this application a separate user guide and a Readme are available. Visit

"http:// downloads.oce.com"

, select your printer and find your document in the list.

Definition

Océ Account Center includes software module:

• Océ Account Console.

Océ Account Console runs on a PC that functions as a server. Access to the Océ Account

Console application is password protected and limited to authorized personnel.

The administrator uses Océ Account Console to create the account information dialog. The administrator publishes the account information dialog for Océ Express WebTools, the user panel and other applications.

The bookkeeper uses Océ Account Console to retrieve and export the log data.

The bookkeeper uses the log data for accounting purposes.

User roles and tasks in Océ Account Center

Users

1) Administrator

2) Users

3) Bookkeeper

Tasks

• Create, manage and delete the account dialog.

• Publish the account dialog to Océ Express WebTools and the user panel.

• Use the dialog of Océ Express WebTools to enter the account information for print jobs, copy jobs and scan jobs.

• Retrieve and use the account information of print jobs, copy jobs and scan jobs that is stored on the embedded controller of your Océ device. The log data serves as input for the accounting reports and invoices.

290 Chapter 7 - Account Management

Océ Account Console

®

Introduction to Océ Account Console

Definition

Océ Account Console is installed on the administrator's workstation.

Purpose

Océ Account Console has the following functionalities:

• Manage, preview, and publish the account information dialog.

• Retrieve and export the log files.

• Manage the devices.

NOTE

For this application a separate user manual is available.

Illustration

Océ Account Console ®

Chapter 7 - Account Management 291

Summary of Océ Account Console

Summary of Océ Account Console

Main parts of Océ Account Console

An administrator uses Océ Account Console to perform a number of maintenance and configuration tasks.

The main functional areas of Océ Account Console are described in the table below.

Main parts of Océ Account Console

Part Description

The [Dialog] tab [Fields] section.

• Create an accounting dialog. The accounting dialog consists of a number of accounting fields.

• Save an accounting dialog. The accounting dialog is saved in .xml

for reference, back-up or uploading.

• Load an accounting dialog. An accounting dialog can be uploaded for use.

• Delete an accounting dialog. Please note that this action cannot be reversed.

• Edit an accounting dialog. You can change the type of accounting field.

• Change the order of the accounting field in the list.

• Make a preview of the accounting dialog to test the validity.

• Publish the accounting dialog. Make the accounting dialog available to external applications and devices.

[Values] section.

• Create values for each accounting field.

• Import values with a CSV file.

• Add values for each accounting field. You add existing values to an accounting field.

• Delete values for each accounting field. Please note that this action cannot be reversed.

• Edit values for the selected accounting field

• Move the selected value up or down in the list.

• [Sort A..Z ]. Use this option to organize the list in ascending order.

• [Sort Z..A]. Use this option to organize the list in descending order.

The [Devices] tab [Devices] section.

• [Create...]. Use this option to create a new device.

• [Delete]. Use this option to remove the device. The log data for the device is removed as well. Please note that this action cannot be reversed.

• [Edit...]. Use this option to change the values for a device.

• [Delete log data]. Use this option to remove log data of a device.

[Tasks] section.

• 'Compress database'. Use this option to clean up the database.

• [Start]. Use this option to run an update dialog or to retrieve log data.

• [Edit...]. Use this option to change the conditions for the update dialog and the log data retrieval.

4

292 Chapter 7 - Account Management

Summary of Océ Account Console

Part Description

The [Export filters] tab [Overview] section.

• [Create...]. Use this option to define a new filter.

• [Delete]. Remove the export filter.

• [Edit...]. Change the filter definition.

• [Copy...]. Make a duplicate of the filter settings to create another export filter.

• [Run...]. Select the required filter and start the export of the log data.

'Statistics' section.

• [Create...]. Create a statistic's summary (statistics export) of all the data in Océ Account Console.

• [Delete]. Delete the statistics export.

• [Edit...]. Select the field you want to create a statistics export of.

• [Run...]. Start creating the statistics export.

The [Licenses] screen The license screen enables you to perform the following actions.

• Determine the host ID necessary to receive a valid license file.

• Select and activate the license file.

• Create a back-up of the license file.

The [Administration] screen.

The administrator screen enables you to perform the following actions.

• Change the password.

• Publish the data that are retrieved from other applications.

• Define the remaining settings for Océ Account Console.

• Set the regional settings

-Application language

-Units of measure (points, metric values or imperial values)

-Units of measure of the print area (points, metric values or imperial values).

Chapter 7 - Account Management 293

Accounting workflow

Accounting workflow

Introduction

After the administrator configures the settings, accounting can be integrated in the workflow.

Procedure

1.

Define an accounting dialog and publish it.

2.

Add the Océ ColorWave 500 to the devices in Océ Account Console and configure the tasks.

NOTE

Configure the task 'Retrieve log data' to run every day at a time that the printer is switched on.

3.

Run the task update dialog for the Océ ColorWave 500, to provide the dialog to the printer.

4.

Enable accounting in Océ Express WebTools.

Result

When you print via the driver, Océ Publisher Express or Océ Publisher Select you will have to provide accounting information before you can print.

When you copy, scan, or print from USB, you will have to provide accounting information on the user panel before you start your job.

Workflow on the printer

Procedure

1.

Create a copy, scan or print job.

2.

Press the green button, to start the job.

A dialog appears, asking the user to enter the required accounting information.

If the user does not enter the information, he cannot finish the job.

294 Chapter 7 - Account Management

Chapter 8

Solve Problems

How to solve problems with jobs

How to solve problems with jobs

Procedure

1.

When there is a problem with a job, the color of the green job queue bar in Océ Express

WebTools turns red.

The system monitor section of Océ Express WebTools displays the message: [User intervention required].

The job that has the problem remains in the queue as an active job, displayed in bold fonts.

2.

On the user panel detailed information about the problem is displayed. You can use this information to solve the problem.

NOTE

If a media jam occurs often, you can perform the following checks:

- Is the media loaded correctly?

- Did you use the correct media? For more information, see

Media types on page 266

- Did you remove all the pieces of media from the paper path?

NOTE

If an error occurs that you cannot solve, please remember the error code displayed on the user panel and contact the helpdesk for assistance.

296 Chapter 8 - Solve Problems

Clean the print surface

Clean the print surface

Introduction

It is necessary to clean the print surface regularly.

When to do

When a media jam occurs or when there is pollution on your printed output, it can help to clean the print surface.

Required tools

Use the supplied clean card. The clean card is located in the card holder under the [transparent top cover].

Procedure

1.

Push the Top Delivery Tray towards the back and lock it into place.

2.

Open the [transparent top cover].

You can now access the clean card and the print surface.

1

2

Chapter 8 - Solve Problems 297

Clean the print surface

3.

Check whether there are toner drops on the print surface.

4.

Remove the toner with the clean card.

Remove the pollution from the print surface by moving the card into the direction of the toner cartridges.

298 Chapter 8 - Solve Problems

Clean the print surface

5.

When the holes in the print surface are not open, use the pins on the clean card to open the holes.

6.

Place the clean card back in the card holder.

7.

Close the [transparent top cover] and place the Top Delivery Tray back in its original position.

2

1

Chapter 8 - Solve Problems 299

Clear an original jam in the scanner

Clear an original jam in the scanner

Introduction

When an original jam occurs in the scanner, the message [Scanner original jam] appears on the user panel. You must remove the original from the scanner. Follow the steps in the wizard on the user panel to clear the jam.

If an original jam occurs often:

• Check whether you used the correct type of original.

• Check whether you have to use a carrier sheet.

• Check if the original is damaged before you insert it.

Procedure

1.

Use both hands to push up the left and right scanner open levers to fully open the scanner top cover.

A locking mechanism prevents the scanner top cover from closing.

2.

Remove the original.

Pull the original from the scanner, or from the originals exit at the front.

3.

Press the scanner top cover down gently with both hands to close it.

NOTE

Check that the left and right scanner open levers are locked into position.

4.

Smooth out the original, and feed the original.

300 Chapter 8 - Solve Problems

Disconnect the network cable and the mains supply cable

Disconnect the network cable and the mains supply cable

Procedure

IMPORTANT

Make sure the main power switch (A) is in 'off' position.

1.

Disconnect the network cable from the network connection at the right back of the printer (D).

D

2.

Disconnect the mains supply cable from the wall socket.

3.

Lift the cover (B).

4.

Disconnect the other side of the mains supply cable from the power connection at the right back of the printer ( C).

D

Chapter 8 - Solve Problems 301

Event messages

Event messages

Introduction

Feedback on errors related to print jobs is displayed in the event list.

You can open the event list when you click [View events] in the upper right hand corner of the

Jobs tab in Océ Express WebTools.

Procedure

Event message

[Partially printed job aborted due to reception problem (protocol error, connection failure, spool full)]

[Job aborted due to reception problem (protocol error, connection failure, spool full); nothing was printed]

[Document could not be printed; specific TIFF/CALS mode is not supported]

[Document could not be processed; processing was aborted]

[PS/PDF missing or invalid data in the document; one or more pages not correctly printed]

[PS/PDF limitation; one or more pages not correctly printed]

[PS/PDF resource issue (memory, disk); one or more pages not correctly printed]

Troubleshoot

• Check the structure and keywords of the Job Ticket.

• When the user panel displays the message [Job memory full], delete some jobs from the system.

• Check if the printer can be reached on the network.

• Check the structure and keywords of the Job Ticket.

• When the user panel displays the message [Job memory full], delete some jobs from the system.

• Check if the printer can be reached on the network.

The document type is not supported by the printer (for instance, CALS file of type 2).

• Generate a new file.

The file is complex and the printer does not have enough memory to process it.

• Try to print it from an application using the Océ Wide format Printer Driver for Microsoft

®

Windows

®

.

• If the error persists, contact your local Service representative.

The Postscript or PDF file is corrupt.

• Try to print the original file from Adobe Reader or directly from the application using the Océ Wide format

Printer Driver for Microsoft

®

Windows

®

.

• Try to generate the file again.

• If the error persists, contact your local Service representative.

The Postscript or PDF file causes an internal printer error.

• Try to print it from an application using the Océ Wide format Printer Driver for Microsoft

®

Windows

®

.

• If the error persists, contact your local Service representative.

The Postscript or PDF file is complex and the printer does not have enough memory to process it.

• Try to print it from an application using the Océ Wide format Printer Driver for Microsoft

®

Windows

®

.

• If the error persists, contact your local Service representative.

4

302 Chapter 8 - Solve Problems

Event messages

Event message

[PS/PDF resource or language problem; one or more pages not correctly printed]

[No pages were generated when processing the document]

[Job deleted because it is not recoverable (data is corrupt or incomplete)]

[Job deleted because it causes a software crash in the printer]

[Job was deleted from the queue after a media request time-out]

[Job cannot be printed because the required PS/PDF license is not available]

[Job cannot be printed because the required PDL is disabled]

Troubleshoot

The Postscript or PDF file is complex or corrupt.

• Try to print it from an application using the Océ Wide format Printer Driver for Microsoft

®

Windows

®

.

• If the error persists, contact your local Service representative.

The file contains non printable pages.

• The graphic commands in the file could be missing, the file is corrupt.

• The shift setting could be set to a value that causes the image to move completely off the paper.

This message can appear when the printer is restarted after a power failure and some documents in the printer spool are corrupt.

• Reprint the job from the submission application or from the Smart Inbox.

This message can appear when the printer is restarted after a power failure and some documents in the printer spool cause software problems.

• Generate the file again.

• If the error persists, contact your local Service representative.

The job has been deleted from the print queue because the time-out of the media request expired and the [Action after media request timeout] is set to [Delete the job]

• Reprint the job from the submission application or from the Smart Inbox.

• For Postscript and PDF files, check if the license is installed.

[Folding is disabled: the legend is not detected or the rotated document does not fit on the available media.]

[Folding is disabled: the folding device cannot fold the printed output

(incompatible size or media type).]

• Click [Configuration] - [Printer setup] and change the printing of this page description language to [Enabled].

The [Océ Finishing Assistant] disabled folding. This can happen if the image cannot be rotated so that the legend is visible after folding and fit on the available media.

This may also happen if the [Océ Finishing Assistant] cannot detect the location of the legend.

• You can fold manually.

• Disable [Océ Finishing Assistant] if you do not care where your legend is after folding or if you want to fold a drawing without a legend.

• Load a larger media size if the rotated drawing fits into the maximum foldable media width (check the finisher specifications).

• Folding has been disabled because the media size or type is incompatible with the folder. Use correct media that can be folded.

4

Chapter 8 - Solve Problems 303

Settings in case of errors

Event message

[The sheet lenght exceeds the limit of the second fold. Only the first fold applied.]

[Document is not a PDL or the PDL is not supported]

[The scan job cannot be delivered to the external location. The job has been deleted.]

[Impossible to generate the file from the scanned original(s). Try to scan again with a lower output file resolution. If the error persists, make sure the original is not too long.]

[The accounting data for the job are invalid. The job has not been printed.]

[Print settings conflict: the document is identified and printed with the settings embedded in the file]

Troubleshoot

• The document will be first folded only.

• Check the maximum length settings for second fold and comply, when you want to get a fanfold package.

Check if the printer recognizes the format of the sent job.

• Submit the file via the job submitter.

• Print directly from the application.

• Check the credentials, the username and password, of the external location.

• Use the check feature in the external location configuration window.

• Check all other external location settings.

• Lower the output file resolution.

• Change the file type.

• Reduce the original size when it is too long.

• Check the scan resolution and the compression.

• In case of a multi-page document: split it into several scanned files.

• Correct the accounting data in the submission application and reprint the job from the smart inbox.

• Check whether the accounting parameters are correctly synchronized, on the job submission tool or driver.

A job was submitted from an application that added a

Job Ticket while the file already contained a Job Ticket.

The settings you have selected in the submission application are not used. Instead, the Job Ticket settings embedded in the file are used for printing and identification of the job. The job will appear in the print queue and the

Smart Inbox with its original name.

• If the settings embedded in the file contain a Smart Inbox name, the job will be kept in that Smart Inbox.

• If the settings embedded in the file do not contain a

Smart Inbox name, the job will be kept in the default

Smart Inbox defined in [System defaults] - [Job management].

• If you do not want to use the original settings embedded in the file, use Océ Publisher Select to print the job.

Settings in case of errors

Introduction

If you encounter problems with print jobs, there are a few settings that can help you.

Procedure

1.

Open the [Preferences] - [System defaults] tab.

304 Chapter 8 - Solve Problems

Settings in case of errors

2.

Under [In case of errors], you can make the following settings:

Setting

[Clear system at next start-up]

[Save received job data for Service]

Value

[Yes]

[Yes]

Description

Activate this setting when the printer has a problem with processing jobs in the queue. Restart the system to automatically remove all jobs from the system. Then deactivate this setting and restart the system again.

When enabled, the system stores the job data of all received jobs. You can download the data under [Support] -

[Maintenance], click on [Download the job data]. Service can access the job data when you encounter problems or for maintenance.

NOTE

• Only enable this settings when you have problems with certain jobs.

• Disable the setting after service to prevent performance reduction.

[Display a job event notification in Océ Express WebTools]

[Yes] When enabled, the system displays print job related attention messages in the queue view of Océ Express WebTools.

NOTE

When you click on an attention message, the message is removed from the queue view of the web browser you use.

In other web browsers the attention message remains visible until a user clicks on it.

3.

When you have made your settings, click OK.

Chapter 8 - Solve Problems 305

Print a demo print

Print a demo print

When to do

You can print a demo print to check whether the printer is working correctly.

Procedure

1.

Tap the system menu thumbnail on the user panel. A window opens.

2.

In the list on the right, select [Test prints]. A wizard opens.

3.

Select [Demo print].

4.

Tap OK.

306 Chapter 8 - Solve Problems

Print a test print

Print a test print

When to do

Print a test print from a specific roll at the request of the helpdesk. The test print provides information that can help to solve quality problems.

Procedure

1.

Tap the system menu thumbnail on the user panel. A window opens.

2.

In the list on the right, select [Test prints]. A wizard opens.

3.

Select the roll you want to print from.

4.

Tap OK.

Chapter 8 - Solve Problems 307

Print a test print

308 Chapter 8 - Solve Problems

Chapter 9

Support

Counter history

Counter history

Introduction

Navigate to the [Support] - [Counter history] tab to get an overview of the consumables used per printed job.

The table below gives an overview of the various functionalities you can access in the counter history to sort, group, save, or print the information you need.

Procedure

Functionality

[Counter history]

Sort on [Job name],

[Job owner], [Smart

Inbox ], or [Time printed]

[List view] or

[Group view] .

[View total info]

[Save all]

[Print all]

Description

In the header of the counter history list you can select the period (day(s) or week(s)) in a drop down list.

The counter history list will display information about the jobs printed in the selected period.

When you want to sort the counter history list, you can click on the column headers of the counter history list: [Job name]; [Job owner]; [Smart

Inbox ]; [Time printed]. This way you can sort the list according to your needs.

Select [List view] at the bottom of the counter history list when you want to display all printed jobs.

Select [Group view] at the bottom of the counter history list when you want to display only the groups based on your sort criterion.

For example, if you sort your counter history list by the column [Job owner] and you click on [Group view], the counter history list displays a list with all job owners that have sent print jobs to the printer in the selected period. When you expand the [Job owner] group, the list displays all jobs that were sent by the [Job owner] in the selected period.

Select [View total info] in the upper right hand corner of the counter history list, when you want to have a complete overview with job counter information.

Click on a group name to display counter information for all the jobs in the group.

Click on a job name to display counter information for the selected job.

Select [Save all] in the upper right hand corner of the counter history list, when you want to save the counter history for all jobs in the list.

You can save the counter data as an [XML file] or as a [CSV file].

Select [Print all] in the upper right hand corner of the counter history list, when you want to print the counter history for all jobs in the list.

310 Chapter 9 - Support

Audit log

Audit log

Definition

As a System Administrator, you can download a comma-separated values (CSV) file containing the audit of all security-related events in the system.

[Download audit events] and [Clear audit events]

Log in as a System Administrator and select the [Audit log] in the [Security] tab.

Click on the [Download audit events] button to download a comma-separated values (CSV) file containing the audit events.

Click the [Clear audit events] to clear the list of events stored in the system.

Chapter 9 - Support 311

Remote Service: configure the proxy

Remote Service: configure the proxy

Introduction

Océ Express WebTools offers remote services from the printer to the service organization, or from the service organization to the printer.

You can edit these settings under the [Support] - [Remote Service] tab.

Remote Service has the following options:

• [Configure proxy]: Configure a secure Internet connection via a proxy server between the printer and the service organization.

• [Check connection]: Check the connection between the printer and the service organization.

• [Allow remote assistance]: Allow a remote assistance from the service organization to the printer.

Configure the proxy

Procedure

1.

Open the [Support] - [Remote Service] tab, and click on [Configure proxy]

2.

Set up the "Proxy server":

• Automatic proxy detection: select this setting when you do not know all the proxy settings. You can select this setting to let the system detect the proxy automatically.

• [Proxy enabled]: select this setting when you know the proxy settings and want to enable the proxy yourself. You have to fill in [Proxy hostname] and [Proxy port].

• [Proxy hostname]: enter the fully qualified hostname of the proxy server.

• [Proxy port]: enter the port of the proxy.

3.

Set up authentication:

• [Proxy requires authentication]: select this setting when authentication is required.

• [Proxy authentication: user]: enter the user name for authentication.

• [Proxy authentication: password]: enter the password for authentication.

• [Proxy authentication: domain]: enter the domain for authentication.

4.

Click OK to finalize the proxy configuration.

312 Chapter 9 - Support

Remote Service: check the connection

Remote Service: check the connection

After you configured the proxy, it is possible to test the connection between the printer and the service organization.

Procedure

1.

Open the [Support] - [Remote Service] tab, and click on [Check connection].

2.

A message displays the answer, within 30 seconds. When configured correctly, the message [The system is connected to Remote Service.] appears.

3.

Now the system is able to send data to the service organization. For example, Océ Meter

Manager, or [Remote Service] information.

NOTE

• For online viewing, approval of meter reads or service call entry via the web, please refer to the company website. On the website you can create an account (“My account”) to request access to both services.

• You can find feedback on the status of the connection and tooltip information in the

System monitor.

Chapter 9 - Support 313

Remote Service: allow remote assistance

Remote Service: allow remote assistance

When you have made all settings required and you want to allow the service organization to remotely access the printer, you can enable remote assistance.

Procedure

1.

Open the [Support] - [Remote Service] tab, and click on [Allow remote assistance].

2.

A message informs the user whether a connection is made. When configured correctly, the message [Remote assistance to the system is enabled and currently accepting a connection] and two arrows appear.

When the connection with the service organization is established, a remote service operator

(service technician) is able to operate the system and provide assistance remotely.

NOTE

• Since a remote assistance session is established via a point-to-point connection, only this specific system, and none of the other systems at the customer's site, can be reached.

• Click on [Stop remote assistance] when you want to terminate the connection with the service organization. This way the customer always stays in control.

314 Chapter 9 - Support

Chapter 10

Contact

Downloads and support for your product

Downloads and support for your product

Downloads:

User guides, printer drivers (for the Océ printers) and other resources can change without prior notice. To stay up-to-date, you are advised to download the latest resources from:

"http://downloads.oce.com"

Before you use your product, you must always download the latest safety information for your product: make sure that you read and understand all safety information in the manual entitled

' Safety Guide' .

Support

For support information please contact your Canon local representative.

Find your local contact for support from:

"http://www.canon.com/support/"

From the Canon support page, you can also download the printer drivers for the Canon printers, their related user guides and other resources.

316 Chapter 10 - Contact

Reader's comment sheet

Reader's comment sheet

Questions

Have you found this manual to be accurate?

O Yes

O No

Were you able to operate the product, after reading this manual?

O Yes

O No

Does this manual provide sufficient background information?

O Yes

O No

Is the format of this manual convenient in size, readability and arrangement (page layout, chapter order, etc.)?

O Yes

O No

Could you find the information you were looking for?

O Always

O Most of the times

O Sometimes

O Not at all

What did you use to find the required information?

O Table of contents

O Index

Are you satisfied with this manual?

O Yes

O No

Thank you for evaluating this manual.

If you have other comments or concerns, please explain or suggest improvements overleaf or on a separate sheet.

Comments:

------------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------------

Date:

This reader's comment sheet is completed by:

(If you prefer to remain unknown, please do fill in your occupation)

Chapter 10 - Contact 317

Reader's comment sheet

Name:

Occupation:

Company:

Phone:

Address:

City:

Country:

Please return this sheet to:

Océ-Technologies B.V.

For the attention of ITC User Documentation.

P.O. Box 101,

5900 MA Venlo

The Netherlands

Send your comments by E-mail to: [email protected]

For the addresses of local Océ organisations see: http://www.oce.com

318 Chapter 10 - Contact

Index

Index

A

Absolute colorimetric...........................................

150

Access control

Enable.........................................................

81 ,

82

Account Management introduction....................................................

288

Océ Express WebTools..................................

289

Action after media request time-out ..................

117

Active job..........................................................

40 ,

42

Add a strip.............................................................

223

Add leading strip

Sheet settings...................................................

61

Add trailing strip

Sheet settings...................................................

61

Adobe Acrobat reader print.................................................................

195

Adobe® PDF Print Engine....................................

137

Advanced settings..................................................

44

Advanced settings for copy jobs.........................

210

Advanced settings for print jobs.........................

202

Advanced settings for scan jobs.........................

233

Advised settings for copy jobs...................................................

218

Advised settings for scan jobs............................

239

Alignment

Layout settings.................................................

62

Alignment mode

Set...................................................................

136

ARC Cloud support...............................................

102

Area to erase.........................................................

214

Area to erase: length............................................

226

Area to erase: width.............................................

226

Area to erase: X origin.........................................

226

Area to erase: Y origin.........................................

226

Audit log................................................................

311

Authorizations.........................................................

76

Auto rotate set....................................................................

135

Auto-feed the original description......................................................

177

Automatic on

Configure........................................................

115

Automatic roll switch

Set...................................................................

133

B

Background compensation..................................

237

Basic settings..........................................................

61

C

Calibrate the scanner...........................................

279

Carrier sheet..........................................................

178

Cartridge................................................................

270

Certificates..............................................................

86

Change

Settings.............................................................

56

Check connection

Remote Service......................................

312

, 313

Check print............................................................

238

Clean card.............................................................

297

Clean the scanner.................................................

277

Clear the system......................................................

250

Clear an original jam............................................

300

Cloud.....................................................................

193

CMYK

Color space definition....................................

142

Co lour mode

Basic settings....................................................

61

Collate

Basic settings....................................................

61

Color feel

Definition........................................................

145

Color highlighting.................................................

237

Color management

Definition........................................................

141

Color management settings

Defaults...

157

, 158 ,

159 ,

160

, 161

,

162 ,

163

, 164

Job submission..............................................

153

Overview.........................................................

152

Priorities..........................................................

155

Color mode...................................................

205

, 234

Color mode: black and white...............................

244

Color mode: color.................................................

243

Color mode: grayscale.........................................

244

Components printer.........................................

26

, 28

Components scanner.............................................

31

Compression.........................................................

233

Concept default settings.................................................

55

319

Index

Configure media request time-out.................................

117

network settings...............................................

74

Connect mains supply cable and network cable..........

18

Connection

Remote Service..............................................

313

Consumables per job.............................................................

310

Control Smart Inbox rights....................................

73

Copy half size...........................................................

222

Copy a specific area.............................................

225

Copy dark original................................................

228

Copy job default.............................................................

207

delete a specific area of an original..............

226

Highlight colors..............................................

229

remove a strip................................................

224

Scale................................................................

227

scale to another size......................................

227

Copy job by set.....................................................

230

Copy job defaults....................................................

64

Océ Express WebTools....................................

64

Copy job presets.....................................................

93

Copy job settings..................................................

210

Copy jobs description......................................................

218

Copy presets on the user panel...........................................

208

Copy quality..........................................

220 ,

241

, 279

Copy tile..................................................................

40

Counter history overview.........................................................

310

Create

Media size.......................................................

168

Current date and time..........................................

113

Custom copy preset...............................................

95

Custom preset.........................................................

98

Custom print length

Sheet settings...................................................

61

Custom print preset................................................

97

Cut in Roll-to-roll mode........................................

179

Cut method

Sheet settings...................................................

61

Cut size..........................................................

203

, 211

D

Diazo print.......................................................

228

Dark original..........................................................

228

Default

External location..................................................

320

Default......................................................

105

Set a default external location......................

105

Default copy job procedure........................................................

207

Default copy preset................................................

94

Default destination for scan

General scan job settings................................

65

Default destination for scan jobs description........................................................

65

Default print destination

Configure........................................................

106

External location..................................................

Set a default print destination................

106

Print destination...................................................

Set as default...........................................

106

Default print job....................................................

196

Default print preset.................................................

96

Default scan job procedure........................................................

231

Default settings concept..............................................................

55

Definition

CMYK color space..........................................

142

Color feel.........................................................

145

Color management........................................

141

Input profile / standardization.......................

142

output profile..................................................

151

Rendering intent.............................................

146

Rendering intents...................

147 ,

148

, 149 ,

150

RGB color space.............................................

142

Delete active job.........................................................

249

Smart Inbox......................................................

72

Delete a specific area description......................................................

226

Delivery.........................................................

206 ,

217

Delivery destination ..............................................

33

Demo print print.................................................................

306

Direct print............................................................

198

Disconnect

Mains supply cable and network cable........

301

Documentation

Available documentation................................

12

Océ Express WebTools....................................

12

Océ PostScript® 3 Driver.................................

12

Océ Publisher Select........................................

13

Océ Windows® Printer Driver.........................

12

Download media profiles.....................................

165

Dynamic bar............................................................

42

E

E-shredding

Algorithm..........................................................

84

Enable or disable..............................................

83

Number of overwrite passes...........................

85

Edit a setting...........................................................

56

Enable or disable scan templates.......................

126

Energy save modes..............................................

116

Error print job submission......................................

195

Errors

Event list.........................................................

304

Event messages

Overview.........................................................

302

External location

Create..............................................................

103

FTP...................................................................

107

Create external location..........................

103

FTP, SMB, WebDAV.......................................

103

Generate CA-signed certificate request.........

87

Home folder....................................................

101

Import a CA-signed certificate......

89

, 90 ,

91 ,

92

PlanWell Collaborate.....................................

102

SMB.................................................................

110

USB.................................................................

100

WebDAV..........................................................

112

External locations...................................................

99

F

Factory default restore...............................................................

60

Feed the original...................................................

176

File.........................................................................

233

File compression .................................................

243

File extension

PDF, TIFF, JPEG, CALS....................................

65

File name for copy to Smart Inbox general copy job settings................................

64

File name for scan to Smart Inbox

General scan job settings................................

65

File organization...................................................

243

File type.................................................................

243

Finishing

Fold settings...................................................

128

Finishing device configuration..............................

35

First language.......................................................

113

Fold template........................................

128

,

206 ,

217

Fold templates......................................................

120

Folder connection panel........................................

28

Folding

Automatic legend detection..........................

127

Folding device.........................................................

33

manual mode...................................................

36

online mode......................................................

36

Folding device ........................................................

36

Index

foot...........................................................................

27

Footprint..................................................................

17

FTP

external location...............................................

99

job submission...............................................

191

troubleshoot configuration...........................

107

G

General copy job settings......................................

64

General scan job settings description........................................................

65

Get a new license file...........................................

285

Green button...........................................................

41

H

Highlighted colors................................................

229

Home folder..........................................................

101

external location...............................................

99

Home screen...........................................................

40

Horizontal shift

Layout settings.................................................

62

HTTPS......................................................................

86

I

Icons

job states...........................................................

52

Image.....................................................................

214

Increase productivity............................................

177

Input profile / standardization

Definition........................................................

142

Internet Explorer

Security settings...............................................

49

Introduction

Account Management...................................

288

Océ Account Console.....................................

291

IPSec........................................................................

81

Enable...............................................................

82

J

Job pause, resume or stop...................................

249

Job management settings.....................................

73

Job memory full...................................................

134

Job pane..................................................................

44

Job preview............................................................

45

Job queue...............................................................

42

Concept.............................................................

66

Job queue concept.................................................

66

Job states queue................................................................

52 smart inbox.......................................................

52

321

Index

Job submission

Color management........................................

153

ftp....................................................................

191

lpr....................................................................

192

Océ PostScript® 3 Driver...............................

187

Océ Publisher Express...................................

180

Océ Publisher Select......................................

188

Océ Publisher Select 2...................................

183

Océ Wide format Printer Driver for Microsoft

Windows.........................................................

185

Job submission tools the cloud.........................................................

193

Jobs tab...................................................................

67

JPEG quality..........................................................

233

K

Key operator...........................................................

76

L

Language change...................................................

51

Layout settings.......................................................

62

Leading strip.........................................................

223

Legend

Automatic detection.......................................

127

Licenses activation........................................................

282

Get a new license file.....................................

285

List...................................................................

283

Lighter/Darker.......................................................

237

Live scan view.........................................................

41

Load settings from a file...........................................

59

Load a media roll..................................................

262

log in

Océ Express WebTools....................................

77

Long plot mode

Set...................................................................

132

Lower front cover...................................................

26

Lower left side cover..............................................

26

Lower right side cover...........................................

27

LPR job submission...............................................

192

M

Mains supply cable.........................................

18

, 301

Maintenance tray..................................................

273

Maintenance tray drawer.......................................

28

Measurement unit................................................

113

Media.............................................................

202

, 210

Media configuration

Media profiles.................................................

166

Media sizes.....................................................

169

322

Media types....................................................

166

Media configuration

Media size.......................................................

168

Media drawer..................................................

29 ,

256

Media drawers........................................................

26

Media profile.........................................................

165

Install...............................................................

167

Update.............................................................

167

Media request time-out........................................

117

Media roll..............................................................

262

Unpack............................................................

260

Media roll remove................................................

257

Media saving rotation............................................................

135

Media selection policy general copy job settings................................

64

Sheet settings...................................................

61

Media size.....................................................

202 ,

210

Create..............................................................

168

Media sizes....................................................

169 ,

268

Media source................................................

202 ,

210

Sheet settings...................................................

61

Media type....................................................

202 ,

210

Media types...................................................

166 ,

266

Mirror.............................................................

205 ,

234

Layout settings.................................................

62

Mobile printing password....................................

172

Move the printer.....................................................

22

Mozilla Firefox

Security settings...............................................

50

N

Network cable.................................................

18 ,

301

Network duplex mode set......................................................................

75

Network settings configure...........................................................

74

Network speed set......................................................................

75

Number of sets

Basic settings....................................................

61

O

Océ Account Center

Overview.........................................................

290

Océ Account Console introduction....................................................

291

Océ ClearConnect...................................................

26

components and function...............................

30

Océ Delivery Tray...................................................

39

Océ Express WebTools account management....................................

289

change the language.......................................

51

Copy job defaults.............................................

64

description........................................................

48

Jobs tab............................................................

67

load the settings from a file............................

59

log in ................................................................

77

Passwords.........................................................

78

Print job defaults..............................................

61

restore factory defaults....................................

60

save the settings in a file.................................

58

Scan job defaults..............................................

65

User roles and authorizations.........................

76

View and check the settings............................

57

Océ Finishing Assistant........................................

127

Océ Media Profile.................................................

165

Océ Mobile WebTools..................................

170 ,

172

Print job...........................................................

190

Quick Response Card.....................................

173

Océ Mobile WebTools scan.................................

248

Océ PostScript® 3 Driver job submission...............................................

187

Océ Print Assistant behavior..........................................................

139

Print quality......................................................

63

slider................................................................

139

Océ Publisher Express.........................................

180

Océ Publisher Select send a print job..............................................

188

Océ Publisher Select 2.........................................

183

Océ Wide format Printer Driver for Microsoft

Windows job submission...............................................

185

OMP file.................................................................

165

On/off button...........................................................

26

Open levers.............................................................

31

Optimize

Print productivity............................................

136

Print quality....................................................

131

Optimize

PDF processing...............................................

137

Organization..........................................................

233

Original..................................................................

214

auto-feed.........................................................

177

Original feed.........................................................

176

Original feeding table.............................................

31

Original jam..........................................................

300

Original type.........................................

220

,

234 ,

241

Original width.......................................................

234

Originals exit...........................................................

31

Output delivery.......................................................

33

folding device...................................................

33

receiving rack (basket).....................................

33

take-up module................................................

33

Top Delivery Tray.............................................

33

Index

Output profile........................................................

151

Output refeed protector.........................................

31

Overview

Color management settings..........................

152

Overview printing system......................................

16

Overwrite passes....................................................

85

P

Paper......................................................................

266

Passwords

Change password in Océ Express WebTools

78

Pause

active job.........................................................

249

PDF.................................................................

137

, 138

troubleshoot print job....................................

195

PDF Processing performance

Optimize..........................................................

138

PDF rasterization settings....................................

138

Pen settings configure.........................................................

118

Perceptual (photo)................................................

147

PlanWell Collaborate

Enable.............................................................

102

external location...............................................

99

Pollution cleaning.................................................

297

Positioning....................................................

203

, 211

Power switch...........................................................

28

Power user..............................................................

76

Preset copy job.......................................................

94

Preset print job.......................................................

96

Presets...............................................................

44

, 93

for copy jobs...................................................

208

for print jobs...................................................

200

Preshared key.........................................................

82

Preview your job.....................................................

45

Print demo print......................................................

306

Smart Inbox....................................................

182

test print..........................................................

307

Print a job................................................................

69

Print delivery

Basic settings....................................................

61

Print from a USB key............................................

199

Print job.................................................................

196

direct print......................................................

198

Print job

Océ Publisher Select 2...................................

183

Océ Wide format Printer Driver for Microsoft

Windows.................................................

185

, 188

Print job

Océ PostScript® 3 Driver...............................

187

Print job defaults........................................

61 ,

62

, 63

Océ Express WebTools....................................

61

323

Index

Print job presets......................................................

93

Print job settings...................................................

202

Print jobs and the cloud....................................................

46

Print presets on the user panel...........................................

200

Print productivity..................................................

140

Print quality.....................................................

63

, 205

Set...................................................................

131

Print quality for scanned images general copy job settings................................

64

Print surface..........................................................

297

Print tile...................................................................

40

Printer components (back)...........................................

28

Components (front)..........................................

26

Printer working area...............................................

17

Printing system.......................................................

16

Problems solve................................................................

296

Productivity...........................................................

177

Proxy

Configure........................................................

312

Q

Quality...................................................................

214

Quality optimization.....................................

220

, 241

Quality problem....................................................

279

Queue job states...........................................................

52

Quick Response Card...........................................

172

R

Receiving rack (basket)..........................................

33

Regional settings..................................................

113

Relative colorimetric............................................

149

Remote assistance

Remote Service......................................

312

, 314

Remote Security.....................................................

86

A secure location......................

87 ,

89 ,

90

, 91

, 92

Remote Service.....................................................

312

Check connection...........................................

313

Remote assistance.........................................

314

Remove a strip..............................................................

245

Remove all jobs from the system................................

250

Remove a specific area description......................................................

226

Remove media roll...............................................

257

Remove strip.........................................

211 ,

225

, 234

Rendering intent

324

Absolute colorimetric....................................

150

Definition........................................................

146

Perceptual (photo)..........................................

147

Relative colorimetric......................................

149

Saturation (business graphics).....................

148

Replace the maintenance tray.............................

273

Replace the toner cartridge.................................

270

Resolution.............................................................

234

Restart the system description........................................................

79

Restore factory defaults.................................................

60

Restore factory defaults

Templates.......................................................

125

Resume active job.........................................................

249

RGB color space

Definition........................................................

142

Roll-to-roll mode

Cut...................................................................

179

Roll-to-roll mode ............................................

38 ,

119

Rotation.................................................................

203

Layout settings.................................................

62

Rotation mode set....................................................................

135

S

Saturation (business graphics)............................

148

Save licenses........................................................

284

Save settings...........................................................

58

Scale..............................................................

203 ,

211

Layout settings.................................................

62

make a half size copy.....................................

222

Scan a job................................................................

69

Scan delivery retry interval

General scan job settings................................

65

Scan destination description........................................................

99

Scan job default.............................................................

231

Scan job defaults description........................................................

65

Océ Express WebTools....................................

65

Scan job presets.....................................................

93

Scan job settings..................................................

233

Scan jobs...............................................................

239

and the cloud....................................................

46

Scan quality..................................

220 ,

237

, 241 ,

279

Scan template on the user panel...........................................

232

Scan templates.....................................................

120

Scan tile...................................................................

40

Scan to a mobile device.......................................

248

Scan to USB..........................................................

246

Scan-to-file............................................................

243

Scanner components......................................................

31

Scanner calibration..............................................

279

Scanner clean.......................................................

277

Scanner original jam............................................

300

Second language..................................................

113

Secure

Your location............................

87

, 89

, 90 ,

91 ,

92

Security patches...................................................

255

Security settings

For Internet Explorer........................................

49

For Mozilla Firefox...........................................

50

Sets........................................................................

230

Settings

Change..............................................................

56

Settings file load....................................................................

59

Setup menu.............................................................

43

Sheet settings.........................................................

61

Shut down the system description........................................................

79

Sleep mode...........................................................

116

Smart Access..........................................................

41

Smart card...............................................................

80

Smart Inbox

Close..................................................................

72

Delete................................................................

72

external location...............................................

99

job states...............................................................

smart inbox................................................

52

print.................................................................

182

Smart Inbox

Create................................................................

69

Smart Inbox concept..............................................

66

Smart Inboxes

Concept.............................................................

66

SMB external location...............................................

99

troubleshoot configuration...........................

110

Software update

Océ Express WebTools..................................

254

User panel.......................................................

253

Solve problems with jobs........................................

296

Solve problems

Océ Delivery Tray.............................................

39

Spool threshold

Set...................................................................

134

Start value for ### in the copy file name general copy job settings................................

64

Start value for ### in the scan file name

General scan job settings................................

65

Index

Stop

active job.........................................................

249

Strip remove a strip................................................

245

Strip remove.........................................................

224

Support

Downloads:.....................................................

316

Manuals..........................................................

316

Printer drivers.................................................

316

Switch on the printing system..............................

19

System shut down or restart........................................

79

System administrator.............................................

76

System menu....................................................

40

, 42

System monitor......................................................

53

System patches....................................................

255

T

Take-up module................................................

33

, 38

Template for scan jobs.........................................

232

Templates................................................................

44

Create..............................................................

121

Delete..............................................................

122

Export..............................................................

123

Fold..................................................................

120

Import..............................................................

124

Restore factory defaults.................................

125

Scan.................................................................

120

Test print print.................................................................

307

The cloud main concept....................................................

46

Time format..........................................................

113

Time zone..............................................................

113

Timer

User session time-out....................................

114

Toner cartridge.....................................................

270

Toner cartridge (black)...........................................

26

Toner cartridge (cyan)............................................

26

Toner cartridge (magenta).....................................

26

Toner cartridge (yellow).........................................

26

Top cover..........................................................

26

, 31

Top delivery tray...............................................

26

, 33

Trailing strip..........................................................

223

Transparency flattening.......................................

138

Transparent top cover............................................

26

Troubleshoot

Event messages.............................................

302

print job submission......................................

195

Troubleshoot FTP create external location.................................

107

Troubleshoot SMB create external location.................................

110

325

Index

Troubleshoot WebDAV create external location.................................

112

Turn off the printing system..................................

20

U

Unpack

Media roll........................................................
