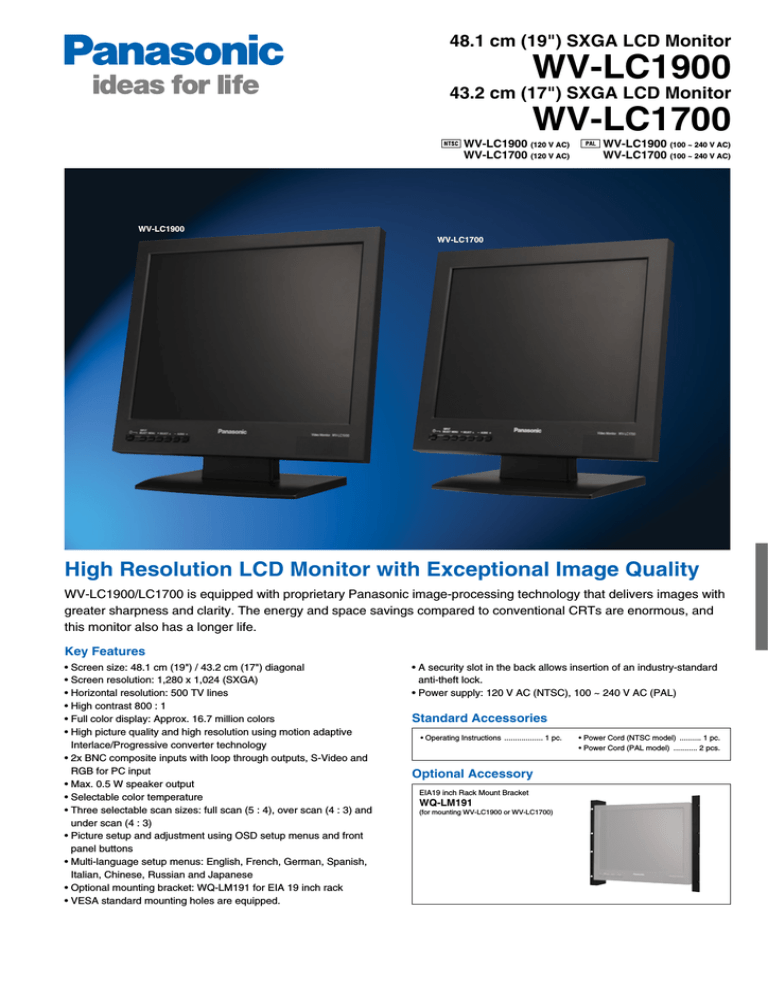

Panasonic WQ-LM191

WV-LC1900

48.1 cm (19") SXGA LCD Monitor

WV-LC1900

43.2 cm (17") SXGA LCD Monitor

WV-LC1700 WV-LC1900 (100 ~ 240 V AC) WV-LC1900 (120 V AC) WV-LC1700 (120 V AC) WV-LC1700 (100 ~ 240 V AC) WV-LC1700

High Resolution LCD Monitor with Exceptional Image Quality

WV-LC1900/LC1700 is equipped with proprietary Panasonic image-processing technology that delivers images with greater sharpness and clarity. The energy and space savings compared to conventional CRTs are enormous, and this monitor also has a longer life.

Key Features

• Screen size: 48.1 cm (19") / 43.2 cm (17") diagonal • Screen resolution: 1,280 x 1,024 (SXGA) • Horizontal resolution: 500 TV lines • High contrast 800 : 1 • Full color display: Approx. 16.7 million colors • High picture quality and high resolution using motion adaptive Interlace/Progressive converter technology • 2x BNC composite inputs with loop through outputs, S-Video and RGB for PC input • Max. 0.5 W speaker output • Selectable color temperature • Three selectable scan sizes: full scan (5 : 4), over scan (4 : 3) and under scan (4 : 3) • Picture setup and adjustment using OSD setup menus and front panel buttons • Multi-language setup menus: English, French, German, Spanish, Italian, Chinese, Russian and Japanese • Optional mounting bracket: WQ-LM191 for EIA 19 inch rack • VESA standard mounting holes are equipped.

• A security slot in the back allows insertion of an industry-standard anti-theft lock.

• Power supply: 120 V AC (NTSC), 100 ~ 240 V AC (PAL)

Standard Accessories

• Operating Instructions .................. 1 pc.

Optional Accessory

EIA19 inch Rack Mount Bracket

WQ-LM191

(for mounting WV-LC1900 or WV-LC1700)

• Power Cord (NTSC model) .......... 1 pc.

• Power Cord (PAL model) ........... 2 pcs.

Specifications

Model No.

TV System Display Panel

Input / Output

Display Size Number of Pixels Display Area (H x V) Horizontal Resolution Aspect Ratio

WV-LC1900

NTSC/PAL (automatic select) 48.19 cm (19") diagonal 1,280 x 1,024 (SXGA) 376 mm x 301 mm (14-13/16" (H) x 11-7/8" (V)) 500 TV lines 5 : 4

WV-LC1700

43.27 cm (17") diagonal 337 mm x 270 mm (13-1/4" (H) x 10-5/8" (V))

Controls General

Contrast Ratio 800 : 1 (Typical) Response Time (Rise/Fall) 1.3 ms / 3.7 ms (Typical) 1.2 ms / 3.8 ms (Typical) Viewing Angle (L/R/U/D) 80 °/ 80°/ 75°/ 85° (CR>10, Typical) 80°/ 80°/ 75°/ 85° (CR>10, Typical) Display Colors Composit Video Input Approx. 16.7 million colors 2x Composite Video Inputs (BNC) with auto termination loop through outputs (BNC) S-Video Input RGB Video Input (PC) 1x S-Video input (Mini DIN connector) 0.7 V [p-p] / 75 Ω, 15pin mini D-sub RGB Frequency Range 60 Hz / 72 Hz / 75 Hz (VGA) 56 Hz / 60 Hz / 72 Hz / 75 Hz (SVGA) Audio Input Speaker Audio Adjustment for Analog Input Adjustment for RGB Input 60 Hz / 70 Hz / 75 Hz (XGA) 60 Hz / 75 Hz (SXGA) 1x –8 dB / Hi-Z, (RCA pin jack) with loop through outpout (RCA pin jack) 1x 0.5 W UP/Down by front button BRIGHTNESS, CONTRAST, SHARPNESS, COLOR level, TINT (NTSC only), H POSITION by setup menu BRIGHTNESS, CONTRAST, H POSITION, V POSITION by setup menu Setup Menu Language Color Temperature Scanning Power Source English, French, German, Spanish, Italian, Chinese, Russian, Japanese Analog Input: 9,300 °K / 6,500 °K, RGB Input: User Color / 9,300 °K / 6,500 °K by setup menu Full / Under / Over by setup menu 120 V AC, 60 Hz (NTSC), 100 ~ 240 V AC 50 Hz (PAL) Power Consumption 43 W (NTSC), 46 W (PAL) 41 W (NTSC), 43 W (PAL) Ambient Operating Temperature 0 °C ~ +40 °C (+32 °F ~ +104 °F) Ambient Operating Humidity Less than 90 % (without condensation) Dimensions (W x H x D) 423 mm x 440 mm x 236 mm 404 mm x 415 mm x 236 mm (16-11/16" x 17-5/16" x 9-5/16") (15-15/16" x 16-5/16" x 9-5/16") Weight (including the monitor stand) 7.5 kg (16.5 lbs.) (including the monitor stand) (including the monitor stand) 7.0 kg (15.4 lbs.) (including the monitor stand)

Safety/EMC Standard TV System NTSC models PAL models

UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA) CE (EN60065, EN55022 ClassB, EN55024), SEMKO, GOST (BZ02), C-Tick

Appearance

WV-LC1900

Part Names and Functions

Front View Rear View WV-LC1700

423(16-11/16") 50(2") 80(3-3/16") 30(1-3/16") 5 ° 15 ° 404(15-15/16")

Power Button Power Indicator Input Signal Selection Button Menu Button Selection Buttons Audio Buttons Reset Switch Monitor Stand LCD Panel Speaker Power Cord Clamp Power Input Jack PC Input Connector Audio Input Connector Audio Output Connector S-Video Input Connector Video Input B Connector Video Output B Connector Video Input A Connector Video Output A Connector Screw Holes for Rack Mount Bracket Fall Prevention Clamp Security Slot Screw Holes for Wall Mount Bracket

* These illustrations are WV-LC1900.

77(3-1/16") 41(1-5/8") 28(1-1/8") 5 ° 15 ° 265(10-7/16") 236 (9-5/16")

Important

– Safety Precaution: carefully read the operating instructions and installation manual before using this product.

DISTRIBUTED BY:

265(10-7/16") 236 (9-5/16") Unit: mm (inches) • All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations. • All product pictures are NTSC models.

http://panasonic.net/security/

Printed in Japan (2A-039AA)
