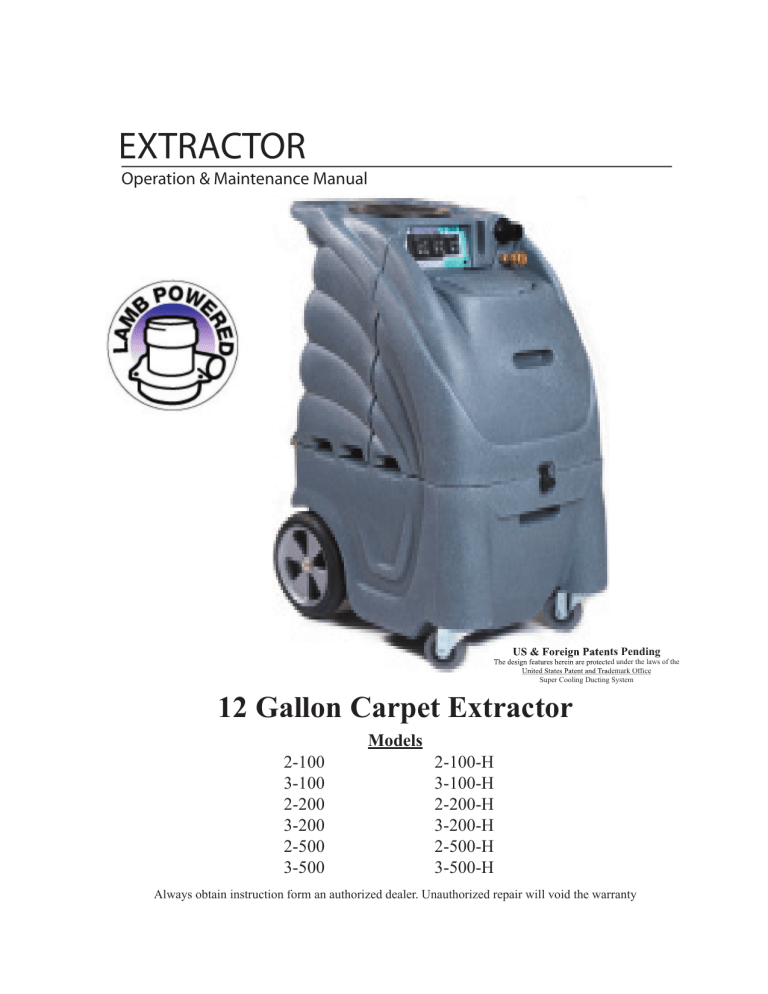

EXTRACTOR

Operation & Maintenance Manual

Super Cooling Ducting System

12 Gallon Carpet Extractor

Models

2-100 2-100-H

3-100 3-100-H

2-200 2-200-H

3-200 3-200-H

2-500 2-500-H

3-500 3-500-H

Always obtain instruction form an authorized dealer. Unauthorized repair will void the warranty

12 GALLON EXTRACTOR MANUAL

SAFETY

WARNING: To reduce risk of fire, electrical shock or injury:

•READ ALL INSTRUCTIONS BEFORE USING THIS EXTRACTOR.

•Use only as described in this manual.

•Test all outlets with an outlet tester before plugging machine into any outlet.

•Use only the attachments recommended by the manufacturer.

•Plug cord into the nearest grounded outlet.

•Do not unplug by pulling on the cord, grasp the plug. Do not pull unit by the cord.

•Keep cord away from heated surfaces.

•Never attempt adjustments or repairs while the machine is plugged in.

•Do not use if cord or plug are damaged.

•Do not use outdoors, in standing water, or on wet surfaces.

•Pay close attention when using machine near children.

•Do not pick up flammable or combustible materials, or use machine where they may be present.

•Do not leave machine outdoors, in extreme heat or cold. Harsh weather elements will damage components and void warranty.

•Lift using only the appropriate handles.

•Always wear the appropriate clothing and safety equipment when operating the machine.

•Keep all body parts, hair and loose clothing away form openings and moving parts

•Use extra care when cleaning stairs. Never move the machine up or down stairs with fluid in the machine.

•Use common sense to protect yourself and others from injury when using the machine.

1

SET UP AND OPERATION

ELECTRICAL

Plug cord(s) in to 20 AMP grounded wall outlets. 20AMP circuits are normally found in kitchens and bathrooms. Never remove ground prong from from plug. If a circuit breaker trips during operation, turn machine off, reset the breaker and move the electrical cord to a different outlet and resume operation.

PUMP SYSTEM

Fill the solution tank and prime the pump (200 & 500 psi models only)

-Turn the Auto Prime lever on (Vertical). Auto Prime lever is located on the backside of the machine near the left

power cord.

-Turn on a vacuum motor and cover vacuum inlet for 5-10 seconds.

-Remove hand from inlet and turn the Auto Prime lever off (Horizantal)

-Turn solution pump on and pump should be primed. If pressure does not rise repeat process.

VACUUM SYSTEM

The extractor uses a two vacuum motor system that provides outstanding water lift and air flow. The extractor can be used with one motor for cleaning delicate fabrics or both motors for carpet cleaning and water extraction.

Automatic Vacuum Shut Off: The float assembly shut off, located in the recovery tank on the vacuum stand pipe, prevents the waste tank from overflowing into the stand pipe and damaging the vacuum motors. The float assembly will cut off vacuum to the waste tank. When this happens immediately turn off the vacuum motors and empty the waste tank.

The float assembly will also prevent lint and debris from entering the vacuum motors. It is necessary to clean the screen frequently to maintain maximum vacuum.

It is also necessary to use low foaming chemicals or a defoamer to eliminate foam build up in the recovery tank and damage to the vacuum motors. If moisture does enter the vacuum motors it is necessary to WD-40 the motors. Remove the float assembly from the stand pipe and turn on both vacuum motors. Spray a five second burst of WD-40 into the stand pipe and continue to let the vacuum motors run for three minutes.

US & Foreign Patents Pending

The design features herein are protected under the laws of the

United States Patent and Trademark Office

Super Cooling Ducting System

12 GALLON EXTRACTOR MANUAL

2

STORAGE AND FREEZE PROTECTION

You must Winterize your extractor to protect the pump system from freezing. Damage due to freezing is not covered under the Limited Warranty. Store your extractor in temperatures over 40ºF. If you plan on storing your extractor in freezing conditions you must prime your sniper with antifreeze.

200 and 500 models: Fill the solution tank with 1/2 gallon of 50/50 mix of antifreeze and water and follow the priming instructions in the set up and operation section of this manual. Vacuum excess mixture out of the solution tank into the recovery tank and dispose of antifreeze properly.

100 psi models: Fill the solution tank with a 50/50 mix of antifreeze and water and use the wand to spray mixture into a bucket. Vacuum excess mixture out of the solution tank into the recovery tank and dispose of antifreeze properly.

Be sure to flush out pump and vacuum system thoroughly with fresh water before use.

MAINTENANCE

Regular maintenance is required to keep your extractor in proper working condition.

Thoroughly clean all equipment and accessories after each use.

-Rinse the solution and recovery tanks with clean water.

-Flush the pump system with clean water, including all hoses and wand(s).

-Do not allow water to remain in the tanks after use

Lubricate all quick disconnects with WD-40 or similar lubricant.

200psi and 500psi Pump Maintenance

-Every week rinse pump out with one gallon of water mixed with 4 ounces of vinegar

-Every 500 hours replace Plunger and Seal kit, and Valve kit.

-Every 1000 hours replace the Cam and Bearing kit.

LIMITED WARRANTY

All equipment is inspected and tested before shipping from the manufacturer. All parts are warranted to be new and free from defects in workmanship and material to the original retail purchaser as following:

-5 years on plastic body parts

-2 years on electrical and motors

-1 year on pump

This warranty limits manufacturer’s liability for defects in workmanship or materials to replacement of defective parts only.

Manufacturer accepts no liability for incidental or consequential damages arisen from the use of any equipment, defective or not. This warranty is in lieu of all expressed or implied warranties and is extended only to the original retail purchaser.

Manufacturer sales and service representatives are not authorized to waive or alter the terms of this warranty, or to increase the obligations of the manufacturer under the warranty.

WARRANTY PROCEDURE

It is the responsibility of the distributor to repair the customer’s equipment as soon as possible. If the distributor does not have the facilities to repair the equipment it may be shipped back to an authorized service center for warranty repair, freight prepaid.

Procedure:

1. When a repair falls within the warranty time period, the distributor must call for an RMA number.

2. All parts and equipment must be returned with an RMA number for evaluation at customers expense. All claims are subject to an evaluation to determine if warranty will be approved.

3. When warranty is approved, the distributor’s account will be credited for the parts. If the warranty is denied, the distributor’s account will not be credited for any parts. Customer is responsible for any repair, shipping and handling costs.

US & Foreign Patents Pending

The design features herein are protected under the laws of the

United States Patent and Trademark Office

Super Cooling Ducting System

12 GALLON EXTRACTOR MANUAL

4

System

Vacuum System

Problem

No Vacuum /

Weak Vacuum

TROUBLE SHOOTING GUIDE

Possible Cause

1. Vac tank full

2. Float shut off tank screen dirty

3. Float ball stuck

4. Damaged or loose vac hose

5. Dump valve open

6. Access lid not sealed

7. Vac hose clogged

8. Air intake grid clogged

9. Leak in recovery tank

10. Water coming out of vacuum exhaust

Remedy

1. Empty tank

2. Clean the screen with water

3. Tap float to unstick and then clean

4. Attach or replace

5. Close valve

6. Replace gasket

7. Clear debris

8. Clean

9. Clean and dry area, patch with silicone

10. Use a low foaming detergent

Electrical

System

Unit will not turn on 1. Extension cord not plugged in

2. Switch not in the “ON” position

3. Building circuit overloaded

4. Wiring connections loose

Burning smell 1. Vacuum motor hung up

2. Pump motor hung up

1. Check if machine and cord are plugged in

2. Check switches, replace if necessary

3. Reset circuit

4. Unplug machine and check for loose wires

1. Replace Vacuum motor

2. Replace pump

Pump System

Pump is not running properly

1. No power to the pump

2. Jets on wand are clogged

3. In-line water filter is clogged

4. Debris in solution tank covering inlet

5. Kinked or loose hose

6. Pump failed

7. Quick disconnects are not

completely locked together

8. Heater is clogged with deposits

9. Pump is pulsating

10. Auto Prime valve is open

1. Check electrical system

2. Clean jet filters

3. Clean in-line filter

4. Clear debris

5. Check and replace hoses if necessary

6. Replace pump

7. Snap quick disconnects together

8. Flush heater with system maintainer or

replace if necessary

9. Check for clogged jets and clean

10. Close valve

Motor Gasket

10-1030-S 3-Stage

200psi Pump Tec

10-0812

10-0812-S

Female Quick Disconnect

10-0868

Intake/Exhaust

10-0822

Hatch Cover

10-0804

10-0870

80-0061

10-0803-H 10-0803

80-0059

10-0804-A

1/4” Strainer

10-0845

Model 2-100

1

7

3

5

4

2

6

M1

PUMP

M2

WHITE

GREEN

110VAC

POWER

SUPPLY

1- Solution Intake

2- Vacuum Hose

3- Vacuum Motor 1

4- Vacuum Motor 2

5- Vacuum Motor Manifold

6- 100psi Solution Pump

7- Motor Cooling Ducting

110VAC

POWER

SUPPLY

M1

WHITE

Models 3-100

M2

WHITE

GREEN

110VAC

POWER

SUPPLY

Models 2-100-H 3-100-H

YELLOW

ORANGE

110VAC

POWER

SUPPLY

M1 M2

HEATER 1

BLUE

110VAC

POWER

SUPPLY

M1 M2

PUMP

Models 2-200

WHITE

GREEN

110VAC

POWER

SUPPLY

110VAC

POWER

SUPPLY

M1

WHITE

Models 3-200

M2

WHITE

GREEN

110VAC

POWER

SUPPLY

YELLOW

ORANGE

M1 M2

110VAC

POWER

SUPPLY

HEATER 1

HEATER 2

Models 2-200-H, 3-200-H

BLUE

110VAC

POWER

SUPPLY

M1 M2

110VAC

POWER

SUPPLY

GREEN

WHITE

PUMP

Models 2-500, 3-500

WHITE

GREEN

110VAC

POWER

SUPPLY

YELLOW

ORANGE

110VAC

POWER

SUPPLY

BLUE

M1 M2

HEATER 1

Models 2-500-H, 3-500-H
