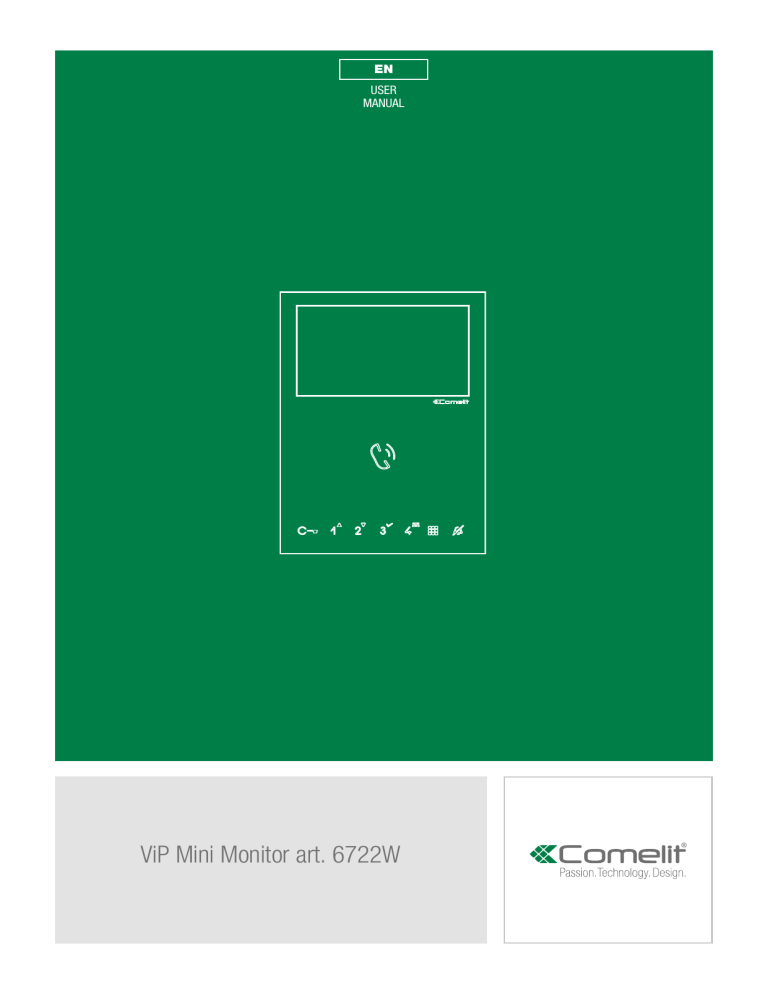

ViP Mini Monitor art. 6722W

ViP Mini Monitor art. 6722W
EN
USER
MANUAL
ViP Mini Monitor art. 6722W
Warning
Intended use
This Comelit product was designed for use in the creation of audio and video communication systems in residential,
commercial or industrial settings and in public buildings or buildings used by the public.
Installation
All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with
careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products.
Wires
Cut off the power supply before carrying out any maintenance procedures.
Use wires with a cross-section suited to the distances involved, observing the instructions provided in the system
manual.
We advise against running the system wires through the same duct as the power cables (230V or higher).
Safe usage
To ensure Comelit products are used safely:
• carefully observe the indications provided in the Manuals / Instruction sheets
• make sure the system created using Comelit products has not been tampered with / damaged.
Maintenance
Comelit products do not require maintenance aside from routine cleaning, which should be carried out in accordance
with the indications provided in the Manuals / Instruction sheets.
Any repair work must be carried out
•for the products themselves, exclusively by Comelit Group S.p.A.,
•for systems, by qualified technical personnel.
Disclaimer
Comelit Group S.p.A. does not assume any responsibility for
• any usage other than the intended use
• non-observance of the indications and warnings contained in this Manual / Instruction sheet.
Comelit Group S.p.A. nonetheless reserves the right to change the information provided in this Manual / Instruction
sheet at any time and without prior notice.
Table of contents
Warning............................................................................................. 2
Description of the monitor............................................................... 3
Messages...................................................................................................5
Video memory...........................................................................................5
Key functions.............................................................................................3
Call divert...................................................................................................5
Key to the indicator LEDs.........................................................................3
User setup menu.............................................................................. 6
ViP Mini Monitor............................................................................... 4
Language...................................................................................................6
Date and time settings..............................................................................4
Keypad lock...............................................................................................6
Functions available........................................................................... 4
Volume adjustment...................................................................................6
Cameras.....................................................................................................4
Backlight adjustment................................................................................6
Actuators...................................................................................................4
Melody settings.........................................................................................7
Doors open................................................................................................4
Installer setup menu......................................................................... 7
Answering service setup..........................................................................5
NAVIGATION TREE....................................................................................7
Video memory..............................................................................5
Record always..............................................................................5
2
Information................................................................................................6
Intercoms...................................................................................................4
Description of the monitor
1
 1.Monitor LCD 4,3”
 2.Soft-touch keys
 3.Microphone
Built-in magnetic induction loop
2
3
Key functions
MESSAGE MENU
MENU
ff LONG PRESS (> 3s): access message menu
ff SHORT PRESS: turns display on/off
ff LONG PRESS (> 5s): access SETUP menu
PRIVACY/DOCTOR
ff SHORT PRESS during menu navigation: call ESC
function / previous window / monitor standby
ff SHORT PRESS: activate / deactivate Privacy
function
AUDIO
Allows you to answer incoming calls.
√√ Incoming call:
ff Press to start the conversation
ff Press again to interrupt the conversation
»» (*) It is possible to resume the conversation
for as long as the LED continues to flash
ff LONG PRESS: (if enabled) enable / disable
automatic door opening on receipt of call from
external unit (Doctor function)
Key to the indicator LEDs
ff LONG PRESS (10s): enable the Hands Free
function (on receipt of a call the audio will be
activated automatically)
ff STEADY LED in standby: Hands Free function
activated
LOCK-RELEASE
ff STEADY LED in call: in communication
ff SHORT PRESS: open the door
ff SHORT PRESS: implement the programmed
function
PROGRAMMABLE KEYS
ff FLASHING LED: call in progress (*)
ff 1 FLASH: door open confirmed
ff FLASHING LED: call in progress
ff FLASHING LED (slow): door open
ff SHORT PRESS: implement the programmed
function
ff STEADY LED: Video memory / Call
divert activated
ARROW KEYS
ff FLASHING LED: signals presence in directory of
a video message that has not been viewed
ff LONG PRESS during a call: increase /reduce
audio volume
ff DURING MENU NAVIGATION up / down / right
/ left
CONFIRM SELECTION
ff SHORT PRESS: confirm a selection, select /
deselect an option
ff LONG PRESS: Save setting
ff 4 FLASHES: the device called is busy
ff 3 FLASHES EVERY 5 SEC.: Doctor function
activated
ff STEADY LED: Privacy function active (Ringtone in
silent mode)
ff STEADY AND FLASHING LED: Doctor and
Privacy active
3
ViP Mini Monitor
Functions available
The menu icons vary depending on the type of system
installed and the functions available.
Intercoms
ff Press the soft-touch key
view the main menu
This function allows you to call addresses saved in the
directory.
to access the display and
ff Access the dedicated section,
then select the device you wish to
call from the directory
Intercoms
07:15
Confirm call
JOHN
07:15
10/04/2017
10/04/2017
YES
NO
ff Scroll through the menu using the arrow keys
ff Confirm the selection by clicking on the tick symbol
ff Press Exit
display
to return to previous screen / turn off the
Date and time settings
This function allows you to set the time and date of the
device.
07:15
Cameras
This function allows you to view a directory of cameras and to
start live streaming.
ff Access the dedicated section,
then select the camera you wish
to interrogate from the directory
ff Access the dedicated section
10/04/2017
Actuators
Set the desired values for day / month / year /
hours / minutes.
07:15by selecting
This function allows you to activate an actuator
10/04/2017
it from the programmed directory.
ff Access the dedicated section,
then select the command
you wish to activate from the
directory
Save the setting
Doors open
07:15
This function allows you to view a directory of doors to check
10/04/2017
their status (open/closed).
ff Access the dedicated section to
view the directory, then select the
door to interrogate in order to start
live streaming from the camera.
07:15
10/04/2017
4
Answering service setup
Video messages
This function allows you to manage the parameters for the
device's video memory function.
ff Access the dedicated submenu
Memory
22/02/2017 20:25
07:15
10/04/2017
1.
20/02/2017 09:15
2.
3.
4.
  1. Selected video
Video memory
  2. Example of a previously viewed recording
Record always
  3. Date
  4. Time
ff Click
ff Click
on the recording preview to START playback
to STOP playback
ff Long press to delete the video recording.
Video memory
This function automatically starts audio/video recording in
the event of no reply.
ff Tick the box to enable the function
Video memory
This function allows you to enable/disable the video memory
on the device.
»» The icon in the main menu changes colour
»»
ff Scroll through the menu to the
icon and press
to confirm and
enable the function
The soft-touch key LED illuminates (Steady light)
»» The icon in the main menu
changes colour
Record always
07:15
This function automatically starts audio/video recording on
receipt of a call from an external unit.
»»
The soft-touch key LED
10/04/2017
illuminates (Steady light)
ff Tick the box to enable the function.
Both functions must be ticked
Call divert
This function allows you to quickly enable/disable the call
divert function.
Messages
This function allows you to access the ViP messaging system
of the device.
ff Scroll through the menu to the
icon and press
to confirm and
07:15
enable the function
10/04/2017
»» The icon in the main menu
changes colour
ff LONG PRESS (> 3s) to access the
dedicated video memory submenu
MESSAGES
Video messages
5
User setup menu
Information
This menu provides technical information about the device
(e.g. type of device, versions, addresses, etc.).
LONG PRESS (> 5s)
SETUP
ff Select User setup menu
ff Select one of the options in the list
SW:
IP:
MAC:
GW:
VIP:
Mem.:
SETUP
Language
2.0.100
169.254.156.131 (x/24)
00:25:29:03:AA:BB
192.168.1.1
00000101 Sub: 0
128 MB
Lock keypad
Information
Volume adjustment
Press the icon to exit the screen.
Backlight adjustment
Melody settings
Volume adjustment
This menu allows you to manage and adjust the audio volume
of the keys.
Language
You can change the interface language.
Volume adjustment
Keys
Language
Italiano
English
Français
Español
Português
Deutsch
ff Position the cursor on the desired option, then confirm the
or exit
selection
0
MAX
Keypad lock
7
This function can be used to lock the device touch screen for
60 seconds for cleaning purposes.
SETUP
ff Increase/decrease the value using the arrow keys
Confirm keypad lock
for 60 seconds?
YES
NO
»» After 60 seconds, the screen is unlocked automatically
6
ff Confirm the selection by clicking on the tick symbol
ff Press Exit
to return to previous screen
Backlight adjustment
It is possible to increase and reduce the monitor backlighting
level.
Installer setup menu
0
MAX
LONG PRESS (> 5s)
7
ff Select Installer setup menu
ff Type in the password (default = 1111) and confirm
ff Increase/decrease the value using the arrow keys
ff Confirm the selection by clicking on the tick symbol
ff Press Exit
Enter code:
1111
to return to the previous screen
Melody settings
From the menu you can choose a melody for each of the
device's call functions.
Melody settings
External unit call
NAVIGATION TREE
INSTALLER SETUP MENU.................................................................
Directories...................................................................................................
Intercom call
Intercoms...............................................................................................
Floor door call
Actuators...............................................................................................
Doors.....................................................................................................
Alarms
Cameras.................................................................................................
Key programming........................................................................................
....................................................................................................
Lock-release...................................................................................
ff Scroll through the options using the arrow keys
ff Press the tick symbol
to access the submenu
Actuator..........................................................................................
Function disabled...........................................................................
................................................................................................
Intercom.........................................................................................
Self-ignition....................................................................................
Melody selection
Melody 1
Melody 2
Melody 3
Melody 4
Melody 5
Melody 6
Alarms.............................................................................................
Lock-release...................................................................................
Actuator..........................................................................................
Function disabled...........................................................................
..........................................................................................................
Privacy / Doctor / Privacy Doctor / ................................................
Total reset....................................................................................................
Addresses....................................................................................................
ViP ADDRESS PROGRAMMING....................................................
Set ringtone repetition................................................................................
Set call times...............................................................................................
Awaiting reply ................................................................................
ff Scroll through the options using the arrow keys
to
hear a preview of the melody and confirm the selection
Talk.................................................................................................
Intercom conversation....................................................................
Reset wait time...............................................................................
Call divert.....................................................................................................
Activate timed divert.......................................................................
Alarms..........................................................................................................
Alarm..............................................................................................
Panic...............................................................................................
Fire..................................................................................................
Priority call 4...................................................................................
For programming and configuration of the internal unit and
the system parameters, use the ViP Manager software,
which can be downloaded from pro.comelitgroup.com
7
1ª edizione 02/2017
cod. 2G40001897
CERTIFIED MANAGEMENT SYSTEMS
w w w.comelitgroup.com
Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
