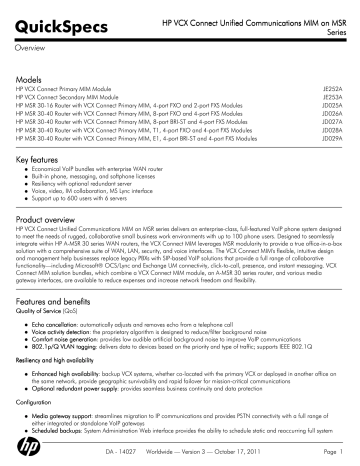

QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Overview
Models
HP VCX Connect Primary MIM Module
HP VCX Connect Secondary MIM Module
HP MSR 30-16 Router with VCX Connect Primary MIM, 4-port FXO and 2-port FXS Modules
HP MSR 30-40 Router with VCX Connect Primary MIM, 8-port FXO and 4-port FXS Modules
HP MSR 30-40 Router with VCX Connect Primary MIM, 8-port BRI-ST and 4-port FXS Modules
HP MSR 30-40 Router with VCX Connect Primary MIM, T1, 4-port FXO and 4-port FXS Modules
HP MSR 30-40 Router with VCX Connect Primary MIM, E1, 4-port BRI-ST and 4-port FXS Modules
JE252A
JE253A
JD025A
JD026A
JD027A
JD028A
JD029A
Key features
Economical VoIP bundles with enterprise WAN router
Built-in phone, messaging, and softphone licenses
Resiliency with optional redundant server
Voice, video, IM collaboration, MS Lync interface
Support up to 600 users with 6 servers
Product overview
HP VCX Connect Unified Communications MIM on MSR series delivers an enterprise-class, full-featured VoIP phone system designed
to meet the needs of rugged, collaborative small business work environments with up to 100 phone users. Designed to seamlessly
integrate within HP A-MSR 30 series WAN routers, the VCX Connect MIM leverages MSR modularity to provide a true office-in-a-box
solution with a comprehensive suite of WAN, LAN, security, and voice interfaces. The VCX Connect MIM's flexible, intuitive design
and management help businesses replace legacy PBXs with SIP-based VoIP solutions that provide a full range of collaborative
functionality—including Microsoft® OCS/Lync and Exchange UM connectivity, click-to-call, presence, and instant messaging. VCX
Connect MIM solution bundles, which combine a VCX Connect MIM module, an A-MSR 30 series router, and various media
gateway interfaces, are available to reduce expenses and increase network freedom and flexibility.
Features and benefits
Quality of Service (QoS)
Echo cancellation:
cancellation automatically adjusts and removes echo from a telephone call
Voice activity detection:
detection the proprietary algorithm is designed to reduce/filter background noise
Comfort noise generation:
generation provides low audible artificial background noise to improve VoIP communications
802.1p/Q VLAN tagging:
tagging delivers data to devices based on the priority and type of traffic; supports IEEE 802.1Q
Resiliency and high availability
Enhanced high availability:
availability backup VCX systems, whether co-located with the primary VCX or deployed in another office on
the same network, provide geographic survivability and rapid failover for mission-critical communications
Optional redundant power supply:
supply provides seamless business continuity and data protection
Configuration
Media gateway support:
support streamlines migration to IP communications and provides PSTN connectivity with a full range of
either integrated or standalone VoIP gateways
Scheduled backups:
backups System Administration Web interface provides the ability to schedule static and reoccurring full system
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 1
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Overview
backups
Integration
Converged IP telephony and data:
data seamlessly integrate the VCX Connect MIM (multifunction interface module) into an HP AMSR 30 series Power over Ethernet (PoE) or non-PoE router to deliver enterprise-class routing and telephony functionality
Investment protection
All-in-one solution:
solution decreases capital and operating expenses and increases network freedom and flexibility by integrating a
comprehensive suite of available telephony, routing, switching, wireless and security interfaces and features—all in the same
box
Analog phone support:
support leverages existing investment in analog phones while implementing a full set of PBX features
Ease of use
Built-in licensing:
licensing VCX Connect MIM system ships with default licenses—VCX IP Telephony/IP Messaging Server license, 25
business phone licenses, 25 IP messaging seat licenses, 25 Desktop Communicator softphone licenses, 25 Convergence
Client softphone licenses, and 4 analog/entry licenses
LDAP synchronization with Microsoft® Active Directory, IBM Lotus Domino, Linux OpenLDAP:
OpenLDAP easily integrate, filter, and
synchronize employee contact information, thereby simplifying administration and providing reliable connections based on the
most current user information
Ease of deployment:
deployment VCX Connect MIM's out-of-the-box first-time configuration provides simpler installations using a Webbased, wizard-like interface that walks you through the installation process
Easy to use:
use GUI-driven central management and configuration
NEW Replication status:
status System Administration Web interface displays the replication status of primary and secondary pairs
Scalability
Supported devices:
devices let you pay as you grow up to 100 devices per platform and up to 600 devices in total via VCX global
directory, which enables up to six VCX Connect MIM platforms to function as a single system
Additional information
Optional mobility for telecommuters:
telecommuters optional HP VCX IP Telecommuting series provides remote users with the full benefit of
their corporate IP telephony systems without compromising security
Optional multimedia conference bridge:
bridge when businesses require a dense conferencing system to reduce the overhead and
cost of expensive third-party conferencing products, the HP VCX V7000 IP Conferencing series provides capabilities that
include host and participant Web-based conference controls, instant and emergency conferences with automatic dial-out
options, scheduled and meet-me restricted conferences (requires participant passcode), peer-to-peer and one-to-many
conferences, and more
Optional network management:
management uses the HP Intelligent Management Center (IMC) and Voice Services Manager (VSM) to
configure, monitor, and enhance the performance of media servers, gateways, and endpoints; to monitor VoIP traffic; and to
control voice network quality; enhancements for the IMC VSM include MOS scoring and packet loss notification MIB changes;
the VCX license MIBs support IMC
Product architecture
Multi-site architecture:
architecture a highly flexible architecture eliminates the dependency on any single component for unprecedented
resiliency and end-to-end survivability; allow you to use Web-based centralized administration, global directory, and global
voicemail to seamlessly link VCX systems together to scale your IP-PBX network as your business grows
Standards-based IP-PBX:
IP-PBX supports standard PBX and advanced telephony and messaging features based on the IETF Session
Initiation Protocol (SIP) standards; supports third-party SIP-based applications and devices
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 2
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Overview
Integrated server:
server IP telephony and IP messaging modules run on Linux OS
Direct SIP integration with Microsoft OCS/Lync and Exchange UM:
UM VCX direct SIP integration with Microsoft OCS/Lync
allows VCX phones/clients to call and have basic features with phones/clients connected to OCS/Lync; OCS/Lync has access
to VCX IP-PBX phones, clients, and gateways; VCX supports direct SIP integration with Office Communication Server 2007,
Office Communication Server 2007 R2, and Microsoft Lync Server 2010
Technical features
Ad hoc conferencing:
conferencing VCX Connect MIM supports up to 30 sessions of ad hoc conferencing with a maximum of six parties
per conference
Shared lines and extension status:
status single-line and multi-line phone support and bridged extensions for executives and
administrators
User productivity
Unified communications:
communications increases employee collaboration through the audio, video, instant messaging, file sharing, and
presence capabilities within the HP Desktop Communicator; extends the Microsoft environment with HP Desktop
Communicator Outlook Edition add-on to enable click-to-call/conference via Microsoft Outlook, to capture and retrieve call
notes with Microsoft Journal, and to perform desktop call recording; HP VCX is fully integrated with Lotus Sametime
Unified messaging:
messaging consolidates users' voicemail, email, and faxes into a single inbox for flexible, location-independent
retrieval and management; schedules appropriate times when messages are delivered; sends voicemails to individuals or
groups using extensive and easy-to-maintain distribution lists; sets up find me/follow me services to conveniently manage one's
own access to help ensure that important calls are not missed; auto-delivers incoming fax calls to email and sends faxes from
email
Web user interface:
interface listen to and manage voicemail messages
Lotus Domino/Sametime 8.5 support:
support Sametime 8.5 can be deployed using a Sametime System Console and new meeting
server functionality; VCX provides two packages for Sametime 8.5; can be deployed on Sametime Community Server ("classic"
to pre-8.5) or on Sametime Media Manager (for 8.5) using the system console
Voice functionality
Hot desking:
desking mobile users can effortlessly traverse within the VCX system, log into another handset, and have all their desktop
extension settings, including voicemail, at their fingertips
Call admission control:
control fine-tune and throttle media traffic to prevent VoIP over-subscription—even down to a particular
extension
Pin codes:
codes prevent unauthorized outbound dialing and/or manage and record telephony calls via forced account codes and
customer account and billing codes; PIN code portability allows users to roam the VCX system and utilize their existing data
Hunt groups:
groups built-in call distribution provides agent log-in functionality; support for 3 selectable call routing algorithms
Automatic call distribution:
distribution add-on economical call center application that includes 5 selectable routing algorithms, the
ability to capture real-time statistics, and support for remote agents in various VCX locations
Simultaneous Ring provides mobility for VCX users:
users Simultaneous Ring feature allows a user to configure their external phone
(such as cell phone) to simultaneously ring with their desktop VCX IP phone; users can answer the call at any of the ringing
endpoints; when a user at one of the ringing endpoints answers the call, the other ringing endpoint stops ringing; it allows a
user to be reached at two different locations by ringing both locations at the same time
350x IP phone background/screen saver image restore : VCX Web interface provides the ability to reset background/screen
saver image to factory defaults on 350x IP phones; if an image is incorrect, VCX will display a notification to the administrator
Warranty and support
1-year warranty:
warranty with advance replacement and 30-calendar-day delivery (available in most countries)
Electronic and telephone support:
support limited electronic and telephone support is available from HP; refer to:
www.hp.com/networking/warranty for details on the support provided and the period during which support is available
Software releases:
releases refer to: www.hp.com/networking/warranty for details on the software releases provided and the period
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 3
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Overview
during which software releases are available for your product(s)
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 4
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
HP VCX Connect Primary MIM Module (JE252A)
1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex:
Ports
half or full
2 USB 2.0
8.27(d) x 5.91(w) x 1.57(h) in. (21 x 15 x 4 cm) (1U height)
Physical characteristics
Dimensions
2.43 lb. (1.1 kg)
Weight
Intel® Celeron® @ 600 MHz, 1 GB DDR SODIMM; storage: 160 GB HD
Memory and processor
Module
VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot
Mounting
41ºF to 104ºF (5ºC to 40ºC)
Environment
Operating temperature
10% to 80%
Operating relative
humidity
-40ºF to 158ºF (-40ºC to 70ºC)
Nonoperating/Storage
temperature
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
Management
HTTPS
Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or
Notes
voicemail ports supported Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30
Series analog, ISDN, and digital gateways
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
Services
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
HP VCX Connect Secondary MIM Module (JE253A)
1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex:
Ports
half or full
2 USB 2.0
8.27(d) x 5.91(w) x 1.57(h) in. (21 x 15 x 4 cm)
Physical characteristics
Dimensions
2.43 lb. (1.1 kg)
Weight
Intel® Celeron® @ 600 MHz, 1 GB DDR SODIMM; storage: 160 GB HD
Memory and processor
Module
VCX Connect Secondary module slides into HP A-MSR 30 Series router MIM slot
Mounting
41ºF to 104ºF (5ºC to 40ºC)
Environment
Operating temperature
10% to 80%
Operating relative
humidity
-40ºF to 158ºF (-40ºC to 70ºC)
Nonoperating/Storage
temperature
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
Management
HTTPS
Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or
Notes
voicemail ports supported Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30
Series analog, ISDN, and digital gateways
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
Services
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 5
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
HP MSR 30-16 Router with VCX Connect Primary MIM, 4-port FXO and 2-port FXS Modules (JD025A)
3 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX);
Ports
Duplex: half or full
3 USB 2.0
4 RJ-11 FXO ports
2 RJ-11 FXS ports
1 Compact Flash port
17.39(d) x 17.4(w) x 1.74(h) in. (44.17 x 44.2 x 4.42 cm) (1U height)
Physical characteristics
Dimensions
16.25 lb. (7.37 kg) including bundle components
Weight
Mounting
Environment
Electrical characteristics
Management
Notes
VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot; A-MSR30 router mounts
in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)
41ºF to 104ºF (5ºC to 40ºC)
Operating temperature
10% to 80%
Operating relative
humidity
-40ºF to 158ºF (-40ºC to 70ºC)
Nonoperating/Storage
temperature
100-240 VAC
Voltage
50/60 Hz
Frequency
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
HTTPS
Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or
voicemail ports supported MSR 30-16 integrated voice gateways options:
Supports up to a maximum of twelve (12) analog voice ports
Supports up to a maximum of eight (8) ISDN voice ports
Supports up to a maximum of four (4) E1 or T1 digital voice spans
Services
Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30 Series analog, ISDN, and
digital gateways
Bundle includes MSR 30-16 router with VCX Connect Primary MIM, 2-port FXO SIC (qty 2), and 2-port
FXS SIC modules
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 6
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
HP MSR 30-40 Router with VCX Connect Primary MIM, 8-port FXO and 4-port FXS Modules (JD026A)
1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex:
Ports
half or full
4 USB 2.0
8 RJ-11 FXO ports
4 RJ-11 FXS ports
2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP
1 Compact Flash port
16.62(d) x 17.4(w) x 3.47(h) in. (42.21 x 44.2 x 8.81 cm) (2U height)
Physical characteristics
Dimensions
30.29 lb. (13.74 kg) including bundle components
Weight
VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot; A-MSR30 router mounts
Mounting
in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)
41ºF to 104ºF (5ºC to 40ºC)
Environment
Operating temperature
10% to 80%
Operating relative
humidity
-40ºF to 158ºF (-40ºC to 70ºC)
Nonoperating/Storage
temperature
100-240 VAC
Electrical characteristics Voltage
50/60 Hz
Frequency
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
Management
HTTPS
Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or
Notes
voicemail ports supported MSR 30-40 integrated voice gateways options:
Supports up to a maximum of twenty-four (24) analog voice ports
Supports up to a maximum of sixteen (16) ISDN voice ports
Supports up to a maximum of five (5) E1 or T1 digital voice spans
Services
Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30 Series analog, ISDN, and
digital gateways
Bundle includes MSR 30-40 router with VCX Connect Primary MIM, 4-port FXO MIM (qty 2), and 4-port
FXS MIM modules
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 7
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
HP MSR 30-40 Router with VCX Connect Primary MIM, 8-port BRI-ST and 4-port FXS Modules (JD027A)
1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex:
Ports
half or full
4 USB 2.0
8 RJ-45 ISDN voice ports
4 RJ-11 FXS ports
2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP
1 Compact Flash port
16.62(d) x 17.4(w) x 3.47(h) in. (42.21 x 44.2 x 8.81 cm) (2U height)
Physical characteristics
Dimensions
30.34 lb. (13.76 kg) including bundle components
Weight
VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot; A-MSR30 router mounts
Mounting
in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)
41ºF to 104ºF (5ºC to 40ºC)
Environment
Operating temperature
10% to 80%
Operating relative
humidity
-40ºF to 158ºF (-40ºC to 70ºC)
Nonoperating/Storage
temperature
100-240 VAC
Electrical characteristics Voltage
50/60 Hz
Frequency
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
Management
HTTPS
Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or
Notes
voicemail ports supported MSR 30-40 integrated voice gateway options:
Supports up to a maximum of twenty-four (24) analog voice ports
Supports up to a maximum of sixteen (16) ISDN voice ports
Supports up to a maximum of five (5) E1 or T1 digital voice spans
Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30 Series analog, ISDN, and
digital gateways
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 8
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
Services
Bundle includes MSR 30-40 router with VCX Connect MIM Primary, 4-port BRI-ST MIM (qty 2), and 4port FXS MIM modules
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
HP MSR 30-40 Router with VCX Connect Primary MIM, T1, 4-port FXO and 4-port FXS Modules (JD028A)
1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex:
Ports
half or full
4 USB 2.0
1 RJ-45 T1 port
4 RJ-11 FXO ports
4 RJ-11 FXS ports
2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP
1 Compact Flash port
16.62(d) x 17.4(w) x 3.47(h) in. (42.21 x 44.2 x 8.81 cm) (2U height)
Physical characteristics
Dimensions
30.23 lb. (13.71 kg) including bundle components
Weight
VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot; A-MSR30 router mounts
Mounting
in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)
41ºF to 104ºF (5ºC to 40ºC)
Environment
Operating temperature
10% to 80%
Operating relative
humidity
-40ºF to 158ºF (-40ºC to 70ºC)
Nonoperating/Storage
temperature
100-240 VAC
Electrical characteristics Voltage
50/60 Hz
Frequency
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 9
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
Management
Notes
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
HTTPS
Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or
voicemail ports supported MSR 30-40 integrated voice gateway options:
Supports up to a maximum of twenty-four (24) analog voice ports
Supports up to a maximum of sixteen (16) ISDN voice ports
Supports up to a maximum of five (5) E1 or T1 digital voice spans
Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30 Series analog, ISDN, and
digital gateways
Bundle includes MSR 30-40 router with VCX Connect Primary MIM, 1-port T1 MIM, 24-Channel VPM,
4-port FXO MIM, and 4-port FXS MIM modules
Services
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Features
SYSTEM
Ad hoc conferencing
Centralized management
Call detail records
Converged application based architecture
Emergency services
End-to-end SIP signaling
Global directory
Global voice mail
IP telephony
IP unified messaging
Linux operating system with additional security
SIP back-to-back user Agent
Standards-based connectivity
System redundancy
Web services SDK
Mute
Paging (analog external paging system)
Paging (group - zone)
Paging (phone-to-phone), send beep with calling
number
Paging (SIP external paging system)
Phone lock/unlock
Privacy (block silect monitor/barge-in)
Privacy (calling number suppression)
Serial calling (transfer with callback)
Silent monitor/barge-in
Simultaneous Ringing
Speed dial (personal)
Speed dial (system)
Transfer to voicemail (direct)
Voicemail access
Warmline (warm ring down circuits)
RESILIENCY
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 10
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
Redundancy, IP telephony
Redundancy, IP messaging
Redundancy, IP phones and media gateways
Redundancy, optional RAID
Redundancy, optional power supply
IP TELEPHONY ROUTING
Calendar bands
Call admission control
Call blocking
Daytime bands
Dialing prefixes
SYSTEM ADMINISTRATION
Direct Inward Dialing (DID)
Add VCX licenses
Direct Outward Dialing (DOD)
Administration access control
DNIS (Dialed Number Identification Service)
Administration secure access
E.164 numbering plan
Audit trails and logging enhancements
External directory access
Command Line Interface
Holidays
Configuration back-up and restore
NANP support
CPU, memory, I/O statistics
Network abbreviated dialing
First-time configuration
Number translations
First-time data import
Outdial patterns
Importing data
Patterns
Installed component versions
Prioritization of trunks/routes
Multiple administrators
Private line service
Multiple language support
Requestors
Online administrator help
Routes
Password support, administrator and system access Route (plans and plan wizard)
Provisioning; bulk moves, adds, changes
Routing (alternate)
Remove previous software versions
Routing (blacklist)
Resetting a VCX server
Routing (call coverage)
Reset to defaults
Routing (first available)
Root directory access
Routing (global directory)
Searches
Routing (IP to PSTN)
Site configuration data
Routing (IP to IP)
Software upgrades and rollbacks
Routing (least cost)
Switch software versions
Routing (PSTN to IP)
System information
Routing (source based)
User data LDAP synchronization: Lotus Domino
Routing (VPN numbering plan)
running on IBM; Lotus Domino running on
Routing (white list)
Windows® Server 2003, 2008; Microsoft Active
Trusted end points
Directory on Windows Server 2003, 2008;
Weekday bands
OpenLDAP on Linux
VCX service licensing
IP MESSAGING ARCHITECTURAL
View VCX licensing data
G.711
Virtual numbers
G.729
Global voicemail central server
QUALITY OF SERVICE
Redundancy (intelligent mirroring)
DSCP tagging
Dynamic jitter buffer
IP MESSAGING
G.711 audio codec
Message annotation
G.729ab audio codec
Message append
Packet-loss rate
Message auto-delivery
Pay-load length
Message auto playback
QoS: 802.1p tagging (Prioritization)
Message broadcast
QoS: 802.1Q tagging (VLAN)
Message delete
Video codec
Message delete retrieval
Video resolution
Message delivery report
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 11
HP VCX Connect Unified Communications MIM on MSR
Series
QuickSpecs
Technical Specifications
Wide-band audio codec
SECURITY
Network security policies
Operating system security
Secure access
Security: Locking MAC addresses to switches
User authentication methods
SYSTEM MANAGEMENT
Alarm notification
Audio performance reporting (local)
Auto discovery and management of IP devices
Intelligent Management Center Voice Service
Manager: centralized management
Maintenance, graceful shutdown of services
Operating system updates
Quality of service end of call reporting
SNMP MIB access
SNMP traps
SNMP v1, v3
System back-ups
REPORTING
Call detail records (reporting)
Call detail records (structure)
IP TELEPHONY CALLING
Anonymous all
Anonymous next
Anonymous call reject
Automatic call distribution (ACD)
ACD groups (call coverage)
ACD groups (calling groups)
ACD groups (CDR reporting)
ACD groups (circular)
ACD groups (feature interactions)
ACD groups (least-call count)
ACD groups (linear)
ACD groups (login/logout)
ACD groups (malicious call trace)
ACD groups (message-waiting indication)
ACD groups (most idle agent)
ACD groups (multisite)
ACD groups (real-time statistics)
ACD groups (view ACD group status)
Automatic line selection (Multiple system
appearance)
Bridged line appearance
Bridge line appearance (MWI)
Bridge line appearance (shared hold)
Busy lamp field
DA - 14027
Message delivery to non-subscribers
Message deposit
Message deposit treatment options
Message folders
Message forward
Message notification
Message notification options
Message priority
Message record options
Message reply
Message retrieval
Message review
Message review options
Message review playback controls
Message save
Message schedule delivery
Message send
Message send treatment options
Mailbox login
GREETING
Default system greeting
Personal busy greeting
Personal extended absence greeting
Personal normal greeting
Personal scheduled greetings
DISTRIBUTION LIST
Administrator distribution lists
Personal distribution lists
System distribution lists
DIRECTORY
Directory search
Directory search (dial-by-name)
USER PRODUCTIVITY
Auto attendants
Bulletin board
Call back
Call monitor
Family mailbox
Force password change
Listen and manage voicemail messages from Web
user interface
Mailbox alias
Mailbox auto login
Mailbox full alert
Mailboxes for announcements
Mailboxes for forms (Q&A)
Mailboxes for information
Mailboxes for surveys
Worldwide — Version 3 — October 17, 2011
Page 12
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
Call conference (drop)
Call conference (six-way calling)
Call conference (three-way calling)
Call coverage
Call drop
Call duration display
Call forward all (universal)
Call forward busy
Call forward no answer
Call forward out-of-coverage
Call forward programmable
Call forward reminder
Call forward remote
Call history (missed/answered/placed logs)
Call history display sort
Call hold
Call hold reminder
Call park/retrieve
Call park (button mapping)
Call park (fallback)
Call pick-up (directed)
Call pick-up (group)
Call restrictions (black list)
Call restrictions (blocking inbound)
Call restrictions (blocking outbound)
Call restrictions (call screening)
Call restrictions (forward to trunk)
Call restrictions (toll screening)
Call restrictions (transfer to trunk)
Call restrictions (white list)
Call return
Call transfer (attended)
Call transfer (fallback on transfer failure)
Call transfer (unattended)
Call transfer (restrictions)
Call waiting
Caller ID (called party)
Caller ID (calling party number)
Caller ID (calling party name)
Caller ID (privacy)
Camp on busy (automatic call back)
Class of service override
Customer account and billing codes
Delayed or no ringing
Directory (local user)
Directory (global user)
Distinctive ringing, ring patterns (different call types)
Distinctive ringing, selective ringing (ident-a-call)
Do not disturb
DTMF dialing
Feature codes
Feature access codes
DA - 14027
Mailboxes for system bulletins/broadcasts
Message-waiting indication
Music-on-hold
Outline help
Personal address book
Personal auto-attendant
Privacy
Prompt bypass
Set-up assistant tutorial
Shortcut keys
User password change
User provisioning through TUI
User provisioning through Web
Virtual calling card
Zero out
FIND ME/FOLLOW ME
Find me/follow me
Find me/follow me call intercept
FAX MAIL
Electronic fax sending
Fax auto-delivery to email
Fax auto-delivery to fax machine
Fax delivery to fax machine
Fax message deposit
Fax message retrieval
Never-busy fax
EMAIL INTEGRATION
Client integration
Email auto delivery
Email integration
Email synchronization
Fax attachment in email (.tif or .pdf formats)
Unified inbox for Domino on Windows
Voicemail POP3/IMAP4 client integration
IP MESSAGING ADMINISTRATION
Administration of all parameters through X-terminal
interface
Class of service administration
Company/division administration
Export mailbox/COS
Import mailbox/COS
IMAP SSLv3 support
IP messaging Web portal
Mailbox administration
Mailbox on-the-fly
Mailbox un-login
Multiple administration
Multiple language support
Worldwide — Version 3 — October 17, 2011
Page 13
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
Forced account codes
Forward to mail
Hands-free support
Hotline (hot ring down circuits)
Hunt groups
Hunt groups (call coverage)
Hunt groups (calling group)
Hunt groups (circular)
Hunt groups (feature interactions)
Hunt groups (linear)
Hunt groups (login/logout)
Hunt groups (malicious call trace)
Hunt groups (message-waiting indication)
Hunt groups (multisite)
Hunt groups (view hunt group status)
Last number redial
Malicious call trace
Message-waiting indication (MWI), audio
Message-waiting indication (MWI), visual
Missed call indicator
Mobility (multisite hot desking)
Mobility (single-region hot desking)
Music on hold
Multiple permission levels
Pager templates
Send-user groups
Support for multi-language voicemail
Telephone user interface (native)
Telephone user interface (traditional)
Time zones
Upload audio files via Web interface
VPIM support
IP MESSAGING MANAGEMENT
System alarms
System backup
System restoration
System status
LANGUAGE SUPPORT
Chinese (Mandarin), Dutch, English (Australian, UK
and US), French (Canadian and Parisian), German,
Italian, Korean, Portuguese (Brazilian), Russian and
Spanish (Castilian and LAT)
HP MSR 30-40 Router with VCX Connect Primary MIM, E1, 4-port BRI-ST and 4-port FXS Modules (JD029A)
1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex:
Ports
half or full
4 USB 2.0
1 E1 port
4 RJ-45 ISDN voice ports
4 RJ-11 FXS ports
2 RJ-45 autosensing 100/1000 ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASET); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only
2 SFP
1 Compact Flash port
16.62(d) x 17.4(w) x 3.47(h) in. (42.21 x 44.2 x 8.81 cm) (2U height)
Physical characteristics
Dimensions
30.23 lb. (13.71 kg) including bundle components
Weight
VCX Connect Primary module slides into HP A-MSR 30 Series router MIM slot; A-MSR30 router mounts
Mounting
in EIA-standard 19 inch telco rack or equipment cabinet or table top (hardware included)
41ºF to 104ºF (5ºC to 40ºC)
Environment
Operating temperature
10% to 80%
Operating relative
humidity
-40ºF to 158ºF (-40ºC to 70ºC)
Nonoperating/Storage
temperature
100-240 VAC
Electrical characteristics Voltage
50/60 Hz
Frequency
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 14
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
Management
Notes
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
HTTPS
Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax, or
voicemail ports supported MSR 30-40 integrated voice gateway options:
Supports up to a maximum of twenty-four (24) analog voice ports
Supports up to a maximum of sixteen (16) ISDN voice ports
Supports up to a maximum of five (5) E1 or T1 digital voice spans
Support for standalone VCX V7111, VCX V7122, MSR 20-xx, and MSR 30 Series analog, ISDN, and
digital gateways
Bundle includes MSR 30-40 router with VCX Connect Primary MIM, 1-port E1 MIM, 32-Channel VPM,
4-port BRI-ST MIM, and 4-port FXS MIM modules
Services
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Features
SYSTEM
Ad hoc conferencing
Centralized management
Call detail records
Converged application based architecture
Emergency services
End-to-end SIP signaling
Global directory
Global voice mail
IP telephony
IP unified messaging
Linux operating system with additional security
SIP back-to-back user Agent
Standards-based connectivity
System redundancy
Web services SDK
Direct SIP integration with Microsoft Lync and
Exchange UM
DA - 14027
Paging (analog external paging system)
Paging (group - zone)
Paging (phone-to-phone), send beep with calling
number
Paging (SIP external paging system)
Phone lock/unlock
Privacy (block silect monitor/barge-in)
Privacy (calling number suppression)
Serial calling (transfer with callback)
Silent monitor/barge-in
- Simultaneous ringing allows for user mobility by
ringing desk phone and cell phone
Speed dial (personal)
Speed dial (system)
Transfer to voicemail (direct)
Voicemail access
Warmline (warm ring down circuits)
ACD Agent licenses are assigned dynamically
Worldwide — Version 3 — October 17, 2011
Page 15
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
ACD Agents can be automatically logged in
RESILIENCY
Redundancy, IP telephony
Redundancy, IP messaging
Redundancy, IP phones and media gateways
Redundancy, optional RAID
Redundancy, optional power supply
IP TELEPHONY ROUTING
Calendar bands
Call admission control
Call blocking
Daytime bands
Dialing prefixes
SYSTEM ADMINISTRATION
Direct Inward Dialing (DID)
Add VCX licenses
Direct Outward Dialing (DOD)
Administration access control
DNIS (Dialed Number Identification Service)
Administration secure access
E.164 numbering plan
Audit trails and logging enhancements
External directory access
Command Line Interface
Holidays
Configuration back-up and restore
NANP support
CPU, memory, I/O statistics
Network abbreviated dialing
First-time configuration
Number translations
First-time data import
Outdial patterns
Importing data
Patterns
Installed component versions
Prioritization of trunks/routes
Multiple administrators
Private line service
Multiple language support
Routes
Online administrator help
Route (plans and plan wizard)
Password support, administrator and system access Routing (alternate)
Provisioning; bulk moves, adds, changes
Routing (blacklist)
Remove previous software versions
Routing (call coverage)
Resetting a VCX server
Routing (first available)
Reset to defaults
Routing (global directory)
Root directory access
Routing (IP to PSTN)
Searches
Routing (IP to IP)
Site configuration data
Routing (least cost)
Software upgrades and rollbacks
Routing (PSTN to IP)
Switch software versions
Routing (source based)
System information
Routing (VPN numbering plan)
User data LDAP synchronization: Lotus Domino
Routing (white list)
running on IBM; Lotus Domino running on
Trusted end points
Windows® Server 2003, 2008; Microsoft Active
Weekday bands
Directory on Windows Server 2003, 2008;
Extensions and mailboxes can start with "0"
OpenLDAP on Linux
VCX service licensing
IP MESSAGING ARCHITECTURAL
View VCX licensing data
G.711
Virtual numbers
G.729
Extensions and mailboxes can start with "0"
Global voicemail central server
Selectively delete Future Delivery messages
Redundancy (intelligent mirroring)
Scheduled VCX backups
350x IP Phone Background/Screen saver Image
IP MESSAGING
reset to factory defaults via web
Message annotation
Message append
QUALITY OF SERVICE
Message auto-delivery
DSCP tagging
Message auto playback
Dynamic jitter buffer
Message broadcast
G.711 audio codec
Message delete
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 16
HP VCX Connect Unified Communications MIM on MSR
Series
QuickSpecs
Technical Specifications
G.729ab audio codec
Packet-loss rate
Pay-load length
QoS: 802.1p tagging (Prioritization)
QoS: 802.1Q tagging (VLAN)
Video codec
Video resolution
Wide-band audio codec
SECURITY
Network security policies
Operating system security
Secure access
Security: Locking MAC addresses to switches
User authentication methods
SYSTEM MANAGEMENT
Alarm notification
Audio performance reporting (local)
Auto discovery and management of IP devices
Intelligent Management Center Voice Service
Manager: centralized management
Maintenance, graceful shutdown of services
Operating system updates
Quality of service end of call reporting
SNMP MIB access
SNMP traps
SNMP v1, v3
System back-ups
Scheduled VCX backups
QoS MIB and license MIB enhancements for IMC
VSM
REPORTING
Call detail records (reporting)
Call detail records (structure)
IP TELEPHONY CALLING
Anonymous all
Anonymous next
Anonymous call reject
Automatic call distribution (ACD)
ACD groups (call coverage)
ACD groups (calling groups)
ACD groups (CDR reporting)
ACD groups (circular)
ACD groups (feature interactions)
ACD groups (least-call count)
ACD groups (linear)
ACD groups (login/logout)
ACD groups (malicious call trace)
ACD groups (message-waiting indication)
DA - 14027
Message delete retrieval
Message delivery report
Message delivery to non-subscribers
Message deposit
Message deposit treatment options
Message folders
Message forward
Message notification
Message notification options
Message priority
Message record options
Message reply
Message retrieval
Message review
Message review options
Message review playback controls
Message save
Message schedule delivery
Message send
Message send treatment options
Mailbox login
GREETING
Default system greeting
Personal busy greeting
Personal extended absence greeting
Personal normal greeting
Personal scheduled greetings
DISTRIBUTION LIST
Administrator distribution lists
Personal distribution lists
System distribution lists
DIRECTORY
Directory search
Directory search (dial-by-name)
USER PRODUCTIVITY
Auto attendants
Bulletin board
Call back
Call monitor
Family mailbox
Force password change
Listen and manage voicemail messages from Web
user interface
Mailbox alias
Mailbox auto login
Mailbox full alert
Mailboxes for announcements
Mailboxes for forms (Q&A)
Worldwide — Version 3 — October 17, 2011
Page 17
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
ACD groups (most idle agent)
ACD groups (multisite)
ACD groups (real-time statistics)
ACD groups (view ACD group status)
Automatic line selection (Multiple system
appearance)
Bridged line appearance
Bridge line appearance (MWI)
Bridge line appearance (shared hold)
Busy lamp field
Call conference (drop)
Call conference (six-way calling)
Call conference (three-way calling)
Call coverage
Call drop
Call duration display
Call forward all (universal)
Call forward busy
Call forward no answer
Call forward out-of-coverage
Call forward programmable
Call forward reminder
Call forward remote
Call history (missed/answered/placed logs)
Call history display sort
Call hold
Call hold reminder
Call park/retrieve
Call park (button mapping)
Call park (fallback)
Call pick-up (directed)
Call pick-up (group)
Call restrictions (black list)
Call restrictions (blocking inbound)
Call restrictions (blocking outbound)
Call restrictions (call screening)
Call restrictions (forward to trunk)
Call restrictions (toll screening)
Call restrictions (transfer to trunk)
Call restrictions (white list)
Call return
Call transfer (attended)
Call transfer (fallback on transfer failure)
Call transfer (unattended)
Call transfer (restrictions)
Call waiting
Caller ID (called party)
Caller ID (calling party number)
Caller ID (calling party name)
Caller ID (privacy)
Camp on busy (automatic call back)
Class of service override
DA - 14027
Mailboxes for information
Mailboxes for surveys
Mailboxes for system bulletins/broadcasts
Message-waiting indication
Music-on-hold
Outline help
Personal address book
Personal auto-attendant
Privacy
Prompt bypass
Set-up assistant tutorial
Shortcut keys
User password change
User provisioning through TUI
User provisioning through Web
Virtual calling card
Zero out
FIND ME/FOLLOW ME
Find me/follow me
Find me/follow me call intercept
FAX MAIL
Electronic fax sending
Fax auto-delivery to email
Fax auto-delivery to fax machine
Fax delivery to fax machine
Fax message deposit
Fax message retrieval
Never-busy fax
EMAIL INTEGRATION
Client integration
Email auto delivery
Email integration
Email synchronization
Fax attachment in email (.tif or .pdf formats)
Unified inbox for Domino on Windows
Voicemail POP3/IMAP4 client integration
Integration with Microsoft Exchange Unified
Messaging
IP MESSAGING ADMINISTRATION
Administration of all parameters through X-terminal
interface
Class of service administration
Company/division administration
Export mailbox/COS
Import mailbox/COS
IMAP SSLv3 support
IP messaging Web portal
Mailbox administration
Worldwide — Version 3 — October 17, 2011
Page 18
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Technical Specifications
Customer account and billing codes
Delayed or no ringing
Directory (local user)
Directory (global user)
Distinctive ringing, ring patterns (different call types)
Distinctive ringing, selective ringing (ident-a-call)
Do not disturb
DTMF dialing
Feature codes
Feature access codes
Forced account codes
Forward to mail
Hands-free support
Hotline (hot ring down circuits)
Hunt groups
Hunt groups (call coverage)
Hunt groups (calling group)
Hunt groups (circular)
Hunt groups (feature interactions)
Hunt groups (linear)
Hunt groups (login/logout)
Hunt groups (malicious call trace)
Hunt groups (message-waiting indication)
Hunt groups (multisite)
Hunt groups (view hunt group status)
Last number redial
Malicious call trace
Message-waiting indication (MWI), audio
Message-waiting indication (MWI), visual
Missed call indicator
Mobility (multisite hot desking)
Mobility (single-region hot desking)
Music on hold
Mute
DA - 14027
Mailbox on-the-fly
Mailbox un-login
Multiple administration
Multiple language support
Multiple permission levels
Pager templates
Send-user groups
Support for multi-language voicemail
Telephone user interface (native)
Telephone user interface (traditional)
Time zones
Upload audio files via Web interface
VPIM support
IP MESSAGING MANAGEMENT
System alarms
System backup
System restoration
System status
Selective deletion of messages via web
Voice mail full return receipt support
LANGUAGE SUPPORT
Chinese (Mandarin), Dutch, English (Australian, UK
and US), French (Canadian and Parisian), German,
Italian, Korean, Portuguese (Brazilian), Russian and
Spanish (Castilian and LAT)
Worldwide — Version 3 — October 17, 2011
Page 19
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessories
HP VCX Connect Unified Cables
Communications MIM on HP X260 E1 BNC 75 ohm 3m Router Cable
MSR Series accessories
HP X260 E1 RJ45 3m Router Cable
HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable
HP X260 E1 BNC 20m Router Cable
HP X260 E1 BNC 75 ohm 40m Router Cable
HP X260 E1 RJ45 20m Router Cable
HP X260 T1 Router Cable
Power Supply
HP A-RPS800 Redundant Power System
License
HP VCX Business IP Phone License E-LTU
HP VCX Basic IP Phone License E-LTU
HP VCX Third Party IP Phone License E-LTU
HP VCX Business IP Phone License 50 Bundle E-LTU
HP VCX Basic IP Phone License 50 Bundle E-LTU
HP VCX Business IP Phone License 250 Bundle E-LTU
HP VCX Basic IP Phone License 250 Bundle E-LTU
HP VCX Entry/Analog Phone License E-LTU
HP VCX IP Messaging Seat License E-LTU
HP VCX IP Messaging Seat License 50 Bundle E-LTU
HP VCX IP Messaging Seat License 250 Bundle E-LTU
HP VCX Desktop Communicator Standalone Soft Phone License E-LTU
HP VCX Desktop Communicator Outlook Edition Standalone Soft Phone License E-LTU
HP VCX Desktop Communicator to Outlook Edition Upgrade Soft Phone License ELTU
HP VCX Desktop Communicator Soft Phone License 50 Bundle E-LTU
HP VCX Desktop Communicator Outlook Edition Soft Phone License 50 Bundle E-LTU
HP VCX Desktop Communicator Soft Phone License 250 Bundle E-LTU
HP VCX Desktop Communicator Outlook Edition Soft Phone License 250 Bundle ELTU
HP VCX Convergence Center Client Standalone License E-LTU
HP VCX ACD Agent License E-LTU
HP VCX ACD 5 Agent License E-LTU
HP VCX ACD 10 Agent License E-LTU
Routers
HP A-MSR30-16 Router
HP A-MSR30-16 PoE Router
HP A-MSR30-20 Router
HP A-MSR30-20 PoE Router
HP A-MSR30-40 Router
HP A-MSR30-40 PoE Router
HP A-MSR30-60 Router
HP A-MSR30-60 PoE Router
Router Modules
DA - 14027
Worldwide — Version 3 — October 17, 2011
JD175A
JD509A
JD511A
JD514A
JD516A
JD517A
JD518A
JD183A
JE427BAE
JE426BAE
JE444BAE
JE332BAE
JE329BAE
JE331BAE
JE328BAE
JE425BAE
JE301BAE
JC515BAE
JC514BAE
JE435BAE
JE436BAE
JE437BAE
JE334BAE
JE336BAE
JE333BAE
JE335BAE
JE434BAE
JE422BAE
JE424BAE
JE423BAE
JF233A
JF234A
JF284A
JF802A
JF229A
JF803A
JF230A
JF804A
Page 20
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessories
HP A-MSR 24-Channel Voice Processing Module
HP A-MSR 32-Channel Voice Processing Module
HP A-MSR Voice Co-processing Module
HP A-MSR 1-port FXO SIC Module
HP A-MSR 2-port FXO SIC Module
HP A-MSR 1-port FXS SIC Module
HP A-MSR 2-port FXS SIC Module
HP A-MSR 2-port FXS/1-port FXO SIC Module
HP A-MSR 2-port ISDN-S/T Voice SIC Module
HP A-MSR 1-port E1 Voice SIC Module
HP A-MSR 1-port T1 Voice SIC Module
HP A-MSR 4-port E/M MIM Module
HP A-MSR 2-port FXO MIM Module
HP A-MSR 4-port FXO MIM Module
HP A-MSR 4-port FXS MIM Module
HP A-MSR 16-port FXS MIM Module
HP A-MSR 4-port ISDN-S/T Voice MIM Module
HP A-MSR 1-port E1 Voice MIM Module
A-MSR 1-port T1 Voice MIM Module
HP A-MSR 2-port E1 Voice MIM Module
HP A-MSR 2-port T1 Voice MIM Module
Power cords
HP X290 1m RPS Cable
DA - 14027
Worldwide — Version 3 — October 17, 2011
JD599A
JD598A
JD610A
JD559A
JD558A
JD561A
JD560A
JD632A
JF821A
JD575A
JD576A
JD539A
JD543A
JD542A
JD553A
JF822A
JF837A
JD565A
JD566A
JD567A
JD568A
JD637A
Page 21
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.
HP A-MSR30-16 Multi-Service Router (JF233A)
4 SIC slots
Ports
1 MIM module slot
2 auto-sensing 10/100 WAN ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX);
Duplex: half or full
17.39(d) x 17.4(w) x 1.74(h) in. (44.18 x 44.2 x 4.42 cm) (1U height)
Physical characteristics
Dimensions
13.23 lb. (6 kg)
Weight
RISC @ 400 MHz, 256 MB DDR SDRAM, 256 MB compact flash
Memory and processor
Processor
Mounting
Performance
Environment
Electrical characteristics
Safety
Emissions
Telecom
Management
Services
Mounts in an EIA standard 19-in. rack
240 Kpps (64-byte packets)
Throughput
30,000 entries
Routing table size
32°F to 104°F (0°C to 40°C)
Operating temperature
5% to 90%, non-condensing
Operating relative
humidity
Non-operating/Storage -40°F to 158°F (-40°C to 70°C)
temperature
Non-operating/Storage 5% to 90%, non-condensing
relative humidity
Maximum heat dissipation 341 BTU/hr (359.76 kJ/hr)
100-120 / 200-240 VAC
Voltage
100 W
Maximum power rating
50 / 60 Hz
Frequency
Maximum power rating and maximum heat dissipation are the worst-case
Notes
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated.
UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser
Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR
Subchapter J
EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22
Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 610003-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47,
Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-48:2001
FCC part 68
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
RMON1; FTP; IEEE 802.3 Ethernet MIB
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 22
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Standards and protocols
(applies to all products in
series)
BGP
RFC 1163 Border Gateway Protocol (BGP)
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP
Tunnels
RFC 3210 Applicability Statement for Extensions to
RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP
(CR-LDP)
RFC 3214 LSP Modification Using CR-LDP
RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
Device management
RFC 3268 Advanced Encryption Standard (AES)
RFC 1305 NTPv3
Ciphersuites for Transport Layer Security (TLS)
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0 RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 2271 FrameWork
RFC 3279 Algorithms and Identifiers for the Internet
RFC 2452 MIB for TCP6
X.509 Public Key Infrastructure Certificate and
RFC 2454 MIB for UDP6
Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure
General protocols
Certificate and Certificate Revocation List (CRL)
IEEE 802.1D MAC Bridges
Profile
IEEE 802.1p Priority
RFC 3392 Support BGP capabilities advertisement
IEEE 802.1Q VLANs
RFC 3479 Fault Tolerance for the Label Distribution
IEEE 802.1s Multiple Spanning Trees
Protocol (LDP)
IEEE 802.1w Rapid Reconfiguration of Spanning
RFC 3564 Requirements for Support of
Tree
Differentiated Services-aware MPLS Traffic
RFC 768 UDP
Engineering
RFC 783 TFTP Protocol (revision 2)
RFC 3602 The AES-CBC Cipher Algorithm and Its
RFC 791 IP
Use with IPsec
RFC 792 ICMP
RFC 3706 A Traffic-Based Method of Detecting
RFC 793 TCP
Dead Internet Key Exchange (IKE) Peers
RFC 826 ARP
RFC 3784 ISIS TE support
RFC 854 TELNET
RFC 3786 Extending the Number of IS-IS LSP
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 23
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 855 Telnet Option Specification
Fragments Beyond the 256 Limit
RFC 856 TELNET
RFC 3811 Definitions of Textual Conventions (TCs)
RFC 858 Telnet Suppress Go Ahead Option
for Multiprotocol Label Switching (MPLS)
RFC 894 IP over Ethernet
Management
RFC 925 Multi-LAN Address Resolution
RFC 3812 Multiprotocol Label Switching (MPLS)
RFC 950 Internet Standard Subnetting Procedure Traffic Engineering (TE) Management Information
RFC 959 File Transfer Protocol (FTP)
Base (MIB)
RFC 1006 ISO transport services on top of the TCP: RFC 3847 Restart signaling for IS-IS
Version 3
RFC 1027 Proxy ARP
IP multicast
RFC 1034 Domain Concepts and Facilities
RFC 1112 IGMP
RFC 1035 Domain Implementation and
RFC 2236 IGMPv2
Specification
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 1042 IP Datagrams
RFC 2362 PIM Sparse Mode
RFC 1058 RIPv1
RFC 2934 Protocol Independent Multicast MIB for
RFC 1071 Computing the Internet Checksum
RFC 1091 Telnet Terminal-Type Option
IPv4
RFC 1122 Host Requirements
RFC 3376 IGMPv3
RFC 1141 Incremental updating of the Internet
IPv6
checksum
RFC 1981 IPv6 Path MTU Discovery
RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 2080 RIPng for IPv6
RFC 1144 Compressing TCP/IP headers for
RFC 2292 Advanced Sockets API for IPv6
low-speed serial links
RFC 2373 IPv6 Addressing Architecture
RFC 1195 OSI ISIS for IP and Dual Environments RFC 2460 IPv6 Specification
RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 2461 IPv6 Neighbor Discovery
RFC 1293 Inverse Address Resolution Protocol
RFC 2462 IPv6 Stateless Address AutoRFC 1315 Management Information Base for
configuration
Frame
RFC 2464 Transmission of IPv6 over Ethernet
Relay DTEs
Networks
RFC 1332 The PPP Internet Protocol Control
RFC 2472 IP Version 6 over PPP
Protocol
RFC 2473 Generic Packet Tunneling in IPv6
(IPCP)
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 1333 PPP Link Quality Monitoring
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 1334 PPP Authentication Protocols (PAP)
RFC 2553 Basic Socket Interface Extensions for
RFC 1349 Type of Service
IPv6
RFC 1350 TFTP Protocol (revision 2)
RFC 2740 OSPFv3 for IPv6
RFC 1377 The PPP OSI Network Layer Control
RFC 2893 Transition Mechanisms for IPv6 Hosts
Protocol (OSINLCP)
and Routers
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 3056 Connection of IPv6 Domains via IPv4
RFC 1471 The Definitions of Managed Objects for Clouds
the Link Control Protocol of the Point-to-Point
RFC 3513 IPv6 Addressing Architecture
Protocol
RFC 3596 DNS Extension for IPv6
RFC 1472 The Definitions of Managed Objects for
the Security Protocols of the Point-to-Point Protocol MIBs
RFC 1490 Multiprotocol Interconnect over Frame RFC 1213 MIB II
Relay
RFC 1229 Interface MIB Extensions
RFC 1519 CIDR
RFC 1286 Bridge MIB
RFC 1534 DHCP/BOOTP Interoperation
RFC 1493 Bridge MIB
RFC 1542 Clarifications and Extensions for the
RFC 1573 SNMP MIB II
Bootstrap Protocol
RFC 1724 RIPv2 MIB
RFC 1552 The PPP Internetworking Packet
RFC 1757 Remote Network Monitoring MIB
Exchange
RFC 1850 OSPFv2 MIB
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 24
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Control Protocol (IPXCP)
RFC 2011 SNMPv2 MIB for IP
RFC 1577 Classical IP and ARP over ATM
RFC 2012 SNMPv2 MIB for TCP
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 2013 SNMPv2 MIB for UDP
RFC 1624 Incremental Internet Checksum
RFC 2233 Interfaces MIB
RFC 1631 NAT
RFC 2454 IPV6-UDP-MIB
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 2465 IPv6 MIB
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 2466 ICMPv6 MIB
RFC 1662 PPP in HDLC-like Framing
RFC 2618 RADIUS Client MIB
RFC 1695 Definitions of Managed Objects for ATM RFC 2620 RADIUS Accounting MIB
Management Version 8.0 using SMIv2
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 1701 Generic Routing Encapsulation
RFC 2737 Entity MIB (Version 2)
RFC 1702 Generic Routing Encapsulation over
RFC 2863 The Interfaces Group MIB
IPv4
RFC 2933 IGMP MIB
networks
RFC 3813 MPLS LSR MIB
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
Network management
RFC 1723 RIP v2
IEEE 802.1D (STP)
RFC 1795 Data Link Switching: Switch-to-Switch
RFC 1155 Structure of Management Information
Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw RFC 1157 SNMPv1
Standard Version 1
RFC 1905 SNMPv2 Protocol Operations
RFC 1812 IPv4 Routing
RFC 2272 SNMPv3 Management Protocol
RFC 1829 The ESP DES-CBC Transform
RFC 2273 SNMPv3 Applications
RFC 1877 PPP Internet Protocol Control Protocol
RFC 2274 USM for SNMPv3
Extensions for Name Server Addresses
RFC 2275 VACM for SNMPv3
RFC 1944 Benchmarking Methodology for Network RFC 2575 SNMPv3 View-based Access Control
Interconnect Devices
Model (VACM)
RFC 1973 PPP in Frame Relay
RFC 3164 BSD syslog Protocol
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1990 The PPP Multilink Protocol (MP)
OSPF
RFC 1994 PPP Challenge Handshake
RFC 1245 OSPF protocol analysis
Authentication
RFC 1246 Experience with OSPF
Protocol (CHAP)
RFC 1587 OSPF NSSA
RFC 2091 Trigger RIP
RFC 1765 OSPF Database Overflow
RFC 2131 DHCP
RFC 1850 OSPFv2 Management Information Base
RFC 2132 DHCP Options and BOOTP Vendor
(MIB), traps
Extensions
RFC 2328 OSPFv2
RFC 2166 APPN Implementer's Workshop Closed RFC 2370 OSPF Opaque LSA Option
Pages Document DLSw v2.0 Enhancements
RFC 3101 OSPF NSSA
RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification
QoS/CoS
RFC 2280 Routing Policy Specification Language IEEE 802.1P (CoS)
(RPSL)
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2284 EAP over LAN
RFC 2475 DiffServ Architecture
RFC 2338 VRRP
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2364 PPP Over AAL5
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2374 An Aggregatable Global Unicast
RFC 3168 The Addition of Explicit Congestion
Address Format
Notification (ECN) to IP
RFC 2451 The ESP CBC-Mode Cipher Algorithms
RFC 2453 RIPv2
Security
RFC 2510 Internet X.509 Public Key Infrastructure IEEE 802.1X Port Based Network Access Control
Certificate Management Protocols
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2511 Internet X.509 Certificate Request
RFC 2082 RIP-2 MD5 Authentication
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 25
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Message Format
RFC 2516 A Method for Transmitting PPP Over
Ethernet (PPPoE)
RFC 2644 Directed Broadcast Control
RFC 2661 L2TP
RFC 2663 NAT Terminology and Considerations
RFC 2684 Multiprotocol Encapsulation over ATM
Adaptation Layer 5
RFC 2694 DNS extensions to Network Address
Translators (DNS_ALG)
RFC 2702 Requirements for Traffic Engineering
Over MPLS
RFC 2747 RSVP Cryptographic Authentication
RFC 2763 Dynamic Name-to-System ID mapping
support
RFC 2765 Stateless IP/ICMP Translation Algorithm
(SIIT)
RFC 2766 Network Address Translation - Protocol
Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for
VRRP
RFC 2961 RSVP Refresh Overhead Reduction
Extensions
RFC 2966 Domain-wide Prefix Distribution with
Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address
Translator (Traditional NAT)
RFC 3027 Protocol Complications with the IP
Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
RFC 2104 Keyed-Hashing for Message
Authentication
RFC 2138 RADIUS Authentication
RFC 2209 RSVP-Message Processing
RFC 2246 Transport Layer Security (TLS)
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 3567 Intermediate System (IS) to IS
Cryptographic Authentication
VPN
RFC 2403 - HMAC-MD5-96
RFC 2404 - HMAC-SHA1-96
RFC 2405 - DES-CBC Cipher algorithm
RFC 2547 BGP/MPLS VPNs
RFC 2796 BGP Route Reflection - An Alternative to
Full Mesh IBGP
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4
IPsec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
RFC 2410 - The NULL Encryption Algorithm and its
use with IPsec
RFC 2411 IP Security Document Roadmap
RFC 2412 – OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
HP A-MSR30-16 PoE Multi-Service Router (JF234A)
4 SIC slots
Ports
1 MIM module slot
2 auto-sensing 10/100 WAN ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX);
Duplex: half or full
17.39(d) x 17.4(w) x 1.74(h) in. (44.18 x 44.2 x 4.42 cm) (1U height)
Physical characteristics
Dimensions
13.23 lb. (6 kg)
Weight
RISC @ 400 MHz, 256 MB DDR SDRAM, 256 MB compact flash
Memory and processor
Processor
Mounts in an EIA standard 19-in. rack
Mounting
240 Kpps (64-byte packets)
Performance
Throughput
30,000 entries
Routing table size
32°F to 104°F (0°C to 40°C)
Environment
Operating temperature
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 26
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Electrical characteristics
Operating relative
5% to 90%, non-condensing
humidity
Non-operating/Storage -40°F to 158°F (-40°C to 70°C)
temperature
Non-operating/Storage 5% to 90%
relative humidity
Maximum heat dissipation 341 BTU/hr (359.76 kJ/hr)
100-120 / 200-240 VAC
Voltage
100 W
Maximum power rating
150 W
PoE power
50 / 60 Hz
Frequency
Notes
Safety
Emissions
Telecom
Management
Services
Maximum power rating and maximum heat dissipation are the worst-case
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated. PoE power is the power supplied by the internal power
supply. It is dependent on the type and quantity of power supplies and may
be supplemented with the use of an external power supply (EPS).
UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser
Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR
Subchapter J
EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22
Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 610003-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47,
Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-48:2001
FCC part 68
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
RMON1; FTP; IEEE 802.3 Ethernet MIB
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 27
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Standards and protocols
(applies to all products in
series)
BGP
RFC 1163 Border Gateway Protocol (BGP)
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP
Tunnels
RFC 3210 Applicability Statement for Extensions to
RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP
(CR-LDP)
RFC 3214 LSP Modification Using CR-LDP
RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
Device management
RFC 3268 Advanced Encryption Standard (AES)
RFC 1305 NTPv3
Ciphersuites for Transport Layer Security (TLS)
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0 RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 2271 FrameWork
RFC 3279 Algorithms and Identifiers for the Internet
RFC 2452 MIB for TCP6
X.509 Public Key Infrastructure Certificate and
RFC 2454 MIB for UDP6
Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure
General protocols
Certificate and Certificate Revocation List (CRL)
IEEE 802.1D MAC Bridges
Profile
IEEE 802.1p Priority
RFC 3392 Support BGP capabilities advertisement
IEEE 802.1Q VLANs
RFC 3479 Fault Tolerance for the Label Distribution
IEEE 802.1s Multiple Spanning Trees
Protocol (LDP)
IEEE 802.1w Rapid Reconfiguration of Spanning
RFC 3564 Requirements for Support of
Tree
Differentiated Services-aware MPLS Traffic
RFC 768 UDP
Engineering
RFC 783 TFTP Protocol (revision 2)
RFC 3602 The AES-CBC Cipher Algorithm and Its
RFC 791 IP
Use with IPsec
RFC 792 ICMP
RFC 3706 A Traffic-Based Method of Detecting
RFC 793 TCP
Dead Internet Key Exchange (IKE) Peers
RFC 826 ARP
RFC 3784 ISIS TE support
RFC 854 TELNET
RFC 3786 Extending the Number of IS-IS LSP
RFC 855 Telnet Option Specification
Fragments Beyond the 256 Limit
RFC 856 TELNET
RFC 3811 Definitions of Textual Conventions (TCs)
RFC 858 Telnet Suppress Go Ahead Option
for Multiprotocol Label Switching (MPLS)
RFC 894 IP over Ethernet
Management
RFC 925 Multi-LAN Address Resolution
RFC 3812 Multiprotocol Label Switching (MPLS)
RFC 950 Internet Standard Subnetting Procedure Traffic Engineering (TE) Management Information
RFC 959 File Transfer Protocol (FTP)
Base (MIB)
RFC 1006 ISO transport services on top of the TCP: RFC 3847 Restart signaling for IS-IS
Version 3
RFC 1027 Proxy ARP
IP multicast
RFC 1034 Domain Concepts and Facilities
RFC 1112 IGMP
RFC 1035 Domain Implementation and
RFC 2236 IGMPv2
Specification
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 1042 IP Datagrams
RFC 2362 PIM Sparse Mode
RFC 1058 RIPv1
RFC 2934 Protocol Independent Multicast MIB for
RFC 1071 Computing the Internet Checksum
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 28
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 1091 Telnet Terminal-Type Option
IPv4
RFC 1122 Host Requirements
RFC 3376 IGMPv3
RFC 1141 Incremental updating of the Internet
IPv6
checksum
RFC 1981 IPv6 Path MTU Discovery
RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 2080 RIPng for IPv6
RFC 1144 Compressing TCP/IP headers for
RFC 2292 Advanced Sockets API for IPv6
low-speed serial links
RFC 2373 IPv6 Addressing Architecture
RFC 1195 OSI ISIS for IP and Dual Environments RFC 2460 IPv6 Specification
RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 2461 IPv6 Neighbor Discovery
RFC 1293 Inverse Address Resolution Protocol
RFC 2462 IPv6 Stateless Address AutoRFC 1315 Management Information Base for
configuration
Frame
RFC 2464 Transmission of IPv6 over Ethernet
Relay DTEs
Networks
RFC 1332 The PPP Internet Protocol Control
RFC 2472 IP Version 6 over PPP
Protocol
RFC 2473 Generic Packet Tunneling in IPv6
(IPCP)
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 1333 PPP Link Quality Monitoring
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 1334 PPP Authentication Protocols (PAP)
RFC 2553 Basic Socket Interface Extensions for
RFC 1349 Type of Service
IPv6
RFC 1350 TFTP Protocol (revision 2)
RFC 2740 OSPFv3 for IPv6
RFC 1377 The PPP OSI Network Layer Control
RFC 2893 Transition Mechanisms for IPv6 Hosts
Protocol (OSINLCP)
and Routers
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 3056 Connection of IPv6 Domains via IPv4
RFC 1471 The Definitions of Managed Objects for Clouds
the Link Control Protocol of the Point-to-Point
RFC 3513 IPv6 Addressing Architecture
Protocol
RFC 3596 DNS Extension for IPv6
RFC 1472 The Definitions of Managed Objects for
the Security Protocols of the Point-to-Point Protocol MIBs
RFC 1490 Multiprotocol Interconnect over Frame RFC 1213 MIB II
Relay
RFC 1229 Interface MIB Extensions
RFC 1519 CIDR
RFC 1286 Bridge MIB
RFC 1534 DHCP/BOOTP Interoperation
RFC 1493 Bridge MIB
RFC 1542 Clarifications and Extensions for the
RFC 1573 SNMP MIB II
Bootstrap Protocol
RFC 1724 RIPv2 MIB
RFC 1552 The PPP Internetworking Packet
RFC 1757 Remote Network Monitoring MIB
Exchange
RFC 1850 OSPFv2 MIB
Control Protocol (IPXCP)
RFC 2011 SNMPv2 MIB for IP
RFC 1577 Classical IP and ARP over ATM
RFC 2012 SNMPv2 MIB for TCP
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 2013 SNMPv2 MIB for UDP
RFC 1624 Incremental Internet Checksum
RFC 2233 Interfaces MIB
RFC 1631 NAT
RFC 2454 IPV6-UDP-MIB
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 2465 IPv6 MIB
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 2466 ICMPv6 MIB
RFC 1662 PPP in HDLC-like Framing
RFC 2618 RADIUS Client MIB
RFC 1695 Definitions of Managed Objects for ATM RFC 2620 RADIUS Accounting MIB
Management Version 8.0 using SMIv2
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 1701 Generic Routing Encapsulation
RFC 2737 Entity MIB (Version 2)
RFC 1702 Generic Routing Encapsulation over
RFC 2863 The Interfaces Group MIB
IPv4
RFC 2933 IGMP MIB
networks
RFC 3813 MPLS LSR MIB
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
Network management
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 29
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 1723 RIP v2
IEEE 802.1D (STP)
RFC 1795 Data Link Switching: Switch-to-Switch
RFC 1155 Structure of Management Information
Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw RFC 1157 SNMPv1
Standard Version 1
RFC 1905 SNMPv2 Protocol Operations
RFC 1812 IPv4 Routing
RFC 2272 SNMPv3 Management Protocol
RFC 1829 The ESP DES-CBC Transform
RFC 2273 SNMPv3 Applications
RFC 1877 PPP Internet Protocol Control Protocol
RFC 2274 USM for SNMPv3
Extensions for Name Server Addresses
RFC 2275 VACM for SNMPv3
RFC 1944 Benchmarking Methodology for Network RFC 2575 SNMPv3 View-based Access Control
Interconnect Devices
Model (VACM)
RFC 1973 PPP in Frame Relay
RFC 3164 BSD syslog Protocol
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1990 The PPP Multilink Protocol (MP)
OSPF
RFC 1994 PPP Challenge Handshake
RFC 1245 OSPF protocol analysis
Authentication
RFC 1246 Experience with OSPF
Protocol (CHAP)
RFC 1587 OSPF NSSA
RFC 2091 Trigger RIP
RFC 1765 OSPF Database Overflow
RFC 2131 DHCP
RFC 1850 OSPFv2 Management Information Base
RFC 2132 DHCP Options and BOOTP Vendor
(MIB), traps
Extensions
RFC 2328 OSPFv2
RFC 2166 APPN Implementer's Workshop Closed RFC 2370 OSPF Opaque LSA Option
Pages Document DLSw v2.0 Enhancements
RFC 3101 OSPF NSSA
RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification
QoS/CoS
RFC 2280 Routing Policy Specification Language IEEE 802.1P (CoS)
(RPSL)
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2284 EAP over LAN
RFC 2475 DiffServ Architecture
RFC 2338 VRRP
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2364 PPP Over AAL5
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2374 An Aggregatable Global Unicast
RFC 3168 The Addition of Explicit Congestion
Address Format
Notification (ECN) to IP
RFC 2451 The ESP CBC-Mode Cipher Algorithms
RFC 2453 RIPv2
Security
RFC 2510 Internet X.509 Public Key Infrastructure IEEE 802.1X Port Based Network Access Control
Certificate Management Protocols
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2511 Internet X.509 Certificate Request
RFC 2082 RIP-2 MD5 Authentication
Message Format
RFC 2104 Keyed-Hashing for Message
RFC 2516 A Method for Transmitting PPP Over
Authentication
Ethernet (PPPoE)
RFC 2138 RADIUS Authentication
RFC 2644 Directed Broadcast Control
RFC 2209 RSVP-Message Processing
RFC 2661 L2TP
RFC 2246 Transport Layer Security (TLS)
RFC 2663 NAT Terminology and Considerations
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2684 Multiprotocol Encapsulation over ATM RFC 2865 RADIUS Authentication
Adaptation Layer 5
RFC 2866 RADIUS Accounting
RFC 2694 DNS extensions to Network Address
RFC 3567 Intermediate System (IS) to IS
Translators (DNS_ALG)
Cryptographic Authentication
RFC 2702 Requirements for Traffic Engineering
Over MPLS
VPN
RFC 2747 RSVP Cryptographic Authentication
RFC 2403 - HMAC-MD5-96
RFC 2763 Dynamic Name-to-System ID mapping RFC 2404 - HMAC-SHA1-96
support
RFC 2405 - DES-CBC Cipher algorithm
RFC 2765 Stateless IP/ICMP Translation Algorithm RFC 2547 BGP/MPLS VPNs
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 30
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
(SIIT)
RFC 2766 Network Address Translation - Protocol
Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for
VRRP
RFC 2961 RSVP Refresh Overhead Reduction
Extensions
RFC 2966 Domain-wide Prefix Distribution with
Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address
Translator (Traditional NAT)
RFC 3027 Protocol Complications with the IP
Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
RFC 2796 BGP Route Reflection - An Alternative to
Full Mesh IBGP
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4
IPsec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
RFC 2410 - The NULL Encryption Algorithm and its
use with IPsec
RFC 2411 IP Security Document Roadmap
RFC 2412 – OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
HP A-MSR30-20 Multi-Service Router (JF284A)
4 SIC slots
Ports
2 MIM module slots
2 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE
802.3ab Type 1000Base-T); Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
17.39(d) x 17.4(w) x 1.74(h) in. (44.18 x 44.2 x 4.42 cm) (1U height)
Physical characteristics
Dimensions
15.21 lb. (6.9 kg)
Weight
RISC @ 533 MHz, 256 MB DDR SDRAM, 256 MB compact flash
Memory and processor
Processor
Mounts in an EIA standard 19-in. rack
Mounting
300 Kpps (64-byte packets)
Performance
Throughput
30,000 entries
Routing table size
32°F to 104°F (0°C to 40°C)
Environment
Operating temperature
5% to 90%, non-condensing
Operating relative
humidity
Non-operating/Storage -40°F to 158°F (-40°C to 70°C)
temperature
Non-operating/Storage 5% to 90%, non-condensing
relative humidity
Electrical characteristics Maximum heat dissipation 426 BTU/hr (449.43 kJ/hr)
100-120 / 200-240 VAC
Voltage
125 W
Maximum power rating
50 / 60 Hz
Frequency
Maximum power rating and maximum heat dissipation are the worst-case
Notes
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated.
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 31
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Safety
Emissions
Telecom
Management
Services
UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser
Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR
Subchapter J
EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22
Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 610003-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47,
Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-48:2001
FCC part 68
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
RMON1; FTP; IEEE 802.3 Ethernet MIB
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Standards and protocols
(applies to all products in
series)
BGP
RFC 1163 Border Gateway Protocol (BGP)
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP
Tunnels
RFC 3210 Applicability Statement for Extensions to
RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP
(CR-LDP)
RFC 3214 LSP Modification Using CR-LDP
RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
Device management
RFC 3268 Advanced Encryption Standard (AES)
RFC 1305 NTPv3
Ciphersuites for Transport Layer Security (TLS)
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0 RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 2271 FrameWork
RFC 3279 Algorithms and Identifiers for the Internet
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 32
HP VCX Connect Unified Communications MIM on MSR
Series
QuickSpecs
Accessory Product Details
RFC 2452 MIB for TCP6
RFC 2454 MIB for UDP6
X.509 Public Key Infrastructure Certificate and
Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure
General protocols
Certificate and Certificate Revocation List (CRL)
IEEE 802.1D MAC Bridges
Profile
IEEE 802.1p Priority
RFC 3392 Support BGP capabilities advertisement
IEEE 802.1Q VLANs
RFC 3479 Fault Tolerance for the Label Distribution
IEEE 802.1s Multiple Spanning Trees
Protocol (LDP)
IEEE 802.1w Rapid Reconfiguration of Spanning
RFC 3564 Requirements for Support of
Tree
Differentiated Services-aware MPLS Traffic
RFC 768 UDP
Engineering
RFC 783 TFTP Protocol (revision 2)
RFC 3602 The AES-CBC Cipher Algorithm and Its
RFC 791 IP
Use with IPsec
RFC 792 ICMP
RFC 3706 A Traffic-Based Method of Detecting
RFC 793 TCP
Dead Internet Key Exchange (IKE) Peers
RFC 826 ARP
RFC 3784 ISIS TE support
RFC 854 TELNET
RFC 3786 Extending the Number of IS-IS LSP
RFC 855 Telnet Option Specification
Fragments Beyond the 256 Limit
RFC 856 TELNET
RFC 3811 Definitions of Textual Conventions (TCs)
RFC 858 Telnet Suppress Go Ahead Option
for Multiprotocol Label Switching (MPLS)
RFC 894 IP over Ethernet
Management
RFC 925 Multi-LAN Address Resolution
RFC 3812 Multiprotocol Label Switching (MPLS)
RFC 950 Internet Standard Subnetting Procedure Traffic Engineering (TE) Management Information
RFC 959 File Transfer Protocol (FTP)
Base (MIB)
RFC 1006 ISO transport services on top of the TCP: RFC 3847 Restart signaling for IS-IS
Version 3
RFC 1027 Proxy ARP
IP multicast
RFC 1034 Domain Concepts and Facilities
RFC 1112 IGMP
RFC 1035 Domain Implementation and
RFC 2236 IGMPv2
Specification
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 1042 IP Datagrams
RFC 2362 PIM Sparse Mode
RFC 1058 RIPv1
RFC 2934 Protocol Independent Multicast MIB for
RFC 1071 Computing the Internet Checksum
IPv4
RFC 1091 Telnet Terminal-Type Option
RFC 3376 IGMPv3
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the Internet
IPv6
checksum
RFC 1981 IPv6 Path MTU Discovery
RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 2080 RIPng for IPv6
RFC 1144 Compressing TCP/IP headers for
RFC 2292 Advanced Sockets API for IPv6
low-speed serial links
RFC 2373 IPv6 Addressing Architecture
RFC 1195 OSI ISIS for IP and Dual Environments RFC 2460 IPv6 Specification
RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 2461 IPv6 Neighbor Discovery
RFC 1293 Inverse Address Resolution Protocol
RFC 2462 IPv6 Stateless Address AutoRFC 1315 Management Information Base for
configuration
Frame
RFC 2464 Transmission of IPv6 over Ethernet
Relay DTEs
Networks
RFC 1332 The PPP Internet Protocol Control
RFC 2472 IP Version 6 over PPP
Protocol
RFC 2473 Generic Packet Tunneling in IPv6
(IPCP)
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 1333 PPP Link Quality Monitoring
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 1334 PPP Authentication Protocols (PAP)
RFC 2553 Basic Socket Interface Extensions for
RFC 1349 Type of Service
IPv6
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 33
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 1350 TFTP Protocol (revision 2)
RFC 2740 OSPFv3 for IPv6
RFC 1377 The PPP OSI Network Layer Control
RFC 2893 Transition Mechanisms for IPv6 Hosts
Protocol (OSINLCP)
and Routers
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 3056 Connection of IPv6 Domains via IPv4
RFC 1471 The Definitions of Managed Objects for Clouds
the Link Control Protocol of the Point-to-Point
RFC 3513 IPv6 Addressing Architecture
Protocol
RFC 3596 DNS Extension for IPv6
RFC 1472 The Definitions of Managed Objects for
the Security Protocols of the Point-to-Point Protocol MIBs
RFC 1490 Multiprotocol Interconnect over Frame RFC 1213 MIB II
Relay
RFC 1229 Interface MIB Extensions
RFC 1519 CIDR
RFC 1286 Bridge MIB
RFC 1534 DHCP/BOOTP Interoperation
RFC 1493 Bridge MIB
RFC 1542 Clarifications and Extensions for the
RFC 1573 SNMP MIB II
Bootstrap Protocol
RFC 1724 RIPv2 MIB
RFC 1552 The PPP Internetworking Packet
RFC 1757 Remote Network Monitoring MIB
Exchange
RFC 1850 OSPFv2 MIB
Control Protocol (IPXCP)
RFC 2011 SNMPv2 MIB for IP
RFC 1577 Classical IP and ARP over ATM
RFC 2012 SNMPv2 MIB for TCP
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 2013 SNMPv2 MIB for UDP
RFC 1624 Incremental Internet Checksum
RFC 2233 Interfaces MIB
RFC 1631 NAT
RFC 2454 IPV6-UDP-MIB
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 2465 IPv6 MIB
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 2466 ICMPv6 MIB
RFC 1662 PPP in HDLC-like Framing
RFC 2618 RADIUS Client MIB
RFC 1695 Definitions of Managed Objects for ATM RFC 2620 RADIUS Accounting MIB
Management Version 8.0 using SMIv2
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 1701 Generic Routing Encapsulation
RFC 2737 Entity MIB (Version 2)
RFC 1702 Generic Routing Encapsulation over
RFC 2863 The Interfaces Group MIB
IPv4
RFC 2933 IGMP MIB
networks
RFC 3813 MPLS LSR MIB
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
Network management
RFC 1723 RIP v2
IEEE 802.1D (STP)
RFC 1795 Data Link Switching: Switch-to-Switch
RFC 1155 Structure of Management Information
Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw RFC 1157 SNMPv1
Standard Version 1
RFC 1905 SNMPv2 Protocol Operations
RFC 1812 IPv4 Routing
RFC 2272 SNMPv3 Management Protocol
RFC 1829 The ESP DES-CBC Transform
RFC 2273 SNMPv3 Applications
RFC 1877 PPP Internet Protocol Control Protocol
RFC 2274 USM for SNMPv3
Extensions for Name Server Addresses
RFC 2275 VACM for SNMPv3
RFC 1944 Benchmarking Methodology for Network RFC 2575 SNMPv3 View-based Access Control
Interconnect Devices
Model (VACM)
RFC 1973 PPP in Frame Relay
RFC 3164 BSD syslog Protocol
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1990 The PPP Multilink Protocol (MP)
OSPF
RFC 1994 PPP Challenge Handshake
RFC 1245 OSPF protocol analysis
Authentication
RFC 1246 Experience with OSPF
Protocol (CHAP)
RFC 1587 OSPF NSSA
RFC 2091 Trigger RIP
RFC 1765 OSPF Database Overflow
RFC 2131 DHCP
RFC 1850 OSPFv2 Management Information Base
RFC 2132 DHCP Options and BOOTP Vendor
(MIB), traps
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 34
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Extensions
RFC 2166 APPN Implementer's Workshop Closed
Pages Document DLSw v2.0 Enhancements
RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification
RFC 2280 Routing Policy Specification Language
(RPSL)
RFC 2284 EAP over LAN
RFC 2338 VRRP
RFC 2364 PPP Over AAL5
RFC 2374 An Aggregatable Global Unicast
Address Format
RFC 2451 The ESP CBC-Mode Cipher Algorithms
RFC 2453 RIPv2
RFC 2510 Internet X.509 Public Key Infrastructure
Certificate Management Protocols
RFC 2511 Internet X.509 Certificate Request
Message Format
RFC 2516 A Method for Transmitting PPP Over
Ethernet (PPPoE)
RFC 2644 Directed Broadcast Control
RFC 2661 L2TP
RFC 2663 NAT Terminology and Considerations
RFC 2684 Multiprotocol Encapsulation over ATM
Adaptation Layer 5
RFC 2694 DNS extensions to Network Address
Translators (DNS_ALG)
RFC 2702 Requirements for Traffic Engineering
Over MPLS
RFC 2747 RSVP Cryptographic Authentication
RFC 2763 Dynamic Name-to-System ID mapping
support
RFC 2765 Stateless IP/ICMP Translation Algorithm
(SIIT)
RFC 2766 Network Address Translation - Protocol
Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for
VRRP
RFC 2961 RSVP Refresh Overhead Reduction
Extensions
RFC 2966 Domain-wide Prefix Distribution with
Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address
Translator (Traditional NAT)
RFC 3027 Protocol Complications with the IP
Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
DA - 14027
RFC 2328 OSPFv2
RFC 2370 OSPF Opaque LSA Option
RFC 3101 OSPF NSSA
QoS/CoS
IEEE 802.1P (CoS)
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 3168 The Addition of Explicit Congestion
Notification (ECN) to IP
Security
IEEE 802.1X Port Based Network Access Control
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message
Authentication
RFC 2138 RADIUS Authentication
RFC 2209 RSVP-Message Processing
RFC 2246 Transport Layer Security (TLS)
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 3567 Intermediate System (IS) to IS
Cryptographic Authentication
VPN
RFC 2403 - HMAC-MD5-96
RFC 2404 - HMAC-SHA1-96
RFC 2405 - DES-CBC Cipher algorithm
RFC 2547 BGP/MPLS VPNs
RFC 2796 BGP Route Reflection - An Alternative to
Full Mesh IBGP
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4
IPsec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
RFC 2410 - The NULL Encryption Algorithm and its
use with IPsec
RFC 2411 IP Security Document Roadmap
RFC 2412 – OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
Worldwide — Version 3 — October 17, 2011
Page 35
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
HP A-MSR30-20 PoE Multi-Service Router (JF802A)
4 SIC slots
Ports
2 MIM module slots
2 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE
802.3ab Type 1000Base-T); Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
17.39(d) x 17.4(w) x 1.74(h) in. (44.18 x 44.2 x 4.42 cm) (1U height)
Physical characteristics
Dimensions
15.21 lb. (6.9 kg)
Weight
RISC @ 533 MHz, 256 MB DDR SDRAM, 256 MB compact flash
Memory and processor
Processor
Mounts in an EIA standard 19-in. rack
Mounting
Performance
Environment
Electrical characteristics
Safety
Emissions
Telecom
Management
Services
Throughput
300 Kpps (64-byte packets)
30,000 entries
Routing table size
32°F to 104°F (0°C to 40°C)
Operating temperature
5% to 90%, non-condensing
Operating relative
humidity
Non-operating/Storage -40°F to 158°F (-40°C to 70°C)
temperature
Non-operating/Storage 5% to 90%, non-condensing
relative humidity
Maximum heat dissipation 426 BTU/hr (449.43 kJ/hr)
100-120 / 200-240 VAC
Voltage
125 W
Maximum power rating
150 W
PoE power
50 / 60 Hz
Frequency
Maximum power rating and maximum heat dissipation are the worst-case
Notes
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated. PoE power is the power supplied by the internal power
supply. It is dependent on the type and quantity of power supplies and may
be supplemented with the use of an external power supply (EPS).
UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser
Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR
Subchapter J
EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22
Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 610003-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47,
Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-48:2001
FCC part 68
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
RMON1; FTP; IEEE 802.3 Ethernet MIB
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UX157E)
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 36
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Standards and protocols
(applies to all products in
series)
BGP
RFC 1163 Border Gateway Protocol (BGP)
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP
Tunnels
RFC 3210 Applicability Statement for Extensions to
RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP
(CR-LDP)
RFC 3214 LSP Modification Using CR-LDP
RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
Device management
RFC 3268 Advanced Encryption Standard (AES)
RFC 1305 NTPv3
Ciphersuites for Transport Layer Security (TLS)
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0 RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 2271 FrameWork
RFC 3279 Algorithms and Identifiers for the Internet
RFC 2452 MIB for TCP6
X.509 Public Key Infrastructure Certificate and
RFC 2454 MIB for UDP6
Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure
General protocols
Certificate and Certificate Revocation List (CRL)
IEEE 802.1D MAC Bridges
Profile
IEEE 802.1p Priority
RFC 3392 Support BGP capabilities advertisement
IEEE 802.1Q VLANs
RFC 3479 Fault Tolerance for the Label Distribution
IEEE 802.1s Multiple Spanning Trees
Protocol (LDP)
IEEE 802.1w Rapid Reconfiguration of Spanning
RFC 3564 Requirements for Support of
Tree
Differentiated Services-aware MPLS Traffic
RFC 768 UDP
Engineering
RFC 783 TFTP Protocol (revision 2)
RFC 3602 The AES-CBC Cipher Algorithm and Its
RFC 791 IP
Use with IPsec
RFC 792 ICMP
RFC 3706 A Traffic-Based Method of Detecting
RFC 793 TCP
Dead Internet Key Exchange (IKE) Peers
RFC 826 ARP
RFC 3784 ISIS TE support
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 37
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 854 TELNET
RFC 3786 Extending the Number of IS-IS LSP
RFC 855 Telnet Option Specification
Fragments Beyond the 256 Limit
RFC 856 TELNET
RFC 3811 Definitions of Textual Conventions (TCs)
RFC 858 Telnet Suppress Go Ahead Option
for Multiprotocol Label Switching (MPLS)
RFC 894 IP over Ethernet
Management
RFC 925 Multi-LAN Address Resolution
RFC 3812 Multiprotocol Label Switching (MPLS)
RFC 950 Internet Standard Subnetting Procedure Traffic Engineering (TE) Management Information
RFC 959 File Transfer Protocol (FTP)
Base (MIB)
RFC 1006 ISO transport services on top of the TCP: RFC 3847 Restart signaling for IS-IS
Version 3
RFC 1027 Proxy ARP
IP multicast
RFC 1034 Domain Concepts and Facilities
RFC 1112 IGMP
RFC 1035 Domain Implementation and
RFC 2236 IGMPv2
Specification
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 1042 IP Datagrams
RFC 2362 PIM Sparse Mode
RFC 1058 RIPv1
RFC 2934 Protocol Independent Multicast MIB for
RFC 1071 Computing the Internet Checksum
IPv4
RFC 1091 Telnet Terminal-Type Option
RFC 3376 IGMPv3
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the Internet
IPv6
checksum
RFC 1981 IPv6 Path MTU Discovery
RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 2080 RIPng for IPv6
RFC 1144 Compressing TCP/IP headers for
RFC 2292 Advanced Sockets API for IPv6
low-speed serial links
RFC 2373 IPv6 Addressing Architecture
RFC 1195 OSI ISIS for IP and Dual Environments RFC 2460 IPv6 Specification
RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 2461 IPv6 Neighbor Discovery
RFC 1293 Inverse Address Resolution Protocol
RFC 2462 IPv6 Stateless Address AutoRFC 1315 Management Information Base for
configuration
Frame
RFC 2464 Transmission of IPv6 over Ethernet
Relay DTEs
Networks
RFC 1332 The PPP Internet Protocol Control
RFC 2472 IP Version 6 over PPP
Protocol
RFC 2473 Generic Packet Tunneling in IPv6
(IPCP)
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 1333 PPP Link Quality Monitoring
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 1334 PPP Authentication Protocols (PAP)
RFC 2553 Basic Socket Interface Extensions for
RFC 1349 Type of Service
IPv6
RFC 1350 TFTP Protocol (revision 2)
RFC 2740 OSPFv3 for IPv6
RFC 1377 The PPP OSI Network Layer Control
RFC 2893 Transition Mechanisms for IPv6 Hosts
Protocol (OSINLCP)
and Routers
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 3056 Connection of IPv6 Domains via IPv4
RFC 1471 The Definitions of Managed Objects for Clouds
the Link Control Protocol of the Point-to-Point
RFC 3513 IPv6 Addressing Architecture
Protocol
RFC 3596 DNS Extension for IPv6
RFC 1472 The Definitions of Managed Objects for
the Security Protocols of the Point-to-Point Protocol MIBs
RFC 1490 Multiprotocol Interconnect over Frame RFC 1213 MIB II
Relay
RFC 1229 Interface MIB Extensions
RFC 1519 CIDR
RFC 1286 Bridge MIB
RFC 1534 DHCP/BOOTP Interoperation
RFC 1493 Bridge MIB
RFC 1542 Clarifications and Extensions for the
RFC 1573 SNMP MIB II
Bootstrap Protocol
RFC 1724 RIPv2 MIB
RFC 1552 The PPP Internetworking Packet
RFC 1757 Remote Network Monitoring MIB
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 38
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Exchange
RFC 1850 OSPFv2 MIB
Control Protocol (IPXCP)
RFC 2011 SNMPv2 MIB for IP
RFC 1577 Classical IP and ARP over ATM
RFC 2012 SNMPv2 MIB for TCP
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 2013 SNMPv2 MIB for UDP
RFC 1624 Incremental Internet Checksum
RFC 2233 Interfaces MIB
RFC 1631 NAT
RFC 2454 IPV6-UDP-MIB
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 2465 IPv6 MIB
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 2466 ICMPv6 MIB
RFC 1662 PPP in HDLC-like Framing
RFC 2618 RADIUS Client MIB
RFC 1695 Definitions of Managed Objects for ATM RFC 2620 RADIUS Accounting MIB
Management Version 8.0 using SMIv2
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 1701 Generic Routing Encapsulation
RFC 2737 Entity MIB (Version 2)
RFC 1702 Generic Routing Encapsulation over
RFC 2863 The Interfaces Group MIB
IPv4
RFC 2933 IGMP MIB
networks
RFC 3813 MPLS LSR MIB
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
Network management
RFC 1723 RIP v2
IEEE 802.1D (STP)
RFC 1795 Data Link Switching: Switch-to-Switch
RFC 1155 Structure of Management Information
Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw RFC 1157 SNMPv1
Standard Version 1
RFC 1905 SNMPv2 Protocol Operations
RFC 1812 IPv4 Routing
RFC 2272 SNMPv3 Management Protocol
RFC 1829 The ESP DES-CBC Transform
RFC 2273 SNMPv3 Applications
RFC 1877 PPP Internet Protocol Control Protocol
RFC 2274 USM for SNMPv3
Extensions for Name Server Addresses
RFC 2275 VACM for SNMPv3
RFC 1944 Benchmarking Methodology for Network RFC 2575 SNMPv3 View-based Access Control
Interconnect Devices
Model (VACM)
RFC 1973 PPP in Frame Relay
RFC 3164 BSD syslog Protocol
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1990 The PPP Multilink Protocol (MP)
OSPF
RFC 1994 PPP Challenge Handshake
RFC 1245 OSPF protocol analysis
Authentication
RFC 1246 Experience with OSPF
Protocol (CHAP)
RFC 1587 OSPF NSSA
RFC 2091 Trigger RIP
RFC 1765 OSPF Database Overflow
RFC 2131 DHCP
RFC 1850 OSPFv2 Management Information Base
RFC 2132 DHCP Options and BOOTP Vendor
(MIB), traps
Extensions
RFC 2328 OSPFv2
RFC 2166 APPN Implementer's Workshop Closed RFC 2370 OSPF Opaque LSA Option
Pages Document DLSw v2.0 Enhancements
RFC 3101 OSPF NSSA
RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification
QoS/CoS
RFC 2280 Routing Policy Specification Language IEEE 802.1P (CoS)
(RPSL)
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2284 EAP over LAN
RFC 2475 DiffServ Architecture
RFC 2338 VRRP
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2364 PPP Over AAL5
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2374 An Aggregatable Global Unicast
RFC 3168 The Addition of Explicit Congestion
Address Format
Notification (ECN) to IP
RFC 2451 The ESP CBC-Mode Cipher Algorithms
RFC 2453 RIPv2
Security
RFC 2510 Internet X.509 Public Key Infrastructure IEEE 802.1X Port Based Network Access Control
Certificate Management Protocols
RFC 1321 The MD5 Message-Digest Algorithm
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 39
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 2511 Internet X.509 Certificate Request
Message Format
RFC 2516 A Method for Transmitting PPP Over
Ethernet (PPPoE)
RFC 2644 Directed Broadcast Control
RFC 2661 L2TP
RFC 2663 NAT Terminology and Considerations
RFC 2684 Multiprotocol Encapsulation over ATM
Adaptation Layer 5
RFC 2694 DNS extensions to Network Address
Translators (DNS_ALG)
RFC 2702 Requirements for Traffic Engineering
Over MPLS
RFC 2747 RSVP Cryptographic Authentication
RFC 2763 Dynamic Name-to-System ID mapping
support
RFC 2765 Stateless IP/ICMP Translation Algorithm
(SIIT)
RFC 2766 Network Address Translation - Protocol
Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for
VRRP
RFC 2961 RSVP Refresh Overhead Reduction
Extensions
RFC 2966 Domain-wide Prefix Distribution with
Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address
Translator (Traditional NAT)
RFC 3027 Protocol Complications with the IP
Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message
Authentication
RFC 2138 RADIUS Authentication
RFC 2209 RSVP-Message Processing
RFC 2246 Transport Layer Security (TLS)
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 3567 Intermediate System (IS) to IS
Cryptographic Authentication
VPN
RFC 2403 - HMAC-MD5-96
RFC 2404 - HMAC-SHA1-96
RFC 2405 - DES-CBC Cipher algorithm
RFC 2547 BGP/MPLS VPNs
RFC 2796 BGP Route Reflection - An Alternative to
Full Mesh IBGP
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4
IPsec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
RFC 2410 - The NULL Encryption Algorithm and its
use with IPsec
RFC 2411 IP Security Document Roadmap
RFC 2412 – OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
HP A-MSR30-40 Multi-Service Router (JF229A)
4 SIC slots
Ports
4 MIM module slots
2 1000Base-T ports (IEEE 802.3ab Type 1000Base-T)
2 fixed Gigabit Ethernet SFP ports
16.63(d) x 17.4(w) x 3.47(h) in. (42.23 x 44.2 x 8.82 cm) (2U height)
Physical characteristics
Dimensions
26.23 lb. (11.9 kg)
Weight
RISC @ 533 MHz, 256 MB DDR SDRAM, 256 MB compact flash
Memory and processor
Processor
Mounts in an EIA standard 19-in. rack
Mounting
360 Kpps (64-byte packets)
Performance
Throughput
30,000 entries
Routing table size
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 40
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Environment
Electrical characteristics
Safety
Emissions
Telecom
Management
Services
Operating temperature
32°F to 104°F (0°C to 40°C)
5% to 90%, non-condensing
Operating relative
humidity
Non-operating/Storage -40°F to 158°F (-40°C to 70°C)
temperature
Non-operating/Storage 5% to 90%, non-condensing
relative humidity
Maximum heat dissipation 717 BTU/hr (756.44 kJ/hr)
100-120 / 200-240 VAC
Voltage
210 W
Maximum power rating
50 / 60 Hz
Frequency
Maximum power rating and maximum heat dissipation are the worst-case
Notes
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated.
UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser
Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR
Subchapter J
EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22
Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 610003-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47,
Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-48:2001
FCC part 68
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
RMON1; FTP; IEEE 802.3 Ethernet MIB
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Standards and protocols
(applies to all products in
BGP
RFC 1163 Border Gateway Protocol (BGP)
DA - 14027
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
Worldwide — Version 3 — October 17, 2011
Page 41
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
series)
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP
Tunnels
RFC 3210 Applicability Statement for Extensions to
RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP
(CR-LDP)
RFC 3214 LSP Modification Using CR-LDP
RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
Device management
RFC 3268 Advanced Encryption Standard (AES)
RFC 1305 NTPv3
Ciphersuites for Transport Layer Security (TLS)
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0 RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 2271 FrameWork
RFC 3279 Algorithms and Identifiers for the Internet
RFC 2452 MIB for TCP6
X.509 Public Key Infrastructure Certificate and
RFC 2454 MIB for UDP6
Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure
General protocols
Certificate and Certificate Revocation List (CRL)
IEEE 802.1D MAC Bridges
Profile
IEEE 802.1p Priority
RFC 3392 Support BGP capabilities advertisement
IEEE 802.1Q VLANs
RFC 3479 Fault Tolerance for the Label Distribution
IEEE 802.1s Multiple Spanning Trees
Protocol (LDP)
IEEE 802.1w Rapid Reconfiguration of Spanning
RFC 3564 Requirements for Support of
Tree
Differentiated Services-aware MPLS Traffic
RFC 768 UDP
Engineering
RFC 783 TFTP Protocol (revision 2)
RFC 3602 The AES-CBC Cipher Algorithm and Its
RFC 791 IP
Use with IPsec
RFC 792 ICMP
RFC 3706 A Traffic-Based Method of Detecting
RFC 793 TCP
Dead Internet Key Exchange (IKE) Peers
RFC 826 ARP
RFC 3784 ISIS TE support
RFC 854 TELNET
RFC 3786 Extending the Number of IS-IS LSP
RFC 855 Telnet Option Specification
Fragments Beyond the 256 Limit
RFC 856 TELNET
RFC 3811 Definitions of Textual Conventions (TCs)
RFC 858 Telnet Suppress Go Ahead Option
for Multiprotocol Label Switching (MPLS)
RFC 894 IP over Ethernet
Management
RFC 925 Multi-LAN Address Resolution
RFC 3812 Multiprotocol Label Switching (MPLS)
RFC 950 Internet Standard Subnetting Procedure Traffic Engineering (TE) Management Information
RFC 959 File Transfer Protocol (FTP)
Base (MIB)
RFC 1006 ISO transport services on top of the TCP: RFC 3847 Restart signaling for IS-IS
Version 3
RFC 1027 Proxy ARP
IP multicast
RFC 1034 Domain Concepts and Facilities
RFC 1112 IGMP
RFC 1035 Domain Implementation and
RFC 2236 IGMPv2
Specification
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 1042 IP Datagrams
RFC 2362 PIM Sparse Mode
RFC 1058 RIPv1
RFC 2934 Protocol Independent Multicast MIB for
RFC 1071 Computing the Internet Checksum
IPv4
RFC 1091 Telnet Terminal-Type Option
RFC 3376 IGMPv3
RFC 1122 Host Requirements
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 42
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 1141 Incremental updating of the Internet
IPv6
checksum
RFC 1981 IPv6 Path MTU Discovery
RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 2080 RIPng for IPv6
RFC 1144 Compressing TCP/IP headers for
RFC 2292 Advanced Sockets API for IPv6
low-speed serial links
RFC 2373 IPv6 Addressing Architecture
RFC 1195 OSI ISIS for IP and Dual Environments RFC 2460 IPv6 Specification
RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 2461 IPv6 Neighbor Discovery
RFC 1293 Inverse Address Resolution Protocol
RFC 2462 IPv6 Stateless Address AutoRFC 1315 Management Information Base for
configuration
Frame
RFC 2464 Transmission of IPv6 over Ethernet
Relay DTEs
Networks
RFC 1332 The PPP Internet Protocol Control
RFC 2472 IP Version 6 over PPP
Protocol
RFC 2473 Generic Packet Tunneling in IPv6
(IPCP)
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 1333 PPP Link Quality Monitoring
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 1334 PPP Authentication Protocols (PAP)
RFC 2553 Basic Socket Interface Extensions for
RFC 1349 Type of Service
IPv6
RFC 1350 TFTP Protocol (revision 2)
RFC 2740 OSPFv3 for IPv6
RFC 1377 The PPP OSI Network Layer Control
RFC 2893 Transition Mechanisms for IPv6 Hosts
Protocol (OSINLCP)
and Routers
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 3056 Connection of IPv6 Domains via IPv4
RFC 1471 The Definitions of Managed Objects for Clouds
the Link Control Protocol of the Point-to-Point
RFC 3513 IPv6 Addressing Architecture
Protocol
RFC 3596 DNS Extension for IPv6
RFC 1472 The Definitions of Managed Objects for
the Security Protocols of the Point-to-Point Protocol MIBs
RFC 1490 Multiprotocol Interconnect over Frame RFC 1213 MIB II
Relay
RFC 1229 Interface MIB Extensions
RFC 1519 CIDR
RFC 1286 Bridge MIB
RFC 1534 DHCP/BOOTP Interoperation
RFC 1493 Bridge MIB
RFC 1542 Clarifications and Extensions for the
RFC 1573 SNMP MIB II
Bootstrap Protocol
RFC 1724 RIPv2 MIB
RFC 1552 The PPP Internetworking Packet
RFC 1757 Remote Network Monitoring MIB
Exchange
RFC 1850 OSPFv2 MIB
Control Protocol (IPXCP)
RFC 2011 SNMPv2 MIB for IP
RFC 1577 Classical IP and ARP over ATM
RFC 2012 SNMPv2 MIB for TCP
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 2013 SNMPv2 MIB for UDP
RFC 1624 Incremental Internet Checksum
RFC 2233 Interfaces MIB
RFC 1631 NAT
RFC 2454 IPV6-UDP-MIB
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 2465 IPv6 MIB
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 2466 ICMPv6 MIB
RFC 1662 PPP in HDLC-like Framing
RFC 2618 RADIUS Client MIB
RFC 1695 Definitions of Managed Objects for ATM RFC 2620 RADIUS Accounting MIB
Management Version 8.0 using SMIv2
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 1701 Generic Routing Encapsulation
RFC 2737 Entity MIB (Version 2)
RFC 1702 Generic Routing Encapsulation over
RFC 2863 The Interfaces Group MIB
IPv4
RFC 2933 IGMP MIB
networks
RFC 3813 MPLS LSR MIB
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
Network management
RFC 1723 RIP v2
IEEE 802.1D (STP)
RFC 1795 Data Link Switching: Switch-to-Switch
RFC 1155 Structure of Management Information
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 43
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw RFC 1157 SNMPv1
Standard Version 1
RFC 1905 SNMPv2 Protocol Operations
RFC 1812 IPv4 Routing
RFC 2272 SNMPv3 Management Protocol
RFC 1829 The ESP DES-CBC Transform
RFC 2273 SNMPv3 Applications
RFC 1877 PPP Internet Protocol Control Protocol
RFC 2274 USM for SNMPv3
Extensions for Name Server Addresses
RFC 2275 VACM for SNMPv3
RFC 1944 Benchmarking Methodology for Network RFC 2575 SNMPv3 View-based Access Control
Interconnect Devices
Model (VACM)
RFC 1973 PPP in Frame Relay
RFC 3164 BSD syslog Protocol
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1990 The PPP Multilink Protocol (MP)
OSPF
RFC 1994 PPP Challenge Handshake
RFC 1245 OSPF protocol analysis
Authentication
RFC 1246 Experience with OSPF
Protocol (CHAP)
RFC 1587 OSPF NSSA
RFC 2091 Trigger RIP
RFC 1765 OSPF Database Overflow
RFC 2131 DHCP
RFC 1850 OSPFv2 Management Information Base
RFC 2132 DHCP Options and BOOTP Vendor
(MIB), traps
Extensions
RFC 2328 OSPFv2
RFC 2166 APPN Implementer's Workshop Closed RFC 2370 OSPF Opaque LSA Option
Pages Document DLSw v2.0 Enhancements
RFC 3101 OSPF NSSA
RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification
QoS/CoS
RFC 2280 Routing Policy Specification Language IEEE 802.1P (CoS)
(RPSL)
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2284 EAP over LAN
RFC 2475 DiffServ Architecture
RFC 2338 VRRP
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2364 PPP Over AAL5
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2374 An Aggregatable Global Unicast
RFC 3168 The Addition of Explicit Congestion
Address Format
Notification (ECN) to IP
RFC 2451 The ESP CBC-Mode Cipher Algorithms
RFC 2453 RIPv2
Security
RFC 2510 Internet X.509 Public Key Infrastructure IEEE 802.1X Port Based Network Access Control
Certificate Management Protocols
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2511 Internet X.509 Certificate Request
RFC 2082 RIP-2 MD5 Authentication
Message Format
RFC 2104 Keyed-Hashing for Message
RFC 2516 A Method for Transmitting PPP Over
Authentication
Ethernet (PPPoE)
RFC 2138 RADIUS Authentication
RFC 2644 Directed Broadcast Control
RFC 2209 RSVP-Message Processing
RFC 2661 L2TP
RFC 2246 Transport Layer Security (TLS)
RFC 2663 NAT Terminology and Considerations
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2684 Multiprotocol Encapsulation over ATM RFC 2865 RADIUS Authentication
Adaptation Layer 5
RFC 2866 RADIUS Accounting
RFC 2694 DNS extensions to Network Address
RFC 3567 Intermediate System (IS) to IS
Translators (DNS_ALG)
Cryptographic Authentication
RFC 2702 Requirements for Traffic Engineering
Over MPLS
VPN
RFC 2747 RSVP Cryptographic Authentication
RFC 2403 - HMAC-MD5-96
RFC 2763 Dynamic Name-to-System ID mapping RFC 2404 - HMAC-SHA1-96
support
RFC 2405 - DES-CBC Cipher algorithm
RFC 2765 Stateless IP/ICMP Translation Algorithm RFC 2547 BGP/MPLS VPNs
(SIIT)
RFC 2796 BGP Route Reflection - An Alternative to
RFC 2766 Network Address Translation - Protocol Full Mesh IBGP
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 44
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for
VRRP
RFC 2961 RSVP Refresh Overhead Reduction
Extensions
RFC 2966 Domain-wide Prefix Distribution with
Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address
Translator (Traditional NAT)
RFC 3027 Protocol Complications with the IP
Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4
IPsec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
RFC 2410 - The NULL Encryption Algorithm and its
use with IPsec
RFC 2411 IP Security Document Roadmap
RFC 2412 – OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
HP A-MSR30-40 PoE Multi-Service Router (JF803A)
4 SIC slots
Ports
4 MIM module slots
2 1000Base-T ports (IEEE 802.3ab Type 1000Base-T)
2 fixed Gigabit Ethernet SFP ports
16.63(d) x 17.4(w) x 3.47(h) in. (42.23 x 44.2 x 8.82 cm) (2U height)
Physical characteristics
Dimensions
26.23 lb. (11.9 kg)
Weight
RISC @ 533 MHz, 256 MB DDR SDRAM, 256 MB compact flash
Memory and processor
Processor
Mounts in an EIA standard 19-in. rack
Mounting
360 Kpps (64-byte packets)
Performance
Throughput
30,000 entries
Routing table size
32°F to 104°F (0°C to 40°C)
Environment
Operating temperature
5% to 90%, non-condensing
Operating relative
humidity
Non-operating/Storage -40°F to 158°F (-40°C to 70°C)
temperature
Non-operating/Storage 5% to 90%, non-condensing
relative humidity
Electrical characteristics Maximum heat dissipation 717 BTU/hr (756.44 kJ/hr)
100-120 / 200-240 VAC
Voltage
210 W
Maximum power rating
375 W
PoE power
50 / 60 Hz
Frequency
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 45
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Notes
Safety
Emissions
Telecom
Management
Services
Maximum power rating and maximum heat dissipation are the worst-case
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated. PoE power is the power supplied by the internal power
supply. It is dependent on the type and quantity of power supplies and may
be supplemented with the use of an external power supply (EPS).
UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser
Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03; FDA 21 CFR
Subchapter J
EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22
Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 610003-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47,
Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-48:2001
FCC part 68
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
RMON1; FTP; IEEE 802.3 Ethernet MIB
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Standards and protocols
(applies to all products in
series)
BGP
RFC 1163 Border Gateway Protocol (BGP)
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
DA - 14027
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP
Tunnels
RFC 3210 Applicability Statement for Extensions to
RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP
(CR-LDP)
RFC 3214 LSP Modification Using CR-LDP
Worldwide — Version 3 — October 17, 2011
Page 46
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 2439 BGP Route Flap Damping
RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
Device management
RFC 3268 Advanced Encryption Standard (AES)
RFC 1305 NTPv3
Ciphersuites for Transport Layer Security (TLS)
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0 RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 2271 FrameWork
RFC 3279 Algorithms and Identifiers for the Internet
RFC 2452 MIB for TCP6
X.509 Public Key Infrastructure Certificate and
RFC 2454 MIB for UDP6
Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure
General protocols
Certificate and Certificate Revocation List (CRL)
IEEE 802.1D MAC Bridges
Profile
IEEE 802.1p Priority
RFC 3392 Support BGP capabilities advertisement
IEEE 802.1Q VLANs
RFC 3479 Fault Tolerance for the Label Distribution
IEEE 802.1s Multiple Spanning Trees
Protocol (LDP)
IEEE 802.1w Rapid Reconfiguration of Spanning
RFC 3564 Requirements for Support of
Tree
Differentiated Services-aware MPLS Traffic
RFC 768 UDP
Engineering
RFC 783 TFTP Protocol (revision 2)
RFC 3602 The AES-CBC Cipher Algorithm and Its
RFC 791 IP
Use with IPsec
RFC 792 ICMP
RFC 3706 A Traffic-Based Method of Detecting
RFC 793 TCP
Dead Internet Key Exchange (IKE) Peers
RFC 826 ARP
RFC 3784 ISIS TE support
RFC 854 TELNET
RFC 3786 Extending the Number of IS-IS LSP
RFC 855 Telnet Option Specification
Fragments Beyond the 256 Limit
RFC 856 TELNET
RFC 3811 Definitions of Textual Conventions (TCs)
RFC 858 Telnet Suppress Go Ahead Option
for Multiprotocol Label Switching (MPLS)
RFC 894 IP over Ethernet
Management
RFC 925 Multi-LAN Address Resolution
RFC 3812 Multiprotocol Label Switching (MPLS)
RFC 950 Internet Standard Subnetting Procedure Traffic Engineering (TE) Management Information
RFC 959 File Transfer Protocol (FTP)
Base (MIB)
RFC 1006 ISO transport services on top of the TCP: RFC 3847 Restart signaling for IS-IS
Version 3
RFC 1027 Proxy ARP
IP multicast
RFC 1034 Domain Concepts and Facilities
RFC 1112 IGMP
RFC 1035 Domain Implementation and
RFC 2236 IGMPv2
Specification
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 1042 IP Datagrams
RFC 2362 PIM Sparse Mode
RFC 1058 RIPv1
RFC 2934 Protocol Independent Multicast MIB for
RFC 1071 Computing the Internet Checksum
IPv4
RFC 1091 Telnet Terminal-Type Option
RFC 3376 IGMPv3
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the Internet
IPv6
checksum
RFC 1981 IPv6 Path MTU Discovery
RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 2080 RIPng for IPv6
RFC 1144 Compressing TCP/IP headers for
RFC 2292 Advanced Sockets API for IPv6
low-speed serial links
RFC 2373 IPv6 Addressing Architecture
RFC 1195 OSI ISIS for IP and Dual Environments RFC 2460 IPv6 Specification
RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 2461 IPv6 Neighbor Discovery
RFC 1293 Inverse Address Resolution Protocol
RFC 2462 IPv6 Stateless Address AutoRFC 1315 Management Information Base for
configuration
Frame
RFC 2464 Transmission of IPv6 over Ethernet
Relay DTEs
Networks
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 47
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 1332 The PPP Internet Protocol Control
RFC 2472 IP Version 6 over PPP
Protocol
RFC 2473 Generic Packet Tunneling in IPv6
(IPCP)
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 1333 PPP Link Quality Monitoring
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 1334 PPP Authentication Protocols (PAP)
RFC 2553 Basic Socket Interface Extensions for
RFC 1349 Type of Service
IPv6
RFC 1350 TFTP Protocol (revision 2)
RFC 2740 OSPFv3 for IPv6
RFC 1377 The PPP OSI Network Layer Control
RFC 2893 Transition Mechanisms for IPv6 Hosts
Protocol (OSINLCP)
and Routers
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 3056 Connection of IPv6 Domains via IPv4
RFC 1471 The Definitions of Managed Objects for Clouds
the Link Control Protocol of the Point-to-Point
RFC 3513 IPv6 Addressing Architecture
Protocol
RFC 3596 DNS Extension for IPv6
RFC 1472 The Definitions of Managed Objects for
the Security Protocols of the Point-to-Point Protocol MIBs
RFC 1490 Multiprotocol Interconnect over Frame RFC 1213 MIB II
Relay
RFC 1229 Interface MIB Extensions
RFC 1519 CIDR
RFC 1286 Bridge MIB
RFC 1534 DHCP/BOOTP Interoperation
RFC 1493 Bridge MIB
RFC 1542 Clarifications and Extensions for the
RFC 1573 SNMP MIB II
Bootstrap Protocol
RFC 1724 RIPv2 MIB
RFC 1552 The PPP Internetworking Packet
RFC 1757 Remote Network Monitoring MIB
Exchange
RFC 1850 OSPFv2 MIB
Control Protocol (IPXCP)
RFC 2011 SNMPv2 MIB for IP
RFC 1577 Classical IP and ARP over ATM
RFC 2012 SNMPv2 MIB for TCP
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 2013 SNMPv2 MIB for UDP
RFC 1624 Incremental Internet Checksum
RFC 2233 Interfaces MIB
RFC 1631 NAT
RFC 2454 IPV6-UDP-MIB
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 2465 IPv6 MIB
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 2466 ICMPv6 MIB
RFC 1662 PPP in HDLC-like Framing
RFC 2618 RADIUS Client MIB
RFC 1695 Definitions of Managed Objects for ATM RFC 2620 RADIUS Accounting MIB
Management Version 8.0 using SMIv2
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 1701 Generic Routing Encapsulation
RFC 2737 Entity MIB (Version 2)
RFC 1702 Generic Routing Encapsulation over
RFC 2863 The Interfaces Group MIB
IPv4
RFC 2933 IGMP MIB
networks
RFC 3813 MPLS LSR MIB
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
Network management
RFC 1723 RIP v2
IEEE 802.1D (STP)
RFC 1795 Data Link Switching: Switch-to-Switch
RFC 1155 Structure of Management Information
Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw RFC 1157 SNMPv1
Standard Version 1
RFC 1905 SNMPv2 Protocol Operations
RFC 1812 IPv4 Routing
RFC 2272 SNMPv3 Management Protocol
RFC 1829 The ESP DES-CBC Transform
RFC 2273 SNMPv3 Applications
RFC 1877 PPP Internet Protocol Control Protocol
RFC 2274 USM for SNMPv3
Extensions for Name Server Addresses
RFC 2275 VACM for SNMPv3
RFC 1944 Benchmarking Methodology for Network RFC 2575 SNMPv3 View-based Access Control
Interconnect Devices
Model (VACM)
RFC 1973 PPP in Frame Relay
RFC 3164 BSD syslog Protocol
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1990 The PPP Multilink Protocol (MP)
OSPF
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 48
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 1994 PPP Challenge Handshake
Authentication
Protocol (CHAP)
RFC 2091 Trigger RIP
RFC 2131 DHCP
RFC 2132 DHCP Options and BOOTP Vendor
Extensions
RFC 2166 APPN Implementer's Workshop Closed
Pages Document DLSw v2.0 Enhancements
RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification
RFC 2280 Routing Policy Specification Language
(RPSL)
RFC 2284 EAP over LAN
RFC 2338 VRRP
RFC 2364 PPP Over AAL5
RFC 2374 An Aggregatable Global Unicast
Address Format
RFC 2451 The ESP CBC-Mode Cipher Algorithms
RFC 2453 RIPv2
RFC 2510 Internet X.509 Public Key Infrastructure
Certificate Management Protocols
RFC 2511 Internet X.509 Certificate Request
Message Format
RFC 2516 A Method for Transmitting PPP Over
Ethernet (PPPoE)
RFC 2644 Directed Broadcast Control
RFC 2661 L2TP
RFC 2663 NAT Terminology and Considerations
RFC 2684 Multiprotocol Encapsulation over ATM
Adaptation Layer 5
RFC 2694 DNS extensions to Network Address
Translators (DNS_ALG)
RFC 2702 Requirements for Traffic Engineering
Over MPLS
RFC 2747 RSVP Cryptographic Authentication
RFC 2763 Dynamic Name-to-System ID mapping
support
RFC 2765 Stateless IP/ICMP Translation Algorithm
(SIIT)
RFC 2766 Network Address Translation - Protocol
Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for
VRRP
RFC 2961 RSVP Refresh Overhead Reduction
Extensions
RFC 2966 Domain-wide Prefix Distribution with
Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address
DA - 14027
RFC 1245 OSPF protocol analysis
RFC 1246 Experience with OSPF
RFC 1587 OSPF NSSA
RFC 1765 OSPF Database Overflow
RFC 1850 OSPFv2 Management Information Base
(MIB), traps
RFC 2328 OSPFv2
RFC 2370 OSPF Opaque LSA Option
RFC 3101 OSPF NSSA
QoS/CoS
IEEE 802.1P (CoS)
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 3168 The Addition of Explicit Congestion
Notification (ECN) to IP
Security
IEEE 802.1X Port Based Network Access Control
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message
Authentication
RFC 2138 RADIUS Authentication
RFC 2209 RSVP-Message Processing
RFC 2246 Transport Layer Security (TLS)
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 3567 Intermediate System (IS) to IS
Cryptographic Authentication
VPN
RFC 2403 - HMAC-MD5-96
RFC 2404 - HMAC-SHA1-96
RFC 2405 - DES-CBC Cipher algorithm
RFC 2547 BGP/MPLS VPNs
RFC 2796 BGP Route Reflection - An Alternative to
Full Mesh IBGP
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4
IPsec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
Worldwide — Version 3 — October 17, 2011
Page 49
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Translator (Traditional NAT)
RFC 3027 Protocol Complications with the IP
Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
RFC 2410 - The NULL Encryption Algorithm and its
use with IPsec
RFC 2411 IP Security Document Roadmap
RFC 2412 – OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
HP A-MSR30-60 Multi-Service Router (JF230A)
4 SIC slots
Ports
6 MIM module slots
2 1000Base-T ports (IEEE 802.3ab Type 1000Base-T)
2 fixed Gigabit Ethernet SFP ports
16.61(d) x 17.4(w) x 5.2(h) in. (42.18 x 44.2 x 13.2 cm) (3U height)
Physical characteristics
Dimensions
29.98 lb. (13.6 kg)
Weight
RISC @ 533 MHz, 256 MB DDR SDRAM, 256 MB compact flash
Memory and processor
Processor
Mounts in an EIA standard 19-in. rack
Mounting
360 Kpps (64-byte packets)
Performance
Throughput
30,000 entries
Routing table size
32°F to 104°F (0°C to 40°C)
Environment
Operating temperature
5% to 90%, non-condensing
Operating relative
humidity
Non-operating/Storage -40°F to 158°F (-40°C to 70°C)
temperature
Non-operating/Storage 5% to 90%, non-condensing
relative humidity
Electrical characteristics Maximum heat dissipation 717 BTU/hr (756.44 kJ/hr)
100-120 / 200-240 VAC
Voltage
210 W
Maximum power rating
50 / 60 Hz
Frequency
Maximum power rating and maximum heat dissipation are the worst-case
Notes
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated.
UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser
Safety
Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR
Subchapter J
EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22
Emissions
Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 610003-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47,
Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-48:2001
FCC part 68
Telecom
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
Management
RMON1; FTP; IEEE 802.3 Ethernet MIB
3-year, parts only, global next-day advance exchange (UX150E)
Services
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 50
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Standards and protocols
(applies to all products in
series)
BGP
RFC 1163 Border Gateway Protocol (BGP)
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP
Tunnels
RFC 3210 Applicability Statement for Extensions to
RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP
(CR-LDP)
RFC 3214 LSP Modification Using CR-LDP
RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
Device management
RFC 3268 Advanced Encryption Standard (AES)
RFC 1305 NTPv3
Ciphersuites for Transport Layer Security (TLS)
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0 RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 2271 FrameWork
RFC 3279 Algorithms and Identifiers for the Internet
RFC 2452 MIB for TCP6
X.509 Public Key Infrastructure Certificate and
RFC 2454 MIB for UDP6
Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure
General protocols
Certificate and Certificate Revocation List (CRL)
IEEE 802.1D MAC Bridges
Profile
IEEE 802.1p Priority
RFC 3392 Support BGP capabilities advertisement
IEEE 802.1Q VLANs
RFC 3479 Fault Tolerance for the Label Distribution
IEEE 802.1s Multiple Spanning Trees
Protocol (LDP)
IEEE 802.1w Rapid Reconfiguration of Spanning
RFC 3564 Requirements for Support of
Tree
Differentiated Services-aware MPLS Traffic
RFC 768 UDP
Engineering
RFC 783 TFTP Protocol (revision 2)
RFC 3602 The AES-CBC Cipher Algorithm and Its
RFC 791 IP
Use with IPsec
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 51
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 792 ICMP
RFC 3706 A Traffic-Based Method of Detecting
RFC 793 TCP
Dead Internet Key Exchange (IKE) Peers
RFC 826 ARP
RFC 3784 ISIS TE support
RFC 854 TELNET
RFC 3786 Extending the Number of IS-IS LSP
RFC 855 Telnet Option Specification
Fragments Beyond the 256 Limit
RFC 856 TELNET
RFC 3811 Definitions of Textual Conventions (TCs)
RFC 858 Telnet Suppress Go Ahead Option
for Multiprotocol Label Switching (MPLS)
RFC 894 IP over Ethernet
Management
RFC 925 Multi-LAN Address Resolution
RFC 3812 Multiprotocol Label Switching (MPLS)
RFC 950 Internet Standard Subnetting Procedure Traffic Engineering (TE) Management Information
RFC 959 File Transfer Protocol (FTP)
Base (MIB)
RFC 1006 ISO transport services on top of the TCP: RFC 3847 Restart signaling for IS-IS
Version 3
RFC 1027 Proxy ARP
IP multicast
RFC 1034 Domain Concepts and Facilities
RFC 1112 IGMP
RFC 1035 Domain Implementation and
RFC 2236 IGMPv2
Specification
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 1042 IP Datagrams
RFC 2362 PIM Sparse Mode
RFC 1058 RIPv1
RFC 2934 Protocol Independent Multicast MIB for
RFC 1071 Computing the Internet Checksum
IPv4
RFC 1091 Telnet Terminal-Type Option
RFC 3376 IGMPv3
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the Internet
IPv6
checksum
RFC 1981 IPv6 Path MTU Discovery
RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 2080 RIPng for IPv6
RFC 1144 Compressing TCP/IP headers for
RFC 2292 Advanced Sockets API for IPv6
low-speed serial links
RFC 2373 IPv6 Addressing Architecture
RFC 1195 OSI ISIS for IP and Dual Environments RFC 2460 IPv6 Specification
RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 2461 IPv6 Neighbor Discovery
RFC 1293 Inverse Address Resolution Protocol
RFC 2462 IPv6 Stateless Address AutoRFC 1315 Management Information Base for
configuration
Frame
RFC 2464 Transmission of IPv6 over Ethernet
Relay DTEs
Networks
RFC 1332 The PPP Internet Protocol Control
RFC 2472 IP Version 6 over PPP
Protocol
RFC 2473 Generic Packet Tunneling in IPv6
(IPCP)
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 1333 PPP Link Quality Monitoring
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 1334 PPP Authentication Protocols (PAP)
RFC 2553 Basic Socket Interface Extensions for
RFC 1349 Type of Service
IPv6
RFC 1350 TFTP Protocol (revision 2)
RFC 2740 OSPFv3 for IPv6
RFC 1377 The PPP OSI Network Layer Control
RFC 2893 Transition Mechanisms for IPv6 Hosts
Protocol (OSINLCP)
and Routers
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 3056 Connection of IPv6 Domains via IPv4
RFC 1471 The Definitions of Managed Objects for Clouds
the Link Control Protocol of the Point-to-Point
RFC 3513 IPv6 Addressing Architecture
Protocol
RFC 3596 DNS Extension for IPv6
RFC 1472 The Definitions of Managed Objects for
the Security Protocols of the Point-to-Point Protocol MIBs
RFC 1490 Multiprotocol Interconnect over Frame RFC 1213 MIB II
Relay
RFC 1229 Interface MIB Extensions
RFC 1519 CIDR
RFC 1286 Bridge MIB
RFC 1534 DHCP/BOOTP Interoperation
RFC 1493 Bridge MIB
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 52
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 1542 Clarifications and Extensions for the
RFC 1573 SNMP MIB II
Bootstrap Protocol
RFC 1724 RIPv2 MIB
RFC 1552 The PPP Internetworking Packet
RFC 1757 Remote Network Monitoring MIB
Exchange
RFC 1850 OSPFv2 MIB
Control Protocol (IPXCP)
RFC 2011 SNMPv2 MIB for IP
RFC 1577 Classical IP and ARP over ATM
RFC 2012 SNMPv2 MIB for TCP
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 2013 SNMPv2 MIB for UDP
RFC 1624 Incremental Internet Checksum
RFC 2233 Interfaces MIB
RFC 1631 NAT
RFC 2454 IPV6-UDP-MIB
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 2465 IPv6 MIB
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 2466 ICMPv6 MIB
RFC 1662 PPP in HDLC-like Framing
RFC 2618 RADIUS Client MIB
RFC 1695 Definitions of Managed Objects for ATM RFC 2620 RADIUS Accounting MIB
Management Version 8.0 using SMIv2
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 1701 Generic Routing Encapsulation
RFC 2737 Entity MIB (Version 2)
RFC 1702 Generic Routing Encapsulation over
RFC 2863 The Interfaces Group MIB
IPv4
RFC 2933 IGMP MIB
networks
RFC 3813 MPLS LSR MIB
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
Network management
RFC 1723 RIP v2
IEEE 802.1D (STP)
RFC 1795 Data Link Switching: Switch-to-Switch
RFC 1155 Structure of Management Information
Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw RFC 1157 SNMPv1
Standard Version 1
RFC 1905 SNMPv2 Protocol Operations
RFC 1812 IPv4 Routing
RFC 2272 SNMPv3 Management Protocol
RFC 1829 The ESP DES-CBC Transform
RFC 2273 SNMPv3 Applications
RFC 1877 PPP Internet Protocol Control Protocol
RFC 2274 USM for SNMPv3
Extensions for Name Server Addresses
RFC 2275 VACM for SNMPv3
RFC 1944 Benchmarking Methodology for Network RFC 2575 SNMPv3 View-based Access Control
Interconnect Devices
Model (VACM)
RFC 1973 PPP in Frame Relay
RFC 3164 BSD syslog Protocol
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1990 The PPP Multilink Protocol (MP)
OSPF
RFC 1994 PPP Challenge Handshake
RFC 1245 OSPF protocol analysis
Authentication
RFC 1246 Experience with OSPF
Protocol (CHAP)
RFC 1587 OSPF NSSA
RFC 2091 Trigger RIP
RFC 1765 OSPF Database Overflow
RFC 2131 DHCP
RFC 1850 OSPFv2 Management Information Base
RFC 2132 DHCP Options and BOOTP Vendor
(MIB), traps
Extensions
RFC 2328 OSPFv2
RFC 2166 APPN Implementer's Workshop Closed RFC 2370 OSPF Opaque LSA Option
Pages Document DLSw v2.0 Enhancements
RFC 3101 OSPF NSSA
RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification
QoS/CoS
RFC 2280 Routing Policy Specification Language IEEE 802.1P (CoS)
(RPSL)
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2284 EAP over LAN
RFC 2475 DiffServ Architecture
RFC 2338 VRRP
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2364 PPP Over AAL5
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2374 An Aggregatable Global Unicast
RFC 3168 The Addition of Explicit Congestion
Address Format
Notification (ECN) to IP
RFC 2451 The ESP CBC-Mode Cipher Algorithms
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 53
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 2453 RIPv2
RFC 2510 Internet X.509 Public Key Infrastructure
Certificate Management Protocols
RFC 2511 Internet X.509 Certificate Request
Message Format
RFC 2516 A Method for Transmitting PPP Over
Ethernet (PPPoE)
RFC 2644 Directed Broadcast Control
RFC 2661 L2TP
RFC 2663 NAT Terminology and Considerations
RFC 2684 Multiprotocol Encapsulation over ATM
Adaptation Layer 5
RFC 2694 DNS extensions to Network Address
Translators (DNS_ALG)
RFC 2702 Requirements for Traffic Engineering
Over MPLS
RFC 2747 RSVP Cryptographic Authentication
RFC 2763 Dynamic Name-to-System ID mapping
support
RFC 2765 Stateless IP/ICMP Translation Algorithm
(SIIT)
RFC 2766 Network Address Translation - Protocol
Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for
VRRP
RFC 2961 RSVP Refresh Overhead Reduction
Extensions
RFC 2966 Domain-wide Prefix Distribution with
Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address
Translator (Traditional NAT)
RFC 3027 Protocol Complications with the IP
Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
Security
IEEE 802.1X Port Based Network Access Control
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message
Authentication
RFC 2138 RADIUS Authentication
RFC 2209 RSVP-Message Processing
RFC 2246 Transport Layer Security (TLS)
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 3567 Intermediate System (IS) to IS
Cryptographic Authentication
VPN
RFC 2403 - HMAC-MD5-96
RFC 2404 - HMAC-SHA1-96
RFC 2405 - DES-CBC Cipher algorithm
RFC 2547 BGP/MPLS VPNs
RFC 2796 BGP Route Reflection - An Alternative to
Full Mesh IBGP
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4
IPsec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
RFC 2410 - The NULL Encryption Algorithm and its
use with IPsec
RFC 2411 IP Security Document Roadmap
RFC 2412 – OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
HP A-MSR30-60 PoE Multi-Service Router (JF804A)
4 SIC slots
Ports
6 MIM module slots
2 1000Base-T ports (IEEE 802.3ab Type 1000Base-T)
2 fixed Gigabit Ethernet SFP ports
16.61(d) x 17.4(w) x 5.2(h) in. (42.18 x 44.2 x 13.2 cm) (3U height)
Physical characteristics
Dimensions
29.98 lb. (13.6 kg)
Weight
RISC @ 533 MHz, 256 MB DDR SDRAM, 256 MB compact flash
Memory and processor
Processor
Mounts in an EIA standard 19-in. rack
Mounting
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 54
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
Performance
Environment
Electrical characteristics
Throughput
360 Kpps (64-byte packets)
30,000 entries
Routing table size
32°F to 104°F (0°C to 40°C)
Operating temperature
5% to 90%, non-condensing
Operating relative
humidity
Non-operating/Storage -40°F to 158°F (-40°C to 70°C)
temperature
Non-operating/Storage 5% to 90%, non-condensing
relative humidity
Maximum heat dissipation 717 BTU/hr (756.44 kJ/hr)
100-120 / 200-240 VAC
Voltage
Maximum power rating
PoE power
Frequency
Notes
Safety
Emissions
Telecom
Management
Services
210 W
375 W
50 / 60 Hz
Maximum power rating and maximum heat dissipation are the worst-case
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated.
PoE power is the power supplied by the internal power supply. It is dependent
on the type and quantity of power supplies and may be supplemented with
the use of an external power supply (EPS).
UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser
Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR
Subchapter J
EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22
Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 610003-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47,
Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-48:2001
FCC part 68
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
RMON1; FTP; IEEE 802.3 Ethernet MIB
3-year, parts only, global next-day advance exchange (UX150E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UX151E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UX154E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UX157E)
3-year, 24x7 SW phone support, software updates (UX160E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UX152E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UX155E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX158E)
4-year, 24x7 SW phone support, software updates (UX161E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UX153E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UX156E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX159E)
5-year, 24x7 SW phone support, software updates (UX162E)
3 Yr 6 hr Call-to-Repair Onsite (UX163E)
4 Yr 6 hr Call-to-Repair Onsite (UX164E)
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 55
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
5 Yr 6 hr Call-to-Repair Onsite (UX165E)
Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your
local HP sales office.
Standards and protocols
(applies to all products in
series)
BGP
RFC 1163 Border Gateway Protocol (BGP)
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP
Tunnels
RFC 3210 Applicability Statement for Extensions to
RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP
(CR-LDP)
RFC 3214 LSP Modification Using CR-LDP
RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
Device management
RFC 3268 Advanced Encryption Standard (AES)
RFC 1305 NTPv3
Ciphersuites for Transport Layer Security (TLS)
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0 RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 2271 FrameWork
RFC 3279 Algorithms and Identifiers for the Internet
RFC 2452 MIB for TCP6
X.509 Public Key Infrastructure Certificate and
RFC 2454 MIB for UDP6
Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure
General protocols
Certificate and Certificate Revocation List (CRL)
IEEE 802.1D MAC Bridges
Profile
IEEE 802.1p Priority
RFC 3392 Support BGP capabilities advertisement
IEEE 802.1Q VLANs
RFC 3479 Fault Tolerance for the Label Distribution
IEEE 802.1s Multiple Spanning Trees
Protocol (LDP)
IEEE 802.1w Rapid Reconfiguration of Spanning
RFC 3564 Requirements for Support of
Tree
Differentiated Services-aware MPLS Traffic
RFC 768 UDP
Engineering
RFC 783 TFTP Protocol (revision 2)
RFC 3602 The AES-CBC Cipher Algorithm and Its
RFC 791 IP
Use with IPsec
RFC 792 ICMP
RFC 3706 A Traffic-Based Method of Detecting
RFC 793 TCP
Dead Internet Key Exchange (IKE) Peers
RFC 826 ARP
RFC 3784 ISIS TE support
RFC 854 TELNET
RFC 3786 Extending the Number of IS-IS LSP
RFC 855 Telnet Option Specification
Fragments Beyond the 256 Limit
RFC 856 TELNET
RFC 3811 Definitions of Textual Conventions (TCs)
RFC 858 Telnet Suppress Go Ahead Option
for Multiprotocol Label Switching (MPLS)
RFC 894 IP over Ethernet
Management
RFC 925 Multi-LAN Address Resolution
RFC 3812 Multiprotocol Label Switching (MPLS)
RFC 950 Internet Standard Subnetting Procedure Traffic Engineering (TE) Management Information
RFC 959 File Transfer Protocol (FTP)
Base (MIB)
RFC 1006 ISO transport services on top of the TCP: RFC 3847 Restart signaling for IS-IS
Version 3
RFC 1027 Proxy ARP
IP multicast
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 56
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 1034 Domain Concepts and Facilities
RFC 1112 IGMP
RFC 1035 Domain Implementation and
RFC 2236 IGMPv2
Specification
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 1042 IP Datagrams
RFC 2362 PIM Sparse Mode
RFC 1058 RIPv1
RFC 2934 Protocol Independent Multicast MIB for
RFC 1071 Computing the Internet Checksum
IPv4
RFC 1091 Telnet Terminal-Type Option
RFC 3376 IGMPv3
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the Internet
IPv6
checksum
RFC 1981 IPv6 Path MTU Discovery
RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 2080 RIPng for IPv6
RFC 1144 Compressing TCP/IP headers for
RFC 2292 Advanced Sockets API for IPv6
low-speed serial links
RFC 2373 IPv6 Addressing Architecture
RFC 1195 OSI ISIS for IP and Dual Environments RFC 2460 IPv6 Specification
RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 2461 IPv6 Neighbor Discovery
RFC 1293 Inverse Address Resolution Protocol
RFC 2462 IPv6 Stateless Address AutoRFC 1315 Management Information Base for
configuration
Frame
RFC 2464 Transmission of IPv6 over Ethernet
Relay DTEs
Networks
RFC 1332 The PPP Internet Protocol Control
RFC 2472 IP Version 6 over PPP
Protocol
RFC 2473 Generic Packet Tunneling in IPv6
(IPCP)
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 1333 PPP Link Quality Monitoring
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 1334 PPP Authentication Protocols (PAP)
RFC 2553 Basic Socket Interface Extensions for
RFC 1349 Type of Service
IPv6
RFC 1350 TFTP Protocol (revision 2)
RFC 2740 OSPFv3 for IPv6
RFC 1377 The PPP OSI Network Layer Control
RFC 2893 Transition Mechanisms for IPv6 Hosts
Protocol (OSINLCP)
and Routers
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 3056 Connection of IPv6 Domains via IPv4
RFC 1471 The Definitions of Managed Objects for Clouds
the Link Control Protocol of the Point-to-Point
RFC 3513 IPv6 Addressing Architecture
Protocol
RFC 3596 DNS Extension for IPv6
RFC 1472 The Definitions of Managed Objects for
the Security Protocols of the Point-to-Point Protocol MIBs
RFC 1490 Multiprotocol Interconnect over Frame RFC 1213 MIB II
Relay
RFC 1229 Interface MIB Extensions
RFC 1519 CIDR
RFC 1286 Bridge MIB
RFC 1534 DHCP/BOOTP Interoperation
RFC 1493 Bridge MIB
RFC 1542 Clarifications and Extensions for the
RFC 1573 SNMP MIB II
Bootstrap Protocol
RFC 1724 RIPv2 MIB
RFC 1552 The PPP Internetworking Packet
RFC 1757 Remote Network Monitoring MIB
Exchange
RFC 1850 OSPFv2 MIB
Control Protocol (IPXCP)
RFC 2011 SNMPv2 MIB for IP
RFC 1577 Classical IP and ARP over ATM
RFC 2012 SNMPv2 MIB for TCP
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 2013 SNMPv2 MIB for UDP
RFC 1624 Incremental Internet Checksum
RFC 2233 Interfaces MIB
RFC 1631 NAT
RFC 2454 IPV6-UDP-MIB
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 2465 IPv6 MIB
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 2466 ICMPv6 MIB
RFC 1662 PPP in HDLC-like Framing
RFC 2618 RADIUS Client MIB
RFC 1695 Definitions of Managed Objects for ATM RFC 2620 RADIUS Accounting MIB
Management Version 8.0 using SMIv2
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 57
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 1701 Generic Routing Encapsulation
RFC 2737 Entity MIB (Version 2)
RFC 1702 Generic Routing Encapsulation over
RFC 2863 The Interfaces Group MIB
IPv4
RFC 2933 IGMP MIB
networks
RFC 3813 MPLS LSR MIB
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
Network management
RFC 1723 RIP v2
IEEE 802.1D (STP)
RFC 1795 Data Link Switching: Switch-to-Switch
RFC 1155 Structure of Management Information
Protocol AIW DLSw RIG: DLSw Closed Pages, DLSw RFC 1157 SNMPv1
Standard Version 1
RFC 1905 SNMPv2 Protocol Operations
RFC 1812 IPv4 Routing
RFC 2272 SNMPv3 Management Protocol
RFC 1829 The ESP DES-CBC Transform
RFC 2273 SNMPv3 Applications
RFC 1877 PPP Internet Protocol Control Protocol
RFC 2274 USM for SNMPv3
Extensions for Name Server Addresses
RFC 2275 VACM for SNMPv3
RFC 1944 Benchmarking Methodology for Network RFC 2575 SNMPv3 View-based Access Control
Interconnect Devices
Model (VACM)
RFC 1973 PPP in Frame Relay
RFC 3164 BSD syslog Protocol
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1990 The PPP Multilink Protocol (MP)
OSPF
RFC 1994 PPP Challenge Handshake
RFC 1245 OSPF protocol analysis
Authentication
RFC 1246 Experience with OSPF
Protocol (CHAP)
RFC 1587 OSPF NSSA
RFC 2091 Trigger RIP
RFC 1765 OSPF Database Overflow
RFC 2131 DHCP
RFC 1850 OSPFv2 Management Information Base
RFC 2132 DHCP Options and BOOTP Vendor
(MIB), traps
Extensions
RFC 2328 OSPFv2
RFC 2166 APPN Implementer's Workshop Closed RFC 2370 OSPF Opaque LSA Option
Pages Document DLSw v2.0 Enhancements
RFC 3101 OSPF NSSA
RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification
QoS/CoS
RFC 2280 Routing Policy Specification Language IEEE 802.1P (CoS)
(RPSL)
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2284 EAP over LAN
RFC 2475 DiffServ Architecture
RFC 2338 VRRP
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2364 PPP Over AAL5
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2374 An Aggregatable Global Unicast
RFC 3168 The Addition of Explicit Congestion
Address Format
Notification (ECN) to IP
RFC 2451 The ESP CBC-Mode Cipher Algorithms
RFC 2453 RIPv2
Security
RFC 2510 Internet X.509 Public Key Infrastructure IEEE 802.1X Port Based Network Access Control
Certificate Management Protocols
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2511 Internet X.509 Certificate Request
RFC 2082 RIP-2 MD5 Authentication
Message Format
RFC 2104 Keyed-Hashing for Message
RFC 2516 A Method for Transmitting PPP Over
Authentication
Ethernet (PPPoE)
RFC 2138 RADIUS Authentication
RFC 2644 Directed Broadcast Control
RFC 2209 RSVP-Message Processing
RFC 2661 L2TP
RFC 2246 Transport Layer Security (TLS)
RFC 2663 NAT Terminology and Considerations
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2684 Multiprotocol Encapsulation over ATM RFC 2865 RADIUS Authentication
Adaptation Layer 5
RFC 2866 RADIUS Accounting
RFC 2694 DNS extensions to Network Address
RFC 3567 Intermediate System (IS) to IS
Translators (DNS_ALG)
Cryptographic Authentication
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 58
QuickSpecs
HP VCX Connect Unified Communications MIM on MSR
Series
Accessory Product Details
RFC 2702 Requirements for Traffic Engineering
Over MPLS
RFC 2747 RSVP Cryptographic Authentication
RFC 2763 Dynamic Name-to-System ID mapping
support
RFC 2765 Stateless IP/ICMP Translation Algorithm
(SIIT)
RFC 2766 Network Address Translation - Protocol
Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for
VRRP
RFC 2961 RSVP Refresh Overhead Reduction
Extensions
RFC 2966 Domain-wide Prefix Distribution with
Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address
Translator (Traditional NAT)
RFC 3027 Protocol Complications with the IP
Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
VPN
RFC 2403 - HMAC-MD5-96
RFC 2404 - HMAC-SHA1-96
RFC 2405 - DES-CBC Cipher algorithm
RFC 2547 BGP/MPLS VPNs
RFC 2796 BGP Route Reflection - An Alternative to
Full Mesh IBGP
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4
IPsec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
RFC 2410 - The NULL Encryption Algorithm and its
use with IPsec
RFC 2411 IP Security Document Roadmap
RFC 2412 – OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
To learn more, visit: www.hp.com/networking
© Copyright 2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without
notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
DA - 14027
Worldwide — Version 3 — October 17, 2011
Page 59
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
