Canon VK-64 v2.0
 4
+449
44444
The VK Software’s Camera Control
gives you an array of choices such
as Exposure White Balance and
Smart Shade Control.
4
4
CANON NETWORK CAMERAS
(cameras sold seperately)
LA
# LT
VB-C50i VB-C50FSi
VK VIEWER
Offers the flexibility to create different layouts, automatically switch between different layouts,
and set the priority of each layout for faster monitoring.
View video in full-screen size.
Control the network camera’s back-light compensation, night mode, and shade correction.
Manually capture still frame jpeg images and record 1 minute of video.
Can access up to 10 storage servers providing connection to a maximum of 192 Canon network
cameras.
CAMERA CONTROLS
Camera Control gives the user an array of choices such as Exposure and White Balance, Audio
Panel and a Status bar which displays Total Frame Rate, CPU, Video Window, and Display Event.
Audio Panel allows for bi-directional audio communication between the monitoring station and
camera sites.
VK STORAGE SERVER
Record video in either M-JPEG or MPEG-4 format.
640 x 480 resolution @ up to 30 frames per second.
Record up to 30 seconds of Pre-Events and 999 seconds of Post Events.
Audio Recording and Playback: record or play back audio at the camera site.
Record through a variety of methods such as Continuous, Scheduled (Normal and Special), on
Sensor Triggers, and Motion Detection.
Video can be recorded based on customized triggers from third party software. (i.e. access
control systems).
View live and recorded video(s) on the same screen.
EXTRACTING VIDEO
Recorded video can be exported into a separate video file for e-mailing or viewing on another
computer.
Video can be extracted through the Live Events window by simply inputting the date and time.
Video files are extracted with date stamp information and saved as a Quicktime file.
NETWORK VIDEO GROWTH AND EXPANSION
«+ VK-64 software can connect and record video from up to 64 Canon network cameras.
* VK-16 software can connect and record video from up to 16 Canon network cameras.
+ There is NO LICENSE PER CAMERA!

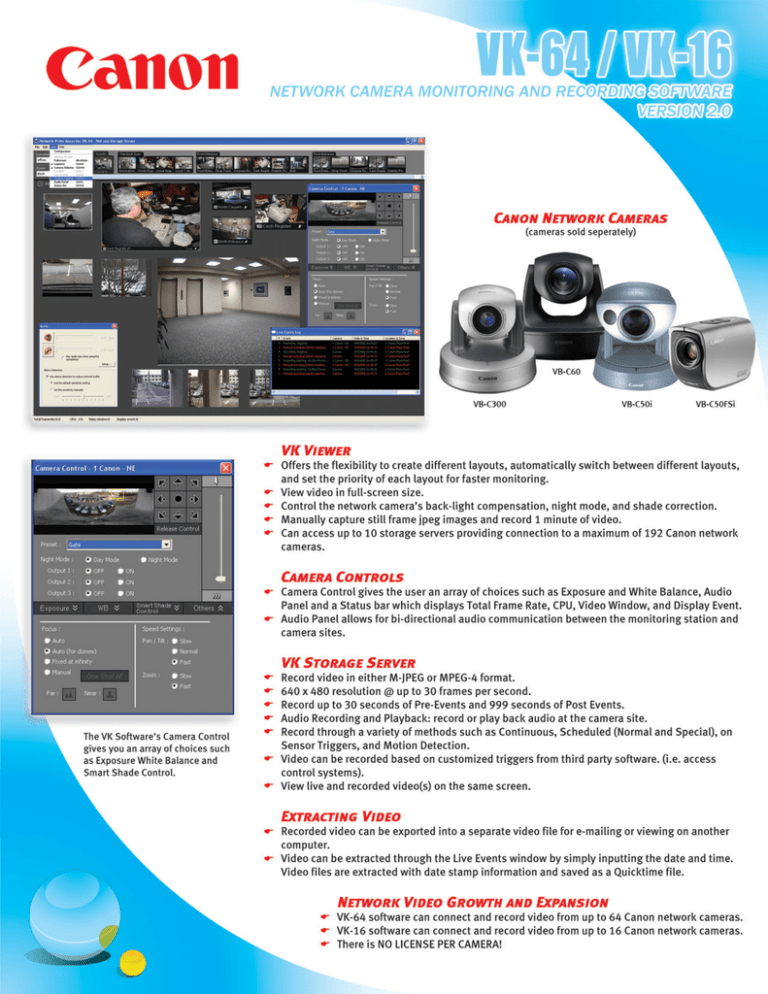

VK-64 / VK-16
NETWORK CAMERA MONITORING AND RECORDING SOFTWARE
VERSION 2.0
* Only 32-bit Edition of Windows XP and Windows Server 2003 are supported.
* 32-bit Edition 64-bit Edition of Windows Vista are supported.
Frame Size with VB-C60* (MPEG-4)
Frame Size with VB-C50i Series* (M-JPEG)
PRODUCTNAME |VI-64 Software| [PRODUCT NAME VK-16 Software! [PRODUCT NAME | VK-Viewer (1) license! PRODUCT NAME | VK-Viewer (5) license
ITEM CODE | 3099B001 ITEM CODE 30998002 ITEM CODE | 3099B003 ITEM CODE 3099B004
UPC CODE 013803097184 UPC CODE 013803097146 UPC CODE | 013803097160 UPC CODE 013803097177
Minimum Requirements for VK Viewer : Minimum Requirements for VK Storage Server:
VK-64 / VK-16 VER 2.0 MINIMUM OPERATING ENVIRONMENT VK-64 / VK-16 VER 2.0 MINIMUM OPERATING ENVIRONMENT
VK VIEWER | STORAGE SERVER
CPU Pentium 4, 2.2 GHz or faster CPU Pentium 4, 2.2 GHz or faster
(Pentium4 3.4GHz or higher when using MPEG-4) (Pentium4 3.4GHz or higher when using MPEG-4)
Operating System Windows XP Professional (SP2, SP3) Operating System Windows XP Professional (SP2, SP3)
Windows Server 2003 Standard Edition (SP2) Windows Server 2003 Standard Edition (SP2)
Windows Server 2003 R2 Standard Edition (SP2) Windows Server 2003 R2 Standard Edition (SP2)
Windows Vista Business/Enterprise/ Ultimate Windows Vista Business/Enterprise/ Ultimate
| (SP1) | (SP1)
Memory - 1GB or more Memory 1GB RAM or more
Hard Disk 2GB or more For more than 48 Camera Servers 1.5GB or more
Display 1024 x 768 or higher resolution is recommended required.
16 bit color or higher is recommended. Hard Disk 20GB HDD or more, SCSI or IDE, NTFS formatted
A high performane video card is recommended. * The requirements for Storage Server will vary due to the operating environment (number of Camera
SSE SSS SRM ani O! opie pe re reg ste
Sound Audio Playback support is necessary for event * Only 32-bit Edition of Windows XP and Windows Server 2003 are supported.
notification alert sounds. * 32-bit Edition /64-bit Edition of Windows Vista is supported.
Resolution Resolution
QUALITY 10fps 15fps QUALITY JPEG Small (160x120) | JPEG Medium (320x240) |, JPEG Large (640x480)
MPEG-4 Medium | MPEG-4 Lage | MPEG-4 Medium | MPEG-4 Large | MPEG-4 Medium | MPEG-4 Large 30 4.0 12.4 39.4
(320x240) | (640x480) | (320х240) | (640х480) (320x240) | (640x480) 40 4.7 14.8 46.2
1 0.28 0.76 0.35 0.94 0.54 1.43 50 5.3 16.7 51.7
2 0.39 1.08 0.50 1.30 0.78 2.02 60 6.0 18.9 58.4
3 0.60 1.67 0.75 2.02 1.20 3.31 70 7.0 22.3 68.2
4 0.69 1.93 0.91 2.43 1.38 3.98 80 8.6 27.5 84.5
5 0.81 2.31 1.05 2.87 1.68 4.86 90 11.9 38.7 124.8
(Mbps) WE)
Frame Size with VB-C60* (M H J PEG) * For the above figures please note that the bandwidth is calculated as 1000Kbps = 1Mbps, and the disk size as 1024KB = 1MB.
Resolution
QUALITY | JPEG Small (160x120) — JPEG Medium (320x240) | |PEG Large (640x480)
4 | 4.0 | 13.0 1 40.7 |
2 4.6 15.3 47.1
3 5.2 17.4 53.2
4 6.8 22.9 69.4
5 18.5 65.2 210.5
(KE)
Frame Size with VB-C300* (M-JPEG)
| Resolution
QUALITY JPEG Small (160x120) — JPEG Medium (320x240) | JPEG Large (640x480)
| 1 4.0 | 12.5 | 36.0 Can on
7 4.6 14.8 42.4 ,
52 168 и image ANYWARE
4 6.8 22.3 62.9
5 18.9 65.5 206.0
XE) 1-800-OK-CANON
NOTICE ABOUT THE MPEG-4 VISUAL STANDARD: THIS PRODUCT |S LICENSED UNDER THE MPEG-4 VISUAL PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODING VIDEO
IN COMPLIANCE WITH THE MPEG VISUAL STANDARD ("MPEG VIDEO") AND/OR (il) DECODING MPEG VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY. NO LICENSE
IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING
TO PROMOTIONAL, INTERMAL AND COMMERCIAL USES AND ADDITIONAL LICENSING MAY BE OBTAINED FROM
MPEG LA, LLC. SEE HTTP: MPEGLA COM,
Specifications are subject to change without notice, Weight and dimensions are approximate. Canon and IMAGEANY WARE
are registered trademarks of Canon Inc. in the United States and may also be a registered trademark in other countries.
Microsoft and Windows are either registered trademarks or trademarks of the Microsoft Corporation in the United States and/
or other countries. Other names and products not mentioned above maybe registered trademarks or trademarks of their
respective companies. Error and omissions expected. Images simulated.
Waming: Unauthorized recording of copyrighted materials may infringe on the rights of copyright owners and be contrary to
copyright laws ©2008 Canon U.S.A, INC. Errors and omissions excepled. Weight and dimensions are approximate.
specifications subject to change with out notice. Projected images simulated.
