LG BE12LU30.AUAE10B Datasheet

LG BE12LU30.AUAE10B Datasheet

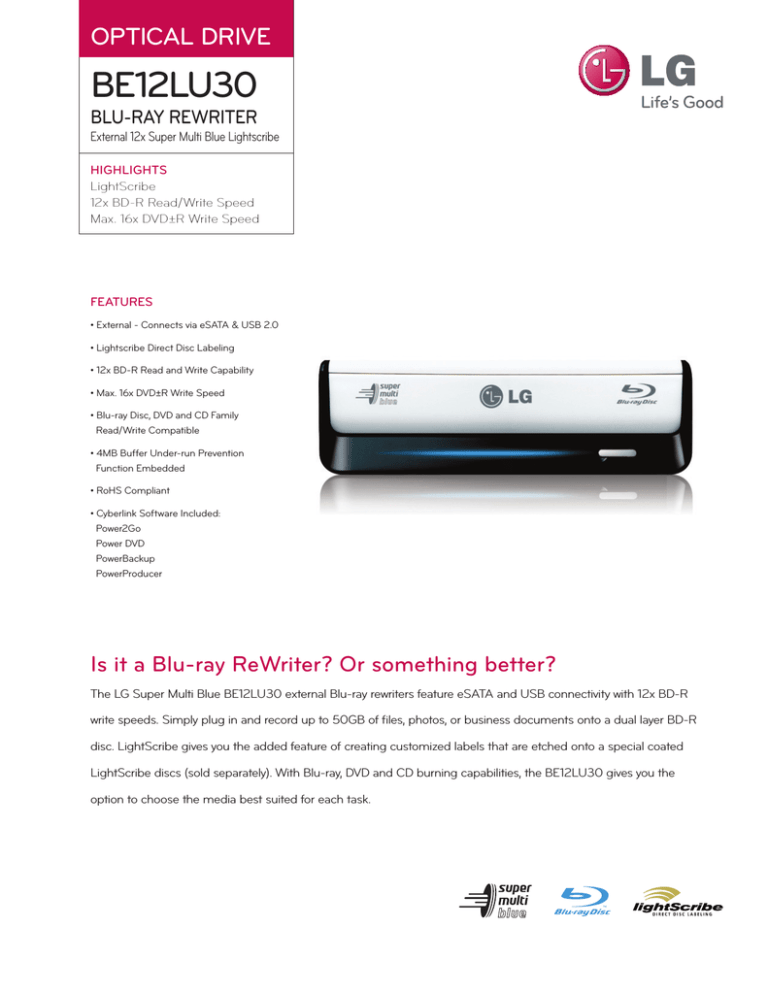

OPTICAL DRIVE
BE12LU30
BLU-RAY REWRITER
External 12x Super Multi Blue Lightscribe
HIGHLIGHTS
LightScribe
12x BD-R Read/Write Speed
Max. 16x DVD±R Write Speed
FEATURES
• External - Connects via eSATA & USB 2.0
• Lightscribe Direct Disc Labeling
• 12x BD-R Read and Write Capability
• Max. 16x DVD±R Write Speed
• Blu-ray Disc, DVD and CD Family
Read/Write Compatible
• 4MB Buffer Under-run Prevention
Function Embedded
• RoHS Compliant
• Cyberlink Software Included:
Power2Go
Power DVD
PowerBackup
PowerProducer
Is it a Blu-ray ReWriter? Or something better?
The LG Super Multi Blue BE12LU30 external Blu-ray rewriters feature eSATA and USB connectivity with 12x BD-R
write speeds. Simply plug in and record up to 50GB of files, photos, or business documents onto a dual layer BD-R
disc. LightScribe gives you the added feature of creating customized labels that are etched onto a special coated
LightScribe discs (sold separately). With Blu-ray, DVD and CD burning capabilities, the BE12LU30 gives you the
option to choose the media best suited for each task.
OPTICAL DRIVE
BE12LU30
SPECIFICATIONS
Type
External Blu-ray Disc Rewriter
TRANSFER RATES - WRITE
BD-R (SL)
2x, 4x CLV, 6x, 8x, 10x PCAV, 12x CAV
BD-R (DL)
2x, 4x CLV, 6x, 8x PCAV, 12x CAV
BD-R (SL L to H)
2x, 4x CLV, 6x PCAV
BD-RE (SL/DL)
2x CLV/ 2x CLV
DVD-R
2x, 4x CLV, 8x ZCLV, 8x, 12x PCAV, 16x CAV
DVD-R DL
2x, 4x CLV, 8x PCAV
DVD-RW
1x, 2x, 4x, 6x CLV
DVD-RAM
2x, 3x CLV, 5x, 12x PCAV
DVD+R
2.4x, 4x CLV, 8x ZCLV, 8x, 12x PCAV, 16x CAV
DVD+R DL
2.4x, 4x CLV, 8x PCAV
DVD+RW
2,4x, 4x, 6x CLV, 8x ZCLV
CD-R
8x, 16x CLV, 24x, 32x, 40x PCAV, 48x CAV
CD-RW
4x, 10x, 16x CLV, 24x ZCLV
TRANSFER RATES - READ
BD-ROM (SL/DL)
10x/ 8x CAV
BD-R (SL L to H)
6x CAV
BD-R (SL/DL)
10x/ 8x CAV
BD-RE (SL/DL)
8x/ 6x CAV
BDMV (AACS Compliant Disc) 4.8x CAV
DVD-R (SL/DL)
16x/ 12x CAV
DVD-RW12x CAV
DVD+R (SL/DL)
16x/ 12x CAV
DVD-RAM
2x, 3x CLV, 5x, 12x PCAV
DVD+RW12x CAV
DVD-VIDEO (CCS Compliant Disc) 12x/ 8x CAV (SL/DL)
CD-R/RW/ROM
48x/ 40x/ 48x CAV
CD-DA (DAE)
40x CAV
80mm CD
16x CAV
LIGHTSCRIBE
Supported disc formats
LightScribe MV1.2-N Single Layer
DVD +/- R Media
LightScribe MV1.2-N Single Layer
Printing Time
860 TPI: Full Label - less than 28 min.
860 TPI: Title Label - less than 3:30 min.
Pixel Resolution
600 DPI
Track Resolution
Best Mode: 860 TPI
Normal Mode: 630 TPI
Draft Mode: 400 TPI
Max Laser Write Power
40mW as objective emission of light of
780nm wavelength
Color
Mono, Color BG
ACCESS TIME
BD-ROM
180 ms typ.
DVD-ROM
160 ms typ.
DVD-RAM
180 ms typ.
CD-ROM
150 ms typ.
SUSTAINED TRANSFER RATE
BD-ROM
359.65 Mbits/s (10x) max.
DVD-ROM
22.16 Mbytes/s (16x) max.
CD-ROM
7,200 kB/s (48x) max.
HOST INTERFACE
External (Host)
eSATA & USB 2.0 (480Mbits/s)
Internal (Drive)
X3T13 ATA/ATAPI7/1532D
INF-8090i Ver. 6.1
INCITS xxx T10/1675D Revision 4
LG.com
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
OTHER
Burst Transfer Rate
1.5Gbps bits/s (10b side)
1.2Gbps bits/s (8b side)
Buffer Size
4MB Under-run prevention function embedded
Compliance RoHS
Operating Systems
Windows Vista™, Windows XP,
System Requirements
CPU: Intel® Pentium® 4 D 3.2GHz or higher (with USB 2.0)
Intel Pentium 4 Core 2 Duo TE6300 or higher
IBM® PC or compatible for basic performance
Graphic: AACS Compliance
RAM: 1GB or higher
HDD: 60GB or more of available space
DIMENSIONS & WEIGHTS
Dimensions (WxHxD) 6.4” x 2.0” x 10.2” (163 x 50 x 260 mm)
Weight
3.3 lbs (1500g)
SOFTWARE
CyberLink Power2Go •
CyberLink PowerDVD •
CyberLink PowerBackup
•
CyberLink PowerProducer
•
WARRANTY/UPC
Limited Warranty
1 Year Limited Warranty on Optical Drives
UPCTBD
Dimensions and weights are approximate. Design, features and specifications subject to change
without notice.
© 2010 LG Electronics USA, Inc. All rights reserved. “LG Life’s Good” is a registered trademark
of LG Corp. All other product and brand names are trademarks or registered trademarks of
their respective companies. 09/29/10
