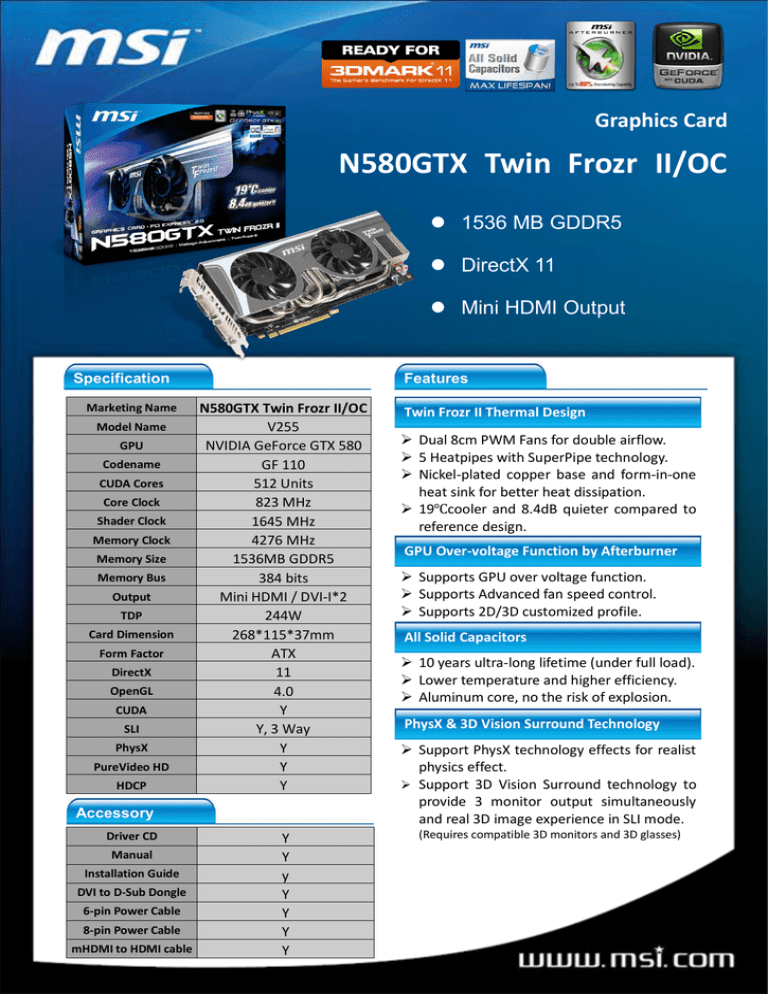

MSI N580GTX TWIN FROZR II/OC NVIDIA GeForce GTX 580 1.5GB graphics card Datasheet

Graphics Card
N580GTX Twin Frozr II/OC
 1536 MB GDDR5
 DirectX 11
 Mini HDMI Output
Specification
Marketing Name
Model Name
GPU
Codename
CUDA Cores
Core Clock
Shader Clock
Memory Clock
Memory Size
Memory Bus
Output
TDP
Card Dimension
Form Factor
DirectX
OpenGL
CUDA
SLI
PhysX
PureVideo HD
HDCP
Features
N580GTX Twin Frozr II/OC
V255
NVIDIA GeForce GTX 580
GF 110
512 Units
823 MHz
1645 MHz
4276 MHz
1536MB GDDR5
384 bits
Mini HDMI / DVI-I*2
244W
268*115*37mm
ATX
11
4.0
Y
Y, 3 Way
Y
Y
Y
Accessory
Driver CD
Manual
Installation Guide
DVI to D-Sub Dongle
6-pin Power Cable
8-pin Power Cable
mHDMI to HDMI cable
Y
Y
y
Y
Y
Y
Y
Twin Frozr II Thermal Design
 Dual 8cm PWM Fans for double airflow.
 5 Heatpipes with SuperPipe technology.
 Nickel-plated copper base and form-in-one
heat sink for better heat dissipation.
 19℃cooler and 8.4dB quieter compared to
reference design.
GPU Over-voltage Function by Afterburner
 Supports GPU over voltage function.
 Supports Advanced fan speed control.
 Supports 2D/3D customized profile.
All Solid Capacitors
 10 years ultra-long lifetime (under full load).
 Lower temperature and higher efficiency.
 Aluminum core, no the risk of explosion.
PhysX & 3D Vision Surround Technology
 Support PhysX technology effects for realist
physics effect.
 Support 3D Vision Surround technology to
provide 3 monitor output simultaneously
and real 3D image experience in SLI mode.
(Requires compatible 3D monitors and 3D glasses)
