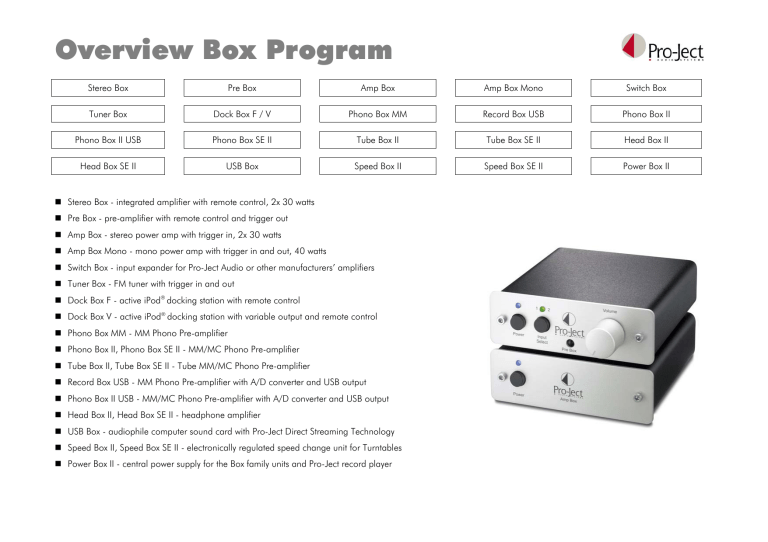

Overview Box Program

Overview Box Program

Overview Box Program

Stereo Box Pre Box

Tuner Box Dock Box F / V

Phono Box II USB Phono Box SE II

Head Box SE II USB Box

Stereo Box - integrated amplifier with remote control, 2x 30 watts

Pre Box - pre-amplifier with remote control and trigger out

Amp Box - stereo power amp with trigger in, 2x 30 watts

Amp Box Mono - mono power amp with trigger in and out, 40 watts

Amp Box

Phono Box MM

Tube Box II

Speed Box II

Switch Box - input expander for Pro-Ject Audio or other manufacturers’ amplifiers

Tuner Box - FM tuner with trigger in and out

Dock Box F - active iPod ® docking station with remote control

Dock Box V - active iPod ® docking station with variable output and remote control

Phono Box MM - MM Phono Pre-amplifier

Phono Box II, Phono Box SE II - MM/MC Phono Pre-amplifier

Tube Box II, Tube Box SE II - Tube MM/MC Phono Pre-amplifier

Record Box USB - MM Phono Pre-amplifier with A/D converter and USB output

Phono Box II USB - MM/MC Phono Pre-amplifier with A/D converter and USB output

Head Box II, Head Box SE II - headphone amplifier

USB Box - audiophile computer sound card with Pro-Ject Direct Streaming Technology

Speed Box II, Speed Box SE II - electronically regulated speed change unit for Turntables

Power Box II - central power supply for the Box family units and Pro-Ject record player

Amp Box Mono

Record Box USB

Tube Box SE II

Speed Box SE II

Switch Box

Phono Box II

Head Box II

Power Box II

Pro-Ject Stereo Box

Integrated amplifier with remote control

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Bi-Phase PWM-circuit (Pulse Width Modulation)

Gold plated RCA connection sockets

Outboard power supply included

Features

Remote controllable

Small size allows easy placement

Optional input expander Pro-Ject Switch Box providing four additional inputs. Automatic synchronization with the input selector of the Pro-Ject Stereo Box.

Pro-Ject Audio digital amplifiers achieve 80% energy efficiency

Technical specifications

Power output:

Frequency response:

Channel separation:

2 x 20W/30W at 8ohms/4ohms (both channels driven)

20Hz - 20kHz (+ - 0,2 dB)

> 40dB at 20kHz

Noise floor:

THD:

> -100dB (A weighted)

< 0,05% at 10W

Gain: 22dB

Line-level inputs: 2 pairs RCA/Phono sockets

Input impedance: 20kohms

Trigger Switch Box: 2-pole co-axial ∅ 2,5mm jack

Outboard power supply: 20V/3A DC (peak 7A DC), suitable for your country's mains supply

Power consumption: 20V/3A DC

Dimensions (W x H x D): 103 x 38 x 141mm

Weight: 720g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

2 Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject Pre Box

Pre-amplifier with remote control

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Optimal channel separation through dual-mono circuitry

Special low-noise ICs used

Gold plated RCA connection sockets

Outboard power supply included

Features

Remote controllable

Small size allows easy placement

Optional input expander Pro-Ject Switch Box providing four additional inputs. Automatic synchronization with the input selector of the Pro-Ject Pre Box.

Remote power switching for connected units via on/off switch (Trigger Pre)

Technical specifications

Frequency response:

Noise floor:

20Hz - 20kHz (+ - 0,2 dB)

-100dB (A weighted)

THD: 0,001%

Gain: 8,5dB

Pre out: 1 pair RCA/Phono sockets

Output voltage typically: 1V at 1kHz

Line-level inputs:

Input impedance:

2 pairs RCA/Phono sockets

20kohms

Trigger:

Trigger Amp:

12V DC switching voltage

2-pole co-axial ∅ 2,5mm jack

Trigger Switch Box: 2-pole co-axial ∅ 2,5mm jack

Outboard power supply: 16V/500mA AC, suitable for your country's mains supply

Power consumption: 16V/200mA AC

Dimension W x H x D: 103 x 76 x 141mm

Weight: 630g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

3

Pro-Ject Amp Box

Stereo power amp

4

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Bi-Phase PWM-circuit (Pulse Width Modulation)

Gold plated RCA/Phono sockets and loudspeaker terminals

Outboard power supply included

Features

Small size allows easy placement

Pro-Ject Audio digital amplifiers achieve 80% energy efficiency

The Amp Box can be switched on & off remotely via a trigger signal. A 45cm long power-on cable is supplied for this purpose

For bi- ore tri amplification use, the remote power-on signal can be relayed to further units

Technical specifications

Power output:

Frequency response:

Channel separation:

2 x 20W/30W at 8 Ohm/4 Ohm (both channels driven)

5Hz - 20kHz (+ 0dB, - 0,5dB)

> 40dB at 20kHz

Noise floor:

THD:

> -100dB (A weighted)

< 0,05% at 10W

Gain: 22dB

Pre in: 1 pair RCA/Phono sockets

Input sensitivity:

Input impedance:

Speaker connectors:

Trigger:

1V

47kohm

4mm ∅ banana plugs, spade connectors or naked wire

12V DC switching voltage

Trigger in and out: 2-pole co-axial ∅ 2,5mm jack

Outboard power supply: 20V/3A DC (peak 7A DC), suitable for your country's mains supply

Power consumption: 20V/3A DC

Dimension W x H x D: 103 x 38 x 141mm

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject Amp Box Mono

Mono power amp

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Bi-Phase PWM-circuit (Pulse Width Modulation)

Gold plated RCA/Phono sockets and loudspeaker terminals

Outboard power supply included

Features

Small size allows easy placement

Pro-Ject Audio digital amplifiers achieve 80% energy efficiency

The Amp Box Mono can be switched on & off remotely via a trigger signal. A 45cm long power-on cable is supplied for this purpose

For bi- ore tri amplification use, the preamplifier signal and the remote power-on signal can be relayed to further units

Technical specifications

Power output:

Frequency response:

Noise floor:

2 x 28W/40W at 8 Ohm/4 Ohm

5Hz - 20kHz (+ 0dB, - 0,5dB)

> -100dB (A weighted)

THD: < 0,05% at 10W

Gain: 22dB

Pre in:

Input sensitivity:

1 RCA/Phono socket

1V

Input impedance:

Pre out:

Speaker connector:

Trigger:

47kohm

1 RCA/Phono socket

4mm ∅ banana plugs, spade connectors or naked wire

12V DC switching voltage

Trigger in and out: 2-pole co-axial ∅ 2,5mm jack

Outboard power supply: 20V/3A DC (peak 7A DC), suitable for your country's mains supply

Power consumption: 20V/3A DC

Dimension W x H x D: 103 x 38 x 141mm

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

5

Pro-Ject Switch Box

Input expander for Pro-Ject Audio or other manufacturers’ amplifiers

Features

Provides four extra line-level inputs

Metal case shields the electronics from vibrational and electromagnetic interference

Automatic synchronization with the input selector of the Pro-Ject Pre Box

Can be used with other manufacturers’ amplifiers

Two line-level outputs permit e.g. connection to a Pro-Ject headphone amplifier, such as the Pro-Ject Head Box II ore the Pro-Ject Head Box SE II.

Outboard power supply included

Technical specifications

Gain: 0dB

Line-level inputs: 1 pair RCA/Phono sockets,

Line-level outputs:

3 x 3-pole co-axial ∅ 3,5mm jack

1 pair RCA/Phono sockets,

Trigger input: 2-pole co-axial ∅ 2,5mm jack

Outboard power supply: 16V/1.000mA AC, suitable for your country's mains supply

Power consumption: 16V/30mA AC

Dimension W x H x D: 103 x 38 x 120mm

Weight: 560g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish.

6 Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject Tuner Box

FM tuner

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Automatic frequency control (AFC) and adaptive noise cancellation

Gold plated RCA connection sockets

Outboard power supply included

Features

Small size allows easy placement

Fine tuning meter, signal strength meter and stereo/mono reception indicator

The Tuner Box can be switched on & off remotely via a trigger signal

The remote power-on signal can be relayed to further units

Technical specifications

Tuning range FM-band:

Programmable presets:

Frequency response:

Noise floor:

87,5 - 108,5MHz ( 50kHz steps )

8

20Hz - 20kHz/±1dB

-50dB

Stereo separation: 30dB / ∆f 75kHz and f mod 1kHz

Antenna input:

Line-level output:

Trigger:

Trigger in and out:

Output voltage:

Outboard power supply:

Power consumption:

Dimensions (W x H x D):

Weight:

1 x co-axial DIN-socket (75 ohms) / US-model F-socket

1 pair RCA/Phono sockets

12V DC switching voltage

2-pole co-axial ∅ 2,5mm jack

0,775V

16V/200mA AC, suitable for your country's mains supply

16V/70mA AC

103 x 38 x 141mm

565g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

7

Pro-Ject Dock Box F

Active iPod ® docking station

8

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Gold plated RCA connection sockets

Outboard power supply included

Features

Supports iPods ® with 30-pole connector (iPod ® Nano third and fourth generation only)

Remote control of the iPods ® and menu navigation. earphone output volume (incl. mute), play functions (incl. repeat and shuffle)

S-video output (not compatible with the models iPod

®

nano 3 th

Classic 6 th gen.)

and 4 th gen, iPhone

®

, iPod

®

Touch and iPod

®

Charges battery of your iPod

Touch 2 th

® (to charge the battery of the models iPod

®

Nano 4 th gen, iPhone

®

G3 and iPod

®

gen an USB-charger -not supplied- has to be connected to the USB-output of the Dock Box.)

Technical specifications

Frequency response:

Line-level output:

Output impedance:

Output voltage:

USB-output:

Operating systems:

Video output:

20Hz - 20kHz

1 pair RCA/Phono sockets

15 ohms

0,300V digital serial data protocol USB 1.1

Windows™ and Mac OS™

S-video socket

Outboard power supply:

Weight:

16V/500mA AC, suitable for your country's mains supply

Power consumption: 16V/200mA AC. Power consumption is not constant.

It depends on charging needs of the iPod

® battery

Replacement battery remote control: 1 x CR2025 / 3V

Dimensions (W x H x D): 103 x 38 x 141mm

585g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finis. IPod

®

not included.

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject Dock Box V

Active iPod ® docking station with volume control

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Gold plated RCA connection sockets

Outboard power supply included

Features

Supports iPods

® with 30-pole connector (iPod

®

Nano third and fourth generation only)

Remote control of the output volume and the iPods ® and menu navigation.

play functions (incl. repeat and shuffle)

No pre-amplifier required. Drives main amplifiers and active speakers directly

S-video output (not compatible with the models iPod

®

nano 3 th

Classic 6 th gen.)

and 4 th gen, iPhone

®

, iPod

®

Touch and iPod

®

Charges battery of your iPod

Touch 2 th

®

(to charge the battery of the models iPod

®

Nano 4 th

gen, iPhone

®

G3 and iPod

®

gen an USB-charger -not supplied- has to be connected to the USB-output of the Dock Box.)

Technical specifications

Frequency response:

Line-level output:

Output impedance:

Output voltage:

Volume control and mute:

USB-output:

Operating systems:

Video output:

20Hz - 20kHz

1 pair RCA/Phono sockets

15 ohms max. 1V min. level -68dB digital serial data protocol USB 1.1

Windows™ and Mac OS™

S-video socket

Outboard power supply:

Power consumption:

16V/500mA AC, suitable for your country's mains supply

16V/200mA AC. Power consumption is not constant.

It depends on charging needs of the iPod ® battery

Replacement battery remote control: 1 x CR2025 / 3V

Dimensions (W x H x D): 103 x 38 x 141mm

Weight: 585g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finis. IPod

®

not included.

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

9

Pro-Ject Phono Box II

MM/MC Phono Pre-amplifier

10

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Optimal channel separation through dual-mono circuitry

Special low-noise ICs used

Gold plated RCA connection sockets

Outboard power supply included

Features

Amplification and RIAA equalisation for MM and MC cartridges

Phono MM/MC selection switch located at the rear of the unit

Small size allows installation close to record player

Technical specifications

Input impedance, MM:

Input impedance, MC:

Gain, MM:

Output voltage typically:

Gain, MC:

Output voltage typically:

Max. output:

Noise floor, MM:

Noise floor, MC:

THD, MM:

THD, MC:

47kohms/120pF

100ohms/120pF

40dB

300mV/1kHz at 3mV/1kHz (MM input)

60dB

300mV/1kHz at 0,3mV/1kHz (MC input)

9,5V (1kHz)

86dB (94dB - A weighted)

68dB (75dB - A weighted)

<0,01%

<0,05%

RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0,5dB

Outboard power supply: 16V/200mA AC, suitable for your country's mains supply

Power consumption:

Dimension W x H x D:

Weight:

16V/30mA AC

103 x 38 x 115mm

570g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject Phono Box II USB

MM/MC Phono Pre-amplifier with

A/D converter and USB output

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Optimal channel separation through dual-mono circuitry

Special low-noise ICs used

Gold plated RCA connection sockets

Outboard power supply included

Features

Amplification and RIAA equalisation for MM and MC cartridges

Digitalisation of analog signals for recording direct to disk via USB with suitable recording programs

Runs on Windows™ and Mac OS™operating systems

Phono MM/MC selection switch located at the rear of the unit

Small size allows installation close to record player

Technical specifications

Input impedance, MM:

Input impedance, MC:

Gain, MM:

Output voltage typically:

Gain, MC:

Output voltage typically:

Max. output

Noise floor, MM:

Noise floor, MC:

THD, MM:

THD, MC:

86dB (94dB - A weighted)

68dB (75dB - A weighted)

<0,01%

<0,05%

RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0,5dB

A/D converter: 16-Bit Delta Sigma

Sampling rate:

USB output:

48kHz digital serial data protocol USB 1.1

THD: 0.005%

Noise floor:

Dynamic range:

Outboard power supply:

Power consumption:

Dimension W x H x D:

Weight:

47kohms/120pF

100ohms/120pF

40dB

300mV/1kHz at 3mV/1kHz (MM input)

60dB

300mV/1kHz at 0,3mV/1kHz (MC input)

9,5V (1kHz)

96dB

93dB

16V/200mA AC, suitable for your country's mains supply

16V/100mA AC

103 x 38 x 115mm

570g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

11

Pro-Ject Phono Box MM

MM Phono Pre-amplifier

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Optimal channel separation through dual-mono circuitry

Special low-noise ICs used

Gold plated RCA connection sockets

Outboard power supply included

Features

Amplification and RIAA equalisation for MM cartridges

Small size allows installation close to record player

Technical specifications

Input impedance: 47kohms/100pF

Gain: 32dB

Output voltage typically:

Noise floor:

200mV/1kHz at 5mV/1kHz

82dB (88dB - A weighted)

THD: <0,005%

RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0,5dB

Outboard power supply:

Power consumption:

16V/200mA AC, suitable for your country's mains supply

16V/40mA AC

Dimension W x H x D:

Weight:

105 x 30 x 75mm

280g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

12 Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject Record Box USB

MM Phono Pre-amplifier with

A/D converter and USB output

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Optimal channel separation through dual-mono circuitry

Special low-noise ICs used

Gold plated RCA connection sockets

Outboard power supply included

Features

Digitalisation of analog signals for recording direct to disk via USB with suitable recording programs

Runs on Windows™ and Mac OS™operating systems

Small size allows installation close to record player

Technical specifications

Input impedance: 47kohms/100pF

Gain: 32dB

Output voltage typically:

Noise floor:

200mV/1kHz at 5mV/1kHz

82dB (88dB - A weighted)

THD: <0,05%

RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0,5dB

A/D converter:

Sampling rate:

USB-output:

Operating systems:

Outboard power supply:

Power consumption:

Dimension W x H x D:

Weight:

16-Bit Delta Sigma

48kHz digital serial data protocol USB 1.1

Windows™ and Mac OS™

16V/200mA AC, suitable for your country's mains supply

16V/100mA AC

105 x 30 x 75mm

350g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

13

Pro-Ject Phono Box SE II

MM/MC Phono Pre-amplifier

14

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Selectable impedance for MC cartridges

Selectable load resistance for MM cartridges

Optimal channel separation through dual-mono circuitry

Subsonic filter selection switch located at the rear of the unit

Special low-noise ICs used

Gold plated RCA connection sockets

Outboard power supply included

DC operation with battery possible

Features

Amplification and RIAA equalisation for MM and MC cartridges

Technical specifications

Input impedances, MM:

Input impedances, MC:

Output voltage:

Gain, MM:

Output voltage:

Gain, MC:

Noise floor, MM:

Noise floor, MC:

120, 220, 340 and 440pf/47kohm

17, 18, 20, 22, 69, 100 and 220ohms/120pF

300mV/1kHz at 3mV/1kHz (MM input)

40dB

300mV/1kHz at 0,3mV/1kHz (MC input)

60dB

95dB (100dB - A weighted)

75dB (80dB - A weighted)

THD MM:

THD MC:

0,03%

0,1%

RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0,3dB

Subsonic filter: at 18Hz with 24dB/octave

Outboard power supply:

Power consumption:

DC power source:

Dimension W x H x D:

Weight:

16V/1.000mA AC, suitable for your country's mains supply

DC operation with battery

16V/180mA AC from ±12 to ±18V DC

103 x 72 x 158mm

1.050g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject Tube Box II

Tube MM/MC Phono Pre-amplifier

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Dual-Mono circuitry utilising two double triodes for improved channel separation

Subsonic filter selection switch located at the rear of the unit

Gold plated RCA connection sockets

Outboard power supply included

Features

Amplification and RIAA equalisation for MM and MC cartridges

Phono MM/MC selection switch located at the rear of the unit

Technical specifications

Tubes:

Input impedance, MM:

Input impedances, MC:

Gain, MM:

Output voltage typically:

Gain, MC:

Output voltage typically:

Noise floor, MM:

2 x ECC83 (12AX 7A)

47kohms/120pF

100ohms/120pF

40dB

300mV/1kHz at 3mV/1kHz (MM input)

60dB

300mV/1kHz at 0,3mV/1kHz (MC input)

84dB (94dB - A weighted)

Noise floor, MC:

THD, MM:

67dB (75dB - A weighted)

0,05%

THD, MC: 0,08%

RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0,5dB

Subsonic filter:

Outboard power supply:

Power consumption:

Dimension W x H x D:

Weight: at 18Hz with 18dB/octave

16V/1.000mA AC, suitable for your country's mains supply

16V/410mA AC

103 x 76 x 141mm

810g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

15

Pro-Ject Tube Box SE II

Tube MM/MC Phono Pre-amplifier

16

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Selectable impedance for MC cartridges

Selectable load resistance for MM cartridges

Dual-Mono circuitry utilising two double triodes for improved channel separation

Subsonic filter selection switch located at the rear of the unit

Gold plated RCA connection sockets

Outboard power supply included

Features

Amplification and RIAA equalisation for MM and MC cartridges

Technical specifications

Tubes:

Input impedances, MM:

Input impedances, MC:

Output voltage:

Gain, MM:

Output voltage:

Gain, MC:

Noise floor, MM:

2 x ECC83 (12AX 7A)

120, 220, 340 and 440pf/47kohm

17, 18, 20, 22, 69, 100 and 220ohms/120pF

300mV/1kHz at 3mV/1kHz (MM input)

40dB

300mV/1kHz at 0,3mV/1kHz (MC input)

60dB

95dB (100dB - A weighted)

Noise floor, MC:

THD MM:

75dB (80dB - A weighted)

0,03%

THD MC: 0,1%

RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0,3dB

Subsonic filter:

Outboard power supply:

Power consumption:

Dimension W x H x D:

Weight: at 18Hz with 24dB/octave

16V/1.000mA AC, suitable for your country's mains supply

16V/850mA AC

103 x 72 x 158mm

1.050g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject Head Box II

Headphone amplifier

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Gold plated RCA connection sockets

Outboard power supply included

Technical specifications

Power output: 330mW/30ohms, 60mW/300ohms

Headphone connection: > 30ohms

Signal to noise: 78dB (100dB - A weighted) at full output

Frequency response: 30Hz – 20kHz/-0,05dB (10Hz – 120kHz/-1dB)

THD (IMD): 0,005% (0,001%)

Gain: 11dB

Headphone jack: 3-pole ¼“ (6,3mm ∅) phono socket

Outboard power supply:16V/500mA AC, suitable for your country's mains supply

Power consumption: 16V/120mA AC

Dimension W x H x D: 103 x 38 x 127mm

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

17

Pro-Ject Head Box SE II

Headphone amplifier

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

Gold plated RCA connection sockets

Outboard power supply included

Features

Connections for two headphone sets with individual volume adjustment

Technical specifications

Power output: 700mW/30ohms, 110mW/300ohms

Headphone connection: > 30ohms

Signal to noise: 110dB (115dB - A weighted) at full output

Frequency response: 20Hz – 20kHz/-0,03dB

THD (IMD): 0,003%/30ohms, 0,007/300ohms

Gain: 12dB

Headphone jacks: 3-pole ¼“ (6,3mm ∅) phono socket

Outboard power supply:16V/1.000mA AC, suitable for your country's mains supply

Power consumption: 16V/230mA AC

Dimension W x H x D: 103 x 72 x 151mm

Weight: 1.080g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

18 Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject USB Box

Audiophile computer sound card with

Pro-Ject Direct Streaming Technology

Good sound from sound technology

Metal case shields the electronics from vibrational and electromagnetic interference

High quality DAC and low impedance analog output stage

Pro-Ject Direct Streaming Technology gives an exact-bit-copy of the original source, by avoiding sound degrading resampling by the Kernel-Mixer of the PC.

Features

Automatic recognition, without additional driver, by standard PC

CD with Pro-Ject Direct Streaming software included

Runs on Windows™ and Mac OS™operating systems

Power supply via USB

Technical specifications

Line-level output:

Output voltage:

A/D converter:

Sampling rate:

USB-input:

Operating systems:

1 pair RCA/Phono sockets

0,775Veff

16-Bit Delta Sigma

44,1kHz digital serial data protocol USB 1.1

Windows™ and Mac OS™

Dimensions (W x H x D): 103 x 38 x 141mm

Weight: 540g

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

19

Pro-Ject Speed Box II

Electronically regulated speed change unit for Turntables

Good sound from sound technology

Quartz-generated high precision electronic speed regulation

Features

Metal case shields the electronics from vibrational and electromagnetic interference

Small size allows installation close to record player

* Electronic speed change between 33 and 45 r.p.m.

** 78 r.p.m. also possible after fitting accessory pulley

All functions microprocessor controlled

Outboard power supply included

Technical specifications

Nominal speeds: * 33 and 45 r.p.m. ** Optional 78 r.p.m.

Quartz oscillator: Speed stability +/- 0,001%

Turntable connection: 16V/AC 190mA max. (3W power consumption max.)

Outboard power supply:16V/500mA AC, suitable for your country's mains supply

Dimension W x H x D: 103 x 38 x 103mm

The manufacturer reserves the right to alter the technical specifications without notice.

20

*

**

Available in silver or black finish. Only models with mains socket 16V/AC power supply.

The Pro-Ject 1.2 E, Debut III E, Debut III/Phono SB, 1 X pression III Comfort, 2 X perience Comfort,

RPM 6.1 SB, RPM 6.1 SB SuperPack and X tension may not be used with the Speed Box II.

78 r.p.m. is not available with the Pro-Ject Debut III E, 2 X perience, 2 X perience Comfort, 6 Perspe X ,

6 Perspe X SuperPack, RPM 9.1, RPM 9.1 X and RPM 10.

The models Debut III/Phono SB, 1 X pression III Comfort, RPM 6.1 SB, RPM 61. SB SuperPack and X tension are equipped with the 78 r.p.m. pulley as a standard.

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Pro-Ject Speed Box SE II

Electronically regulated speed change unit for Turntables

Good sound from sound technology

Quartz-generated high precision electronic speed regulation

Voltage regulation function

Mains filter with transformer decoupled output

Clean Quartz clock generated sinus wave voltage decoupled from mains interference

Features

Can acts as a power supply for both mains and 16V/AC units

Metal case shields the electronics from vibrational and electromagnetic interference

* Electronic speed change between 33 and 45 r.p.m.

** 78 r.p.m. also possible after fitting accessory pulley

Pitch control

Digital display showing replay speed

All functions microprocessor controlled

Outboard power supply included

Technical specifications

Nominal speeds:

Pitch control:

Quartz oscillator:

* 33 and 45 r.p.m. ** Optional 78 r.p.m.

±20 steps/0,1 r.p.m.

Speed stability +/- 0,001%

Turntable connection: 16V/AC 190mA max. (3W power consumption max.)

120V model only: 120V/AC 25mA max. (3W power consumption max.)

230V model only:

Output voltage:

230V/AC 13mA max. (3W power consumption max.) regulated to 230V/AC ±3% for mains voltage from 180 – 240V/AC

Outboard power supply:16V/1.000mA AC, suitable for your country's mains supply

Dimension W x H x D: 103 x 72 x 145mm

Weight: 1.360g without power supply

The manufacturer reserves the right to alter the technical specifications without notice.

*

**

Available in silver or black finish.

The Pro-Ject 1.2 E, Debut III E, Debut III/Phono SB, 1 X pression III Comfort, 2 X perience Comfort,

RPM 6.1 SB, RPM 6.1 SB SuperPack and X tension may not be used with the Speed Box II.

78 r.p.m. is not available with the Pro-Ject Debut III E, 2 X perience, 2 X perience Comfort, 6 Perspe X ,

6 Perspe X SuperPack, RPM 9.1, RPM 9.1 X and RPM 10.

The models Debut III/Phono SB, 1 X pression III Comfort, RPM 6.1 SB,RPM 61. SB SuperPack and X tension are equipped with the 78 r.p.m. pulley as a standard.

Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

21

Pro-Ject Power Box II

Central power supply for the

Box family units and Pro-Ject record player

Features

Metal case shields the electronics from vibrational and electromagnetic interference

Comfortable and compact: four appliances can be switched on/off individually.

The units do not require a dedicated power supply

Outboard power supply included

Technical specifications

Connections: 4 x 16V/AC

(Power

Outboard power supply:16V/1.000mA AC, suitable for your country's mains supply

Dimension W x H x D: 103 x 38 x 103mm

The manufacturer reserves the right to alter the technical specifications without notice.

Available in silver or black finish.

Pro-Ject Stereo Box, Amp Box, Amp Box Mono, Tube Box SE II, 1.2 E, Debut III E, 1 X pression III Comfort,

2 X perience Comfort and X tension may not be used with the Power Box II.

22 Pro-Ject Audio Systems is a registered trademark of Heinz Lichtenegger

1050 Vienna · Margareten Road 98 · Tel. +43(0)15448580 · Fax. +43(0)15456697 www.project-audio.com · © Heinz Lichtenegger · Revision 15.4.09

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
