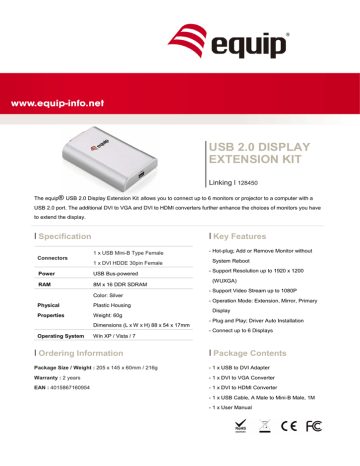

Equip 128450 Datasheet
USB 2.0 DISPLAY
EXTENSION KIT
Linking l 128450
The equip® USB 2.0 Display Extension Kit allows you to connect up to 6 monitors or projector to a computer with a
USB 2.0 port. The additional DVI to VGA and DVI to HDMI converters further enhance the choices of monitors you have
to extend the display.
l Specification
l Key Features
1 x USB Mini-B Type Female
Connectors
1 x DVI HDDE 30pin Female
Power
USB Bus-powered
RAM
8M x 16 DDR SDRAM
Color: Silver
Physical
Plastic Housing
Properties
Weight: 60g
Dimensions (L x W x H) 88 x 54 x 17mm
- Hot-plug; Add or Remove Monitor without
System Reboot
- Support Resolution up to 1920 x 1200
(WUXGA)
- Support Video Stream up to 1080P
- Operation Mode: Extension, Mirror, Primary
Display
- Plug and Play; Driver Auto Installation
- Connect up to 6 Displays
Operating System
Win XP / Vista / 7
l Ordering Information
l Package Contents
Package Size / Weight : 205 x 145 x 60mm / 216g
- 1 x USB to DVI Adapter
Warranty : 2 years
- 1 x DVI to VGA Converter
EAN : 4015867160954
- 1 x DVI to HDMI Converter
- 1 x USB Cable, A Male to Mini-B Male, 1M
- 1 x User Manual
