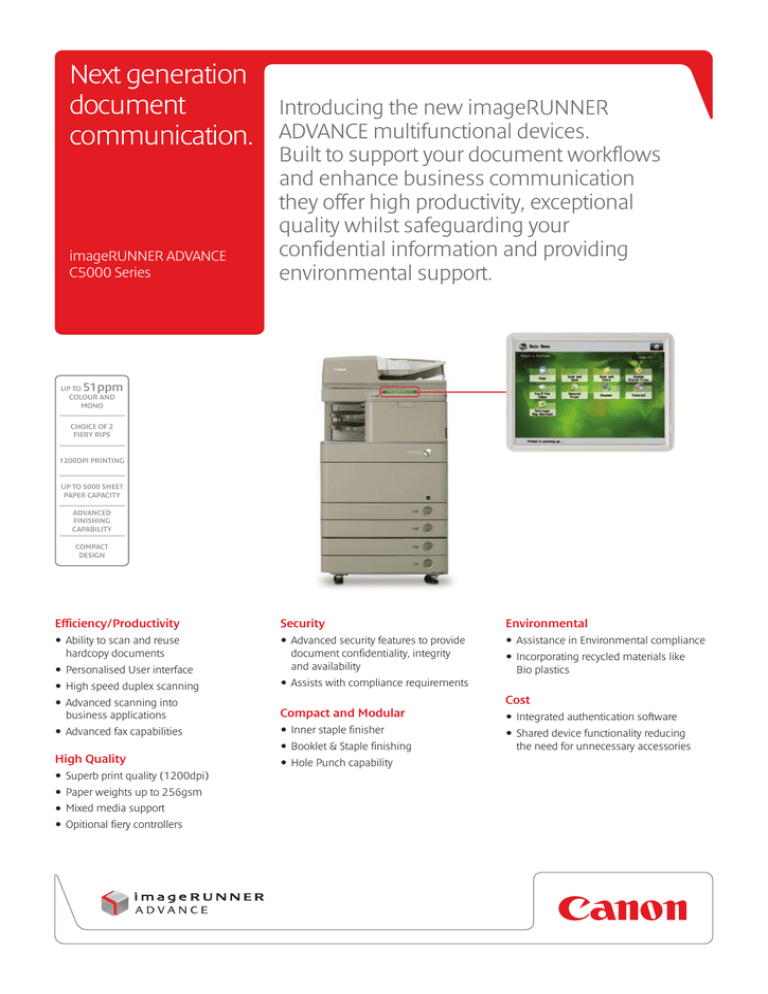

Next generation
document
communication.
imageRUNNER ADVANCE
C5000 Series
Introducing the new imageRUNNER
ADVANCE multifunctional devices.
Built to support your document workflows
and enhance business communication
they offer high productivity, exceptional
quality whilst safeguarding your
confidential information and providing
environmental support.
51ppm UP TO COLOUR AND
MONO
CHOICE OF 2
FIERY RIPS
1200DPI PRINTING
UP TO 5000 SHEET
PAPER CAPACITY
ADVANCED
FINISHING
CAPABILITY
COMPACT
DESIGN
Efficiency/Productivity
to scan and reuse
•Ability
hardcopy documents
•Personalised User interface
•High speed duplex scanning
scanning into
•Advanced
business applications
•Advanced fax capabilities
High Quality
•Superb print quality (1200dpi)
•Paper weights up to 256gsm
•Mixed media support
•Opitional fiery controllers
Security
security features to provide
•Advanced
document confidentiality, integrity
and availability
•Assists with compliance requirements
Compact and Modular
•Inner staple finisher
•Booklet & Staple finishing
•Hole Punch capability
Environmental
•Assistance in Environmental compliance
recycled materials like
•Incorporating
Bio plastics
Cost
•Integrated authentication software
device functionality reducing
•Shared
the need for unnecessary accessories
Specification: imageRUNNER ADVANCE C5000 Series
Type
Desktop (Reader/Printer separated)
Maximum Original Size
A3
Copy Sizes
Cassette
305 x 457mm, A3, A4, A4R, A5R
Free size 139.7 x 182mm to 304.8 x 457.2mm
optional Envelope Feeder DL, ISO-B5, ISO-C5
Stack Bypass
A5R - SRA3 (320 x 450mm), Envelopes
Free size 99 x 140mm to 320 x 457mm
Resolution
Reading
600dpi x 600dpi
Copying
600dpi x 600dpi
Printing
1200dpi x 1200dpi (text/line only)
256 Gradations
Copy/Print Speed
A4
C5051/i: 51ppm (B&W/Colour)
C5045/i: 45ppm (B&W/Colour)
C5035/i: 35ppm (B&W/Colour)
C5030/i: 30ppm (B&W/Colour)
A3 C5051/i: 26ppm (B&W/Colour)
C5045/i: 26ppm (B&W/Colour)
C5035/i: 18ppm (B&W/Colour)
C5030/i: 18ppm (B&W/Colour)
Magnification
Zoom
25-400%
Fixed
25%, 50%, 71%, 100%, 141%, 200%, 400%
First copy time
Black-and-White
4.0sec (51/45ppm model), 5.5sec (35/30ppm model)
Full Colour 6.5sec (51/45ppm model), 8.9sec (35/30ppm model)
Warm-Up Time
38 seconds
Multiple Copies/Prints
1 to 999 sheets
Duplexing
Standard automatic stackless
Paper weight
Cassette
52 to 209gsm
Stack Bypass
52 to 256gsm
Duplex 52 to 209gsm
Paper Capacity
Standard
550 sheets x2 cassettes (80gsm)
Stack Bypass: 100 sheets (80gsm)
Optional
550 sheets x2 cassettes (80gsm)
Paper Deck
2,700 sheets (80gsm)
Total capacity 5,000 sheets
CPU
1.2GHz
Memory
2.5GB
Hard Disk Drive
80GB
Interface
Ethernet (1000BaseT/100Base-TX/10Base-T) Wireless LAN
(IEEE802.11b/g, Optional), USB2.0
Power Supply
220-240V AC, 50/60Hz
Power Consumption
1.8kW max (51/45ppm), 1.3kW max (35/30ppm)
Dimensions (WxDxH)
620 x 760 x 982mm (with 1PDS) / 1230mm (with 1PDS & CFU)
620 x 735 x 938mm (with DADF) / 1186mm (with DADF & CFU)
620 x 735 x 826mm (with Platen cover) / 1074mm (with Platen cover & CFU)
Weight
Approx.170kg (with 1PDS)
Approx.153kg (with DADF)
PRINT SPECIFICATION
PDL
UFRII, PCL5c/6 (standard for all i model), Adobe PostScript 3
(standard for C5045i/C5051i)
Resolution
1200dpi x 1200dpi (Text/Line only), 600dpi x 600dpi
Memory
2.5GB (Uses Main unit RAM)
Hard Disk
80GB (Uses Main unit HDD)
CPU
Canon Custom Processor, 1.2GHz (Uses Main unit CPU)
PS Fonts
Roman 136
PCL Fonts
Roman93, Bitmap10,OCR2
Supported OS
PCL
Windows 2000/XP/Server2003/Vista/Server2008/Win7
Adobe PostScript 3 Windows 2000/XP/Server2003/Vista/Server2008/Win7,
Mac OSX (10.4.9 or later)
UFR II
Windows 2000/XP/Server2003/Vista/Server2008/Win7,
Mac OSX (10.4.9 or later)
Mac-PPD
Mac OS 9.1 or later, Mac OSX (10.2.8 or later)
Interface
Ethernet (1000Base-T/100Base-TX/10Base-T) Wireless LAN
(IEEE802.11b/g, Optional), USB2.0
Network Protocol
TCP/IP (LPD/Port9100/WSD/IPP/IPPS/SMB/FTP), IPv6, IPX/SPX
(NDS, Bindery), AppleTalk
Pull Scan
Network TWAIN Driver (75 to 600dpi 24bit colour /8bit grayscale/
2bit Black & White)
PCL5c/6, Adobe PostScript 3
1200dpi x 1200dpi, 600dpi x 600dpi
512MB+512MB (Option)
80GB
Intel Celeron-M M440 1.86GHz
136 Adobe PS Fonts
80 Agfa fonts
Windows 2000/XP/Server2003/Server2008/Vista/Vista SP1,
Mac OSX 10.3.9 or later
Ethernet 1000Base-T/100Base-TX/10Base-T), USB
TCP/IP (LPD/Port9100/IPP/SMB/FTP), Apple Talk
ColorPASS-GX300
(Optional for C5051)
PDL
Resolution
Memory
Hard Disk
CPU
PS Fonts
PCL Fonts
Supported OS
Interface
Network Protocol
Adobe PostScript 3
1200dpi x 1200dpi, 600dpi x 600dpi
2GB
160GB
Intel Duo Core2 Xeon E8400 2x3.0Ghz
136 Adobe PS Fonts
N/A
Windows 2000/XP/Server2003/Server2008/Vista/Vista SP1,
Mac OSX 10.3.9 or later
Ethernet 1000Base-T/100Base-TX/10Base-T), USB, D-sub 15-pin connector
TCP/IP (LPD/Port9100/IPP/SMB/FTP), Apple Talk
SY
ERTIFIC
AT
I
70ipm (Colour/B&W), 100ipm for Duplex scan by 1PDS
100dpi, 150dpi, 200 x 100dpi, 200dpi, 200 x 400dpi, 300dpi, 400dpi, 600dpi
E-Mail/Internet FAX (SMTP), PC (SMB, FTP), iWDM, WebDAV
LDAP, Local (Max.1800)
TIFF, JPEG, PDF, XPS, High compression PDF/XPS, PDF/A-1b,
Optimize PDF for Web
Universal Send Advanced
Feature Set-D1
File Format
Outline PDF (Trace & Smooth), Searchable PDF/XPS,
Reader Extensions PDF, Office Open XML
Colour Image Reader Unit-B1
Paper size
Paper weight
Max. Number of originals Document Scanning speed (max.)
Encrypted PDF, Device Signature PDF/XPS
A3, A4, A4R, A5, A5R
Single sided original
42 to 128gsm
Double sided original
50 to 128gsm
100 sheets (80gsm) for 2-sided Double pass ADF
150 sheets (80gsm) for 1PDS
Dimensions (W x D x H)
Weight
2-sided Double pass ADF Copy A4 46ipm 600dpi (Colour/B&W)
2-sided Double pass ADF Scan A4 46ipm 300dpi (Colour/B&W)
1PDS Copy
A4 51/70ipm 600dpi (Colour/B&W)
1PDS ScanA4 70ipm 300dpi (Colour/B&W),
100ipm 300dpi for Duplex scan
2-sided Double pass ADF
620 x 536 x 137mm
1PDS
618 x 603 x 180mm
2-sided Double pass ADF
Approx. 8.7kg
1PDS
Approx. 26.8kg
Cassette Feeding Unit AD1
Type
Paper Size
Paper Weight
Paper Capacity
Dimensions (W x D x H)
Weight
2 Front-loading adjustable drawers
305 x 457mm, A3, A4, A4R, A5R
Free size 139.7 x 182 mm to 304.8 x 457.2 mm
52 to 209gsm
550 sheets (80gsm) x 2 cassettes
620 x 700 x 251mm
Approx. 27.5 kg
Paper Deck Unit B1
Paper Size
Paper Weight
Paper Capacity
Dimensions (W x D x H)
Weight
Inner Finisher A1
Number of trays
Tray capacity
Staple position
Staple capacity
Dimensions (W x D x H)
Weight
A4
52 to 163gsm
2,700 sheets (80gsm)
372 x 603 x 473mm
Approx. 37 kg
One stack tray (Optional 2nd Tray)
A4, A5, A5R
A4-A5R: 500 sheets
A3, A4R
A3, A4R: 500 sheets
Corner, Double
A4: 50 sheets
A3: 30 sheets
865 x 540 x 234mm
Approx. 11.5kg (Approx.13kg with optional tray)
Staple Finisher C1/
Booklet Finisher C1
Number of trays
2 Trays
Tray capacity
A4, A5, A5R
1300 on upper tray, 1700 on lower tray
A3, A4R
650 on upper tray, 650 on lower tray
Staple position
Corner, Double, Booklet stitch (Booklet Finisher only)
Staple capacity
A4
50 sheets (80gsm)
A3, A4R
30 sheets (80gsm)
Booklet Stitch Specifications
(Booklet Finisher only)
Paper size
305 x 457mm, A3, A4R
Staple capacity
1 to 16 sheets (64 pages, 52-81gsm)
1 to 10 sheets (40 pages, 82-105gsm)
Dimensions (W x D x H)
Staple Finisher
677 x 646 x 1097mm
Booklet Finisher
789 x 646 x 1097mm
Weight
Staple Finisher
Approx. 46kg
Booklet Finisher
Approx. 75kg
C
EM
ST
Universal Send Security
Feature Set-D1
File Format
Optional Accessories
Colour Image Reader Unit B2, Printer Cover C1, Direct Print kit H1, Barcode
Printing Kit D1, Data Erase Kit C1, HDD Data Encryption & Mirroring Kit C1,
Encrypted Printing Software D1, Secure Watermark B1, Web Access Software
H1, Access Management System Kit B1, Expansion Bus F1, Wireless LAN
Board B1, IPSec Board B2, 2.5inch/80GB HDD C1, 2.5inch/250GB HDD D1,
Removable HDD Kit AC1, Document Scan Lock Kit A1, Super G3 Fax Board AE1,
Super G3 2nd Line Fax Board AE1, Universal Send Digital User Signature Kit C1,
Remote Fax Kit A1, Plain Pedestal, Envelope Feeder Attachment D1,
Tab Feeding Attachment Kit B1, Copy Tray J1, Inner 2 Way Tray F1, External 2
Hole Puncher B1, External 2/4 Hole Puncher B1, External 4 Hole Puncher B1,
Inner Finisher Additional Tray A1, Utility Tray A1, Key Switch Unit A2, Copy Card
Reader Attachment B1, Card Reader C1, Remote Operators Software Kit B1,
Voice Guidance Kit F1, Voice Operation Kit C1, USB Device Port B1, Multimedia
Reader/Writer A1.
This leaflet and the specifications of the product have been developed prior to the date of product launch.
These specifications are subject to change without notice. Therefore no representations or warranties, either express
or implied, are made of the fitness of this product for a particular purpose. In no circumstances shall the information
in this leaflet be considered part of our terms and conditions of sale. You are advised to check the prevailing
specification immediately prior to purchase. All company and/or product names are trademarks and/or registered
trademarks of their respective manufacturers in their markets and/or countries.
ERTIFIC
AT
I
ON
C
EM
ST
ON
SY
imagePASS-B1
PDL
Resolution
Memory
Hard Disk
CPU
PS Fonts
PCL Fonts
Supported OS
Interface
Network Protocol
Send Specification (Standard)
Scan Speed (A4, 300dpi)
Scan Resolution
Destinations
Address book
File Format
ISO
14
00
1: 2 0
04
English-UK Edition 0138W086
© Canon Europa 2009 (0909)
Canon (UK) Ltd
Woodhatch, Reigate
Surrey RH2 8BF
Tel: 01737 220000
Fax: 01737 220022
www.canon.co.uk
Canon
Ireland
Arena Road, Sandyford
Industrial Estate
Dublin 18, Ireland
Tel: 01 2052400
Fax: 01 2958141
www.canon.ie
