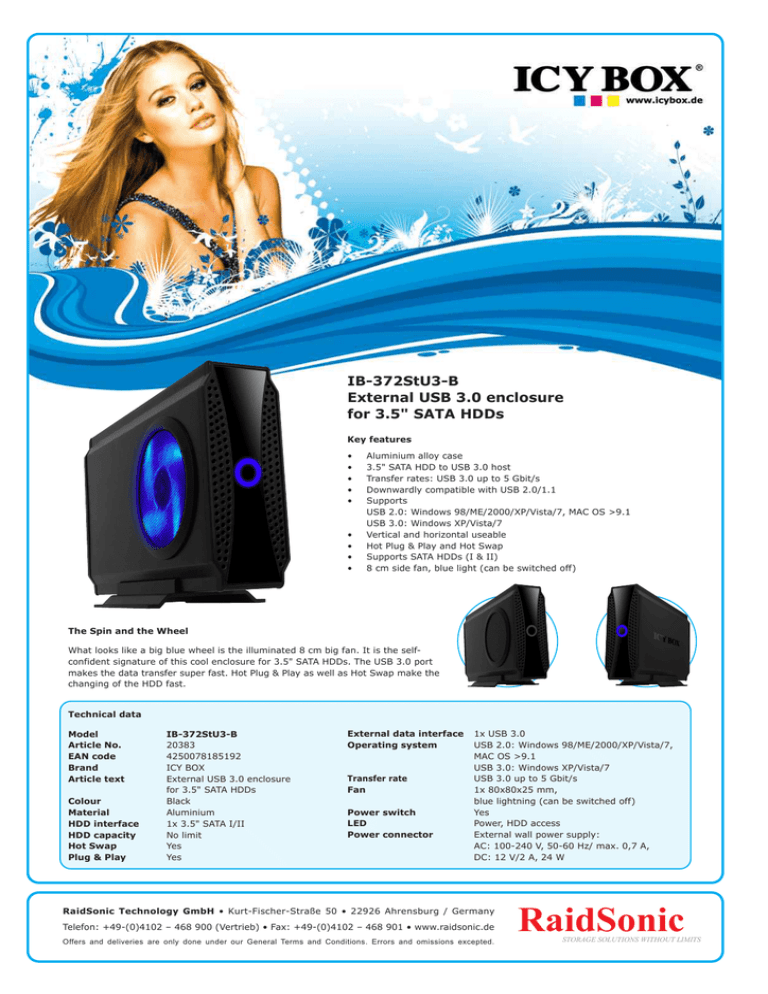

RaidSonic 11279, IB-372STU3-B, 20383 Datasheet

RaidSonic 11279, IB-372STU3-B, 20383 Datasheet
IB-372StU3-B
External USB 3.0 enclosure
for 3.5" SATA HDDs
Key features
•
•
•
•
•
•
•
•
•
Aluminium alloy case
3.5" SATA HDD to USB 3.0 host
Transfer rates: USB 3.0 up to 5 Gbit/s
Downwardly compatible with USB 2.0/1.1
Supports
USB 2.0: Windows 98/ME/2000/XP/Vista/7, MAC OS >9.1
USB 3.0: Windows XP/Vista/7
Vertical and horizontal useable
Hot Plug & Play and Hot Swap
Supports SATA HDDs (I & II)
8 cm side fan, blue light (can be switched off)
The Spin and the Wheel
What looks like a big blue wheel is the illuminated 8 cm big fan. It is the selfconfident signature of this cool enclosure for 3.5" SATA HDDs. The USB 3.0 port
makes the data transfer super fast. Hot Plug & Play as well as Hot Swap make the
changing of the HDD fast.
Technical data
Model
Article No.
EAN code
Brand
Article text
Colour
Material
HDD interface
HDD capacity
Hot Swap
Plug & Play
IB-372StU3-B
20383
4250078185192
ICY BOX
External USB 3.0 enclosure
for 3.5" SATA HDDs
Black
Aluminium
1x 3.5" SATA I/II
No limit
Yes
Yes
External data interface
Operating system
Transfer rate
Fan
Power switch
LED
Power connector
1x USB 3.0
USB 2.0: Windows 98/ME/2000/XP/Vista/7,
MAC OS >9.1
USB 3.0: Windows XP/Vista/7
USB 3.0 up to 5 Gbit/s
1x 80x80x25 mm,
blue lightning (can be switched off)
Yes
Power, HDD access
External wall power supply:
AC: 100-240 V, 50-60 Hz/ max. 0,7 A,
DC: 12 V/2 A, 24 W
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Front view
Rear view
On/Off switch
fan LED
USB 3.0 interface
Status LED
Power connector
Power switch
Stand
Packing content:
1x IB-372StU3-B, 1x wall power supply, 1x USB 3.0 data cable, 1x set of screws,
1x screw driver, 1x manual
Logistical data
Packing unit:
10 pcs./carton
Total weight:
10.9 kg/carton
Gross weight (incl. packing): 0.67 kg
Net weight:
0.47 kg
Dimension / carton:
Dimension (incl. packing):
Dimension from article:
Country of origin:
500x425x225 mm
243x206x85 mm
205x125x45 mm
China
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Import tax:
84733080
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
