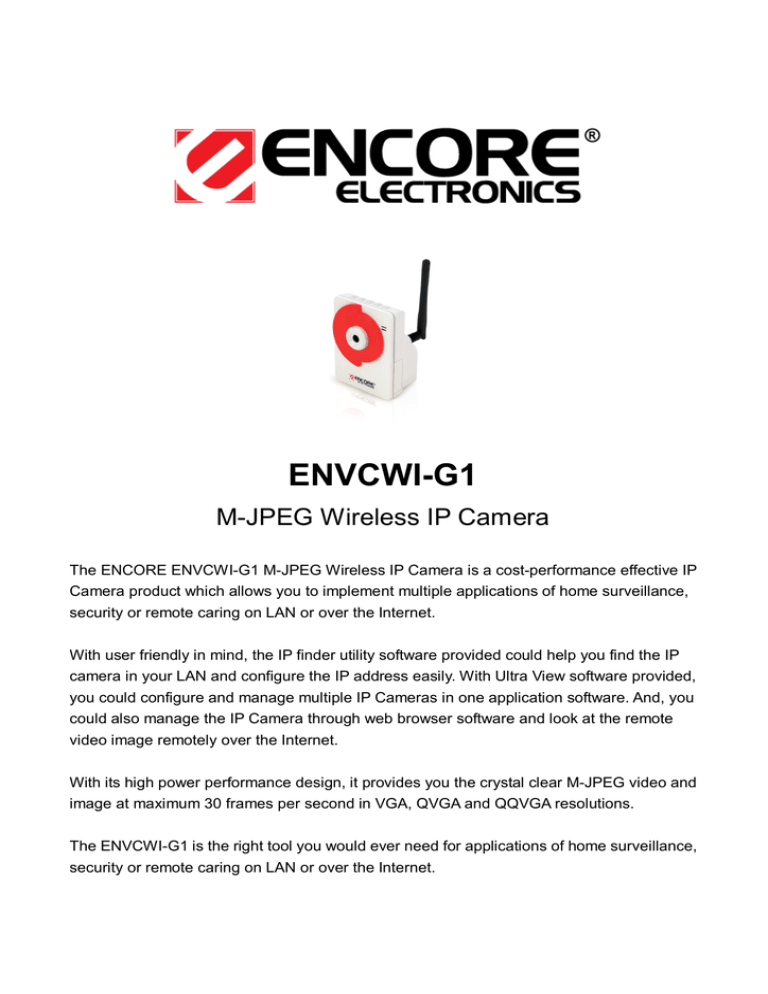

ENVCWI-G1
M-JPEG Wireless IP Camera
The ENCORE ENVCWI-G1 M-JPEG Wireless IP Camera is a cost-performance effective IP
Camera product which allows you to implement multiple applications of home surveillance,
security or remote caring on LAN or over the Internet.
With user friendly in mind, the IP finder utility software provided could help you find the IP
camera in your LAN and configure the IP address easily. With Ultra View software provided,
you could configure and manage multiple IP Cameras in one application software. And, you
could also manage the IP Camera through web browser software and look at the remote
video image remotely over the Internet.
With its high power performance design, it provides you the crystal clear M-JPEG video and
image at maximum 30 frames per second in VGA, QVGA and QQVGA resolutions.
The ENVCWI-G1 is the right tool you would ever need for applications of home surveillance,
security or remote caring on LAN or over the Internet.
Features and Benefits
Surveillance Supported: The camera supports “nightshot mode” to deliver clearer
images in the low lux environment. Enable motion detection and setup automated email
alerts and upload FTP for security.
Remote Control Supported: By using a standard Web browser or the bundled Ultra
View software application, the administrator can easily change the configuration of the
camera via Intranet or Internet. In addition, the camera can be upgraded remotely when
a new firmware is available. The users are also allowed to monitor the image and take
snapshots via the network.
Multiple Platforms Supported: The camera supports multiple network protocols,
including TCP/IP, SMTP e-mail, HTTP, and other Internet related protocols. Therefore,
you can use the camera in a mixed operating system environment, such as Windows
2000 and Windows XP.
Multiple Applications Supported: Through the remote access technology, you can
use the cameras to monitor various objects and places for your own purposes. For
example, babies at home, patients in the hospital, offices and banks, and more. The
camera can capture both still images and video clips, so that you can keep the archives
and restore them at any time.
Specification
Image Sensor
Sensor
1/4" color CMOS
Resolution
640x480
Video
Compression
M-JPEG
Video resolution
VGA/QVGA/QQVGA; 30fps max.
System Hardware
Processor
ARM9 base
RAM
16MB SDRAM
ROM
4MB NOR Flash
Power
DC 5V
Communication
LAN
10/100Mbps Fast Ethernet, auto-sensed, Auto-MDIX
WLAN
IEEE 802.11g/b compliant wireless LAN interface
Protocol support
TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, PPPoE,
UPnP
User Interface
LAN
One RJ-45 port
WLAN
External detachable dipole antenna
Reset
One Reset button
LEDs
Power LED (amber); Link LED (green)
Software
OS Support
Windows 2000/XP/Vista
Browser
Internet Explorer 5.0 or above
Apple Safari 2 or above
Mozilla Firefox 2.00 or above
Software
Ultra View for playback/recording/configuration features
Operating Environment
Temperature
Operation: 5°C ~ 45°C
Storage: -15°C ~ 60°C
Humidity
Operation: 20% ~ 85% non-condensing
Storage: 0% ~ 90% non-condensing
EMI
Regulations
FCC Class B, CE Class B
System Requirements
Networking
LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet.
Accessing the Camera using Web Browser:
Platform:
Microsoft® Windows® 2000/XP/Vista
Macintosh OSX
CPU: Intel Pentium III 350MHz or above
RAM: 128MB
Resolution: 800x600 or above
User Interface:
Microsoft® Internet Explorer 5.0 or above
Apple Safari 2 or above
Accessing the Camera using Ultra View
Platform: Microsoft® Windows® 2000/XP/Vista.
Hardware Requirement:
Mozilla Firefox 2.00 or above
1 camera connected: Intel Pentium III 800MHz; 512MB RAM
2 ~ 4 cameras connected: Intel Pentium 4 1.3GHz; 512MB RAM
5 ~ 8 cameras connected: Intel Pentium 4 2.4GHz; 1GB RAM
9 ~ 16 cameras connected: Intel Pentium 4 3.4GHz; 2GB RAM
Resolution: 1024x768 or above
NOTE: If you connect multiple cameras to monitor various places simultaneously, you
are recommended to use a computer with higher performance.
Package Contents
One M-JPEG Wireless IP Camera.
One AC Power Adapter.
One External Antenna
One Camera Stand.
One Ethernet Cable (RJ-45 type).
One Installation CD-ROM.
One Quick Installation Guide.
※ The specifications and picture are subject to change without notice! Please refer to the directions in product package
