NEW

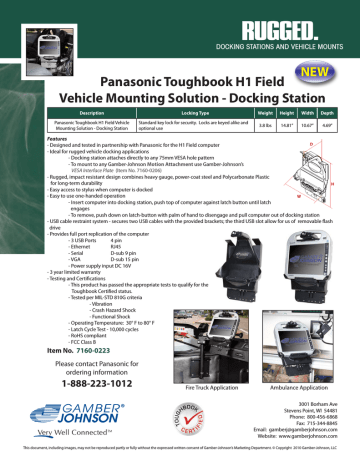

Panasonic Toughbook H1 Field
Vehicle Mounting Solution - Docking Station
Description
Panasonic Toughbook H1 Field Vehicle
Mounting Solution - Docking Station
Locking Type
Standard key lock for security. Locks are keyed alike and
optional use
Weight
Height
Width
Depth
3.8 lbs
14.81”
10.67”
4.69”
Features
D
- Designed and tested in partnership with Panasonic for the H1 Field computer
- Ideal for rugged vehicle docking applications
- Docking station attaches directly to any 75mm VESA hole pattern
- To mount to any Gamber-Johnson Motion Attachment use Gamber-Johnson’s
VESA Interface Plate (Item No. 7160-0206)
- Rugged, impact resistant design combines heavy gauge, power-coat steel and Polycarbonate Plastic
for long-term durability
H
- Easy access to stylus when computer is docked
- Easy to use one-handed operation
W
- Insert computer into docking station, push top of computer against latch button until latch
engages
- To remove, push down on latch-button with palm of hand to disengage and pull computer out of docking station
- USB cable restraint system - secures two USB cables with the provided brackets; the third USB slot allow for us of removable flash
drive
- Provides full port replication of the computer
- 3 USB Ports
4 pin
- Ethernet
RJ45
- Serial
D-sub 9 pin
- VGA
D-sub 15 pin
- Power supply input DC 16V
- 3 year limited warranty
- Testing and Certifications
- This product has passed the appropriate tests to qualify for the
Toughbook Certified status.
- Tested per MIL-STD 810G criteria
- Vibration
- Crash Hazard Shock
- Functional Shock
- Operating Temperature: 30° F to 80° F
- Latch Cycle Test - 10,000 cycles
- RoHS compliant
- FCC Class B
Item No. 7160-0223
Please contact Panasonic for
ordering information
1-888-223-1012
Fire Truck Application
Ambulance Application
3001 Borham Ave
Stevens Point, WI 54481
Phone: 800-456-6868
Fax: 715-344-8845
Email: gamberj@gamberjohnson.com
Website: www.gamberjohnson.com
This document, including images, may not be reproduced partly or fully without the expressed written consent of Gamber-Johnson’s Marketing Department. © Copyright 2010 Gamber-Johnson, LLC
