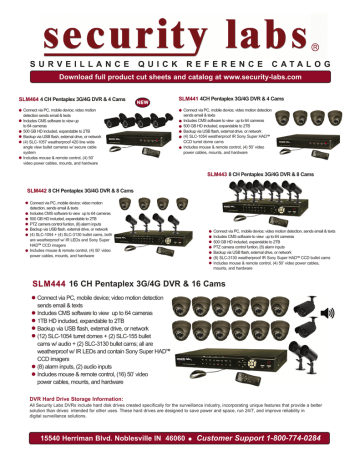

SURVEILLANCE
QUICK
REFERENCE
CATALOG
Download full product cut sheets and catalog at www.security-labs.com
SLM464 4 CH Pentaplex 3G/4G DVR & 4 Cams
•
•
••
•
•
NEW
Connect via PC, mobile device; video motion
detection sends email & texts
Includes CMS software to view up
to 64 cameras
500 GB HD included, expandable to 2TB
Backup via USB flash, external drive, or network
(4) SLC-1057 weatherproof 420 line wide
angle view bullet cameras w/ secure cable
system
Includes mouse & remote control, (4) 50’
video power cables, mounts, and hardware
SLM441 4CH Pentaplex 3G/4G DVR & 4 Cams
•
••
••
•
Connect via PC, mobile device; video motion detection
sends email & texts
Includes CMS software to view up to 64 cameras
500 GB HD included, expandable to 2TB
Backup via USB flash, external drive, or network
(4) SLC-1054 weatherproof IR Sony Super HADTM
CCD turret dome cams
Includes mouse & remote control, (4) 50’ video
power cables, mounts, and hardware
SLM443 8 CH Pentaplex 3G/4G DVR & 8 Cams
SLM442 8 CH Pentaplex 3G/4G DVR & 8 Cams
•
••
••
•
•
Connect via PC, mobile device; video motion
detection, sends email & texts
Includes CMS software to view up to 64 cameras
500 GB HD included, expandable to 2TB
PTZ camera control funtion, (8) alarm inputs
Backup via USB flash, external drive, or network
(4) SLC-1054 + (4) SLC-3130 bullet cams, both
are weatherproof w/ IR LEDs and Sony Super
HADTM CCD imagers
Includes mouse & remote control, (4) 50’ video
power cables, mounts, and hardware
••
••
••
•
Connect via PC, mobile device; video motion detection, sends email & texts
Includes CMS software to view up to 64 cameras
500 GB HD included, expandable to 2TB
PTZ camera control funtion, (8) alarm inputs
Backup via USB flash, external drive, or network
(8) SLC-3130 weatherproof IR Sony Super HADTM CCD bullet cams
Includes mouse & remote control, (4) 50’ video power cables,
mounts, and hardware
SLM444 16 CH Pentaplex 3G/4G DVR & 16 Cams
via PC, mobile device; video motion detection
• Connect
sends email & texts
CMS software to view up to 64 cameras
• Includes
1TB
HD
included,
expandable to 2TB
• Backup via USB flash,
external drive, or network
• (12) SLC-1054 turret domes
bullet
• cams w/ audio + (2) SLC-3130+ (2)bulletSLC-155
cams; all are
•
•
weatherproof w/ IR LEDs and contain Sony Super HADTM
CCD imagers
(8) alarm inputs, (2) audio inputs
Includes mouse & remote control, (16) 50’ video
power cables, mounts, and hardware
DVR Hard Drive Storage Information:
All Security Labs DVRs include hard disk drives created specifically for the surveillance industry, incorporating unique features that provide a better
solution than drives intended for other uses. These hard drives are designed to save power and space, run 24/7, and improve reliability in
digital surveillance solutions.
15540 Herriman Blvd. Noblesville IN 46060

Customer Support 1-800-774-0284
Digital Video Recorders
DUAL STREAM H.264 Pentaplex 3G/4G Internet DVRs
SLD254 4 CH Pentaplex Dual Stream DVR
•
••
••
••
•
Connect via PC, mobile device; video motion detection
sends email & texts
Includes CMS software to view up to 64 cameras
Compact case size
500 GB HD included, expandable to 2TB
PTZ camera control funtion
Backup via USB flash, external drive, or network
Automatic recovery after a power outage
Includes mouse & remote control
SLD255 8 CH Pentaplex Dual Stream DVR
•
••
••
••
•
Connect via PC, mobile device; video motion detection
sends email & texts
Includes CMS software to view up to 64 cameras
500 GB HD included, expandable to 2TB
PTZ camera control funtion
(8) audio inputs, (8) alarm inputs
Backup via USB flash, external drive, or network
Automatic recovery after a power outage
Includes mouse & remote control
SLD256 16 CH Pentaplex Dual Stream DVR
•
••
••
••
•
Connect via PC, mobile device; video motion detection
sends email & texts
Includes CMS software to view up to 64 cameras
500 GB HD included, expandable to 2TB
PTZ camera control funtion
(2) audio inputs, (8) alarm inputs
Backup via USB flash, external drive, or network
Automatic recovery after a power outage
Includes mouse & remote control
Remotely view any DVR
through your PC, laptop,
or mobile device
DUAL STREAM H.264 Pentaplex 3G/4G DVRs with up to 12TB storage & HDMI output
SLD265 8 CH Pentaplex
Dual Stream DVR
•
••
••
••
•
SLD266 16 CH Pentaplex
Dual Stream DVR
Connect via any internet browser enabled device,
email notification, free mobile device apps
500 GB HD & 330 point video motion; up to 6 TB expansion
Flash port; PTZ camera mouse control, HDMI output
Backup via USB, network, or optional DVD drive
Four audio inputs, pre-event video capture
Automatic recovery after a power outage
Front panel slot for optional DVD burner (replaces one expansion hard drive)
Includes mouse & remote control
Professional PTZ Dome Cameras
SLC-176 27X Optical Zoom Dome Camera
•
••
••
••
27X optical zoom w/ 480 line
Sony Super HADTM CCD
Pan-tilt speed: 12o/second
Pan range: 0-359o
Automatic heater-blower
7” dome diameter
Control PTZ with a DVR
Includes both a ceiling and wall bracket,
100’ CAT 5 cable, & video baluns
•
•
••
••
•
•
Connect via any internet browser enabled device,
email notification. free mobile device apps
500 GB HD & 330 point video motion; up to 12 TB
total HD storage expansion w/ external eSATA port or
9TB + DVDR option
Flash port; PTZ camera mouse control, HDMI output
Backup via USB, network, or optional DVD drive
Four audio inputs, pre-event video capture
Automatic recovery after a power outage
Front panel slot for optional DVD burner (replaces
one expansion hard drive)
Includes mouse & remote control
SLC-177 22X Optical Speed High Resolution Dome Camera
•
••
••
••
•
22X optical zoom 600 line Sony
Ex-view IITM camera w/ Effio-S DSP
Speed: Pan: 120o/sec; Tilt: 90o/sec
360o continuous pan
Automatic heater-blower
100 prog. positions w/ 8 scout groups
7” dome diameter
Control PTZ with a DVR
Includes both a ceiling and wall bracket,
100’ CAT 5 cable, & video baluns
Customer Support 1-800-774-0284
www.security-labs.com
SLM463 8 CH Pentaplex 3G/4G DVR & 8 Cams + 18.5” LED Monitor
SLM462 4 CH Pentaplex 3G/4G DVR & 4 Cams + 18.5” LED Monitor
NEW
NEW
••
••
••
Connect via PC, mobile device; video motion detection sends email & texts
1TB HD (expandable to 2TB) & grid video motion detection
Free mobile device apps
(8) alarm inputs, (8) audio inputs
(8) 600 line SLC-1056 weatherproof IR bullet cameras w/ mechanical IR cut filter
Includes mouse & remote control, (8) 50’ video power cables, warning decals, mounts,
and hardware
••
••
•
Connect via PC, mobile device; video motion detection sends email & texts
1TB HD (expandable to 2TB) & grid video motion detection
Email notification & free mobile device apps
(4) 600 line SLC-1056 weatherproof IR bullet cameras w/ mechanical IR cut filter
Includes mouse & remote control, (4) 50’ video power cables, warning decals,
mounts, and hardware
SLM435 16 CH Pentaplex 3G/4G DVR & 16 Cams
SLM434 8 CH Pentaplex 3G/4G DVR & 8 Cams
•
••
••
••
Connect via any internet browser enabled device,
email notification, free mobile device apps
500GB HD & 330 point video motion
Up to 6 TB internal expansion
Backup via USB or network
(8) SLC-3130 weatherproof IR
Sony Super HADTM CCD bullet cameras with wide angle view
Front panel slot for optional DVD burner (replaces one expansion hard drive)
Includes mouse & remote control, (8) 50’ video power cables, mounts, and hardware
•
••
••
••
Connect via any internet browser enabled device,
email notification, free mobile device apps
500GB HD & 330 point video motion
Up to 9 TB internal expansion + port for
3TB external eSATA
Backup via USB or network or eSata drive
(16) SLC-3130 weatherproof IR Sony Super
HADTM CCD bullet cameras with wide angle view
Front panel slot for optional DVD burner (replaces one expansion hard drive)
Includes mouse & remote control, (16) 50’ video power cables, mounts, and hardware
SLM460 16 CH Pentaplex 3G/4G DVR, 8 Cams, + 22” LED Monitor
SLM437 16 CH Pentaplex 3G/4G DVR & 16 Cams
•
••
••
•
••
Connect via any internet browser enabled device,
email notification, free mobile device apps
500GB HD & 330 point video motion
Up to 9 TB internal expansion + port for
3TB external eSATA
Backup via USB or network or eSata drive
(8) SLC-3130 weatherproof IR color
CCD bullet cams + (8) SLC-1049 color CCD dome cams
Front panel slot for optional DVD burner (replaces one expansion hard drive)
Includes mouse & remote control, (16) 50’ video power cables, mounts, and hardware
SLM465 16 CH Pentaplex 3G/4G DVR, 9 Cams, + 22” LED Monitor
NEW
••
••
••
••
•
Connect via any internet browser enabled device, email notification
1TB HD & 330 point video motion
Up to 9 TB internal expansion + port for 3TB external eSATA
Free mobile device apps
Expandable
Backup via USB or network or eSata drive
Up to 16 Cams
(4) SLC-154 weatherproof IR color CCD bullet cameras
(4) SLC-141 vandal resistant CCD dome cameras
Front panel slot for optional DVD burner (replaces one expansion hard drive)
Includes mouse & remote control, (8) 50’ video power cables, mounts, and hardware
SLM461 16 CH Pentaplex 3G/4G DVR, 9 Cams, + 22” LED Monitor
NEW
NEW
••
••
••
••
•
Connect via any internet browser enabled device, email notification
3TB HD & 330 point video motion
Up to 9 TB internal expansion + port for 3TB external eSATA
Expandable
Free mobile device apps
Up to 16 Cams
Backup via USB or network or eSata drive
(5) SLC-154 weatherproof IR color 540 line CCD bullet cameras
(4) SLC-141 vandal resistant 540 line CCD dome cameras
Front panel slot for optional DVD burner (replaces one expansion hard drive)
Includes mouse & remote control, (9) 50’ video power cables, mounts, and hardware
••
••
••
••
••
Connect via any internet browser enabled device, email notification
2TB HD & 330 point video motion
Up to 9 TB internal expansion + port for 3TB external eSATA
Free mobile device apps
Expandable
Backup via USB or network or eSata drive
Up to 16 Cams
(5) SLC-159 weatherproof 700 line IR bullet cameras
(4) SLC-1055 700 line turret dome cameras
All cameras contain Sony Ex-ViewIITM CCD imagers w/ Sony EffioTM DSP
Front panel slot for optional DVD burner (replaces one expansion hard drive)
Includes mouse & remote control, (9) 50’ video power cables, mounts, and hardware
Customer Support 1-800-774-0284
www.security-labs.com
CCTV Cameras
Toll Free Technical Assistance 1-800-774-0284
View and control up
to 36 Security Labs
Wi-Fi cameras on
the same screen
Security Labs technicians
can assist & get you up and
running. Using our SLRCTM
remote software, we can
connect to your system and
help you finish setup on your
DVR & nework. This is a free
service and requires your
approval for us to connect.
SLW-163 Internet
IP Camera w/ Wi-Fi
from a web browser or
• View
mobile device
& remote pan & tilt control
•• IRTwo-way
talk back audio
detection w/ email
•• Motion
Record video to a PC
protected user
• Password
accounts
installation kit:
• Includes
Internet LAN cable, power supply,
ceiling mount, & mounting hardware
SLW-164 Weatherproof Internet IP Camera
with Wireless Wi-Fi
•
••
••
•
SLC-141 Hi-Res Color Vandal Dome Camera
••
••
••
••
••
••
540 lines, .02 LUX, 1/3” CCD
3.6mm wide angle lens
Vandal resistant case
3 axis adjustable mount
2.75”H x 3.75”D
Includes installation kit::
50’ cable, power supply, mount,
& mounting hardware
SLC-155C Weatherproof IR Bullet
Camera w/ Audio Mic
View from a web browser
or mobile device
IR LEDs for night viewing
Motion detection w/ email
Record video to a PC
Password protection
Includes installation kit:
Internet LAN cable, power supply,
wall swivel mount, & mounting
hardware
••
••
••
•
SLC-1055 Professional Weatherproof
24 IR Hi-Res Turret Dome Camera
SLC-137C Color Waterproof IR Camera
••
••
••
••
700 lines, .001 LUX, Ex-View II
3.6mm wide angle lens
(24) IR LEDS for night viewing
3 axis ball swivel
Halo deflector dual glass
Auto electronic iris
2” Diameter x 4”H
Includes installation kit:
50’ video/power cable, power supply,
mount, & mounting hardware
SLC-154C Weatherproof 24 IR Bullet Cam
••
••
••
•
540 lines, .002 LUX, 1/4” color CCD
3.6mm wide angle lens
(24) IR LEDS for night viewing
Halo deflector dual glass
Auto electronic iris
2” Diameter x 4”L
Includes installation kit: 50’ cable, power supply, mount,
& mounting hardware
••
••
••
SLC-3130 Weatherproof 12 IR Bullet Cam
SLC-159 Professional Weatherproof
24 IR Hi-Res Bullet Cam
••
••
••
••
420 lines, .02 LUX, Super HAD
3.6mm wide angle lens
(12) IR LEDS for night viewing
Halo deflector dual glass
Auto electronic iris
Condenser audio mic
Includes installation kit:
50’ audio/video/power cable, power
supply, mount, & mounting hardware
330 lines, .003 LUX, 1/3” Super HAD CCD
3.6mm wide angle lens
Auto electronic iris & 8 IR LED emitters
Watertight case to 90’ under water
1.5” Diameter x 2” L
Includes installation kit:
65’ cable, power supply, mount,
& mounting hardware
420 lines, .001 LUX, 1/4” color CCD
3.6mm wide angle lens
(12) IR LEDS for night viewing
Auto electronic iris
2” Diameter x 4”L
Includes installation kit:
50’ cable, power supply, mount,
& mounting hardware
700 lines, .002 LUX, Ex-View II
3.6mm wide angle lens
(24) IR LEDS for night viewing
Halo deflector dual glass
Auto electronic iris
Auto gain control
2” Diameter x 4”L
Includes installation kit: 50’ cable, power supply, mount,
& mounting hardware
SLC-1049C Color Dome Camera
••
••
••
420 lines, .2 LUX, 1/3” Super HAD CCD
3.6mm wide angle lens
3 axis Adjustable pan & tilt
Compact - only 3.5 D x 2.5” H
Auto electronic iris
Includes installation kit:
50’ cable, power supply, mount,
& mounting hardware
SLC-1054 Weatherproof 24 IR Turret Dome Camera
lines, .001 LUX, Super HAD
• 420
3.6mm
wide angle lens
• (24) IR LEDS
• 3 axis ball swivelfor night viewing
• Halo deflector dual glass
• Auto electronic iris
• 2” Diameter x 4”H
• Includes installation kit:
• 50’ video/power cable, power supply, mount, & mounting hardware
Customer Support 1-800-774-0284
www.security-labs.com
o
TEMPALTM Temperature Over Video Alert
•
•
•
•
•
•
Easily connects in line with camera signal
Temperature can be placed anywhere on screen
Program a high & low temperature for alarm output
Calibration mode allows temperature matching
LED indicators show alarm mode
Includes 6’ extendable temp sensor and
power supply. Wall mountable.
With an internet enabled DVR, use
the TEMPALTM to view remote
termperatures and receive email
alerts on your mobile device
Accessories
SLC-100 Simulated Dome Camera
Best
Seller
opaque high gloss design
• Exclusive
eliminates viewing into empty dome
the appearance of
• Simulates
real security cameras
(D) x 2” (H)
•• 3.5”
Includes mounting hardware
SLA40 UTP Video Balun
& receive video up to 1000’
•• Send
Passive operation - no power supply
mode rejection of 70dB
•• Common
UTP categories 2, 3, 4, 5, 5e
• Kit includes balun, adapter, extension
PIR46 Mini PIR
Passive Infrared Motion Detector
•• Mini
Uses 12VDC
for critical space installations
•• Great
Alarm out connect to DVR or device
SLA30 RCA to DIN Adapter
use with 6 pin DIN cable
• For
inputs on Security Labs observation
monitors (SLM424B)
allows connection of RCA
• Adapter
video and audio from a non-DIN
style camera
SLA16 12VDC Power Supply
efficiency switch
• High
mode regulated 12VDC
at 500mA
•• Rated
2.1mm power plug
SLC-1025 B/W Board Camera
••
••
••
420 lines, .3 LUX, 1/3” CCD
3.6mm pinhole
wide angle lens
Automatic electronic iris
View through 3/32” hole
1”H x 1”W
Includes installation kit: 50’ cable, power
supply, mount, & mounting hardware
SLA22 DIN Cable Coupler
use with 6 pin DIN cables
•• For
Coupler is female-female for
connecting two male end cables
Camera Extension Cables
VIR50 Video Motion Detector
DUAL CONFIRMATION FOR ALARMS
AWARD
WINNER
your existing camera & PIR
•• Use
PIR & VMD must agree for alarm output
VMD grid
•• Programmable
Programmable sensitivity and velocity
IN, video IN, alarm OUT
•• PIR
Technology Award Winner - NPS
International Security Conf - Las Vegas
Black 50’ RCA video, audio, & power ext.cable w/ coupler
• SLA23:
SLA24:
50’ RCA video & power ext. cable w/ coupler
• SLA31: Black
Black
BNC video & power ext. cable w/ coupler
• IVP50: Ivory 50’50’BNC
ext. cable w/ coupler
• SLA32: Black 100’ BNCvideovideo& power
&
power
ext. cable w/ coupler
• IVP100: Ivory 100’ BNC video & power ext.
w/ coupler
• SLA41: Black 50’ BNC video, audio & powercable
ext.
cable
coupler
• IAVP50: Ivory 50’ BNC video, audio & power ext. cable w/w/ coupler
• SLA42: Black 100’ BNC video, audio & power ext. cable w/ coupler
• IAVP100: Ivory 100’ BNC video, audio & power ext. cable w/ coupler
•
one year parts & labor warranty on all products.
• Full
• Lifetime Toll-free customer support line for installers & end users
Customer Support
1-800-774-0284
V1012
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
