QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Overview

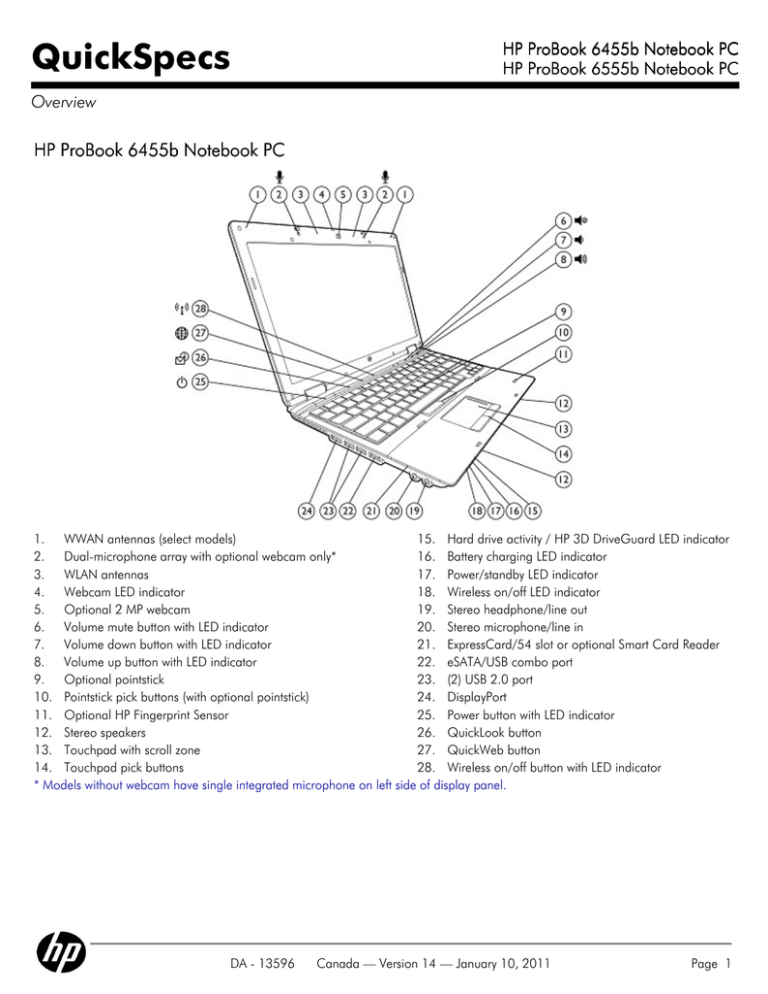

HP ProBook 6455b Notebook PC
1.
WWAN antennas (select models)
15. Hard drive activity / HP 3D DriveGuard LED indicator
2.
Dual-microphone array with optional webcam only*
16. Battery charging LED indicator
3.
WLAN antennas
17. Power/standby LED indicator
4.
Webcam LED indicator
18. Wireless on/off LED indicator
5.
Optional 2 MP webcam
19. Stereo headphone/line out
6.
Volume mute button with LED indicator
20. Stereo microphone/line in
7.
Volume down button with LED indicator
21. ExpressCard/54 slot or optional Smart Card Reader
8.
Volume up button with LED indicator
22. eSATA/USB combo port
9.
Optional pointstick
23. (2) USB 2.0 port
10. Pointstick pick buttons (with optional pointstick)
24. DisplayPort
11. Optional HP Fingerprint Sensor
25. Power button with LED indicator
12. Stereo speakers
26. QuickLook button
13. Touchpad with scroll zone
27. QuickWeb button
14. Touchpad pick buttons
28. Wireless on/off button with LED indicator
* Models without webcam have single integrated microphone on left side of display panel.
DA - 13596
Canada — Version 14 — January 10, 2011
Page 1
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Overview
1.
2.
3.
4.
5.
Upgrade Bay (optical drive or second hard drive)
(1) USB 2.0 port
Media Card Reader
1394a port
RJ-11/modem port
6.
7.
8.
9.
Lock slot
RJ-45/Ethernet port
VGA/external monitor connector
Power connector
1.
2.
3.
4.
5.
Battery bay
SIM slot for WWAN (select models) – inside battery bay
Battery release latch
Docking connector
Secondary battery connector
6.
7.
8.
9.
10.
Vents
Hard drive bay
Memory module compartment
WLAN/WWAN module compartment (select models)
Bluetooth module compartment
DA - 13596
Canada — Version 14 — January 10, 2011
Page 2
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Overview
HP ProBook 6555b Notebook PC
1.
WWAN antennas (select models)
16. Touchpad pick buttons
2.
Dual-microphone array with optional webcam only*
17. Hard drive activity / HP 3D DriveGuard LED indicator
3.
WLAN antennas
18. Battery charging LED indicator
4.
Webcam LED indicator
19. Power/standby LED indicator
5.
Optional 2 MP webcam
20. Wireless on/off LED indicator
6.
Volume mute button with LED indicator
21. Stereo headphone/line out
7.
Volume down button with LED indicator
22. Stereo microphone/line in
8.
Volume up button with LED indicator
23. ExpressCard/54 slot or optional Smart Card Reader
9.
Calculator button
24. eSATA/USB combo port
10. Separate numeric keypad
25. (2) USB 2.0 port
11. Optional pointstick
26. DisplayPort
12. Pointstick pick buttons (with optional pointstick)
27. Power button with LED indicator
13. Optional HP Fingerprint Sensor
28. QuickLook button
14. Stereo speakers
29. QuickWeb button
15. Touchpad with scroll zone
30. Wireless on/off button with LED indicator
* Models without webcam have single integrated microphone on left side of display panel.
DA - 13596
Canada — Version 14 — January 10, 2011
Page 3
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Overview
1.
2.
3.
4.
5.
Upgrade Bay (optical drive or second hard drive)
(1) USB 2.0 port
Media Card Reader
1394a port
Serial port
6.
7.
8.
9.
10.
Lock slot
RJ-11/modem port
RJ-45/Ethernet port
VGA/external monitor connector
Power connector
1.
2.
3.
4.
5.
Battery bay
SIM slot for WWAN (select models) – inside battery bay
Battery release latch
Docking connector
Secondary battery connector
6.
7.
8.
9.
10.
Vents
Hard drive bay
Memory module compartment
WLAN/WWAN module compartment (select models)
Bluetooth module compartment
DA - 13596
Canada — Version 14 — January 10, 2011
Page 4
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Overview
At A Glance
Genuine Windows 7 versions and Genuine Windows Vista versions available through downgrade rights from Windows 7, or
FreeDOS
New AMD architecture
ATI Mobility Radeon™ 4250 HD Graphics
AMD Phenom™ II Quad-Core, Triple-Core, or Dual-Core Mobile Processor, AMD Turion™ II Dual-Core Mobile
Processor, or AMD Athlon™ II Dual-Core Processor
Widescreen LED-backlit HD or HD+ display
HP ProBook 6455b: 14.0-inch diagonal
HP ProBook 6555b: 15.6-inch diagonal
Starting at 5.0 lb/2.26 kg (6455b) or 5.5 lb/2.51 kg (6555b)
Flexible wireless connectivity options:
Integrated HP un2420 EV-DO/HSPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology
with GPS
Integrated Broadcom 802.11 a/b/g/n or b/g/n wireless LAN module
Bluetooth® v2.1+EDR
Touchpad with scroll zone; optional pointstick
Full-sized spill-resistant keyboard with drains; full separate numeric keypad on the HP ProBook 6555b
Touch-sensitive controls for HP QuickLook 3, HP QuickWeb, wireless on/off, mute, volume down, volume up; calculator
button on HP ProBook 6555b
Choice of 9-cell (93 WHr) or 6-cell (55 WHr and 47 WHr) primary battery, or HP Long Life 6-cell (51 WHr) battery
HP Long Life 3-cell (47 WHr) Battery available as after-market option
Optional external batteries: HP Ultra-Capacity Battery, HP Extended Life Battery
Optional integrated 2 MP Webcam with dual-microphone array
Choice of 7200 rpm user-removable hard drive up to 320 GB with HP 3D DriveGuard protection,
or 128 GB Solid State Drive
Upgrade Bay for optical drive or optional second hard drive
Media Card Reader
New eSATA/USB 2.0 combo port
Reliability with HP 3D DriveGuard, magnesium alloy support structure, HP DuraFinish, and spill-resistant keyboard with drains
Security features including HP ProtectTools with Central Management, Computrace LoJack Pro ready, HP SpareKey, HP Disk
Sanitizer, TPM 1.2;* optional Smart Card Reader (replaces ExpressCard slot), optional HP Fingerprint Sensor, and optional HP
Privacy Filter
HP Power Assistant allows you to conserve power, stretch battery run-time, accurately monitor your reported power need, and
report workforce power consumption.
HP QuickLook 3 for instant access to e-mail, calendar, and contacts; HP QuickWeb for fast access to the web
HP DayStarter displays your calendar and battery charge while Windows starts up
HP Support Assistant helps maintain your PC performance and resolve problems with automated updates and tune-ups,
onboard diagnostics, and guided assistance.
Options include HP Advanced Docking Station, HP Docking Station, HP USB 2.0 Docking Station, and HP Essential USB 2.0
Port Replicator
BFR/PVC-free**, ENERGY STAR qualified and EPEAT Gold registered in the U.S. EPEAT status varies by country- please see
epeat.net.
* TPM module disabled where not permitted by law (for example, Russia and China).
** This notebook is brominated flame retardant and polyvinyl chloride-free (BFR/PVC-free) on notebooks that are non-WWAN;
meeting the evolving definition of 'BFR/PVC-free' as set forth in the "iNEMI Position Statement on the 'Definition of Low-Halogen'
Electronics (BFR/CFR/PVC-Free)'". Plastic parts contain < 1000 ppm (0.1%) of bromine [if the Br source is from BFRs] and < 1000
ppm (0.1%) of chlorine [if the Cl source is from CFRs or PVC or PVC copolymers]. Power supply and power cords are not BFR/PVCfree. Service parts after purchase may not be BFR/PVC-free.
DA - 13596
Canada — Version 14 — January 10, 2011
Page 5
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Processors
AMD Phenom II Quad-Core Mobile Processor N970 (2.2 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Quad-Core Mobile Processor N950 (2.1 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Quad-Core Mobile Processor N930 (2.0 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Triple-Core Mobile Processor N870 (2.3 GHz, 35W, 1.5 MB L2 cache)
AMD Phenom II Triple-Core Mobile Processor N850 (2.2 GHz, 35W, 1.5 MB L2 cache)
AMD Phenom II Triple-Core Mobile Processor N830 (2.1 GHz, 35W, 1.5 MB L2 cache)
AMD Phenom II Dual-Core Mobile Processor N660 (3.0 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Dual-Core Mobile Processor N640 (2.9 GHz, 35W, 2 MB L2 cache)
AMD Phenom II Dual-Core Mobile Processor N620 (2.8 GHz, 35W, 2 MB L2 cache)
AMD Turion II Dual-Core Mobile Processor N530 (2.5 GHz, 35W, 2 MB L2 cache)
AMD Turion II Dual-Core Mobile Processor P520 (2.3 GHz, 25W, 2 MB L2 cache)
AMD Athlon II Dual-Core Processor for Notebook PCs P360 (2.3 GHz, 25W, 1 MB L2 cache)
AMD Athlon II Dual-Core Processor for Notebook PCs P340 (2.2 GHz, 25W, 1 MB L2 cache)
AMD Athlon II Dual-Core Processor for Notebook PCs P320 (2.1 GHz, 25W, 1 MB L2 cache)
NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in
battery optimization mode.
Operating System
Preinstalled
Genuine Windows 7 Professional Edition 32*
Genuine Windows 7 Professional Edition 64*
FreeDOS
Supported
Genuine Windows 7 Enterprise 32*
Genuine Windows 7 Enterprise 64*
Genuine Windows 7 Ultimate 32*
Genuine Windows 7 Ultimate 64*
Genuine Windows Vista Enterprise 32**
Genuine Windows Vista Enterprise 64**
Certified
SuSE Linux Enterprise Desktop 11
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/ for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit: http://www.windowsvista.com/upgradeadvisor.
Chipset
AMD M880G Chipset
Graphics
ATI Mobility Radeon HD 4250
Microsoft DirectX 10.1 capable
DA - 13596
Canada — Version 14 — January 10, 2011
Page 6
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Display
Internal
HP ProBook 6455b:
14.0-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution))
HP ProBook 6555b:
15.6-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
15.6-inch diagonal LED-backlit HD+ WVA anti-glare (1600 x 900
resolution)
HP Privacy Filter support
Up to 32-bit per pixel color depth
DisplayPort supports resolutions up to 2560 x 1600, 30-bit color depth at
60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz
VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
DVI-D (single link) video signal available through DVI port in optional HP
Docking Station (sold separately)
supports resolutions up to 1600 x 1200 at both full and reduced
blanking, and 1920 x 1200 at reduced blanking
NOTE: Resolutions are dependent upon monitor capability, and resolution
and color depth settings.
External
Memory
Standard
DDR3 PC3-10600 SDRAM (1333 MHz)*
Two SODIMM slots supporting dual-channel memory
1024 MB, 2048 MB and 4096 MB SODIMMs
Maximum
Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size
and speed in both memory slots.
* Memory speed is processor dependent.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend
HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the
lower memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating
system or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent
upon your configuration, so that above 3 GB all memory may not be available due to system resource
requirements.
Communications
Integrated Marvell Gigabit Ethernet PCI Controller (10/100/1000 NIC)*
56K V.92 modem**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability
is subject to country regulatory approval.
DA - 13596
Canada — Version 14 — January 10, 2011
Page 7
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Wireless Devices
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring
support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating
system and is available in select countries as a standard, factory configurable feature only. Integrated
Bluetooth is also available (factory configurable only) and can be combined with any of the supported
wireless LAN and wireless WAN options.
HP un2420 EV-DO/HSPA Integrated mobile broadband module with Gobi global mobile Internet
Mobile Broadband
technology that provides connectivity to both CDMA (EVDO) and UMTS
Module
(HSPA) networks. It also provides GPS functionality for various mapping
applications and security applications such as Computrace LoJack Pro
Premium for HP ProtectTools.
NOTE: Separately purchased mobile network operator service is required.
Two 850/900/1575/1800/1900/2100 MHz antennas integrated in the top
of the display panel support current and future WWAN technologies.
All 802.11 integrated
wireless LAN options
Broadcom 4322AGN
802.11a/b/g/n
WiFi Adapter
Broadcom 4313GN
802.11b/g/n
WiFi Adapter
HP Integrated Module
with Bluetooth 2.1+EDR
Wireless Technology
Wi-Fi Certified*
Cisco Compatible Extensions support
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Dual antennas integrated in the display enclosure
Integrated support for 802.11 a, b, g, and n
Up to 300 mbps data rate
Integrated support for 802.11 b, g, and n
Up to 72 mbps data rate
Bluetooth Specification v2.1+EDR compliant
Works with a wide range of Bluetooth devices
Keyboard
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a
drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of
damage to sensitive components underneath. The 101/102-key compatible keyboard features a fullpitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys,
editing keys, both left and right control and alt keys, 12 function keys, and 19.05 x 19.05 mm key pitch
(center-to-center spacing). U.S. and International key layouts are available. Other features include
hotkeys for instant access to power conservation and brightness. The HP ProBook 6555b Includes a
separate numeric keypad.
Touch-sensitive controls
Touch-sensitive controls provide easy access to the following features: HP QuickLook 3, HP QuickWeb,
wireless on/off, volume mute, volume up, volume down. The HP ProBook 6555b also features a
calculator button
DA - 13596
Canada — Version 14 — January 10, 2011
Page 8
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Pointing device
Touchpad with scroll zone, two pick buttons
Optional pointstick with two additional pointstick buttons
Expansion card slots
ExpressCard/54 slot
Supports ExpressCard/54 and ExpressCard/34
or
Optional Integrated Smart Compatible with ISO 7816 compliant Smart Cards
Card Reader (replaces
PC/SC interface support
ExpressCard/54 slot)
Supports SD (Secure Digital), HC-SD (High Capacity Secure Digital), MMC
Media Card Reader
(MultiMedia Card), HS-MMC (MultiMedia Card Plus), Sony Memory Stick,
Sony Memory Stick Pro, Memory Stick Duo*, xD-Picture card
Additionally, the following cards are supported via passive adapters (sold
separately): Mini-Secure Digital (Mini-SD), Transflash (Micro-SD), Reduced
size Multimedia card (RS-MMC), Reduced size Dual voltage Multimedia
card, MMC Mobile Cards, MMC Micro Cards, Memory Stick Duo (MS
Duo)*, Memory Stick Duo Pro (MS Duo Pro)*, Memory Stick M2 Micro
* Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo Card
directly into your notebook could damage the memory card and/or notebook.
Internal Storage
Hard drives
160/250/320 GB 7200 rpm SMART SATA II
320 GB 7200 rpm SMART SATA II Self Encrypting Drive
NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles.
Up to 10 GB is reserved for the system recovery software.
HP 3D DriveGuard
The hard drive is mounted directly to the notebook frame, reducing the
(Windows only)
transmission of shock to the hard drive. Uses three-axis digital motion
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer temporarily
halts all data transfer and parks the hard drive when abrupt motion is
detected.
128 GB
Solid State Drive
Upgrade Bay
Fixed 12.7 mm SATA
optical drive
Weight saver
DA - 13596
DVD+/-RW SuperMulti DL LightScribe Drive
DVD-ROM Drive
Canada — Version 14 — January 10, 2011
Page 9
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Interfaces
Audio/Visual
ExpressCard/54 slot
External monitor
1394a
Stereo microphone in
Stereo headphone/line
out
Power connector
RJ-11/modem
RJ-45/Ethernet
USB 2.0
eSATA/USB 2.0 combo
One (or optional Smart Card Reader)
Two – (1) DisplayPort, (1) VGA
One
One
One
Serial port
Docking connector
Secondary battery
connector
One (HP ProBook 6555b only)
One
One
One
One
One
Three
One
HD audio (HP Premier Sound)
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional 2 MP webcam)
Touch-sensitive controls for volume up, volume down, and mute
Stereo headphone/line out
Stereo microphone/line in
Optional 2 MP webcam
Supports videoconferencing and still image capture
Large image sensor for excellent colour matching and good low light sensitivity
Up to 30 frames/sec
Fixed focus lens
Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions
16-bit true colour (camera sensors output YCrCb format among others)
DA - 13596
Canada — Version 14 — January 10, 2011
Page 10
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Software
Preinstalled software with HP Recovery Manager (available with Windows 7 or Vista only)
Windows operating
HP Support Assistant (available with Windows 7 or Vista only)
system
HP ProtectTools Security Manager
HP ProtectTools for Central Management
HP Quick Launch Buttons Software
HP QuickLook 3
HP QuickWeb
HP Power Assistant
HP Connection Manager 3.1
HP Wireless Assistant
HP DayStarter
Microsoft Office 2010 preloaded (purchase of a Product
Key required to activate a full Office 2010 suite)*
McAfee Total Protection*
PDF Complete Special Edition**
Intervideo WinDVD – DVD Player (select models)
Roxio Creator Business (select models)
HP Webcam Software (select models)
Skype
WinZip 14.5 trial
HP SoftPaq Download Manager
Additional software
available from the web
* Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel. Purchase
of Product Key required to activate full Office 2010 suite available at participating resellers/retailers and
http://www.office.com.
** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
*** 60 day trial; purchase license afterwards for full functionality
HP Recovery Manager
Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery
Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if
important system files are accidentally deleted. Up to 10 GB of the hard drive is reserved for the system
recovery software.
DA - 13596
Canada — Version 14 — January 10, 2011
Page 11
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Security
Standard Features
Optional Features
HP ProtectTools Security Manager
Enhanced Pre-Boot Security
HP SpareKey
One-Step Logon
Setup Password
TPM 1.2 Embedded Security Chip*
TPM Enhanced DriveLock*
HP Disk Sanitizer
Lock slot
Support for Computrace** LoJack Pro for HP ProtectTools
Compatible with ISO 7816 compliant Smart
Smart Card Reader
(replaces ExpressCard/54 Cards
slot)
PC/SC interface support
HP Fingerprint Sensor
Enhanced sensor scans the fingerprint to uniquely
identify and authenticate a person.
HP Privacy Filter
Narrows viewing area so that screen data is
visible only to persons directly in front of the
monitor.
Computrace** LoJack Pro Subscription based security solution providing the
Premium for HP
ability to track, initiate physical recovery, conduct
ProtectTools with GPS
asset management, and perform remote data
delete by utilizing GPS technology. GPS
Tracking
functionality requires HP un2420 EV-DO/HSPA
Mobile Broadband Module.
* TPM module disabled where use is restricted by law; for example, Russia and China.
** The Computrace agent is shipped turned off, and must be activated by customers when they purchase
a subscription with terms ranging from one to five years.
For more information on HP security solutions refer to: http://www.hp.com/go/security.
HP ProtectTools Security
Manager with Central
Management
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
capabilities through add-on software modules. The following modules are available on the hard drive
(also downloadable from the web) and can be configured in Software Setup:
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Computrace LoJack Pro for HP ProtectTools
HP ProtectTools is now centrally manageable with the capability to manage notebooks from a single
point. Security is management ready out of the box, in partnership with Digital Persona. New features
address requirements that customers expect from a centrally managed security solution such as user
provisioning, credential reset, and credential revocation.
HP ProtectTools provides two separate management solutions, targeted at the enterprise and the SMB:
Digital Persona Pro AD: Designed for the enterprise customer. Integrates with Active Directory and
DA - 13596
Canada — Version 14 — January 10, 2011
Page 12
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
gives IT Managers the ability to provision users, create login policies based on passwords,
biometrics or smartcards. Management features also include remote credential recovery in case
the user forgets the password, loses the smartcard or cannot use the fingerprint reader for any
reason. In addition, advanced auditing capabilities are also built in. Digital Persona Pro AD is
available now.
Digital Persona Pro Workgroup: Designed for the small business customer. Provides features
similar to the Active Directory version, but for workgroups. Workgroup activation is built into HP
ProtectTools, and activation of up to 5 seats is completely free.
Power Supply
External 90-watt Smart AC adapter, 6-foot (1.8 meter) power cord included.
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge*
*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast
Charge does not apply to the 9-cell primary battery, the 12-cell Ultra-Capacity batteries, or the HP Long
Life Battery.
Battery
Primary battery
HP 9-cell (93 WHr) Li-Ion battery
HP 6-cell (55 WHr) Li-Ion battery
HP Long Life 6-cell (51 WHr) battery
3-cell (47 WHr) Li-Ion battery
Optional HP Long Life
Battery
Optional HP Extended
Life Battery
Optional HP UltraCapacity Battery
8-cell (52 WHr) Li-Ion battery
12-cell (95 WHr) Li-Ion battery
Battery Life
System Standby Time
HP ProBook 6455b
Primary battery
Primary battery and
optional HP Extended Life
Battery
Primary battery and
optional HP UltraCapacity Battery
HP ProBook 6555b
Primary battery
Primary battery and
optional HP Extended Life
Battery
Primary battery and
optional HP UltraCapacity Battery
Up to 1 week
DA - 13596
HP 9-cell (93 WHr) Primary
HP 6-cell (55 WHr) Primary
Up to 9 hours
Up to 14 hours and 30 minutes
Up to 5 hours and 30 minutes
Up to 11 hours
Up to 18 hours
Up to 15 hours
Up to 8 hours
Up to 11 hours 30 minutes
Up to 4 hours 30 minutes
Up to 9 hours
Up to 15 hours 45 minutes
Up to 13 hours 30 minutes
Canada — Version 14 — January 10, 2011
Page 13
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Standard Features (availability may vary by country)
Power Conservation
ATI PowerPlay technology
Hibernation
Standby
ACPI compliance
Docking and Stands
HP 90W Docking Station
HP 120W Advanced Docking Station
HP USB 2.0 Docking Station
HP Essential USB 2.0 Port Replicator
HP Dual Hinge Notebook Stand
HP Display & Notebook Stand
HP Adjustable Display Stand
HP Adjustable Dual Display Stand
NOTE: Some HP Docking stations may not support every feature of some HP Notebook models. Please
refer to the individual docking station documentation for specific information about supported features.
Service and Support
HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country. On-site
service and warranty upgrades are also available. HP Care Pack Services extend service contracts
beyond the standard warranties. To choose the right level of service for your HP product, use the HP
Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack
Services information by product is available at: http://www.hp.com/hps/carepack.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Centre for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp.
DA - 13596
Canada — Version 14 — January 10, 2011
Page 14
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Options (availability may vary by country)
Memory
HP 1 GB (DDR3 1333 MHz) SODIMM
HP 2 GB (DDR3 1333 MHz) SODIMM
HP 4 GB (DDR3 1333 MHz) SODIMM
AT911AA
AT912AA
AT913AA
Storage
HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive
HP 250 GB Pocket Media Drive
HP External USB Drive CD/DVD R/RW
HP Primary SATA 320 GB 7200 rpm Hard Drive
AK869AA
FE477AA
FS943AA
AS282AA
Expansion Solutions
HP 90W Docking Station
HP 120W Advanced Docking Station
HP USB 2.0 Docking Station
HP Essential USB 2.0 Port Replicator
HP Dual Hinge Notebook Stand
HP Display & Notebook Stand
HP Adjustable Display Stand
HP Adjustable Dual Display Stand
VB041AA
NZ222AA
FQ834AA
AQ731AA
AW661AA
AW662AA
AW663AA
AW664AA
Power
HP Smart 65W Travel AC Adapter
HP 90W Smart AC Adapter
HP 90W Smart Combo Adapter
HP Long Life 3-Cell Battery
HP 6-Cell Li-Ion Primary Battery
HP 9-Cell Li-Ion Primary Battery
HP Extended Life Battery
HP Ultra-Capacity Battery
AU155AA
ED495AA
AJ652AA
AU213AA
KU531AA
AT908AA
AJ359AA
AT486AA
DA - 13596
Canada — Version 14 — January 10, 2011
Page 15
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Options (availability may vary by country)
Carrying Cases
HP Basic Carrying Case
HP Value Nylon Case
HP Universal Nylon Case
HP Professional Slim Top Load Case
HP Executive Leather Case
HP Deluxe Nylon Backpack
HP Deluxe Roller Case
HP Basic Backpack
HP Merlot Slipcase
HP Basic Messenger Carrying Case
AJ078AA
RR314AA
RR315AA
AY530AA
RR316AA
RR317AA
GD405AA
AM863AA
AU095AA
AP355AA
HP Professional Series Carrying Case
HP Professional Series Backpack
HP Professional Series Messenger
HP Professional Series Designer Tote
HP Professional Series Slip Case
HP Elite Series Designer Tote
HP Elite Series Quick Case
AT886AA
AT887AA
AT888AA
AT889AA
AT890AA
AT891AA
AT892AA
Security
HP Notebook Combination Lock
HP Docking Station Cable Lock
HP 14.0-inch Display Privacy Filter
HP 15.6-inch Display Privacy Filter
HP ExpressCard Smart Card Reader
AY475AA
AU656AA
AU100AA
AU103AA
AJ451AA
Input/Output Devices
HP PS/2 Keyboard & Mouse Bundle
HP USB Keyboard & Mouse Bundle
HP USB Optical Travel Mouse
HP USB/PS2 Optical 2-Button Scroll Mouse
HP Wireless Mouse
HP BT Headset
HP Mobile Audio Speakers
HP Mobile Productivity Bundle
HP Bluetooth ExpressCard Mouse
HP Notebook Companion Projector
HP Migration Cable for Windows 7
HP Premium Autofocus Webcam
Premium Digital Headset
RC464AA
RC465AA
RH304AA
DC369A
AR085AA
AR084AA
FS944AA
AQ792AA
GK872AA
AX325AA
AY493AA
KQ245AA
KJ270AA
DA - 13596
Canada — Version 14 — January 10, 2011
Page 16
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Options (availability may vary by country)
Miscellaneous
DisplayPort To DVI-D Adapter
Promo USB Graphics Adapter
External USB Modem
Belkin USB to Serial Adapter
Notebook Multi-Purpose Cleaning Kit
DA - 13596
Canada — Version 14 — January 10, 2011
FH973AA
NL571AT
GS023AA
EM449AA
BL528AA
Page 17
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Memory
DDR3 PC3-10600 SDRAM (1333 MHz)*
Two SODIMM slots supporting dual-channel memory
SODIMM sizes supported: 1024 MB, 2048 MB and 4096 MB
Standard Memory
1024 MB (1024 MB x 1)
2048 MB (1024 MB x 2)
2048 MB (2048 MB x 1)
3072 MB (2048 MB + 1024 MB)
4096 MB (2048 MB x 2)
4096 MB (4096 MB x 1)
Optional Memory
Upgrades
Support for up to 8192 MB of memory with the installation of optional DDR3 SDRAM memory kits. Both
memory slots are user-accessible. Please refer to the Hardware and Software Guide for installation
procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in
both memory slots.
Up to
Slot 1
Slot 2
2048 MB
1024 MB
1024 MB
3072 MB
2048 MB
1024 MB
4096 MB
2048 MB
2048 MB
4096 MB
4096 MB
Empty
8192 MB
4096 MB
4096 MB
* Memory speed is processor dependent.
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry
standard nature of some third-party memory modules, we strongly recommend using only HP- branded
memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower
memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system
or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your
configuration, so that above 3 GB all memory may not be available due to system resource
requirements.
Memory Upgrades
HP 1 GB (DDR3 1333 MHz) SODIMM
HP 2 GB (DDR3 1333 MHz) SODIMM
HP 4 GB (DDR3 1333 MHz) SODIMM
DA - 13596
Canada — Version 14 — January 10, 2011
AT911AA
AT912AA
AT913AA
Page 18
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Storage
Upgrade Bay Drive Support
DVD+/-RW SuperMulti DL LightScribe
Drive
DVD-ROM Drive
Weight Saver
Quantity Supported
One
Drive Bay
Upgrade Bay
One
One
Upgrade Bay
Upgrade Bay
Quantity Supported
Drive Bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
One
Dedicated hard drive bay
Internal Storage Device
Hard Drives
320 GB 7200 rpm SMART SATA II Hard
Drive
320 GB 7200 rpm SMART SATA II Self
Encrypting Hard Drive
250 GB 7200 rpm SMART SATA II Hard
Drive
160 GB 7200 rpm SMART SATA II Hard
Drive
Solid State Drive
128 GB Solid State Drive
DA - 13596
Canada — Version 14 — January 10, 2011
Page 19
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Technical Specifications
System Unit
Dimensions (HxWxD)
HP ProBook 6455b:
1.33 in (at front) x 13.35 in x 9.3 in
33.8 mm (at front) x 339 mm x 236.2 mm
HP ProBook 6555b:
1.37 in (at front) x 14.62 in x 9.76 in
34.8 mm (at front) x 371.4 mm x 248.0 mm
HP ProBook 6455b:
Starting at 5.0 lb (2.26 kg) with weight saver (no optical drive)
Starting at 5.31 lb (2.39 kg) with DVD-ROM drive
Weight
HP ProBook 6555b:
Starting at 5.5 lb (2.51 kg) with weight saver (no optical drive)
Starting at 5.81 lb (2.64 kg) with DVD-ROM drive
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies
by configuration and components. Weight includes 6-cell battery and hard drive.
Nominal Operating
18.5 V
Stand-Alone Power
Requirements (AC Power) Voltage
Average Operating Power 19.49 W
Max Operating Power
< 90 W
Operating
32° to 95° F (0° to 35° C) (not writing optical)
Temperature
41° to 95° F (5° to 35° C) (writing optical)
Non-operating
-4° to 140° F (-20° to 60° C)
Operating
10% to 90%, non-condensing
Relative Humidity
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet
bulb temperature
Operating
125 G, 2 ms, half-sine
Shock
Non-operating
200 G, 2 ms, half-sine
Operating
0.75 grms
Random Vibration
Non-operating
1.50 grms
Operating
–50 to 10,000 ft (–15.24 to 3,048 m)
Altitude
(unpressurized)
Non-operating
–50 to 40,000 ft (–15.24 to 12,192 m)
UL
Yes
Industry Standard
Certifications
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Select models*
EPEAT
Registered Gold in United States**
ICES
Yes
GS
Yes
Australia / NZ A-Tick
Yes
Compliance
CCC
Yes
Japan VCCI Compliance Yes
KCC
Yes
DA - 13596
Canada — Version 14 — January 10, 2011
Page 20
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Technical Specifications
BSMI
Yes
CE Marking Compliance Yes
BNCI or BELUS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian
Yes
Compliance (ICCP)
SABS
Yes
UKRSERTCOMPUTER
Yes
* Configurations of the HP ProBook 6455b and HP ProBook 6555b that are ENERGY STAR qualified
are identified as HP ProBook 6455b ENERGY STAR and HP ProBook 6555b ENERGY STAR on HP
websites and on www.energystar.gov.
** EPEAT Registered Gold in U.S. EPEAT registration varies by country. See www.epeat.net for
registration status by country.
NOTE: For accessibility information on HP products, please visit: http://www.hp.com/accessibility.
HP 90W Smart AC
Adapter
Dimensions
Weight
Input
Output
Connector
Environmental Design
EMI and Safety
Certifications
DA - 13596
5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm)
0.82 lb (370 g)
100 to 240 VAC
Input Efficiency
83% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.5 A at 90 VAC, 0.75 A at 180 VAC PFC
Version
2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC
Version
Output power
90W
DC output
19.0V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
3 pin/grounded, mates with interchangeable cords
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating (storage) –4° to 149° F (–20° to 65° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
CE Mark – full compliance with LVD and EMC directives; Worldwide safety
standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency
approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B,
CISPR22 Class B, CCC, NOM-1 NYCE; MTBF– over 200,000 hours at
25°C ambient condition.
Canada — Version 14 — January 10, 2011
Page 21
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
NOTE: Unless otherwise noted, temperature limits listed in the following component specifications relate to the internal temperatures
of these components and not to the environment in which the PC is operating.
Optional HP UltraCapacity Battery
Dimensions (H x W x L)
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Fuel Gauge
Optional HP Extended Life Dimensions (H x W x L)
Battery
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Fuel Gauge
DA - 13596
1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)
1.77 lb (0.803 kg)
12-cell Lithium-Ion
Watt-hour Capacity
95 WHr
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
Smart Adapter
System ON
–4° to 140° F (–20° to 60° C)
3 to 4 hours
4 to 5 hours (depending on system power
consumption)
When pressed, LEDs light indicating level of charge remaining on battery
1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)
1.00 lb (0.455 kg)
8-cell Lithium-Ion
Watt-hour Capacity
52 WHr
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
System in OFF mode or
3 hours
Standby
System ON
3 to 5 hours (depending on system power
consumption)
HP Fast Charge
Charges the battery up to 90% within 90 minutes
Technology
when system is OFF
When pressed, LEDs light indicating level of charge remaining on battery
Canada — Version 14 — January 10, 2011
Page 22
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Optional HP Long Life 3- Dimensions (H x W x L)
cell 47 WHr Lithium-Ion Weight
Battery
Cells/Type
Energy
Temperature
Battery Re-Charge Time
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.4 cm)
0.71 lb (0.32 kg)
3-cell Lithium-Ion
Watt-hour Capacity
47 WHr
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
System in OFF mode or
2.5 hours
Standby
System ON
3 to 5 hours (depending on system power
consumption)
HP Fast Charge
Technology
9-Cell (93 WHr) Lithium- Dimensions (H x W x L)
Ion battery
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
6-Cell (55 WHr) Lithium- Dimensions (H x W x L)
on battery
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
DA - 13596
Charges the battery up to 90% within 90 minutes
when system is OFF
0.8 x 2.9 x 8.3 in (2.0 x 7.3 x 21.0 cm)
1.07 lb (0.488 kg)
9-cell Lithium-Ion
Watt-hour Capacity
93 WHr
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
System in OFF mode or
3 to 4 hours
Standby
System ON
4 to 6 hours (depending on system power
consumption)
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.4 cm)
0.71 lb (0.32 kg)
6-cell Lithium-Ion
Watt-hour Capacity
55 WHr
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
System in OFF mode or
2.5 hours
Standby
System ON
3 to 5 hours (depending on system power
consumption)
HP Fast Charge
Charges the battery up to 90% within 90 minutes
Technology
when system is OFF
Canada — Version 14 — January 10, 2011
Page 23
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Technical Specifications
HP Long Life 6-cell 51
Dimensions (H x W x L)
WHr Lithium-Ion Primary Weight
battery
Cells/Type
Energy
Temperature
Battery Re-Charge Time
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)
0.73 lb (0.331 kg)
6-cell Lithium-Ion
Watt-hour Capacity
51 WHr
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
System in OFF mode or
2.5 hours
Standby
System ON
3 to 5 hours (depending on system power
consumption)
Displays
14.0-inch LED HD (1366 Active Area (W x H)
x 768)
Diagonal Size
anti-glare
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
DA - 13596
12.74 x 7.56 in (32.4 x 19.2 cm)
14.0 in (35.6cm)
Anti-glare
300:1 (typical)
60 Hz
200 nit (typical)
0.227 mm
Pitch
1366 x 768
Format
RGB Stripe
Configuration
LED
112 ppi
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
Canada — Version 14 — January 10, 2011
Page 24
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Technical Specifications
15.6-inch LED HD (1366 Active Area (W x H)
x 768)
Diagonal Size
anti-glare
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
15.6-inch LED HD+ WVA Active Area (W x H)
(1600 x 900)
Diagonal Size
anti-glare
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
13.54 x 7.59 in (34.4 x 19.4 cm)
15.6 in (39.6cm)
Anti-glare
300:1 (typical)
60 Hz
200 nit (typical)
0.252 mm
Pitch
1366 x 768
Format
RGB Stripe
Configuration
LED
100 ppi
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
13.54 x 7.59 in (34.4 x 19.4 cm)
15.6 in (39.6 cm)
Anti-glare
300:1 (typical)
60 Hz
200 nit (typical)
0.215 mm
Pitch
1600 x 900
Format
RGB Stripe
Configuration
LED
118 ppi
±60° Horizontal, ± 50° Vertical (minimum) or
±70° Horizontal, ±60° Vertical (typical)
Internal Storage
DA - 13596
Canada — Version 14 — January 10, 2011
Page 25
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Technical Specifications
320 GB 7200 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
250 GB 7200 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
DA - 13596
0.25 lbs (115 g)
320 GB
0.37 in (9.5 mm) or on some models 0.28 in (7 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous (maximum) 100 MB/s (Drive Capability)
1.5 ms
Single Track
11 ms
Average
22 ms
Maximum
7200 rpm
625,142,448
32° to 140° F (0° to 60° C) [case temp]
ATA Security
0.25 lbs (115g)
250 GB
0.37 in (9.5 mm) or on some models 0.28 in (7 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous (maximum) 100 MB/s (Drive Capability)
1.5 ms
Single Track
11 ms
Average
22 ms
Maximum
7200 rpm
488,397,168
32° to 140° F (0° to 60° C) [case temp]
ATA Security
Canada — Version 14 — January 10, 2011
Page 26
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
160 GB 7200 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
128 GB
Weight
2.5-inch SATA Solid State Capacity
Drive
Height
Width
Interface
Performance
DVD-ROM Drive
0.25 lb (115 g)
160 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous (maximum) 100 MB/s (Drive Capability)
1.5 ms
Single Track
11 ms
Average
22 ms
Maximum
7200 rpm
312,581,808
32° to 140° F (0° to 60° C) [case temp]
ATA Security
Logical Blocks
Operating Temperature
Features
80.1 Grams
128 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
SATA
Maximum Sequential Write
Maximum Sequential
Read
220 MB/s
200 MB/s
250,069,680
32° to 158°F (0° to 70°C) [case temp]
ATA Security; ATA-7 ;SATA 2.6; DIPM
Access Times
Random
Max Data Transfer Rate
24X CD-ROM
8X-DVD
UDMA Mode 5
Gen 1 SATA
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
None
8.5 GB
Transfer Mode
Interface
Supported Media (read)
Supported Media (write)
Max Media Capacity
(read)
Transport
DA - 13596
< 110 ms CD (typical)
< 110 ms DVD (typical)
Up to 3,600 KB/s
Up to 10,800 KB/s
Tray Loading
Canada — Version 14 — January 10, 2011
Page 27
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
DVD+/-RW SuperMulti
DL LightScribe Drive
Access Times
Random
Max Data Transfer Rate
24X CD-ROM
8X DVD
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
Transfer Mode
Interface
Supported Media (read)
Supported Media (write)
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
< 150ms CD (typical)
< 160 ms DVD (typical)
Up to 3,600 KB/s
Up to 10,800 KB/s
Up to 3,600 KB/s
Up to 2,400 KB/s
Up to 10,800 KB/s
Up to 10,800 KB/s
Up to 10,800 KB/s
6X DVD-RW
Up to 8100KB/s
4X - DVD+R Dual Layer Up to 5,400 KB/s
4X - DVD-R Dual Layer
Up to 5,400 KB/s
5X DVD-RAM
Up to 6,750 KB/s
UDMA Mode 5
Gen 1 SATA
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,
LightScribe
8.5 GB
8.5 GB
Tray Loading
Audio
Hardware
Implementation
Touch-Sensitive Volume
Controls
Full Duplex
Microphone In
Headphone/Line Out
Integrated Microphone
DA - 13596
IDT 92HD75B High Definition CODEC
Volume up, volume down, and mute
Yes
Stereo
Stereo
Yes, one microphone on configurations without optional webcam; dualmicrophone array when equipped with optional webcam
Canada — Version 14 — January 10, 2011
Page 28
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Audio Output Quality
Integrated Stereo
Speakers
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Noise Floor
Play/Record Sampling
Rate(s)
Rate
DAC
ADC
20 Hz – 20 kHz
>85 dB
0.01%
–110 dB
8 kHz – 48kHz
Power Rating
Impedance
2 Watts
Mobile Voltage
Operation
Operating Temperature
Current Consumption @
3.3V
3.0V-3.6V Single Supply
16, 20 or 24-bit
16 or 20-bit
4 Ohms
Security
HP Fingerprint Sensor
(optional)
32° - 158°F (0° - 70°C)
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image Capture Up to 240 image frames /sec
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
Communications
DA - 13596
Canada — Version 14 — January 10, 2011
Page 29
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Integrated Marvell
10/100/1000 NIC
Ethernet Features
Power Management
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 2130)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE
802.3 clauses 34-42)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
ACPI compliant – multiple power modes
Situation-sensitive features reduce power consumption
Performance Features
Manageability
TCP/IP/UDP Checksum Offload (configurable)
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Interface
PCI Express x1
NIC Device Driver Name Marvell Yukon 88E8072 PCI-E Gigabit Ethernet Controller
V.92 56K Data/Fax
Modem
Form Factor
Power Management
Support
Approvals/
Certifications
Data Mode Capabilities
DA - 13596
MDC 1.5 Daughtercard
APM Revision 1.2, ACPI
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part
15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE
Mark, Other Countries
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
3600, 31200
Automatic rate re-negotiation
V.34
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Canada — Version 14 — January 10, 2011
Page 30
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Fax Mode Capabilities
Command Set
HP un2420
EV-DO/HSPA Mobile
Broadband Module
Technology/Operating
Bands
Wireless Protocol
Standards
Wireless Parametric
Standards
Maximum Data Rates
GPS
GPS Bands
Maximum Output Power
Maximum Power
Consumption
Power Consumption,
Sleep Mode
Power Management
Antenna Type
Form Factor
Weight
DA - 13596
Bell 103J
TIA/EIA-578-B (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +ILRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS),
1900MHz (PCS)
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I),
1900MHz (UTRA FDD Band II), 900MHz (UTRA FDD Band VIII), 850MHz
(UTRA FDD Band V)
1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell),
1900MHz (Band Class1-PCS)
GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1 –
CS4 and MSC1 – MSC9.
UMTS/WCDMA: Release 99 and Release 6
CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000
Meets or exceeds TIA/EIA IS-98-D
UMTS (HSPA) – 7.2 Mbps (Download ), 2.0 Mbps (Upload)
CDMA (EVDO Release A) – 3.1 Mbps (Download), 1.8 Mbps (Upload)
Standalone GPS enabled
L1 – 1575.42 MHz
GSM/GPRS/EDGE: 32dBm (+/-1)
WCDMA: 24dBm (+/-1)
CDMA: 24dBm (+/-1)
2500mA (peak); 1000mA (average)
5 mA
USB selective suspend
Integrated notebook wireless button
Dual high efficiency 5 band antennae with spatial diversity, mounted in the
display enclosure
PCI-Express MiniCard, USB 2.0 interface
11.5 g
Canada — Version 14 — January 10, 2011
Page 31
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Broadcom 4322AGN
802.11a/b/g/n
WiFi Adapter
Dimensions (Length x
Width x Thickness)
Voltage, Operating
Temperature, Operating
(from TIA/EIA/IS-98-D)
Temperature, Nonoperating, 96 hours (from
MIL-STD 202 Method
108)
Humidity, Non-operating
Configuration Utilities
2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm)
LED Activity
LED Off – Radio Off;
Solid LED On – Radio On
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows Vista and XP
2.4 GHz and 5 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40.5, 48,
52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135, 162, 216,
243, 270, 300 Mbps
20 MHz: 2.4 GHz and 5 GHz bands
40 MHz: 2.4 GHz and 5 GHz bands
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Interoperability
Frequency Band
Data Rates
Frequency Support
Modulation
Security1
Sub-channels
Media Access Protocol
Network Architecture
Models
Roaming
Output Power (for CCK)2
DA - 13596
3.3v +/- 10%
–22° to 140° F (–30° to 60° C) (full RF performance)
–22° to 167° F (–30° to 75° C) (reduced RF performance)
–40° to 185° F (–40° to 85° C)
85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
HP Connection Manager
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Multinational support with frequency bands and channels compliant to local
regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
17 dBm
Canada — Version 14 — January 10, 2011
Page 32
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Output Power (for OFDM; 15 dBm
power varies by data
rate)2
Idle associated: 250 mW
Power Consumption
Idle unassociated: 150 mW
Transmit/Receive 20 MHz channel: 2.0 W (max)
Transmit/Receive 40 MHz channel: 2.0 W (max)
ACPI compliant power management
Power Management
802.11 compliant power saving mode
3
270 Mbps: -61dBm, , 54 Mbps: -72 dBm, 11 Mbps: -85 dBm , 1 Mbps: Receiver Sensitivity
92 dBm
High efficiency dual band antenna with spatial diversity, mounted in the
Antenna type
display enclosure
PCI-Express Half-MiniCard
Form Factor
0.013 lb (6 g)
Weight
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Dimensions
3.3v +/- 10%
Operating Voltage
Operating
14° to 149° F (–10° to 65° C)
Temperature
Non-operating
–40° to 176° F (–40° to 80° C)
Operating
10% to 90% (non-condensing)
Humidity
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Altitude
Non-operating
0 to 50,000 ft (15,240 m)
Microsoft Windows XP
Configuration Utility4
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager
Broadcom Wireless Configuration Utility (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
Broadcom IHV extensions for Windows Vista available to support
Cisco Compatible Extensions.
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
Broadcom 4313GN
802.11b/g/n
Wireless LAN Standards
DA - 13596
IEEE 802.11b
IEEE 802.11g
Canada — Version 14 — January 10, 2011
Page 33
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Technical Specifications
WiFi Adapter
Interoperability
Frequency Band
Data Rates
Frequency Support
Modulation
Security1
IEEE 802.11n
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Win7, Vista
and XP (details at: http://www.hp.com/go/notebooks/WLAN)
2.4 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5, 7.2, 13, 14.4, 19.5, 21.7, 26, 28.9, 39, 43.3, 52, 57.8,
58.5, 65, 72.2Mbps
20 MHz: 2.4 GHz bands
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Ad-hoc (Peer to Peer)
Models
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
2
Output Power (for CCK) 17 dBm , nominal
Output Power (for OFDM; 15 dBm , nominal
power varies by data
rate)2
Idle associated: 250 mW avg (CLKREQ enabled)
Power Consumption
Idle unassociated: 425 mW avg
Transmit/Receive 20 MHz channel: 5.5 W (max)
ACPI compliant power management
Power Management
802.11 compliant power saving mode
3
72.2 Mbps: -71dBm
Receiver Sensitivity
High efficiency dual band antenna with spatial diversity, usually mounted in
Antenna type
the display enclosure
PCI-Express Half-MiniCard
Form Factor
0.013 lb (6 g)
Weight
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Dimensions
3.3v +/- 10%
Operating Voltage
Operating
14° to 149° F (-10° to 65° C)
Temperature
Non-operating
-40° to 176° F (-40° to 80° C)
Operating
10% to 90% (non-condensing)
Humidity
Non-operating
5% to 95% (non-condensing)
DA - 13596
Canada — Version 14 — January 10, 2011
Page 34
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Technical Specifications
Altitude
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista and Win7.
HP Integrated Module
with Bluetooth 2.1+EDR
Wireless Technology
Bluetooth Specification
Dimensions
Frequency Band
Number of Available
Channels
Data Rates and
Throughput
Transmit Power
Receiver Sensitivity
Power Consumption
Antenna
Range
Electrical Interface
Bluetooth Software
Supported
Link Topology
Security
Power Management
Certifications
DA - 13596
2.1+EDR Compliant
1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
2402 to 2480 MHz
79 (1 MHz) available channels
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
-6 dBm to 4 dBm (Bluetooth Class II)
Better than -80 dBM at 0.1 % raw bit error rate
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Internally integrated within module
Up 33 ft (10 m)
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Full support of Bluetooth Security Provisions
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Canada — Version 14 — January 10, 2011
Page 35
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Temperature
Humidity
Altitude
Bluetooth Profiles
Supported
Operating
-4° to 158° F (-20° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Operating
10% to 90%
Non-operating
5% to 95%
Operating
15,000 ft (4,572 m)
Non-operating
40,000 ft (12,192 m)
1
Serial Port Profile (SPP)
Service Discovery Applicaton Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2,3
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1 indicates the profile is supported by Microsoft Windows XP SP2
2 indicates the profile is part of Windows Vista
Environmental Data
Eco-Label Certifications
This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these marks:
US Energy Star
IT ECO declaration
EPEAT – Gold where HP registers commercial notebook products. See
http://www.epeat.net for registration status in your country.
System Configuration
The configuration used for the Energy Consumption and Declared Noise
Emissions data for the Convertible Mini tower Desktop model is based on a
"Typically Configured Notebook"
HP ProBook 6455b Notebook PC
115 VAC
230 VAC
100 VAC
Energy Consumption
Normal Operation
10.93W
11.11W
10.68W
Sleep (Energy Star low
0.71W
0.77W
0.68W
power mode)
Off
0.57W
0.63W
0.56W
Heat Dissipation*
Dissipation
Normal Operation
DA - 13596
115 VAC
37 BTU/hr
230 VAC
38 BTU/hr
Canada — Version 14 — January 10, 2011
100 VAC
37 BTU/hr
Page 36
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Sleep
Off
2 BTU/hr
3 BTU/hr
2 BTU/hr
1 BTU/hr
2 BTU/hr
1 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
2.6
2.7
Sound Pressure
(LpAm, decibels)
17.3
17.6
Idle
Fixed Disk
(random writes)
System fan is usually off except when charging the battery
HP ProBook 6555b Notebook PC
Energy Consumption
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Dissipation
Normal Operation
Sleep
Off
115 VAC
10.93W
0.71W
230 VAC
11.11W
0.77W
100 VAC
10.68W
0.68W
0.57W
0.63W
0.56W
115 VAC
230 VAC
100 VAC
37 BTU/hr
38 BTU/hr
37 BTU/hr
2 BTU/hr
3 BTU/hr
2 BTU/hr
2 BTU/hr
2 BTU/hr
2 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
3.0
3.0
Idle
Fixed Disk
(random writes)
System fan is usually off except when charging the battery
Sound Pressure
(LpAm, decibels)
22.5
22.6
HP ProBook 6455b Notebook PC and HP 6555b Notebook PC
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
DA - 13596
Canada — Version 14 — January 10, 2011
Page 37
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
Additional
information
The battery type and chemistry used in the product is:
Li-ion
High capacity Lithium-Ion battery
This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the
Gold level, see www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per
ISO 11469 and ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is greater than 95.1% recycle-able when properly disposed of at
end of life.
Packaging Materials
External:
Corrugated carton – 360 g
Cardboard & misc. – 365 g
Internal:
Polyethylene low density – 15 g
EPE - Expanded Polyethylene – 90 g
The Corrugated carton packaging material is made from 70% – 80%
recycled content.
The Cardboard & misc. packaging material is made from 70% – 80%
recycled content.
The Polyethylene low density packaging material is made from 0%
recycled content.
The EPE –Expanded Polyethylene packaging material is made from
70% – 80% recycled content.
HP follows these guidelines to decrease the environmental impact of product
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury
and cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
DA - 13596
Canada — Version 14 — January 10, 2011
Page 38
QuickSpecs
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
Technical Specifications
Material Usage
End-of-life Management
and Recycling
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and
DIN 6120 standards.
This product does not contain any of the following substances in excess of
regulatory limits (for reference of these limits please refer to the HP General
Specification of the Environment
(http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/
gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain
retail packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Nickel finishes that release greater than 0.5 µgrams/cm2/week,
measured according to EN 1811:1998, are not used on any product
surface designed to be frequently handled or touched by users.
Hewlett-Packard offers end-of-life HP product return and recycling programs
in many geographic areas. To recycle your product, please go to:
http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/recyclers. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental Global Citizenship Report
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
DA - 13596
Canada — Version 14 — January 10, 2011
Page 39
HP ProBook 6455b Notebook PC
HP ProBook 6555b Notebook PC
QuickSpecs
Technical Specifications
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/
ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/
envmanagement.html
Copyright © 2011 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows 7, Windows Vista and Windows XP are registered trademarks or trademarks of
Microsoft Corporation in the U.S. and/or other countries. Phenom, Turion, and Athlon are registered trademarks or trademarks of
AMD Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and
other countries. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 13596
Canada — Version 14 — January 10, 2011
Page 40
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
