Rated Life
5 Year
50,000
Hours
Warranty

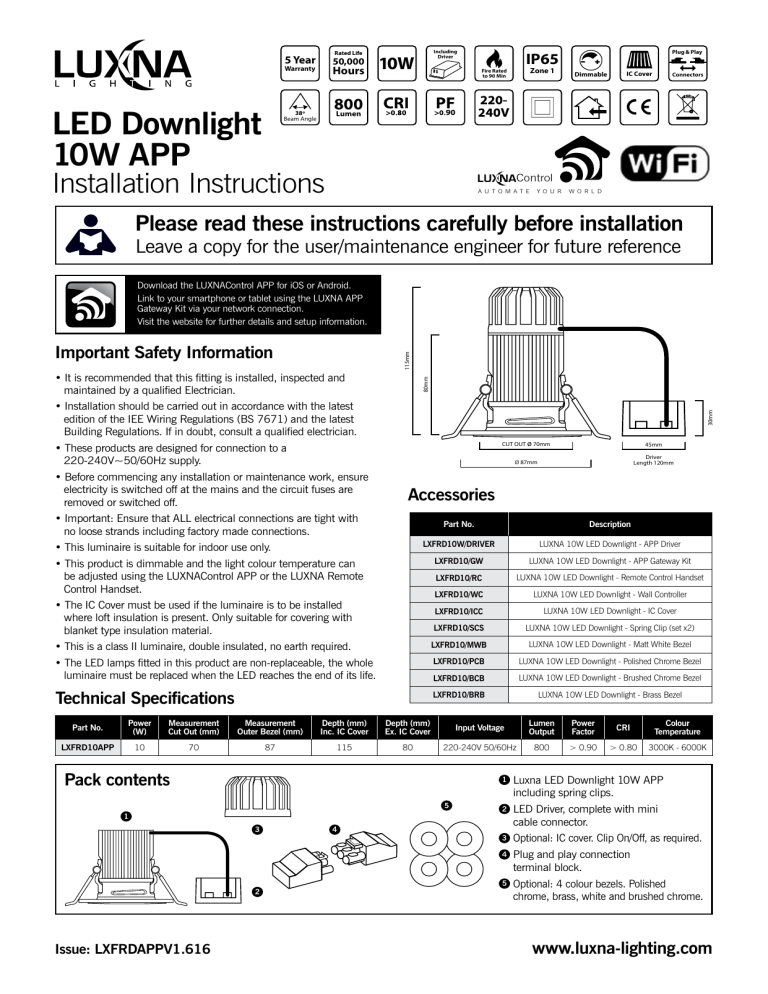

LED Downlight
10W APP
Including
Driver
10W
Zone 1
Fire Rated
to 90 Min
800
Lumen
38º
Beam Angle
Plug & Play
IP65
Dimmable
IC Cover
Connectors
90
Installation Instructions
Control
A U T O M AT E
YO U R
W O R L D
Please read these instructions carefully before installation
Leave a copy for the user/maintenance engineer for future reference
Download the LUXNAControl APP for iOS or Android.
Link to your smartphone or tablet using the LUXNA APP
Gateway Kit via your network connection.
Visit the website for further details and setup information.
115mm
Important Safety Information
80mm
• It is recommended that this fitting is installed, inspected and maintained by a qualified Electrician.
30mm
• Installation should be carried out in accordance with the latest edition of the IEE Wiring Regulations (BS 7671) and the latest Building Regulations. If in doubt, consult a qualified electrician.
• These products are designed for connection to a 220-240V~50/60Hz supply.
• Before commencing any installation or maintenance work, ensure electricity is switched off at the mains and the circuit fuses are removed or switched off.
CUT OUT ø 70mm
45mm
ø 87mm
Driver
Length 120mm
Accessories
• Important: Ensure that ALL electrical connections are tight with no loose strands including factory made connections.
• This luminaire is suitable for indoor use only.
Part No.
Description
LXFRD10W/DRIVER
LUXNA 10W LED Downlight - APP Driver
• This product is dimmable and the light colour temperature can
be adjusted using the LUXNAControl APP or the LUXNA Remote
Control Handset.
• The IC Cover must be used if the luminaire is to be installed where loft insulation is present. Only suitable for covering with blanket type insulation material.
LXFRD10/GW
LUXNA 10W LED Downlight - APP Gateway Kit
LXFRD10/RC
LUXNA 10W LED Downlight - Remote Control Handset
LXFRD10/WC
LUXNA 10W LED Downlight - Wall Controller
LXFRD10/ICC
LUXNA 10W LED Downlight - IC Cover
LXFRD10/SCS
LUXNA 10W LED Downlight - Spring Clip (set x2)
• This is a class II luminaire, double insulated, no earth required.
LXFRD10/MWB
LUXNA 10W LED Downlight - Matt White Bezel
• The LED lamps fitted in this product are non-replaceable, the whole
luminaire must be replaced when the LED reaches the end of its life.
LXFRD10/PCB
LUXNA 10W LED Downlight - Polished Chrome Bezel
LXFRD10/BCB
LUXNA 10W LED Downlight - Brushed Chrome Bezel
LXFRD10/BRB
LUXNA 10W LED Downlight - Brass Bezel
Technical Specifications
Part No.
Power
(W)
Measurement
Cut Out (mm)
Measurement
Outer Bezel (mm)
Depth (mm)
Inc. IC Cover
Depth (mm)
Ex. IC Cover
Input Voltage
Lumen
Output
Power
Factor
CRI
Colour
Temperature
LXFRD10APP
10
70
87
115
80
220-240V 50/60Hz
800
> 0.90
> 0.80
3000K - 6000K
Pack contents
1 Luxna LED Downlight 10W APP
including spring clips.
5
1
4
Optional: IC cover. Clip On/Off, as required.
Plug and play connection
terminal block.
3
4
80mm
115mm
3
2 LED Driver, complete with mini
cable connector.
2
5 Optional: 4 colour bezels. Polished
chrome, brass, white and brushed chrome.
CUT OUT ø 70mm
ø 87mm
Issue: LXFRDAPPV1.616
www.luxna-lighting.com
Important Installation Information
1
2
4
1
2
Ø70mm
1
6
3
- Ceiling surface
- Mains supply
2
3
- Socket Connector
3
2
8
8
5
2
- Mains supply
3
- Socket Connector
7
3
4
4
- Plug Connector
5
- LED Driver
• Always switch off the mains power supply before installation or servicing.
• This luminaire should be mounted on a flat, smooth surface. Ensure that
the mounting area is clean and free from any obstructions. The
installation must not infringe on gas/water pipes or any other electrical
cables or services which may be hidden behind the ceiling.
• The LUXNA LED Downlight 10W APP is suitable for installation within
a Fire Rated plasterboard ceiling.
• This product is rated at IP65 and is suitable for installation in bathroom zones 1 and 2 as defined by the IEE Wiring Regulations.
1). Decide the mounting position on the ceiling surface and cut out a
circular hole 70mm in diameter. Do not exceed the cutting diameter
and ensure that cut outs are spaced adequately to provide clearance
from any joists, beams or cables within the ceiling void.
2). Pull the mains supply cable through the hole and wire into the
terminals of the socket connector. Ensure that the correct polarity is
observed and the socket connector cover is fixed to secure the cable.
3). Push the socket connector into the plug connector which is pre-wired
directly to the LED Driver and luminaire until the catches latch
together Feed the mains supply cable, connectors and LED Driver
back through the hole and into the ceiling void. Ensure that the location
in which the LED Driver is installed has adequate free air circulation.
4). With the spring clips held in the upward position insert the luminaire
through the cut out hole and into the ceiling void, take care not to trap
6
- LED Driver Output Cable
7
- APP Downlight
8
- Spring clips
any cables. The spring clips will locate onto the top of the ceiling
surface to provide a secure installation. Ensure that the luminaire is
fitted centrally to the cut out hole so that the fire-resistant seal between
the product and the ceiling is maintained.
• Important: Do not connect the APP Downlight directly to a live LED Driver.
The mains supply must be switched off throughout the installation process.
• When the LUXNA LED Downlight 10W APP is connected and installed, turn on the mains power supply and check for correct operation.
• Minimum clearance distances around the luminaire must be observed: 25mm above the top of the luminaire, 40mm to all sides of the luminaire and 0.5m minimum distance between luminaires.
• The IC Cover is optional depending on mounting location. The top of the
luminaire can be covered with insulation material when the IC Cover is
used. All other minimum clearance distances around the luminaire
must be observed.
• The optional colour bezels can be changed if required. Rotate the fixed bezel and pull it away from the luminaire. Remove the inner lens and seal
from the central aperture and insert into the new bezel. Remove the outer
seal and place into the same position on the new bezel. Rotate the new
bezel back onto the front of the luminaire. Ensure that ALL rubber seals
are correctly in place to maintain the IP65 rating of the luminaire.
• When removing the luminaire for maintenance or changing the bezel, allow sufficient time for the product to cool before handling.
Guarantee
This product is guaranteed in the EU for a period of 5 years from the date of purchase. The guarantee is invalid in the case of improper
use, installation, tampering, removal of the QC/batch code label, installation in an improper working environment or installation not
according to the current edition of the IEE Wiring Regulations (BS 7671). Should this product fail during the guarantee period it will be
replaced free of charge, subject to correct installation and return of the faulty unit. Luxna Lighting does not accept responsibility for any
installation costs associated with the replacement of this product. Your statutory rights are not affected. Luxna Lighting reserves the right
to alter product specifications without prior notice.
Issue: LXFRDAPPV1.616
www.luxna-lighting.com
