S
P
E
C
F
I
L
E

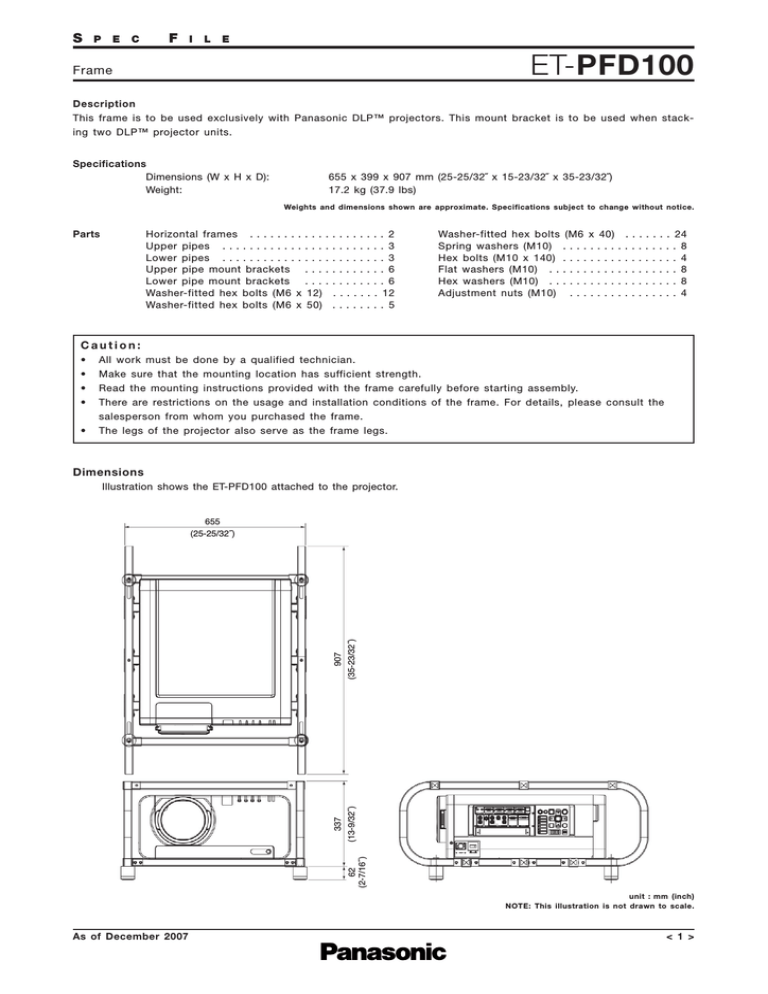

ET-PFD100
Frame
Description
This frame is to be used exclusively with Panasonic DLP™ projectors. This mount bracket is to be used when stacking two DLP™ projector units.
Specifications
Dimensions (W x H x D):
Weight:
655 x 399 x 907 mm (25-25/32˝ x 15-23/32˝ x 35-23/32˝)
17.2 kg (37.9 lbs)
Weights and dimensions shown are approximate. Specifications subject to change without notice.
Parts
Horizontal frames . . . . . . . .
Upper pipes . . . . . . . . . . . .
Lower pipes . . . . . . . . . . . .
Upper pipe mount brackets
Lower pipe mount brackets
Washer-fitted hex bolts (M6 x
Washer-fitted hex bolts (M6 x
...
...
...
...
...
12)
50)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 2
. 3
. 3
. 6
. 6
12
. 5
Washer-fitted hex bolts
Spring washers (M10)
Hex bolts (M10 x 140)
Flat washers (M10) . .
Hex washers (M10) . .
Adjustment nuts (M10)
(M6 x
.....
.....
.....
.....
....
40)
...
...
...
...
...
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
24
. 8
. 4
. 8
. 8
. 4
Caution:
•
•
•
•
•
All work must be done by a qualified technician.
Make sure that the mounting location has sufficient strength.
Read the mounting instructions provided with the frame carefully before starting assembly.
There are restrictions on the usage and installation conditions of the frame. For details, please consult the
salesperson from whom you purchased the frame.
The legs of the projector also serve as the frame legs.
Dimensions
Illustration shows the ET-PFD100 attached to the projector.
907
(35-23/32˝)
337
62
(2-7/16˝)
(13-9/32˝)
655
(25-25/32˝)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
As of December 2007
