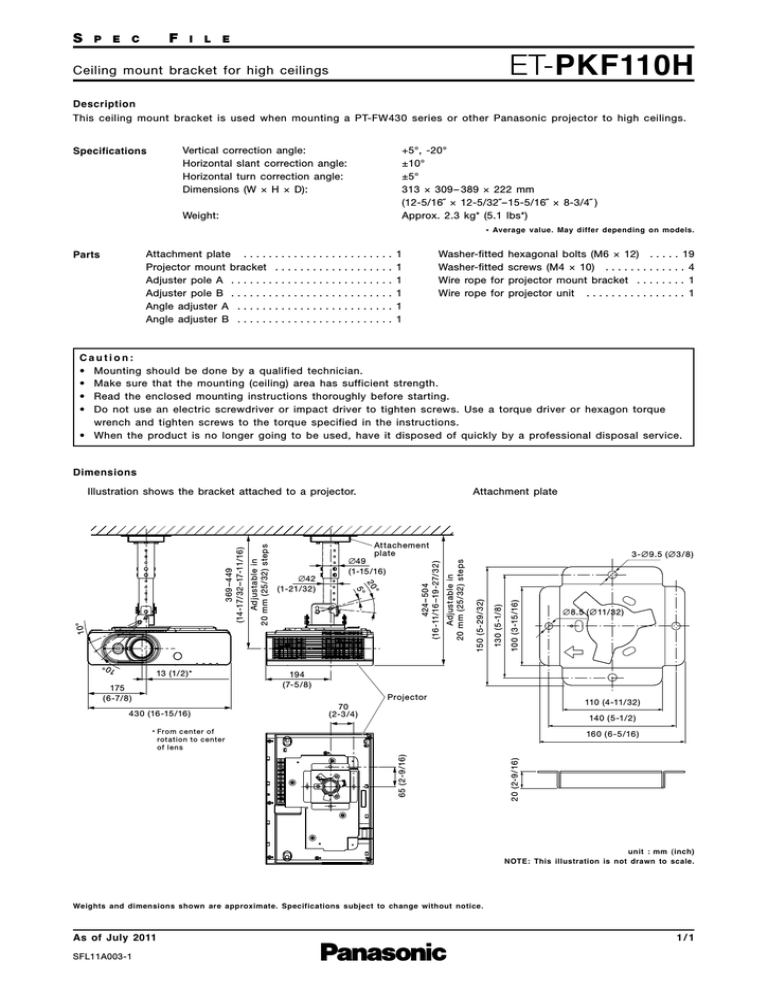

ET-PKF110H
Ceiling mount bracket for high ceilings
­D escription
This ceiling mount bracket is used when mounting a PT-FW430 series or other Panasonic projector to high ceilings.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W × H × D):
+5°, -20°
±10°
±5°
313 × 309– 389 × 222 mm
(12-5/16˝ × 12-5/32˝–15-5/16˝ × 8-3/4˝ )
Approx. 2.3 kg* (5.1 lbs*)
Weight:
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Attachment plate . . . . .
Projector mount bracket
Adjuster pole A . . . . . . .
Adjuster pole B . . . . . . .
Angle adjuster A . . . . . .
Angle adjuster B . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
1
1
1
1
Washer-fitted
Washer-fitted
Wire rope for
Wire rope for
hexagonal bolts (M6 × 12)
screws (M4 × 10) . . . . . .
projector mount bracket .
projector unit . . . . . . . . .
...
....
....
....
.
.
.
.
.
.
.
.
19
. 4
. 1
. 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
Dimensions
130 ( 5-1/8 )
100 ( 3-15/16 )
150 ( 5-29/32)
∅42
(1-21/32)
3-∅9.5 ( ∅3/8 )
Adjustable in
20 mm ( 25/32) steps
Attachement
plate
∅49
(1-15/16 )
424– 504
(16-11/16 –19-27/32)
Adjustable in
20 mm ( 25/32) steps
10 °
10
13 (1/2)*
°
175
( 6-7/8 )
Attachment plate
°
20
5°
369 – 449
(14-17/32–17-11/16 )
Illustration shows the bracket attached to a projector.
194
(7-5/8 )
Projector
430 (16-15/16 )
∅8.5 ( ∅11/32)
110 (4-11/32)
70
( 2-3/4)
140 ( 5-1/2)
* From c e nte r of
rot ation to c e nte r
of le ns
20 ( 2-9/16 )
65 ( 2-9/16 )
160 ( 6-5/16 )
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ July­ 2011
