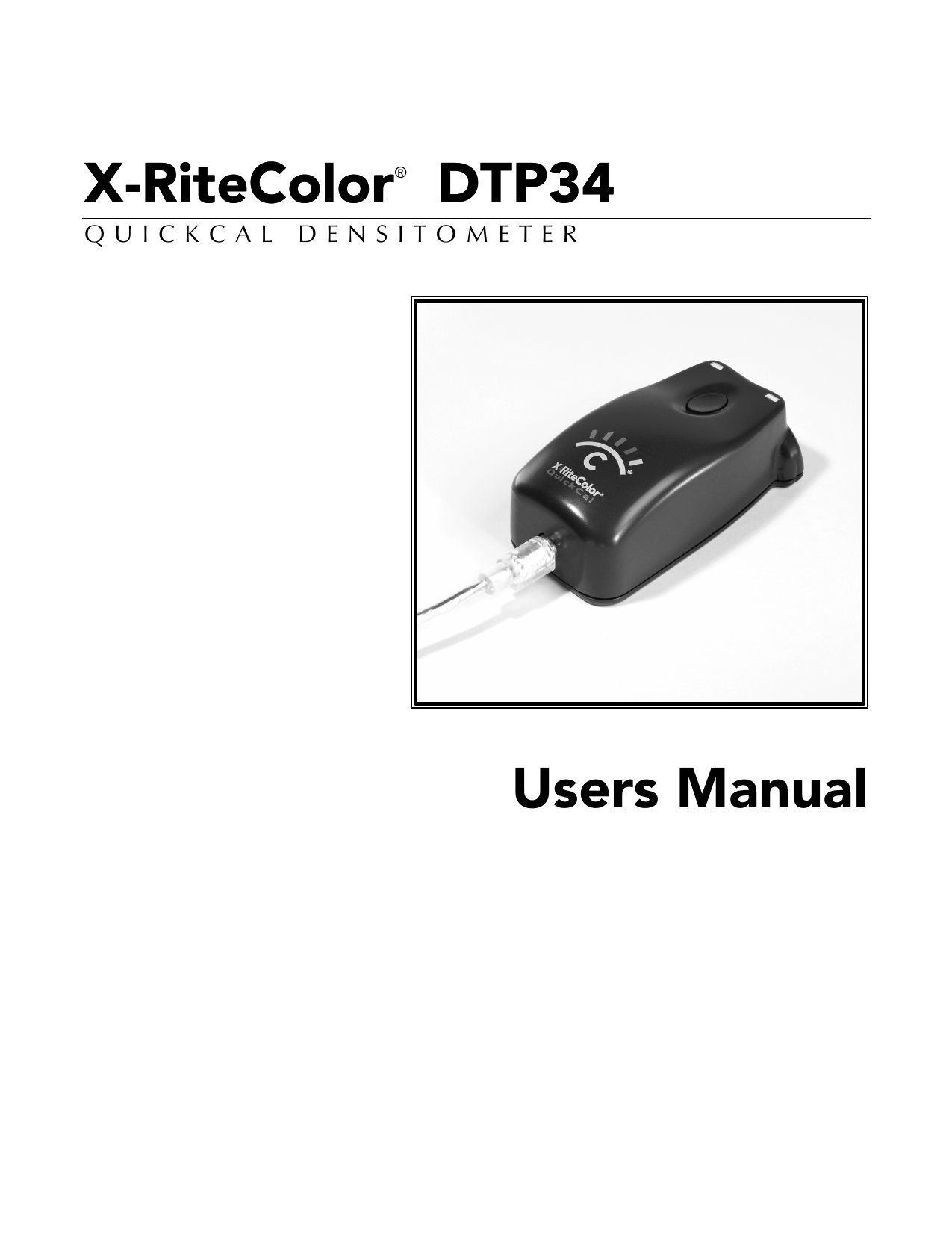

X-RiteColor DTP34
®
QUICKCAL
DENSITOMETER
Users Manual
DTP34
DENSITOMETER
CE DECLARATION
Manufacturer's Name:
Manufacturer's Address:
Model Name:
Model No.:
Directive(s) Conformance:
X-Rite, Incorporated
3100 44th Street, S.W.
Grandville, Michigan
U.S.A.
Densitometer
DTP34
EMC 89/336/EEC LVD 73/23/EEC
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
NOTE: Shielded interface cables must be used in order to maintain compliance with the desired FCC and European
emission requirements.
Industry Canada Compliance Statement
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
AVERTISSEMENT : Des câbles d'interface blindés doivent être utilisés afin de se conformer aux règlements
européens et FCC (USA)sur l'émission.
Proprietary Notice
The information contained in this manual is derived from patent and proprietary data of
X-Rite, Incorporated. The contents of this manual are the property of X-Rite, Incorporated and are copyrighted. Any
reproduction in whole or part is strictly prohibited. Publication of this information does not imply any rights to
reproduce or use this manual for any purpose other than installing, operating, or maintaining this instrument. No part of
this manual may be reproduced, transcribed, transmitted, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, magnetic, mechanical, optical, manual, or otherwise,
without the prior written permission of an officer of X-Rite, Incorporated.
This product is covered by one or more of the following U.S. Patent: 4,591,978 5,015,098 5,062,714 and patents
pending. Foreign patent numbers provided on request.
Copyright © 2001 by X-Rite, Incorporated
“ALL RIGHTS RESERVED”
X-Rite® is a registered trademark of X-Rite, Incorporated. All other logos, brand names, and product names mentioned
are the properties of their respective holders.
Warranty Information
X-Rite, Incorporated warrants each instrument manufactured to be free of defects in material and workmanship for a
period of twelve months. If the fault has been caused by misuse or abnormal conditions of operation, repairs will be
billed at a nominal cost. In this case, an estimate will be submitted before work is started, if requested. The unit shall be
returned with transportation charges prepaid.
THERE ARE NO WARRANTIES OF MERCHANTABILITY OR FITNESS. THIS WARRANTY OBLIGATION IS
LIMITED TO SERVICING THE UNIT RETURNED TO X-RITE, INCORPORATED OR AN AUTHORIZED
SERVICE DEALER FOR THAT PURPOSE.
X-Rite, Incorporated offers a repair program for instruments out of warranty. For more information, contact X-Rite
Customer Service Department. Always include serial number in any correspondence concerning the unit. The serial
number is located on the bottom plate of the instrument.
1
DTP34
DENSITOMETER
This agreement shall be interpreted in accordance with the laws of the State of Michigan and jurisdiction and venue shall
lie with the courts of Michigan as selected by X-Rite, Incorporated.
Table of Contents
2
Overview and Setup
Instrument Description
Unpacking and Inspection
Instrument Interface
Applying Power
Instrument LED Indicator
3
3
3
4
4
5
Calibration
Frequency of Calibration
Positioning the Instrument on the Calibration Reference
Quick Calibration
Full Calibration
6
6
6
6
6
Measurements
Measurement Notes and Tips
Strip Measurement
Spot Measurement
7
7
8
9
Troubleshooting and Service
Troubleshooting
Instrument Reset
Service Information
10
10
11
11
General Maintenance
Cleaning the Instrument
Cleaning the Reflection Reference 12
12
12
Instrument Specifications
14
Appendix A - Operational considerations between a DTP32R and a DTP34
Operation
16
16
Appendix B - Barcode Operation
17
DTP34
DENSITOMETER
Overview and Setup
Instrument Description
X-RiteColor® DTP34 QuickCal Densitometer is a color measurement instrument that reports densitometric and dot
data. The instrument is designed to calibrate color output devices including large format printers, proofers, and
digitally connected color copiers. X-RiteColor® DTP34 QuickCal Densitometer is a “drop-in” replacement for the
X-Rite DTP32 instrument.
This manual covers the installation, calibration and maintenance of the X-RiteColor DTP34 QuickCal Densitometer.
Specific instructions for using the instrument with your third-party software program can be found in the third-party
software documentation.
As the DTP34 QuickCal Densitometer is designed to be a drop-in replacement for the DTP32 Automatic Strip
Reading Densitometer, reflection versions, it will by default report itself as a DTP32. Most existing software
packages will reference a DTP32 in their connection menu while newer software may use DTP34. Select DTP34 if
it is available, otherwise select the DTP32. Refer to Appendix B for further differences. See the Readme file on the
CD for any late changes or known issues.
Three Color
LED Indicators
Read Button
Centerline Alignment Mark
Interface Cable
Connection
Centerline Alignment Mark
Center Notch
Unpacking and Inspection
After removing the instrument from the shipping carton, inspect it for damage. If any damage has occurred during
shipping, immediately contact the transportation company. Do not proceed with installation until the carrier’s agent
has inspected the damage.
Your instrument was packaged in a specially designed carton to assure against damage. If shipment is necessary, the
instrument should be packaged in the original carton along with all the accessories. If the original carton is not
available, contact X-Rite to have a replacement shipped to you.
3
DTP34
DENSITOMETER
Instrument Interface
The Quick Cal Densitometer must be interfaced directly with one of the computer’s Serial Ports. Installation differs
slightly for Macs and PCs (see below). For attachment to a Mac Mini-DIN 8 Serial Port, you need to use the
optional adapter (P/N SE108-DB9PA-01).
NOTE: Quit all programs and shut down the computer before installing interface cabling.
Mini-DIN 8 Plug
Power Input
(see next page)
SE108-94-02
Interface Cable
PC
DB9
MAC
Mini-DIN 8
SE108-DB9PA-01
(Optional)
Applying Power
CAUTION: Use only the 115V/230V Switching Power Supply (SE30-87) to power the instrument.
Power is supplied to the instrument when the Power Supply is plugged into the AC wall receptacle. The instrument
does not have a ON/OFF switch.
SE30-87 Switching
Power Supply
Detachable Line Cord
(optional)
AC Wall
Receptacle
Power Input
4
DTP34
DENSITOMETER
Instrument LED Indicator
The LED indicates a variety of instrument operation conditions, such as calibration mode, and operation. Below is a
complete list of all conditions reported by the LED.
Operation Mode
• Solid Green—self-test passed and instrument is ready for use with defined strip.
•
Slow Flashing Green—strip reading in progress or waiting to read a strip.
•
Fast Flashing Green—strip reading was attempted but the wrong strip was read, or strip was skewed during
reading.
•
Flashing Amber/Green—a configuration barcode was scanned and the instrument is waiting for the 2nd or 3rd
barcode pass.
•
Fast Flashing Amber/Green—there was an error in recognizing a barcode or the configuration failed. Reread
the entire barcode, starting with the first pass.
Calibration Mode
•
Solid Amber—calibration is required before any measurements can be taken.
•
Slow Flashing Amber—instrument calibration in progress (strip being read).
• Solid Green after Amber—instrument calibration was successful and instrument is ready for use.
Error/Reset Mode
NOTE: When the instrument is first turned on the LED will be red while it performs its self-tests. The selftests will complete in approximately 2 to 3 seconds, at which time it will turn green under normal
conditions.
•
Fast Flashing Red—incorrect power supply attached. Verify correct 12-volt power supply is used.
•
Slow Flashing Red—a factory reset is in progress.
•
Flashing Red/Green— the host firmware loader program is reprogramming the instrument.
5
DTP34
DENSITOMETER
Calibration
The X-RiteColor Quick Cal Densitometer has a unique semi automatic calibration feature. When the reflection
reference is scanned, the calibration values are also automatically scanned.
Frequency of Calibration
Your QuickCal Densitometer should have a Quick Calibration performed weekly. A Full Calibration should be
performed annually, during heavy usage to provide accurate measurements, or if the Quick Calibration consistently
fails. Typically, the host computer prompts for an instrument calibration (amber LED) when required but the process
can be invoked manually at any time. Refer to the following procedure for details on the calibration process.
Positioning the Instrument on the Calibration Reference
Handle the reflection reference by the edges. Make sure that the reflection reference is free of dust, dirt and
smudgemarks. Refer to General Maintenance Section for cleaning procedure. Always store the reflection reference
in it protective envelope away from light and heat.
NOTE: To obtain the most accurate calibration, hold the instrument with consistent and nominal pressure
during the calibration procedures.
Position the instrument on the designated location of the reflection reference (indicated by a dotted outline of the
instrument). Do Not move the instrument more than .25″ (6.35mm) before reading the strip.
DTP34-100
Reflection Reference
Quick Calibration
A quick calibration can be performed at any time. All that is required is that you scan the reflection reference as you
would with any other strip. A quick calibration should only be performed after a full calibration has been done. The
instrument comes from the factory with a full calibration already stored.
1. Position instrument on reference as previously mentioned.
2. Press and hold the button and scan the reference to the opposite end. Release the button. The LED should
indicate green if calibration was successful. If calibration fails, (fast flashing amber LED), verify the strip is
clean and re-read.
3. Place the reflection reference in its protective envelope and store away from light and heat.
Full Calibration
NOTE: If the host computer initiated calibration (amber LED), skip to step 2.
1.
2.
3.
6
To manually invoke the calibration mode, press and hold the instrument button for a minimum of three seconds.
The LED will slowly flash amber when calibration is initiated.
Press and the hold button (if not previously held) and scan the reference to the opposite end. Release the button.
The LED should indicate green if calibration was successful. If calibration fails, (fast flashing amber LED),
verify the strip is clean and re-read.
Place the reflection reference in its protective envelope and store away from light and heat.
DTP34
DENSITOMETER
Measurements
Measurement Notes and Tips
•
You should refer to the documentation for the software program that you are using with your instrument. All
applications that utilize this instrument must be running during measurements.
•
The strip must have at least a 1.2″ (30.5mm) leader before the leading edge of the first step. Contact X-Rite
Applications Support if additional information is required. Inspect the strip for spots or defects on the steps.
Defects may cause inaccurate measurements.
•
If a strip does not have the necessary 1.2″ (30.5mm) unprinted leader before the first patch or a reading would
cause one or more of the wheels to be off the sample, follow the steps listed below:
1. Obtain extra pieces of the sample stock.
2. Position the pieces so that all four wheels of the instrument ride along the same height stock when patches
are measured.
INCORRECT:
Wheels off the
edge of the paper.
SOLUTION: Place
extra stock here.
INCORRECT:
Wheels off the
edge of the paper
or insufficient
leader.
SOLUTION: Place
extra stock here.
7
DTP34
DENSITOMETER
•
The darkest patch of a strip must be read first unless there is at least 1.1″ (27.9mm) unprinted trailer after the
last patch.
•
When possible, strips should be read so that the instrument does not ride on un-read patches. This prevents
accidental marring of un-read patches that may cause reading variations.
•
To obtain consistent measurements the same backer should be used underneath every sample. ANSI/ISO
specifies a neutral gray of at least 1.5D, which will appear black. Backers consisting of the same print stock
have also been utilized.
Strip Measurement
The following information is provided to familiarize you with reading strips, a series of printed control patches.
1. Select strip type to measure from the host software.
2. Position the instrument at the leading edge of the strip to be measured. The centering alignment marks should
be centered on the strip patches.
Centering Alignment Mark
Wheel(s)
3.
Press and hold the instrument button while rolling the QuickCal across the strip. The LED indicators will slowly
flash green during the reading. For best results, pause with the button depressed before starting a scan, and
release the button only after the scan has been completed.
4. A successfully reading is verified by a beep and solid green LEDs on the instrument, or a conformation message
on the computer monitor.
Some software packages define strips as “multi-pass” where all color passes must be read before a conformation is
displayed on the monitor. In these cases, a successful reading of a color pass is shown by the instrument slowly
flashing green after the reading. This indicates that you may continue to the next color pass. Fast flashing of green
indicates a re-read is required on the pass. The instruments LEDs will stay at solid green after all passes are
successfully read.
8
DTP34
DENSITOMETER
Spot Measurement
Your QuickCal Densitometer is designed to read spots, single readings of specific locations. This feature can be
manually activated or if supported, activated by your software application. Refer to your software program
documentation to see if this feature is supported. To manually activate this feature, scan the “Spot Read” X-Rite
Setup Barcode enclosed.
1.
2.
3.
4.
Select a desired target of at least .5″ (12.7mm) diameter.
Position the instrument to line up the center of the target with the instrument centering alignment marks and
center notch. The instrument may be placed or rolled into position over the target.
Press and release the instrument button.
A successfully reading is verified by a beep and solid green LEDs on the instrument, or a conformation message
on the computer monitor.
Center Notch
Centering Alignment Mark
Desired Target, .5”
(12.7mm) minimum
9
DTP34
DENSITOMETER
Troubleshooting and Service
Troubleshooting
Prior to contacting X-Rite, Inc. Customer Service for instrument problems try the applicable solution(s) described
below. If the condition persists contact a Customer Service Representative (see Service Information).
LEDs are not lit:
•
Ensure that the power supply is plugged in and connected to the Interface Cable.
•
Insure that the Interface Cable is properly connected to the instrument.
• Reset the instrument (see Instrument Reset).
Fast Flashing Amber LEDs:
•
If error persists, clean instrument and calibration strip (see General Cleaning).
• Reset the instrument (see Instrument Reset).
Solid Amber LEDs:
• Instrument needs a calibration before any strips can be read (see Calibration section).
Solid Red LEDs:
• Remove power from the instrument, reapply power and see if the condition is corrected.
•
Reset the instrument (see Instrument Reset) and calibrate.
•
This could indicate that the unit may not be programmed properly, which could happen if power was removed
during reprogramming. Try reprogramming the instrument again (refer to the programming instructions that
came with your update).
QuickCal Densitometer and software not communicating:
•
Verify that the instrument LEDs indicate normal operation (see Instrument LED Indicator). If normal, close and
restart the software application. If this does not work reboot the computer.
•
Remove power from the instrument, reapply power and see if the condition is corrected.
•
Check for proper configuration setting from the software provider.
• Reset the instrument (see Instrument Reset) and calibrate.
Repeated Strip Measurement Failures:
•
Ensure that the strip is being read in accordance with your software’s documentation.
•
Close and restart the software application.
•
Perform a full calibration on the instrument (see Full calibration).
• Reset the instrument (see Instrument Reset).
Repeated Calibration Failures:
•
Clean instrument and reference (see General Maintenance).
• Reset the instrument (see Instrument Reset) and calibrate.
Spot Measurement does not work:
•
Ensure that your software supports the Spot Measurement function.
•
Ensure that the instrument’s ‘Spot Read’ function is turned on. (see Barcode Operation).
• Reset the instrument (see Instrument Reset).
Note: When performing an Instrument Reset, which restores the X-Rite Factory Defaults, you will have to
ensure the correct configuration for your software is then restored.
10
DTP34
DENSITOMETER
Instrument Reset
The following procedure will reset the factory defaults to your X-RiteColor QuickCal Densitometer:
1. Disconnect power from the instrument.
2. Push and hold the Read Button while applying power to the instrument.
3. Hold the Read Button until the LEDs begin to flash red slowly.
4. Release the Read Button.
Service Information
The X-RiteColor Quick Cal Densitometer is covered by a one-year limited warranty and should be referred to an
authorized service center for repairs within the warranty period.
X-Rite provides repair service to their customers. Because of the complexity of the circuitry, all repairs should be
referred an authorized service center.
X-Rite will repair any instrument past warranty. The customer shall pay shipping and repair cost to the authorized
service center, and the instrument shall be submitted in the original carton, as a complete unaltered unit along with
all the supplied accessories.
11
DTP34
DENSITOMETER
General Maintenance
Cleaning the Instrument
Your instrument requires very little maintenance to achieve years of reliable operation. However, to protect your
investment and maintain reading accuracy, a few simple-cleaning procedures should be performed from time to
time.
General Cleaning
•
Whenever required, the exterior of the instrument may be wiped clean with a cloth dampened in water or mild
cleaner.
NOTE: DO NOT use any solvents to the clean the instrument, this will cause damage to the cover.
Cleaning the Instrument Wheels
•
Turn the instrument upside-down and clean the bottom plate surface and wheels with a lint free cloth.
Wheels
Bottom Plate Surface
Wheels
Cleaning the Instrument Optics and Locating Wheel
•
Carefully rotate instrument and blow short bursts of clean, dry air into the measurement aperture and locating
wheel. This should remove any accumulated dust in these areas.
Measurement Aperture
Locating Wheel
Cleaning the Reflection Reference
•
12
The reflection reference can be cleaned with a lint free cloth whenever required. Make sure to return the
reference to its protective case when finished.
DTP34
DENSITOMETER
•
If required, a new calibration reference can be ordered from X-Rite. Order calibration reference part number
DTP34-100-KIT.
Always handle calibration reference by the edges.
DTP34-100
Reflection Reference
13
DTP34
DENSITOMETER
Instrument Specifications
Measurement Geometry
• Reflection: 0°/45° per ANSI/NAPM 2.17 and ANSI/ISO 5-4
• Multi-sensor array
Measurement Area
• 2 mm x 4 mm, 2 mm in the direction of travel. Instrument must set on sample for accurate measurement.
Light Source
• Gas pressure @ 2850°K
• Lamp file, approx. 1,000,000 scans @ 11” (279.4 mm)
Receiver
• Blue enhanced silicon photodiodes
Sample Characteristics
•
Patch Size: .400” (10.16 mm) min. in direction of travel by .350” (9 mm) min. wide. 1 mm wide 1.0D contrast space between
patches or .5D min difference between patches.
Measurement Rate
• >6” (>154mm)/sec maximum controlled by operator.
System Response
• ANSI/ISO Status T
Output
• Density, +Dot, -Dot, or Reflectance. Output has x10 capability.
Measurement Range
• 0.00D to 2.50D absolute
Linearity
• ±0.02D or ±2%, 0 to 2.5D
Repeatability
• ±0.01D, 0 to 2.5D
Inter Instrument Agreement
• ±0.02D or 2%, 0 to 2.5D
Zero Stability
• ±0.01D max
I/O Connection
• DB9 socket and USB (future)
Data Interface
• Interface: RS-232 with baud rates from 1200 to 19.2k
• Protocol: RCI commands
Power Requirements
• +12v @ 700 mA
Environmental
• Operating range: +10°C (50°F) to 35°C (104°F); 30% to 60% RH
Physical
•
•
•
14
Height: 4.83 cm (1.90 in.)
Width: 6.10 cm (2.40 in.)
Length: 11.55 cm (4.55 in.)
DTP34
DENSITOMETER
Weight
• 165g. (5.8 oz.)
Provided Accessories
• Calibration Reference
• Operation Manual
• Interface Cable
• AC Adapter (P/N SE30-87)
Optional Accessories
• Mac Serial Adapter (P/N SE108-DB9PA-01)
• 25 Pin Serial Adapter (P/N SE08-231-01)
• Line Cords
For the most recent list of supporting third-party software, see
X-RiteColor Enabled Partner literature item L11-031A and L11-031B, or visit
www.x-rite.com/support/partners.asp and browse to the Support and Training page.
Specifications and design subject to change without notice.
15
DTP34
DENSITOMETER
Appendix A - Operational considerations between a DTP32R and a DTP34
The DTP 34 Quick Cal Densitometer is a “drop in replacement” for the X-Rite DTP32R (R for reflective) strip
reading densitometer.
Display
There are a few differences in operation of
the Quick Cal compared to the DTP32. The
Keyboard
DTP32 (see diagram at right) has a display,
keyboard, and strip guide, whereas the Quick
Cal product has a single key and the different
process of reading a strip. In order to use the
Quick Cal product where a software
application expects the DTP32 product,
Cal Strip and 35mm
please consider the following.
Film Entrance
Serial
Interface
Connection
Paper and Film
Entrance
Paper and Film Guide
AC Adapter Input
X-Rite DTP32R AutoScan Densitometer
Operation
Below we list some of the ways that the use of the instruments will differ. The items in italic are phrases often
indicated in the host software for the DTP32R.
16
•
Use of the strip guide – Insert strip at X
The DTP32R has a strip guide mechanism that ranged numerically from 5 to 30. Some software packages indicate a
setting for this guide. These prompts can be ignored with the QuickCal as no guide is required.
•
Inserting as strip – Insert Cyan strip
When asked to insert a strip, a QuickCal user will then position the instrument at the start of the row to be read,
push the measure button and read. For more about reading a strip see the Measurement Notes and Tips section of
the Manual.
•
Using the keyboard – Push Key #X
The DTP32R has four keys to control the menus found on the LCD. The DTP34 does not require unique key
sequences, because it is software driven, therefore these prompts can be ignored.
•
Calibration of the instrument – Go to page 2 to Calibrate
The DTP34 can be calibrated without using menus, as is required for the DTP32 product. A quick calibration can
be initiated like any other reading, and a full calibration is initiated by holding the button until the lights turn amber.
Please see the calibration section in the manual for a full explanation.
•
Configuration of the instrument – Go to page 3 to Configure the Instrument
Most software will automatically configure and setup the DTP32R or the DTP34 for use. Often, this equates to
selecting from various communications settings so the software can take over control of the instrument once it is
connected. For the few packages that require a manual configuration the DTP34 allows manual configuration by
reading X-Rite Set-up Barcodes. X-Rite Set-up Barcode pages are supplied on the QuickCal CD-ROM for some
manual configurations. Check the third party support folder on the CD-ROM to see if there is a configuration page
that contains all the settings for your software package. More information about reading bar codes is found in
section 2 of the manual. Further information about Quick Cal and third party support can be referenced at the
X-Rite website under the help desk area at the following location:
http://www.xrite.com/HelpDesk/3PSort.asp?RecType=6&id=272
DTP34
DENSITOMETER
Appendix B - Barcode Operation
You can change several configuration settings of your QuickCal Densitometer using the special format barcodes
supplied by X-Rite, Inc. or your software provider. These set-up barcodes consist of multiple strips that must be
read in the proper order.
In most cases your software will automatically configure your instrument. If your software or software
documentation prompts you to configure your instrument, the enclosed X-Rite Set-up Barcodes contain some
commonly used commands that can be scanned immediately to get you up and running. Additional barcode
set-up and information is available on the CD that is shipped with your instrument.
The LEDs signal the status of the instrument when reading a set-up barcode. While scanning the initial barcode, the
LEDs will flash slowly between off and green, the same as any normal scan. Once the unit has recognized the initial
barcode as being part of a set-up barcode, the LEDs will slowly flash between yellow and green. This same flash
pattern will continue while scanning continuation barcodes. Upon completion of the entire set-up barcode, the LEDs
will come on steady green, indicating a successful completion.
REFER TO THE FOLLOWING PAGES FOR X-RITE SET-UP BARCODES.
CAUTION: Only use the Set-up barcodes if instructed to manually set-up your instrument. This will avoid
changing configurations that may cause the QuickCal Densitometer and your software to cease
communicating. If this does happen reference the Troubleshooting and Service section.
NOTE: To enable the following barcodes to print at their intended size, make sure the “Fit to Page” check
box is disabled (un-checked) in the Print dialog.
17
18
#2 - 19200
#2 - 9600
#2 - 4800
#2 - 2400
#2 - 1200
#1
Baud Rate – First scan #1, then
scan one #2 for the desired setting.
DTP34
DENSITOMETER
#2 - O ff
#2 - O n
#1
Autotransm it – First scan #1, then
scan one #2 for the desired setting.
DTP34
DENSITOMETER
19
20
#2 - Off
#2 - On
#1
Decimal Point – First scan #1, then
scan one #2 for the desired setting.
DTP34
DENSITOMETER
#2 - O ff
#2 - O n
#1
Times 10 – First scan #1, then scan
one #2 for the desired setting.
DTP34
DENSITOMETER
21
22
#2 - O ff
#2 - O n
#1
Data After Pass– First scan #1, then
scan one #2 for the desired setting.
DTP34
DENSITOMETER
#2 – Carriage Return and Line Feed
#2 – Carriage Return
#1
Delim iter – First scan #1, then scan
one #2 for the desired setting.
DTP34
DENSITOMETER
23
24
#2 – Carriage Return and Line Feed
#2 – Carriage Return
#2 - Tab
#2 - Comma
#2 - Space
#1
Separator – First scan #1, then scan
one #2 for the desired setting.
DTP34
DENSITOMETER
#2 – M in and Max
#2 - Max
#2 - M in
#2 - Off
#1
Min/Max – First scan #1, then scan
one #2 for the desired setting.
DTP34
DENSITOMETER
25
26
Disable
Enable
Barcode #1: Spot read:
Spot Read Command - First scan barcode #1, then scan ONE
of the subsequent to enable or disable spot reading capability:
DTP34
DENSITOMETER
X-Rite, Incorporated - World Headquarters
3100 44th Street S.W. • Grandville, Michigan 49418 • USA
www.x-rite.com • (616) 534-7663
Toll-Free U.S. Numbers
Tel: 1-888-826-3044 • Fax: 1-888-826-3045
Toll-Free International Numbers
Tel: 1-888-826-3039 • Fax: 1-888-826-3041
X-Rite GmbH
Stollwerckstraße 32 • 51149 Köln • Germany
Tel: (49) 22 03 – 91 45-0 • Fax: (49) 22 03 – 91 45-19
X-Rite GmbH
Sochorova 705 • CZ-682 • 11 Vyskov • Czech Republic
Tel: (420) 507-328197 • Fax: (420) 507-328138
X-Rite Asia Pacific Ltd.
Room 808-10 • Kornhill Metro Tower • 1 Kornhill Road • Quarry Bay
Hong Kong • Tel: (852) 2-568-6283 • Fax: (852) 2-885-8610
X-Rite Ltd.
The Acumen Centre • First Avenue
Poynton, Cheshire • England
Tel: 44-0-1625-871100 • Fax: 44-0-1625-871444
X-Rite Méditerranée
Parc du moulin de Massy • 35, rue du Saule Trapu • 91300 Massy • France
Tel: 33-1-69.53.66.20 • FAX 33-1-69.53.00.52
X-Rite Asia Pacific Ltd. - Japan Office
7F, IMAS Hamamatsu-cho Bldg. • 2-10-4, Hamamatsu-cho
Minato-ku, Tokyo • 105-0013 Japan
Tel: +81-3-5777-5488 • Fax: +81-3-5777-5489
X-Rite Asia Pacific Ltd. - Singapore Representative Office
14 Science Park Drive • #02-04 The Maxwell
Singapore Science Park • Singapore 118226
Tel: + 65 7788-773 • Fax: + 65 7788-645
P/N DTP34-500 Rev. A-6/6/01

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
