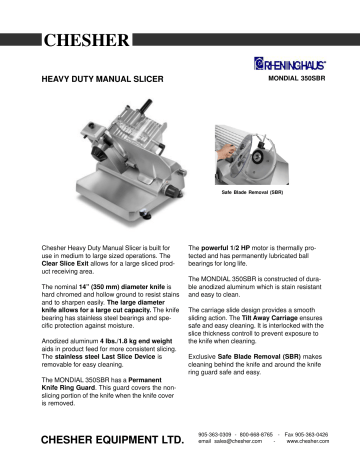

CHESHER
HEAVY DUTY MANUAL SLICER
MONDIAL 350SBR
Safe Blade Removal (SBR)
Chesher Heavy Duty Manual Slicer is built for
use in medium to large sized operations. The
Clear Slice Exit allows for a large sliced product receiving area.
The nominal 14” (350 mm) diameter knife is
hard chromed and hollow ground to resist stains
and to sharpen easily. The large diameter
knife allows for a large cut capacity. The knife
bearing has stainless steel bearings and specific protection against moisture.
Anodized aluminum 4 lbs./1.8 kg end weight
aids in product feed for more consistent slicing.
The stainless steel Last Slice Device is
removable for easy cleaning.
The MONDIAL 350SBR has a Permanent
Knife Ring Guard. This guard covers the nonslicing portion of the knife when the knife cover
is removed.
CHESHER EQUIPMENT LTD.
The powerful 1/2 HP motor is thermally protected and has permanently lubricated ball
bearings for long life.
The MONDIAL 350SBR is constructed of durable anodized aluminum which is stain resistant
and easy to clean.
The carriage slide design provides a smooth
sliding action. The Tilt Away Carriage ensures
safe and easy cleaning. It is interlocked with the
slice thickness controll to prevent exposure to
the knife when cleaning.
Exclusive Safe Blade Removal (SBR) makes
cleaning behind the knife and around the knife
ring guard safe and easy.
905-363-0309 - 800-668-8765 - Fax 905-363-0426
email [email protected]
www.chesher.com
CHESHER
193/4” (500 mm)
HEAVY DUTY MANUAL SLICER
211/4” (540 mm)
141/4” (360 mm)
271/2” (700 mm)
223/4” (580 mm)
211/4” (540 mm)
30 1/
4 ” (77
0 mm
)
”
26
m)
0m
6
6
(
Net Weight: 75 lbs./34 kg
Shipping Weight: 98 lbs./45 kg
SPECIFICATIONS
Construction: Anodized aluminum including one piece
base, carriage, guage plate, end weight, knife sharpener
cover and knife ring guard. Stainless steel last slice
device, knife cover and slice deflector. Slicer can be
disassembled without tools for cleaning.
Motor and Electrical: 1/2 HP permanently lubricated ball
bearings. Thermally protected. 115/1/60 3.5 amps.
Attached 6’ grounded power cord and plug.
On/Off Switch: Rugged toggle switch.
Warranty: 12 months parts, 1 year labour and travel
excluding wear items. 4 year belt warranty.
Knife: Nominal 14” (350 mm) hard chromed, hollow
ground. Driven by a grooved belt. Stainless steel bearing
on knife bearing. Specific protection against moisture.
Slice Thickness: Infinite slice adjustment from tissue
thin to 11/8” (30 mm). Over-sized cam and two slide rods
for precise adjustment.
Cut capacity: 111/4” (285 mm) wide by 71/2” (190 mm) high
or 87/8” (225 mm) diameter.
Sharpener: 2 stone, top mounted. It is pre-tensioned for
optimum sharpening and is removable for cleaning.
Made in Italy by Rheninghaus.
Specifications subject to change without notice.
CHESHER EQUIPMENT LTD.
6599 KITIMAT RD, UNIT 2, MISSISSAUGA, ON L5N 4J4
905-363-0309 - 800-668-8765 - Fax 905-363-0426
email [email protected]
www.chesher.com
