Medical Weight Analyzer

Medical Weight Analyzer
Med Vue
Medical Weight Analyzer

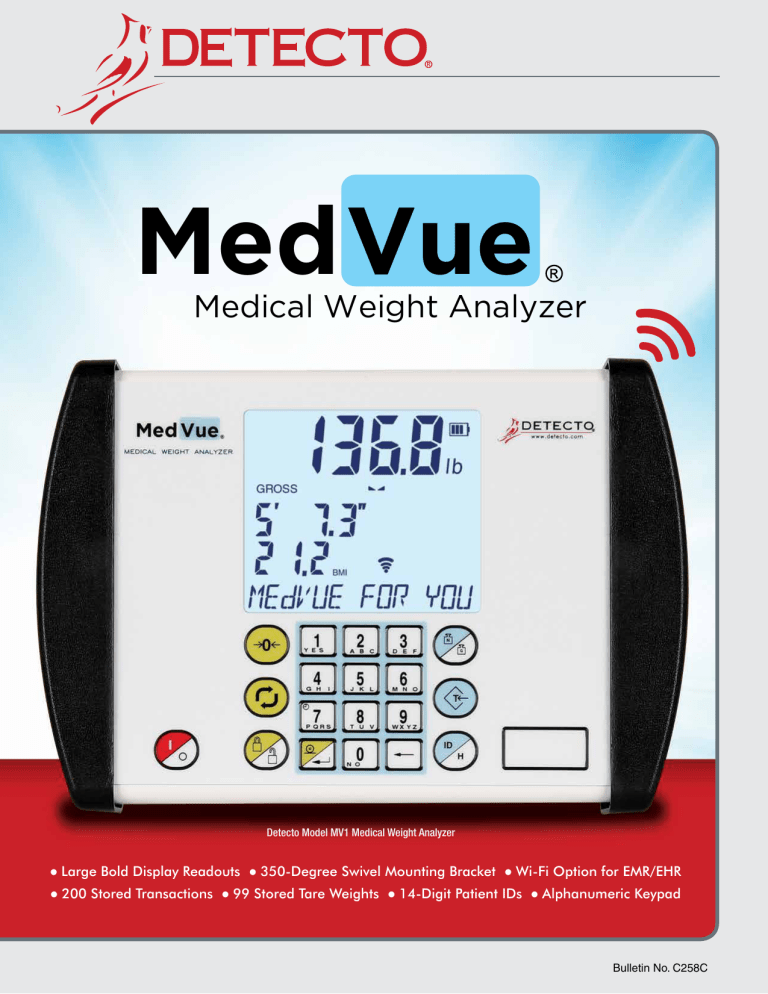

Detecto Model MV1 Medical Weight Analyzer
● Large Bold Display Readouts ● 350-Degree Swivel Mounting Bracket ● Wi-Fi Option for EMR/EHR
● 200 Stored Transactions ● 99 Stored Tare Weights ● 14-Digit Patient IDs ● Alphanumeric Keypad
Bulletin No. C258C
Versatile Connectivity
DETECTO's MedVue medical weight analyzer
offers a host of different options, both wired and
optional wireless, for DETECTO scales to connect
with multiple devices for efficient EMR/EHR.
Digital
Height Rod
Port
Wireless
(optional)
RS232
Serial
USB
Ethernet
Connect with:
● Printers
● PCs
● Networks
● Tablets
● Bar Code Scanners
● Even Mobile Phones
(optional)
EMR/EHR
connectivity requires
custom coding by
software package
developers.
BENEFITS OF WI-FI CONNECTIVITY
DETECTO's MedVue offers optional Wi-Fi
connectivity with up to 20 ft. range (varies
depending upon environmental conditions).
Wi-Fi offers a number of benefits over Bluetooth, including greater range and security.
P50 printer
Almost every MedVue port may be used simultaneously (with the exception of Ethernet and Wi-Fi connections).
For instance, a printer could be connected to the serial port, PC connected to the USB port, while a tablet is connected
via Wi-Fi all at the same time. DETECTO's model P50 printer offers plug-and-play compatibility with the MedVue.
350-Degree Swivel Mounting Bracket
Enjoy freedom of movement
wherever you need to position
the display with the MedVue's
350-degree tilt-and-swivel
mounting bracket.
350-degree
rotation in
all directions!
Easy-to-read,
7/8-inch (22-mm)
high LCD weight digits
Digitally filters the weight signal to produce
a stable weight display despite movement
Weight, height, and BMI shown
onscreen simultaneously
Convenient
units switching
Large, bold 3.5-inch-wide x
3-inch-high (89-mm-wide x
76-mm-high) backlit display
Alphanumeric
keypad
14-digit
patient ID
Wi-Fi Option
Selectable sleep mode
conserves battery power
The MedVue is Standard on Select DETECTO Clinical Scales
Standard on select
EASY SET-UP NAVIGATION
eye-level, waist-high,
DETECTO's MedVue indicator features a tiered menu
system with up/down navigation controls to quickly
update any settings you wish to change, such as
converting to kilograms-only
weighing or lowering the
backlight intensity to make the
batteries last longer.
wheelchair, and
bariatric scales.
Model
6437DHR
Model
6857DHR
MULTIPLE LANGUAGE SETTINGS
The MedVue features user-prompting
in four different languages:
•English
•Spanish
•French
•German
Model 6550
Detecto's MedVue operates on
6 C batteries (not included) or
optional MV1PWR AC adapter.
Med Vue
Medical Weight Analyzer
SPECIFICATIONS
Power Requirements
6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included)
OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)
Display
Overall Display Size: 3.5 inch W x 3 inch H (89 mm W x 76 mm H) backlit blue LCD
Weight: 5 digit, seven segment, 0.875 inch (22.23 mm) high LCD
Height: 4 digit, seven segment, 0.5 inch (12.7 mm) high LCD
BMI: 3 digit, seven segment, 0.5 inch (12.7 mm) high LCD
ID: 14 digit, 14 segment, 0.35 inch (8.89 mm) high LCD
Battery Life
7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF)
Sensitivity
0.5 uV/division (0 to 3.0 mV/V), Class III
Operating Temperature
14 to 104 ºF (-10 to +40 ºC)
Signal Input Range
0 to 15mV max.
Transducer Excitation
5.0 VDC
Number of Load Cells
up to 4 each 350 Ω
Load Cell Cable Length
30 feet (9 meters) max.
Capacities
Weight: 10,000 divisions commercial - Height: 0 - 9' 11.9" - BMI: up to 999
Resolution
10,000 divisions
NTEP
Certificate of Conformance Number 13-011
Division Value
1, 2 or 5 x 1, 0.1, 0.01, 0.001
Sample Rate
1 to 100 samples per second selectable
Auto Zero Range
0.5 or 1 through 9 divisions
Weighing Units
Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and Kilograms/Pounds (kg/lb)
Keyboard
Membrane type with 19 keys
Enclosure Size
9.8 inch W x 6.8 inch H x 1.8 inch D (248.9 mm W x 172.7 mm H x 45.7 mm D)
Construction
Painted steel
STANDARD FEATURES:
•Metric Conversion •Auto Shut-Off •Selectable Sleep-Mode •Selectable Filtering •99 Tare Storage
•Serial I/O (Input/Output) •USB Device Port •Height Rod Port (for Optional Detecto Digital Height Rod) •200 Transactions Stored
OPTIONAL FEATURES:
•MVIP Ethernet Option •MVWIFI Wireless Option •Detecto DHR (Digital Height Rod) •MV1PWR, 12VDC AC Power Adapter
•Welch Allyn® WACONNECT
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
®
SOLD BY:
A Division of Cardinal Scale Manufacturing Co.
ISO
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
REGISTERED 9001
Mobile: m.detecto.com
© Copyright 2014 Cardinal Scale Mfg. Co.
• Printed in USA • CAR/00/0314/C258C
