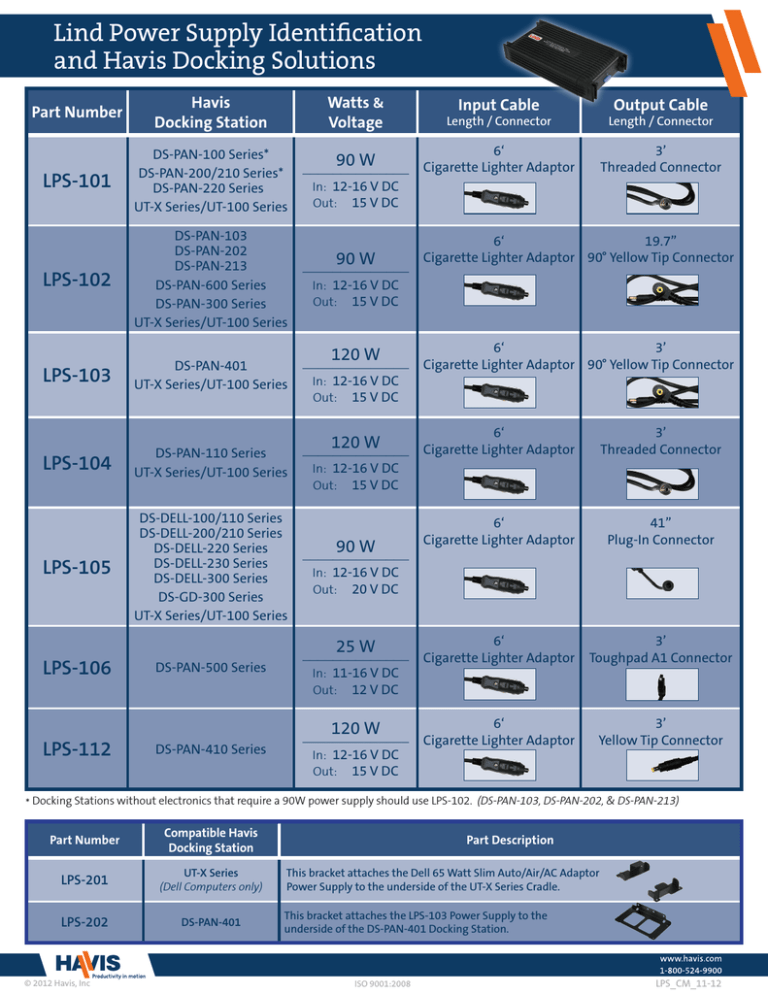

Lind Power Supply Identification
and Havis Docking Solutions
Part Number
Havis
Docking Station
Watts &
Voltage
Length / Connector
Length / Connector
LPS-101
DS-PAN-100 Series*
DS-PAN-200/210 Series*
DS-PAN-220 Series
UT-X Series/UT-100 Series
90 W
______________
6‘
Cigarette Lighter Adaptor
3’
Threaded Connector
LPS-102
DS-PAN-103
DS-PAN-202
DS-PAN-213
DS-PAN-600 Series
DS-PAN-300 Series
UT-X Series/UT-100 Series
90 W
______________
In: 12-16 V DC
Out: 15 V DC
LPS-103
DS-PAN-401
UT-X Series/UT-100 Series
120 W
______________
In: 12-16 V DC
Out: 15 V DC
LPS-104
DS-PAN-110 Series
UT-X Series/UT-100 Series
120 W
______________
In: 12-16 V DC
Out: 15 V DC
LPS-105
DS-DELL-100/110 Series
DS-DELL-200/210 Series
DS-DELL-220 Series
DS-DELL-230 Series
DS-DELL-300 Series
DS-GD-300 Series
UT-X Series/UT-100 Series
90 W
______________
In: 12-16 V DC
Out: 20 V DC
LPS-106
LPS-112
Input Cable
Output Cable
In: 12-16 V DC
Out: 15 V DC
6‘
19.7”
Cigarette Lighter Adaptor 90° Yellow Tip Connector
6‘
3’
Cigarette Lighter Adaptor 90° Yellow Tip Connector
6‘
Cigarette Lighter Adaptor
3’
Threaded Connector
6‘
Cigarette Lighter Adaptor
41”
Plug-In Connector
DS-PAN-500 Series
25 W
______________
In: 11-16 V DC
Out: 12 V DC
6‘
Cigarette Lighter Adaptor
3’
Toughpad A1 Connector
DS-PAN-410 Series
120 W
______________
In: 12-16 V DC
Out: 15 V DC
6‘
Cigarette Lighter Adaptor
3’
Yellow Tip Connector
* Docking Stations without electronics that require a 90W power supply should use LPS-102. (DS-PAN-103, DS-PAN-202, & DS-PAN-213)
Part Number
Compatible Havis
Docking Station
LPS-201
UT-X Series
(Dell Computers only)
LPS-202
DS-PAN-401
© 2012 Havis, Inc
Part Description
This bracket attaches the Dell 65 Watt Slim Auto/Air/AC Adaptor
Power Supply to the underside of the UT-X Series Cradle.
This bracket attaches the LPS-103 Power Supply to the
underside of the DS-PAN-401 Docking Station.
ISO 9001:2008
LPS_CM_11-12
