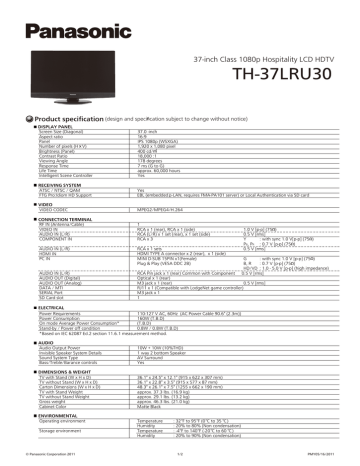

Panasonic | TH-37LRU30 | Datasheet | Panasonic TH-37LRU30 LCD TV

37-inch Class 1080p Hospitality LCD HDTV
TH-37LRU30
Product specification (design and specification subject to change without notice)
DISPLAY PANEL
Screen Size (Diagonal)
Aspect ratio
Panel
Number of pixels (HxV)
Brightness (Panel)
Contrast Ratio
Viewing Angle
Response Time
Life Time
Intelligent Scene Controller
37.0 -inch
16:9
IPS 1080p (WSXGA)
1,920 x 1,080 pixel
400 cd/㎡
18,000 :1
178 degrees
7 ms (G to G)
approx. 60,000 hours
Yes
RECEIVING SYSTEM
ATSC / NTSC / QAM
FTG Pro:Idiom HD Support
Yes
EBL (embedded b -LAN, requires FMA-PA101 server) or Local Authentication via SD card
VIDEO
VIDEO CODEC
MPEG2/MPEG4/H.264
CONNECTION TERMINAL
RF IN (Antenna/Cable)
VIDEO IN
AUDIO IN (L/R)
COMPONENT IN
1
RCA x 1 (rear), RCA x 1 (side)
RCA (L/R) x 1 set (rear), x 1 set (side)
RCA x 3
1.0 V [p-p] (75Ω)
0.5 V [rms]
Y
: with sync 1.0 V[p-p] (75Ω)
PB, PR : 0.7 V [p-p] (75Ω)
0.5 V [rms]
AUDIO IN (L/R)
HDMI IN
PC IN
RCA x 1 sets
HDMI TYPE A connector x 2 (rear), x 1 (side)
MINI D-SUB 15PIN x1(Female)
Plug & Play (VESA DDC 2B)
AUDIO IN (L/R)
AUDIO OUT (Digital)
AUDIO OUT (Analog)
DATA / MTI
SERIAL Port
SD Card slot
RCA Pin jack x 1 (rear) Common with Component
Optical x 1 (rear)
M3 jack x 1 (rear)
0.5 V [rms]
RJ11 x 1 (Compatible with LodgeNet game controller)
M3 jack x 1
1
G
: with sync 1.0 V [p-p] (75Ω)
B, R
: 0.7 V [p-p] (75Ω)
HD/VD : 1.0 - 5.0 V [p-p] (high impedance)
0.5 V [rms]
ELECTRICAL
110-127 V AC, 60Hz (AC Power Cable 90.6" (2.3m))
Power Requirements
160W (T.B.D)
Power Consumption
(T.B.D)
On mode Average Power Consumption*
0.8W / 0.8W (T.B.D)
Stand-by / Power off condition
*Based on IEC 62087 Ed.2 section 11.6.1 measurement method.
AUDIO
Audio Output Power
Invisible Speaker System Details
Sound System Type
Bass/Treble/Barance controls
10W + 10W (10%THD)
1 way 2 bottom Speaker
AV Surround
Yes
DIMENSIONS & WEIGHT
TV with Stand (W x H x D)
TV without Stand (W x H x D)
Carton Dimensions (W x H x D)
TV with Stand Weight
TV without Stand Weight
Gross weight
Cabinet Color
36.1" x 24.5" x 12.1" (915 x 622 x 307 mm)
36.1" x 22.8" x 3.5" (915 x 577 x 87 mm)
48.3" x 26.1" x 7.5" (1255 x 662 x 190 mm)
approx. 37.3 lbs. (16.9 kg)
approx. 29.1 lbs. (13.2 kg)
approx. 46.3 lbs. (21.0 kg)
Matte Black
ENVIRONMENTAL
Operating environment
Storage environment
© Panasonic Corporation 2011
Temperature
Humidity
Temperature
Humidity
:
:
:
:
32°F to 95°F (0 °C to 35 °C )
20% to 80% (Non condensation)
-4°F to 140°F (-20 °C to 60 °C )
20% to 90% (Non condensation)
1/2
PMY05/16/2011
TH-37LRU30
37-inch Class 1080p Hospitality LCD HDTV
MAIN FEATURE
ACCESSORIES
Contrast Automatic Tracking System
Integrated Pro:Idiom
Welcome message
SD Card Slot
OFF Timer
Hotel Mode
Yes
Yes
Yes
Image Viewer (JPEG playback)
Cloning
15/30/60/90
Initial INPUT
INPUT Lock
Initial VOL level
Maximum VOL level
Button Lock
Remote Control User Level
INCLUDED ACCESSORIES
Swivel Stand (degrees:30°
/60°
/90°
)
Remote control transmitter
Operating Instruction
Wall hanging bracket (TY-WK3L2RW)
*VESA Compliant W200xH200
OPTIONAL ACCESSORIES
STANDARD (CERTIFICATIONS)
UL6500 Ver.2
FCC Part 15 Class-B, ICES-003, ISTA
(T.B.D)
885170042766
SAFETY REGULATIONS
RADIATION REGULATIONS
ENERGY STAR 5.3
UPC Code
DIMENSIONS
Cautions: This drawing is not a scale
7.8 (197)
Units : inches (mm)
8.8
(222)
11.0
(279)
Rotation angle of 30°
36.1 (915)
3.5 (87)
1.1 (28)
17.1
(433)
14.7
(373)
4 (101)
2 (49)
13.6 (344)
11 (280)
22.8 (577)
24.5 (622)
Rotation angle of 60°
4.6(119)
3.8 (99)
Rotation angle of 90°
1.7 (45)
7.7 (195)
12.1 (307)
16.4
(416)
19.7
(499)
15.8 (399)
11.3 (287)
CONNECTION TERMINAL
<side>
<rear>
<DATA/MTI>
© Panasonic Corporation 2011
2/2
PMY05/16/2011
