Programma
TORKEL 840/860 Battery Load Units
Programma
TORKEL 840/860 Battery Load Units
DESCRIPTION
TORKEL® 840 - UTILITY is used for battery systems
ranging from 12 to 250 V – often encountered in
switchgear and similar equipment. Discharging can take
place at up to 110 A, and if higher current is needed, two
or more TORKEL 840 units, or extra load units (TXL), can
be linked together. Tests can be conducted at constant
current, constant power, constant resistance or in
accordance with a pre-selected load profile.
■
Batteries can be tested “in service”
■
Unit adjusts to include load currents in
the test parameters
■
User adjustable alarm and shutdown
points to avoid excessive discharge
■
Easily expandable for larger battery
banks using TXL extra load units
■
View test parameters/results “real time”
as testing progresses using TORKEL WIN
software
■
Easily save results to a PC for analysis,
report generation and storage
Application examples with TORKEL/TXL systems
TORKEL and TXL can be combined into systems to match
different battery capacities. Below are two examples. Other
combinations can be found in the section called
TORKEL/TXL System examples.
TORKEL 860 - MULTI is designed primarily for people
who travel from place to place to maintain battery systems
having different voltages. It features excellent discharging
capacity plus a broad voltage range and outstanding
portability – a unique combination.
The TORKEL 860 is used for systems ranging from 12 to
480 V, and discharging can proceed at up to 110 A. If
higher current is desired, two or more TORKEL 860 units,
or extra load units (TXL), can be linked together.
Discharging can take place at constant current, constant
output, constant resistance or in accordance with a preselected load profile.
APPLICATION
Batteries in power plants and transformer substations must
provide the equipment they serve with standby power in
the event of a power failure. Unfortunately, however, the
capacity of such batteries can drop significantly for a
number of reasons before their calculated life expectancy
is reached. This is why it is so important to check batteries
at regular intervals, and the only reliable way of measuring
battery capacity is to conduct a discharge test.
TORKEL and the
extra load TXL unit
Example of multiple TORKEL
and TXL arrangement
Programma
TORKEL 840/860 Battery Load Units
FEATURES AND BENEFITS
■ Batteries can be tested “in service”. TORKEL will adjust
to include the load current in the test parameters.
■
User adjustable alarm and shutdown points to avoid
excessive discharge.
■
No loss of test data in the event of a power loss during
testing.
■
Easily expandable for larger battery banks using TXL
extra load units.
■
Can be used “stand alone” or with a PC running
TORKEL WIN Software.
SPECIFICATIONS
Specifications are valid at nominal input voltage and an ambient
temperature of +25° C, (77° F). Specifications are subject to
change without notice.
Environment
Application field
The instrument is intended for use in high-voltage substations and
industrial environments.
Temperature
Operating
Storage & transport
Humidity
CE-marking
Safety standards
EMC standards
0° C to +40° C (32° F to +104° F)
-40° C to +70° C (-40° F to +158° F)
5% – 95% RH, non-condensing
IEC 61010-1:2001 Incl. national dev. for US
and CAEN 61010-1:2001
EN 61326: 1997+A1:1998+A2:2001
General
Power supply voltage 100 – 240 V AC, 50/60 Hz
Power
consumption (max)
150 W
Protection
Thermal cut-outs, automatic overload
protection
Dimensions
Instrument
Transport case
Weight
Display
Available languages
210 x 353 x 700 mm (8.3” x 13.9” x 27.6”)
265 x 460 x 750 mm (10.4” x 18.1” x 29.5”)
21.5 kg (47.4 lbs)38 kg (83.8 lbs) with
accessories and transport case.
LCD
English, French, German, Spanish, Swedish
Measurement section
Current measurement
Display range
0.0 – 2999 A
Accuracy
±(0.5% of reading +0.2 A)
Resolution
0.1 A
Internal current measurement
Range
0 – 270 A
Input for clamp-on
Range
mV/A-ratio
Input impedance
ammeter
0–1V
Software settable, 0.3 to 19.9 mV/A
>1 MΩ
Voltage measurement
Display range 0.0 – 60 V
Accuracy
±(0.5% of reading +0.1 V)
Resolution
0.1 V
Display range 0.0 – 500 V
Accuracy
±(0.5% of reading +1 V)
Resolution
0.1 V
Time measurement
Accuracy
±0.1% of reading ±1 digit
Load section
Max. battery voltage
288 V DC (TORKEL 840)
480 V DC (TORKEL 860)
Max. current
110 A
Max. power
15 kW
Load patterns
Constant current, constant power, constant
resistance, current or power profile
Current setting
0-110.0 A (2999.9 A)1
Power setting
0-15.00 kW (299.99 kW)1
Resistance setting
0.1-2999.8Ω
Battery voltage range, 4 ranges, selected automatically at
TORKEL 840
start of test
Battery voltage range, 5 ranges, selected automatically at
TORKEL 860
start of test
Stabilization
±(0.5% of reading +0.5 A)
(For internal
current measurement)
Range
Range
Range
Range
Range
1
2
3
4
52
Battery
voltage
Highest
permissible
current
Resistor
element
(Nominal values)
10 – 27.6 V
10 – 55.2 V
10 – 144 V
10 – 288 V
10 – 480 V
110 A
110 A
110 A
55 A
55 A (max
power 15 kW)
0.165 Ω
0.275 Ω
0.55 Ω
3.3 Ω
3.3 Ω
1) Maximum value for a system with more than one load unit
2) TORKEL 860
Programma
TORKEL 840/860 Battery Load Units
Inputs, maximum values
External current
1 V DC, 300 V DC to ground. Current
measurement
shunt should be connected to the negative
side of the battery
Start/Stop
Momentary closure starts a test. Momentary
closure stops a test.
Delay until start
200 – 300 ms
Stop delay
100 – 200 ms
Battery
480 V DC, 500 V DC to ground
Voltage sense
480 V DC, 500 V DC to ground
Serial
< 15 V
Alarm
250 V DC 0.28 A 28 V DC 8 A
250 V AC 8 A
Environment
Application field
Outputs, maximum values
Start/Stop
5 V, 6 mA
TXL
Relay contact
Serial
< 15 V
Alarm
Relay contact
General
Power supply voltage 100 – 240 V AC, 50/60 Hz
Power consumption 75 W (max)
Protection
Thermal cut-outs, automatic overload
protection
Discharging capacity examples
Dimensions
Instrument
Transport case
Weight
12 V battery (6 cells)3
Final voltage
Constant current
1.80 V/cell (10.8 V)
0 – 50.0 A
1.75 V/cell (10.5 V)
0 – 49.0 A
1.67 V/cell (10.0 V)
0 – 46.0 A
Constant power
0 – 0.54 kW
0 – 0.51 kW
0 – 0.46 kW
24 V battery (12 cells)
1.80 V/cell (21.6 V)
1.75 V/cell (21.0 V)
1.60 V/cell (19.2 V)
0 – 110 A
0 – 110 A
0 – 100 A
0 – 2.37 kW
0 – 2.31 kW
0 – 1.92 kW
48 V battery (24 cells)3
1.80 V/cell (43.2 V)
1.75 V/cell (42.0 V)
1.60 V/cell (38.4 V)
0 – 110 A
0 – 110 A
0 – 110 A
0 – 4.75 kW
0 – 4.62 kW
0 – 4.22 kW
110 V battery (54 cells)3
1.80 V/cell (97.2 V)
0 – 110 A
1.75 V/cell (94.5 V)
0 – 110 A
1.60 V/cell (86.4 V)
0 – 110 A
0 – 10.7 kW
0 – 10.4 kW
0 – 9.5 kW
120 V battery (60 cells)3
1.80 V/cell (108 V)
0 – 110 A
1.75 V/cell (105 V)
0 – 110 A
1.60 V/cell (96 V)
0 – 110 A
0 – 11.9 kW
0 – 11.5 kW
0 – 10.5 kW
220 V battery (108 cells)3
1.80 V/cell (194 V)
0 – 55 A
1.75 V/cell (189 V)
0 – 55 A
0 – 51.0 A
1.60 V/cell (173 V)
0 – 10.7 kW
0 – 10.4 kW
0 – 8.82 kW
Temperature
Operating
Storage & transport
Humidity
CE-marking
Safety standards
EMC standards
Cable sets
for TXL830/850
3
0° C to +40° C (32° F to +104° F)
-40° C to +70° C (-40° F to +158° F)
5% – 95% RH, non-condensing
IEC 61010-1:2001 Incl. national dev. for US
and CAEN 61010-1:2001
EN 61326: 1997+A1:1998+A2:2001
210 x 353 x 600 mm (8.3” x 13.9” x 23.6”)
265 x 460 x 750 mm (10.4” x 18.1” x 29.5”)
13 kg (28.7 lbs)21.4 kg (47.2 lbs) with
transport case
2 x 3 m (9.8 ft), 70 mm2, 270 A, with cable
lug. Max. 100 V. 5 kg (11 lbs)
2 x 3 m (9.8 ft), 25 mm2, 110 A, with cable
clamp/lug. Max. 480 V. 3 kg (6.6 lbs)
Load section
240 V battery (120 cells)3
1.80 V/cell (216 V)
0 – 55 A
1.75 V/cell (210 V)
0 – 55 A
0 – 55 A
1.60 V/cell (192 V)
0 – 11.9 kW
0 – 11.5 kW
0 – 10.5 kW
UPS battery (180 cells)3 (TORKEL 860)
0 – 38 A
1.70 V/cell (306 V)
1.60 V/cell (288 V)
0 – 38 A
0 – 15 kW
0 – 15 kW
UPS battery (204 cells)3 (TORKEL 860)
0 – 34 A
1.80 V/cell (367 V)
1.60 V/cell (326 V)
0 – 34 A
0 – 15 kW
0 – 15 kW
3) 2.15 V per cell when test starts
for TXL870
The instrument is intended for use in highvoltage substations and industrial
environments.
Max. voltage (DC)
Max. current
TXL830
28 V
300 A
TXL850
56 V
300 A
Max. power
8.3 kW
16.4 kW
Internal resistance, 3-position selector
Position 1
TXL830
TXL850
Current
0.275 Ω
0.55 Ω
100 A
at 27.6 V
at 55.2 V
(12 x 2.3 V)
(24 x 2.3 V)
78.5 A
at 21.6 V
at 43.2 V
(12 x 1.8 V)
(24 x 1.8 V)
50.1 A
–
–
39.2 A
–
–
Position 2
Current
200 A
TXL830
0.138 Ω
at 27.6 V
156 A
at 21.6 V
Position 3
Current
300 A
TXL830
0.092 Ω
at 27.6 V
235 A
at 21.6 V
100 A
–
TXL850
0.275 Ω
at 55.2 V
(24 x 2.3 V)
43.2 V–
(24 x 1.8 V)
TXL850
0.184 Ω
at 55.2 V
(24 x 2.3 V)
43.2 A
(24 x 1.8 V)
–
78.4 A
–
–
TXL870
140 V/ 280 V
112 A at 140 V
56 A at 280 V
15.8 kW
TXL870
4.95 Ω
–
–
at 248.4 V
(108 x 2.3 V)
at 194.4 V
(108 x 1.8 V)
TXL870
2.48 Ω
–
–
TXL870
1.24 Ω
–
–
at 124.2 V
(54 x 2.3 V)
at 97.2 V
(54 x 1.8 V)
Programma
TORKEL 840/860 Battery Load Units
TORKEL/TXL Systems – Examples
BATTERY TESTING ACCESSORIES
TORKEL 820 + TXL830, 12 V battery (6 cells)1
Max. constant current
Number of
Number of
(A)
TORKEL-units
TXL-units
234
1
1
571
1
4
918
2
6
TORKEL Win
PC software
•Shows the complete voltage curve
• Last recorded time, voltage, current and discharged
capacity
• Scroll-window for all recorded values
• Remote control of TORKEL
• Report functions
TORKEL 820 + TXL830, 24 V battery (12 cells)1
495
1
1
1170
1
4
1890
2
6
TORKEL 820 + TXL850, 48 V battery (24 cells)1
499
1
1
1189
1
4
1918
2
6
TORKEL 840/860 + TXL830, 24 V battery (12 cells)1
263
1
1
2
2
670
1005
3
3
TORKEL 840/860 + TXL850, 48 V battery (24 cells)1
1
1
264
909
2
3
TORKEL 840/860 + TXL870, 110 V battery (54 cells)1
188
1
1
532
2
4
845
2
8
TORKEL 840/860 + TXL870, 120 V battery (60 cells)2
194
1
1
557
2
4
895
2
8
TORKEL Win showing total voltage curve
TXL units
TORKEL 840/860 + TXL870, 220 V battery (108 cells)
94
1
1
266
2
4
423
2
8
1
1) Discharge from 2.15 V to 1.8 V per cell
2) Discharge from 2.15 to 1.75 V per cell
• Extra loads
• These resistive extra loads do not perform any
regulating functions.
• They are designed for use together with TORKEL Battery
Load Units.
• Their purpose is to provide higher load currents for use
in constant current or constant power tests. Together,
TORKEL and the TXL Extra Loads form a system that
can discharge batteries with currents of up to several kA.
TXL Extra Loads are connected directly to the battery,
and TORKEL measures the total current using a clampon ammeter.
• TXL Extra Loads are shut down automatically when
TORKEL is stopped.
Cable Set GA-00550
TXL870
Programma

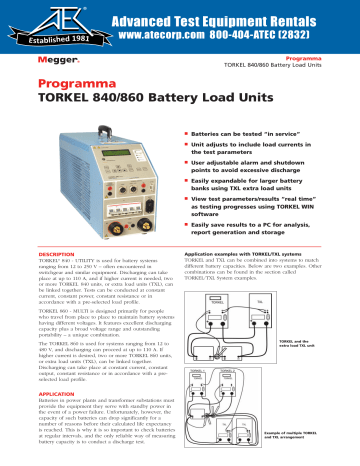

TORKEL 840/860 Battery Load Units
ORDERING INFORMATION
Item (Qty)
Cat. No.
TORKEL840 complete with cable set GA-00550 and transport case GD-00054
BS-49094
TORKEL860 complete with cable set GA-00550 and transport case GD-00054
BS-49096
TXL850 is intended for 48 V systems. Complete with cable set GA-00554 and transport case GD-00054.
A DC clamp-on ammeter must be used to enable TORKEL 850 to measure the total current.
BS-59095
TXL870 is intended primarily for 125 and 240 V battery systems.
Complete with cable set GA-00550 and transport case GD-00054.
A DC clamp-on ammeter must be used to enable TORKEL 870 to measure the total current.
BS-59097
Cable sets
Cable set for TXL830 and TXL850 2 x 3 m, 70 mm2, with cable lug. Max 100 V 270 A. Weight: 5.0 kg (11 lbs)
GA-00554
Extension cable set, 110 A 2 x 3 m, 25 mm2. Max 480 V. Weight: 3.0 kg (6.6 lbs)
GA-00552
Sensing lead set for measuring voltage at battery terminals. 2 x 5 m (16.4 ft)
GA-00210
DC clamp-on ammeter, 200 A to measure current in circuit outside TORKEL
XA-12992
DC clamp-on ammeter, 1000 A to measure current in circuit outside TORKEL
XA-12990
Optional accessories
TORKEL Win
BS-8208X
See battery testing Accessories
UK
Archcliffe Road, Dover
CT17 9EN England
T +44 (0) 1 304 502101
F +44 (0) 1 304 207342
[email protected]
UNITED STATES
4271 Bronze Way
Dallas, TX 75237-1019 USA
T 1 800 723 2861 (USA only)
T +1 214 333 3201
F +1 214 331 7399
[email protected]
OTHER TECHNICAL SALES OFFICES
Täby SWEDEN, Norristown USA,
Sydney AUSTRALIA, Toronto CANADA,
Trappes FRANCE, Kingdom of BAHRAIN,
Mumbai INDIA, Johannesburg SOUTH
AFRICA, and Chonburi THAILAND
Registered to ISO 9001:2000 and
ISO 14001:2004
Cert. no. GBG0005937
TORKEL840_DS_en_V01
www.megger.com
Megger is a registered trademark
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
