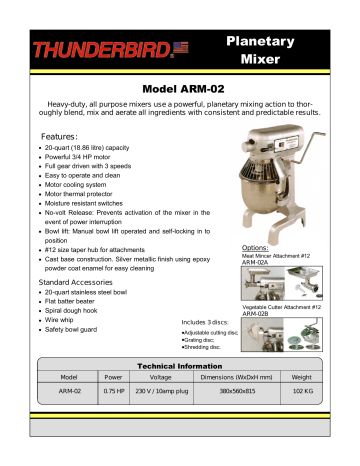

Planetary
Mixer
Model ARM-02
Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.
Features:
• 20-quart (18.86 litre) capacity
• Powerful 3/4 HP motor
• Full gear driven with 3 speeds
• Easy to operate and clean
• Motor cooling system
• Motor thermal protector
• Moisture resistant switches
• No-volt Release: Prevents activation of the mixer in the
event of power interruption
• Bowl lift: Manual bowl lift operated and self-locking in to
position
• #12 size taper hub for attachments
• Cast base construction. Silver metallic finish using epoxy
powder coat enamel for easy cleaning
Options:
Meat Mincer Attachment #12
ARM-02A
Standard Accessories
• 20-quart stainless steel bowl
• Flat batter beater
Vegetable Cutter Attachment #12
• Spiral dough hook
ARM-02B
• Wire whip
Includes 3 discs:
• Safety bowl guard
•Adjustable cutting disc;
•Grating disc;
•Shredding disc.
Technical Information
Model
Power
Voltage
Dimensions (WxDxH mm)
Weight
ARM-02
0.75 HP
230 V / 10amp plug
380x560x815
102 KG
