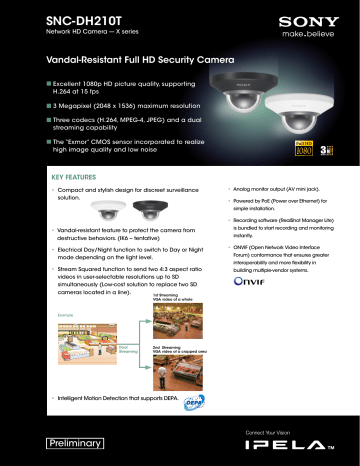

SNC-DH210T

SNC-DH210T
SNC-DH210T
Network HD Camera --- X series
Vandal-Resistant Full HD Security Camera
Excellent 1080p HD picture quality, supporting
H.264 at 15 fps
3 Megapixel (2048 x 1536) maximum resolution
Three codecs (H.264, MPEG-4, JPEG) and a dual
streaming capability
The “Exmor” CMOS sensor incorporated to realize
high image quality and low noise
KEY FEATURES
• C
ompact and stylish design for discreet surveillance
solution.
• Analog monitor output (AV mini jack).
• P
owered by PoE (Power over Ethernet) for
simple installation.
• R
ecording software (RealShot Manager Lite)
• V
andal-resistant feature to protect the camera from
destructive behaviors. (IK6 -- tentative)
• E
lectrical Day/Night function to switch to Day or Night
mode depending on the light level.
• S
tream Squared function to send two 4:3 aspect ratio
videos in user-selectable resolutions up to SD
simultaneously (Low-cost solution to replace two SD
cameras located in a line).
1st Streaming
VGA video of a whole
Example
Dual
Streaming
2nd Streaming
VGA video of a cropped area
• Intelligent Motion Detection that supports DEPA.
Preliminary
is bundled to start recording and monitoring
instantly.
• O
NVIF (Open Network Video Interface
Forum) conformance that ensures greater
interoperability and more flexibility in
building multiple-vendor systems.
SPECIFICATIONS
SYSTEM CONFIGURATION
SNC-DH210T
ONVIF conformance
Number of clients
Authentication
Analog Video Output
Signal system
Interface
Ethernet
Analog monitor output
Sensor input
General
Mass
Dimensions
Power requirements
Power consumption
Starting temperature
Working temperature
Storage temperature
Vandal resistant
Safety regulation
System Requirements
Operating system
Processor
Memory
Web browser
Recording Software
RealShot Manager Lite
SNC-DH210T
PC
Yes (Electrical D/N)
Yes
Unit: mm (inches)
1/
4)
DIMENSIONS
(4
2048×1536(JPEG only), 1920x1080, 1600x1200, 1680x1056, 1440x912, 1280x1024, 1280x960, 1376x768,
1280x800, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480, 720x480, 640x480,
640x368, 384x288, 352x288, 320x240, 320x192, 176x144
H.264, MPEG-4, JPEG
Dual streaming
JPEG:12fps(2048×1536)/15fps(1920×1080)/30fps(1280×720)
MPEG-4:15fps(1920×1080)/30fps(1280×720)
H.264:15fps(1920×1080)/30fps(1280×720)
06
Scene Analytics
Intelligent motion detection
Network
Protocols
Network
ø1
Video compression format
Codec streaming capability
Maximum frame rate
Network Surveillance
Recorder
NSR-S10
SNC-DH210T
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP,
SNMP (MIB-2)
Yes
5
IEEE802.1X
NTSC / PAL
10BASE-T / 100BASE-TX (RJ-45)
AV mini jack
x1
150g (5.3 oz)
ø 106 x 57.5 mm (ø 4 1/4 x 2 3/8 inches)
PoE
2.4W
0 °C to 50 °C (32°F to 122°F)
0 °C to 50 °C (32°F to 122°F)
-20 °C to +60 °C (-4°F to +140°F)
IK6 (Tentative)
UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A,
C-Tick Class A (Tentative)
2 (3/32)
Number of effective pixels
(H x V)
Electronic shutter speed
Gain control
Exposure control
White balance mode
Lens type
Horizontal viewing angle
Focal length
F-number
Minimum objects distance
Pan angle
Tilt angle
Camera Features
Day/Night
Noise reduction
Codec image size (H x V)
HD monitor
1/2.8 type progressive scan “Exmor” CMOS sensor
2.0 lx
(AGC [38 dB] / 50IRE [IP])
3 Megapixel
(2096×1561)
1 s to 1/10000 s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Fixed
88 degrees
f=3.3
F2.8
TBD
±170°
0 degrees to 60 degrees (Tentative)
57.5 (2 3/8)
Camera
Image device
Minimum illumination
WindowsXP, WindowsVista (32bit), Windows7 (32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, 7.0, or 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s Guide, SNC Toolbox, RSM-Lite), Installation manual, B&P warranty booklet, Sensor input cable
* The SNC-DH210T includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
Distributed by
MK10740V1OHB10AUG
© 2010 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for weight and dimension are approximate.
SONY and “make.believe” are registered trademarks of Sony Corporation.
IPELA and “Exmor” are trademarks of Sony Corporation.
Windows, XP, and Vista are trademarks of Microsoft Corporation.
Core is a trademark of Intel Corporation.
All other trademarks are the property of their respective owners.
