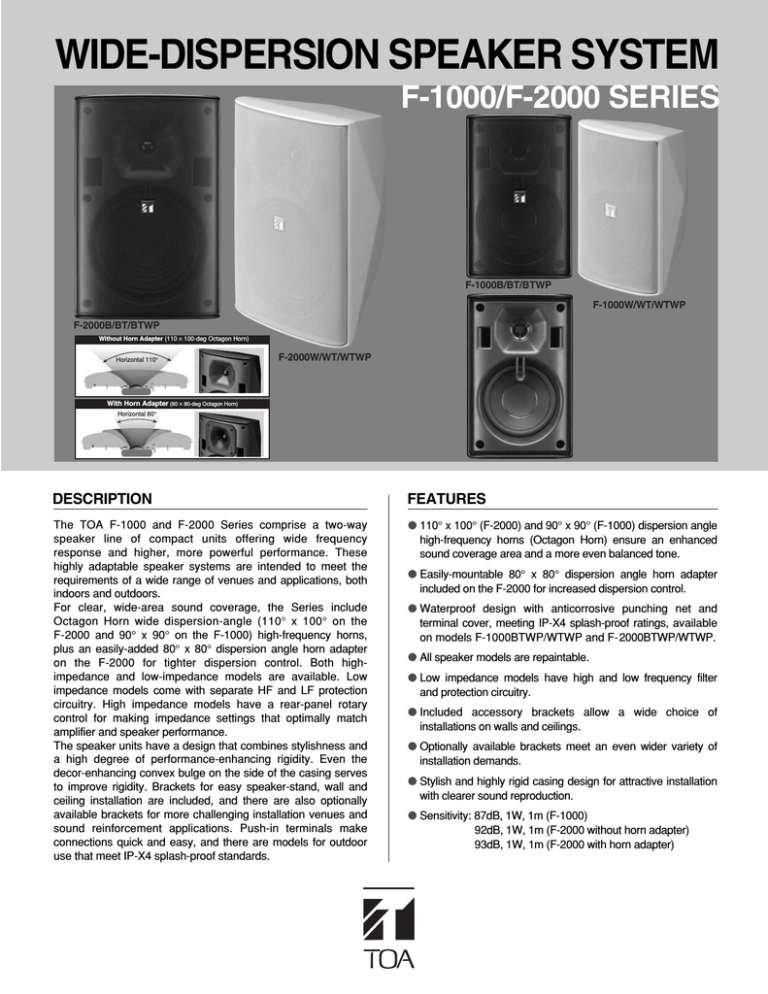

WIDE-DISPERSION SPEAKER SYSTEM
F-1000/F-2000 SERIES
F-1000B/BT/BTWP
F-1000W/WT/WTWP
F-2000B/BT/BTWP
Without Horn Adapter (110 × 100-deg Octagon Horn)
Horizontal 110°
F-2000W/WT/WTWP
With Horn Adapter (80 × 80-deg Octagon Horn)
Horizontal 80°
DESCRIPTION
FEATURES
The TOA F-1000 and F-2000 Series comprise a two-way
speaker line of compact units offering wide frequency
response and higher, more powerful performance. These
highly adaptable speaker systems are intended to meet the
requirements of a wide range of venues and applications, both
indoors and outdoors.
For clear, wide-area sound coverage, the Series include
Octagon Horn wide dispersion-angle (110° x 100° on the
F-2000 and 90° x 90° on the F-1000) high-frequency horns,
plus an easily-added 80° x 80° dispersion angle horn adapter
on the F-2000 for tighter dispersion control. Both highimpedance and low-impedance models are available. Low
impedance models come with separate HF and LF protection
circuitry. High impedance models have a rear-panel rotary
control for making impedance settings that optimally match
amplifier and speaker performance.
The speaker units have a design that combines stylishness and
a high degree of performance-enhancing rigidity. Even the
decor-enhancing convex bulge on the side of the casing serves
to improve rigidity. Brackets for easy speaker-stand, wall and
ceiling installation are included, and there are also optionally
available brackets for more challenging installation venues and
sound reinforcement applications. Push-in terminals make
connections quick and easy, and there are models for outdoor
use that meet IP-X4 splash-proof standards.
● 110° x 100° (F-2000) and 90° x 90° (F-1000) dispersion angle
high-frequency horns (Octagon Horn) ensure an enhanced
sound coverage area and a more even balanced tone.
● Easily-mountable 80° x 80° dispersion angle horn adapter
included on the F-2000 for increased dispersion control.
● Waterproof design with anticorrosive punching net and
terminal cover, meeting IP-X4 splash-proof ratings, available
on models F-1000BTWP/WTWP and F-2000BTWP/WTWP.
● All speaker models are repaintable.
● Low impedance models have high and low frequency filter
and protection circuitry.
● Included accessory brackets allow a wide choice of
installations on walls and ceilings.
● Optionally available brackets meet an even wider variety of
installation demands.
● Stylish and highly rigid casing design for attractive installation
with clearer sound reproduction.
● Sensitivity: 87dB, 1W, 1m (F-1000)
92dB, 1W, 1m (F-2000 without horn adapter)
93dB, 1W, 1m (F-2000 with horn adapter)
F-1000 SERIES
F-1000B/W/BT/WT/BTWP/WTWP
APPEARANCE AND DIMENSIONAL DIAGRAM
130 (5.12")
TERMINAL COVER USE (F-1000BTWP/WTWP only)
2–M5 (depth 14 (0.55"))
(for bracket mounting)
30 (1.18")
131 (5.16")
Tapping screw 4 x 12 (accessory)
Input terminal
202 (7.95")
30 (1.18")
Terminal cover (accessory)
Speaker cable
.1")
28 (1
.18")
30 (1
Front View
.
Rear View (F-1000BT/WT/
BTWP/WTWP only)
Notes
• For the speaker cable, use a cable with a diameter of 6 – 10 mm, which will fit the cable
bushing.
2–M5 (depth 14 (0.55"))*
(for bracket mounting)
• To ensure waterproof capabilities, firmly mount the terminal cover to the speaker and
tighten the bushing on the cover.
*Hole plugs are pre-fitted into
the holes at the factory.
Before attaching the speaker
mounting bracket to this side,
remove them using a pointed
tool.
Vertical speaker
mounting
WALL BRACKET AND JOINT BRACKET MOUNTING
Vertical installation
Horizontal: Max. 82°,
Vertical: Max. 45° downward
Horizontal installation
Horizontal: Max. 60°,
Vertical: Max. 45° downward
Joint bracket mounting
Hexagon bolt M6 x 12
(with plain washer
and spring washer)
Wall bracket
25mm
Wall bracket mounting
30mm
* Screwed onto the Terminal cover at the factory
Rotally switch
Side View
Bottom View
[Stripped conductor]
10mm
Bushing*
Joint bracket
4-ø6mm
Joint bracket
30mm
Fixing bolt
M5 x 60
Fixing bolt M5 x 60
Speaker bracket
30mm
4-ø6m
Ceiling
mounting
30mm
SPECIFICATIONS
Model No.
Enclosure Type
Power Handling Capacity
F-1000B
Rated Input
Rated Impedance
15 W
100V line: 670Ω (15W), 2 kΩ (5W), 3.3 kΩ (3W), 10 kΩ (1W)
70V line: 330Ω (15W), 670Ω (7.5W), 2 kΩ (2.5W), 3.3 kΩ (1.5W), 10 kΩ (0.5W)
87 dB (1W, 1m) at installation in 1/2 free sound field
85 – 20,000 Hz, -10 dB at installation in 1/2 free sound field
5 kHz
Horizontal: 90º, Vertical: 90º
Low frequency: 10 cm (4") cone-type
High frequency: Balanced dome tweeter
Push-in terminal
—
IPX4
—
–10°C to +50°C (14°F to 122°F)
Enclosure: HIPS resin, black
Enclosure: HIPS resin, white
Enclosure: HIPS resin, black
Enclosure: HIPS resin, white
Enclosure: HIPS resin, black
Enclosure: HIPS resin, white
Punched net: Surface-treated
Punched net: Surface-treated
Punched net: Surface-treated
Punched net: Surface-treated
Punched net: Surface-treated
Punched net: Surface-treated
steel plate, black, paint
steel plate, white, paint
steel plate, black, paint
steel plate, white, paint
steel plate, black, paint
steel plate, white, paint
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Steel plate, t1.6, black, paint
Steel plate, t1.6, white paint
Steel plate, t1.6, black, paint
Steel plate, t1.6, white, paint
Steel plate, t1.6, black, paint
Steel plate, t1.6, white, paint
Speaker bracket: Die-cast
Speaker bracket: Die-cast
Speaker bracket: Die-cast
Speaker bracket: Die-cast
Speaker bracket: Die-cast
Speaker bracket: Die-cast
aluminum, black, paint
aluminum, white, paint
aluminum, black, paint
aluminum, white, paint
aluminum, black, paint
aluminum, white, paint
130 (W) × 202 (H) × 131 (D) mm (5.12" × 7.95" × 5.16")
1.8 kg (3.97 lb) (including the supplied brackets)
2 kg (4.41lb) (including the supplied brackets)
Speaker bracket × 1, Joint bracket × 1, Wall bracket × 1, Bracket fixing screw × 1 set
Speaker bracket × 1, Joint bracket × 1, Wall bracket × 1,
Bracket fixing screw × 1 set, Terminal cover × 1,
Terminal cover mounting screw × 4
Board hanger bracket: HY-BH10B Board hanger bracket: HY-BH10B Board hanger bracket: HY-BH10B Board hanger bracket: HY-BH10B
Speaker mount bracket: YS-60B
Ceiling mount bracket: HY-CM10B Ceiling mount bracket: HY-CM10W Ceiling mount bracket: HY-CM10B Ceiling mount bracket: HY-CM10W
Cluster bracket: HY-CL10B
Cluster bracket: HY-CL10B
Cluster bracket: HY-CL10B
Cluster bracket: HY-CL10B
HB-1, FB-10, FB-100
Sensitivity
Frequency Response
Crossover Frequency
Directivity Angle
Speaker Component
Input Terminal
Water Protection
Operating Temperature
Finish
Dimensions
Weight
Accessories
Option
Recommended Subwoofer
F-1000W
30 W (continuous pink noise)
90 W (continuous program)
—
8Ω
F-1000BT
Bass-reflex type
F-1000WT
F-1000BTWP*
F-1000WTWP*
—
* Note: Avoid installing the speaker in locations close to the seashore or in indoor swimming facilities.
F-2000 SERIES
F-2000B/W/BT/WT/BTWP/WTWP
APPEARANCE AND DIMENSIONAL DIAGRAM
235 (9.25")
244 (9.61")
TERMINAL COVER USE (F-2000BTWP/WTWP only)
6–M5 (depth 14 (0.55"))
(for bracket mounting)
50 (1.97")
Input terminal
Tapping screw 4 x 12 (accessory)
373 (14.69")
50 (1.97")
76.2 (3")
Terminal cover (accessory)
Speaker cable
.89")
48 (1
.97")
50 (1
Front View
Rotally switch
.
BTWP/WTWP only)
Notes
• For the speaker cable, use a cable with a diameter of 6 – 10 mm, which will fit the cable
bushing.
2–M5 (depth 14 (0.55"))*
(for bracket mounting)
• To ensure waterproof capabilities, firmly mount the terminal cover to the speaker and
tighten the bushing on the cover.
*Hole plugs are pre-fitted into
the holes at the factory.
Before attaching the speaker
mounting bracket to this side,
remove them using a pointed
tool.
WALL BRACKET AND JOINT BRACKET MOUNTING
Vertical installation
Horizontal: Max. 70°,
Vertical: Max. 45° downward
Horizontal installation
Horizontal: Max. 45°,
Vertical: Max. 45° downward
Joint bracket mounting
Hexagon bolt M6 x 12
(with plain washer
and spring washer)
Wall bracket
Horizontal speaker
mounting (indoor
installation only)
4-ø6mm
45mm
Wall bracket mounting
30mm
* Screwed onto the Terminal cover at the factory
Rear View (F-2000BT/WT/
Side View
Bottom View
[Stripped conductor]
10mm
Bushing*
Joint bracket
45mm
Joint bracket
Fixing bolt
M6 x 85
Fixing bolt M6 x 85
4-ø6mm
45mm
Speaker bracket
45mm
SPECIFICATIONS
Model No.
Enclosure Type
Power Handling Capacity
F-2000B
Rated Input
Rated Impedance
60 W
100V line: 170Ω (60W), 330 Ω (30W), 670 Ω (15W), 3.3 kΩ (3W)
70V line: 83Ω (60W), 170Ω (30W), 330 Ω (15W), 670 Ω (7.5W), 3.3 kΩ (1.5W)
92 dB (1W, 1m) at installation in 1/2 free sound field
93 dB (1W, 1m) at installation in 1/2 free sound field (with horn adapter)
65 - 20,000 Hz, -10 dB at installation in 1/2 free sound field
2.5 kHz
Horizontal: 110º, Vertical: 100º
Horizontal: 80º, Vertical: 80º (with horn adapter)
Low frequency: 20 cm (8") cone-type
High frequency: 25 mm (1") dome tweeter
Push-in terminal
—
IPX4
—
–10°C to +50°C (14°F to 122°F)
Enclosure: HIPS resin, black
Enclosure: HIPS resin, white
Enclosure: HIPS resin, black
Enclosure: HIPS resin, white
Enclosure: HIPS resin, black
Enclosure: HIPS resin, white
Punched net: Surface-treated
Punched net: Surface-treated
Punched net: Surface-treated
Punched net: Surface-treated
Punched net: Surface-treated
Punched net: Surface-treated
steel plate, black, paint
steel plate, white, paint
steel plate, black, paint
steel plate, white, paint
steel plate, black, paint
steel plate, white, paint
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Joint bracket, wall bracket:
Steel plate, t1.6, black, paint
Steel plate, t1.6, white paint
Steel plate, t1.6, black, paint
Steel plate, t1.6, white, paint
Steel plate, t1.6, black, paint
Steel plate, t1.6, white, paint
Speaker bracket: Die-cast
Speaker bracket: Die-cast
Speaker bracket: Die-cast
Speaker bracket: Die-cast
Speaker bracket: Die-cast
Speaker bracket: Die-cast
aluminum, black, paint
aluminum, white, paint
aluminum, black, paint
aluminum, white, paint
aluminum, black, paint
aluminum, white, paint
244 (W) × 373 (H) × 235 (D) mm (9.61" × 14.69" × 9.25")
6.5 kg (14.33 lb) (including the supplied brackets)
7.4 kg (16.31lb) (including the supplied brackets)
Speaker bracket × 1, Joint bracket × 1, Wall bracket × 1,
Speaker bracket × 1, Joint bracket × 1, Wall bracket × 1,
Bracket fixing screw × 1 set,
Bracket fixing screw × 1 set,
Horn adapter x 1, Horn adapter mounting screw x 4
Horn adapter x 1, Horn adapter mounting screw x 4,
Terminal cover x 1,Terminal cover mounting screw × 4
Ceiling mount bracket: HY-CM20B Ceiling mount bracket: HY-CM20W Ceiling mount bracket: HY-CM20B Ceiling mount bracket: HY-CM20W
Speaker mount bracket: SP-131, YS-60B
Cluster bracket: HY-CL20B
Cluster bracket: HY-CL20B
Cluster bracket: HY-CL20B
Cluster bracket: HY-CL20B
FB-100, FB-120B/W
Sensitivity
Frequency Response
Crossover Frequency
Directivity Angle
Speaker Component
Input Terminal
Water Protection
Operating Temperature
Finish
Dimensions
Weight
Accessories
Option
Recommended Subwoofer
F-2000W
60 W (continuous pink noise)
180 W (continuous program)
—
8Ω
F-2000BT
Bass-reflex type
F-2000WT
F-2000BTWP*
F-2000WTWP*
—
* Note: Avoid installing the speaker in locations close to the seashore or in indoor swimming facilities.
F-1000 SERIES
CHARACTERISTIC DIAGRAMS
Polar Response
0°
10
330°
30°
0
-10
60°
vertical
horizontal
0°
10
30°
330°
0
-10
300°
-20
60°
300°
-20
-30
-30
-40
-40
270°
90°
150°
-40
-30
240°
-30
-20
120°
240°
150°
500Hz
400Hz
315Hz
240°
10
180°
150°
30°
60°
330°
300°
150°
0
240°
0
150°
4000Hz
3150Hz
2500Hz
330°
30°
0
-10
60°
300°
-20
300°
60°
0
-40
150°
240°
240°
0
240°
0
150°
240°
10
180°
16000Hz
12500Hz
10000Hz
90
90
SPL (dB)
SPL (dB)
100
80
SPL (dB)
110
80
70
80
70
50
60
60
40
50
50
500
1k
5k
10k
40
20k
Frequency (Hz)
40
30
20
Phase vs. Frequency
180
16000Hz
12500Hz
10000Hz
SPL vs. Frequency
100
100
240°
10
180°
• with HF Horn Adapter
110
50
0
150°
8000Hz
6300Hz
5000Hz
90
60
240°
-10
100
70
-20
120°
-10
SPL vs. Frequency
110
-30
-20
120°
• without HF Horn Adapter
SPL vs. Frequency
-40
-30
240°
10
180°
8000Hz
6300Hz
5000Hz
270°
90°
-10
-10
10
180°
-30
-40
-20
120°
300°
-20
270°
-30
240°
60°
-40
-40
-20
300°
90°
-30
0
-10
270°
90°
-40
4000Hz
3150Hz
2500Hz
330°
30°
-30
270°
240°
10
180°
0°
10
-20
-40
-40
0
150°
2000Hz
1600Hz
1250Hz
0
-30
90°
240°
330°
30°
240°
-10
-10
-20
-30
-20
120°
0°
10
330°
0
-10
240°
10
180°
0°
10
0°
10
-30
-20
120°
-10
10
180°
2000Hz
1600Hz
1250Hz
-40
-30
240°
-10
240°
270°
90°
-40
-20
-10
0
-40
270°
-30
120°
300°
-20
-40
90°
-30
240°
60°
-30
270°
-40
10
180°
300°
-20
-40
90°
-40
0
-10
-30
270°
1000Hz
800Hz
630Hz
330°
30°
0
60°
240°
0°
10
-10
-20
240°
10
180°
330°
30°
0
-30
-20
150°
500Hz
400Hz
315Hz
0°
10
-10
300°
240°
10
180°
1000Hz
800Hz
630Hz
0°
10
-40
30
20
-20
120°
0
90°
150°
270°
90°
-10
-30
120°
-40
270°
0
-20
60°
-40
-10
330°
30°
-30
0
240°
300°
-20
-10
0
150°
60°
-30
0
-10
120°
300°
-20
-40
-20
120°
0°
10
60°
-10
-10
10
180°
30°
60°
-30
240°
0
-10
-40
-30
330°
30°
90°
-40
-20
0°
10
330°
0
270°
90°
120°
0°
10
30°
50
100
500
1k
5k
10k
30
20
20k
50
100
500
1k
Frequency (Hz)
Frequency (Hz)
Phase vs. Frequency
Phase vs. Frequency
180
180
90
90
5k
10k
20k
5k
10k
20k
5k
10k
20k
5k
10k
20k
Hor.
Ver.
0
-90
Phase (deg)
Phase (deg)
Phase (deg)
90
0
-90
-180
20
50
100
500
1k
5k
10k
0
-90
20k
-180
20
Frequency (Hz)
50
100
500
1k
5k
10k
-180
20
20k
50
100
Frequency (Hz)
Impedance vs. Frequency
Impedance vs. Frequency
200
500
1k
Frequency (Hz)
Impedance vs. Frequency
200
200
100
100
10
5
1
20
50
100
500
1k
5k
10k
50
10
5
1
20
20k
Frequency (Hz)
50
100
500
1k
5k
10k
10
500
1k
Frequency (Hz)
50
100
5k
10k
20k
Hor.
Ver.
500
1k
Beamwidth vs. Frequency
200
Beamwidth (deg)
Beamwidth (deg)
50
100
5
Frequency (Hz)
200
100
50
10
1
20
20k
Beamwidth vs. Frequency
200
20
50
Frequency (Hz)
Beamwidth vs. Frequency
Beamwidth (deg)
Impedance (ohm)
50
Impedance (ohm)
Impedance (ohm)
100
100
50
10
100
50
10
20
50
100
500
1k
Frequency (Hz)
5k
10k
20k
Hor.
Ver.
20
50
100
500
1k
Frequency (Hz)
F-2000 SERIES
CHARACTERISTIC DIAGRAMS
• without HF Horn Adapter
Polar Response
0°
10
330°
30°
0
-10
60°
330°
0
-10
300°
-20
60°
300°
-20
-30
-30
-40
-40
270°
90°
-30
-30
240°
-20
120°
0
240°
150°
150°
240°
330°
30°
300°
60°
330°
30°
0
-10
60°
300°
-20
0
0
150°
240°
10
180°
0°
10
330°
30°
0
300°
60°
30°
330°
-40
0
-10
60°
300°
-10
0
0
150°
240°
10
180°
300°
-30
-40
270°
-40
-30
-20
0
150°
330°
0
-20
-30
120°
240°
-10
8000Hz
6300Hz
5000Hz
4000Hz
3150Hz
2500Hz
90°
-10
240°
60°
-40
-20
240°
270°
-30
10
180°
300°
-40
-40
120°
240°
-10
90°
-30
0
10
180°
30°
270°
-40
-10
0°
10
-20
-40
90°
240°
150°
2000Hz
1600Hz
1250Hz
-30
270°
-20
240°
330°
0
-10
-30
90°
-20
120°
0°
10
-20
-30
240°
10
180°
4000Hz
3150Hz
2500Hz
0°
10
-10
-30
-20
120°
-10
150°
270°
-40
-30
240°
0
-20
-40
90°
-10
2000Hz
1600Hz
1250Hz
300°
-30
270°
-10
240°
330°
0
-20
-40
-20
120°
60°
-40
-30
10
180°
300°
90°
-30
1000Hz
800Hz
630Hz
-10
270°
-40
240°
30°
-30
90°
-40
240°
0°
10
-20
-40
240°
10
180°
330°
0
-10
-30
-20
150°
500Hz
400Hz
315Hz
0°
10
0°
10
0
240°
10
180°
1000Hz
800Hz
630Hz
10
180°
500Hz
400Hz
315Hz
270°
150°
-30
-20
-10
-40
120°
-40
0
90°
60°
270°
90°
0
-30
30°
-40
270°
0
-20
150°
-30
-40
120°
240°
300°
-20
-10
-10
120°
60°
-30
-10
0°
10
60°
300°
-20
-40
-20
120°
330°
0
-10
-10
10
180°
30°
60°
-30
240°
30°
-10
-40
-20
0°
10
330°
0
90°
-40
150°
30°
270°
90°
120°
0°
10
vertical
horizontal
0°
10
30°
240°
240°
10
180°
16000Hz
12500Hz
10000Hz
-20
120°
150°
-10
0
240°
240°
10
180°
8000Hz
6300Hz
5000Hz
16000Hz
12500Hz
10000Hz
• with HF Horn Adapter
Polar Response
60°
330°
30°
330°
0
0
-10
-10
60°
300°
-20
300°
-20
-30
-30
-40
-40
270°
270°
150°
240°
-40
-30
-20
120°
240°
-20
120°
0
150°
240°
10
180°
500Hz
400Hz
315Hz
150°
330°
30°
300°
60°
30°
330°
0
-10
-30
-10
150°
2000Hz
1600Hz
1250Hz
0
330°
30°
0
150°
240°
300°
60°
330°
30°
0
300°
-10
150°
0
10
180°
300°
60°
-30
-40
270°
-40
-30
-20
120°
240°
-20
120°
-10
150°
16000Hz
12500Hz
10000Hz
300°
-20
-30
240°
330°
0
-10
90°
-10
8000Hz
6300Hz
5000Hz
30°
-40
240°
4000Hz
3150Hz
2500Hz
270°
-30
240°
330°
0
-40
-20
240°
0°
10
-20
-40
120°
0
10
180°
90°
-30
0
150°
2000Hz
1600Hz
1250Hz
270°
-40
10
180°
60°
-40
90°
240°
240°
-30
270°
-20
0
240°
-10
-10
-20
-40
-20
120°
0°
10
-30
90°
-30
240°
10
180°
4000Hz
3150Hz
2500Hz
-10
-30
-40
-20
120°
0°
10
-10
270°
90°
-10
10
180°
0°
10
-20
-40
270°
-10
240°
300°
-30
-30
240°
330°
0
-20
-40
-20
120°
60°
-40
-30
10
180°
300°
90°
-40
240°
30°
270°
-40
1000Hz
800Hz
630Hz
-10
-20
-40
240°
0°
10
-30
90°
0
60°
300°
-20
240°
10
180°
330°
0
-10
-30
-20
150°
500Hz
400Hz
315Hz
0°
10
0°
10
0
240°
10
180°
1000Hz
800Hz
630Hz
270°
150°
270°
90°
-10
-40
120°
-40
270°
0
90°
60°
-40
-10
-30
30°
-30
0
240°
300°
-20
-10
-20
150°
60°
-30
0
-10
120°
300°
-20
-30
240°
330°
0
-10
-40
-20
120°
0°
10
60°
30°
-10
10
180°
30°
60°
-30
-30
-20
0°
10
330°
0
-10
-40
-40
120°
30°
90°
90°
90°
0°
10
vertical
horizontal
0°
10
0°
10
30°
0
10
180°
240°
-10
240°
150°
8000Hz
6300Hz
5000Hz
0
10
180°
240°
16000Hz
12500Hz
10000Hz
OPTIONAL BRACKETS
• Finish:
Steel plate, black, paint
• Dimensions: 109.3 (W) × 39 (H) × 109.3 (D)mm (4.3" × 1.54" × 4.3")
• Weight:
380g (0.84 lb)
172 (6.77")
68 (2.68")
• For F-1000 Series
HY-CL10B
HY-CL20B
109 (4.3")
HY-CL10B
213.3 (8.4")
CLUSTER BRACKET
68 (2.68")
109 (4.3")
Top View
172 (6.77")
213.3 (8.4")
Top View
30
(1.18")
Front View
71 (2.8")
16–ø4.8 (ø0.19")
16–M5
45
(1.77")
39
(1.54")
• For F-2000 Series
HY-CL20B
• Finish:
Steel plate, black, paint
• Dimensions: 213.3 (W) × 71 (H) × 213.3 (D)mm (8.4" × 2.8" × 8.4")
• Weight:
1.2kg (2.65 lb)
12–ø5.8 (ø0.23")
(suspension hole)
ø9.8 (ø0.39")
6.7 (2.64")
16–M5
25
(0.98")
8–ø5.8 (ø0.23")
(suspension hole)
ø9.8 (ø0.39")
45
(1.77")
110 (4.33")
Front View
CEILING MOUNT BRACKET
• For F-2000 Series
HY-CM20B/W
• For F-1000 Series
• Finish:
Steel plate, black, paint (HY-CM20W: white, paint)
• Dimensions: 84 (W) × 135 (H) × 175 (D)mm (3.31" × 5.31" × 6.89")
• Weight:
610g (1.34 lb)
• Finish:
Steel plate, black, paint (HY-CM10W: white, paint)
• Dimensions: 48 (W) × 100 (H) × 108 (D)mm (1.89" × 3.94" × 4.25")
• Weight:
210g (0.46 lb)
9.8 X 41.8
ø9.8 (ø0.39")
45 (1.77")
(0.2 6.3
5")
Top View
30°
15°
Top View
ø40
(ø1.57")
ø120 (ø4.72")
ø70 (ø2.76")
108 (4.25")
48 (1.89")
5")
(0.2
6.3
7.2 (2.85")
(0.39" X 1.65")
.25")
6.4 (0
40°
HY-CM10B/W
10 (0.39")
3 (0.12")
ø9.8 (ø0.39")
3 (0.12")
30
(1.18")
45
(1.77")
84 (3.31")
Side View
POLE MOUNT BRACKET
A
A'
11 (0.43")
A – A'
Top View
32 (1.26") 29 (1.14")
31 (1
.22")
11 (0.43")
19
(0.75")
22
(0.87")
ø4 (ø0.16")*
(sliding bracket
fixing screw)
51 (2.01")
48.6 (1.91")
[Hanger bracket]
[Sliding bracket]
* When protection against falls is required:
Fix the sliding bracket directly to the partition board
using screws. Note the at the fixing screws are not supplied.
• Finish:
• Weight:
R90
Bracket: Stainless (SUS304)
Bolt, nut, washer: Stainless
330 g (0.73 lb.) (per bracket)
* 2 units in set
40
(1.57")
SP-131*
Side View
30
(1.18")
56
(2.20")
Front View
Side View
5 (0.2")
ø9.8 (ø0.39")
30 (1.18")
48 (1.89")
4–M5
34.2 (1.35")
3
1.2 (0.05")
115 (4.53")
37 (1.46")
[Knob bolt]
10
(0.39")
3 (0.12")
100 (3.94")
20 (0.79")
Top View
40 (1.57")
2–M8
108 (4.25")
48 (1.89")
Applicable Pole:
Approx. ø90 (ø3.5") to ø340 (ø13.4") mm
Finish:
Electroless zinc-plated
Weight:
360g (0.79lb.) (per band)
Product Composition: Mounting band x 2
15 (0.59")
9.8 (0.39")
.97")
(ø1
ø50
•
•
•
•
1200 (47.24")
37
(1.46
")
YS-60B
• Finish:
Steel plate, black, paint
• Dimensions: 48 (W) × 100 (H) × 108 (D)mm (1.89" × 3.94" × 4.25")
(excluding knob bolt)
• Weight:
210g (0.46 lb)
25 (0.98")
110 (4
.33")
60 (2.3
6")
• For F-1000 Series
HY-BH10B
Front View
12 (0.47")
25 (0.98")
M10
14 (0.55")
1.2 (0.05")
25 (0.98")
BOARD HANGER BRACKET
Bottom View
17
(0.67")
Front View
30
(1.18")
4–M5
45
(1.77")
25
(0.98")
Side View
32 (1.26")
4–M5
135 (5.31")
20 (0.79")
ø9.8 (ø0.39")
Front View
100 (3.94")
175 (6.89")
136 (5.35")
TOA Corporation
http//www.toa.jp/
Specifications are subject to change without notice.
Printed in Japan (0703) 833-61-652-20 u
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
