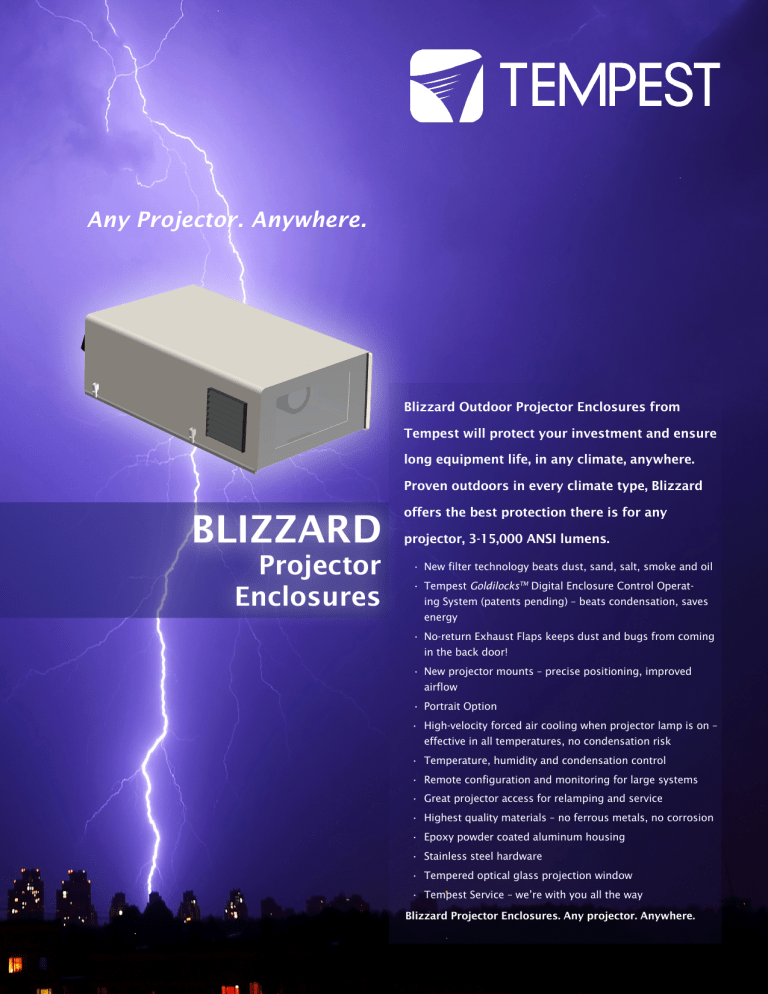

Any Projector. Anywhere.
Blizzard Outdoor Projector Enclosures from
Tempest will protect your investment and ensure
long equipment life, in any climate, anywhere.
Proven outdoors in every climate type, Blizzard
BLIZZARD
Projector
Enclosures
offers the best protection there is for any
projector, 3-15,000 ANSI lumens.
• New filter technology beats dust, sand, salt, smoke and oil
• Tempest GoldilocksTM Digital Enclosure Control Operating System (patents pending) – beats condensation, saves
energy
• No-return Exhaust Flaps keeps dust and bugs from coming
in the back door!
• New projector mounts – precise positioning, improved
airflow
• Portrait Option
• High-velocity forced air cooling when projector lamp is on –
effective in all temperatures, no condensation risk
• Temperature, humidity and condensation control
• Remote configuration and monitoring for large systems
• Great projector access for relamping and service
• Highest quality materials – no ferrous metals, no corrosion
• Epoxy powder coated aluminum housing
• Stainless steel hardware
• Tempered optical glass projection window
• Tempest Service – we’re with you all the way
Blizzard Projector Enclosures. Any projector. Anywhere.
Outdoor
Tempest enclosures are
installed in some very hot
places — think Las Vegas,
Dubai, Singapore.
Video Mapping
Advertising
Theme Parks
Cruise Ships
Tempest Blizzard Outdoor projector
enclosures are running every day in
every climate type we know. Deserts, tropical heat, northern winters — even at sea.
New Filter Technology
Remote Monitoring
the pool area, to eliminate ‘back-
All new Blizzards come with high
performance hydrophobic air filters
that block dust, sand, oil, moisture
and contaminates like salt and chlorine, keeping the interior clean and
Outdoor enclosures can end up in
some inaccessible places. Now you
can monitor the environment in your
enclosures over a simple RS485 link
with our RDM
interface and PC
application.
door’ entry of harmful contaminants.
GoldilocksTM
Part # 6500.REF
How do we keep projectors
pristine in any environment.
New Projector Mounts
All Blizzards now incorporate flexible and secure projector mounting
clamps. Any projector, anywhere.
Now at any angle, with fingertip pan,
tilt and roll adjustment.
No-return Exhaust
Protection
Exhaust doors on Outdoor Blizzard
6550 models and up open when
the enclosure fans are running and
close automatically when not in use,
further protecting the interior from
winblown particles.
Extreme Temperatures?
Specify a Blizzard Thermal Insulation
kit to moderate temperatures in hot
(>40°C) and cold (<0°C) environments. Save energy and prolong
NEW — Portrait Option
Blizzard
enclosures are
now available
Part # 2000.190
to special order
in portrait
Pools, Spas and Ice Rinks
Use Blizzard Outdoor for protection
from humidity and corrosive chemicals, and a Blizzard Remote Exhaust
Fan kit (two kits for Blizzard 6555
and up). The exhaust fan is on a
25’/7.6m hose, and installs outside
New Blizzard projector mount
adapts to any projector, with
precise pan, tilt, and roll
adjustment
from roasting when it’s 50°C
and there’s no shade?
And prevent condensation
from destroying your projector overnight?
Tempest’s new GoldilocksTM
format. Contact
Operating System (patents
factory for
pending) brings enclosure
details.
control to a new level:
Goldilocks keeps the air tem-
No-return exhaust flaps prevent
passive ingress of dust, bugs
and pollutants
Powerful AC fans change the
air every 1-2 seconds when the
projector lamp is running
EPDM Rubber
weather seals
perature inside your enclosure just right, removing heat
from the projector when the
lamp is on or when the enclosure is heated by the sun.
We’re changing the air about
every second.
Goldilocks uses a heater to
equipment life.
maintain a minimum temper-
Part # 6500.TI
ature in cold climates.
XYZ Mount Option
And Goldilocks tracks tem-
Attaches enclosure to the bottom of
a vertical pipe (1½” ID, 48mm OD),
with 360° pan, ± 80° tilt and ± 5° roll
adjustments for
precise position-
perature and humidity 24/7,
ing.
Part # 6500.XYZ
keeping relative humidity inside your enclosure just right
Tempered
optical glass
window
Heater (outdoor
models)
by using heaters to raise the
air temperature when needed,
DEC3.3 Control with GoldilocksTM technology
– never too hot, never too cold, and a big NO
to condensation (outdoor models)
adapting constantly to prevent deadly condensation.
ConstructionAluminum, plated and epoxy powder coated for
excellent corrosion resistance, stainless steel.
Heating
Heating element maintains minimum operating
temperature and prevents condensation
Mounting
Enclosure may be mounted base down or base up.
Cooldown
2 x stainless steel Unistruts under base.
Fan(s) run for up to 15 minutes after lamp turns
off
Optional Accessories (4 per enclosure)
Protection
Projector power is safely isolated by a 2-pole
power relay in the event of overheating.
Power
120VAC or 200-240VAC, 50/60Hz, 5amps max.
Single or split feed wiring for enclosure and projector
4900.MB Stainless Steel Bolt kit: 1/2” bolt, washer,
Spring nut (shaded)
4900.MC Stainless Steel pipe clamp kit, for
pipes 1.5” (38mm) to 2” (50mm) OD.
Projector
Power OutletDuplex IEC C14, rated 15amps (USA),10amps
(International). Rewireable plug provided.
4925.MC Stainless Steel pipe clamp kit, for
pipes 2” (50mm) to 2.5”/64mm OD.
Security
Approvals
Heavy duty stainless steel latches, may be padlocked for security.
Access
Removable cover for projector access
Color
Standard light bronze. Custom colors to order.
Control
Tempest Lighting patented DEC3.3 control system.
Cooling
High-power AC fan(s) change(s) air every 1-2 seconds when projector lamp is on
Ordering Guide:
____.___
Americas: ETL and cETL listed to UL 50, 508
International: Low Voltage Directive 2006/95/
EC, Electromagnetic Compatibility Directive
2004/108/EC, EN 60065:2002, EN 60529:20012002, EN 61000-6-3:2007+A1:2011, EN61000-61:2007, EN55015:2006+A2:2009
NEMA Type 3R Enclosure (≈IP54)
Patents
Protected by US Patent # 6,352,358. Other patents
pending.
example:
6550.INO
Electrical
US 120V, NEMA standard
North America
IN 230V, CE Standard
Need Something
Bigger?
Our Cyclone Series
picks up where
Blizzard leaves off,
for projectors up to
40,000 ANSI lumens
Type
O Outdoor
International
Model
Description
Dimensions (lwh)
Weight
Projector Maximum (lwh) *
6515
Blizzard Baby
24x20x11”
61x51x28cm
30lb/14kg
17”/43cm
16.5”/42cm
8.5”/22cm
6540
Blizzard Midi
28x24x11”
71x61x28cm
45lb/20kg
21.5”/55cm
20”/51cm
8.5”/22cm
6550
Blizzard
33x30x14”
79x76x36cm
69lb/31kg
25”/64cm
26”/66cm
12”/30cm
6555
Blizzard Stretch
45x30x16”
114x76x41cm
89lb/40kg
35”/89cm
26”/66cm
14”/36cm
6556
Blizzard X-Stretch
53x30x16”
135x76x41cm
98lb/45kg
42”/107cm
26”/66cm
14”/36cm
Options and Accessories
* Be sure to include the lens and
cables/connectors in your projector size calculation!
2000.190
JESE RDM-TRI PC Interface and GetSet Software
6500.REF
Remote Exhaust Fan Kit
6500.TI
Thermal Insulation Kit
6500.ECK
Exterior Cowl Kit for Blizzard HUSH Remote Fan
6500.XYZ
Blizzard XYZ Mount
6500.977.HF
Spare 8.5”/22cm Hydrophobic Filter (Baby, Midi, Blizzard). 2 per enclosure.
6500.799.HF
Spare 11”/28cm Hydrophobic Filter (Stretch, X-Stretch). 2 per enclosure.
Shipping
6515
Carton 26” x 26” x 13” (66 x 66 x 33cm), weight 45lb/20kg
6540
Carton 36” x 36” x 24” (91 x 91 x 61cm), weight 65lb/30kg
6550
Carton 36” x 36” x 24” (91 x 91 x 61cm), weight 95lb/43kg
6555
Carton 52” x 34” x 20” (130 x 84 x 48cm), weight 120lb/55kg
6556
Carton 52” x 34” x 20” (130 x 84 x 48cm), weight 135lb/61kg
All Schedule B Export Code: 8536.30.0000
User Manual
For installation/operating instructions, download the Blizzard User
Manual from www.tempestlighting.com
Made in the USA
©Tempest Lighting, Inc., April, 2015
In the interest of continuous product improvement, specifications are subject to change without notice
Tempest Lighting, Inc.,
11845 Wicks Street, Sun Valley, CA 91352, USA
www.tempest.org [email protected]
t: +1 818 787 8984
f: +1 818 252 7101
