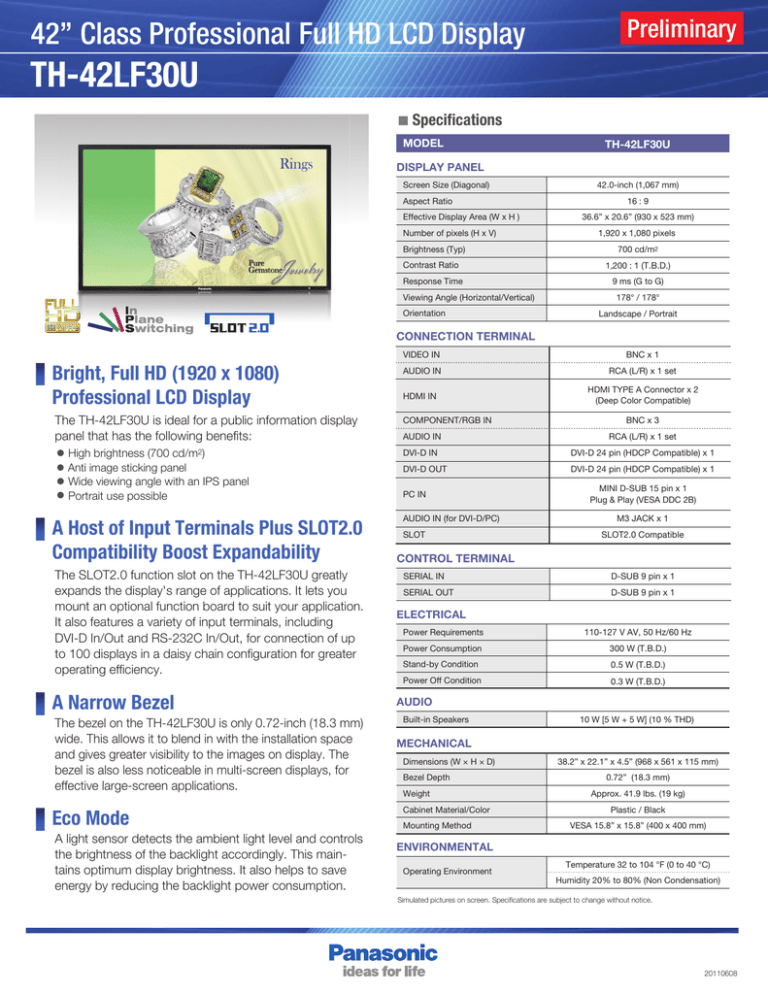

Panasonic TH-42LF30U Datasheet

Panasonic TH-42LF30U Datasheet
42” Class Professional Full HD LCD Display
Preliminary
TH-42LF30U
Specifications
MODEL
TH-42LF30U
DISPLAY PANEL
Screen Size (Diagonal)
Aspect Ratio
Effective Display Area (W x H )
Number of pixels (H x V)
Brightness (Typ)
42.0-inch (1,067 mm)
16 : 9
36.6” x 20.6” (930 x 523 mm)
1,920 x 1,080 pixels
700 cd/m2
Contrast Ratio
1,200 : 1 (T.B.D.)
Response Time
9 ms (G to G)
Viewing Angle (Horizontal/Vertical)
Orientation
178° / 178°
Landscape / Portrait
CONNECTION TERMINAL
Bright, Full HD (1920 x 1080)
Professional LCD Display
The TH-42LF30U is ideal for a public information display
panel that has the following benefits:
• High brightness (700 cd/m2)
• Anti image sticking panel
• Wide viewing angle with an IPS panel
• Portrait use possible
A Host of Input Terminals Plus SLOT2.0
Compatibility Boost Expandability
The SLOT2.0 function slot on the TH-42LF30U greatly
expands the display's range of applications. It lets you
mount an optional function board to suit your application.
It also features a variety of input terminals, including
DVI-D In/Out and RS-232C In/Out, for connection of up
to 100 displays in a daisy chain configuration for greater
operating efficiency.
A Narrow Bezel
The bezel on the TH-42LF30U is only 0.72-inch (18.3 mm)
wide. This allows it to blend in with the installation space
and gives greater visibility to the images on display. The
bezel is also less noticeable in multi-screen displays, for
effective large-screen applications.
Eco Mode
A light sensor detects the ambient light level and controls
the brightness of the backlight accordingly. This maintains optimum display brightness. It also helps to save
energy by reducing the backlight power consumption.
VIDEO IN
BNC x 1
AUDIO IN
RCA (L/R) x 1 set
HDMI IN
HDMI TYPE A Connector x 2
(Deep Color Compatible)
COMPONENT/RGB IN
BNC x 3
AUDIO IN
RCA (L/R) x 1 set
DVI-D IN
DVI-D 24 pin (HDCP Compatible) x 1
DVI-D OUT
DVI-D 24 pin (HDCP Compatible) x 1
PC IN
AUDIO IN (for DVI-D/PC)
SLOT
MINI D-SUB 15 pin x 1
Plug & Play (VESA DDC 2B)
M3 JACK x 1
SLOT2.0 Compatible
CONTROL TERMINAL
SERIAL IN
D-SUB 9 pin x 1
SERIAL OUT
D-SUB 9 pin x 1
ELECTRICAL
Power Requirements
110-127 V AV, 50 Hz/60 Hz
Power Consumption
300 W (T.B.D.)
Stand-by Condition
0.5 W (T.B.D.)
Power Off Condition
0.3 W (T.B.D.)
AUDIO
Built-in Speakers
10 W [5 W + 5 W] (10 % THD)
MECHANICAL
Dimensions (W × H × D)
Bezel Depth
Weight
Cabinet Material/Color
Mounting Method
38.2” x 22.1” x 4.5” (968 x 561 x 115 mm)
0.72” (18.3 mm)
Approx. 41.9 lbs. (19 kg)
Plastic / Black
VESA 15.8” x 15.8” (400 x 400 mm)
ENVIRONMENTAL
Operating Environment
Temperature 32 to 104 °F (0 to 40 °C)
Humidity 20% to 80% (Non Condensation)
Simulated pictures on screen. Specifications are subject to change without notice.
20110608
