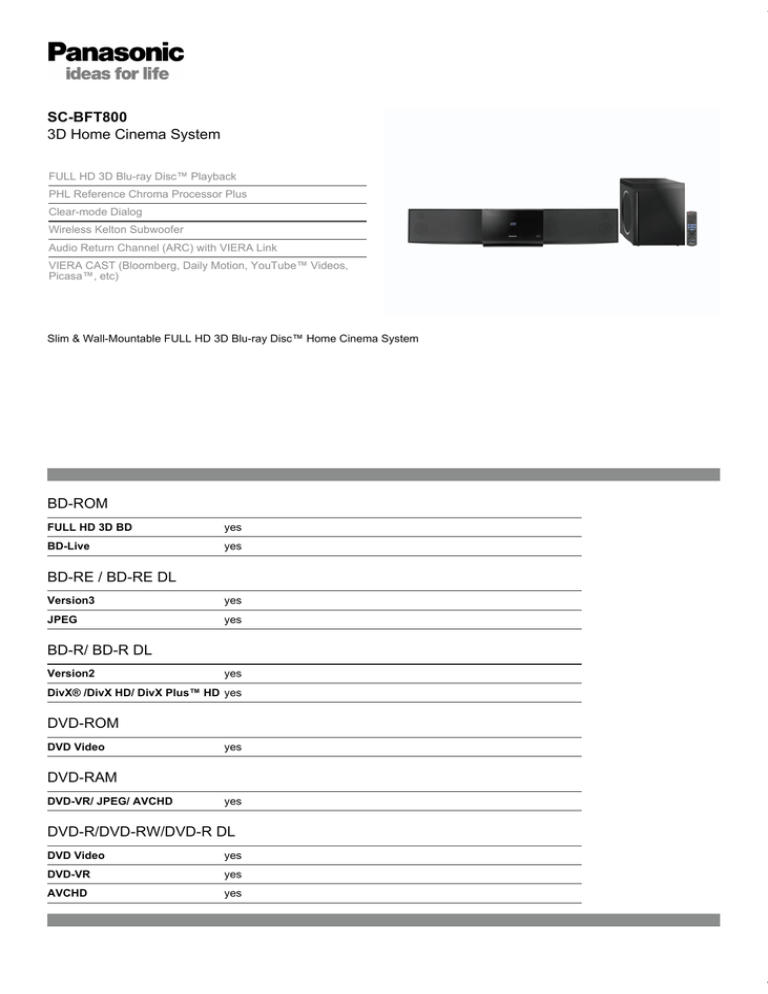

SC-BFT800
3D Home Cinema System
FULL HD 3D Blu-ray Disc™ Playback
PHL Reference Chroma Processor Plus
Clear-mode Dialog
Wireless Kelton Subwoofer
Audio Return Channel (ARC) with VIERA Link
VIERA CAST (Bloomberg, Daily Motion, YouTube™ Videos,
Picasa™, etc)
Slim & Wall-Mountable FULL HD 3D Blu-ray Disc™ Home Cinema System
BD-ROM
FULL HD 3D BD
yes
BD-Live
yes
BD-RE / BD-RE DL
Version3
yes
JPEG
yes
BD-R/ BD-R DL
Version2
yes
DivX® /DivX HD/ DivX Plus™ HD yes
DVD-ROM
DVD Video
yes
DVD-RAM
DVD-VR/ JPEG/ AVCHD
yes
DVD-R/DVD-RW/DVD-R DL
DVD Video
yes
DVD-VR
yes
AVCHD
yes
JPEG/ MP3/ DivX® /DivX HD/ Di- yes (DVD-R/-R DL only)
vX Plus™ HD
+R/ +R DL / +RW
Video
yes
AVCHD
yes
CD
CD-DA
yes
CD-R/-RW
CD-DA
yes
MP3
yes
JPEG
yes
DivX® /DivX HD/ DivX Plus™ HD yes
SD Memory Card (SDHC/SDXC)
AVCHD/ JPEG / MPEG2
yes
USB
MP3/ JPEG/ DivX® /DivX HD/ Di- yes
vX Plus™ HD
Television Signal System
PAL / NTSC
RECEIVER SECTION
Output Channel
2 ch Digital Amp + Active SW
Power Output - Home Cinema(Theater) Mode (RMS)
Total Power
300 W
Front
90 W x 2 (1 kHz, 4 ohms, 10 % THD)
Subwoofer
120 W (100 Hz, 8 ohms, 10 % THD)
Digital Amplifier
yes
Dolby Digital Decoder
yes (Dolby TrueHD, Dolby Digital Plus, Dolby Digital)
Dolby Pro LogicII
yes
Dolby Virtual Speaker
yes
DTS Decoder
yes (DTS-HD Master Audio Essential, DTS-HD High Resolution Audio,
DTS)
Clear-mode Dialogue
yes
ARC (Audio Return Channel)
yes
High Clarity Sound
yes
7.1ch Virtual Surround
yes
Whisper-mode Surround
yes
96kHz Surround Re-master
yes
EQ
yes (4 preset)
Subwoofer Level
yes
RDS
yes
Digital Synthesizer Tuner
yes
Station Presets
30-FM
Remote Control
yes (AV Remote Control)
VIDEO SECTION
PHL Reference Chroma Proces- yes
sor Plus
High Precision 4:4:4
yes (Adaptive High Precision 4:4:4)
Enhanced Full HD Up Sampling yes
(New P4HD)
P4HD (Pixel Precision Progressi- yes
ve Processing for HD)
Video D/A Converter
148.5 MHz/12bit
Digital Noise Reduction
yes
1080/24p Playback
yes
Deep Colour
yes
x.v.colour™
yes
Picture Mode
yes
Picture Adjustment
yes
Zoom Function (JPEG)
yes
CONVENIENT
VIERA Link
yes (HDAVI Control 5)
Easy Setup
yes
VIERA CAST
yes
Wireless LAN System
Ready
DLNA
yes
Universal Dock for iPod/ iPhone Integrated
iPod / iPhone Playback (Music / yes
Video /Photo )
iPod/ iPhone Full Title List on
Screen Display for Music & Video Content
yes
Wall-Mountable
yes
INPUT/ OUTPUT
SD Memory Card Slot
1
USB Slot
2 (Front 1, Rear 1 for Wi-fi )
Ethernet for Network
yes (for BD-Live, VIERA CAST and Firmware Update)
HDMI Output
Support features
1port: 3D, ARC, Content type
Video Out
1
Digital Audio Input
1 (optical)
Wireless Terminal
1 (for Wireless Subwoofer)
Weight (kg) [Approx.] (Main Set) 5.5
Dimensions (mm) [Approx.] (Main Set) (When Wall Setting, Recommended Layout)
Width (mm) [Approx.]
1035
Height (mm) [Approx.]
188
Depth (mm) [Approx.]
85
Dimensions (mm) [Approx.] (Main Set) (When Table Setting)
Width (mm) [Approx.]
1035
Height (mm) [Approx.]
195
Depth (mm) [Approx.]
91
Standby Power Consumption
[Approx.] (Main Unit)
0.1 W
SPEAKER SYSTEM
Front
Configuration
2 way 2 speaker, Bass-ref.
Speaker Unit [Approx.]
Woofer: 6.5cm Cone Type x 2, Tweeter: 2.5cm Semi-dome Type x 2
Wireless Subwoofer
Configuration
1 way 1 speaker (Kelton Type)
Speaker Unit [Approx.]
Woofer: 16cm Cone Type, Passive Radiator: 25cm
Weight (kg) [Approx.] (Rx:Subwoofer)/ (Tx:Digital transmitter
card)
6.7 (Rx), 0.0095 (Tx)
Dimensions (W x H x D)(mm)
[Approx.] (Rx:Subwoofer)/ (Tx:
Digital transmitter card)
250 x 323 x 356 (Rx), 43.5 x 37.3 x 8.2 (Tx)
