NEW

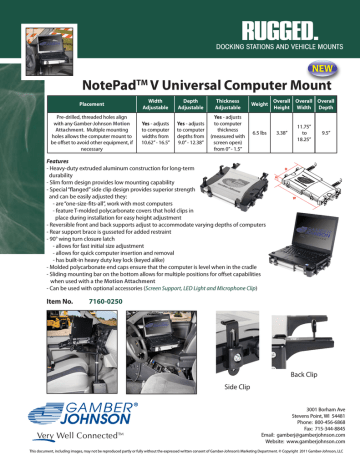

NotePadTM V Universal Computer Mountt
Placement
Width
Adjustable
Depth
Adjustable
Thickness
Adjustable
Weight
Pre-drilled, threaded holes align
with any Gamber-Johnson Motion
Attachment. Multiple mounting
holes allows the computer mount to
be offset to avoid other equipment, if
necessary
Yes - adjusts
to computer
widths from
10.62” - 16.5”
Yes - adjusts
to computer
depths from
9.0” - 12.38”
Yes - adjusts
to computer
thickness
(measured with
screen open)
from 0” - 1.5”
6.5 lbs
Features
- Heavy-duty extruded aluminum construction for long-term
durability
- Slim form design provides low mounting capability
- Special “flanged” side clip design provides superior strength
and can be easily adjusted they:
- are “one-size-fits-all”, work with most computers
- feature T-molded polycarbonate covers that hold clips in
place during installation for easy height adjustment
- Reversible front and back supports adjust to accommodate varying depths of computers
- Rear support brace is gusseted for added restraint
- 90° wing turn closure latch
- allows for fast initial size adjustment
- allows for quick computer insertion and removal
- has built-in heavy duty key lock (keyed alike)
- Molded polycarbonate end caps ensure that the computer is level when in the cradle
- Sliding mounting bar on the bottom allows for multiple positions for offset capabilities
when used with a the Motion Attachment
- Can be used with optional accessories (Screen Support, LED Light and Microphone Clip)
Item No.
Overall Overall Overall
Height Width Depth
11.75”
to
18.25”
3.38”
9.5”
D
H
W
7160-0250
Back Clip
Side Clip
3001 Borham Ave
Stevens Point, WI 54481
Phone: 800-456-6868
Fax: 715-344-8845
Email: gamberj@gamberjohnson.com
Website: www.gamberjohnson.com
This document, including images, may not be reproduced partly or fully without the expressed written consent of Gamber-Johnson’s Marketing Department. © Copyright 2011 Gamber-Johnson, LLC
