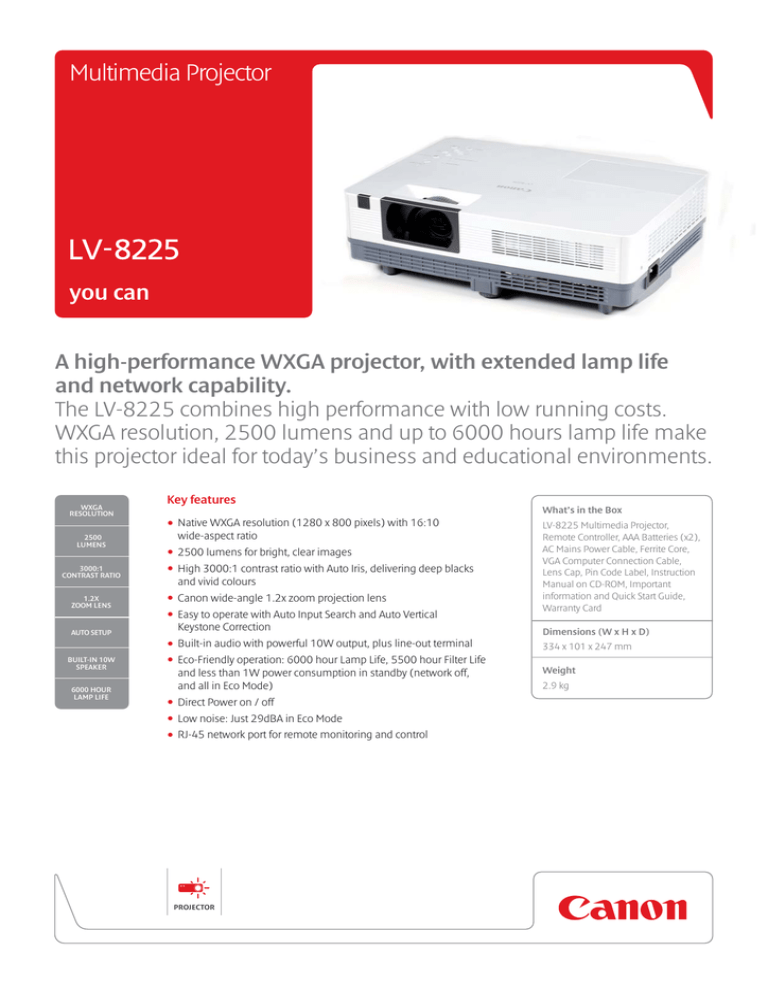

Multimedia Projector
you can
A high-performance WXGA projector, with extended lamp life
and network capability.
The LV-8225 combines high performance with low running costs.
WXGA resolution, 2500 lumens and up to 6000 hours lamp life make
this projector ideal for today’s business and educational environments.
WXGA
RESOLUTION
2500
LUMENS
3000:1
CONTRAST RATIO
1.2X
ZOOM LENS
AUTO SETUP
BUILT-IN 10W
SPEAKER
6000 HOUR
LAMP LIFE
Key features
•
• 2500 lumens for bright, clear images
High 3000:1 contrast ratio with Auto Iris, delivering deep blacks
• and
vivid colours
Canon
wide-angle 1.2x zoom projection lens
•
Easy
to
with Auto Input Search and Auto Vertical
• Keystoneoperate
Correction
• Built-in audio with powerful 10W output, plus line-out terminal
Eco-Friendly operation: 6000 hour Lamp Life, 5500 hour Filter Life
• and
less than 1W power consumption in standby (network off,
Native WXGA resolution (1280 x 800 pixels) with 16:10
wide-aspect ratio
and all in Eco Mode)
• Direct Power on / off
• Low noise: Just 29dBA in Eco Mode
• RJ-45 network port for remote monitoring and control
PROJECTOR
What’s in the Box
LV-8225 Multimedia Projector,
Remote Controller, AAA Batteries (x2),
AC Mains Power Cable, Ferrite Core,
VGA Computer Connection Cable,
Lens Cap, Pin Code Label, Instruction
Manual on CD-ROM, Important
information and Quick Start Guide,
Warranty Card
Dimensions (W x H x D)
334 x 101 x 247 mm
Weight
2.9 kg
Specifications
MULTIMEDIA PROJECTOR
Product Class
LCD PANEL
Type
Size and Number
Aspect Ratio
Native Resolution
OPTICS
Lamp Type
Lens F Number and Focal Length
Zoom Magnification and Control
Focus Control
Lens Shift
IMAGE AND AUDIO
Brightness
Brightness Uniformity
Contrast Ratio
Projection Distance Coverage
Screen Size
Digital Zoom Magnification
Keystone Correction Range
Analogue RGB Compatibility
Component Video Scan Systems
Video / S-Video Colour Systems
Display Modes
Built-in Speaker
PORTS AND CONNECTORS
Analogue RGB Input 1
Ultra-Portable
Mini D-Sub 15-pin (Component Video via optional cable /
S- Video via optional cable)
Mini D-Sub 15-pin (shared with RGB output)
Mini D-Sub 15-pin (shared with RGB input 2)
Mini D-Sub 15-pin (shared with RGB input 1 via optional cable)
RCA x1
3.5mm stereo mini-jack (input for RGB / Microphone)
RCA x2 (L/R) (input for Video)
3.5mm stereo mini-jack (variable level)
Mini D-Sub 9-pin (RS-232c)
RJ-45
Analogue RGB Input 2
Analogue RGB Output
S-Video Input
Composite Video Input
Audio Input 1
Audio Input 2
Audio Input 3
Audio Output
Service Port / Projector Control
Network Port
Transmissive LCD, Poly-silicon TFT Active Matrix
0.59” diagonal, 3 panels
16:10
1280 x 800 (WXGA), 1024000 pixels
215W NSHA
F2.0 – F2.15; f=18.4 – 22.0mm
1.2x Manual
Manual
13 : 1 (fixed)
MECHANISMS
Front Elevation Mechanism
2500 lumens
85%
3000:1 (Auto Iris enabled)
1.2m – 11.1m (3.1m – 3.7m for 100“ image)
40” - 300” (90 x 50cm - 646 x 404cm)
Yes
Vertical: +/- 30° (Auto / Manual)
(WUXGA/UXGA/SXGA) / WXGA / XGA / SVGA / VGA / MAC
1080i / 1035i / 720p / 576p / 576i / 480p / 480i
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Dynamic, Standard, Real, Cinema, Colour x5
10.0W RMS, Monaural
Mechanical foot, 10° maximum image elevation
RATINGS
Dimensions (W x H x D)
Weight
Power Source
Power Consumption
Noise Level
Operating Environment
Storage Environment
Warranty
334mm x 101mm x 247mm
2.9 kg
100V - 240V AC, 50/60Hz
Normal Mode: 252W / High Mode: 271 / Eco Mode: 187W
Normal Mode: 34.4dBA / Eco Mode: 29dBA
+5°C to +35°C
-10°C to +60°C
3 years
All data is based on Canon’s standard testing method. This Leaflet and the specifications of the product have been developed
prior to the date of product launch. Specifications are subject to change without notice.
™ and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in
their markets and/or countries.
Connectivity
7
1
2
5
33
4
8
1
Mini D-Sub 15-pin: Analogue RGB Input 1,
(Component Input / S-Video Input with optional adapter cable)
2
Mini D-Sub 15-pin: Analogue RGB Input 2 / Analogue RGB (Monitor) Output
3
RCA x1: Composite Video Input
4
3.5 mm mini-jack: Stereo Audio Input 1 (for RGB inputs 1 & 2) / Microphone Input
5
RCA x2 (L/R): Stereo Audio Input 2 (for Composite Video Input)
6
3.5 mm mini-jack: Stereo Audio Output (Variable level)
7
Mini D-Sub 9-pin: Control Port (RS-232c)
8
RJ-45: Network Connection
6
Canon Inc.
Canon Europe Ltd
canon.com
3 The Square, Stockley Park
Uxbridge, Middlesex
UB11 1ET UK
Canon Europe
canon-europe.com
English Edition
© Canon Europa N.V., 2011
