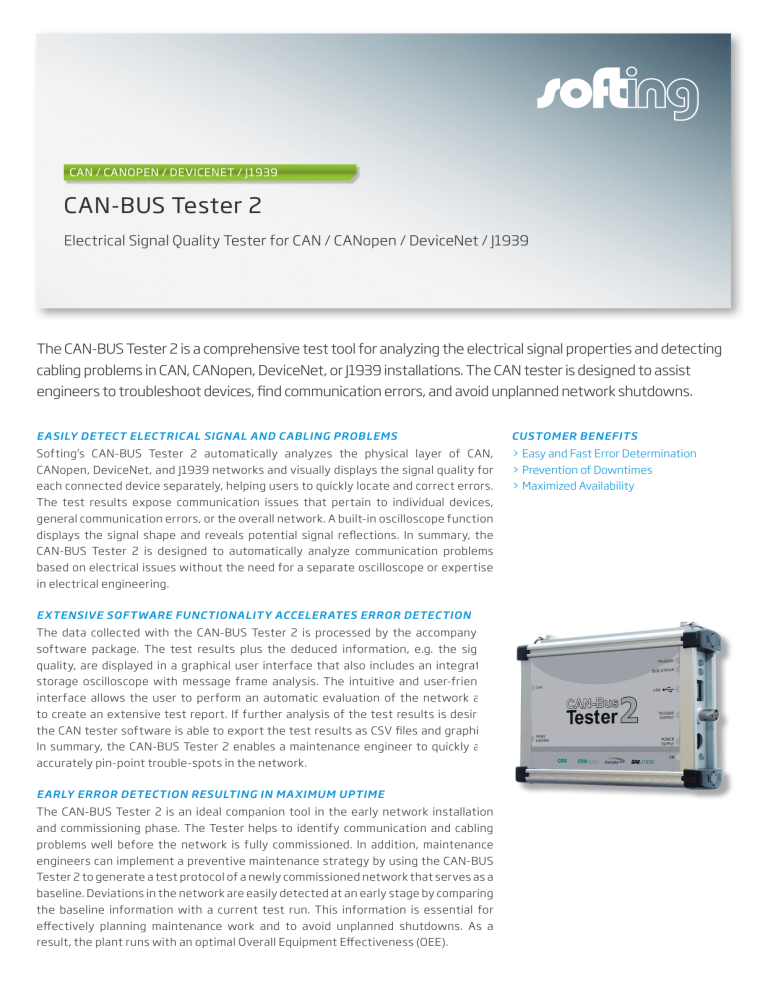

CAN-BUS Tester 2
Electrical Signal Quality Tester for CAN / CANopen / DeviceNet / J1939
The CAN-BUS Tester 2 is a comprehensive test tool for analyzing the electrical signal properties and detecting
cabling problems in CAN, CANopen, DeviceNet, or J1939 installations. The CAN tester is designed to assist
engineers to troubleshoot devices, find communication errors, and avoid unplanned network shutdowns.
EASILY DETECT ELECTRICAL SIGNAL AND CABLING PROBLEMS
Customer benefits
Softing’s CAN-BUS Tester 2 automatically analyzes the physical layer of CAN,
>E
asy and Fast Error Determination
CANopen, DeviceNet, and J1939 networks and visually displays the signal quality for
>P
revention of Downtimes
each connected device separately, helping users to quickly locate and correct errors.
>M
aximized Availability
The test results expose communication issues that pertain to individual devices,
general communication errors, or the overall network. A built-in oscilloscope function
displays the signal shape and reveals potential signal reflections. In summary, the
CAN-BUS Tester 2 is designed to automatically analyze communication problems
based on electrical issues without the need for a separate oscilloscope or expertise
in electrical engineering.
EXTENSIVE SOFTWARE FUNCTIONALITY ACCELERATES ERROR DETECTION
The data collected with the CAN-BUS Tester 2 is processed by the accompanying
software package. The test results plus the deduced information, e.g. the signal
quality, are displayed in a graphical user interface that also includes an integrated
storage oscilloscope with message frame analysis. The intuitive and user-friendly
interface allows the user to perform an automatic evaluation of the network and
to create an extensive test report. If further analysis of the test results is desired,
the CAN tester software is able to export the test results as CSV files and graphics.
In summary, the CAN-BUS Tester 2 enables a maintenance engineer to quickly and
accurately pin-point trouble-spots in the network.
EARLY ERROR DETECTION RESULTING IN MAXIMUM UPTIME
The CAN-BUS Tester 2 is an ideal companion tool in the early network installation
and commissioning phase. The Tester helps to identify communication and cabling
problems well before the network is fully commissioned. In addition, maintenance
engineers can implement a preventive maintenance strategy by using the CAN-BUS
Tester 2 to generate a test protocol of a newly commissioned network that serves as a
baseline. Deviations in the network are easily detected at an early stage by comparing
the baseline information with a current test run. This information is essential for
effectively planning maintenance work and to avoid unplanned shutdowns. As a
result, the plant runs with an optimal Overall Equipment Effectiveness (OEE).
FUNCTIONAL SCOPE
CAN-BUS Tester 2
Electrical Signal Quality Tester for CAN / CANopen / DeviceNet Networks
TECHNICAL DATA
Measured Data / Functions
CAN Bus Connection
Bus Status
Bus Level and Traffic Detection
Bus Load
Permanent Display of Bandwidth Usage (0%...100%)
Station List
Generated Automatically or Entered Manually
Quality Level
Signal Quality Level (0%...100%)
Disturbance-Free Voltage Range
Resolution 50mV; Current, Minimum and Maximum Values
Signal Shape
Station-Specific Measurement with Built-In Oscilloscope with Trigger and Zoom
Signal Edges
Quality of Falling and Rising Edges
Report Generator
Creation of User-Configurable Test Report
Connector
2 x 9 Pin D-Sub Male Connector (also M12, Open Style, 7/8” and SAE J1939 Via
Incheded Adapter Set 9)
Protocols
CAN, CANopen, DeviceNet, SAE J1939 (Depending on Product Variant)
Data Transfer Rates
5Kbit/s…1MBit/s
PC
USB, Full Speed
Oscilloscope
Trigger Output Galvanically Isolated, BNC Jack
Operation / Storage Temperature
+5°C…+40°C / -20°C…+60°C
Housing
Aluminium, IP20 Protection
Dimensions
134mm x 40mm x 170mm
Power Supply
Wide Range Power Supply (Included)
Certification
CE
EN 55022; EN 55011 Class A; EN 61000-6-4; EN 61000-6-2
System Requirements
PC
PC with USB Interface
Supported Operating Systems
Windows 7 (32 und 64 bit), Windows Vista (32 und 64 bit) ,
Additional Connections
Environment / Dimensions /
Power Supply
Server 2003ME/98, Windows 2000, Windows XP, Windows Vista,
Windows Server 2003 (as of August 2011)
SCOPE OF DELIVERY
Technical changes reserved © Softing Industrial Automation GmbH, CAN010E, November 2011
CAN-Bus Tester 2
Hardware
CAN-Bus Tester 2
Software
CD-ROM Including CAN-Bus Tester 2 PC Software
Documentation
CAN-Bus Tester 2 Manual
Accessories
Carrying Case Including Wide Range Power Supply, Adapters, etc.
Order numbers
BC-200-CAN-BASIC
CAN-Bus Tester 2, Base Version
BC-200-CAN_OPT/CO
CANopen Option for CAN-Bus Tester 2
BC-200_CAN-OPT/DN
DeviceNet Option for CAN-Bus Tester 2
BC-200-CAN-OPT/19
J1939 Option for CAN-Bus Tester 2
Additional products and services
TR-CAN-TS
Training “CAN – Troubleshooting”
