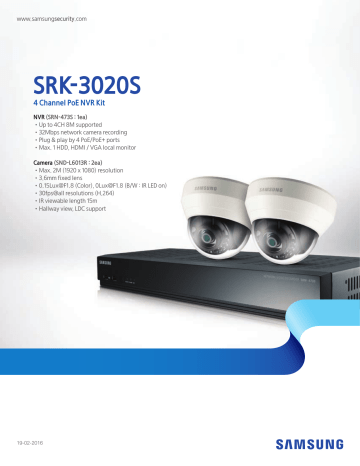

SRK-3020S
4 Channel PoE NVR Kit
NVR (SRN-473S : 1ea)
•Up to 4CH 8M supported
•32Mbps network camera recording
•Plug & play by 4 PoE/PoE+ ports
•Max. 1 HDD, HDMI / VGA local monitor
Camera (SND-L6013R : 2ea)
•Max. 2M (1920 x 1080) resolution
•3.6mm fixed lens
•0.15Lux@F1.8 (Color), 0Lux@F1.8 (B/W : IR LED on)
•30fps@all resolutions (H.264) •IR viewable length 15m
•Hallway view, LDC support
19-02-2016
SRK-3020S
4 Channel PoE NVR Kit
SRN-473S
SRN-473S x 1ea
Display
Inputs / Resolution
Protocols
Local Display
Multi Screen Display
Video
4CH Network Video Recorder with PoE Switch
Live
Performance
Performance
Operating System Embedded
Compression
Recording Bandwidth
Resolution
Recording
Mode
Event Trigger
Event Action
Playback Bandwidth
Performance
Mode
Search &
Simultaneous Playback
Playback
Resolution
Fish-eye Dewarping
Playback Control
Internal
Storage
Max.Capacity
File Back up
Back up
Function
Sensor
Input / Output
Input / Compression
Audio
Audio Communication
Network
Key Features
• Up to 4CH 8M supported
• 32Mbps network camera recording
• Plug & play by 4 PoE/PoE+ ports
• Max. 1 HDD
• HDMI / VGA local monitor
Protocol Support
DDNS
Transmission Bandwidth
Max. Remote Users
IP
Security
Language
GUI / Web
OS
Web Browser
Dimensions
Unit : mm (inch)
Viewer
Software
Functions
159.9
(6.3")
159.9
(6.3")
166.3(6.55")
(6.55")
166.3
Camera Setup
44.0(1.73")
(1.73")
44.0
48.7 (1.92")
(1.92")
48.7
360.0(14.17")
(14.17")
360.0
Kit Contents
• NVR (SRN-473S 1ea)
• Remote control, Battery, Mouse
• CD (Network viewer software, User manual)
• User manual, Quick guide
• Adaptor, Power cable, Warranty card
• Ethernet cable (60ft, 2ea) / (1.5m, 1ea)
19-02-2016
Type
CMS Support
Register
Setup Items
Camera Control PoE
Easy Configuration
PTZ
Control / Preset
OS
Smart phone
Control
System Control
Indicator / Interface
Indicator
Front
USB
HDMI / VGA
Audio
Connections
Ethernet
Alarm
Reset
System
Log
Log List
General
Input Voltage / Current
Electrical
Power Consumption
PoE Budget
Operating Temperature
Environmental
Operating Humidity
Color / Material
Mechanical
Dimensions (WxHxD)
Weight
Up to 4CH / CIF ~ 8M
Samsung, ONVIF
HDMI / VGA
[Local monitor] 1 / 4 / Auto sequence, [Web] 1 / 4 / Auto sequence
[Local monitor] 8M (20fps), 5M (30fps), 3M (50fps), 2M (120fps), 720p (120fps), D1 (120fps)
[Web] 5M (30fps), 3M (60fps), 2M (120fps), 720p (120fps), D1 (120fps)
Linux
H.264, MJPEG
32Mbps, 2M 4 camera real-time recording
CIF ~ 8M
Normal, Scheduled, Event (Pre / Post)
Alarm input (2), Video loss, Camera event (Alarm in, MD, Video analytics)
E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
32Mbps
Max. 3 users
Date & Time (Calendar) / Event log list / Text Search (POS)
[Local monitor] Up to 4CH, [Web, CMS] Up to 4CH
CIF ~ 8M
Via Smartviewer
Fast/Slow Forward/Backward, Move one step up/down
1 SATA
Internal 4TB
BU/EXE (USB), JPG/AVI (Web, CMS)
Max. 4CH playback, Date-time/title display
2 / 1 (NO/NC 1ea)
4CH (Network) / G.711, G.726, AAC (16/48KHz)
2-way
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client),
PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S)
Samsung iPOLiS DDNS
Max. 64Mbps
Search 3 / Live unicast 10 / Live multicast 20
IPv4 / IPv6
IP address filtering, User access log, 802.1x authentication, Encryption
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch,
Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian,
Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Supported OS : Window XP (Service pack 2 or above), Vista, 7, 8,
Mac OS X (10.6 or above)
Microsoft Internet Explorer (Updated Ver. 8 ~10, IE 9 or above recommended)
Mozilla Firefox (Ver. 19.x or above), Google Chrome (Ver. 26.x or above),
Apple Safari (Ver. 6.0.3 or above)
SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
SDK / CGI (SUNAPI)
PnP mode, Manual mode
IP address, Add profile edit, Bitrate, Compression, GOP, Quality
Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR,
D&N, SSNR, Shutter, SSDR, DIS)
Monitor PoE power consumption, On/Off control for each PoE camera
Remote reset for each PoE camera
Setup Wizard (Date/Time, Network, Auto camera configuration)
Via GUI, Webviewer, SPC-2000 / 255
Android, iOS
Live (4CH) / Playback (1CH)
Mouse, IR Remocon, Web, SPC-2000 (Controller)
Power status LED 1ea, Alarm status LED 1ea, Record status LED 1ea
2ea (Front 2ea)
1ea / 1ea
Out 1ea (RCA, Line)
RJ-45 4ea (PoE/PoE+, 100Mbps), RJ-45 1ea (WAN, 100Mbps)
In 2ea (Terminal block) / Out 1ea (Terminal block)
Yes (Factory reset)
Max. 20000 (System log, Event log each)
54V DC / 1.67A
Max. 77W (1 HDD, PoE on), 16W (1 HDD, PoE off)
Max. 50W
+0°C ~ +40°C (+32°F ~ +104°F)
20% ~ 85% RH
Black / Metal
360.0 x 44.0 x 159.9mm (14.17" x 1.73" x 6.3") (1U)
Approx. 1.6Kg (3.52 lb), 1TB HDD 1ea included
* The latest product information / specification can be found at www.samsungsecurity.com
SRK-3020S
4 Channel PoE NVR Kit
SND-L6013RN/P
SND-L6013R x 2ea
Video
Imaging Device
Total Pixels
Effective Pixels
Scanning System
2Megapixel Full HD Network IR Dome Camera
Min. Illumination
Key Features
• Max. 2M (1920 x 1080) resolution
• 3.6mm fixed lens
• 0.15Lux@F1.8 (Color), 0Lux@F1.8 (B/W : IR LED on)
• 30fps@all resolutions (H.264) • IR viewable length 15m
• Hallway view (Rotate 90˚/270˚), LDC support
Dimensions
86.0(3.39")
(3.39")
86.0
Unit : mm (inch)
Ø110.0 (4.33")
Ø110.0
(4.33")
Accessories (Optional)
Lens
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Lens Type
Mount Type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
Operational
IR Viewable Length
Camera Title
Day & Night
Backlight Compensation
Contrast Enhancement (DWDR)
Digital Noise Reduction
Motion Detection
Privacy Masking
Gain Control
White Balance
LDC (Lens Distortion Correction)
Electronic Shutter Speed
Flip / Mirror
Intelligent Video Analytics
Alarm Triggers
Alarm Events
Network
Ethernet
Video Compression Format
Kit Contents
• Camera (SND-L6013R 2ea)
• CD (Instruction book, Installer S/W)
• Quick guide
• Warranty card
• Template, Tapping screw (2ea)
19-02-2016
3.6mm fixed
F1.8
H : 86.5˚ / V : 47.8˚ / D : 101.2˚
0.5m (1.64ft)
Fixed
Board type
0° ~ 350° / 0° ~ 67° / 0° ~ 355°
15m (49.21ft)
Off / On (Displayed up to 15 characters)
True Day & Night
Off / BLC SSDR (Samsung Super Dynamic Range) (Off / On)
SSNR (Off / On)
Off / On (4ea rectangular zones)
Off / On (6ea rectangular zones)
Off / Low / Middle / High
ATW / AWC / Manual / Indoor / Outdoor
Off / On (5 levels with min / max)
Minimum / Maximum / Anti flicker
Flip / Mirror / Hallway view
Motion detection with metadata, Tampering
Motion detection, Tampering detection, SD card error, NAS error
File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail
RJ-45 (10/100BASE-T)
H.264, MJPEG
1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768,
Resolution
800 x 600, 720 x 576, 640 x 480, 320 x 240
H.264 : Max. 30fps at all resolutions
Max. Framerate
MJPEG : Max. 1fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768,
Max. 15fps at other resolution
Video Quality Adjustment
H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method
H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability
Multiple streaming (Up to 3 profiles)
Audio I/O
Built-in mic
G.711 u-law / G.726 selectable
Audio Compression Format
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication
Uni-directional audio
IP
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
Protocol
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
HTTPS(SSL) login authentication, Digest login authentication
Security
IP address filtering, User access log, 802.1x authentication
Streaming Method
Unicast / Multicast
Max. User Access
6 users at unicast mode
micro SD/SDHC max. 32G, NAS
Storage
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S, G, SUNAPI (HTTP API)
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer
SBP-300HM7 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300B SBP-300PM SBP-300KM
1/2.9" 2.19M CMOS
2,000(H) x 1,121(V)
1,984(H) x 1,105(V)
Progressive
Color : 0.15Lux (1/30sec, F1.8), 0.003Lux (2sec, F1.8)
B/W : 0Lux (IR LED on)
Central Management Software
Environmental
Operating Temperature / Humidity
Storage Temperature / Humidity
Electrical
Input Voltage / Current
Power Consumption
Mechanical
Color / Material
Dimensions (WxH)
Weight
Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35),
Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X 10.10),
7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7)
* Mac OS X only
SmartViewer
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
PoE (IEEE802.3af, Class2)
Max. 5.9W
Ivory / Plastic
Ø110.0 x 86.0mm (Ø4.33" x 3.39")
245g (0.54 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
