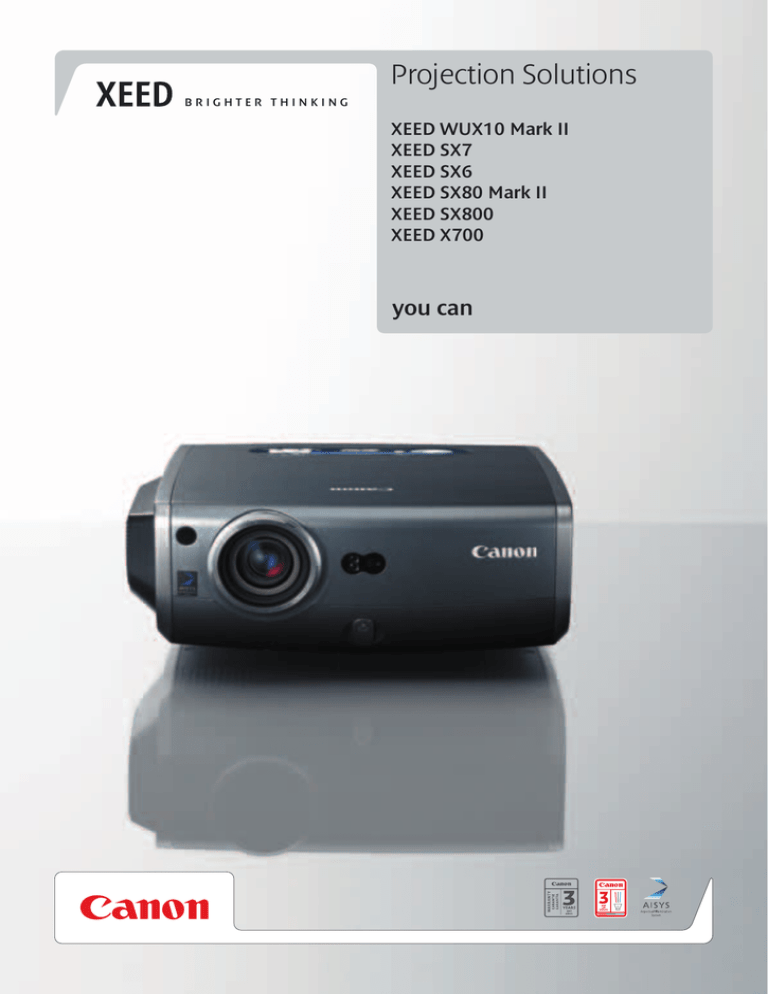

Canon | 4233B007 | Datasheet | Canon XEED SX7 Mark II

Projection Solutions
BRIGHTER THINKING
XEED WUX10 Mark II
XEED SX7
XEED SX6
XEED SX80 Mark II
XEED SX800
XEED X700
you can
BRIGHTER THINKING
Make an Impact.
For professionals who understand the importance of visual impact,
a XEED projector is the natural choice. Canon’s combination of awardwinning optics and LCOS technology delivers outstanding images –
and with most models projecting at SXGA+ resolution or higher,
presentations can be supercharged with High Definition content.
XEED WUX10 Mark II | XEED SX7 | XEED SX6 | XEED SX80 Mark II | XEED SX800 | XEED X700
Designed for Versatility.
The high resolution and precision optics of the XEED range allow for a
broad range of applications – including technical or medical uses where
ultra-fine detail is essential. For designers, printers and other graphics
professionals, selected models support the Adobe RGB colour space.
Quiet and Compact.
Thanks to the light path efficiency of AISYS, XEED projectors deliver
heavyweight performance from a compact, lightweight form.
Complemented by whisper-quiet operation with minimal fan noise,
XEED helps keep the audience focused on your presentation.
The XEED Formula.
Total Optical Excellence.
BRILLIANT AISYS IMAGING
Canon AISYS (Aspectual Illumination System) features a compact
optical array, capable of highly efficient light control. This works with
LCOS technology to deliver a previously impossible combination:
simultaneous high brightness and high contrast from a compact
projector. With brightness levels of up to 4000 lumens and contrast
ratios of up to 1000:1, every XEED delivers vivid images with striking
colours and deep, pure blacks.
LCD technology
Inside the XEED Projector
LCOS Reflective LCD
AISYS Optical System
XEED LCOS technology
THE LCOS ADVANTAGE
To overcome the unsightly ‘lattice’ and ‘rainbow’
effects, the XEED range uses superior LCOS
panels. These combine the best of LCD and DLP
projection technologies, to produce smooth,
flawless images with faithful colour reproduction and exceptionally fast response, making
them ideal for both still and moving images.
Projection Lens
AISYS (Aspectual Illumination System)
Illumination Optical System
Projection Lamp
Colour Separation /
Recombination System
GENUINE CANON OPTICS
Projection Lens
Every XEED projector incorporates a wide-angle Canon projection lens
with power-driven zoom. The XEED WUX10 Mark II, XEED SX80 Mark II
and XEED SX800 all feature a 1.5x zoom lens, which virtually eliminates
image distortion by using a special double-sided aspherical element.
Also included is 10:0 image offset, which matches the lower edge of
the projected image to the optical axis of the lens – making installation
straightforward, and reducing the need for Keystone Correction.
Other XEED models offer an increased range of throw distances for a
given image size, via a 1.7x powered zoom lens.
Dual-sided aspherical lens
BRIGHTER THINKING
Future Proof.
From television to computing, High Definition is changing the face
of visual content. That’s why most XEED projectors offer native SXGA+
resolution (1400 x 1050 pixels)*. These models are HD Ready and
give top quality results with HD sources – ensuring that you won’t be
left behind in the future.
*All models operate at SXGA+ resolution, except XEED X700 (XGA).
COMPARATIVE RESOLUTION CHART
Video Compatibility
PC Compatibility
Projector
Resolution
Professional
Image Quality
XGA
1024 x 768
720p
1280 x 720
WXGA
1280 x 768
SXGA+
1400 x 1050
1080p
1920 x 1080
WUXGA
1920 x 1200
XGA
1024 x 768
WXGA
1280 x 800
SXGA
1280 x 1024
WXGA+
1440 x 900
WSXGA+
WUXGA
1680 x 1050 1920 x 1200
HD Ready
(720p)
Full HD
(1080p)
WUXGA (1920 x 1200 pixels) 16:10
SXGA+ (1400 x 1050 pixels) 4:3
RESOLUTIONS COMPARED
SVGA (800 x 600 pixels) 4:3
XGA (1024 x 768 pixels) 4:3
WXGA (1280 x 768 pixels) 5:3
SXGA (1280 x 1024 pixels) 5:4
HIGH RESOLUTION, HIGH QUALITY
Because quality presentations call for quality
detail, XEED reproduces high resolution content
with extra precision. Fine lines are rendered
with pin-sharp accuracy, text remains legible
at smaller font sizes, and multiple windows
can be displayed without loss of image clarity.
LCD projector – XGA resolution
LCOS projector – SXGA+ resolution
COMPATIBLE WITH MORE
Whatever the source, the XEED high resolution range of projectors ensures exceptional image quality.
PC – As native resolution on computer monitors continues to expand – with many new desktops and laptops offering SXGA+
resolution or above – the XEED range ensures that the audience sees exactly what’s on your screen.
VIDEO – Display High Definition video as it should be seen. SXGA+ resolution allows most XEED models to reproduce 720p
images without compression. And for stunning Full HD (1080p) image display, the XEED WUX10 Mark II features native
WUXGA resolution (1920 x 1200 pixels).
Get Connected.
Connect instantly to all standard image sources, via a comprehensive range of analogue and digital connectivity options –
plus dedicated audio and control ports. Selected XEED models expand your presentation options with network connectivity,
digital links to High Definition sources, and direct connections to USB flash drives or PictBridge-enabled digital cameras.
NETWORK READY
INTEGRATION OPTIONS
For easy, centralised control and monitoring,
the XEED WUX10 Mark II and XEED SX80 Mark II
both feature a built-in RJ-45 port. An optional
Network Adaptor is available as an accessory for
most other XEED models.
Screen
Document
scanner
Video recorder
DVD player
NETWORK CONNECTIVITY
PC
Projector 1
PC
Dimmer
control
Projector 1
Video camera
PC
Projector 2
PC
Controller
Example:
Corporate LAN
Centralized
management
PC
Touch panel
Projector 3
NO PC REQUIRED
LOSSLESS DETAIL
With the new “PC-Free Presentation” feature found on the
XEED SX80 Mark II, you can project images straight from USB flash
drives or PictBridge-enabled digital cameras - perfect for spontaneous
presentations, or for occasions when carrying a computer is impractical.
Both the XEED SX80 Mark II and XEED WUX10
Mark II include DVI and HDMI™ terminals, giving
exacting image reproduction from High Definition
sources like personal computers and set-top boxes.
Dedicated Photo Mode.
For optimum display of photographic images, the WUX10 Mark II and
SX80 Mark II feature a new PHOTO image mode. This mode adjusts the
image to compensate for the brightness and tone of the ambient light,
reproducing colours as they would appear on an sRGB monitor.
Automatic Intelligence.
Without Photo
Mode
With Photo Mode
Without Auto Focus and
Keystone Correction
Focus and Keystone are
adjusted automatically,
in a matter of seconds
Auto Focus* automatically sets the projector focus to the optimum
position, taking into account throw distance and projection angle.
Auto Vertical Keystone Correction compensates for projector tilt up to
+/- 20 degrees, to deliver perfectly square images with parallel edges.
Auto Screen Colour Correction* compensates for the colour of the
projection surface, to deliver perfect images with natural-looking colours.
*Not available on XEED SX800.
XEED WUX10 Mark II
TARGET MARKETS
Business & Education: Boardrooms; Lecture
Theatres, Conference Centres
Specialist Applications: Publishing, Printing &
Pro Photo Applications; CAD & CAE; Simulation
& Virtual Reality; Photographic exhibitions;
Sports & Media Bars
WUXGA and Full HD –
the Best of Both Worlds.
With industry-leading WUXGA resolution (1920 x 1200 pixels),
Full HD support and a new ‘Photo’ mode for colour-accurate images,
the WUX10 Mark II is ideal for business and specialist AV use.
• Native WUXGA resolution (1920 x 1200
pixels) and Full HD capability (1080p)
• 1000:1 contrast ratio for vivid colours
and deep blacks
• Near-silent operation: just 32dBA in
Quiet Mode
• Canon LCOS panel technology for perfect,
seamless images
• Canon 1.5x powered zoom lens with
10:0 offset
• DVI port and HDMI™ Connector for
digital image input
• 3200 lumens brightness using Canon
AISYS optical system
• ‘PHOTO’ image mode for colour-accurate
still images in any lighting environment
• RJ-45 network port for control and
monitoring via a network
• Fully automatic setup configures Focus,
Keystone Correction, Input Selection and
Screen Colour Correction
2
5
1
4
6
3
7
9
8 10
VIDEO INPUT AND
OUTPUT
AUDIO INPUT AND
OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input
2. HDMI™ v. 1.3
(with Deep Colour)
Digital Video and Digital
Audio Input
3. Mini D-sub 15-pin
Analogue RGB Input 2 /
Analogue RGB (Monitor)
Output (Component input
via optional adaptor cable)
4. RCA x 1
Composite Video Input
5. 3.5mm mini-jack
Stereo Audio Input 1
6. 3.5mm mini-jack
Stereo Audio Input 2
7. 3.5mm mini-jack
Stereo Audio Input 3
8. 3.5mm mini-jack
Stereo Audio Output
(Variable level)
PROJECTOR CONTROL
9. Mini D-Sub 9-pin
Control Port (RS-232C)
10. RJ-45
Network Connection
IN BOX ACCESSORIES
Remote Controller
AAA Batteries
AC Mains Power Cable
Computer Connection Cable
Component Video Adaptor Cable
Lens Cap
Carrying Case
Warranty Card
Instruction Book
Quick Operation Guide
OPTIONAL ACCESSORIES
Lamp Assembly RS-LP04
DVI Cable (2 metres) LV-CA29
Ceiling Mounting Bracket: RS-CL07
Ceiling Pipe 400-600mm: RS-CL08
Ceiling Pipe 600-1000mm: RS-CL09
XEED SX7
Superior Brightness.
Perfect Detail.
TARGET MARKETS
Business & Education: Boardrooms; Lecture
Theatres; Conference Centres
The XEED SX7 is ideal for boardrooms, large venues and AV
installations. Delivering an ultra-bright 4000 lumens projection
at SXGA+ resolution, the XEED SX7 incorporates Canon’s unique
AISYS optical system for high brightness.
Specialist Applications: Photo Enthusiasts;
Publishing, Printing & Pro Photo Applications;
Museums; CAD & CAE; Simulation
• Native SXGA+ resolution and LCOS
technology for seamless, lattice-free
images
• Fully automatic setup: Auto Focus, Auto
Keystone Correction, Auto Screen Colour
Correction and Auto Input Selection
• Canon Advanced AISYS Optical System
delivers an ultra-bright 4000 lumens and
1000:1 contrast, for clear projection and
vivid colours
• Canon powered wide-angle 1.7x zoom
lens for flexible projector placement
1
6
7 8
2
11
4
• HD Ready, with HDCP-enabled DVI port
3
5
10
9
• Support for Adobe RGB and sRGB colour
spaces, with bright sRGB mode
• Quiet operation: runs at just 31dBA in
Quiet Mode, to minimise audience
distraction
• Compact, lightweight design –
weighs just 4.8kg
VIDEO INPUT AND
OUTPUT
AUDIO INPUT AND
OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input 1
2. Mini D-sub 15-pin
Analogue RGB Input 2
(Component/SCART via
adaptor cable)
3. Mini D-sub 15-pin
Analogue RGB (Monitor)
Output
4. Mini DIN 4-pin
S-Video Input
5. RCA x 1
Composite Video Input
6. 3.5mm mini-jack
Stereo Audio Input 1
7. 3.5mm mini-jack
Stereo Audio Input 2
8. 3.5mm mini-jack
Stereo Audio Input 3
9. 3.5mm mini-jack
Stereo Audio Output (Variable
level)
PROJECTOR CONTROL
10. USB Type ‘B’
USB Mouse Control
11. Mini-DIN 8-pin
Service Port
IN BOX ACCESSORIES
Remote Control (with batteries)
Soft Case
DVI-I Computer Connection Cable
Component Video Cable
AC Mains Power Cable
USB Cable
Lens Cap
OPTIONAL ACCESSORIES
Replacement Lamp: RS-LP04
Ceiling Mounting Bracket: RS-CL07
Ceiling Pipe 400-600mm: RS-CL08
Ceiling Pipe 600-1000mm: RS-CL09
SCART cable: LV-CA31
RS-232C control cable: RS-CA01
Network Adaptor: RS-NA01
XEED SX6
Superior Projection for
Enhanced Presentations.
TARGET MARKETS
Business & Education:
Boardrooms; Lecture Theatres
Specialist Applications: Publishing, Printing &
Pro Photo Applications; CAD & CAE; Medical
Packed with powerful technology, the XEED SX6 is the ideal projector
for maximum impact, high quality presentations. LCOS technology
combines with SXGA+ resolution and Canon’s unique AISYS optical
system to provide detailed, seamless projection. The XEED SX6 offers
advanced colour reproduction for graphics specialists.
• Native SXGA+ resolution and LCOS
technology for seamless, lattice-free
images
• Fully automatic setup: Auto Focus, Auto
Keystone Correction, Auto Screen Colour
Correction and Auto Input Selection
• Canon’s Advanced AISYS Optical System
delivers a bright 3500 lumens and
1000:1contrast ratio, for clear projection
and vivid colours
• Canon powered wide-angle 1.7x zoom
lens for flexible projector placement
1
2
6
5
4
3
7
8
• Support for Adobe RGB and sRGB
colour spaces
• Quiet operation: runs at just 31dBA
in Quiet Mode, to minimise audience
distraction
• HD Ready, with HDCP-enabled DVI port
VIDEO INPUT AND
OUTPUT
AUDIO INPUT AND
OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input 1
2. Mini D-sub 15-pin
Analogue RGB Input 2
(Component SCART via
adaptor cable)
3. Mini D-sub 15-pin
Analogue RGB (Monitor)
Output
4. Mini DIN 4-pin
S-Video Input
5. RCA x 1
Composite Video Input
6. 3.5mm mini-jack
Stereo Audio Input
PROJECTOR CONTROL
7. USB Type ‘B’
USB Mouse Control
8. Mini-DIN 8-pin
Service Port
IN BOX ACCESSORIES
Remote Control (with batteries)
Soft Case
DVI-I Computer Connection Cable
Component Video Cable
AC Mains Power Cable
USB Cable
Lens Cap
OPTIONAL ACCESSORIES
Replacement Lamp: RS-LP02
Ceiling Mounting Bracket: RS-CL07
Ceiling Pipe 400-600mm: RS-CL08
Ceiling Pipe 600-1000mm: RS-CL09
SCART cable: LV-CA31
RS-232C control cable: RS-CA34
Network Adaptor: RS-NA01
XEED SX80 Mark II
Unrivalled Clarity.
Complete Connectivity.
TARGET MARKETS
Business & Education: Boardrooms; Lecture
Theatres; Conference Centres
The SX80 Mark II produces crystal-clear SXGA+ images from
most sources, including HDMI, DVI and USB flash drives.
A dedicated ‘Photo’ mode ensures superb colour accuracy
in any lighting environment.
Specialist Applications: Professional
Photography, Simulation, Design, Publishing
• Native SXGA+ resolution (1400 x 1050
pixels) with Canon LCOS technology
• ‘PHOTO’ image mode for colour-accurate
still images in any lighting environment
• Near-silent operation: just 31dBA in
Quiet Mode
• 3000 lumens brightness using Canon
AISYS Optical System
• Fully automatic setup configures Focus,
Keystone Correction, Input Selection and
Screen Colour Correction
• DVI port and HDMI™ Connector for digital
image input
• 900:1 contrast ratio for vivid colours and
deep blacks
• Canon 1.5x powered zoom lens with
10:0 offset
1
5
6
2
8
9 10
3
11
• PC-Less presentation: Display images
directly from USB flash drives and digital
cameras
4
12
13
7
• RJ-45 port for control and monitoring
via a network
VIDEO INPUT AND
OUTPUT
AUDIO INPUT AND
OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input
2. HDMI™ v. 1.3
(with Deep Colour)
Digital Video and Digital
Audio Input
3. Mini D-sub 15-pin
Analogue RGB Input 2
(Component input via
optional adaptor cable)
4. Mini D-sub 15-pin
Analogue RGB (monitor) output
5. Min-DIN 4 Pin
S video input
6. RCA x 1
Composite Video Input
7. USB Type A
USB Connection, PictBridge
input
8. 3.5mm mini-jack
Stereo Audio Input 1
9. 3.5mm mini-jack
Stereo Audio Input 2
10. 3.5mm mini-jack
Stereo Audio Input 3
11. 3.5mm mini-jack
Stereo Audio Output (Variable level)
PROJECTOR CONTROL
12. Mini D-Sub 9-pin
Control Port (RS-232C)
13. RJ-45
Network connection
IN BOX ACCESSORIES
Remote Controller
AAA Batteries
AC Mains Power Cable
Computer Connection Cable
Component Video Adaptor Cable
Lens Cap
Carrying Case
Warranty Card
Instruction Book
Quick Operation Guide
OPTIONAL ACCESSORIES
Lamp Assembly RS-LP05
DVI Cable (2 metres) LV-CA29
Ceiling Mounting Bracket: RS-CL10
Ceiling Pipe 400-600mm: RS-CL08
Ceiling Pipe 600-1000mm: RS-CL09
XEED SX800
TARGET MARKETS
Business & Education:
Hotels - Conference Facilities, General Business
Use, (Meetings, Presentations), Higher
Education, Medical Imaging
• Native SXGA+ resolution with Canon LCOS
panel technology for outstanding image
quality
• Canon AISYS Optical System delivers 3000
lumens brightness
1
2
8
The affordable way to
SXGA+ quality.
With Canon LCOS technology and a bright 3000 lumens output, the
XEED SX800 offers top-quality SXGA+ imaging at a price point more often
associated with XGA models. The addition of Canon’s 1.5x zoom lens
ensures flexible placement and perfect image geometry.
• 900:1 contrast ratio for vivid colours and
deep blacks
• Near-silent operation: just 31dBA in
Quiet Mode
• Canon 1.5x powered zoom lens with
10:0 lens shift for easy installation
• Body and ceiling bracket designed for easy
installation and maintenance
• Automatic Setup: Auto Keystone Correction
and Auto Input Selection
VIDEO INPUT AND
OUTPUT
AUDIO INPUT AND
OUTPUT
1. Mini D-sub 15-pin
Analogue RGB Input 1
(Component via optional
adaptor cable)
2. Mini D-sub 15-pin
Analogue RGB Input 2
3. RCA x 1
Composite Video Input
4. 3.5mm mini-jack
Stereo Audio Input 1
5. 3.5mm mini-jack
Stereo Audio Input 2
6. 3.5mm mini-jack
Stereo Audio Input 3
7. 3.5mm mini-jack
Stereo Audio Output
(Variable level)
Remote Control (with batteries)
AC Mains Power Cable
Computer Connection Cable
Component Video Adaptor Cable
Carrying Case
Warranty Card
Instruction Book
Quick Operation Guide
PROJECTOR CONTROL
OPTIONAL ACCESSORIES
8. Mini D-Sub 9-pin
Control Port (RS-232C)
3
6
4 5
7
IN BOX ACCESSORIES
Lamp Assembly RS-LP05
Ceiling Attachment RS-CL10
Ceiling Pipe 400 - 600mm RS-CL08
Ceiling Pipe 600 - 1000mm RS-CL09
XEED X700
Startling Brightness.
Seamless Clarity.
TARGET MARKETS
Business & Education: School Halls; Lecture
Theatres; Large Meeting Rooms
When brightness and image quality are essential, the XEED X700
provides 4000 lumens at XGA resolution. Smooth LCOS imaging,
enhanced by Canon’s unique AISYS technology, make the XEED X700
ideal for medium to large spaces, including spaces with high levels of
ambient light.
Specialist Applications: Exhibition Halls;
Auditoriums; Large Venues; Public Signage;
Sports and Media bars
• Native XGA resolution and LCOS
technology for seamless images
• 1000:1 contrast ratio for vivid colours and
deeper blacks
• Canon Advanced AISYS Optical System
delivers an ultra-bright 4000 lumens for
clear projection, even in daylight and large
venues
• Fully automatic setup: Auto Focus,
Auto Keystone Correction, Auto Screen
Colour Correction and Auto Input Selection
1
6
7 8
2
11
4
• Canon powered wide-angle 1.7x zoom
lens for flexible projector placement
3
5
10
9
• Just 31dBA operation in Quiet Mode
• HDCP-enabled DVI port for pin-sharp
images from digital sources
• Support for sRGB colour space
• Optional Network Adaptor for control and
monitoring
VIDEO INPUT AND
OUTPUT
AUDIO INPUT AND
OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input 1
2. Mini D-sub 15-pin
Analogue RGB Input 2
(Component/SCART via
adaptor cable)
3. Mini D-sub 15-pin
Analogue RGB (Monitor)
Output
4. Mini DIN 4-pin
S-Video Input
5. RCA x 1
Composite Video Input
6. 3.5mm mini-jack
Stereo Audio Input 1
7. 3.5mm mini-jack
Stereo Audio Input 2
8. 3.5mm mini-jack
Stereo Audio Input 3
9. 3.5mm mini-jack
Stereo Audio Output
(Variable level)
PROJECTOR CONTROL
10. USB Type ‘B’
USB Mouse Control
11. Mini-DIN 8-pin
Service Port
IN BOX ACCESSORIES
Remote Control (with batteries)
Soft Case
DVI-I Computer Connection Cable
Component Video Cable
AC Mains Power Cable
USB Cable
Lens Cap
OPTIONAL ACCESSORIES
Replacement Lamp: RS-LP04
Ceiling Mounting Bracket: RS-CL07
Ceiling Pipe 400-600mm: RS-CL08
Ceiling Pipe 600-1000mm: RS-CL09
SCART cable: LV-CA31
RS-232C control cable: RS-CA01
Network Adaptor: RS-NA01
Specifications
XEED WUX10 Mark II
XEED SX7
XEED SX6
XEED SX80 Mark II
Product Class
XEED SX800
XEED X700
Ultra-Portable
LCD PANEL
Type
Size and Number
Aspect Ratio
Native Resolution
LCOS Reflective Display, TFT Active Matrix
0.7” diagonal (15.4mm x
9.6mm), 3 panels
0.7” diagonal (15mm x 11mm), 3 panels
0.7” diagonal (15mm x
11mm), 3 panels
0.55” diagonal (11.2mm x 8.4mm), 3 panels
16:10
4:3
1920 x 1200 (WUXGA),
2,304,000 pixels
1024 x 768 (XGA),
786,432 pixels
1400 x 1050 (SXGA+), 1,470,000 pixels
OPTICS
Lamp Type
275W NSHA
Lens F Number and Focal
Length
F1.85 - F2.65;
f=21.8 - 31.9mm
Zoom Magnification and
Control
1.5x Motorised
230W NSHA
275W NSHA
F1.95 - F2.6; f=16.6 - 24.8mm
F1.85 – F2.5;
f=21.7 – 35.8mm
1.7x Motorised
Focus Control
Lens Shift
270W NSH
F1.85 – F2.5; f=21.7 – 35.8mm
1.5x Motorised
Motorised Auto Focus
Motorised Auto / Manual Focus
10:0, fixed
9:1, fixed
1.7x Motorised
Motorised Manual Focus
Motorised Auto Focus
10:0, fixed
9:1, fixed
3000 lumens
4000 lumens
IMAGE AND AUDIO
Brightness
3200 lumens
4000 lumens
3500 lumens
Brightness Uniformity
88%
Contrast Ratio
Projection Distance Coverage
1000:1 (full on / full off)
1.2m - 9.1m
(3.0 - 4.4m for 100" image)
Screen Size
Digital RGB Compatibility
Analogue RGB Compatibility
Component Video Scan
Systems
1000:1 (full on / full off)
1.2m – 9.0m
(3.0m - 4.9m for 100" image)
Vertical: +/- 20° (Auto / Manual),
Horizontal: None
Vertical: +/- 20°
(Auto / Manual),
Horizontal: +/- 20° (Manual)
40" – 300" (81 x 61cm - 610 x 457cm)
Digital Zoom Magnification
Keystone Correction Range
900:1 (full on / full off)
1.2m - 9.1m
(3.0 - 4.4m for 100" image)
1.2m – 9.0m
(3.0m -4.9m for 100" image)
1x – 12x
Vertical: +/- 20°
(Auto / Manual),
Horizontal: None
Vertical: +/- 20° (Auto / Manual),
Horizontal: +/- 20° (Manual)
WUXGA / UXGA / WSXGA+ /
SXGA+ / WXGA+ / SXGA /
XGA / SVGA / VGA
SXGA+ / SXGA / WXGA / XGA / SVGA / VGA
WUXGA / UXGA / SXGA+ /
WXGA+ / SXGA / WXGA /
XGA / SVGA / VGA
—
XGA / SVGA / VGA
UXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA
1080p / 1080i / 1035i / 720p
/ 576p / 576i / 480p / 480i
1080i / 1035i / 720p / 575p / 575i / 480p / 480i
Scanning Frequency
Horizontal: 15-75kHz,
Vertical: 50-85Hz,
Clock: 170 MHz
Horizontal: 15-100kHz, Vertical: 50-100Hz,
Clock: 170MHz
Image Modes
Standard, Presentation,
Movie, sRGB, Photo
Video / S-Video Colour
Systems
1080p / 1080i / 1035i / 720p / 576p / 576i / 480p / 480i
1080i / 1035i / 720p / 575p /
575i / 480p / 480i
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Image Enhancement
Standard, Presentation, Movie
& Photo, Adobe RGB, sRGB
Standard, Presentation, Movie
& Photo, Adobe RGB, sRGB
Standard, Presentation,
Movie, sRGB, Photo
Standard, Presentation,
Movie, sRGB
12-bit Digital Gamma Correction, 6-axis Colour Adjust
Built-In Audio
Horizontal: 15-100kHz, Vertical: 50-100Hz,
Clock: 170MHz
Horizontal: 15-75kHz, Vertical: 50-85Hz,
Clock: 170MHz
12-bit Digital Gamma Correction
12-bit Digital Gamma
Correction, 6-axis Colour Adjust
Mini-D-Sub 15-pin
(Analogue only)
DVI-I 29-pin
(HDCP compatible)
—
—
—
Mini D-Sub 15-pin
—
Mini-DIN 4-pin
1.0W RMS, Monaural
CONNECTORS
Digital RGB /
Analogue RGB Input 1
Digital Video /
Digital Audio Input
DVI-I 29-pin
(HDCP compatible)
HDMI Version 1.3
(with Deep Colour)
—
HDMI Version 1.3
(with Deep Colour)
—
Analogue RGB Input 2
Mini D-Sub 15-pin
Analogue RGB Output
Mini D-Sub 15-pin
Component Video Input
S-Video Input
Via 3x RCA adaptor cable (supplied)
—
Mini-DIN 4-pin
Composite Video Input
RCA x 1
Audio Input 1
3.5mm stereo mini-jack
Audio Input 2
3.5mm stereo mini-jack
—
Audio Input 3
3.5mm stereo mini-jack
—
3.5mm stereo mini-jack
Audio Output
3.5mm stereo mini-jack (variable level)
—
3.5mm stereo mini-jack (variable level)
Mouse Control
Service Port / Projector Control
Network Port
—
USB Type B
Mini D-Sub 9-pin
Mini-DIN 8-pin
RJ-45
Via optional network adaptor
3.5mm stereo mini-jack
USB Type A
(PictBridge enabled)
—
USB Type B
Mini D-Sub 9-pin
RJ-45
Mini-DIN 8-pin
—
Via optional network adaptor
MECHANISMS
Front Elevation Mechanism
One-Touch mechanical foot, 10° maximum image elevation
Rear Adjustment Mechanism
Two rotary feet for fine adjustment
RATINGS
Dimensions (W x H x D)
Weight
284 x 114 x 336mm
266 x 114 x 336mm
5.0kg
4.8kg
Rated Supply Voltage
Power Consumption
Noise Level
332 x 121 x 340mm
4.7kg
266 x 114 x 336mm
5.2kg
5.0kg
4.8kg
Normal Mode: 330W / Quiet
Mode: 270W / Standby: 15W
Normal Mode: 320W / Quiet
Mode: 260W / Standby: 8W
100V – 240V AC, 50/60Hz
Normal Mode: 400W / Quiet
Mode: 330W / Standby: 11W
Normal Mode: 360W / Quiet
Mode: 290W / Standby: 7W
Normal Mode: 355W / Quiet
Mode: 290W / Standby: 7W
Normal Mode: 36dBA /
Quiet Mode: 32dBA
Normal Mode: 35dBA /
Quiet Mode: 31dBA
Operating Environment
+5°C to +35°C
Storage Environment
-30°C to +60°C
Warranty
3 years
Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods. Specifications are subject to change without notice.
™ and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries.
Canon Inc.
www.canon.com
Canon Europa N.V.
www.canon-europe.com
English Edition 0113W057
© Canon Europa N.V., 2009 (0909)
Canon Europe Ltd
3 The Square
Stockley Park
Uxbridge
Middlesex
UB11 1ET
United Kingdom
Normal Mode: 360W / Quiet
Mode: 290W / Standby: 7W
Normal Mode: 36dBA /
Quiet Mode: 32dBA
Download PDF

advertising
